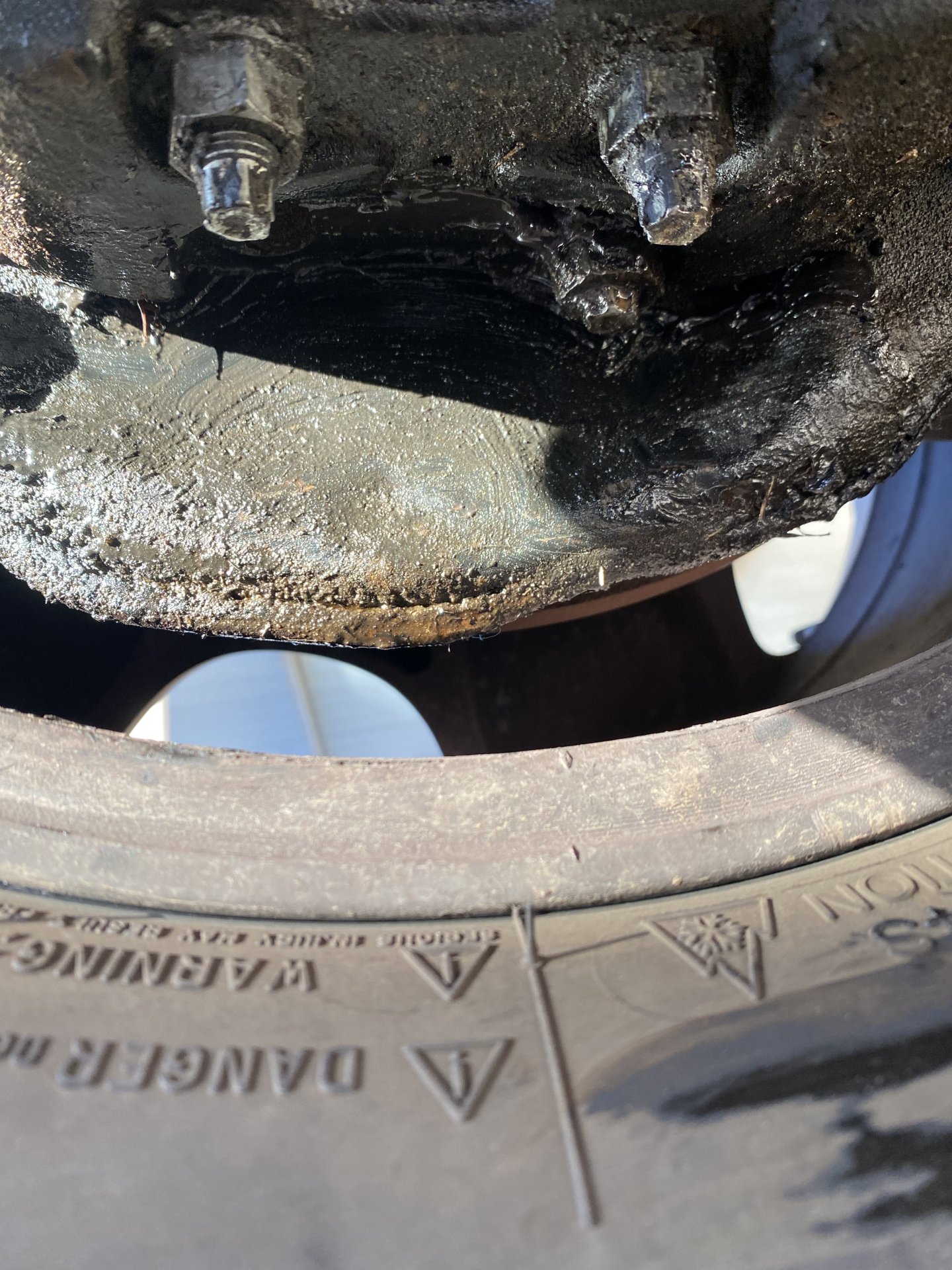

Peeked underneath my truck today and found a knuckle stud missing on the right, all 4 are present on the left.

What’s more concerning is the inner 2 are bent into the brake dust cover so I can’t fit a wrench to tighten them. On a scale of 1 to 10 (catastrophic) how bad do y’all think they are?

I haven’t been wheelin it at all, though there is a pretty steep incline leading up to my apartment complex, I make the right turn and always hit the right tire first, maybe that’s why it’s in worse shape?

Any help is appreciated, thanks
B964F1B8 FC2A 4B8B B216 F1D7DBBED7E2

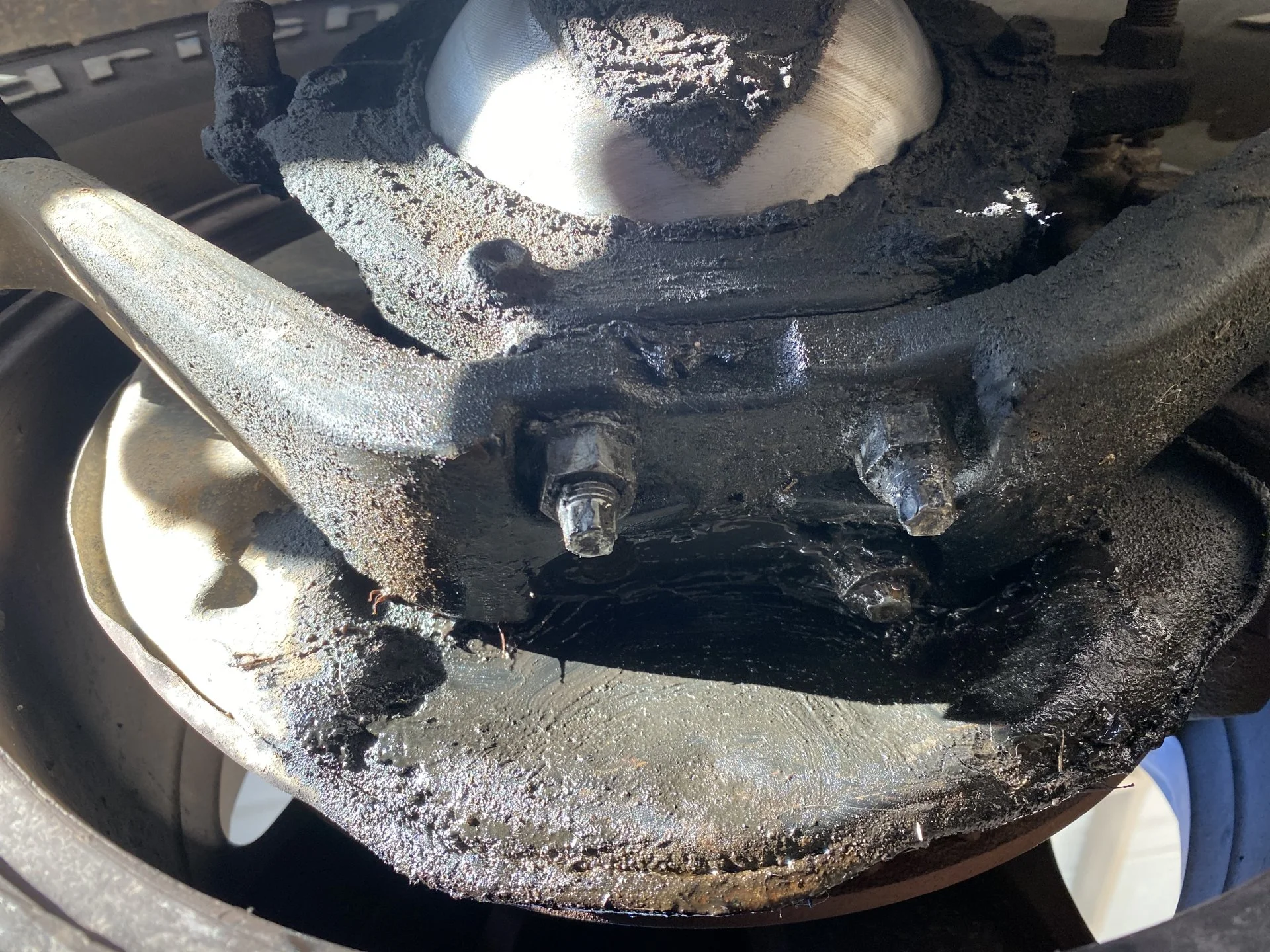

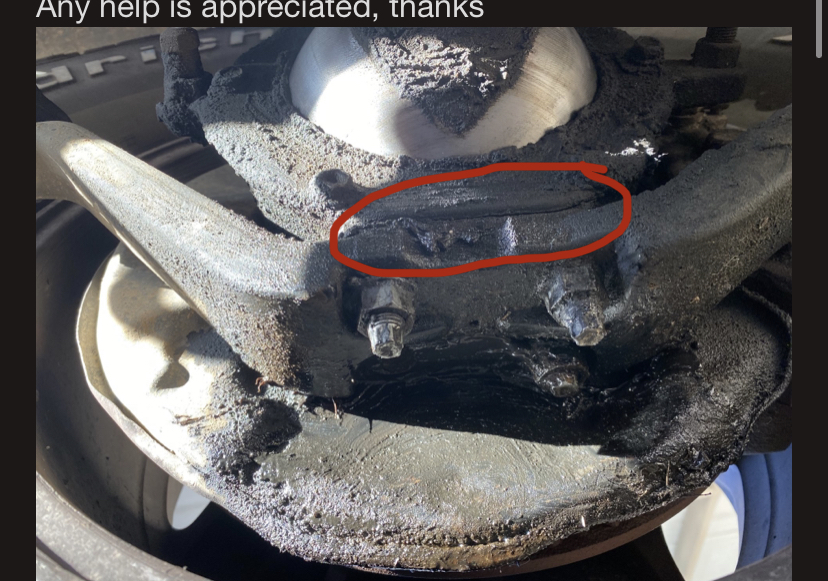

This is the right front wheel.


CA5EA8F3 132F 4829 9CE3 5AB1E572BF9B

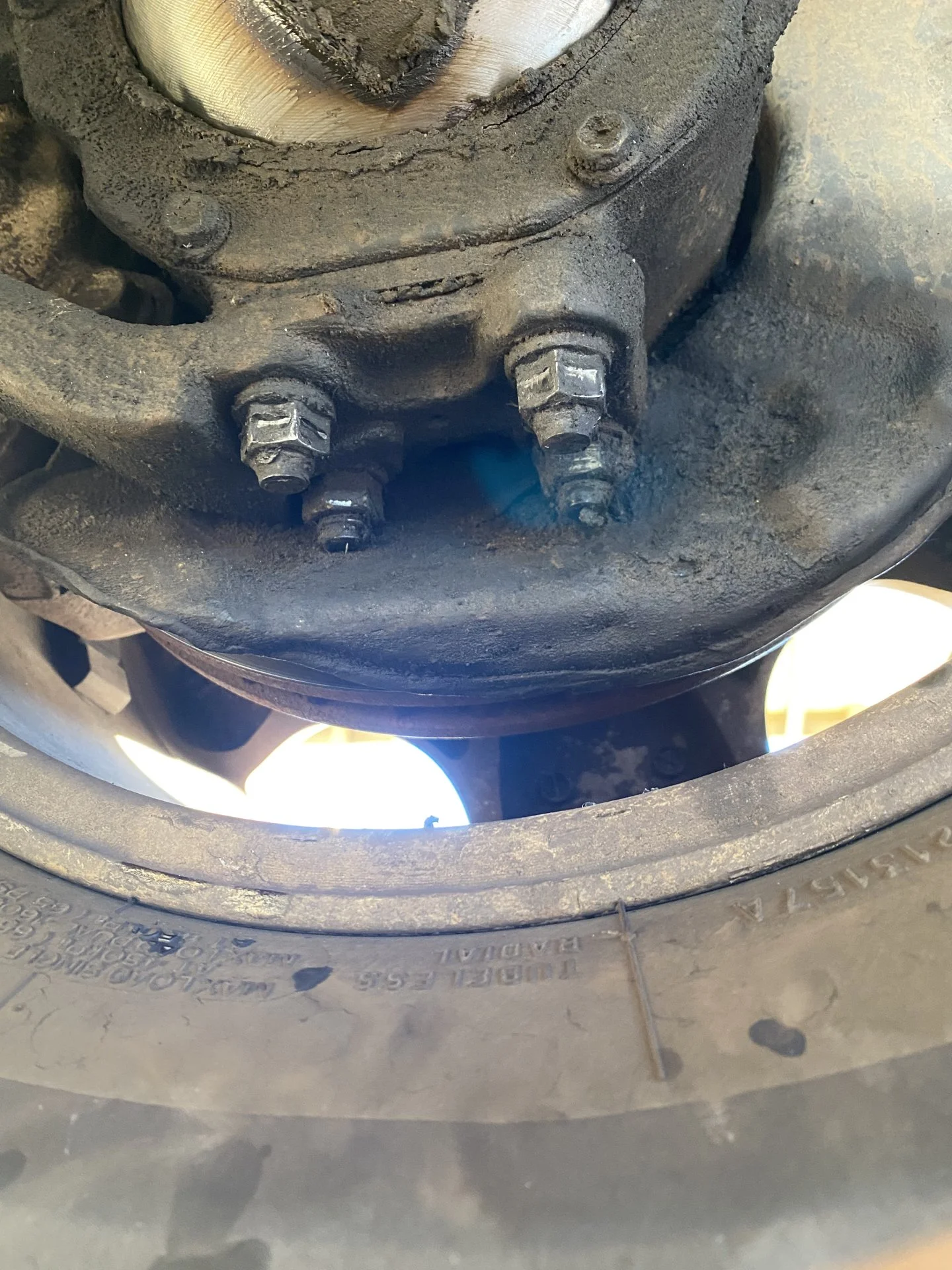

This is the left, the inner 2 are tucked into the brake cover.

D

Desertmedic80

Joined
May 18, 2021
Messages
30
Location
Corpus Christi, Texas

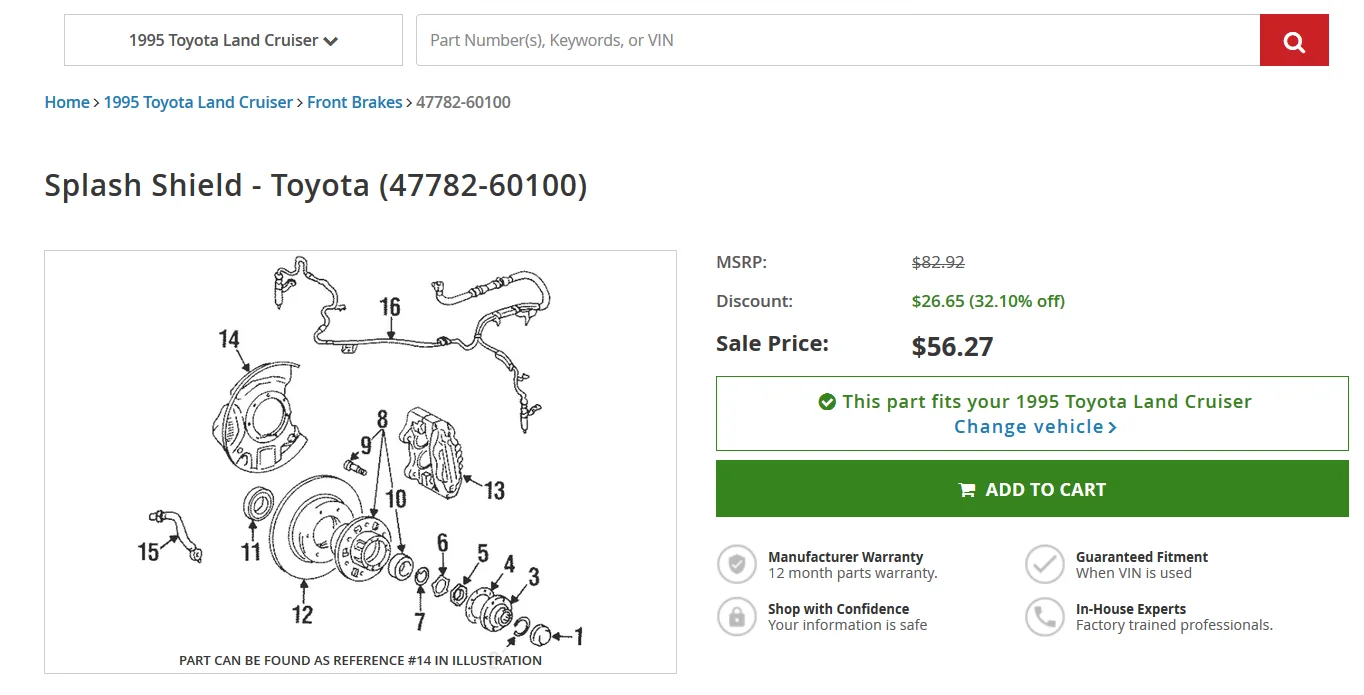

Dust cover is bent into them not them into the dust cover. Hammer or wedge something in the dust cover and bend back toward the brake rotor and you will be able to get a wrench on the nut. Both look like they need to be rebuilt. There are a number of threads/vids on doing the job yourself if you are so inclined. I would try and find another dust cover for the one side if you cannot get it back into shape. Not sure if they are still available or if it something that would need to be sourced from a parts cruiser. Good luck.

As far as the stud that is broken hopefully once you get it apart there is enough of it left that you can grab it with a pair of vice grips and get the rest out. Otherwise you will have to drill it and use an ease out. Not the end of the world though.

LandLocked93

LandLocked93

SILVER Star
Joined
Jun 11, 2018
Messages
1,240
Location
Colorado
Kinda looks like the two inner studs on the right side have been replaced as they are a bit longer than the remaining 5. 🤔 Maybe not.
Think you're somewhere between hella sketchworthy and not safe to drive, especially when you "make the right turn and always hit the right tire first"? What exactly are you hitting? Or I misunderstand. Can't be doing any favors for the remaining 3 bolts performing the job that 4 bolts should be.
Good thing you took a look under. 👍

SpenserAK

SpenserAK

Joined
Jul 26, 2020
Messages
295
Location
Juneau, Alaska
Rebuild videos from respected folks like OTRAMM do not appear to be replacing studs or hardware. Read a few opinions during research, but what is the general consensus on replacing during a rebuild? If first time for the rig, definitely replace originals? Or still depending on condition? All studs & washers, or just the 4 for steering arms? Grabbed a few studs in case of breakage, but will probably order the rest anyway - small price to pay “while you’re in there.” Probably answered my own question.

Last edited:
cog97

cog97

Joined
Oct 5, 2020
Messages
46
Location
LA/Bay Area
Kinda looks like the two inner studs on the right side have been replaced as they are a bit longer than the remaining 5. 🤔 Maybe not.
Think you're somewhere between hella sketchworthy and not safe to drive, especially when you "make the right turn and always hit the right tire first"? What exactly are you hitting? Or I misunderstand. Can't be doing any favors for the remaining 3 bolts performing the job that 4 bolts should be.
Good thing you took a look under. 👍
There’s an inclined road leading and I make a right turn contacting the right tire first instead of the front pair together

jpoole

jpoole

Joined
Sep 15, 2016
Messages
908
Location
Chattanooga, TN
@cog97 I think you get it but if not, you really need to address your knuckle studs.

It appears that the steering arm is moving on the knuckle which means that the 3 remaining studs are loose. Obviously one stud is broken/missing already and the other three have similar wear and tear to that failed one but are now carrying more load while being compromised by being run loose. You put other people, yourself and your 80 at risk driving it like this. Getting a nice solid torque on the three remaining studs may buy you some time but you need to just go ahead and replace the studs, cone washers and nuts following best practice. It's not that hard or expensive, especially compared to the risk of failure these pose currently. In cases where they haven't been beat up, run loose, etc. I don't think there is an issue with reusing the studs/etc. but when there is risk that they are damaged just replace them.

South Texas 97

South Texas 97

Joined
Dec 4, 2020
Messages
123
Location
South Texas
Yes, do it. Just finished mine a couple of weeks back. Great maintenance guide on the forum. OTRAMM video.
only tricky bit for me was getting the cone washers off. In your case, looks like they will fall out. I used an old chisel and light hammer taps on the split in the cone washer, and you can get one to pop out, after that, the rest should be easy.

LandLocked93

LandLocked93

SILVER Star
Joined
Jun 11, 2018
Messages
1,240
Location
Colorado
Rebuild videos from respected folks like OTRAMM do not appear to be replacing studs or hardware. Read a few opinions during research, but what is the general consensus on replacing during a rebuild? If first time for the rig, definitely replace originals? Or still depending on condition? All studs & washers, or just the 4 for steering arms? Grabbed a few studs in case of breakage, but will probably order the rest anyway - small price to pay “while you’re in there.” Probably answered my own question.
FWIW when I did mine, I replaced the studs and lock washers, but not the cone washers or nuts.
Cone washers were not worn and the nuts were in good condition. The lock washers were flat and the studs were just peace of mind.
Also used locktite on the studs - red. Some do and some don't. Again just PoM.
Then blue locktite on the stud nuts.

M

manofthewoods

Joined
Mar 15, 2021
Messages
175
Location
sacramento
FWIW when I did mine, I replaced the studs and lock washers, but not the cone washers or nuts.
Cone washers were not worn and the nuts were in good condition. The lock washers were flat and the studs were just peace of mind.
Also used locktite on the studs - red. Some do and some don't. Again just PoM.
Then blue locktite on the stud nuts.
Agree with you and others. Major peace of mind afterwards.
I did blue locktight, red might be the best in retrospect.

gummycarbs

gummycarbs

Joined
Apr 14, 2016
Messages
1,338
Location
Oregon
what is the general consensus on replacing during a rebuild? If first time for the rig, definitely replace originals?

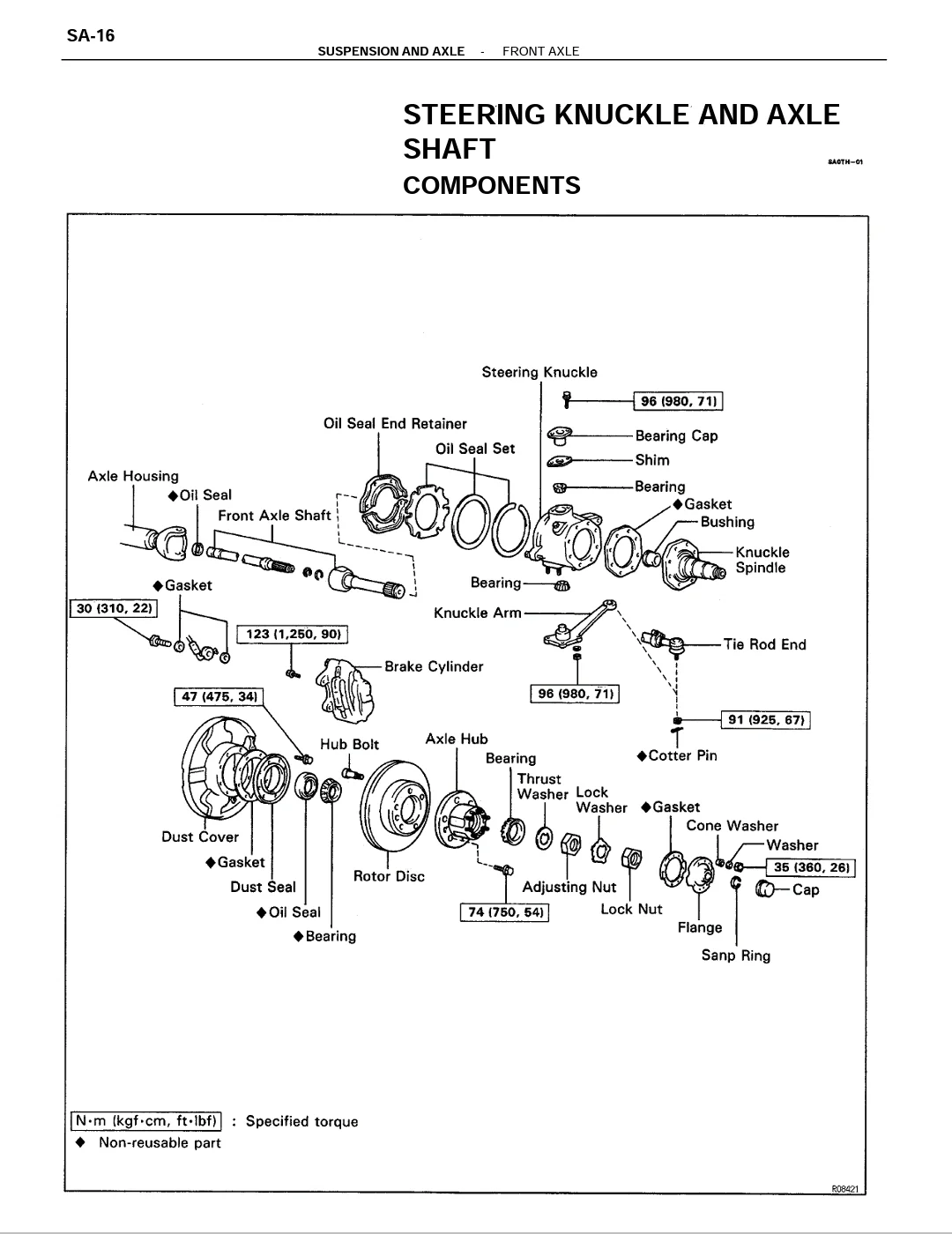

They aren't indicated as replacement items in the FSM. A professional mechanic like OTRAMM -- well, an *ethical* one, anyway -- is only going to replace parts as necessary.

If you're not hurting for money, you might as well order some fresh asparagus, washers, and fasteners. The old ones go in the well-sorted parts bin in the back of the rig. Unless they're damaged, of course, in which case they go in the square not-a-cupholder to toss out the sunroof at tailgaters.

Screenshot 20211113 124943 Adobe Acrobat
