here i go again, i needed a break to clear my head from the troopy build
so
i had an old 74 series hard top sitting here and with the wet summer last year i decided to make a removable fiberglass top for the ragtop 70 series.
measure, measure and one more time ... damn, i think it will work. (it also helps i saw the same idea at auction in Japan).



[Hulsty]

Saw one last week on a bundera, sorry no photos, alspo had a FF rear end swapped in



[crushers]

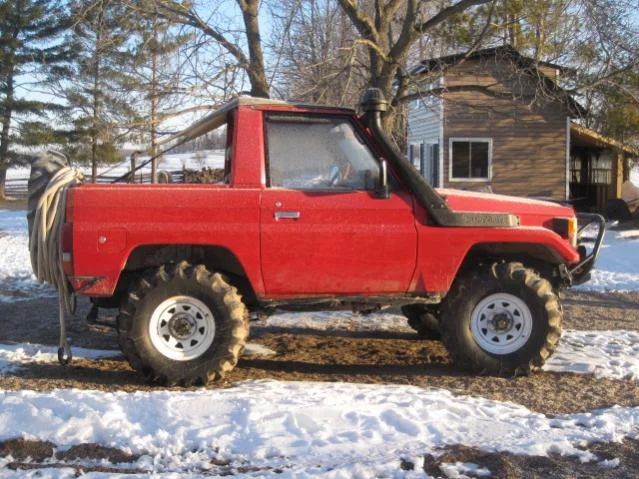

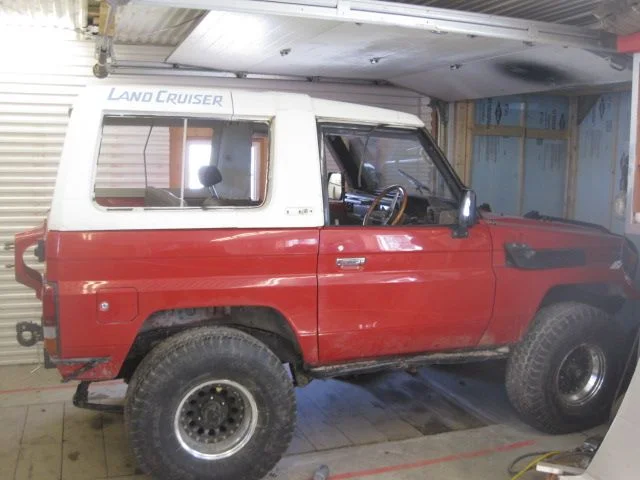

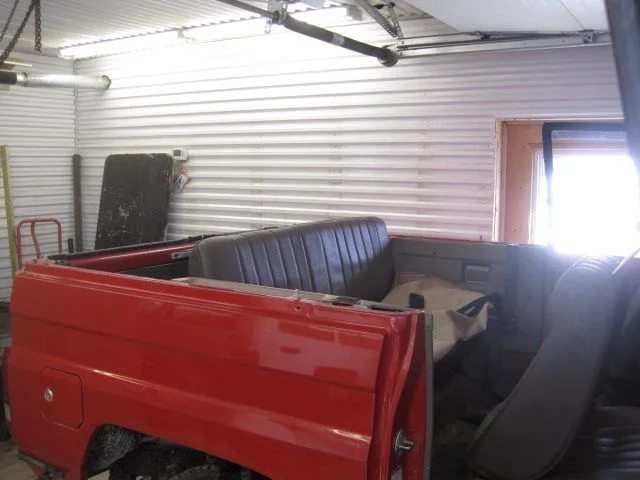

test truck 1991 PZJ70

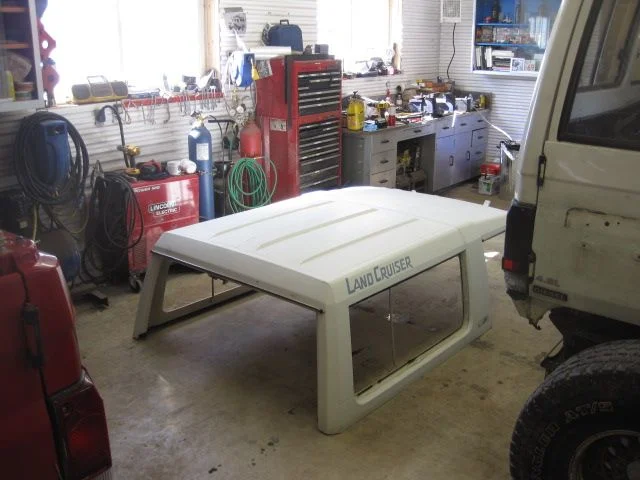

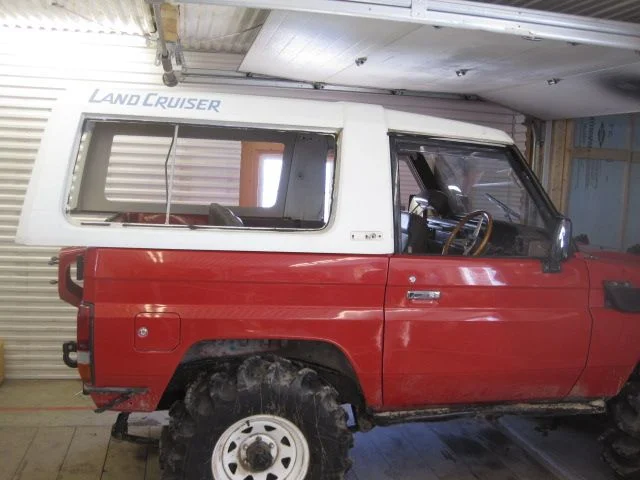

donor hard top

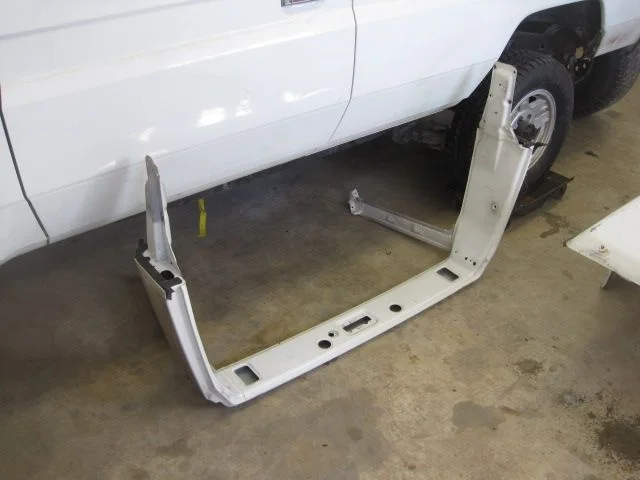

the 'roll bar' and spreaders



[crushers]

remove all attaching points for factory soft top
remove snorkle top section

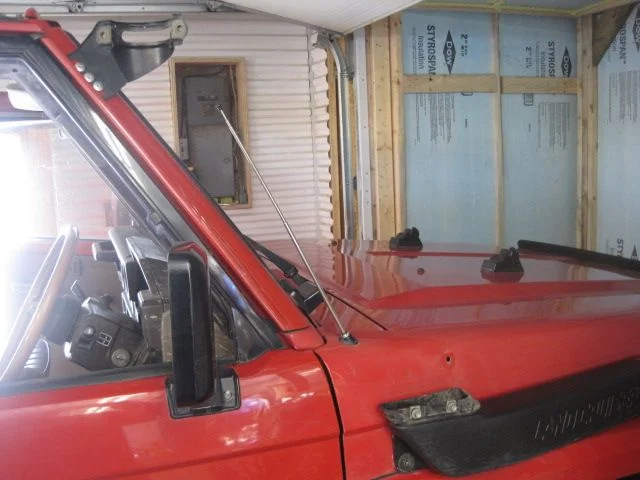

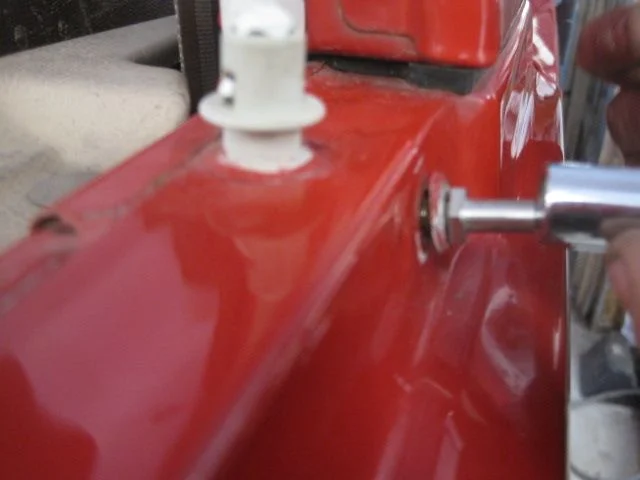

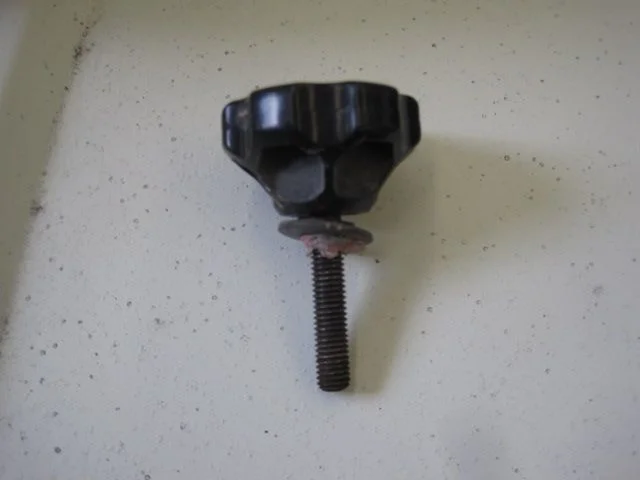

remove hold down screws for windshield.



[crushers]

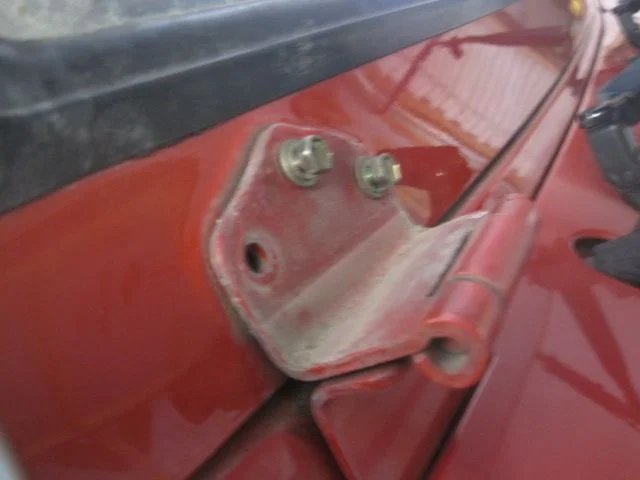

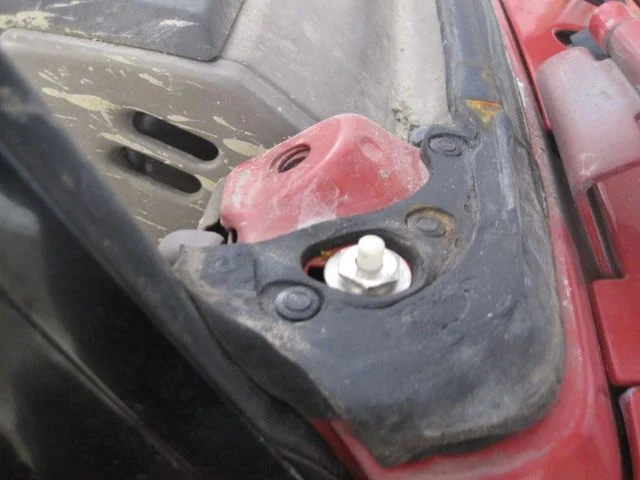

remove black cover and bolts from windshield hinges

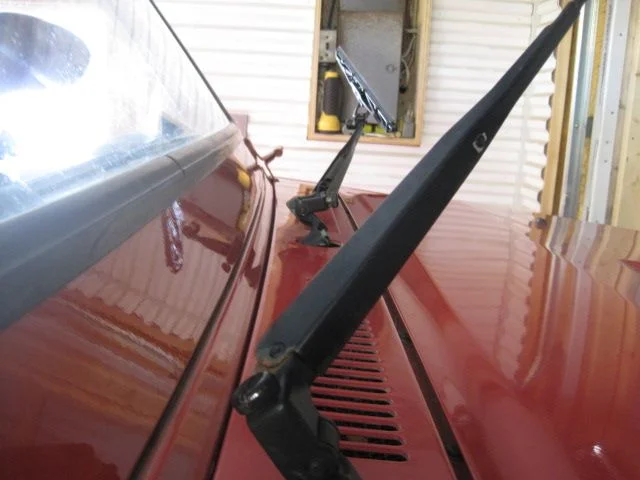

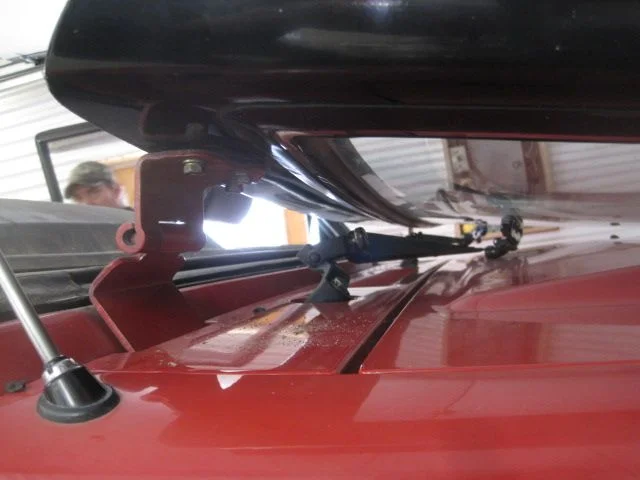

flip wipers out of harms way. if you take a look at the far wiper compared to the closer one you will the second flex section for when you fold down the windshield. the BJ73/74/75 do not have these wiper arms. so far the only 70 series i have seen with these is the ragtop versions. to fold the windshield down on the other versions you have to remove the arms completely.

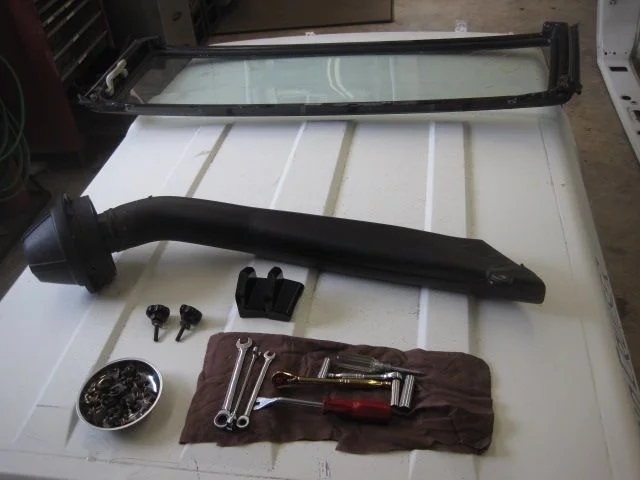

parts so far and replacement windshield frame.



[crushers]

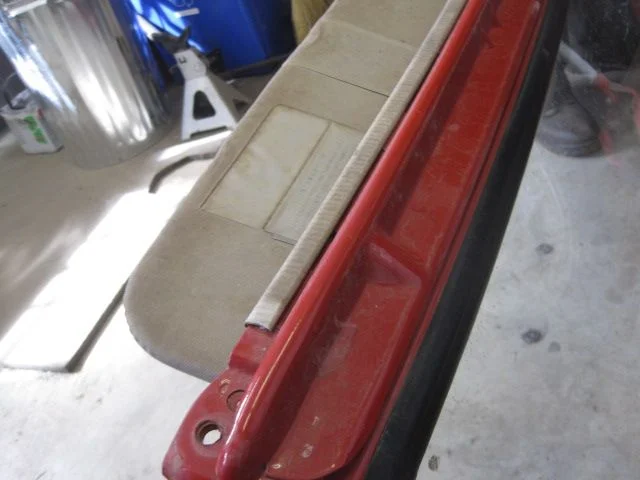

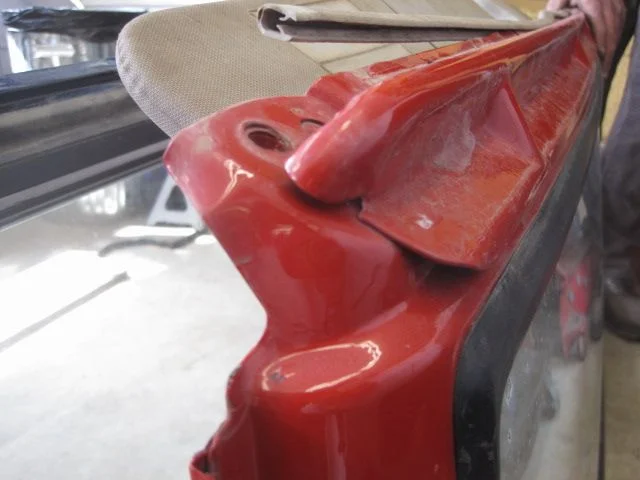

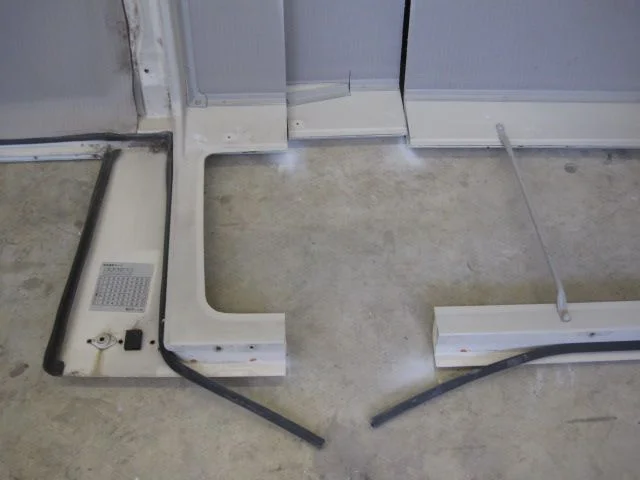

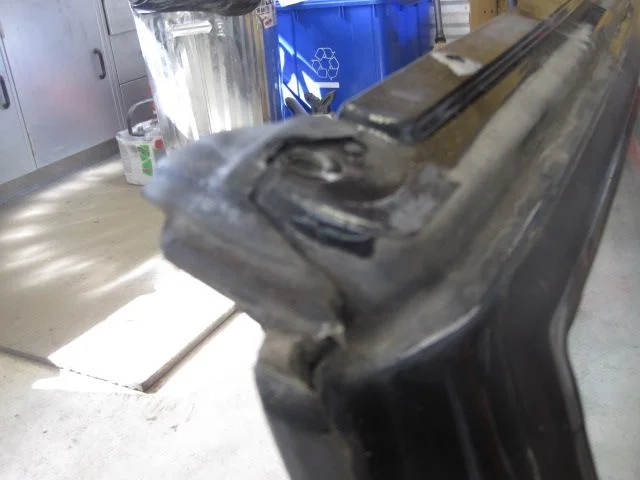

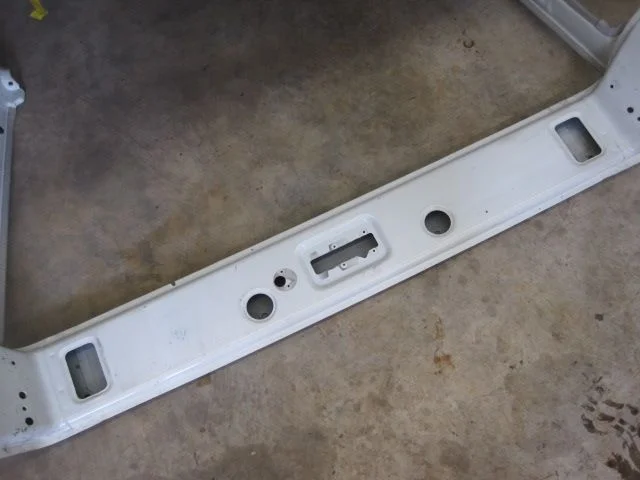

notice the difference between the hard top version of the windshield upper channel and the soft top version.
for those that do nto want to run the soft then you can just drill out the spot welds and reuse the same factory soft top frame to mount the hard top to.
i did not realize the channel was the only difference.



[crushers]

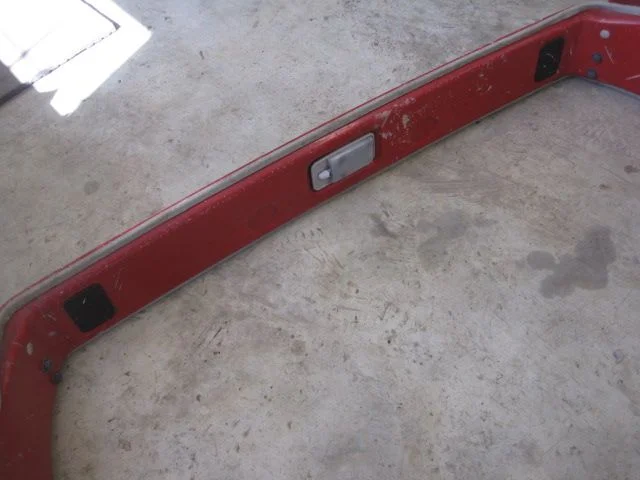

a few more differences, the ragtop has these clip recieves on the removable roll bar

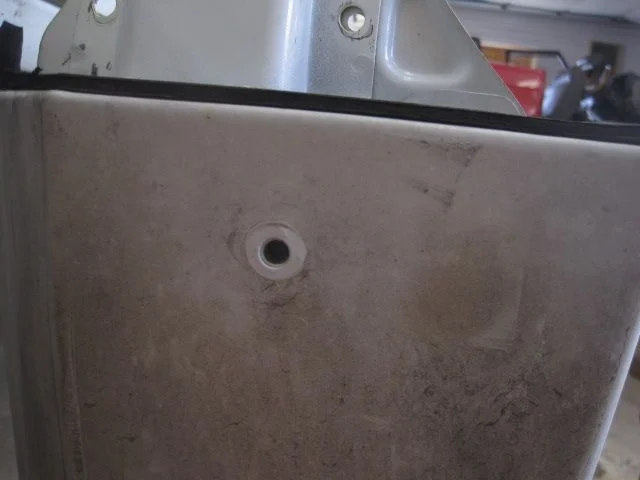

the important bolt hole on the 73/74 series roll bar to keep the hard top from moving in the wind.
the ragtop doesn't have this bolt. if you don't want to change out the roll bar you could use a nutzert to hold the bolt in place. there are cheaper ways to do this build.
i was lucky since i had recieved a good deal on the replacement 74 series windshield frame. not so lucky on the hard top but ... oh well.



[crushers]

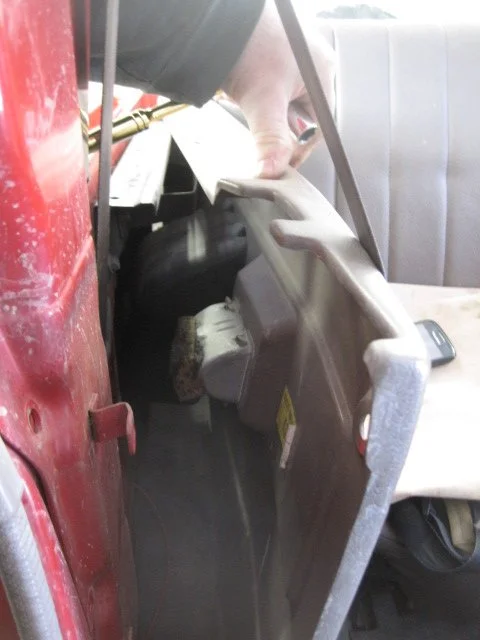

not sure what this switch does that is located under the windshield frame. anyone know?
slight differences between the 74 roll bar and the 70 ragtop. the bolt holes is the one and the soft top retainer grove on the 70 is the other and it is in the way for the hard top to seat properly. i would recommend the 74 series roll bar if you are going down this road. of course you could remove the spot welds if you wanted to do on the cheap.



[crushers]

remove roll bar
install 74 series windshield frame (purchased from Sheldon W, it is in very nice shape and extremely well packaged for the trip across country)
notice how the folding windsheild wiper arms work, pretty slick, eh?



[crushers]

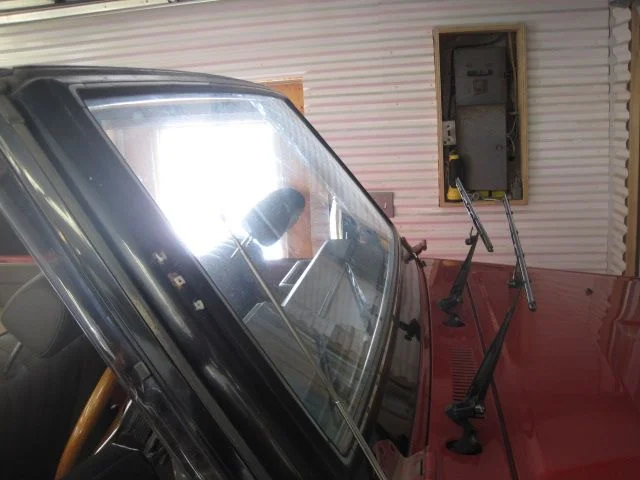

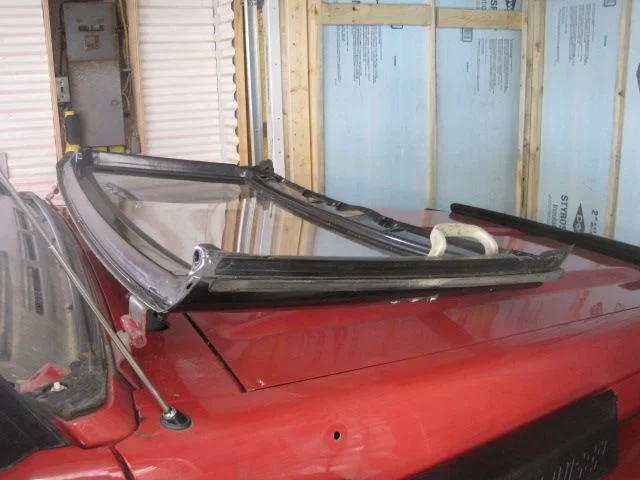

the windshield folded down
the 74 series roll bar installed
ready for the hard top.



[crushers]

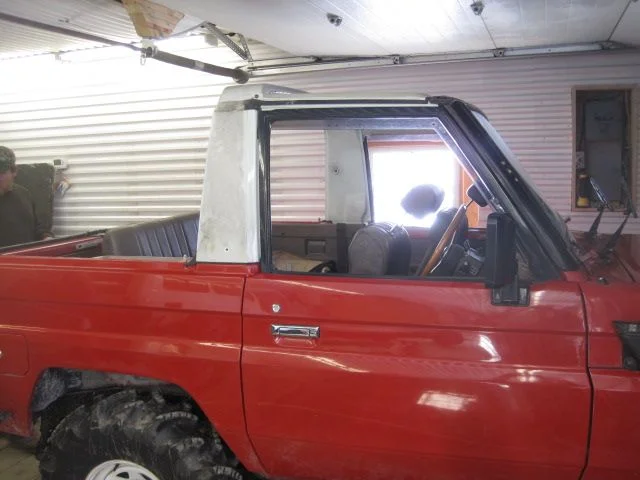

set it on, measure the needed decrease



[crushers]

set it on, measure the needed decrease

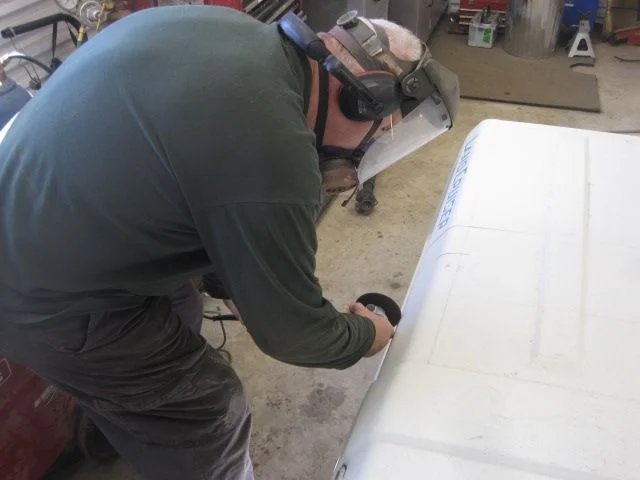

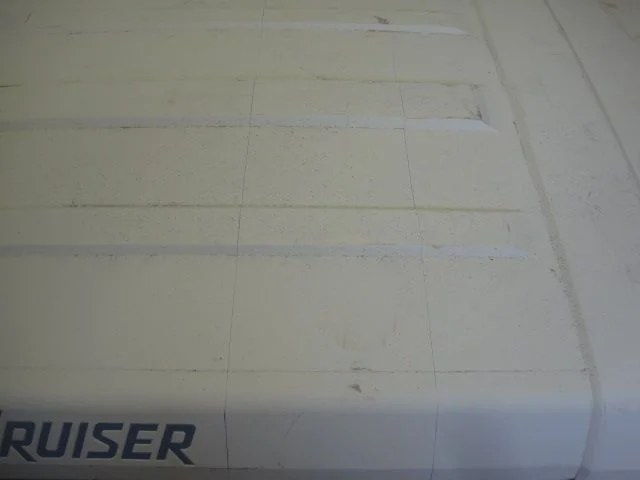

mark the roof, if i was doing it again i would cut the upper section at the rib and the lower in the middle of the window.
hind sight 20/20

also, remove the liner metal trim on the inside top before cutting. :whoops:



[crushers]

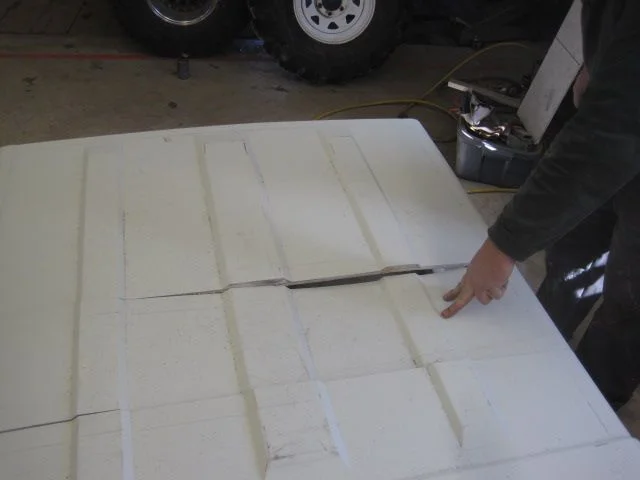

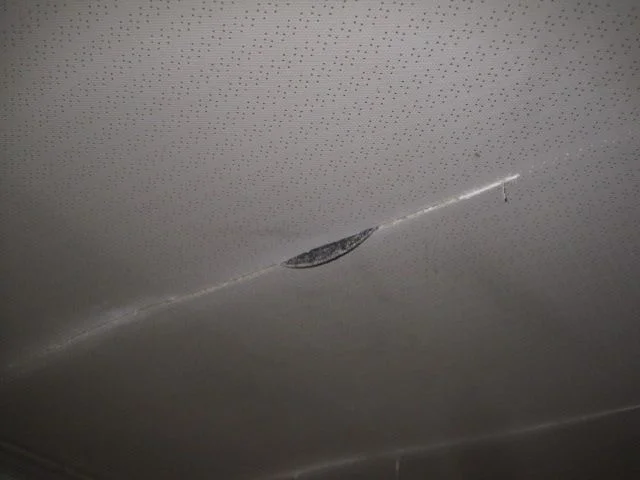

the blade goes all the way through the top section.
you need to flip the roof to do the inner upper corners and the lower section
the hard top is plastic and fiberglass combo.

yes, it is a whee bit ... nerve racking doing the cut.



[crushers]

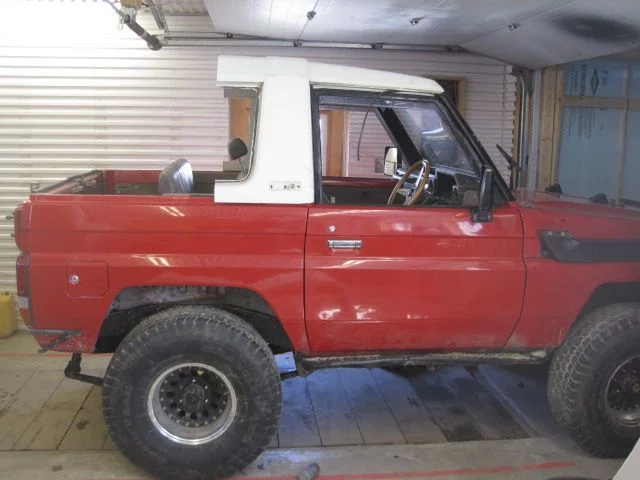

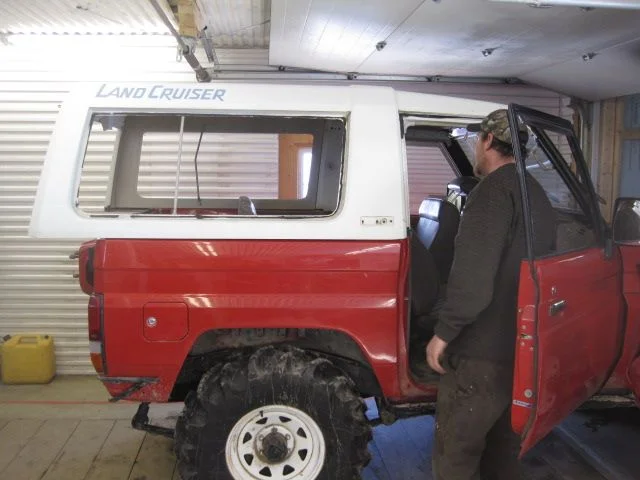

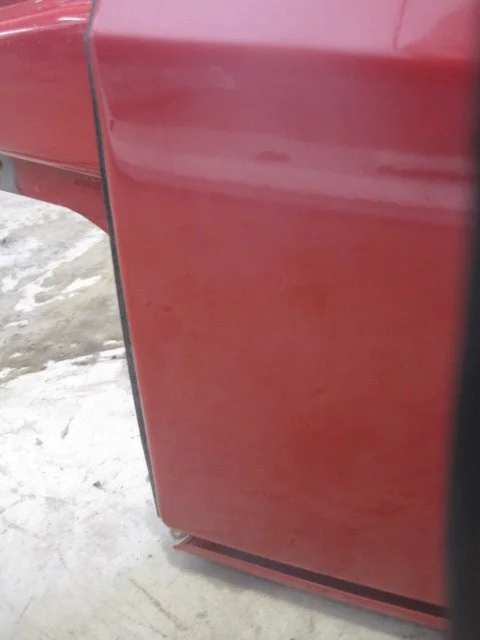

set the front on
set the back on

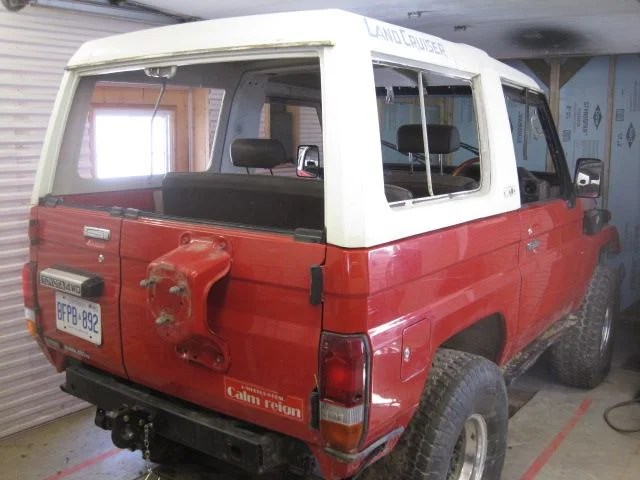

and there you go.

i delivered it to Gozzard, he is a fiberglass wizard so why not use the pro.
i get it back the end of next week.

the top is very light, easy on and off and since i took the soft top off 3 years ago i have yet to reinstall. it is a bugger to install and not the quietest ride over 90 k/h. this will make the truck more versitile and i can still use the bikini top for summer fun.

cheers and thanks for reading.
