Hello Mudders.. I am in need of a wiring harness (partial is ok) with transmission + transfer case controllers for a 1996 Land Cruiser.

This is for a build I'm currently in the middle of, any help would be greatly appreciated. Please let me know what you have. Willing to ship from far and wide - I'm in Alberta, Canada.

Joined
Feb 26, 2018
Messages
19
Location
Utah
I've got one I pulled off a 95. It's complete and in decent shape.

I haven't checked every plug and the plastic part that covers the wires over the top of the valve cover has some damage (tweaked and plastic around bolts seems torn).

I can get you more detailed photos if you want.


Joined
Jul 9, 2012
Messages
1,720
Location
South KC
i'm assuming your doing what I've done, Mechanical Diesel with A343F and 80 series transfer case? I bought an extra harness to do my stand alone. So I have my original with most of the engine side removed when I used the OEM computer to control it. let me know if your interested pulled from my 1996

Joined
Jul 9, 2012
Messages
1,720
Location
South KC

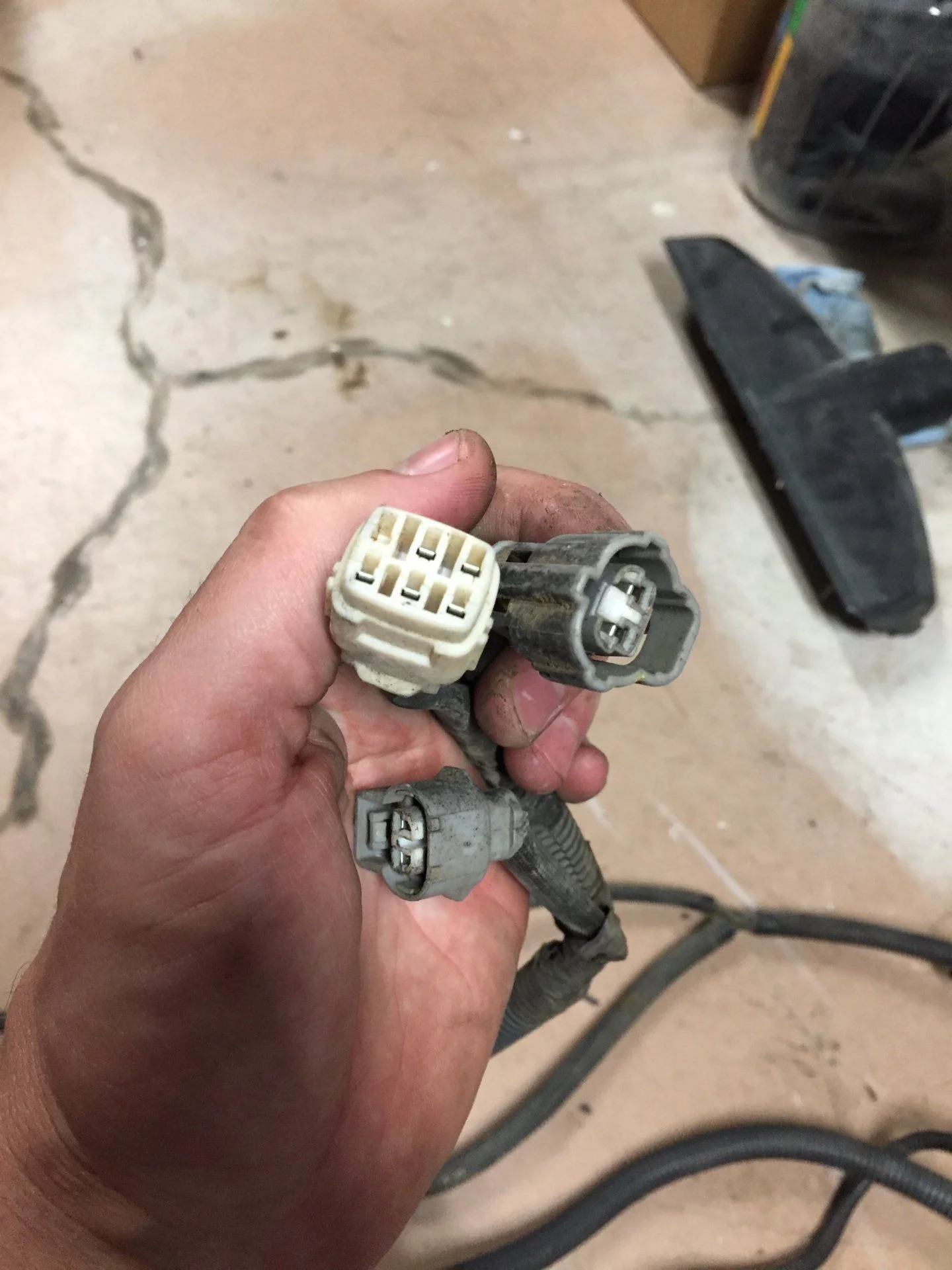

this Picture is the trans temp sensor and the shift position indicator or right side of trans not through the 2 bellhousing conections .

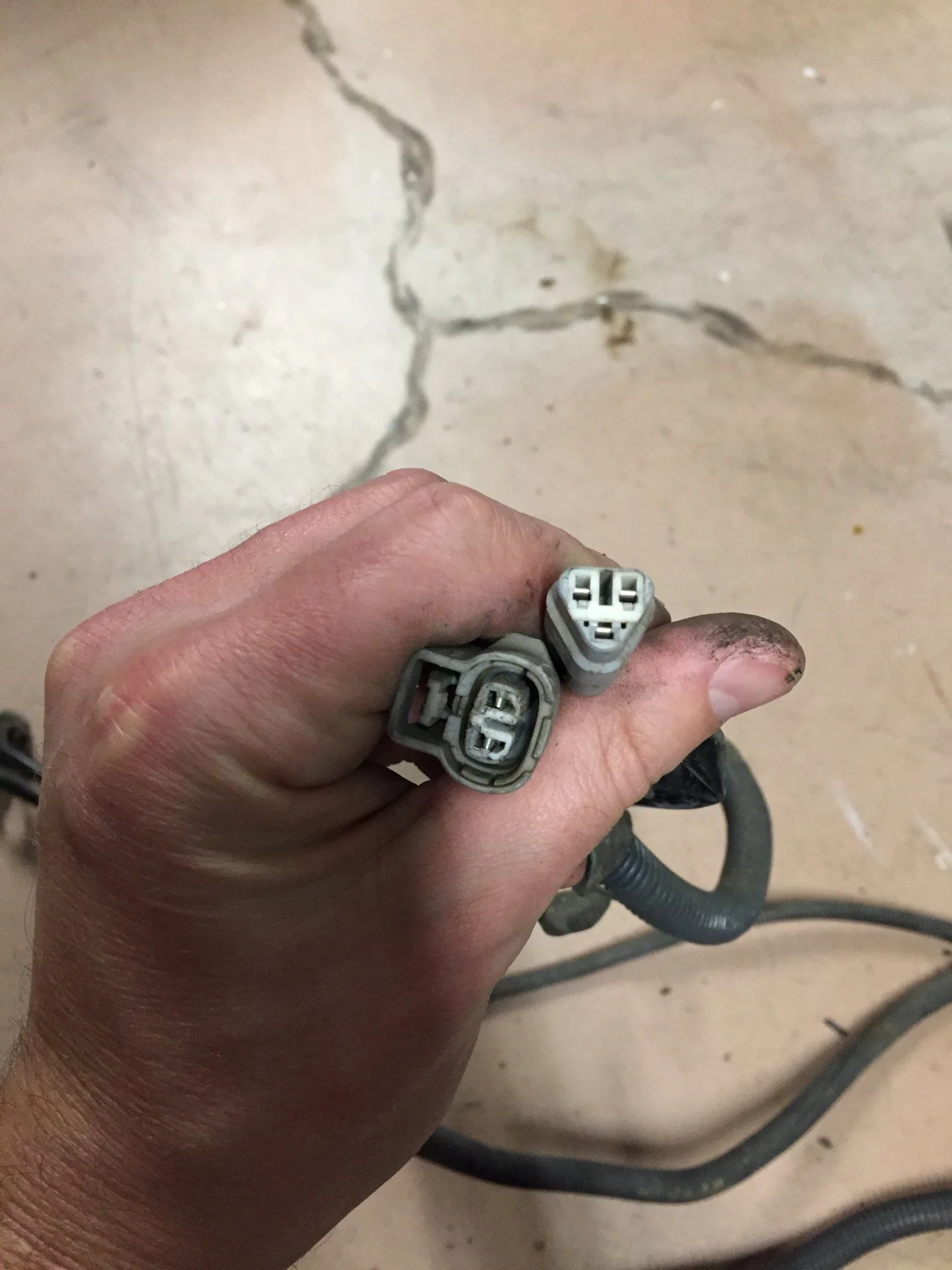

This picture is the trans connection near bell housing going back to the back side of trans and the transfer case

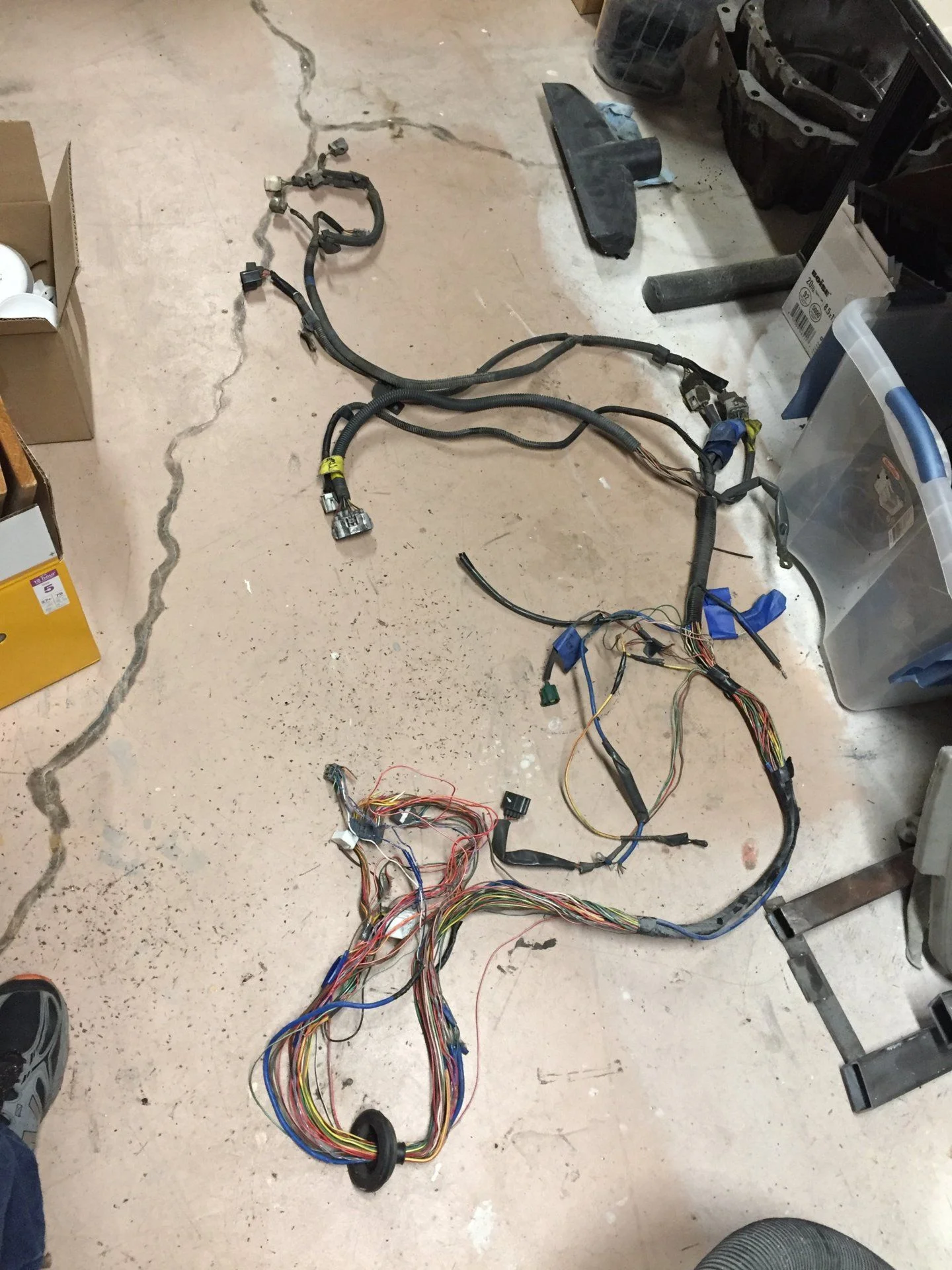

Picture of the whole harness

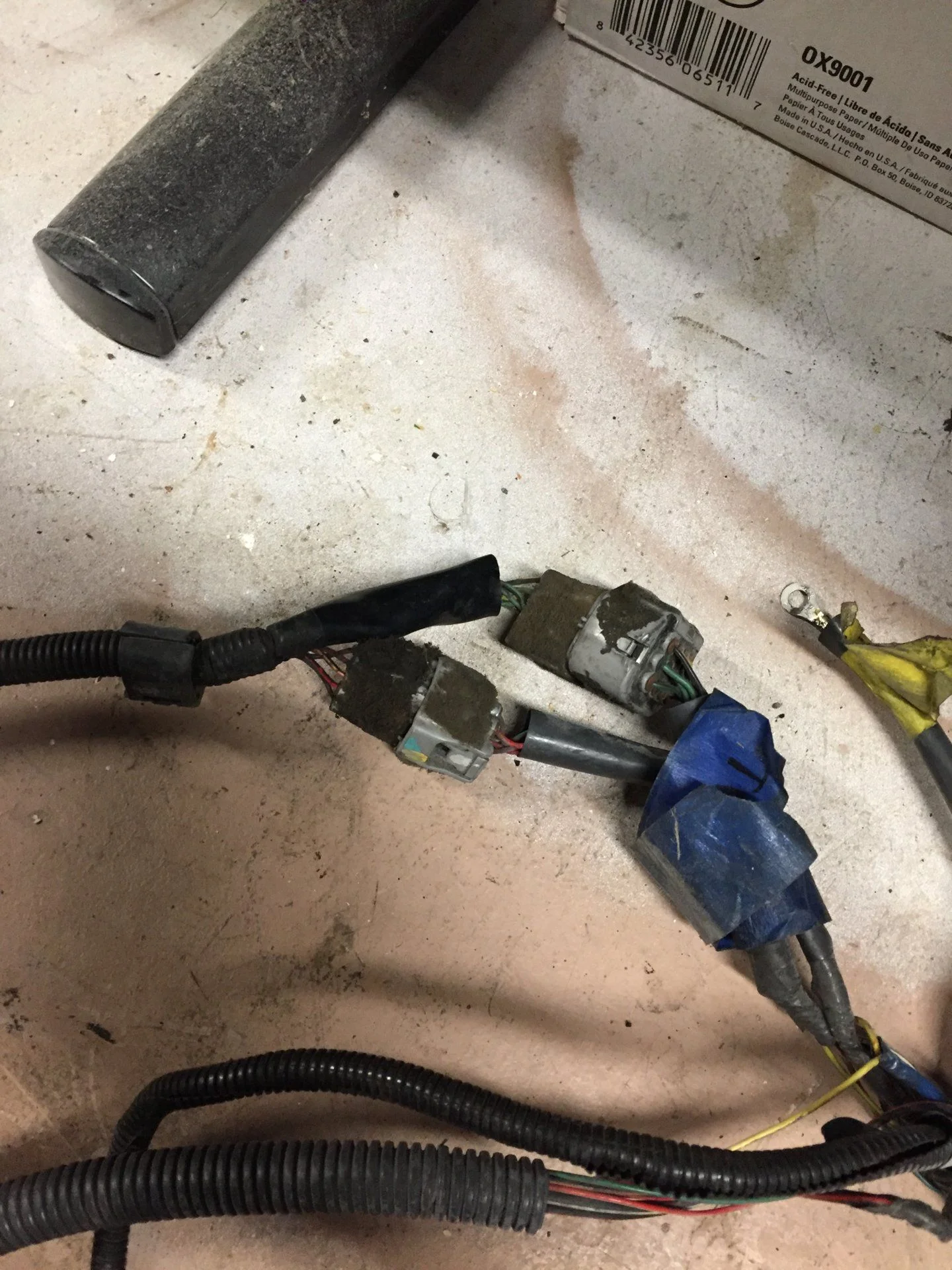

These atach on the left side of the rear side of the trans



These are the speed sensors on the rear of transfercase

Joined
Jul 9, 2012
Messages
1,720
Location
South KC
These are the transfer case locker and position sensors



As I mentioned in pm there are different styles of the a343f not sure why version you have so look at connectors close the newer uses a 4th solenoid for line pressure and the 80series us s a mechanical cable to throttle position for line pressure control. I’m assuming wiring harnesses are different.
