FJ60 $35 LED Dash Light Upgrade - Pics

Joined
Jun 9, 2017
Messages
53
Location
New Jersey
SuperBrightLED sourced.
Arrived quickly.

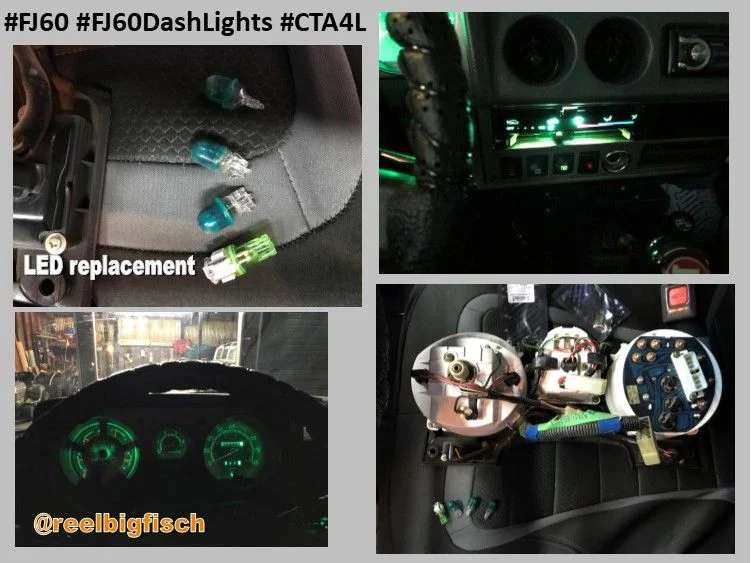

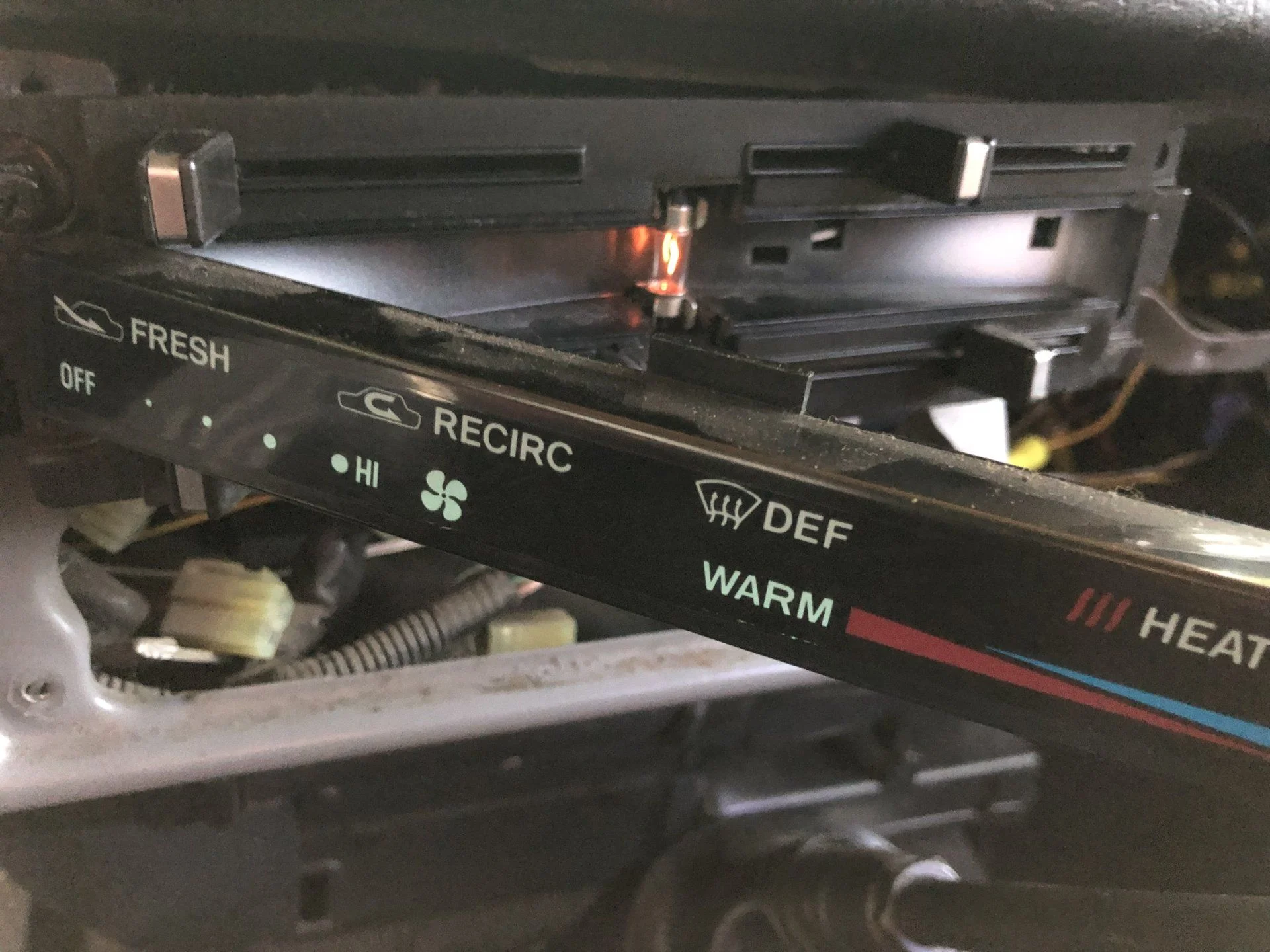

HVAC bulb is not a green LED...instead one of their brighter bulbs for this application...BRIGHT! (never worked before...missing)



Joined
Jun 9, 2017
Messages
53
Location
New Jersey

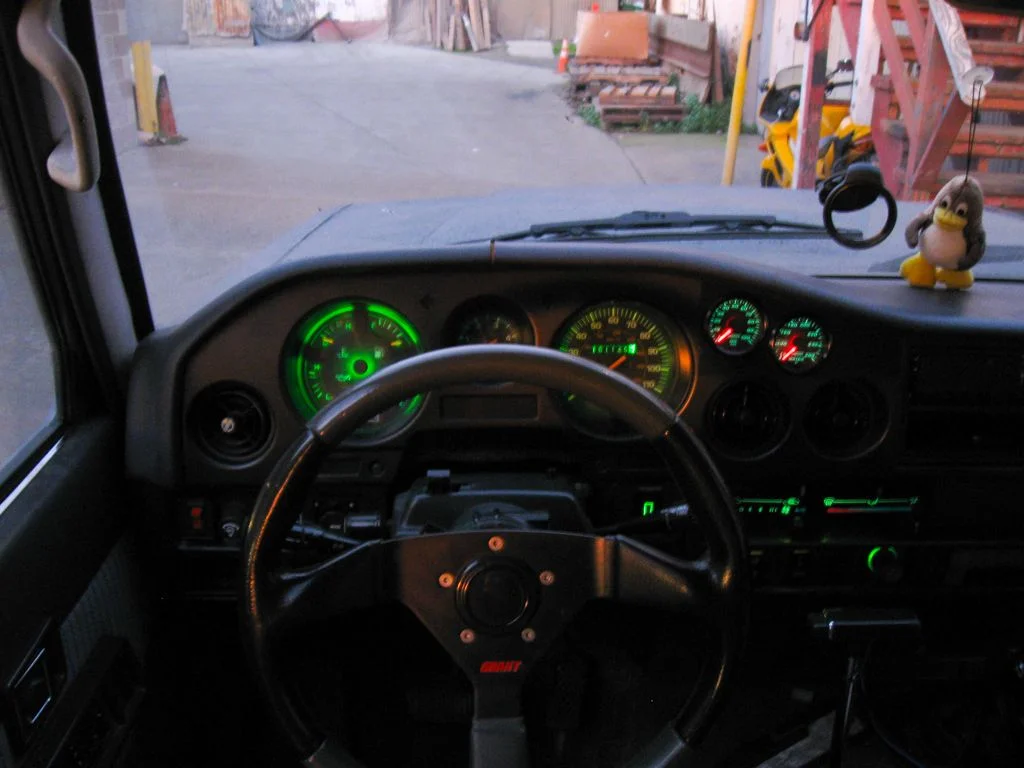

Yep. I've got them rolled all the way dim and they're still pretty bright. When turned up (bright)...they're really bright! I don't mind that one bit but some people might prefer the analog feel of the old dim bulbs...I had a hard time seeing the gauges @ night even with the dimmer turned all the way up (bright)...Not anymore!

Joined
Dec 25, 2010
Messages
771
Location
Camas, WA/Portland
Did you remove the metal shade behind the hvac bulb?

Also, do you have a part # and where you picked up the dash cluster bulbs? I like the green glow it has.

Joined
Jun 9, 2017
Messages
53
Location
New Jersey
simply remove old incandescents and install LEDs? interesting...
Yep...simple.

How many bulbs of each type did it require?
4 of the green LED's for the gauge cluster + one more for the HVAC. I saw on another post where guys were swapping out their turn signal bulbs, choke light bulb, high-beam indicators, etc...I wasn't going that route. I just wanted my gauges to be visible @ night.

Did you remove the metal shade behind the hvac bulb?

Also, do you have a part # and where you picked up the dash cluster bulbs? I like the green glow it has.

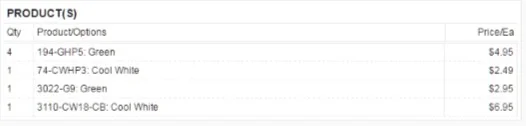

Did not remove the metal shade. Part numbers below...


bwesty

SILVER Star
Joined
Mar 2, 2006
Messages
977
Location
In the mountains
I noticed a huge improvement over the old bulbs when I replaced mine, though I went a slightly different route after trying some different options from LED to standard bulbs.

This is what ultimately I found worked very well -

(3) ea 194 bulb type
(3) ea green sleeves
(1) WLED - CW5 194 LED BULB for RPM TACH
3110 W10 CB - HVAC control light

This thread was a huge help in determining viable options -
I ended up going this path in the long run due to the clarity and consistency of the light emitted plus I was a huge fan of the white lit tach gauge for ease of viewing and also kept it looking near original vintage - LED light swap (lots of pics! dial-up=bad)


LED light swap (lots of pics! dial-up=bad)


gregnash

Anal Retentive Analyst
SILVER Star
Joined
Nov 3, 2011
Messages
12,425
Location
Carson City, NV
I did this and then went back to the standard incandescent bulbs. Just didnt like the tone of the light and really, even at their dimmest, they were still too bright I thought. A good set of incandescents will work just fine and throw a more even light.


houstonfj40

SILVER Star
Joined
Dec 30, 2015
Messages
499
Location
Houston, TX
@gregnash which bulbs did you go with? Have some dash work to do and was going to replace bulbs, but did not want LED. Also, do I need to remove the heater control panel to replace the HVAC bulb? Doing both the 60 and 62. Sourced some NOS plastic without broken tabs!

Marc


gregnash

Anal Retentive Analyst
SILVER Star
Joined
Nov 3, 2011
Messages
12,425
Location
Carson City, NV
@gregnash which bulbs did you go with? Have some dash work to do and was going to replace bulbs, but did not want LED. Also, do I need to remove the heater control panel to replace the HVAC bulb? Doing both the 60 and 62. Sourced some NOS plastic without broken tabs!

Marc
Went with whatever is considered the standard bulb for these (think its like a 94 bulb or something like that) just found a 8 pack from amazon that had the green condoms on them already and they have been flawless. For the HVAC bulb I believe you have to remove the gray switch surround and then pull the little cover plate. @Spike Strip had a write-up on it I think with the correct bulb for that one (or was that the AC bulb).


bwesty

SILVER Star
Joined
Mar 2, 2006
Messages
977
Location
In the mountains
Went with whatever is considered the standard bulb for these (think its like a 94 bulb or something like that) just found a 8 pack from amazon that had the green condoms on them already and they have been flawless. For the HVAC bulb I believe you have to remove the gray switch surround and then pull the little cover plate. @Spike Strip had a write-up on it I think with the correct bulb for that one (or was that the AC bulb).
@gregnash which bulbs did you go with? Have some dash work to do and was going to replace bulbs, but did not want LED. Also, do I need to remove the heater control panel to replace the HVAC bulb? Doing both the 60 and 62. Sourced some NOS plastic without broken tabs!

Marc

Try this -

(3) ea 194 incandescent bulb type
(3) ea green sleeves
(1) WLED - CW5 194 LED BULB for TACH or use standard 194 incandescent in white + bulb sleeve color choice.
3110 W10 CB - HVAC control light

Joined
Aug 16, 2018
Messages
333
Location
Mass/NH Border
So I bought a bunch of LED lights to replace in my dash. After reading a ton on here about the different dash and cluster lights and such I went and bought a few lights from super bright led(which we use for tons of stuff at work). I bought the gage lights which have not gone in yet and the shifter and HVAC light.
So I put the HVAC light 3110-W10-CB and it really didnt fit in the slot well at all. The ends are too wide for the metal clip/connection. It did light up and fit ultimately, even dimmed. Popped the cover back on and drove the 7 minutes home from work. Popped the cover off just to take a peek when I got home and it was almost melting inside. The bulb got so hot it burned my fingers to a blister. The bulb has a freaking heat sink on the back, so I thought that was not a good sign when I put it in. So be careful with these led bulbs and make sure you dont put one in thats gonna start a fire.
This bulb is a no go for me. Back to the incandescent in there.
