Thought I start something new vs crapping all over the work thread.
And might even copy and paste in the 40 section when I'm further along.
So it's looking ccot pieces for both the inner and outer skins.

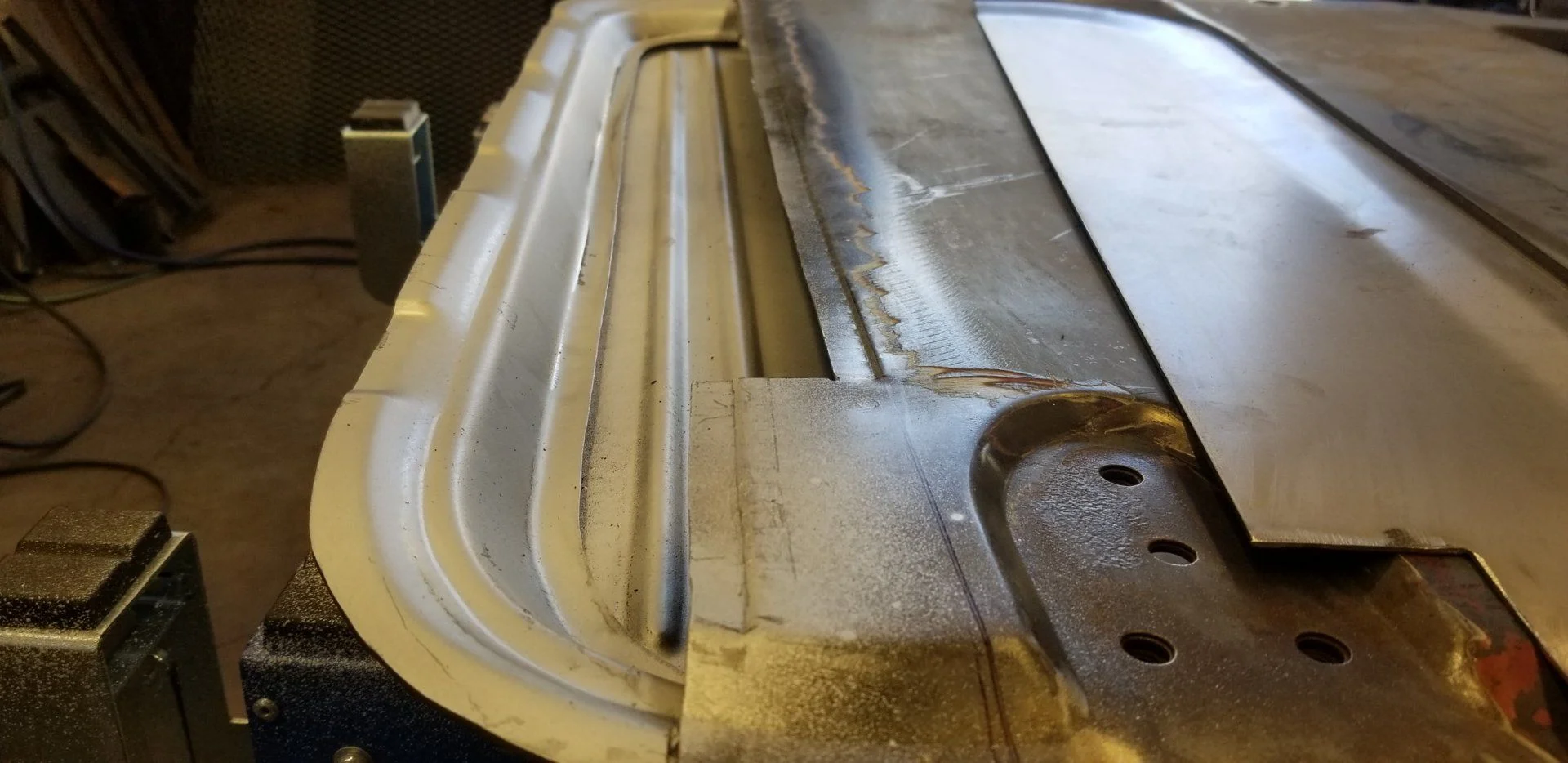

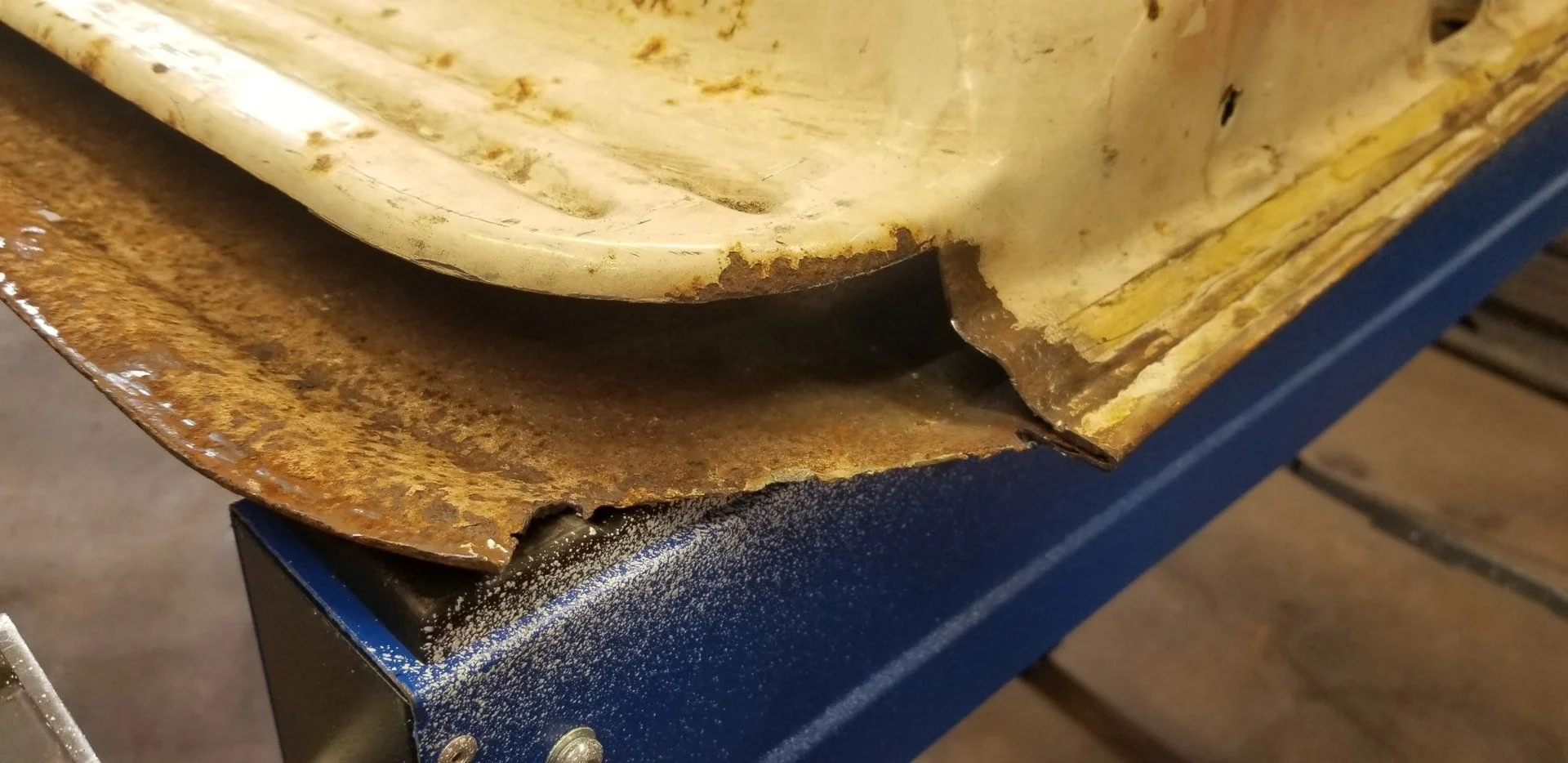

This is where I'm starting.

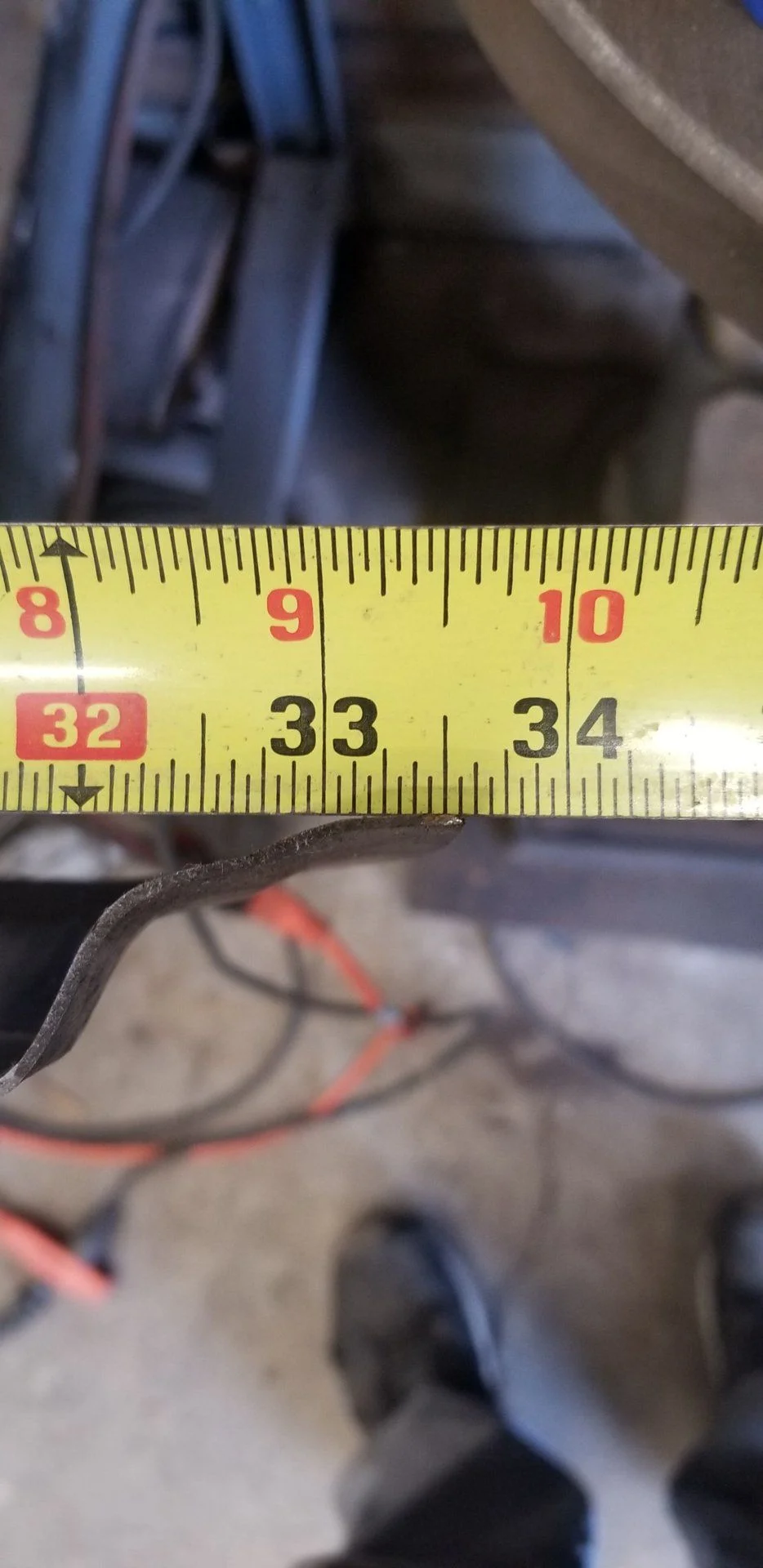

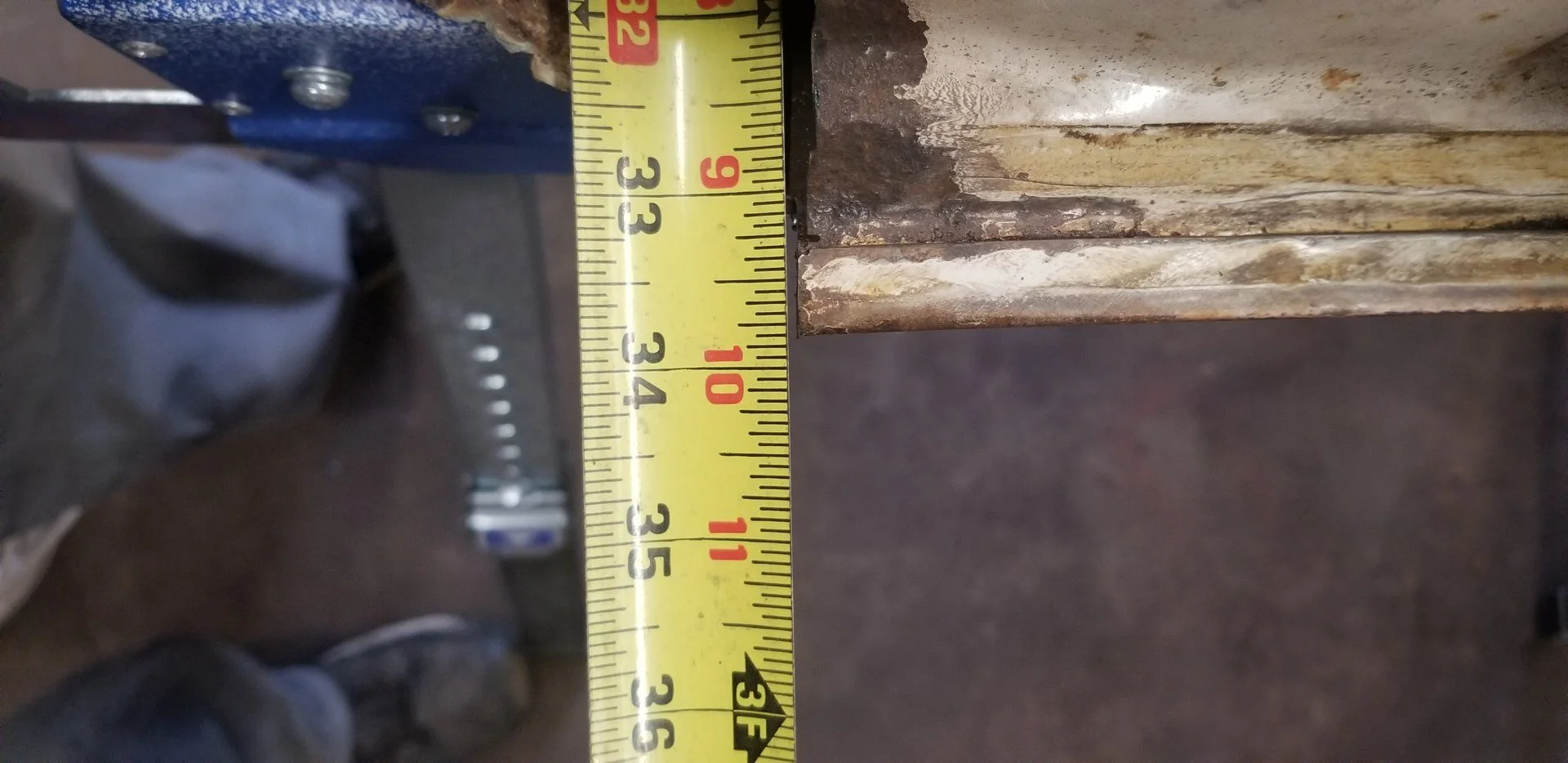

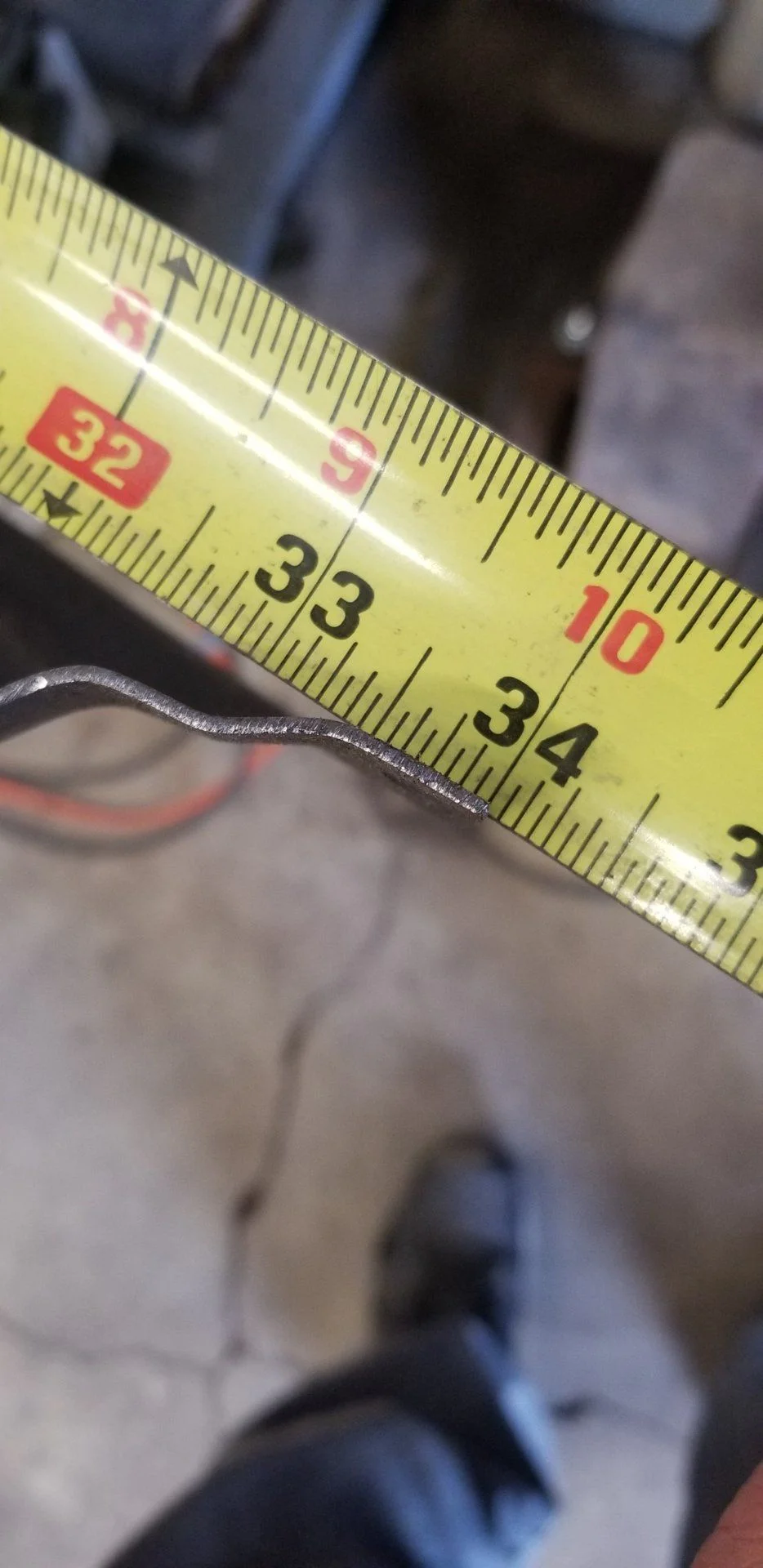

That measurement..which we are going to call 33.625" is the outside dia of the inner panel.







brian

SILVER Star


Joined
Feb 7, 2003
Messages
9,501
Location
lebanon,pa

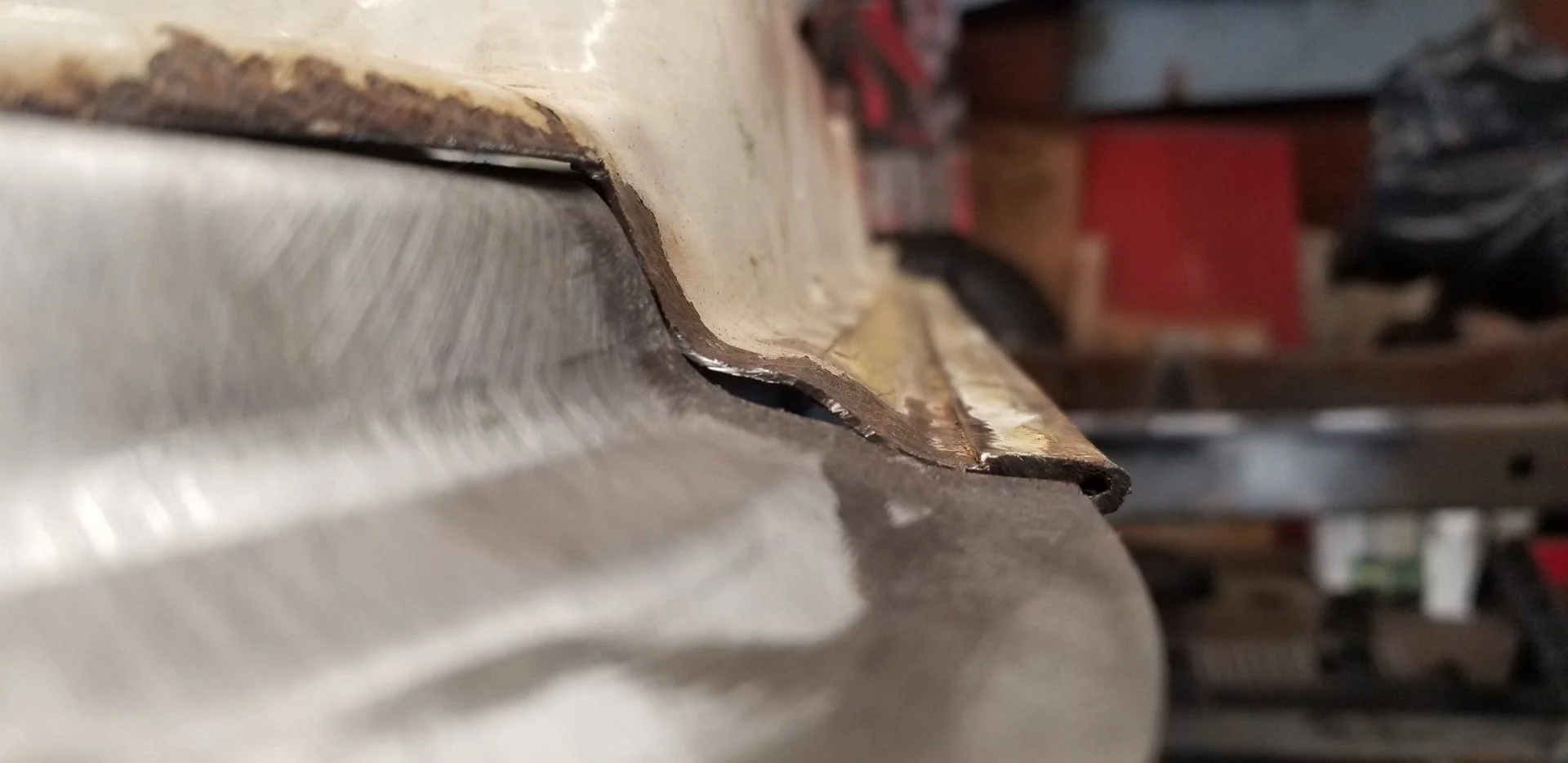

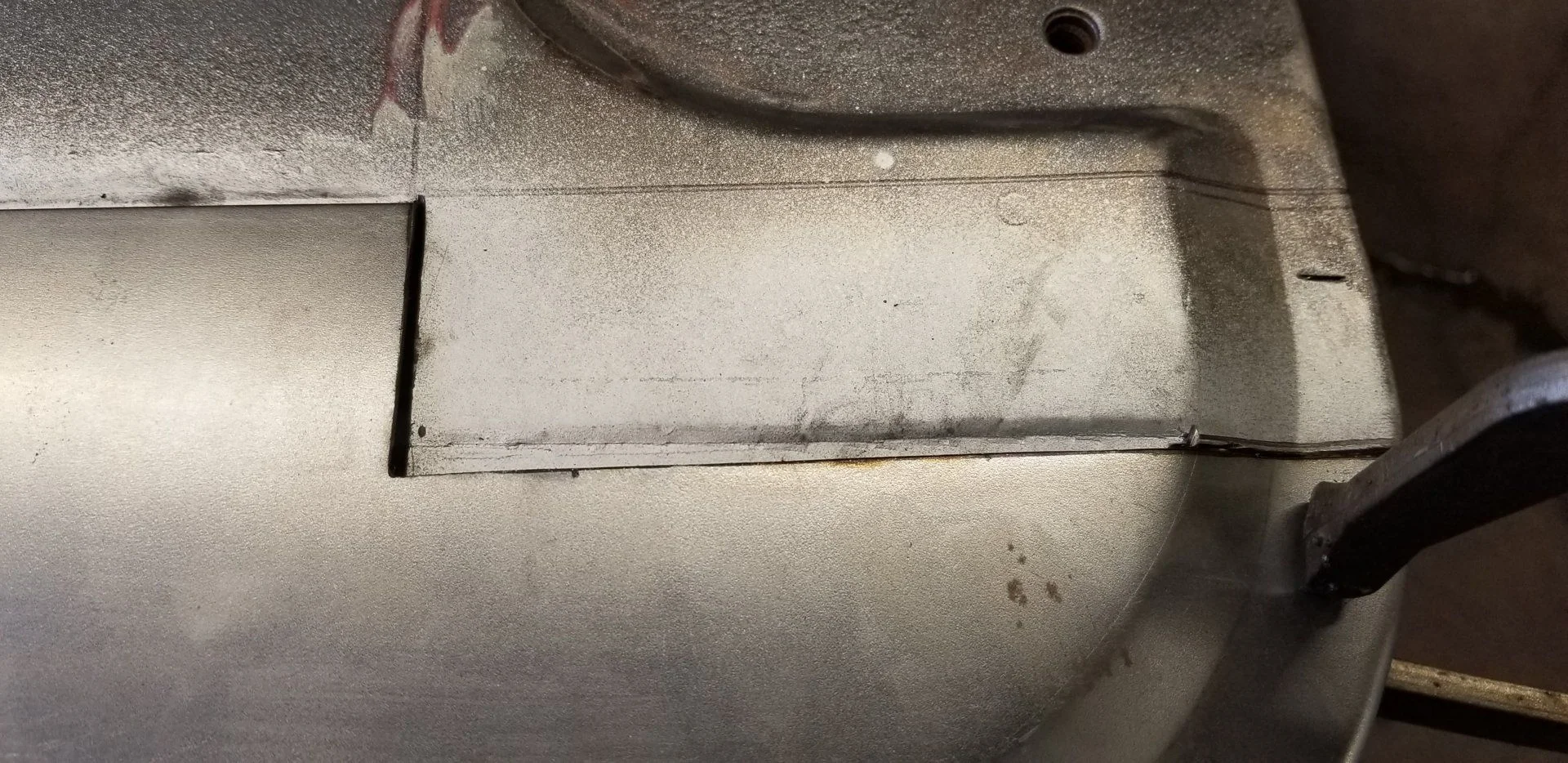

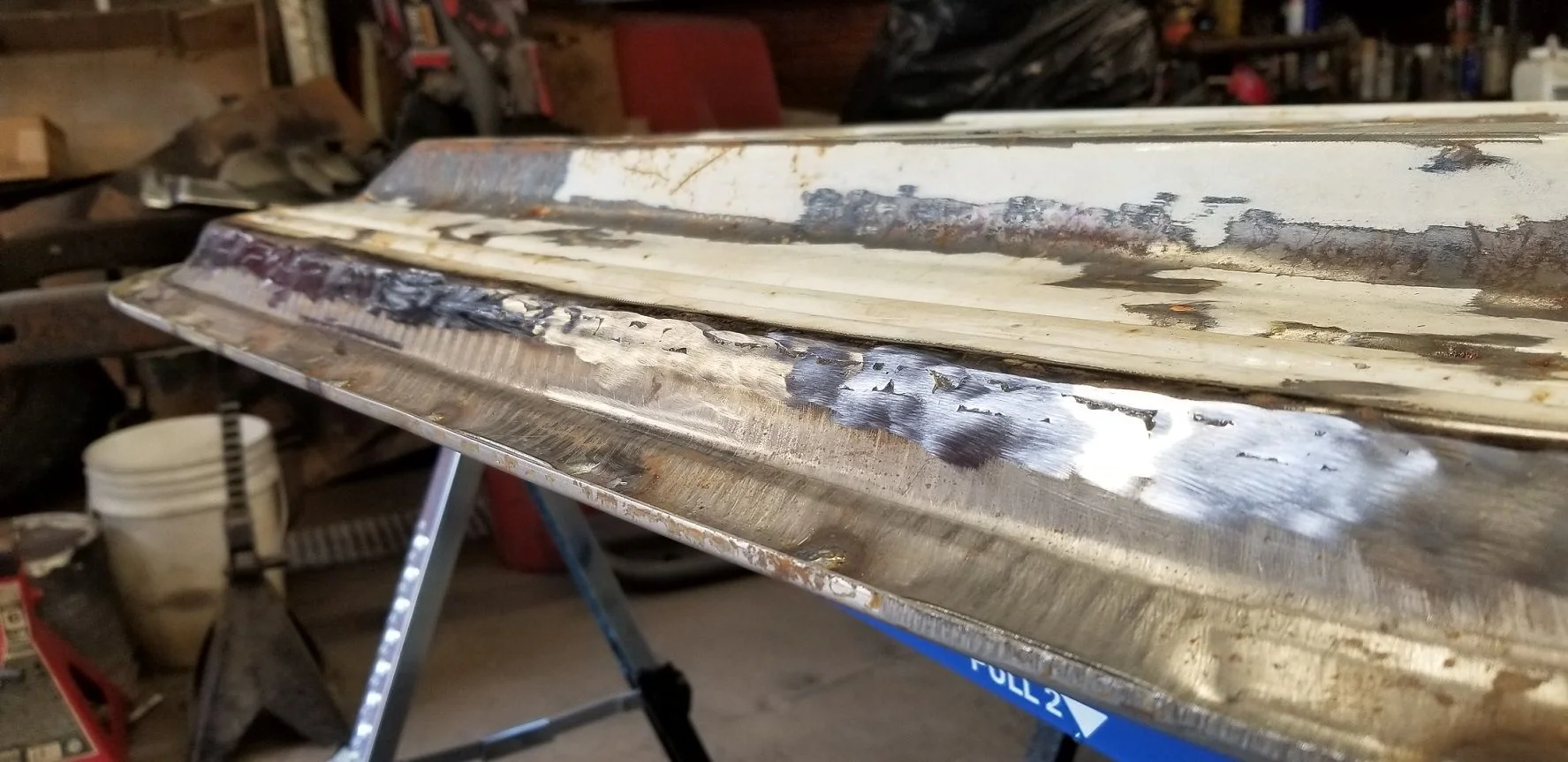

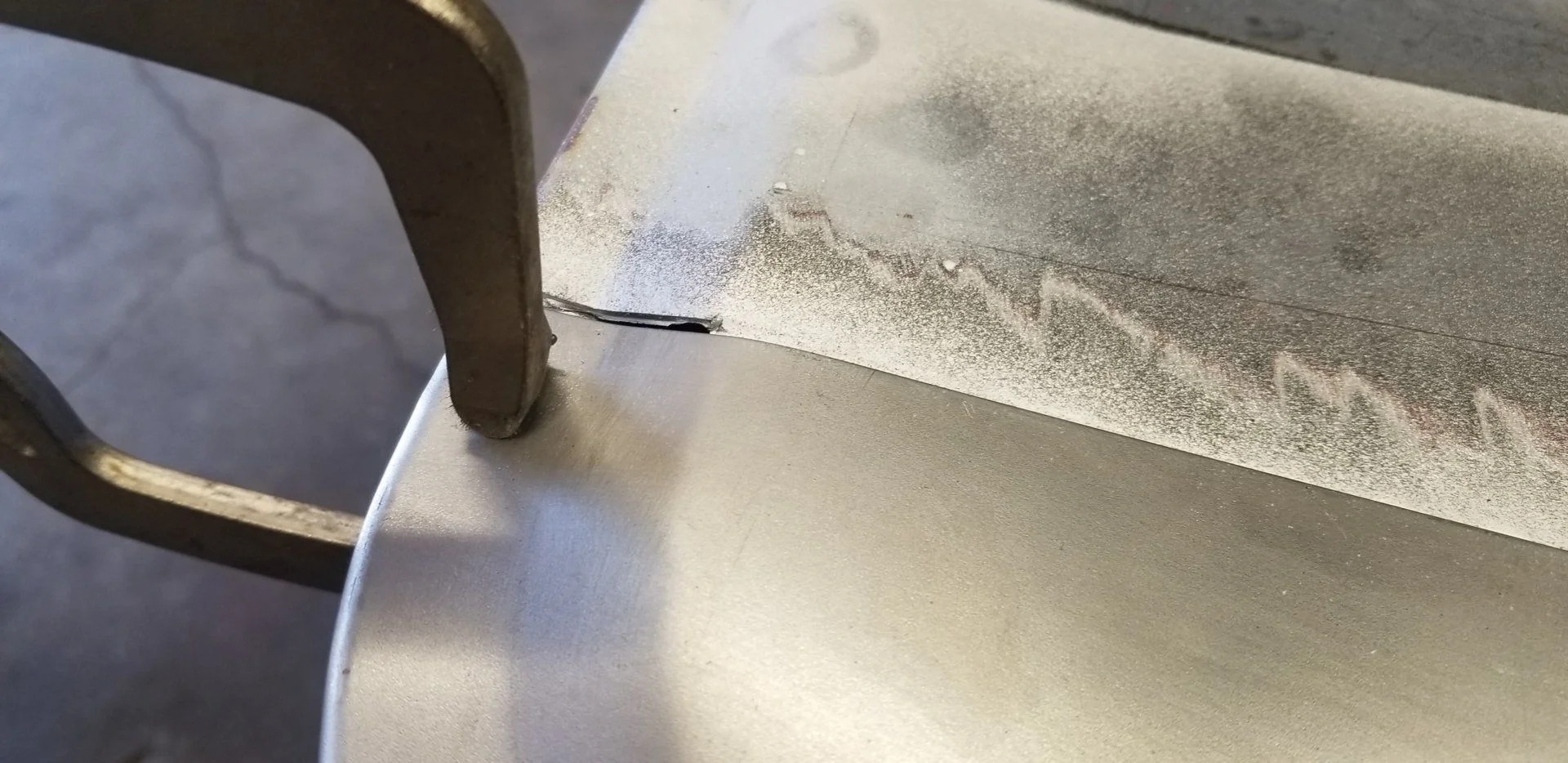

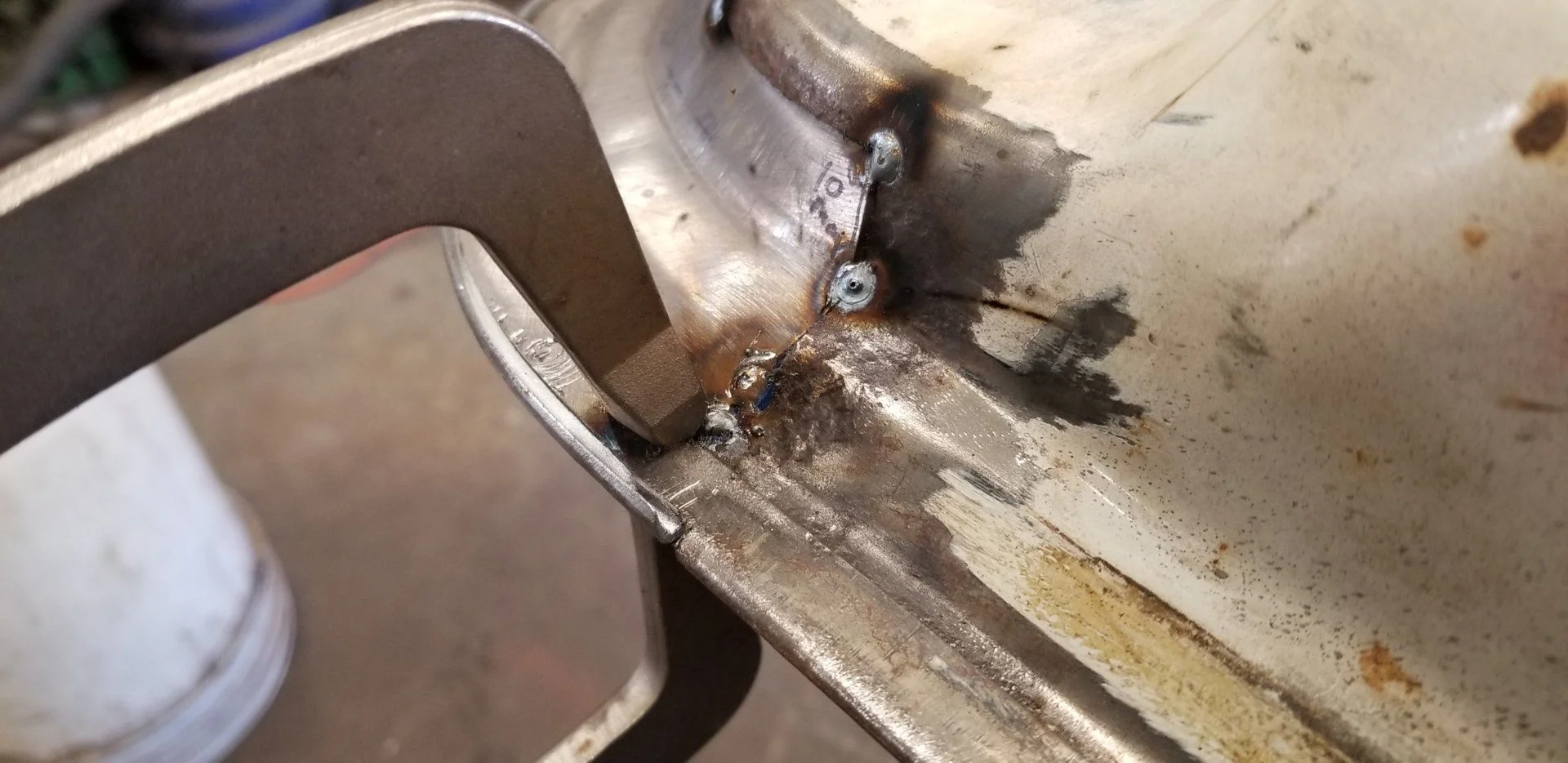

The ccot is pretty close.
The rs, not so much.

The ccot is not without issues either.

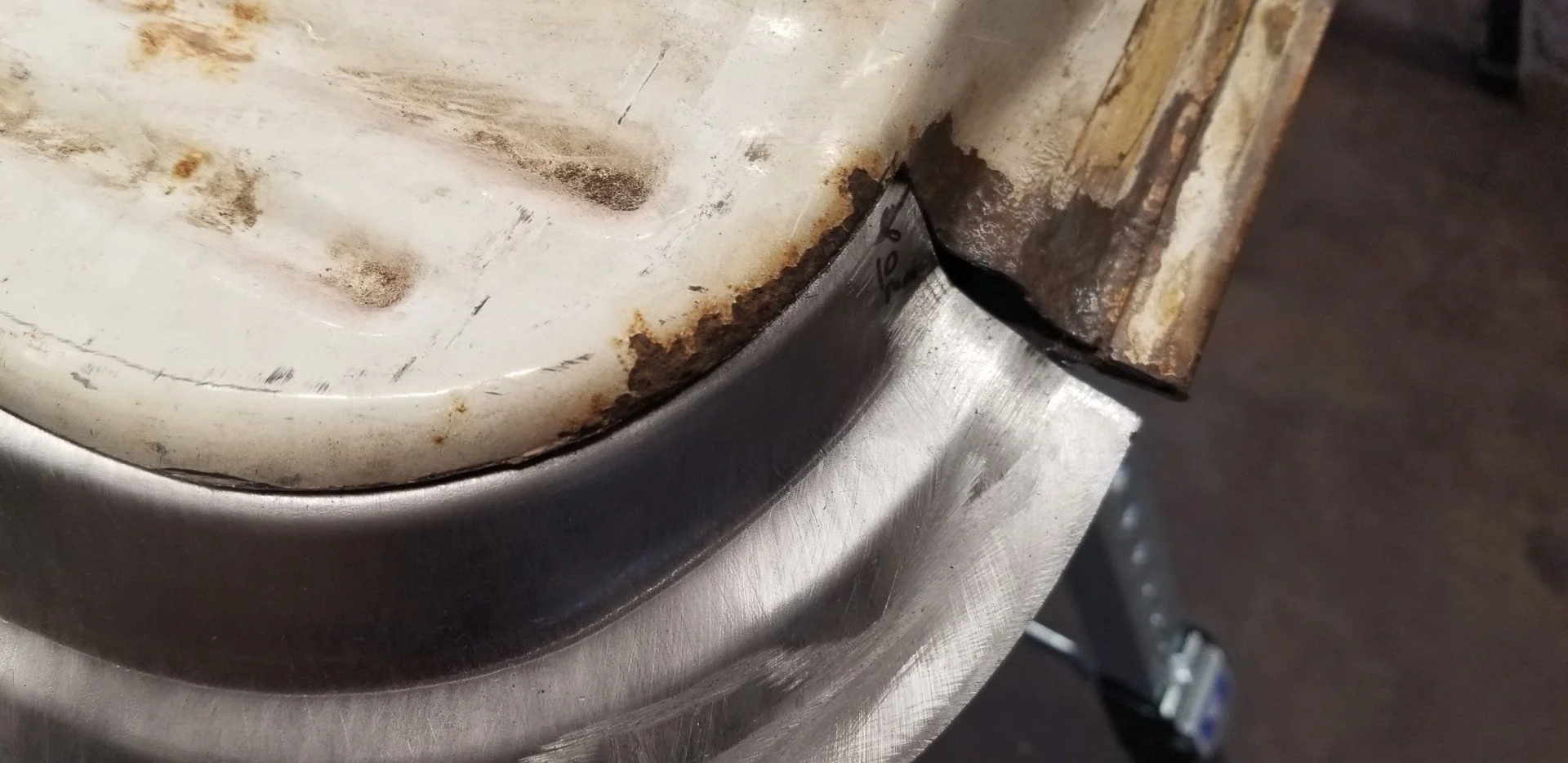

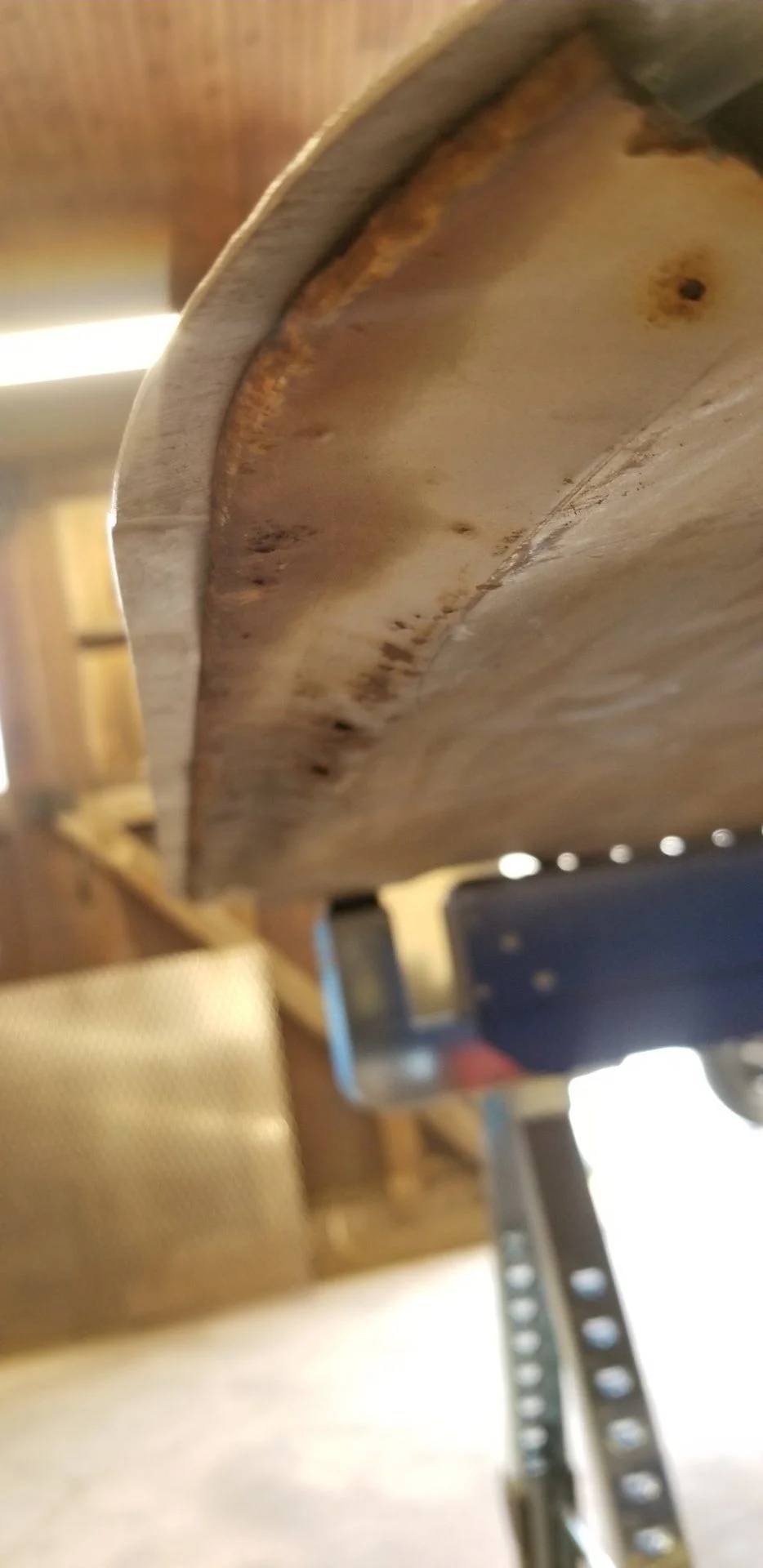

Pretty sure they were aiming to have that upper "flange" actually be part of the skin.
The panel isn't deep enough, so it looks like it's going to be a flange inside the door.
Not to mention the contour isnt spot on.
Where it's at along with a gasket getting over top of it earns it a bit of a hall pass.









brian

SILVER Star


Joined
Feb 7, 2003
Messages
9,501
Location
lebanon,pa

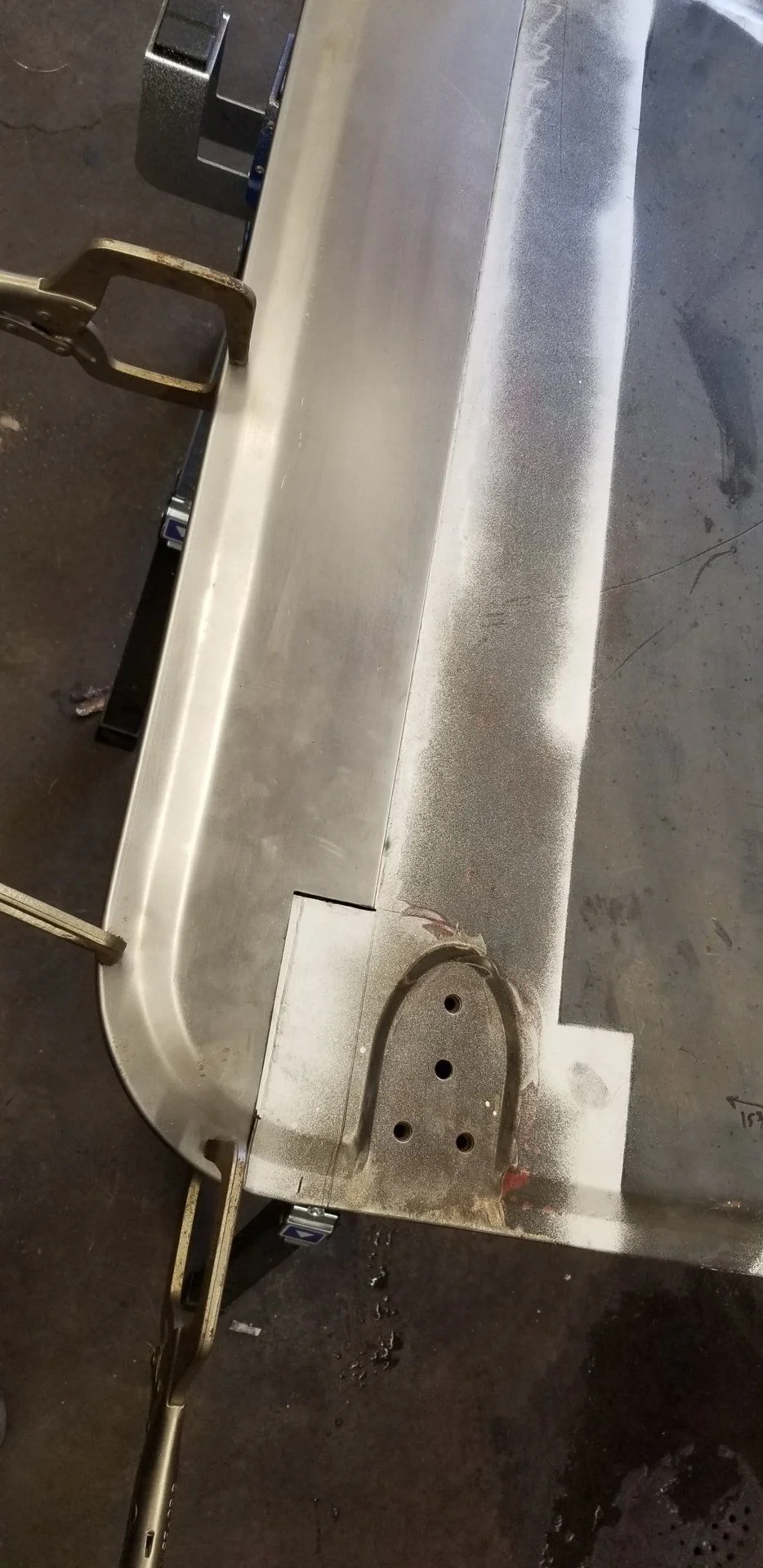

There's a solution for this....I just dont know what it is at the moment.
I need to get rid of 10mm....and put it somewhere else






Last edited:

RWBeringer4x4

Mechanically Challenged
SILVER Star
Joined
Jul 11, 2012
Messages
4,208
Location
The People's Republik of Maryland
Awesome thanks for posting these, definitely following along.

My (completely limited) bodywork experience revolves around an old Chevy Van I've helped my father in law with a bit so any thoughts I have are from a position of complete ignorance -

I definitely see what you mean about the one crease being off. I wonder if some clever sand-bag placement and a pointed dolly would allow you to punch that crease out, using the existing line as a template. Might be able to get it to "blend" at the mating point?

Looking forward to what you come up with for a solution in order to get these lined up.

Last edited:

brian

SILVER Star


Joined
Feb 7, 2003
Messages
9,501
Location
lebanon,pa
Oooo let me assure you, I'm no auto body guy either...all previous success has been nothing more than clean living and good fortune.


Stumpalama

Forum Junkie
SILVER Star

Joined
Nov 5, 2004
Messages
7,786
Location
NOVA
I had to chop up my CCOT floorboards back in the day to make the beads in the panels line up with the factory lines. Also, the angle of the lines was poor. I just had to cut and hammer them into shape.


RWBeringer4x4

Mechanically Challenged
SILVER Star
Joined
Jul 11, 2012
Messages
4,208
Location
The People's Republik of Maryland
My father in law has body-worked several old Mopars, and i picked up some rocker patch panels for his 51 Mercury as a birthday gift - I actually offered to return the Mercury panels when he first fit them fit up. I’ve never seen a patch that fits “right” so far - some just require more work than others.


brian

SILVER Star


Joined
Feb 7, 2003
Messages
9,501
Location
lebanon,pa

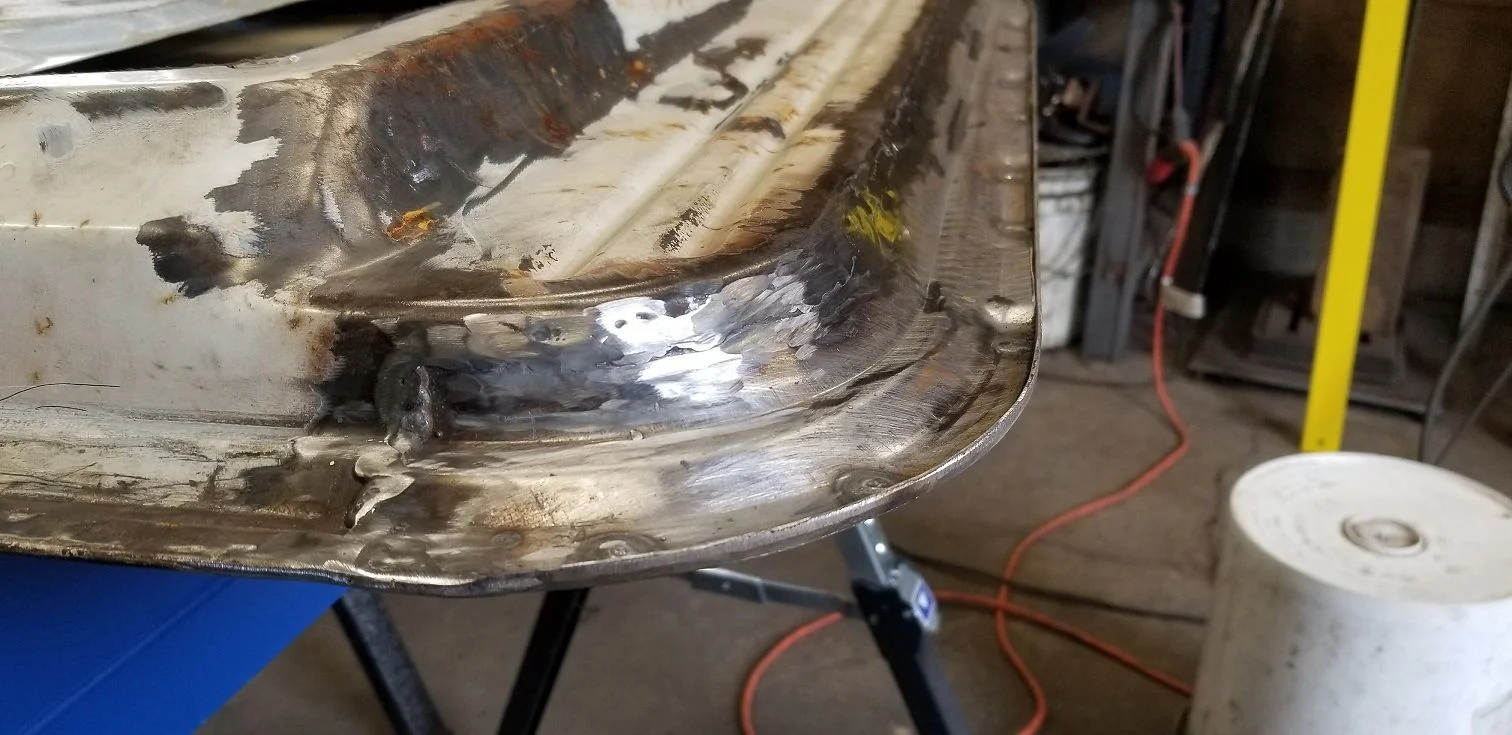

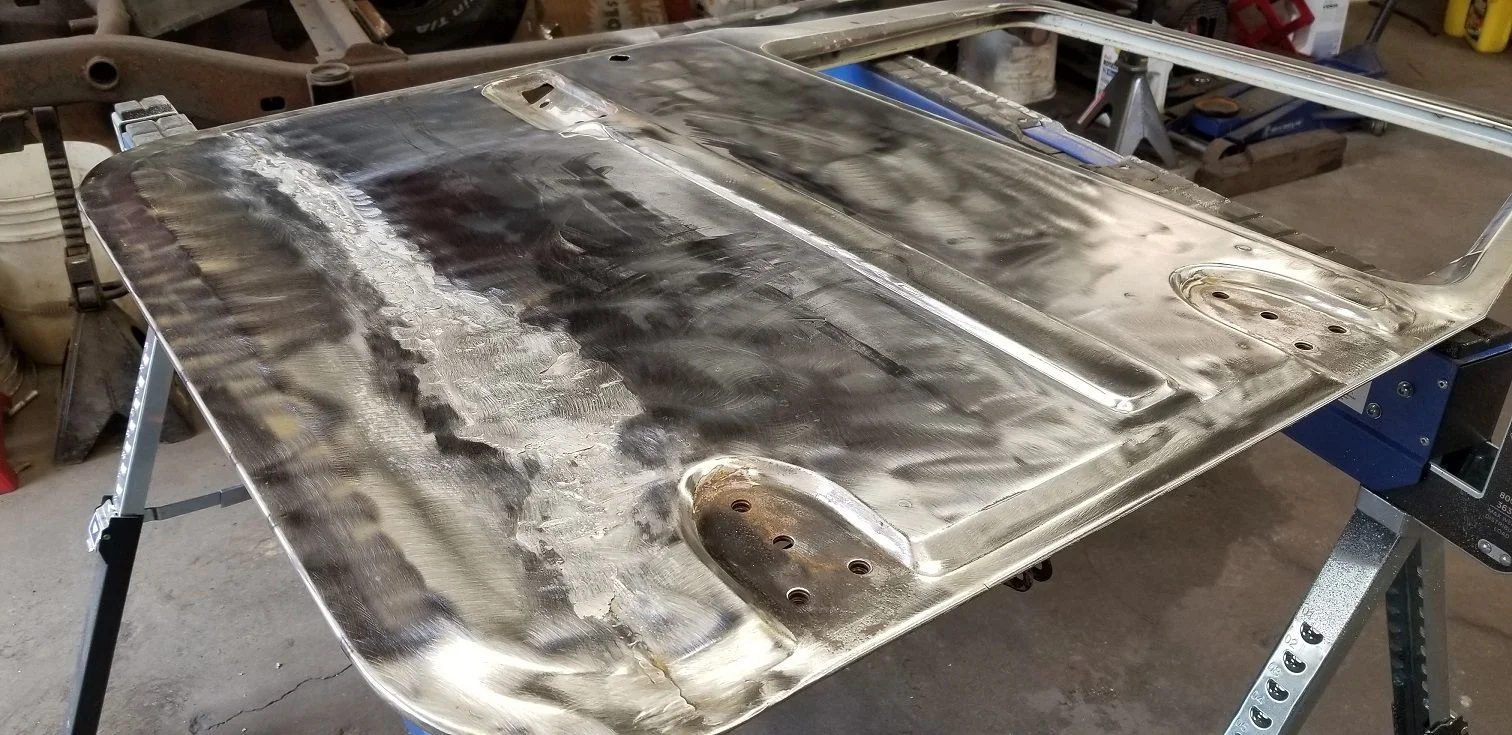

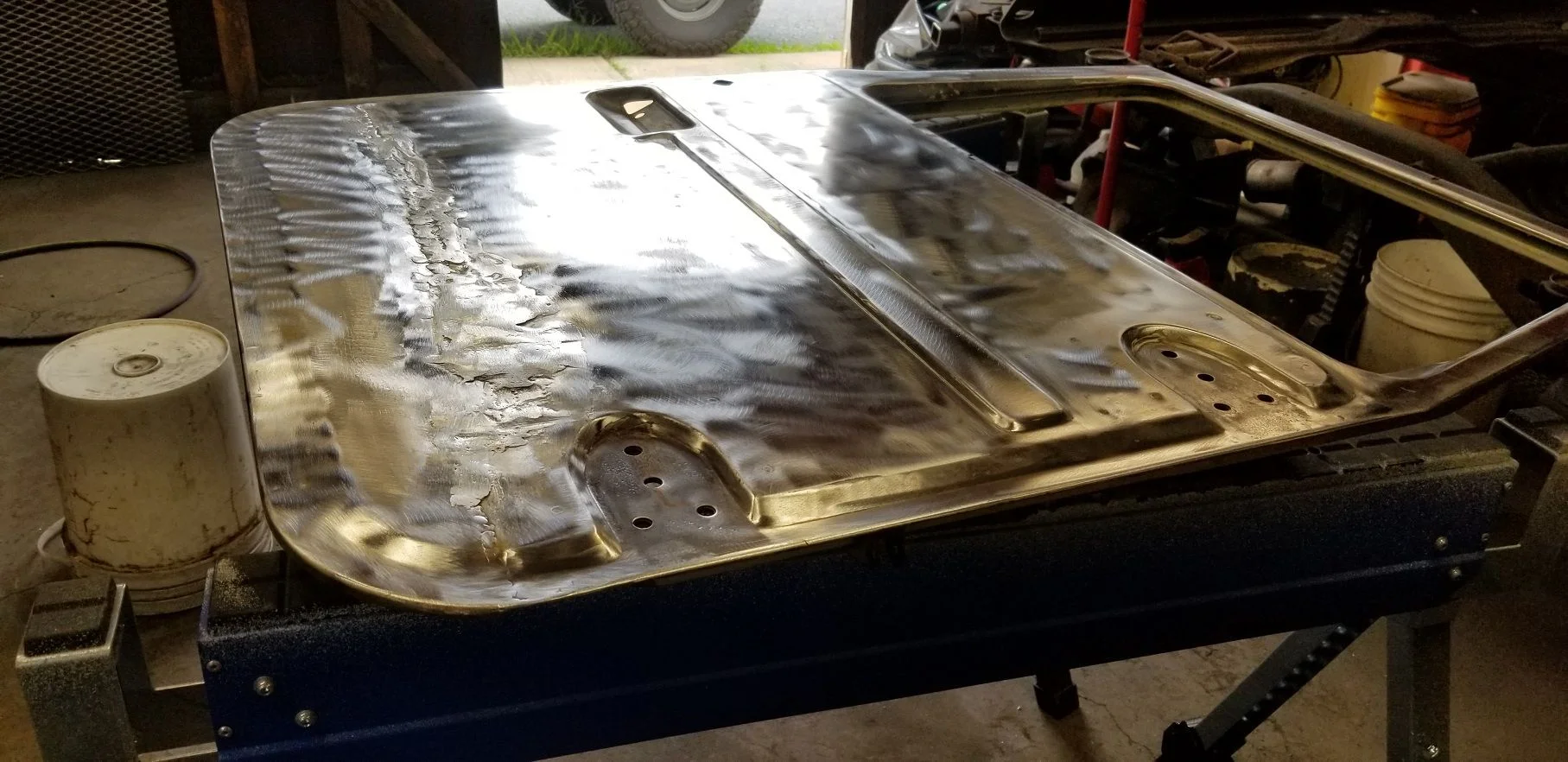

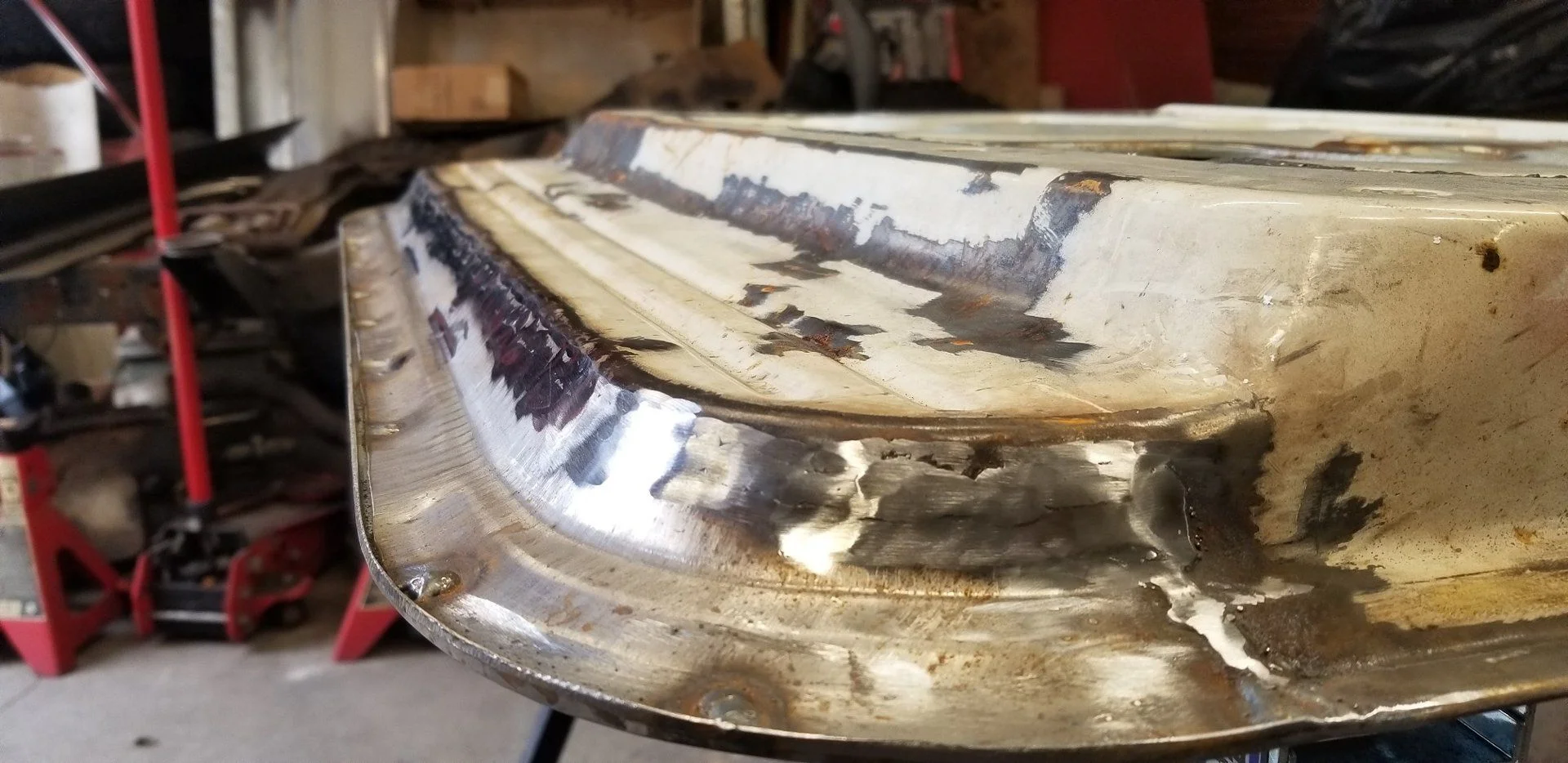

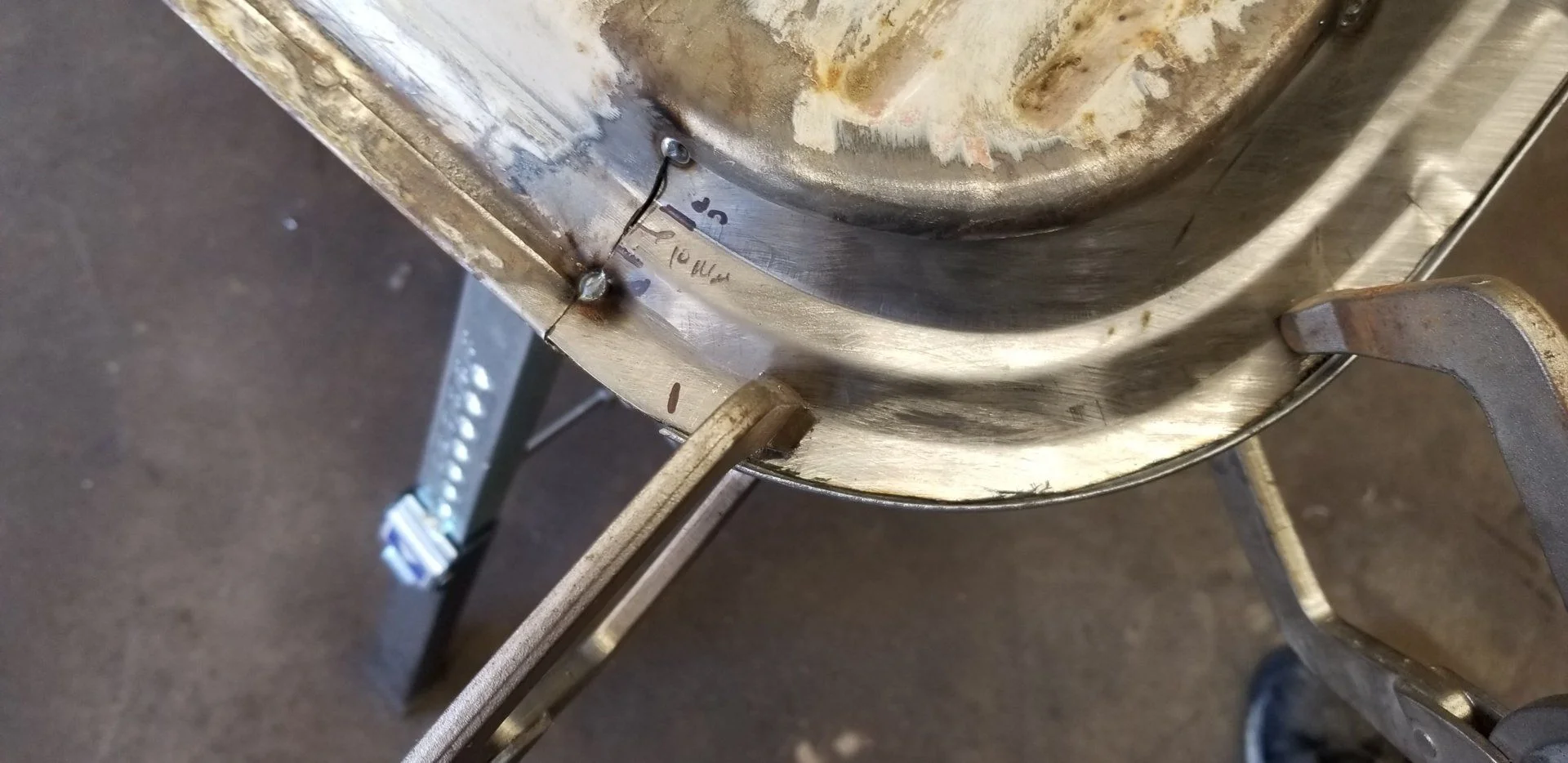

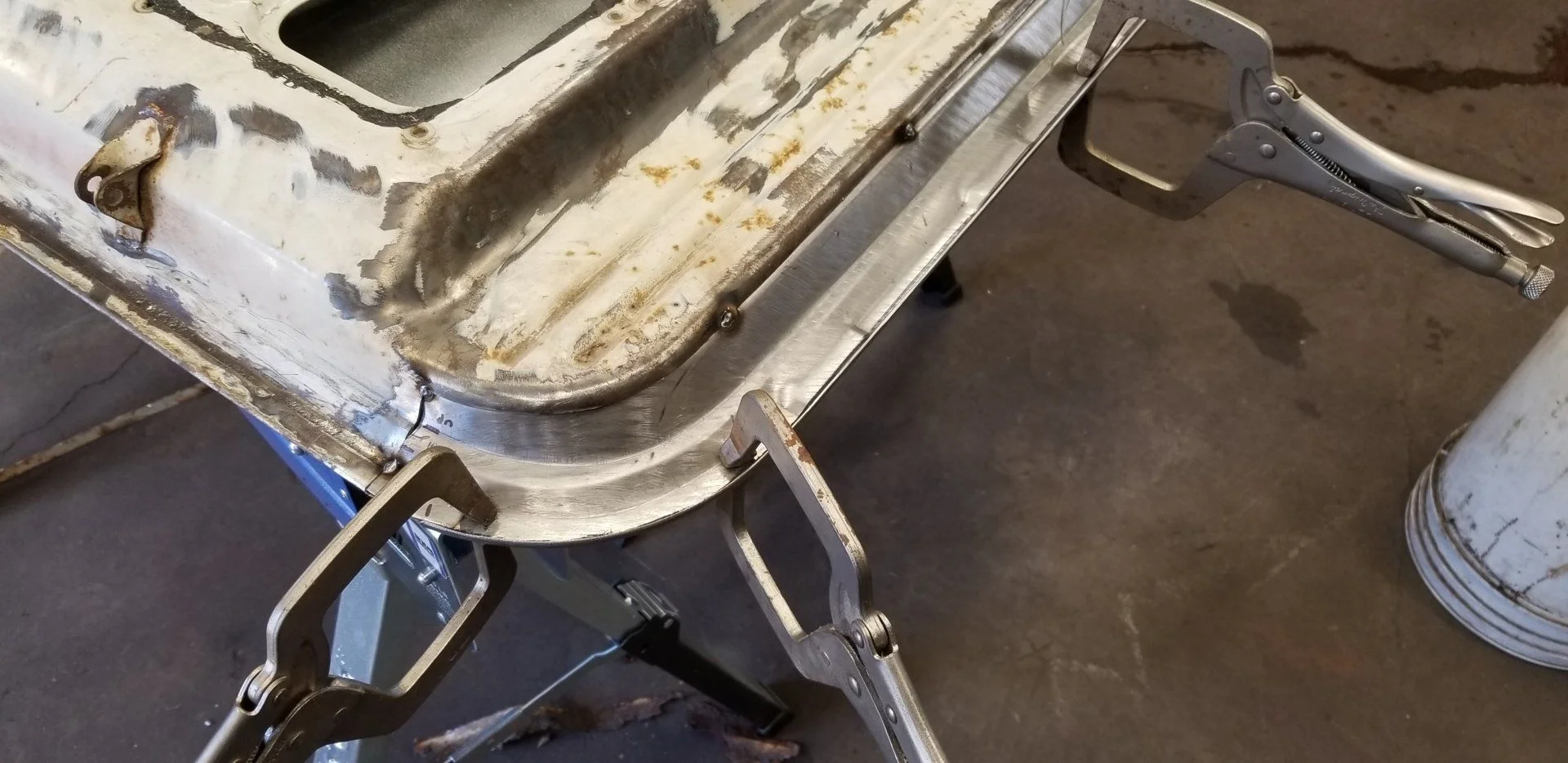

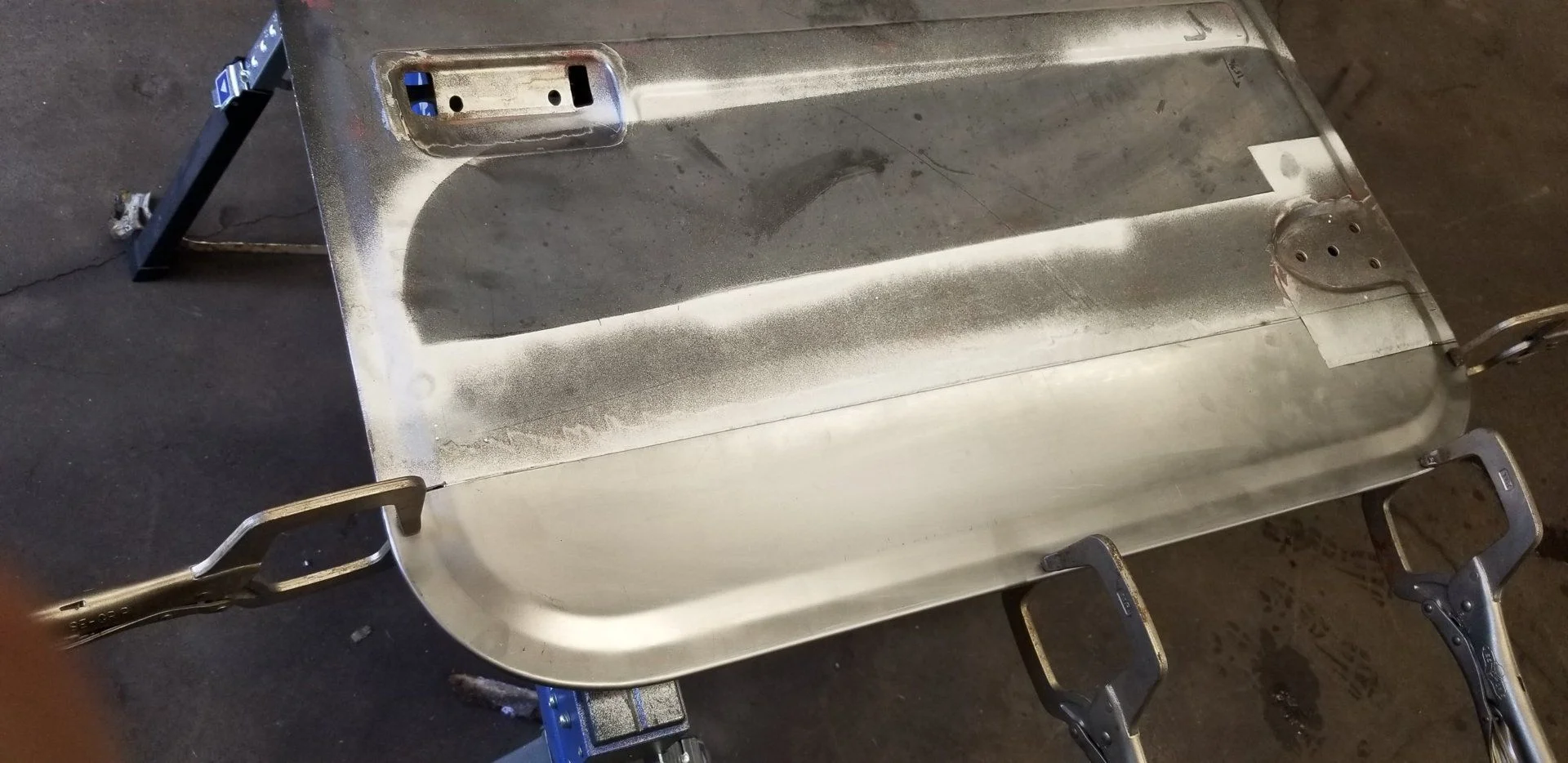

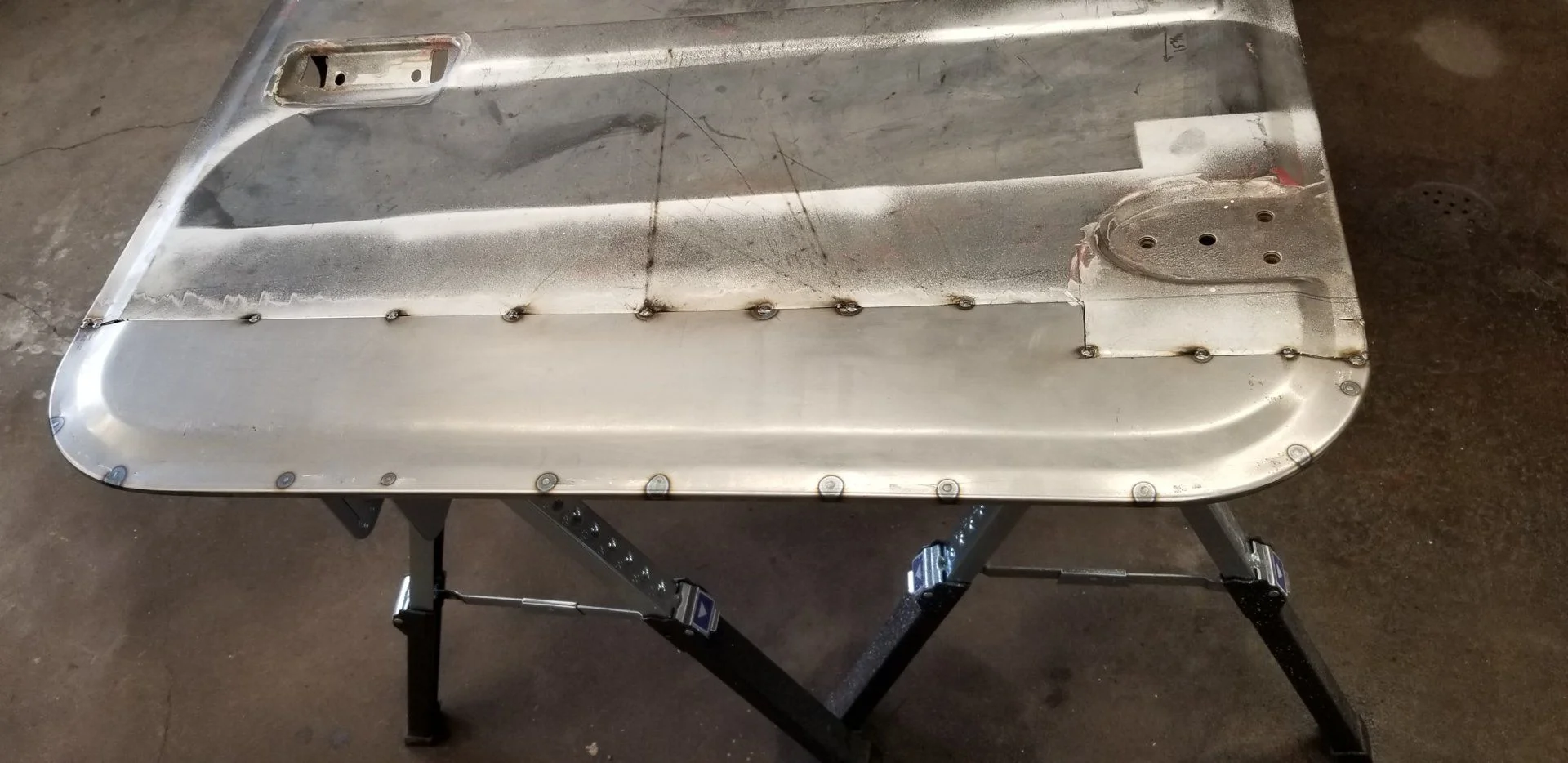

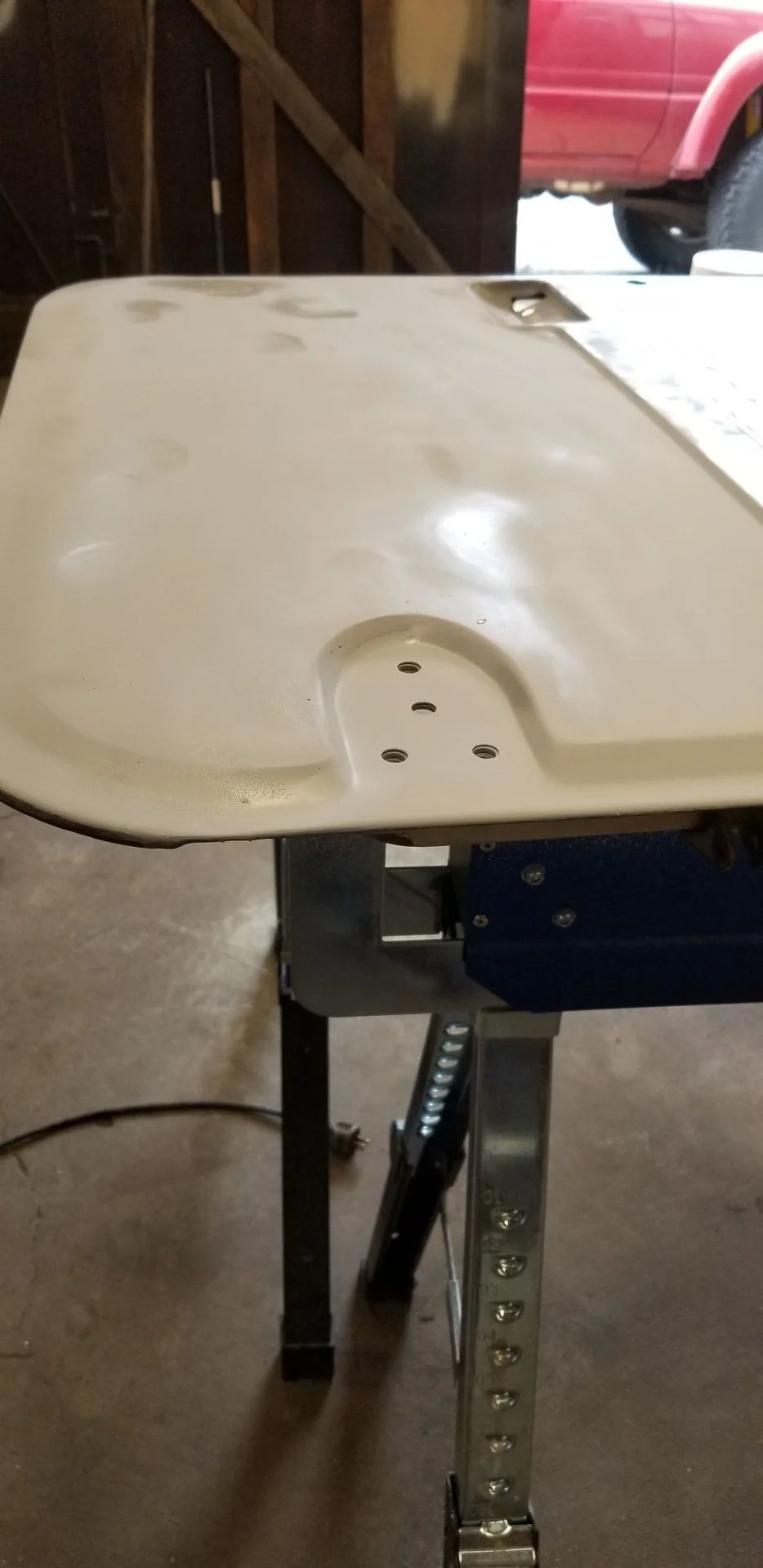

So doing some closer fitting the ccot panels get a thumbs up.
Perfect? No. Due more to me than them....but the location is different to see even on a lifted cruiser...plus the weather strip will hide alot if not all of it.
The hard work will getting the outside skin closed up without noticeable defects in an area devoid of any contours.











RWBeringer4x4

Mechanically Challenged
SILVER Star
Joined
Jul 11, 2012
Messages
4,208
Location
The People's Republik of Maryland
What did you do to correct the contours mentioned previously? The slight differences in the ridges on the door bottom between the patch and the original door? Did they fall into place once completely lined up?

Also - where were the panel flangers used? To bend over the bottom? Or to create an overlap somewhere? Why two?

Last edited:

brian

SILVER Star


Joined
Feb 7, 2003
Messages
9,501
Location
lebanon,pa
I didnt do any additional work to them once I got my "hole" the right size....although i did cut that extra 10mm off the bottom of the inner panel.
Took two flangers cause the first one quit working halfway through the job

Last edited:

shmukster



Joined
Apr 20, 2003
Messages
5,622
Location
NE PA coal region
That is fine sheet metal work Brian. Took some time and pain to get those patch panels as nicely aligned as the pictures show. I agree heartily that given the location of these repair pieces and the fact that they are almost invisible from the inside once the door seals are attached that they are excellent offerings from CCOT. Someone would have to be a professional ball buster to question whether the doors on my 40 have been patch repaired or not. I also believe that the people who bitch about these panels have neither the patience and/or skills to make them fit as well as the ones in Brian's pictures. I have no idea whether or not my body guy got my panels as close as Brian's but I am happy with the result for sure.
