SOLD FJ40 Complete Wiper Assembly - 1968-1974 - San Diego

  • Thread starter bmoonhajjar
  • Start date
  • Watchers 7
bmoonhajjar

bmoonhajjar

GOLD Star
Joined
Oct 22, 2019
Messages
2,628
Location
San Diego
I have (what I consider to be) a very complete FJ40 Wiper Assembly that should work for 1968-1974 depending on models, modifications, etc. Everything pictured is part of the sale. I have attempted to photo document and describe everything to the best of my knowledge.

Main Wiper Assembly was completely disassembled, degreased, housings striped, primed and painted. I even disassembled the primary contact and re-soldered it, which is a pain. The wiring is in good condition and is original. The connectors 9both male & female) are new since they were crusty and broken. All contacts were thoroughly cleaned prior to rebuild. Internals were reassembled using AeroShell 33 Grease t last another 50 years if need be. The original wiring harness was intact and the wire were good, just need new bullet connector ends. The auxiliary (room) light single wire is new. I will do my best to list everything that comes in the sale.

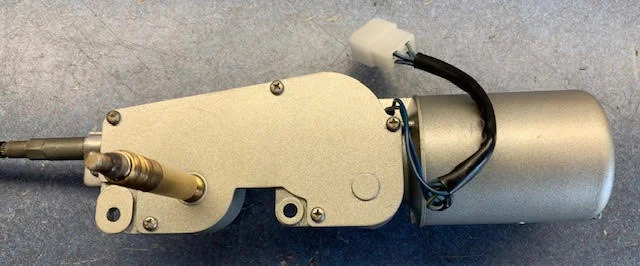

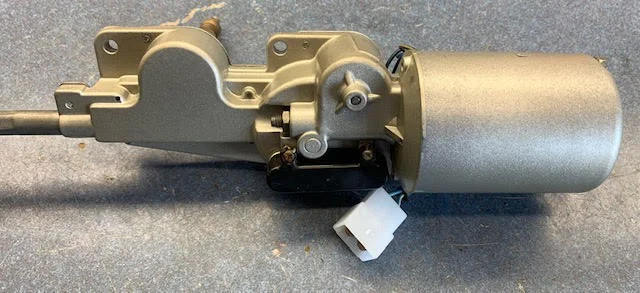

One (1) Main Wiper Assembly w/ Motor

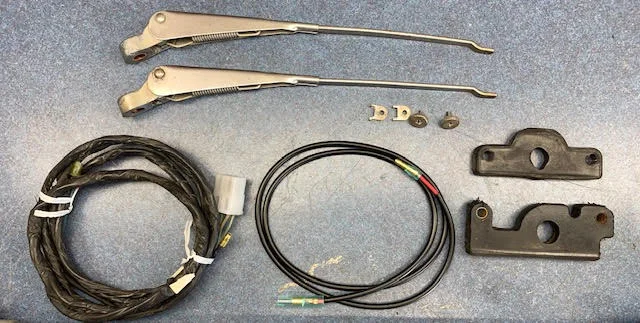

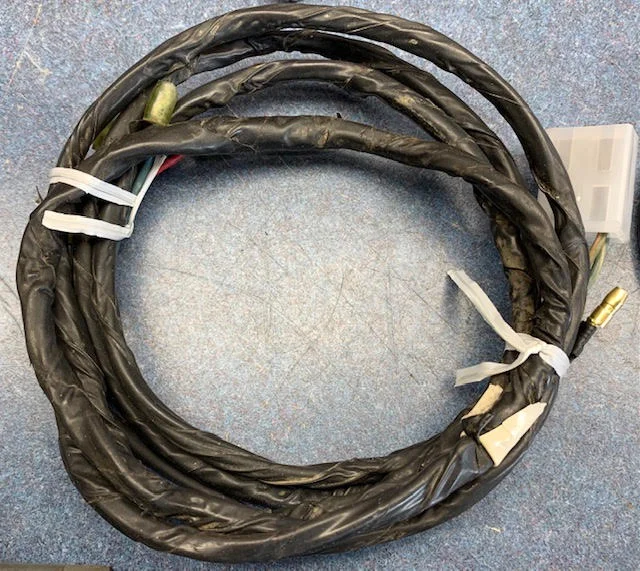

One (1) Original Wiring Harness w/ Room Light Wire Lead

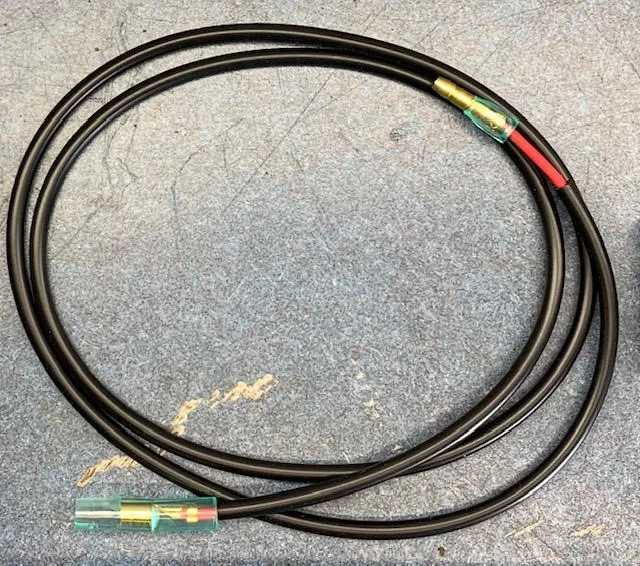

One (1) Room Light Wire to run power to your room light from the harness

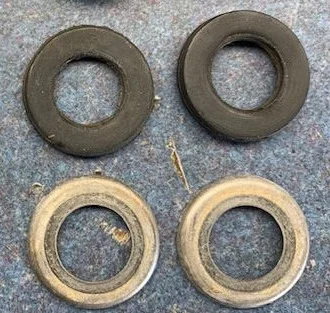

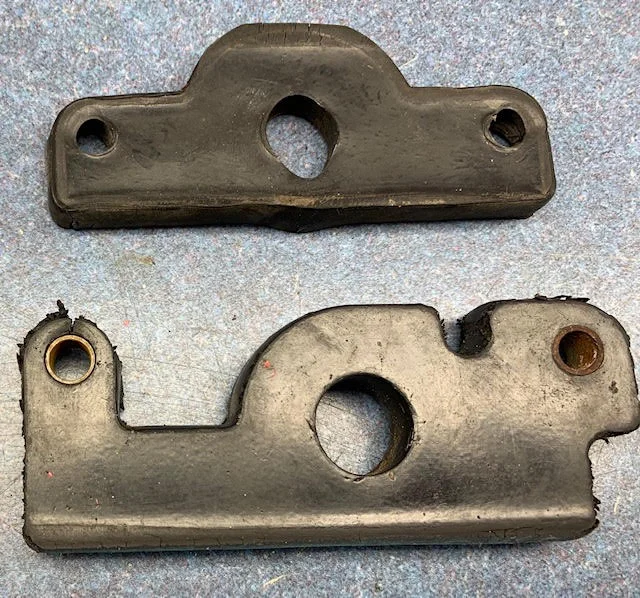

One Set (Pair) of Wiper Pivot Pads (these are on "okay" condition, but can still be purchased from SOR.com

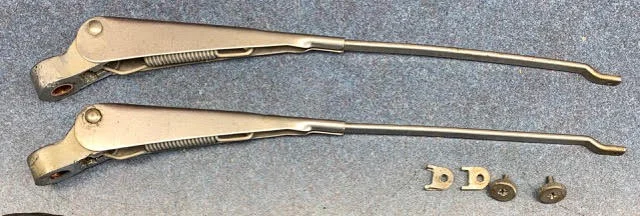

One Set (Pair) of Wiper Arms w/ the hard to fins thumb screws (wiper arms in "okay" condition)

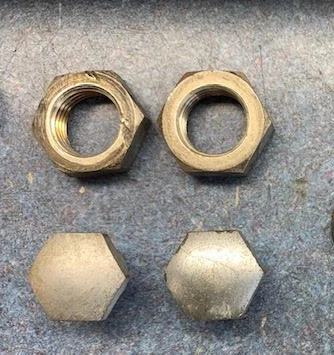

One Set (Pair) of Wiper Nuts
One Set (Pair) of Wiper Pivot Nuts
One Set (Pair) of Wiper Pivot Washers
One Set (Pair) of Wiper Packing (rubber ring gaskets)

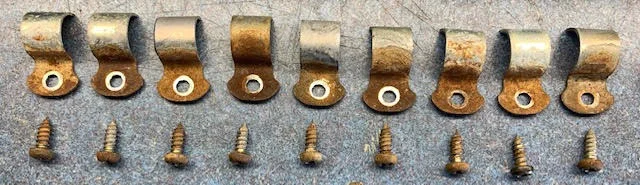

Nine (9) Wire Harness Clips (these sell for $5 each if you can find them)
Nine (9) Wire Harness Clip Screws

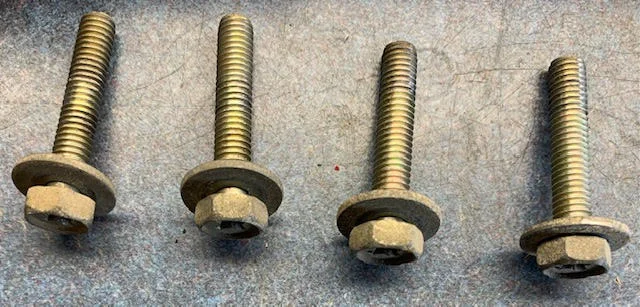

Four (4) Wiper Assembly Bolt Hardware

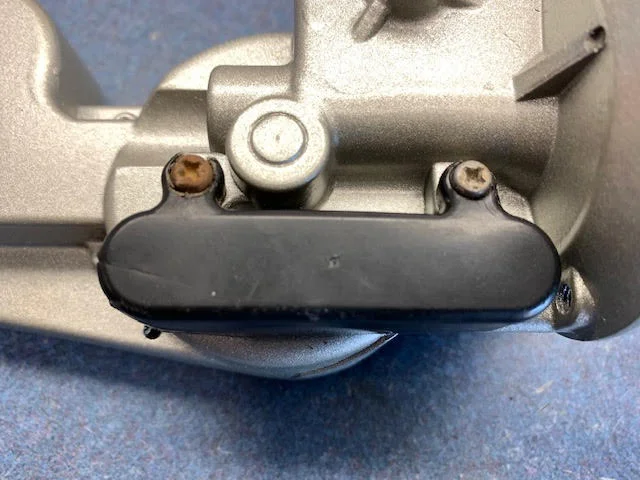

One (1) Contact Cover (Very Hard to find in good condition. This one is "useable")

My best guess-timate is that if you were to purchase all of these parts (if you can find them) you would be paying well over $700

$700

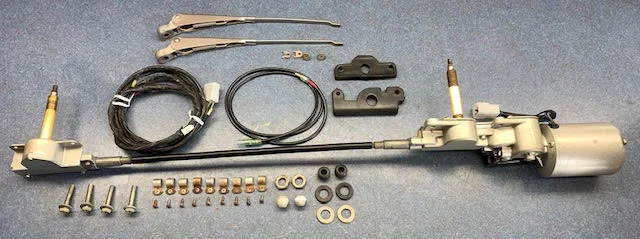

01a
01b
01c
01d

Last edited:
bmoonhajjar

bmoonhajjar

GOLD Star
Joined
Oct 22, 2019
Messages
2,628
Location
San Diego

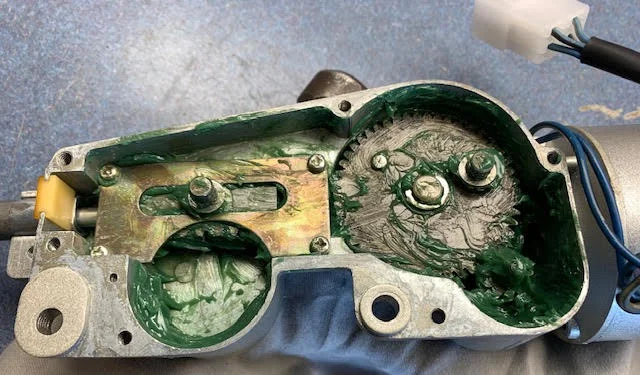

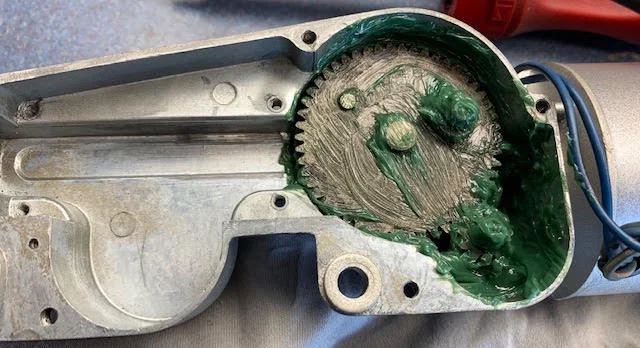

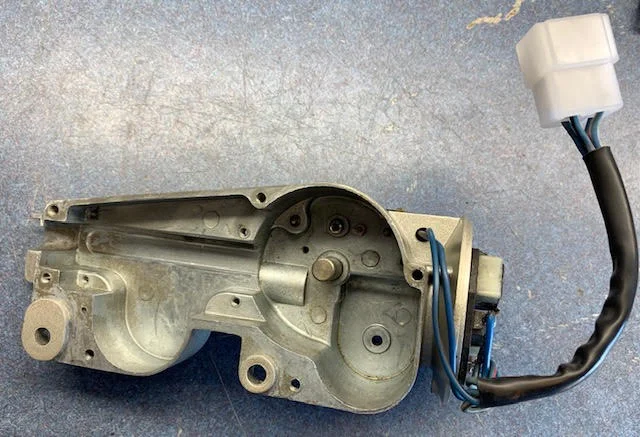

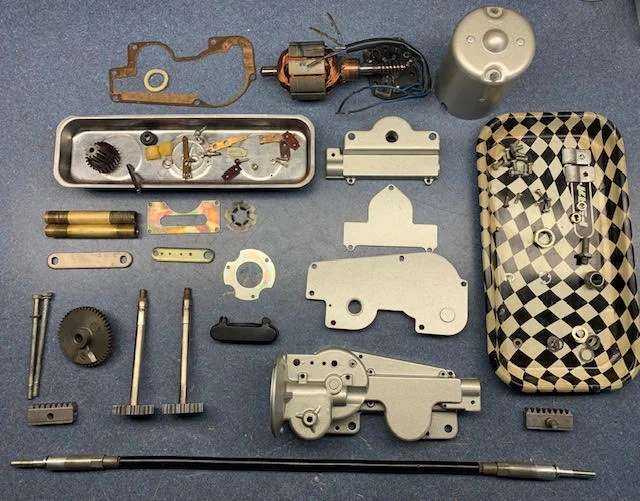

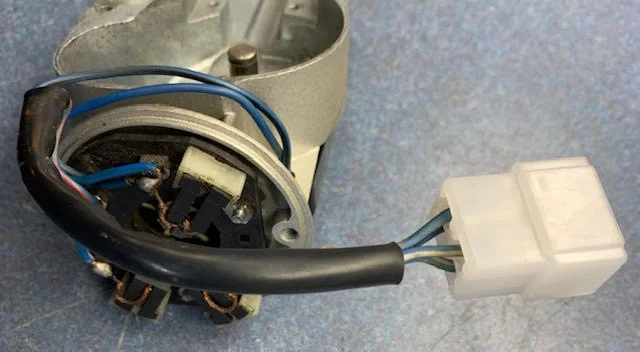

Here is some pics of the rebuild as well...

02a

02b
02c
02d
02e

kevos37

kevos37

Supporting Vendor
SILVER Star
Joined
Sep 2, 2011
Messages
3,293
Location
Sutter, California
Good documentation, nice attention to detail. Definitely a few hours invested into that!

GLWS,
KevO

Last edited:
bmoonhajjar

bmoonhajjar

GOLD Star
Joined
Oct 22, 2019
Messages
2,628
Location
San Diego
Goo documentation, nice attention to detail. Definitely a few hours invested into that!

GLWS,
KevO
Thanks Kev. About 60 hours total, but I honestly take my time, so it could be done in less. Getting all of the various parts takes longer than the rebuild. At this point it is like reassembling an AR-15. I can pretty much do it in my sleep. ;)

N

nastav

GOLD Star
Joined
Aug 28, 2007
Messages
51
I’m in North County and I’m interested in this.

J

jimster1

Joined
Aug 10, 2021
Messages
74
Location
81301
I would like to purchase all. Can you ship to Durango, CO? What would be total cost? Thanks. Jim
