    fj40.5 xtra cab soft top build (long)

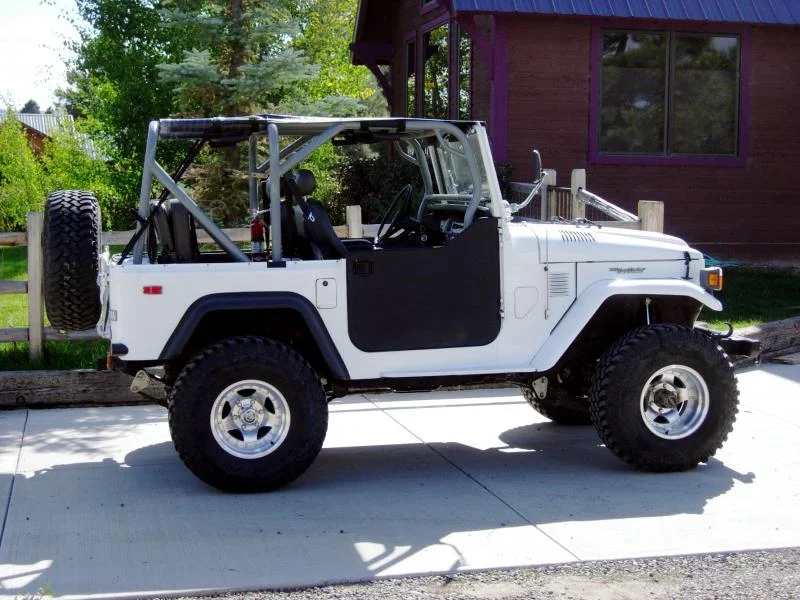

    So i thought i would post my current build of my cruiser. I bought the white '78 40 in December of '04. It had a 4" skyjacker lift, 33's, mostly stock. I took it to Cruise Moab in May of '05. On the way home while flat towing, i either ran over something or ? When i got home i noticed oil under the cruiser and my heart dropped. Upon inspection i found that the front drive shaft, pinion flange, and nose cone from the t/c gone. Tranny and t/c were still in neutral, hubs unlocked.
    I called my insurance agent and they sent an adjuster out and found it inconclusive and had me get an appraisal for repairs. Total quote was $5500.00 ! they sent me a check and i started to order parts. I ordered an Orion, detroit, new driveshaft, etc..... Then a call to Metal tech for a family cage, fenders, and stinger..........and so began the obsession...

    After wheeling it for a while i really felt the need for better suspension, more wheel base, and get rid of the carb.

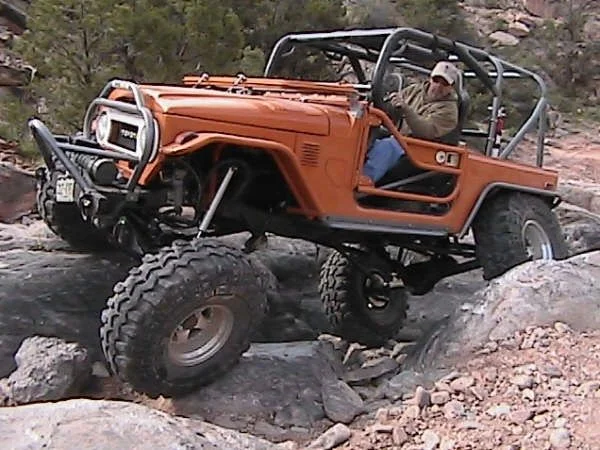

    I built it into the orange cruiser (Julius) in January '07. Was my first build and i really loved the rig at that point. The wheeling pics are on Helldorado in area BFE, in Moab, and was the maiden run. I ran several events including the Rubicon hall of fame run last year. THAT run was what made me realize i could use more room to hall dogs, and camping gear for extended trips. So i decided to make an extended cab pick up out of my 40.
    I have extended the wb from 105 to 114 1/2", extended the frame 32", Built new 1/4 elliptical spring packs, moved the 4 link mounts back 8", extended the control arms from 36" to 39", and fabbed up a 5' bed.

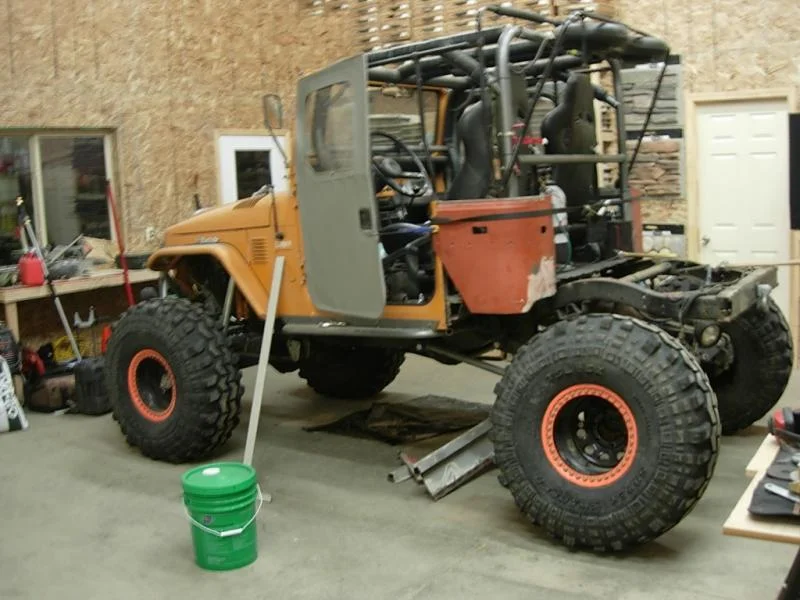

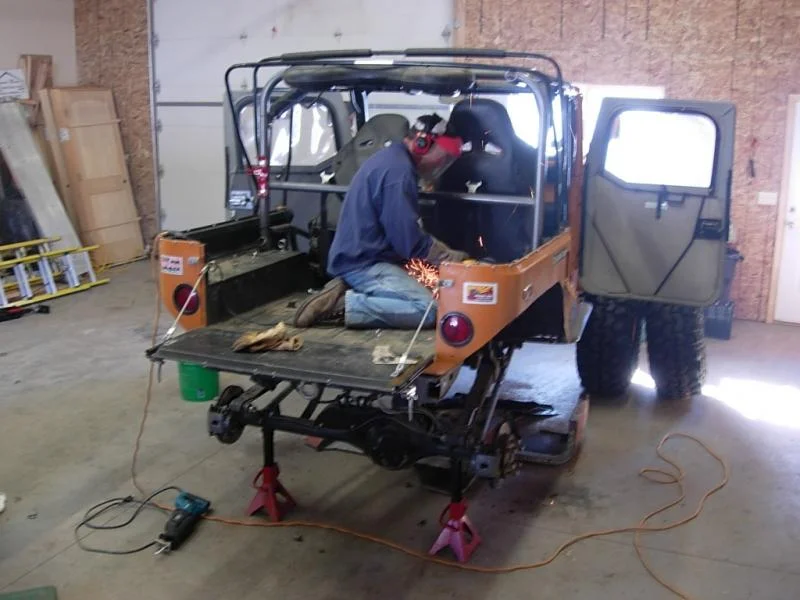

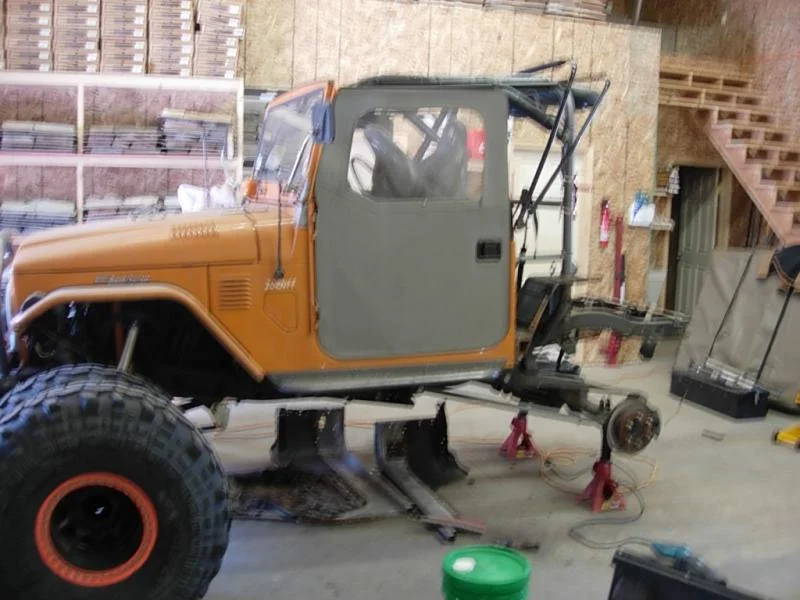

    The 3rd pic is the first cut of the build.

    https://forum.ih8mud.com/attachment.php?attachmentid=300966&stc=1&d=1235355920
    original cruiser.jpg flexy.jpg 1st cut.jpg

    Last edited: Feb 22, 2009
  2. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO
  3. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO
    Last edited: Mar 2, 2009
  4. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO
    Last edited: Mar 2, 2009
  5. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO

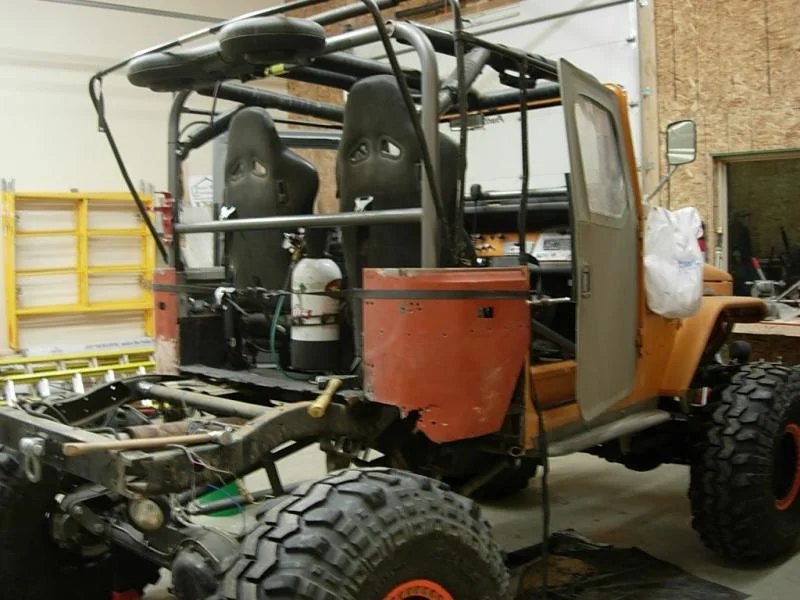

    These pics are of the frame extension using 2" x 3 1/2" x 3/16 u channel i had made up. I also sleeved the inside of the channel with 3" x 1/4" plate seam welded, extending to the oem bend on the frame approx 14". The frame work of the bed is 1 1/2" square .120 wall for the radius bends, and .095 wall for the rest. I welded up the bolt holes in the frame to the 1/4" plate, they are like big rivets.
    https://forum.ih8mud.com/attachment.php?attachmentid=301014&stc=1&d=1235360572

    Last edited: Mar 2, 2009
  6. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO
    Last edited: Mar 2, 2009
  7. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO
    Last edited: Mar 2, 2009
  8. fyresq

    fyresq

    Messages:
    546
    Likes Received:
    0
    Joined:
    Oct 18, 2006
    Location:
    Lake Tahoe
    Looks Clean so far......I may have missed it but are you gonna do a top?

  9. Isotel

    Isotel

    Messages:
    4,061
    Media:
    5
    Albums:
    1
    Likes Received:
    40
    Joined:
    Sep 29, 2003
    Location:
    Crawlorado.com
    Looking Good! you guys going to be in moab again?

    I see no need for a top! ;)

  10. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO
    I have the soft top bows 80% fabbed up (ran short of tubing). The soft top is going to be way cool with side windows (1 ea. side) and a zip out rear window. The plan is to have a soft top on the bed, and have it zip to the front so it will be open to the bed, but fully enclosed when loaded with gear and dogs in tow.
    The hood, fenders bib and aprons are in paint right now, the rest of the rig will go in late next week, then the bed. Not too bad time wise, we started on this about January 9th. More pics as we progress. Later.

    Mike

  11. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO
    Hey Trevor. Moab for sure. I'm TRYING to make the Round up in March :eek:

  12. Twisty

    Twisty

    Messages:
    758
    Likes Received:
    492
    Joined:
    Nov 13, 2006
    Location:
    Sunshine Coast, QLD, Australia
    Cool build! Lookin forward to some more pics!!!

  13. xjnation

    xjnation

    Messages:
    605
    Albums:
    1
    Likes Received:
    5
    Joined:
    Jul 13, 2005
    Location:
    Springfield, MO
    Wow, you suck. I just about have my 40 built and now I'm trying to figure out how to convince the wife we need to make a damn truck out of it. Thanks.....

    Just kidding. Looks great. Can't wait to see it done.

  14. mrqtipp

    mrqtipp

    Messages:
    842
    Likes Received:
    4
    Joined:
    May 19, 2007
    Location:
    Redondo Beach
    sick!!!!

  15. D'Animal

    D'Animal Rescuer of Beagles & Landcruisers Moderator

    Messages:
    21,199
    Media:
    180
    Albums:
    8
    Likes Received:
    520
    Joined:
    Mar 31, 2006
    Location:
    Central California
    Looks Great!

  16. Isotel

    Isotel

    Messages:
    4,061
    Media:
    5
    Albums:
    1
    Likes Received:
    40
    Joined:
    Sep 29, 2003
    Location:
    Crawlorado.com
    Dude, you chopped off the Crawlorado sticker! :doh:

    :flipoff2: Roundup would be sweet!, gota get my Diesel Registered and running on WVO Pronto, so i can afford these trips!

  17. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO

  18. youmustbecrazy

    youmustbecrazy

    Messages:
    824
    Likes Received:
    53
    Joined:
    Aug 16, 2007
    Location:
    So Cal 909
    Nice Mike! The photos beat the pictures Paul sends on his phone. Keep the pictures and build posted,
    Hugh

  19. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO
    Last edited: Mar 2, 2009
  20. zornff

    zornff

    Messages:
    911
    Likes Received:
    4
    Joined:
    Jan 18, 2005
    Location:
    SO.WEST,COLORADO

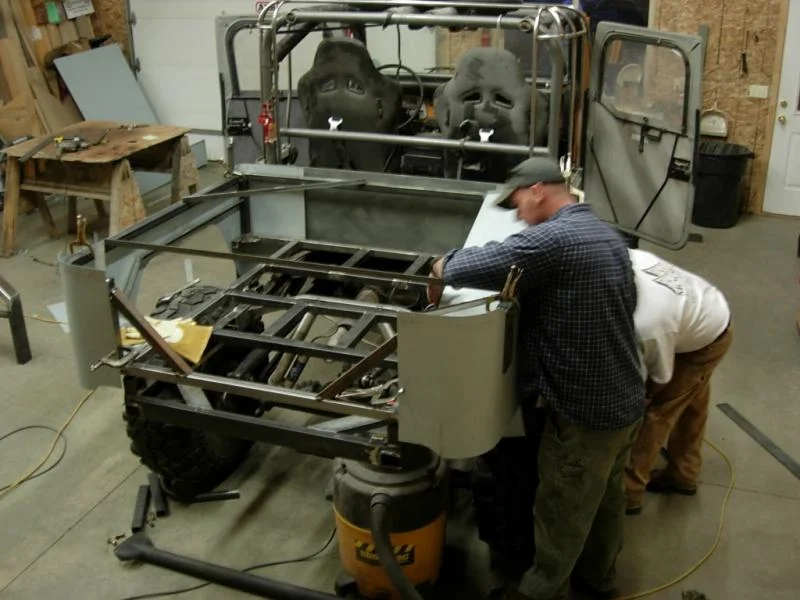

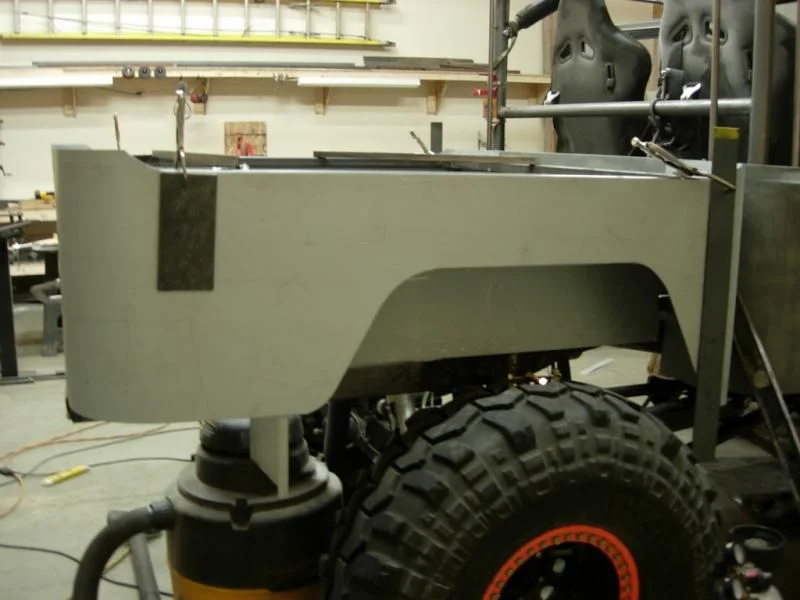

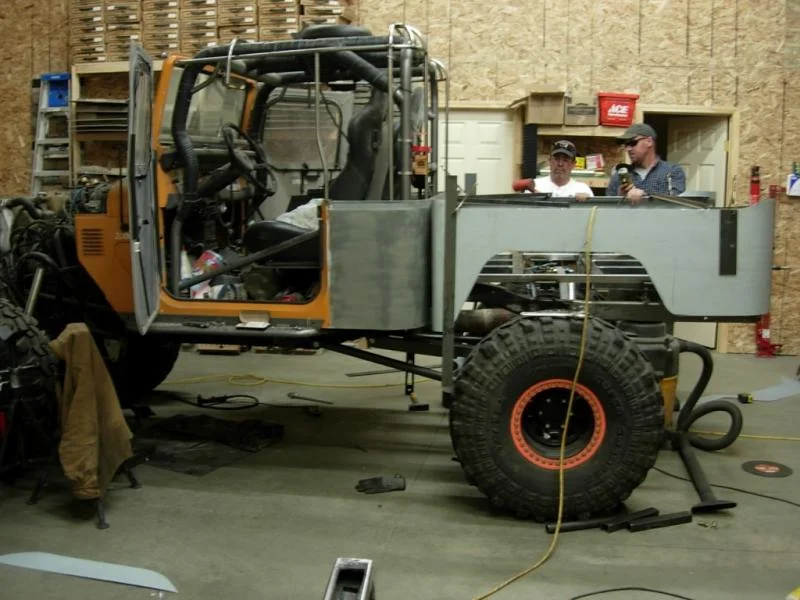

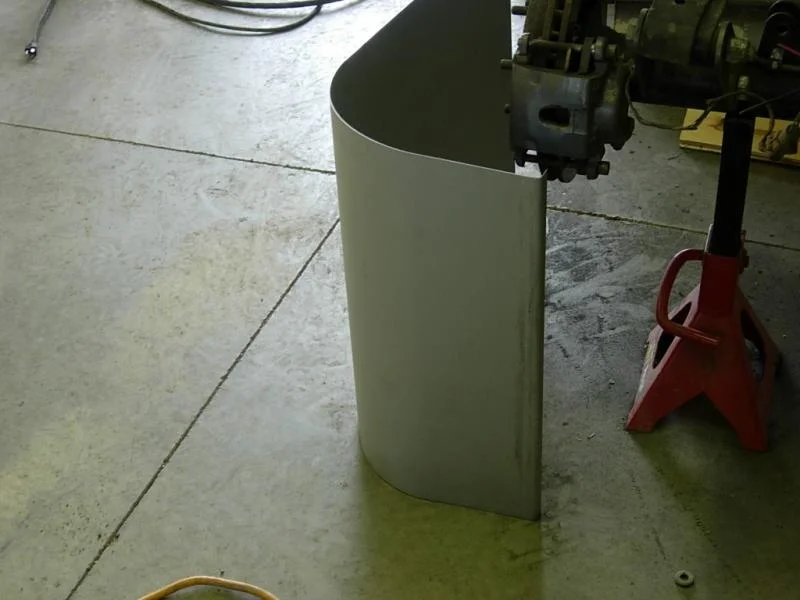

    One more pic of the skin, and soft top bows coming together. I don't like the straight top line at the back of the Icon fj45 soft top, and no side window. This top hopefully will look kind of like a 40 hard top with the back of the top rounded to match the tub, some what, and a small side window. We'll see.
