Builds Fj Buggy: V8,Rear steer,Toy axles (1 Viewer)
- Thread starter mpistolpj
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Joined
- Sep 28, 2002
- Threads
- 559
- Messages
- 8,112
- Location
- Kamloops, BC Canada
- Website
- www.shopraddcruisers.ca
Droooooooool
Really looking forward to seeing how that rear cruiser axle holds up for ya.
Rob
On that light of a rig it should hold up just fine.
sick build
Very very nice
well done that man
well done that man
- Thread starter
- #86
Tapage
Club 4X4 Panamá
- Thread starter
- #88
twin

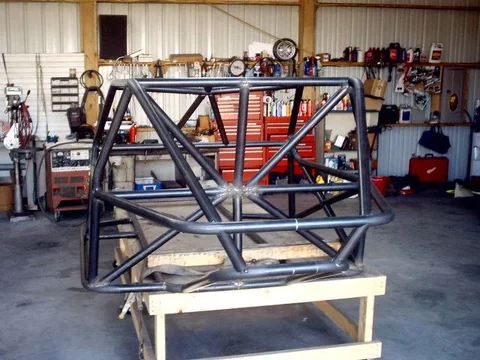

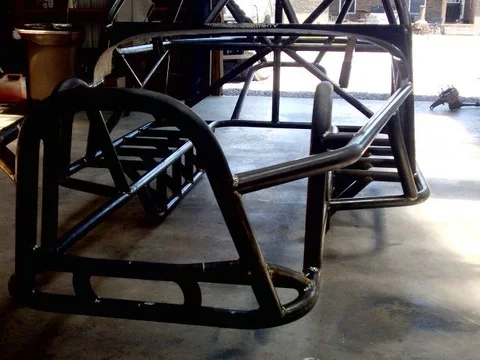

I am currently building a similar chassis with 1 3/4 dom wich will be for sale in a week... I am really liking the larger diameter tube..... Should be a great chassis for someone..
I am currently building a similar chassis with 1 3/4 dom wich will be for sale in a week... I am really liking the larger diameter tube..... Should be a great chassis for someone..
LC_Hamma
The Anti-Leafer
I see where you are selling the axles:
https://forum.ih8mud.com/sale-parts/277867-front-rear-steer-fj60-built-axles.html
https://forum.ih8mud.com/sale-parts/277867-front-rear-steer-fj60-built-axles.html
- Joined
- Sep 28, 2002
- Threads
- 559
- Messages
- 8,112
- Location
- Kamloops, BC Canada
- Website
- www.shopraddcruisers.ca
I see where you are selling the axles:
https://forum.ih8mud.com/sale-parts/277867-front-rear-steer-fj60-built-axles.html
Im guessing everything is for sale as is for most.
Great build, like how well you rig works.
Rob
- Thread starter
- #91
axles.... Yeah have come across some deals on making steering tons.. to be continued....
- Thread starter
- #92
#6 ready for a new home
- Thread starter
- #93
more
So reviving from the dead here...
How did the 60 steering axles end up holding up?
I've got a 6.0L YJ truggy on 60 hybrid axles and 42's. Front flipped DD and widened 3", and rear centered and still on IFS SF shafts. I'm of course snapping SF shafts (right at the spline where it tapers). Been thinking about what I want to do next.
I can either FF the rear as it is, or drop in an 80 rear, or just turn the rear into a steer axle using 60 or 80 outers. I've got a lot of mixed reviews on using the 60 outers on the rear though. General consensus is that it'll blow birfs constantly. I'm not sure what to believe though, as 99% of guys who are blowing up 300m birfs, I also notice forgot to bother shimming knuckles, or they're using steering stops for steering limiting instead of a ram, or 20 other setup failures. Im not sure I trust any of the "failure" guys, as every single time I look at the failure, it's installation issues.
Now I'm also a bit heavier at 4600lbs with gear and driver.
I figure most people agree that going to FF will net me nearly double the torsional strength over SF, which does jive with my FEA simulations (FEA said 180%) and then we're going from SF to FF so no weight on the shaft, which should help a bit, so I figure my weakest link there is probably going to be the birfs. I've been waffling on what to do about this for a couple weeks. I could just FF it and see how she do, but seems a shame to not take this opportunity to just steer it as well.
I was thinking either 60 or 80 outers with 300m birfs/shafts.
What are your thoughts? FF likely to survive? 60 or 80 knuckles/birfs survive? Would the steering outers make it significantly weaker? Would an 80 knuckle be as strong as a straight FF shaft?
For reference, the SF rears have held up to very abusive street, evil FSR at stupid high speed, and moderate trails, but they failed on what is largely considered to be a buggy trail. Got bound up, light throttle with very little wheel speed and she snapped. I don't pin it on climbs, but you know how PNW wheeling is. All slick/snotty and then you hit the sharp rocks and grab.
How did the 60 steering axles end up holding up?
I've got a 6.0L YJ truggy on 60 hybrid axles and 42's. Front flipped DD and widened 3", and rear centered and still on IFS SF shafts. I'm of course snapping SF shafts (right at the spline where it tapers). Been thinking about what I want to do next.
I can either FF the rear as it is, or drop in an 80 rear, or just turn the rear into a steer axle using 60 or 80 outers. I've got a lot of mixed reviews on using the 60 outers on the rear though. General consensus is that it'll blow birfs constantly. I'm not sure what to believe though, as 99% of guys who are blowing up 300m birfs, I also notice forgot to bother shimming knuckles, or they're using steering stops for steering limiting instead of a ram, or 20 other setup failures. Im not sure I trust any of the "failure" guys, as every single time I look at the failure, it's installation issues.
Now I'm also a bit heavier at 4600lbs with gear and driver.
I figure most people agree that going to FF will net me nearly double the torsional strength over SF, which does jive with my FEA simulations (FEA said 180%) and then we're going from SF to FF so no weight on the shaft, which should help a bit, so I figure my weakest link there is probably going to be the birfs. I've been waffling on what to do about this for a couple weeks. I could just FF it and see how she do, but seems a shame to not take this opportunity to just steer it as well.
I was thinking either 60 or 80 outers with 300m birfs/shafts.
What are your thoughts? FF likely to survive? 60 or 80 knuckles/birfs survive? Would the steering outers make it significantly weaker? Would an 80 knuckle be as strong as a straight FF shaft?
For reference, the SF rears have held up to very abusive street, evil FSR at stupid high speed, and moderate trails, but they failed on what is largely considered to be a buggy trail. Got bound up, light throttle with very little wheel speed and she snapped. I don't pin it on climbs, but you know how PNW wheeling is. All slick/snotty and then you hit the sharp rocks and grab.
