Huge thanks to our family, wheeling family including Dave's Off Road Supply, WFO Concepts, Off Road Design, East Coast Gear Supply, and Bill Griiffith - Verb Precision Machine for helping to make this dream project happen. This is pretty surreal. In ways it seems like just yesterday, other ways a life-time ago, that I was dreaming about building our '89 early body style 4Runner when my oldest son who was just a few months old and the youngest was still about 2 years out. They're now 16 and 14. Their Mom and I bought the 4Runner in '04 from the original owner with 303K on it. I drove it daily for about 5 years, documented the 22RE rebuild on the old PBB site, retired it in '10 to build it, but had to back burner it. Unitil now.

Plan - Full bodied wheeler on 40s capable of street driving. Front and back halfed stock frame, one ton solid axle swap, drvie train swap, simple suspension, full hydro, cage, seats, re-paint, and body protection.

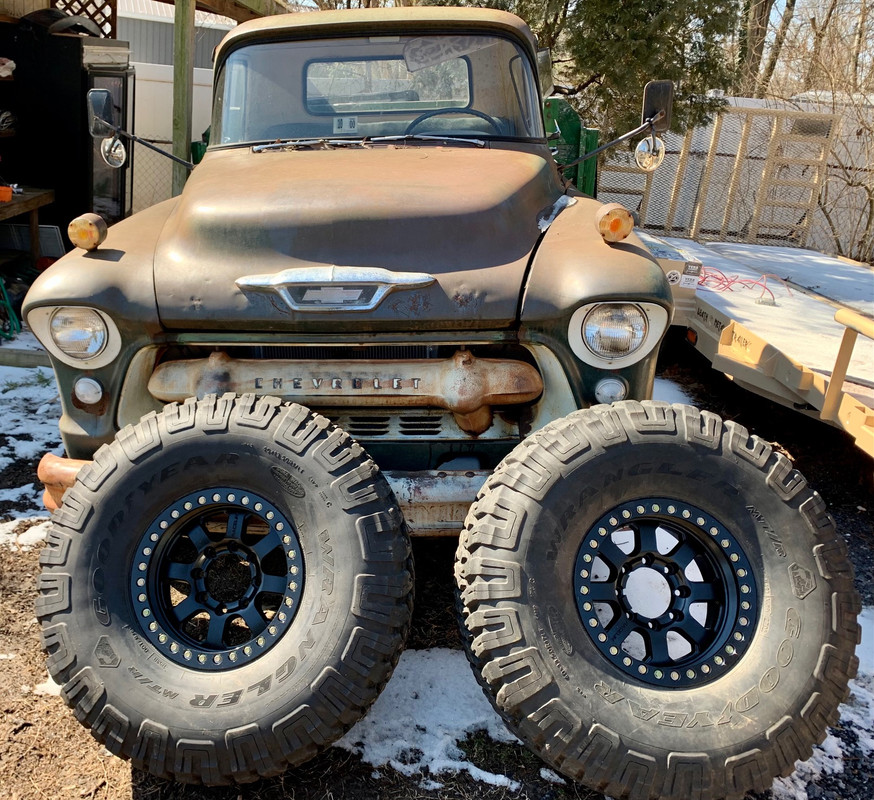

Stock piled: KP Dodge D60 front axle we narrowed to ~ 64" WMS-WMS, Cab and Chassis 14 bolt, 4.56 gear sets, WFO 14 bolt truss, Total Metal Inoovations 14 bolt shave kit, 2014 Chevy LV3 4.3L V6, NV4500 trans w/6.34:1 first gear, ORD Magnum & NP205, Champion aluminum radiator, Trail Gear leaf springs, shackles, Bilstein 5100s, and the front spring hanger / 8274 winch mount I built early this year. Dave hooked us with a set of Raceline Avenger beadlocks which are on the way and we have a set of 6x 40" MTRs on stand-by. Once money allows, we'll order another ORD Magnum underdrive, call Dave Williamson for steering, seats, harnesses, axle setup kits, lockers, etc, get the LV3 harness worked over, ECU flashed, have Bill machine the 205 case, shave the 14 bolt housing, shave the R&P, and round up all the odds and ends.

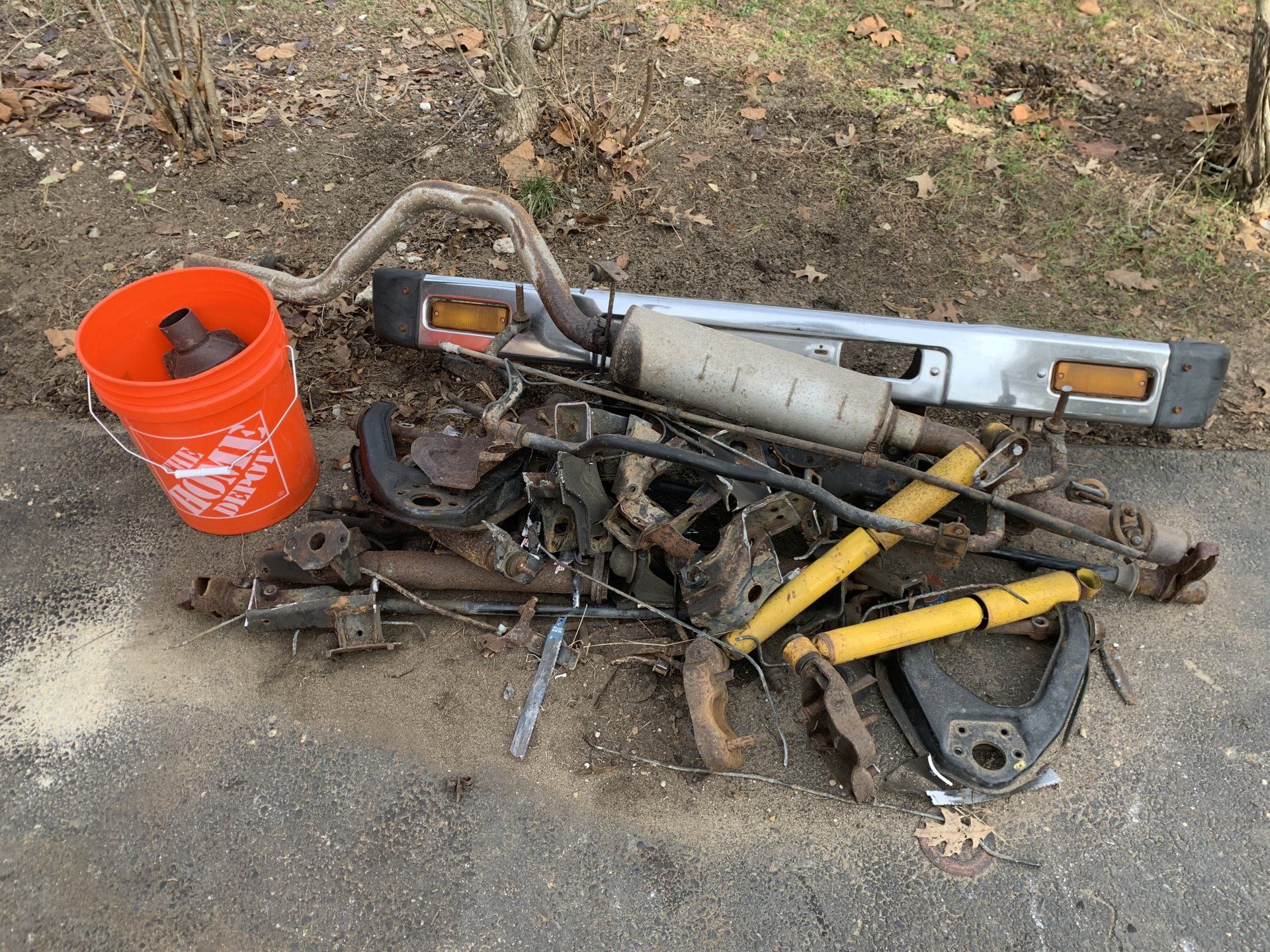

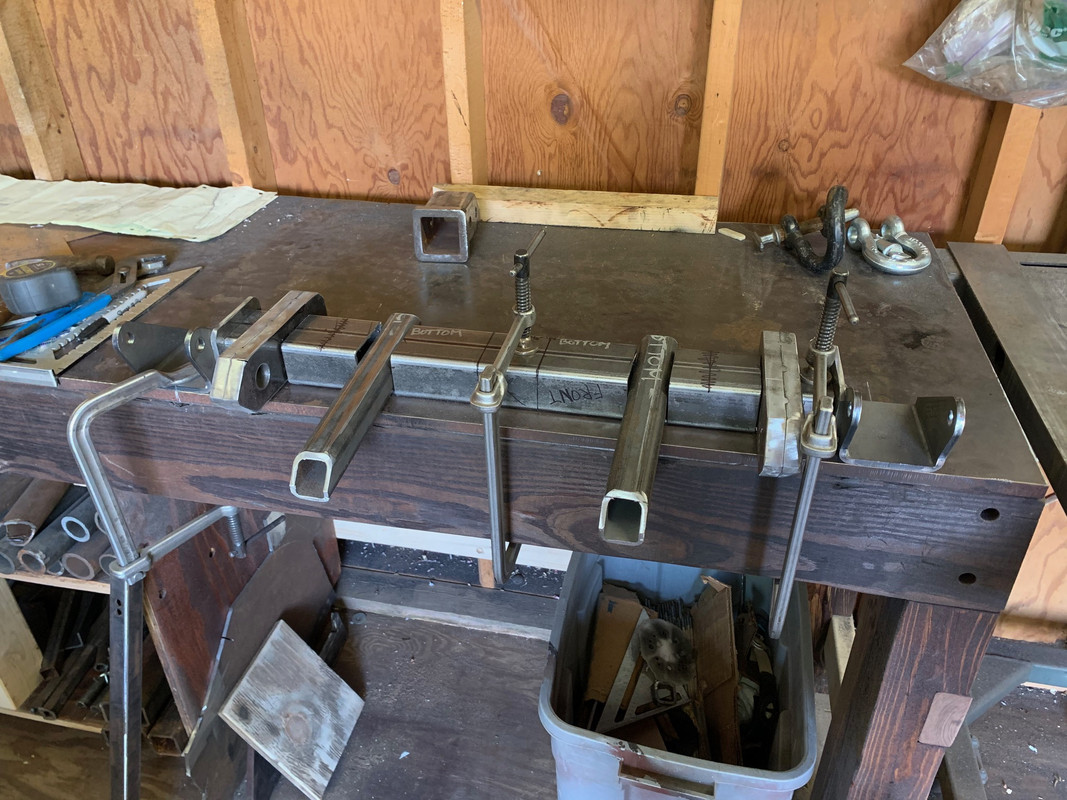

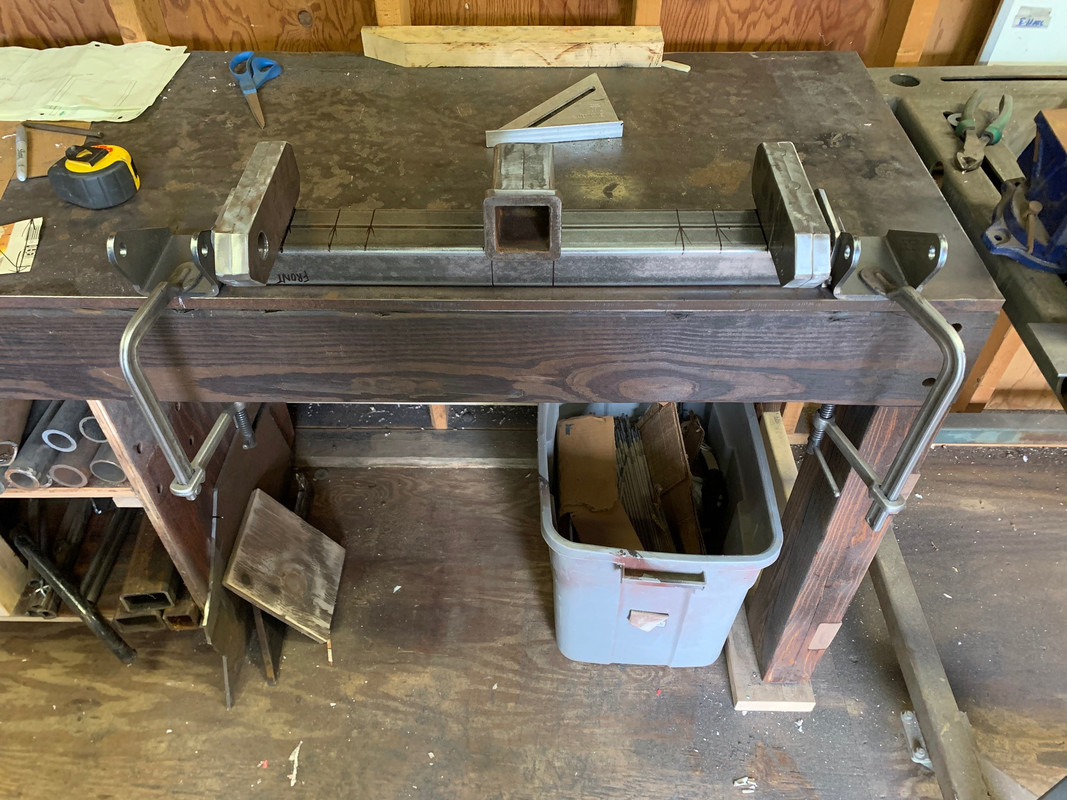

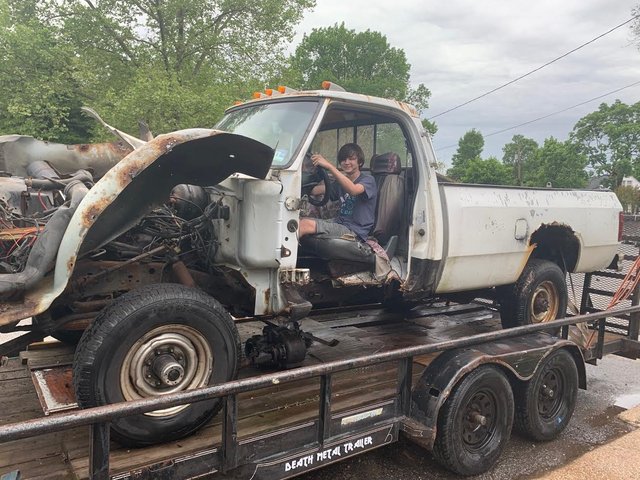

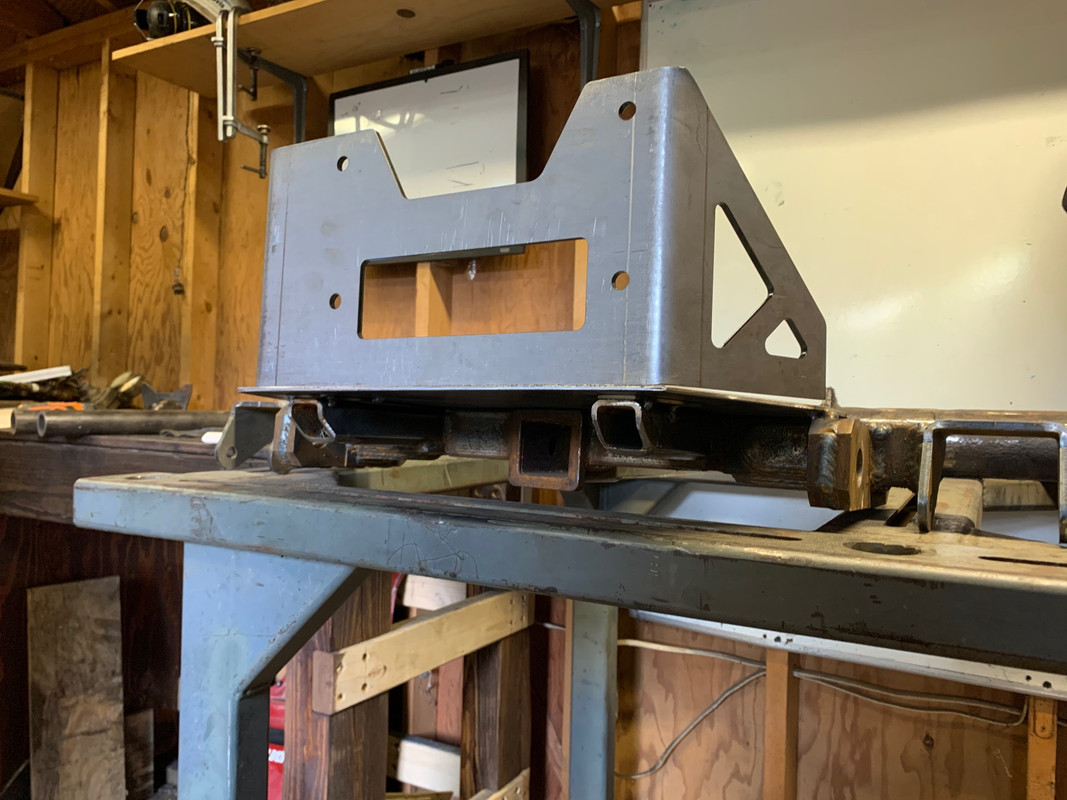

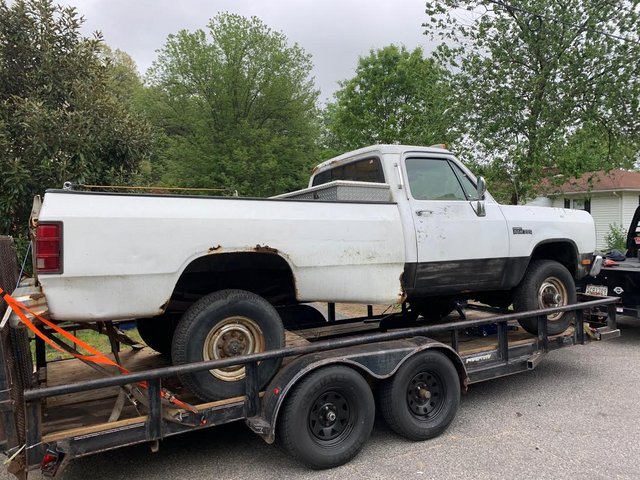

Summer 2020 Noah and I dragged home a pretty beat down and rotten '93 W250 for the 60 front and 205 transfercase. We gutted it and scrapped the left overs.In between projects on my FJ45, Noah and I built the leaf spring hanger / 8274 winch mount.






Last edited:
Joined
Jan 30, 2018
Messages
32
Location
Maryland

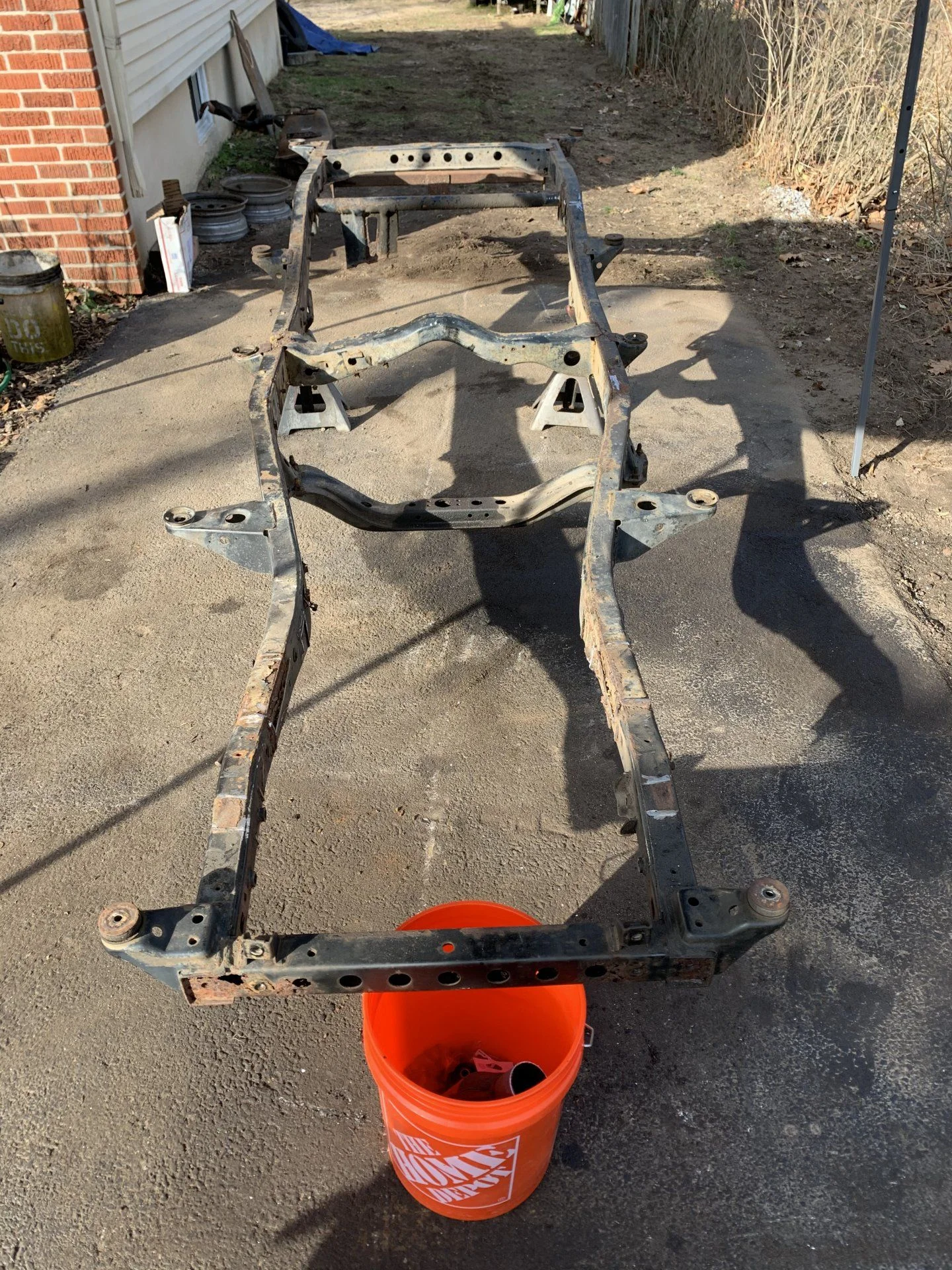

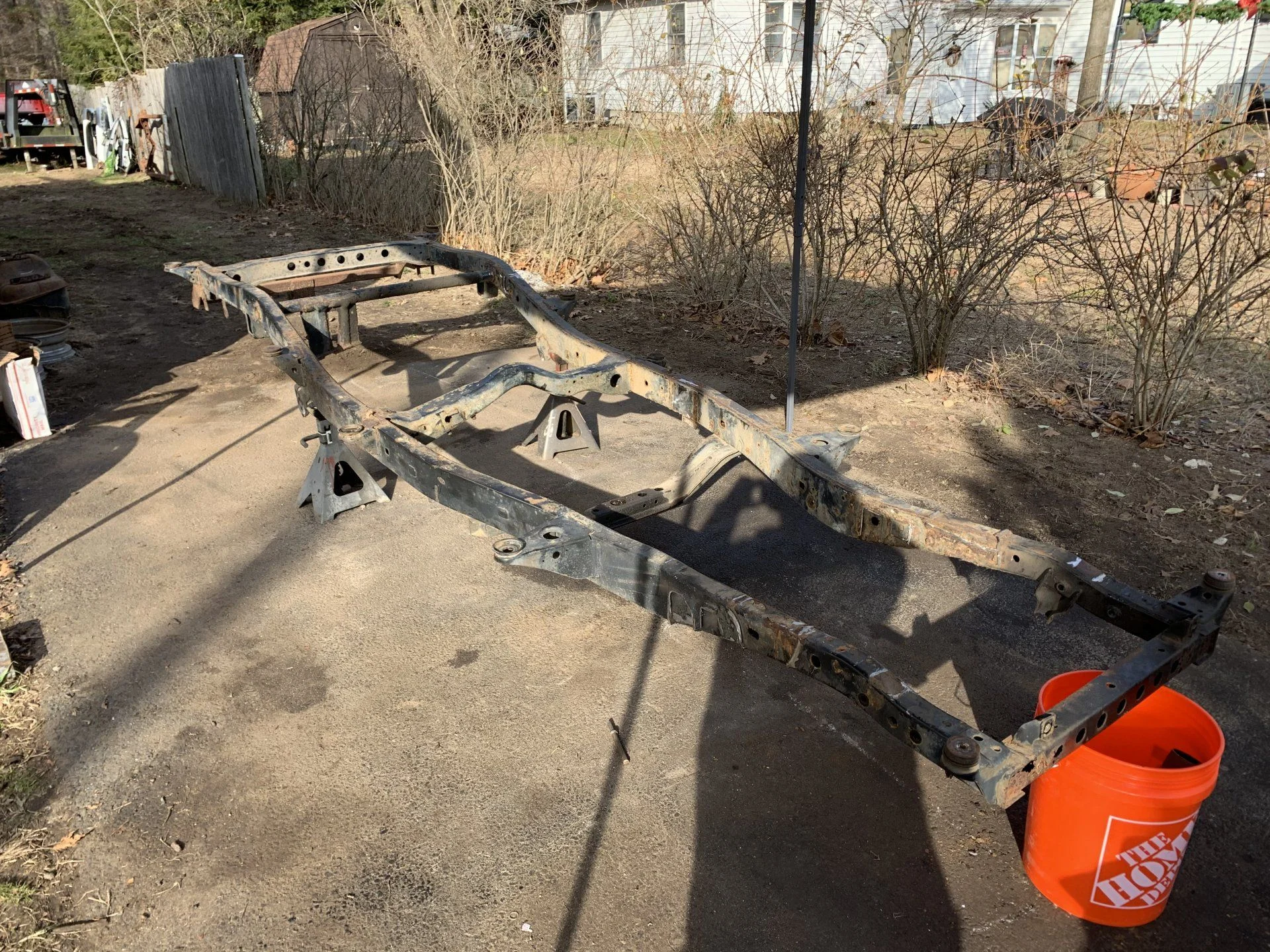

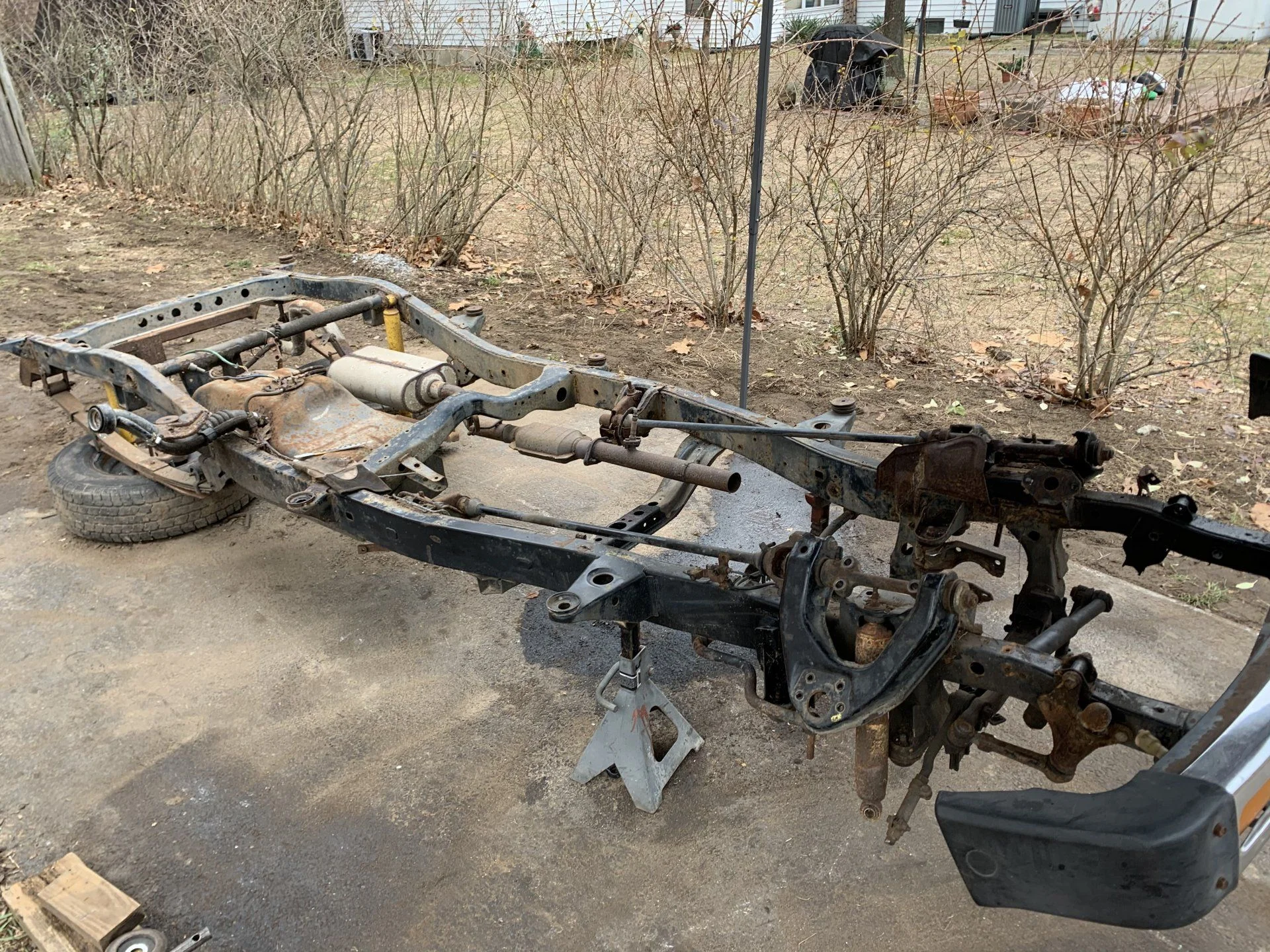

As for the 4Runner itself, years ago I trimmed a few inches out of the front fenders and rear wheel openings. I'm not a paint and body guy at all so I just bedlined over the bare metal. It did the job at the time, was always ugly, so we'll probbaly strip down and repaint the entire body eventually. It clears 37s with zero lift so with rear moved back about 1" - 2" and the front moved foward about 4", I'm hoping to won't take much more sheet metal work to clear 40s. I gutted the interior years ago (seats, seat belts, carpet, and interior panels) and Noah power washed years of funk off the body back in January 2020. This past weekend (13 Dec 2020,) we unhooked everything in preparation of separating the body and frame then pulled the body with the excavator. Fortunately the frame is in great shape and very solid.





Joined
Jan 30, 2018
Messages
32
Location
Maryland

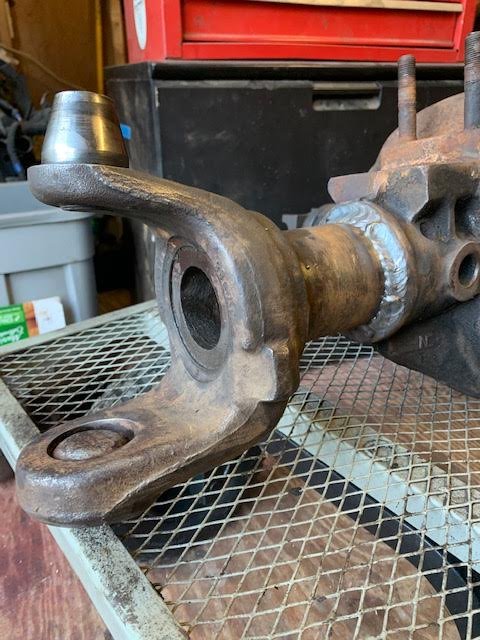

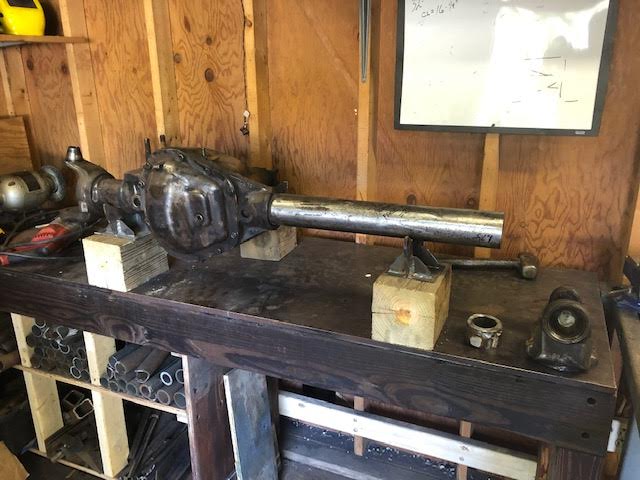

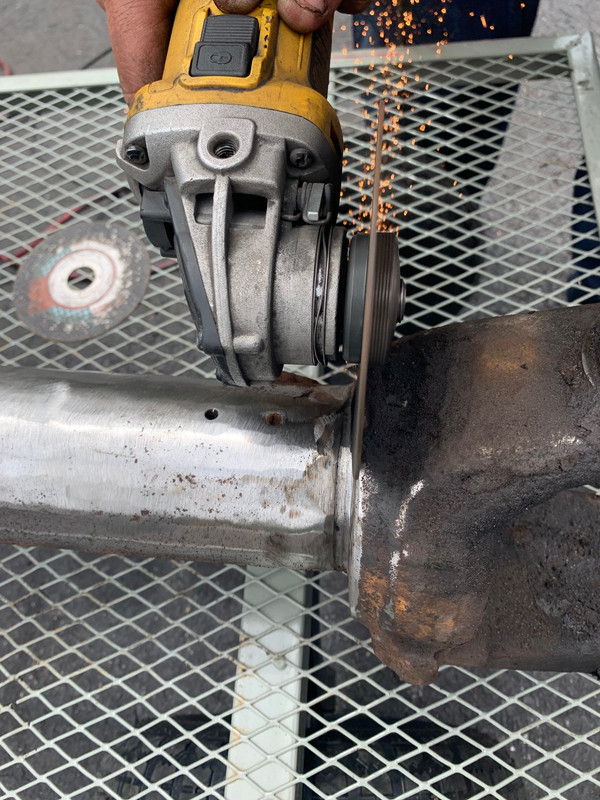

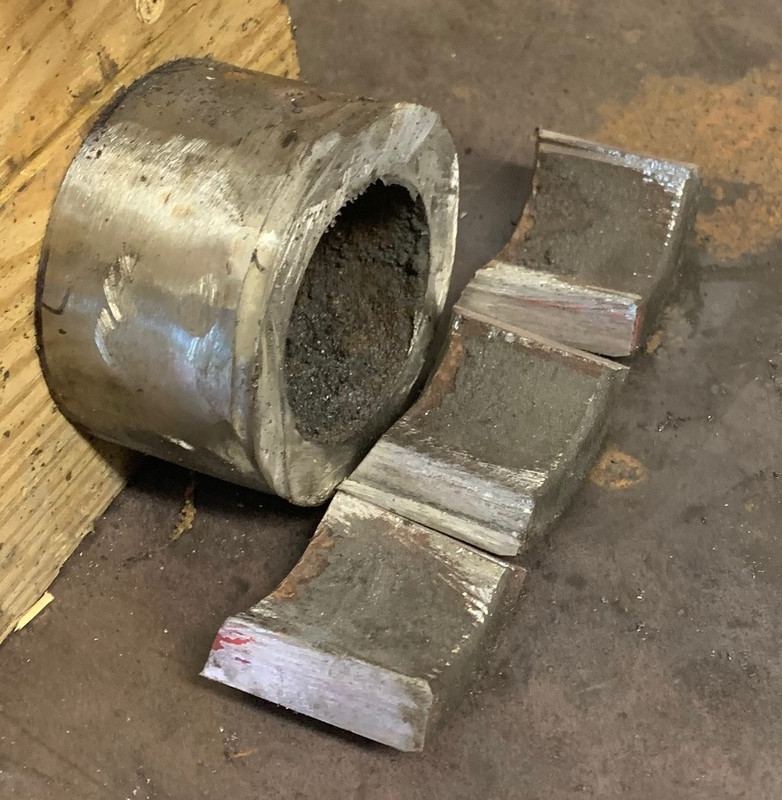

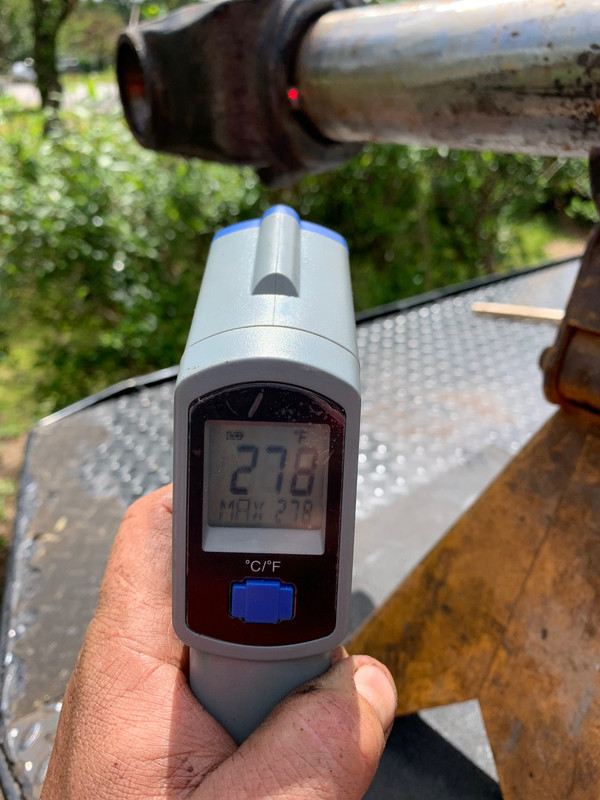

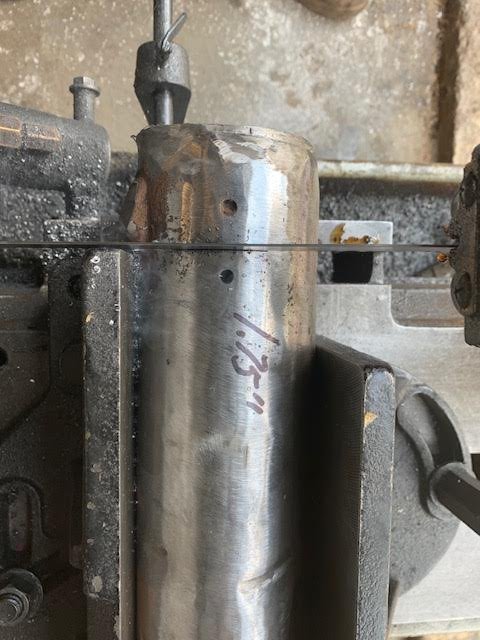

Narrowing the Dodge king pin D60 front. I cut the C off with a cutting wheel and grinder and final cut the housing with Bill's band saw. I split the left over tubing inside the C with the sawzall then hammered out the pieces. We heated the C to about 400* to burn off any junk, wire wheeled, let it cool to about 250*F, welded the C back onto the housing and welded the tubes to the center section.























Joined
Jan 30, 2018
Messages
32
Location
Maryland

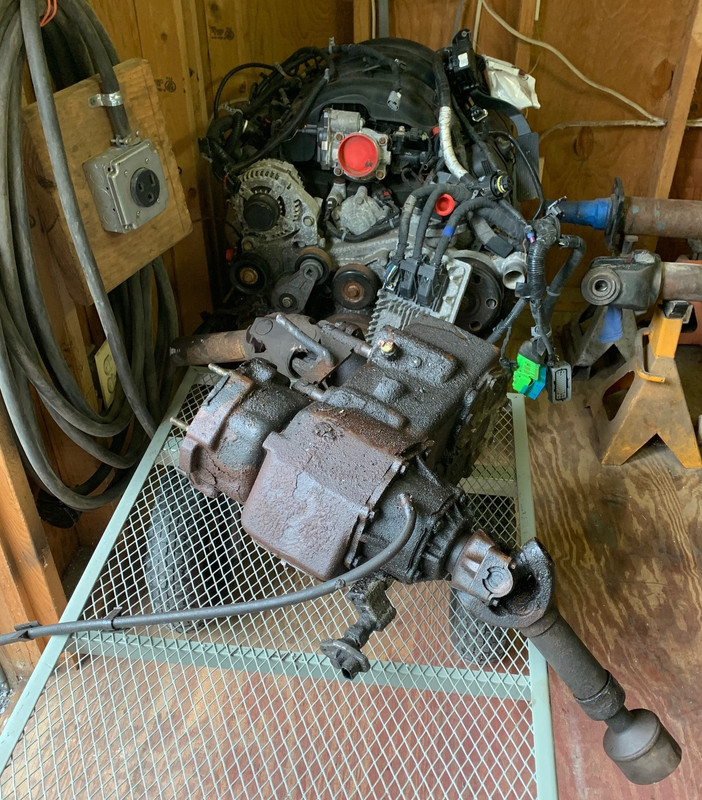

We pulled the NV4500 out of a friend's project YJ that he was parting out. It's an early Chevy case, early 6:34:1 first gear & 23 spline output shaft. Advance Adapters must have built this trans years ago but as far as I can tell, I don't think it has any miles on it.





Joined
Jan 30, 2018
Messages
32
Location
Maryland

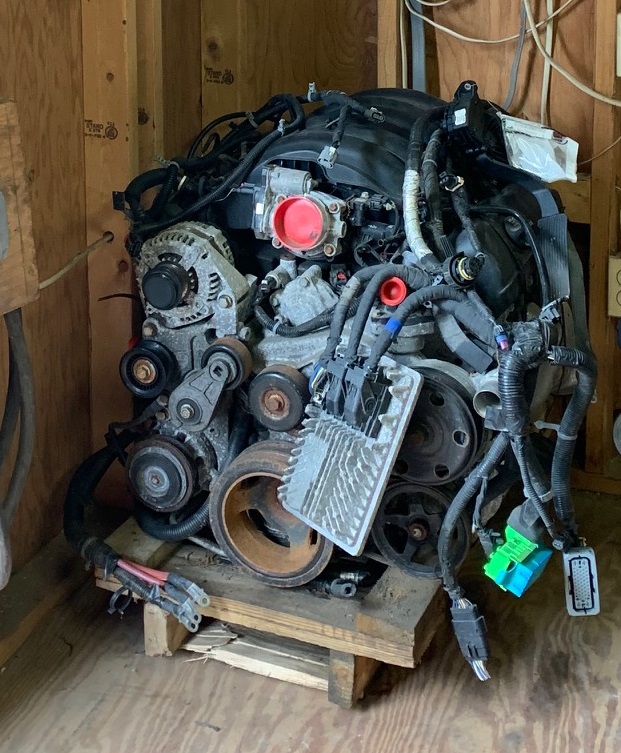

2014 Chevy LV3 aluminum block & heads w/~75k on it. Bought it as a complete drop out from Bow Auto Parts in NH.


Dodge NP205. Small diameter input shaft bearing style housing that I'll ask Bill to machine for the 90mm input shaft bearing for the Magnum. In the meantime, we've torn down and bagged up all the parts.

Last edited:
Joined
Jan 30, 2018
Messages
32
Location
Maryland
Nothing new to report but we plan on getting busy stripping the frame down once this weather system coming through the East Coast clears out.
Drivetrain is sold minus the hand build 22RE with ENGNBLDR, LC Engineering, and DAO Racing components. I spent way too much money back in the day just to net way too little power but hey, hopefully somone can use it.


Last edited:
Joined
Jan 30, 2018
Messages
32
Location
Maryland
Front diff, CVs, hubs, brakes, trans and t-case are all sold. Thanks to Firemedic831 for htting me up about the engine. I returned your PM, hit me up later.


Broski

I love Wheelin my 80
SILVER Star
Joined
Dec 3, 2015
Messages
2,452
Location
Morro Bay, At the edge of the Pacific ocean
Narrowing the Dodge king pin D60 front. I cut the C off with a cutting wheel and grinder and final cut the housing with Bill's band saw. I split the left over tubing inside the C with the sawzall then hammered out the pieces. We heated the C to about 400* to burn off any junk, wire wheeled, let it cool to about 250*F, welded the C back onto the housing and welded the tubes to the center section.

View attachment 2525459
View attachment 2525460

View attachment 2525461

















View attachment 2525462
Wow nice work !!!!!!


05CTD

SILVER Star
Joined
Sep 14, 2017
Messages
57
Location
PNW Eastern Wa
Awesome project. Your going to have a little rarity now days with your boy driving a stick seems most teens thats one pedal to much.

Good luck can wait to see the progress
