Electrical Connector Organization and Storage

[Engineer8000]

I currently keep all my electrical connectors in bags in a cardboard box. I am looking for ideas to organize these and also keep my related tools all together. Please show me what you use.



[EWheeler]

I currently keep all my electrical connectors in bags in a cardboard box. I am looking for ideas to organize these and also keep my related tools all together. Please show me what you use.

Theses are nice, but spendy:

Milwaukee PACKOUT 11-Compartment Impact Resistant Portable Small Parts Organizer 48-22-8430 - The Home Depot

This Milwaukee PACKOUT 11-Compartment Small Parts Organizer features heavy duty build, weather seal and 10 removable and mountable bins with no-travel lid.

www.homedepot.com

Similar and slightly cheaper;

Storage System Modular Organizer

Amazing deals on this Storage System Modular Organizer at Harbor Freight. Quality tools & low prices.

www.harborfreight.com

Economy Options, lots of sizes and arrangements to pick from:

8-Bin Large Portable Parts Storage Case

Amazing deals on this 8 Bin Large Portable Storage Case at Harbor Freight. Quality tools & low prices.

www.harborfreight.com

15 Bin Small Portable Parts Storage Case

Amazing deals on this 15 Bin Small Portable Storage Case at Harbor Freight. Quality tools & low prices.

www.harborfreight.com

Portable Storage Case

Amazing deals on this Portable Storage Case at Harbor Freight. Quality tools & low prices.

www.harborfreight.com

I am sure that Amazon has tons of offerings for plastic storage cases that would serve the purpose you need. The above is what i am most familiar with and have used for various storage needs at work and at home.



[Darkwing58]

I use Milwaukee pack outs to keep all my spare parts in , nut, bolts electrical items



[Engineer8000]

I had never seen the packouts, thanks.



[thatcabledude]

Check out the selection of HART brand boxes they sell at Walmart. I have a few that are pretty decent.



[PAToyota]

Portable Storage Case

Amazing deals on this Portable Storage Case at Harbor Freight. Quality tools & low prices.

www.harborfreight.com

I use a set of these for my connectors. One each for 22-16, 16-14, and 12-10 connectors.

I did glue the dividers in place as they tend to come loose and allow the compartments to mix together when the box is open. With them glued, you can shake the box with it closed without mixing anything.



[1911]

I bought some plastic tip-out bins from Northern Tool some years ago that mount on a wall to hold little stuff like connectors, cotter pins, carb jets, etc. Let me see if I can find them on-line.

Here they are, or at least similar to the ones I have:

https://www.northerntool.com/shop/tools/category_storage-organizers+bins-racks+tip-out-bins

They come in different sizes and lengths.



[e9999]

seems like you'd want to decide first if you want/need mobile or not. Different beasts.



[Engineer8000]

seems like you'd want to decide first if you want/need mobile or not. Different beasts.

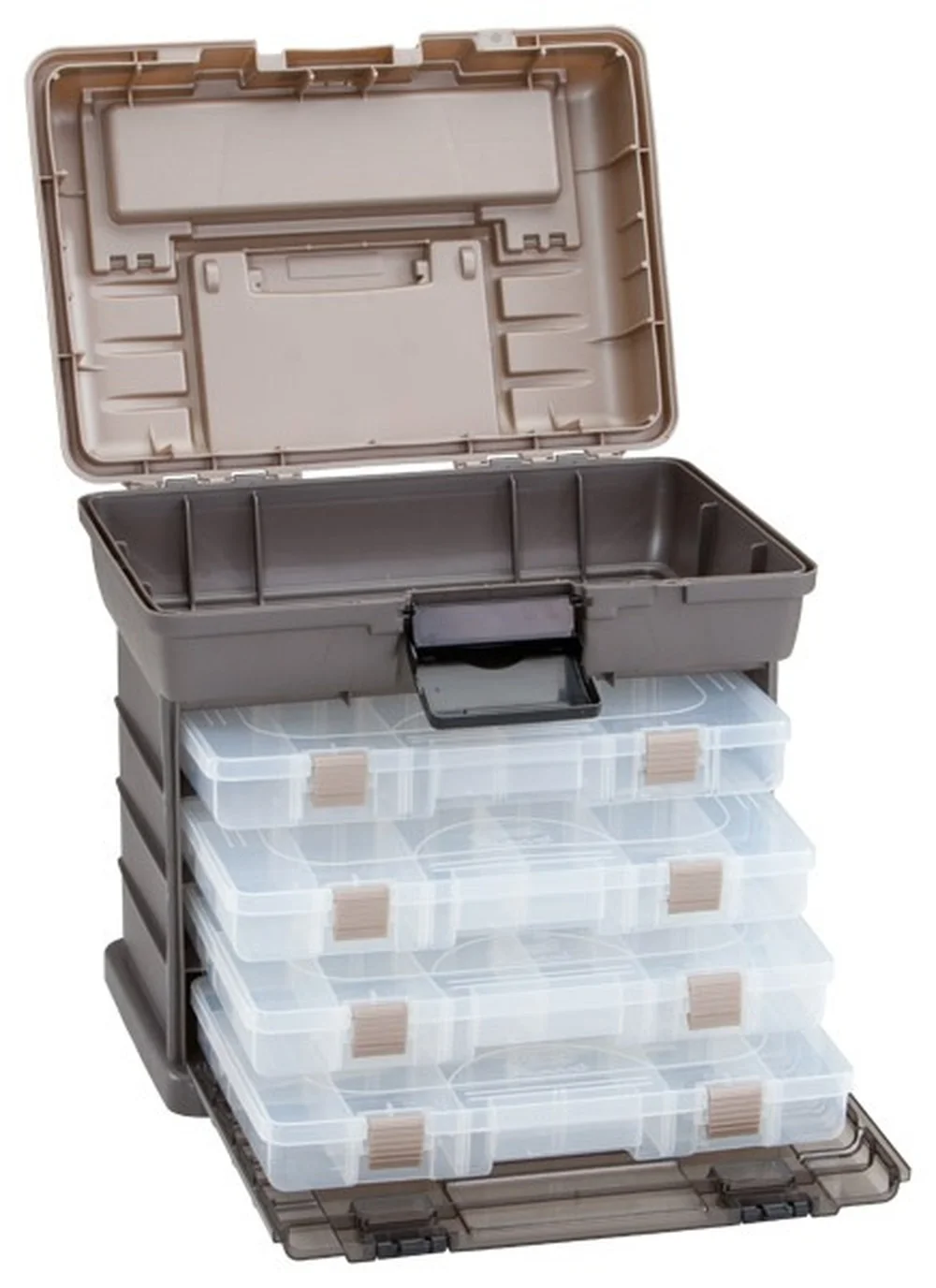

I think I have settled on this, Plano Stow N Go with four 3700 trays. I can store my connector tools in the top.



[PAToyota]

seems like you'd want to decide first if you want/need mobile or not. Different beasts.

Definitely! I like the tip-out style bins that @1911 mentions for things that I use at the workbench, but the connectors often "travel" for jobs.



[waiting for time]

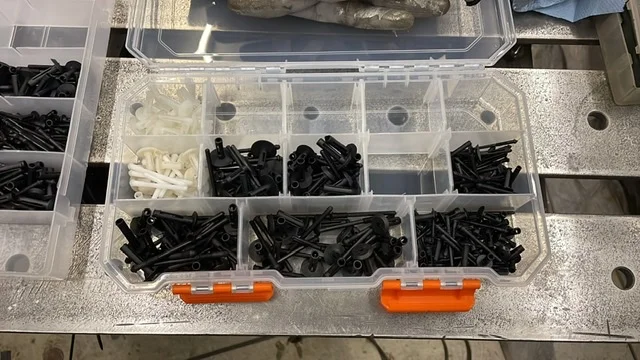

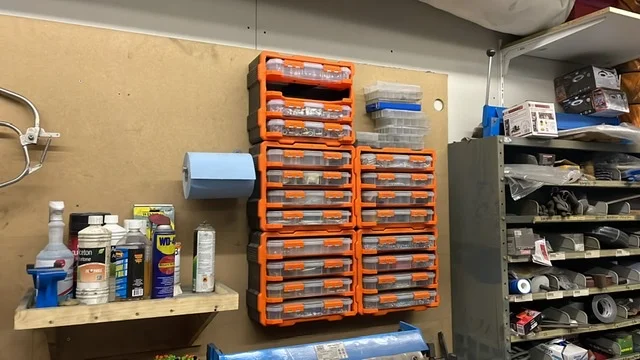

These are for small lighter stuff.

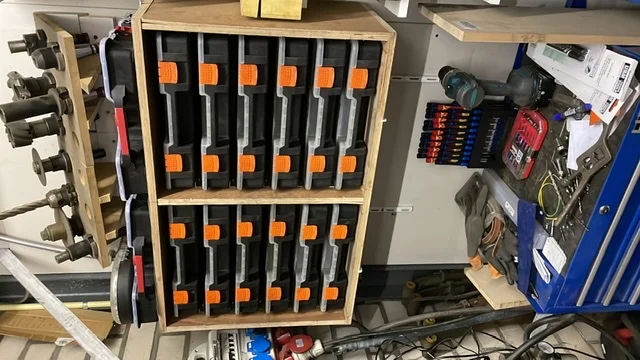

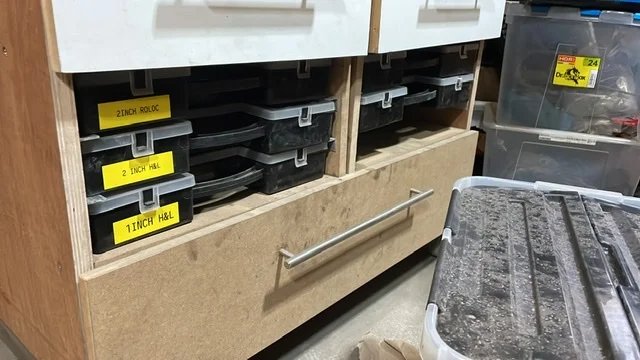

For bolts and a little heavier stuff I made a cabinet.

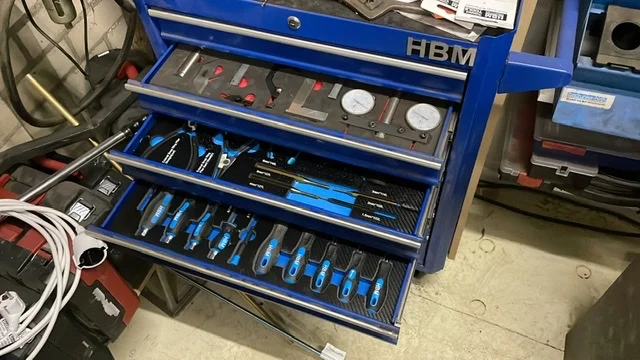

In my rol cabinet,

And for the tools that are not on the wall



[waiting for time]

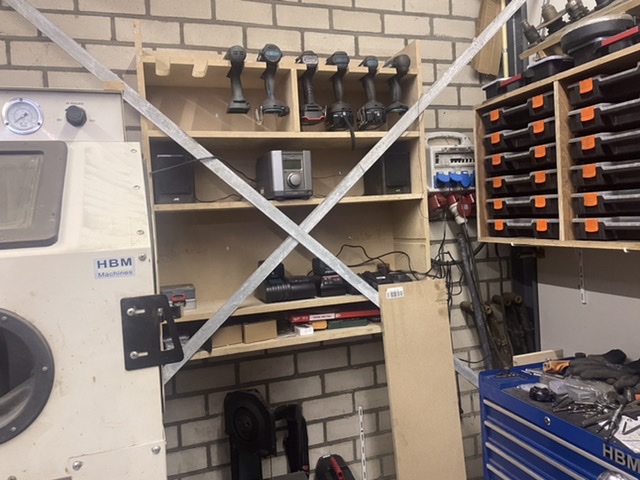

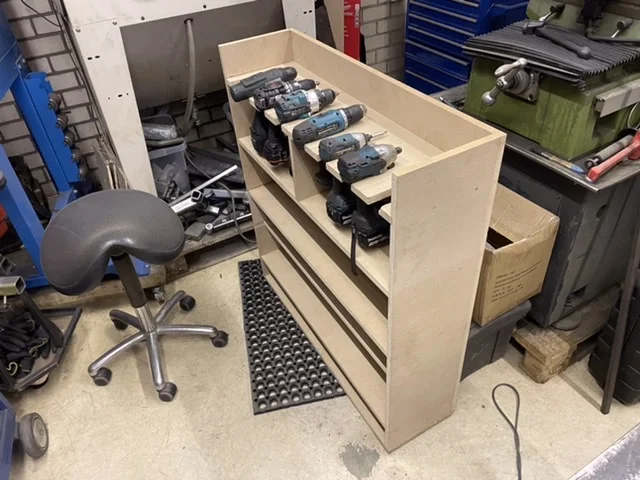

And this for the battery powered stuff.

This is a space I cannot use otherwise.



[2mbb]

I think I have settled on this, Plano Stow N Go with four 3700 trays. I can store my connector tools in the top.

View attachment 3155855

I have been using the Plano stow and go boxes for years for most of my hardware items. I store them on their long edge on a shelf above the work bench.



[Land Shark]

I think I have settled on this, Plano Stow N Go with four 3700 trays. I can store my connector tools in the top.

View attachment 3155855

Let’s see it set up

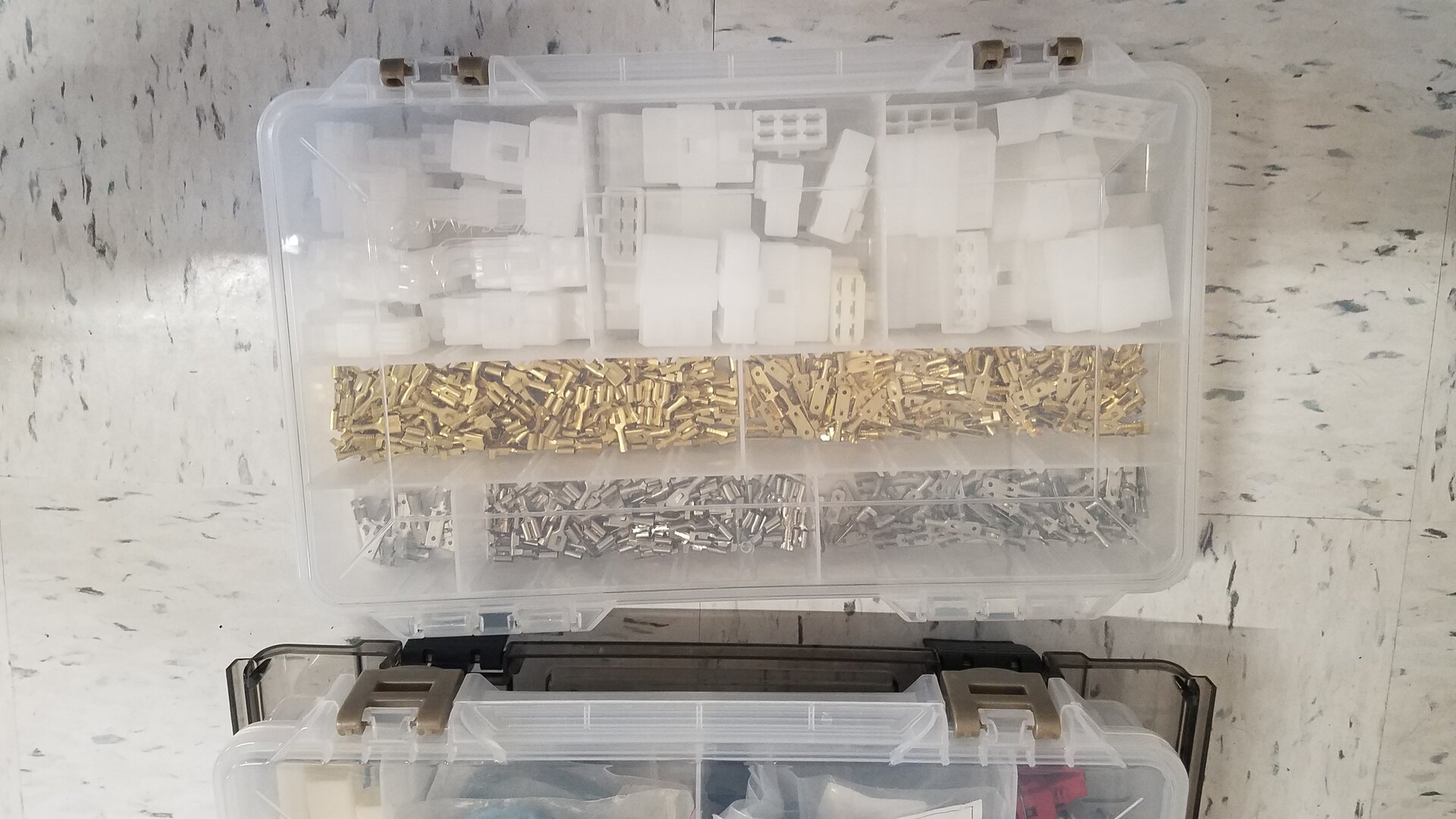

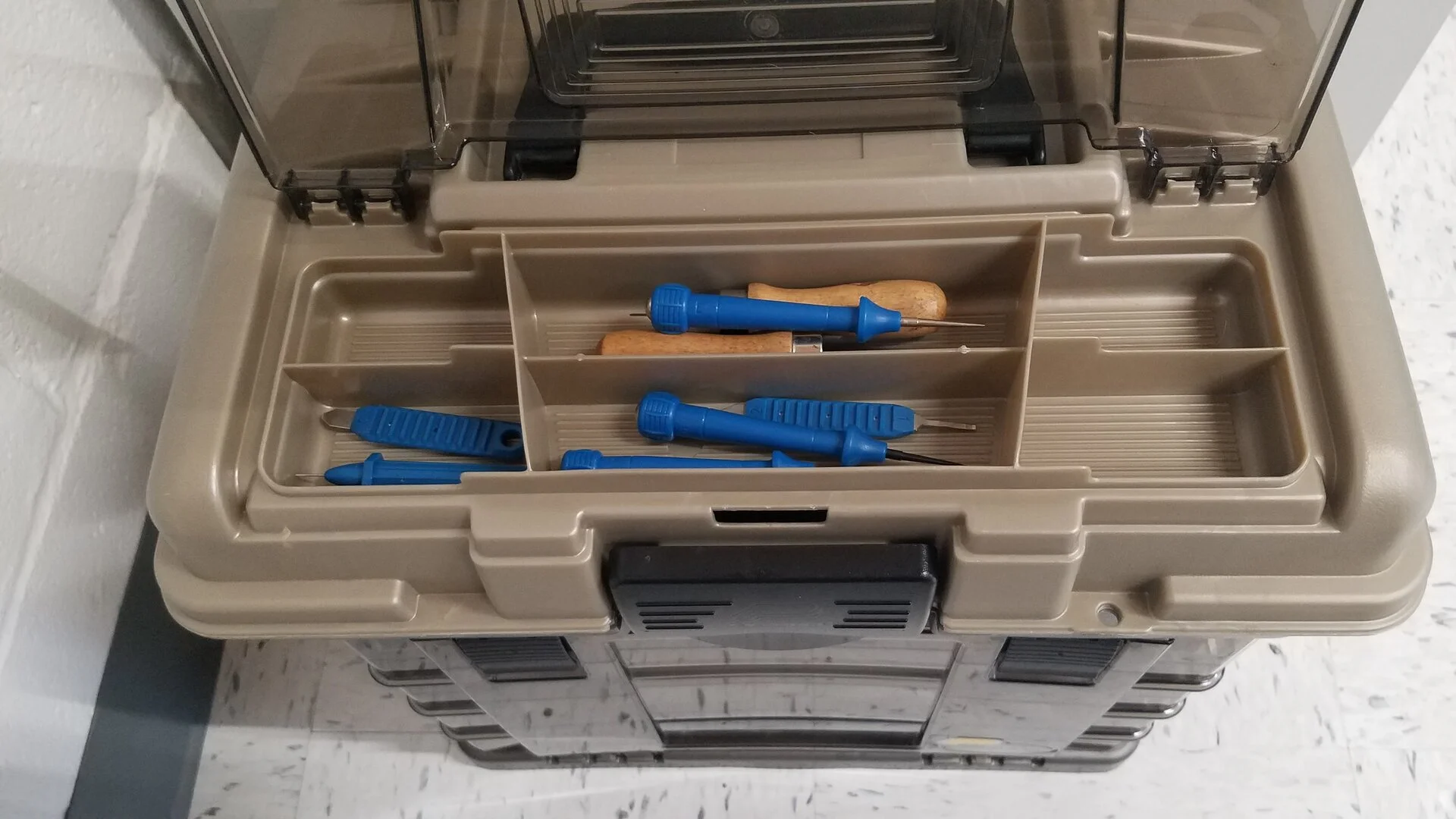

[Engineer8000]

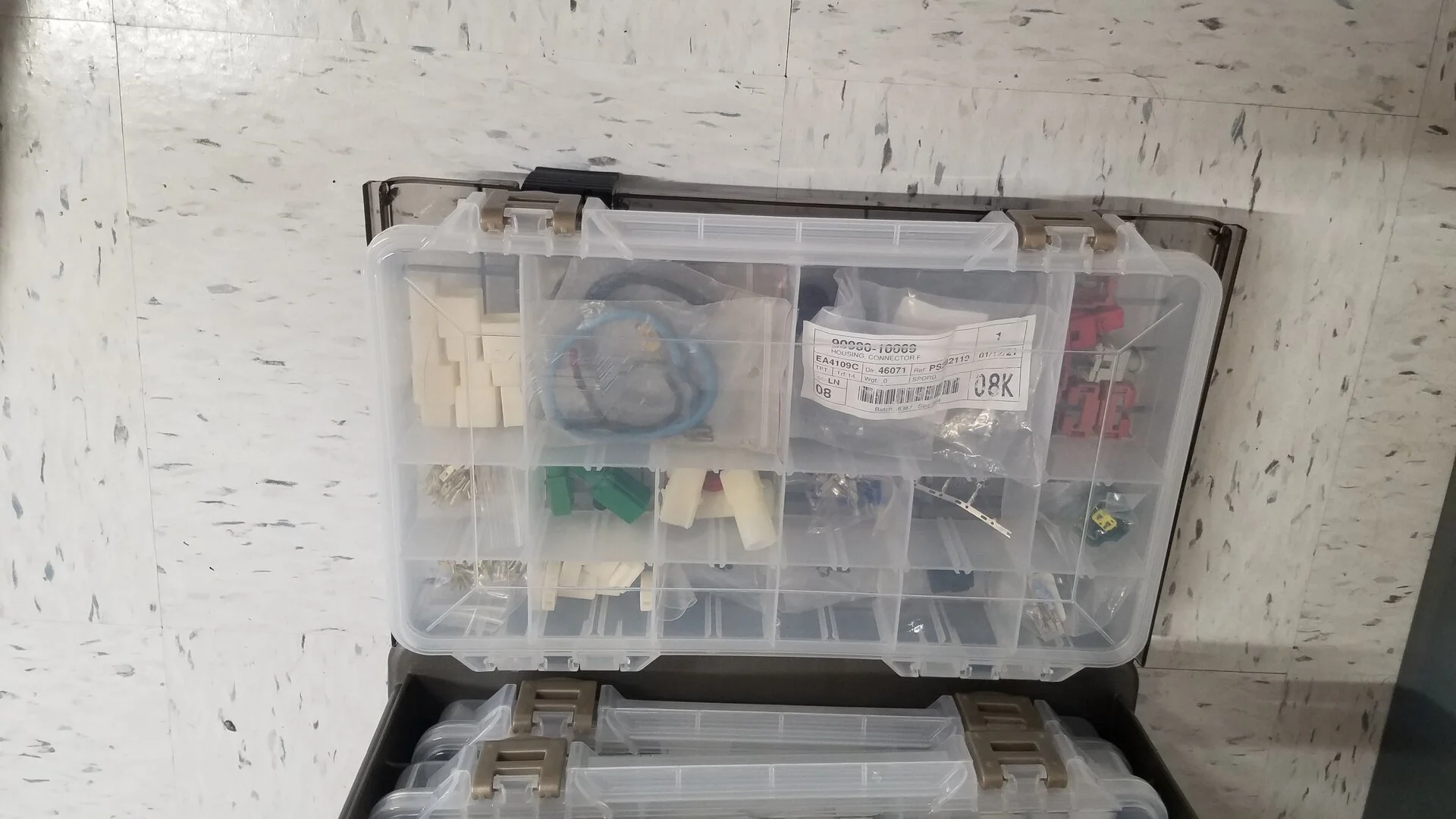

I think this was a good choice.
