early FJ40 horn relay wiring (1 Viewer)

Krondor

SILVER Star
Joined
Mar 26, 2017
Messages
872
Location
Greenville, SC
I purchased an early replacement horn relay but am having trouble finding out the correct way to wire it up.

Here is what I am working with:

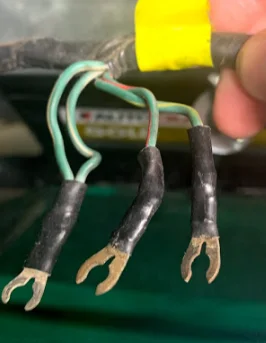

New horn relay form city racer and a 1965 FJ40 wiring harness with a green white (GW), Green red (GR) and Green Yellow (GY) wire.


Joined
Feb 23, 2021
Messages
28
Location
Southeast PA
I purchased an early replacement horn relay but am having trouble finding out the correct way to wire it up.

Here is what I am working with:

New horn relay form city racer and a 1965 FJ40 wiring harness with a green white (GW), Green red (GR) and Green Yellow (GY) wire.

View attachment 2653590 View attachment 2653596
Just starting to look at my inoperable horn on my 69 (11/68) build. I know gw goes to the horn itself and gr to the horn button. Gy goes to the fuse panel through RB wire at least according to wiring diagram and as i see it in my 40. Those letters are confusing. Have you tried hooking them up in the order removed? I would try GW to H, GY to B and GR to S. Someone else who is certain hopefully chimes in here and helps us both


locklaw

SILVER Star
Joined
Apr 26, 2020
Messages
66
Location
South Africa
Just did this last week. GW twin wires to the horns (H), (B) is battery positive and (S) is the wire to the horn button (it makes a ground when pushed, thus negatively switching the relay on). I forgot which color exactly but think GR went to the horn. Use a test light or multimeter to check which has positive always on power, that goes to the middle.


73FJ40

After another night of rust removal!
SILVER Star
Joined
Dec 28, 2006
Messages
1,564
Location
Western Massachusetts
Those letters seem to be spot on to me: H = horn, B = battery, S = switch.

If there's any doubt in the wiring, a volt ohm meter is your arbiter:

The horn relay wire with 12 volts positive goes to the relay's "B" post. The horn is always energized, so this wire should be hot at all times.

The horn relay wire that has continuity (0 ohms) to the horn connector goes to the "H" post.

The horn relay wire that has continuity to ground when the horn button is pushed goes to the "S" post.

Inside the horn relay, the battery power feeds one side of the relay coil all the time. The horn button provides a ground path for the relay coil when it's pressed, and energizes the relay. The contacts on the relay feed power from the battery power to the horns when the relay is energized.

Last edited:
