Dissent offroad 45x60 Quonset hut build.

Discussion in 'Workshop and Home Improvement' started by benc, Sep 25, 2018.

  1. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014
    Hey guys, figured I would start a thread on the shop I have been building for the last year.

    The building is almost finished now and will be tied into an existing 25x40 shop with a 10x25 welding booth in between the two.
    So far I have added a plasma table, multiple different welders, 6' cnc press brake, time saver debur machine, jd squared model 54 bender, 2 post lift and basic hand tools.

    I didn't get great pics of the erecting but here's what I have.

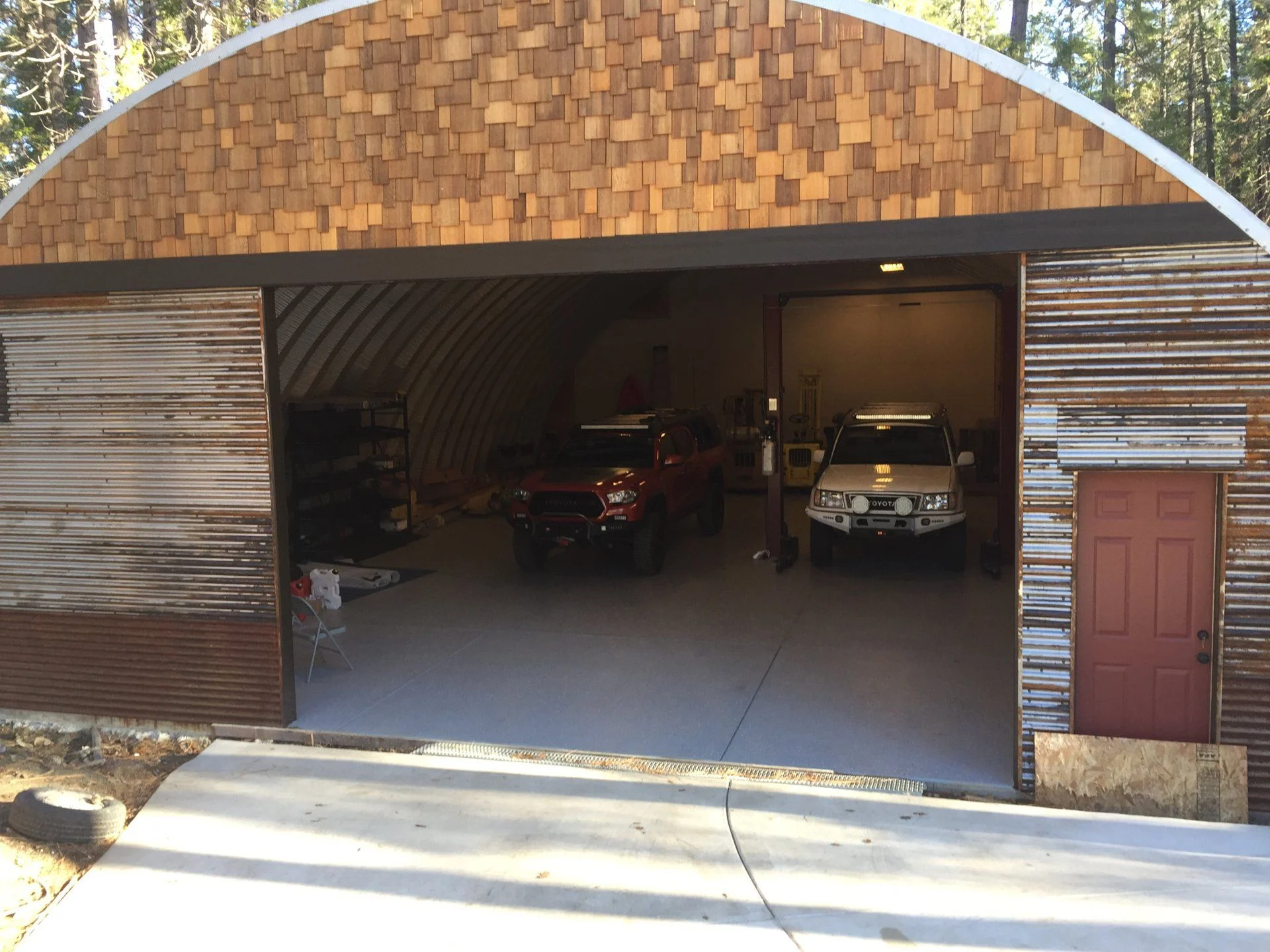

    Getting the end walls up and sided. IMG_0086.JPG
    Made a sign for above the door.

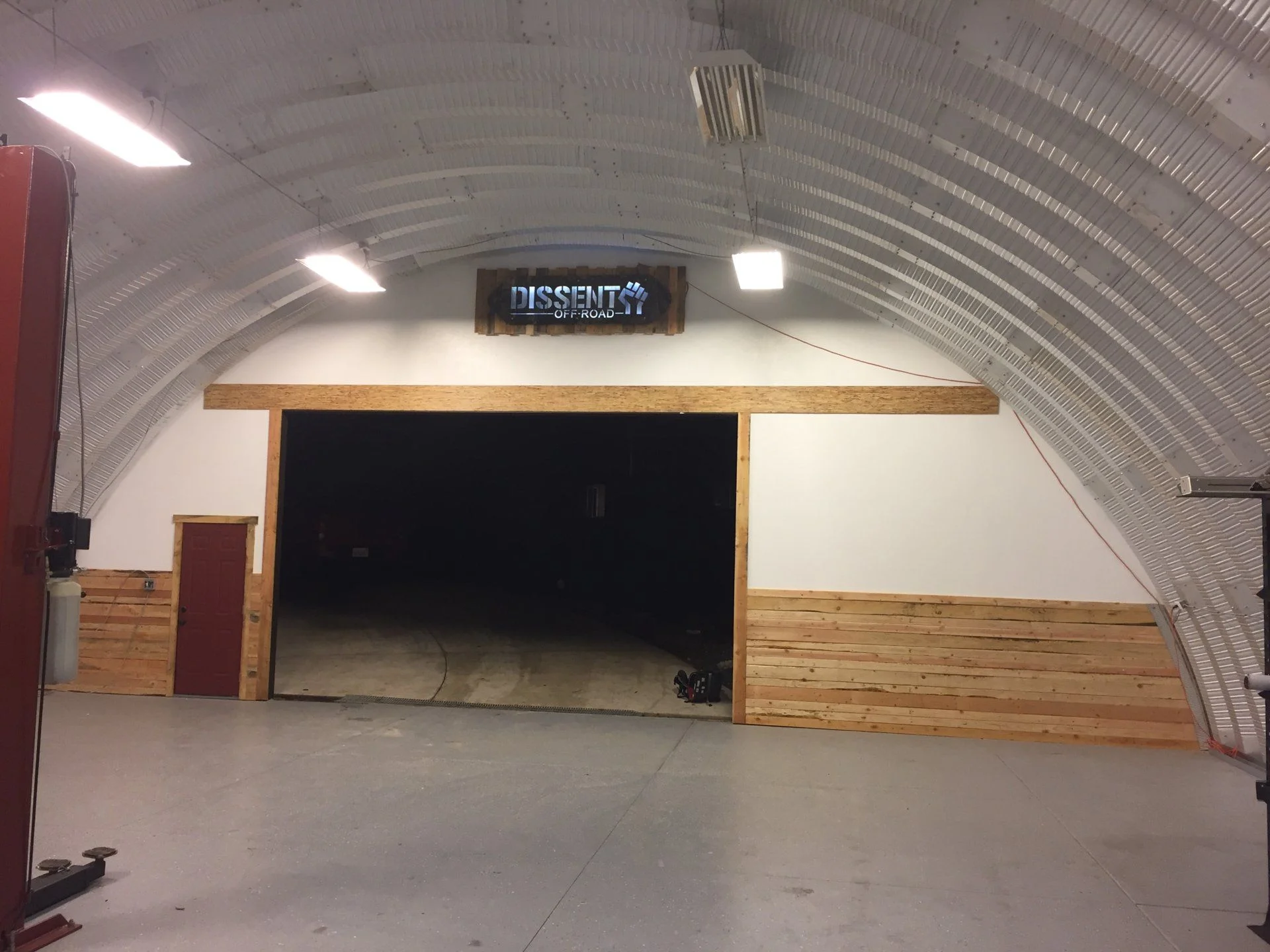

    Getting the inside of the end walls finished up.

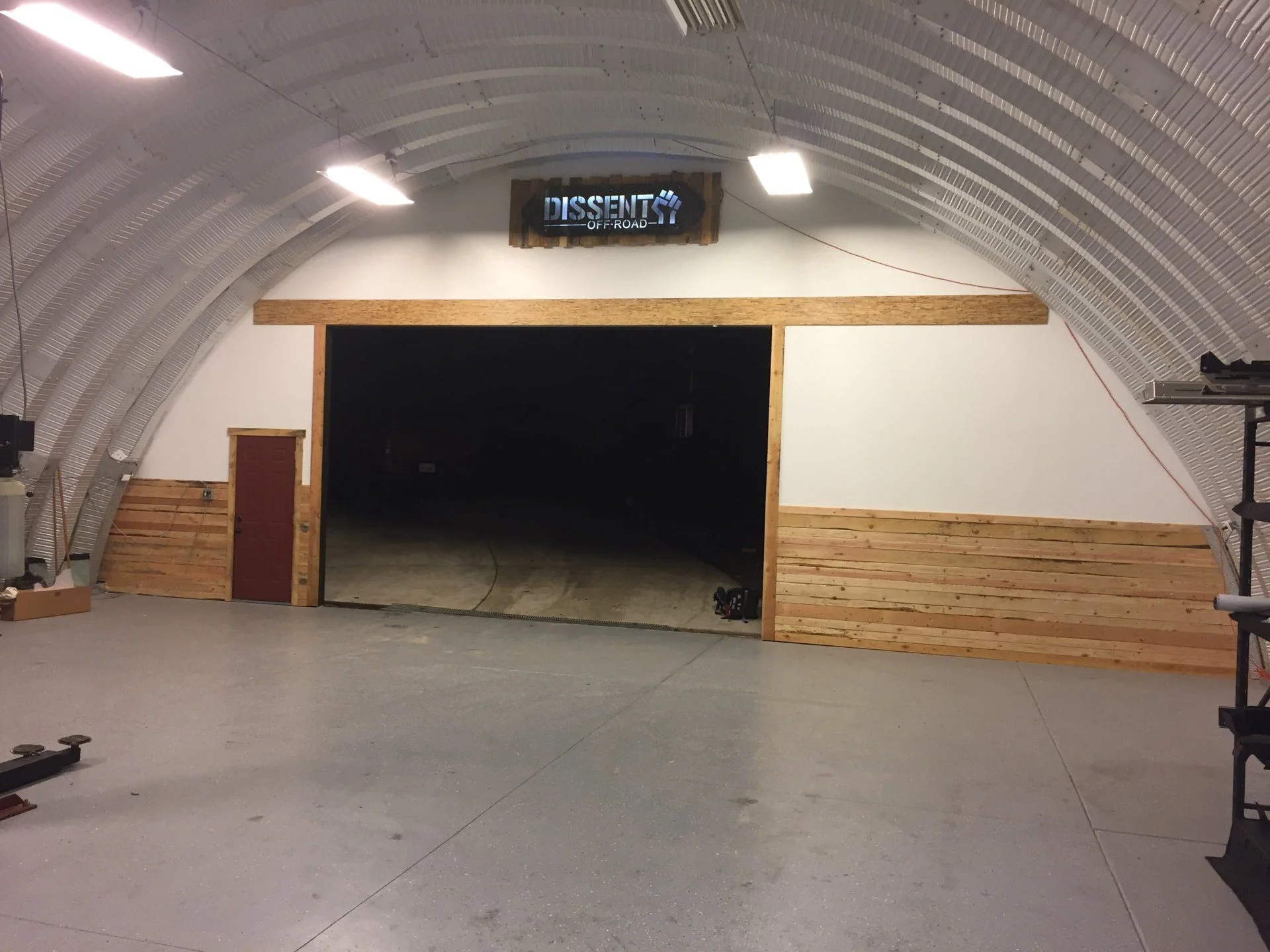

    IMG_0134.JPG IMG_0135.JPG
    Lift installed. IMG_0136.JPG

    G-Cat, CSteppe82, bozncsurf and 3 others like this.
  2. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014
    Added a shelf along the top of the wood with some old railroad spikes for hanging. IMG_0210.JPG IMG_0211.JPG

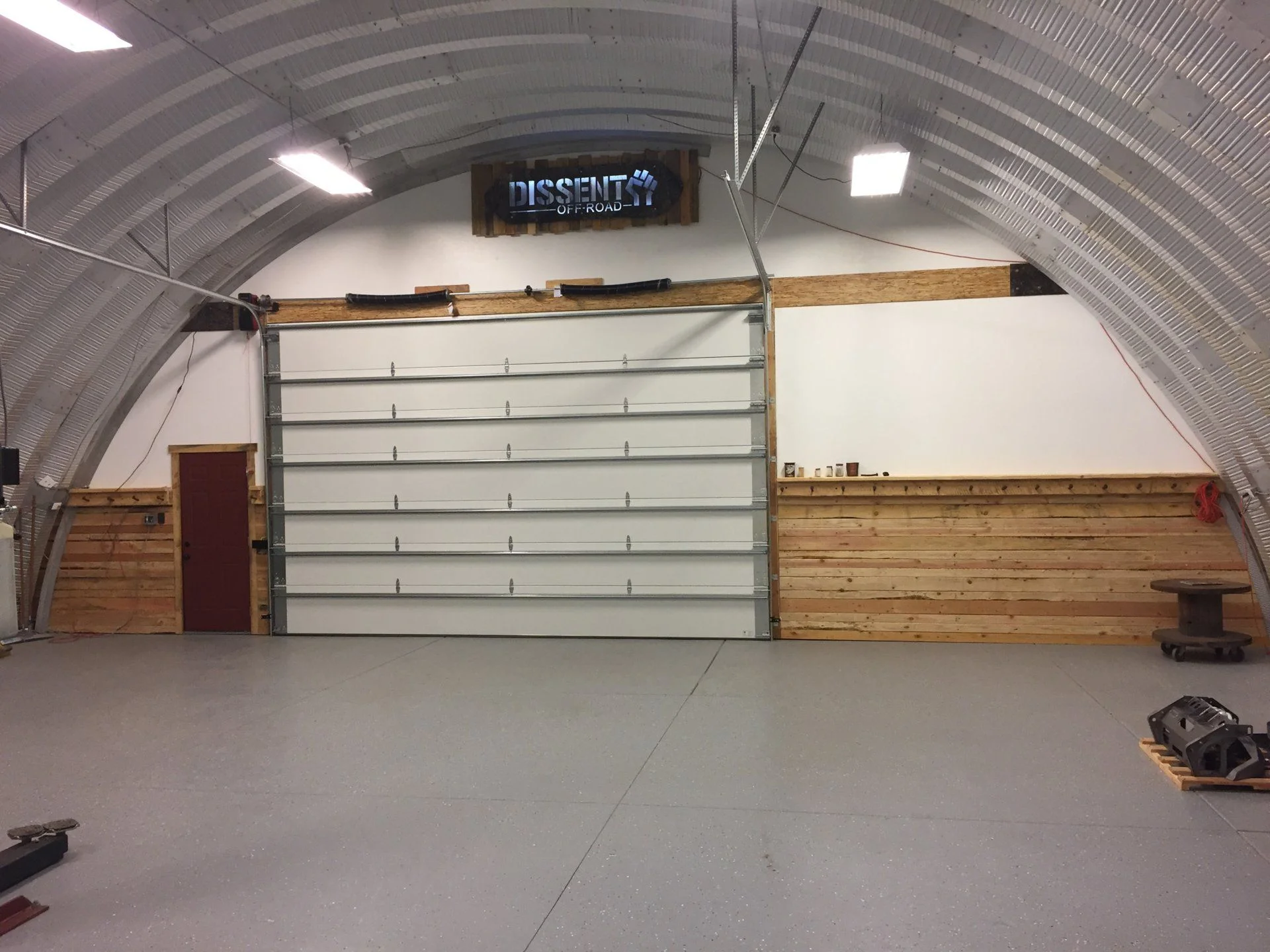

    12x18 insulated roll up door IMG_0223.JPG

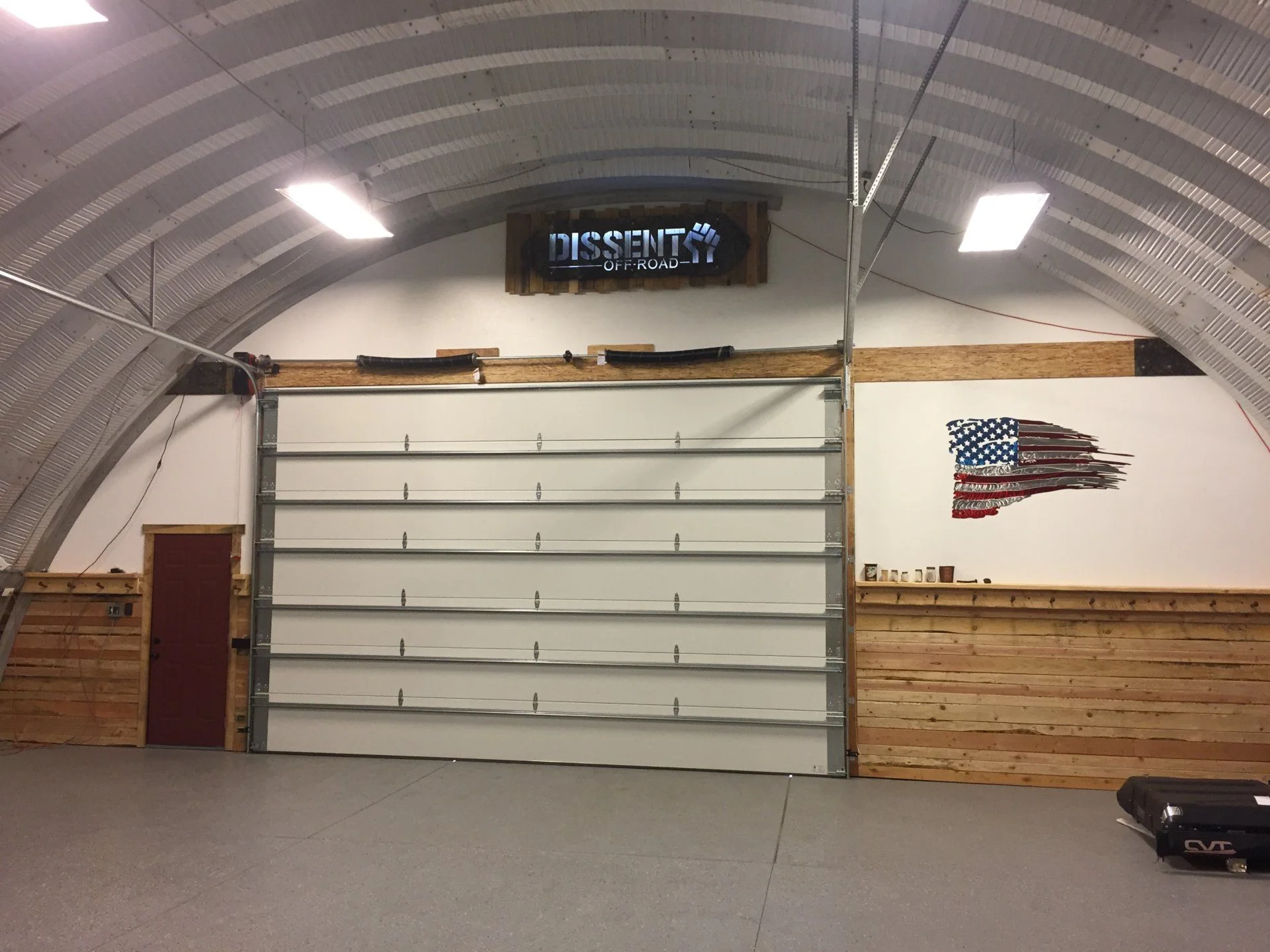

    Cut, painted and hung a tattered American flag With the new plasma table IMG_0266.JPG IMG_0265.JPG

  3. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014

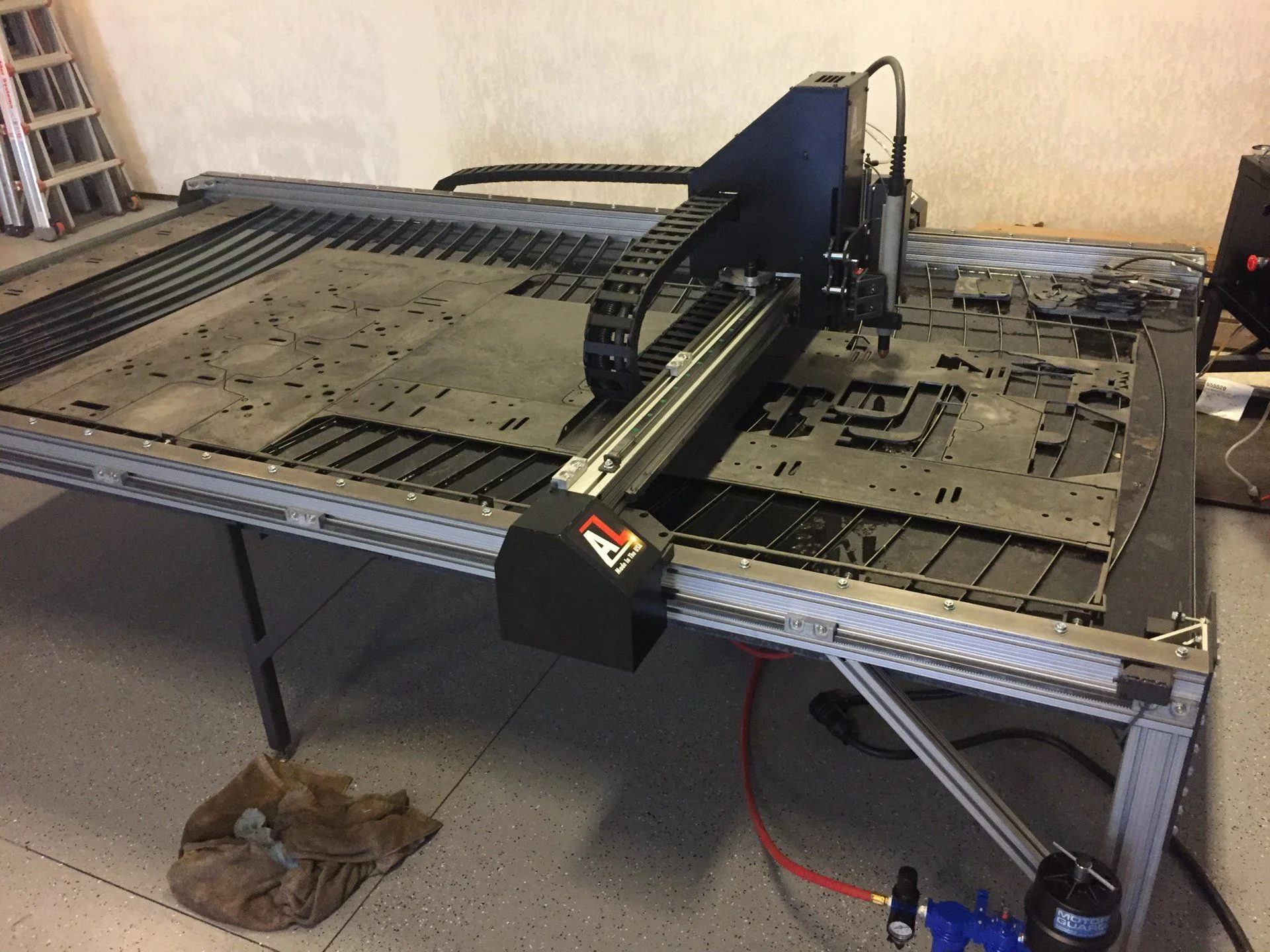

    Installed the plasma table. IMG_0242.JPG

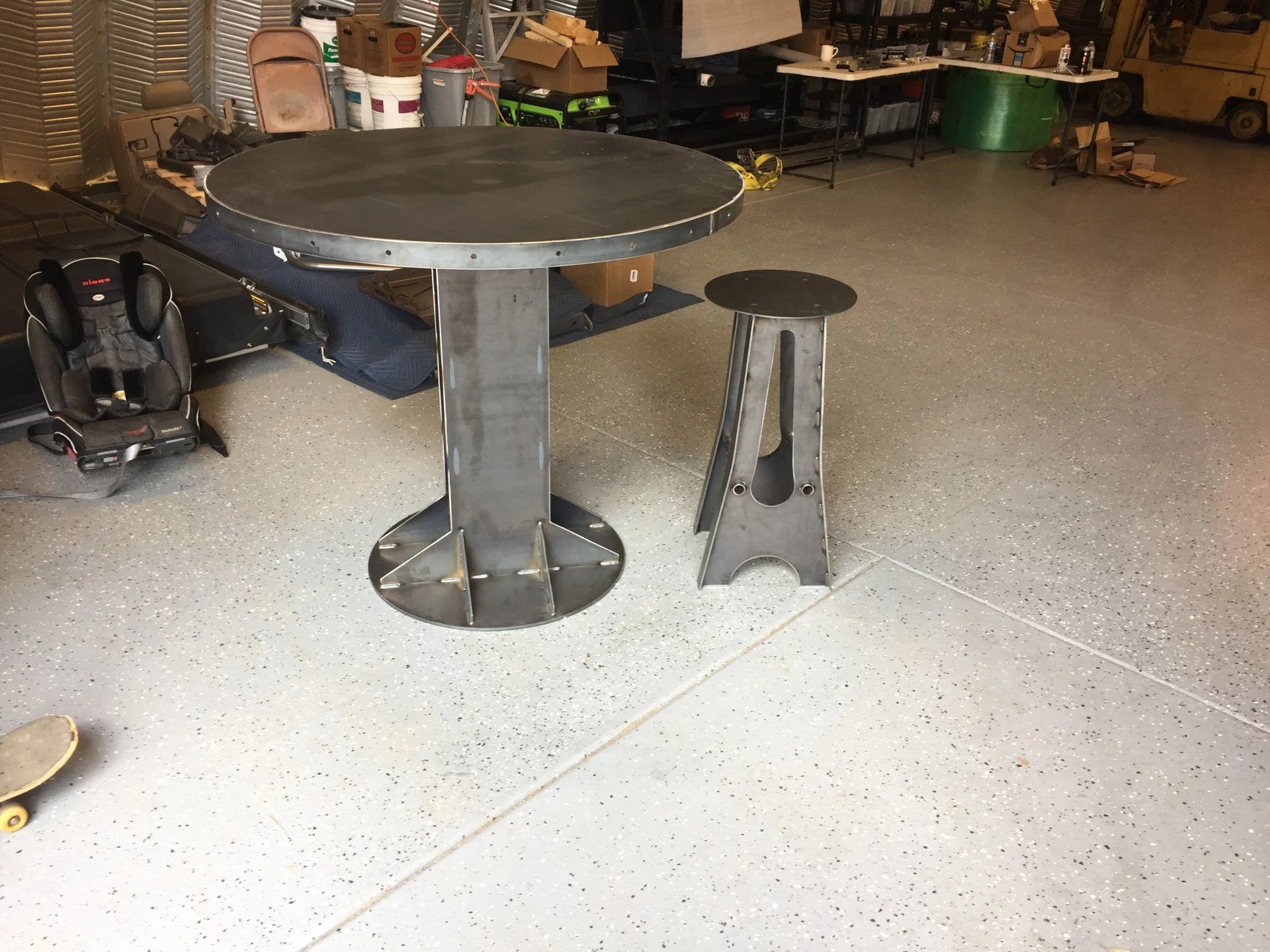

    One of my employees built this suction cup lift for the fork lift! So far we have loaded a 5x10 1/2" sheets on the table without issues. Also built this table and stools that I still need to finish. IMG_0293.JPG IMG_0267.JPG

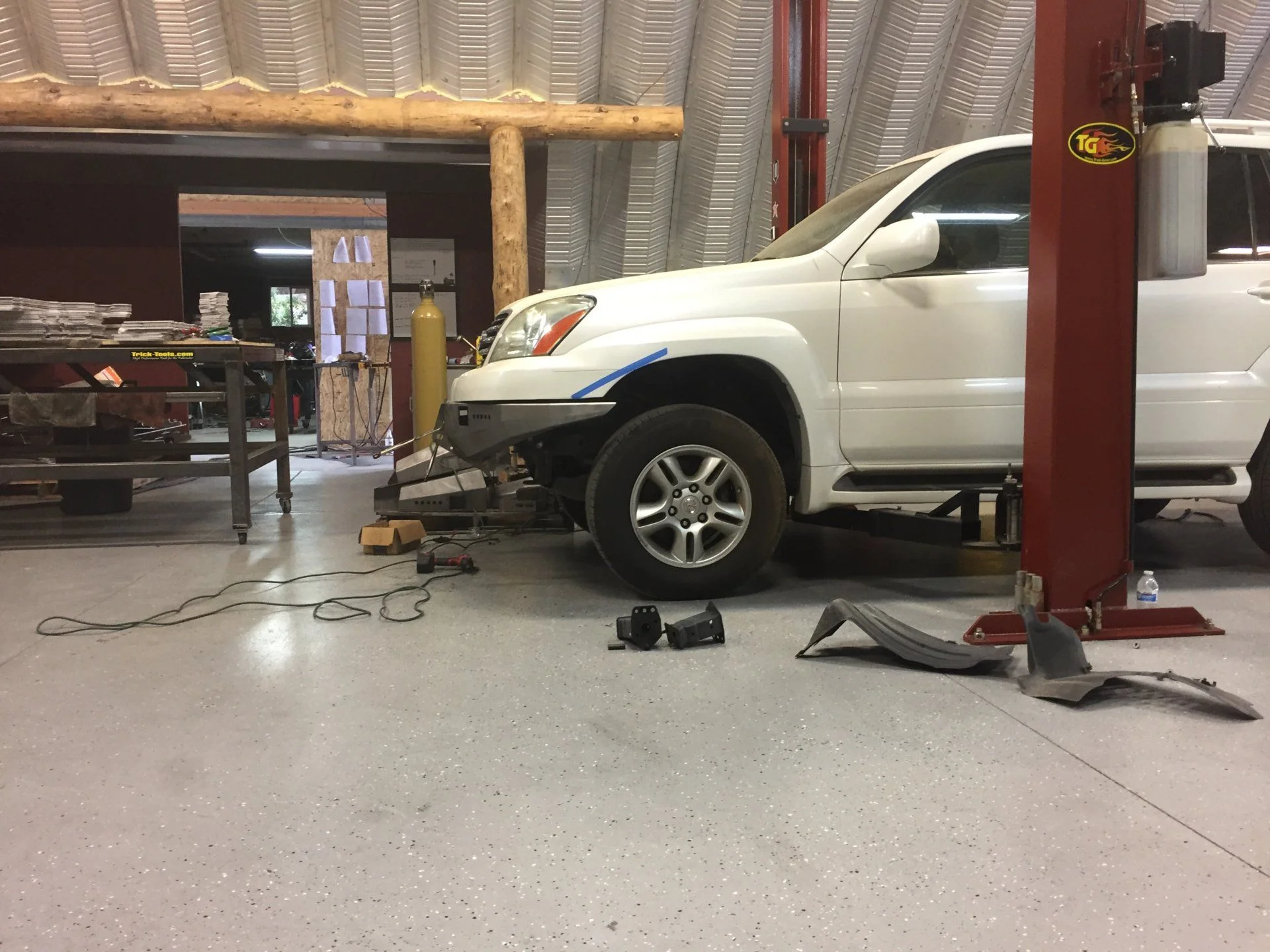

    Cut and cleaned some logs from the property for the entry to the welding room. IMG_0765.JPG

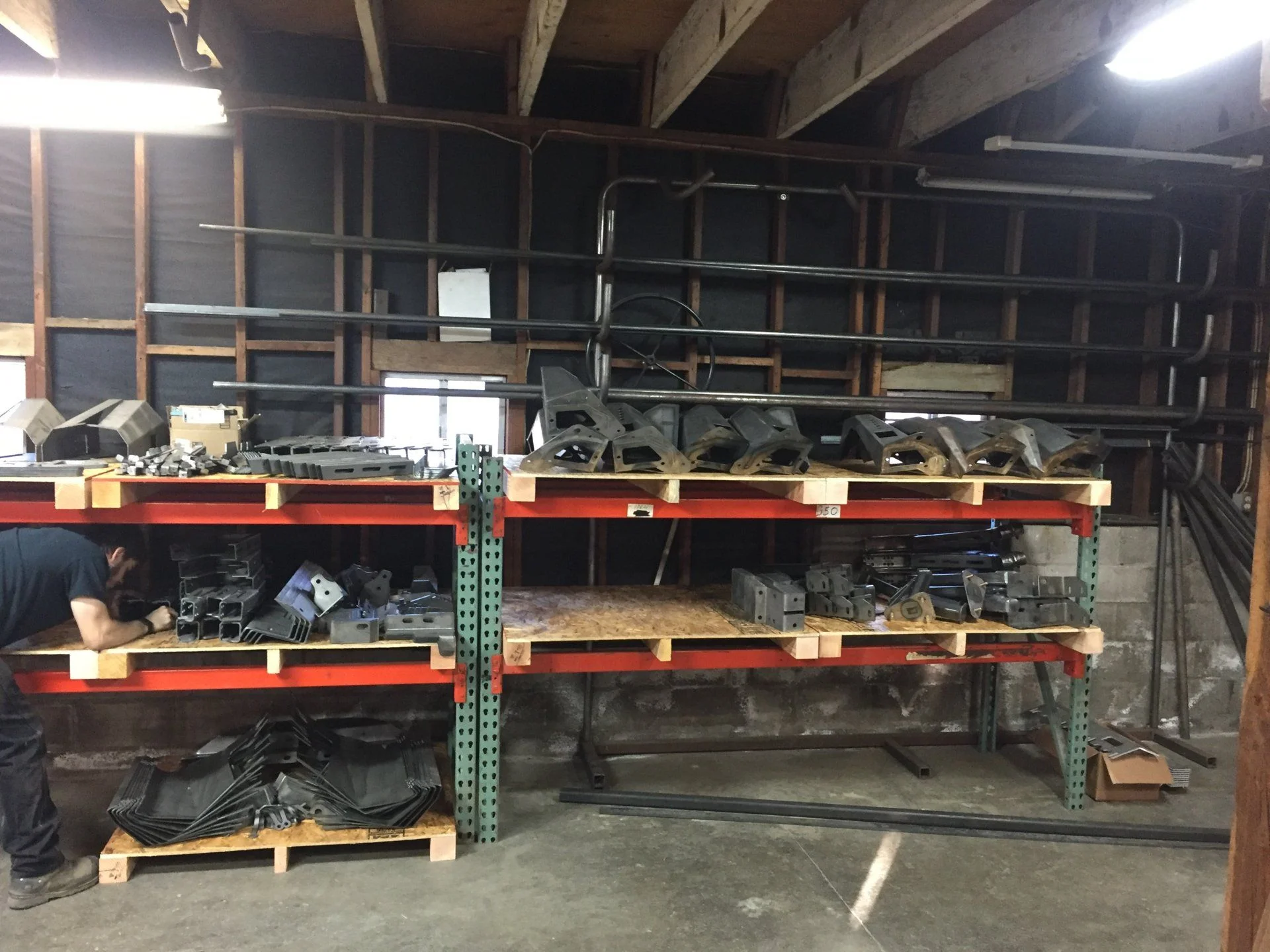

    Doing some organizing in the old shop building. IMG_1406.JPG

    G-Cat, bozncsurf, chappohj47 and 4 others like this.
  4. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014

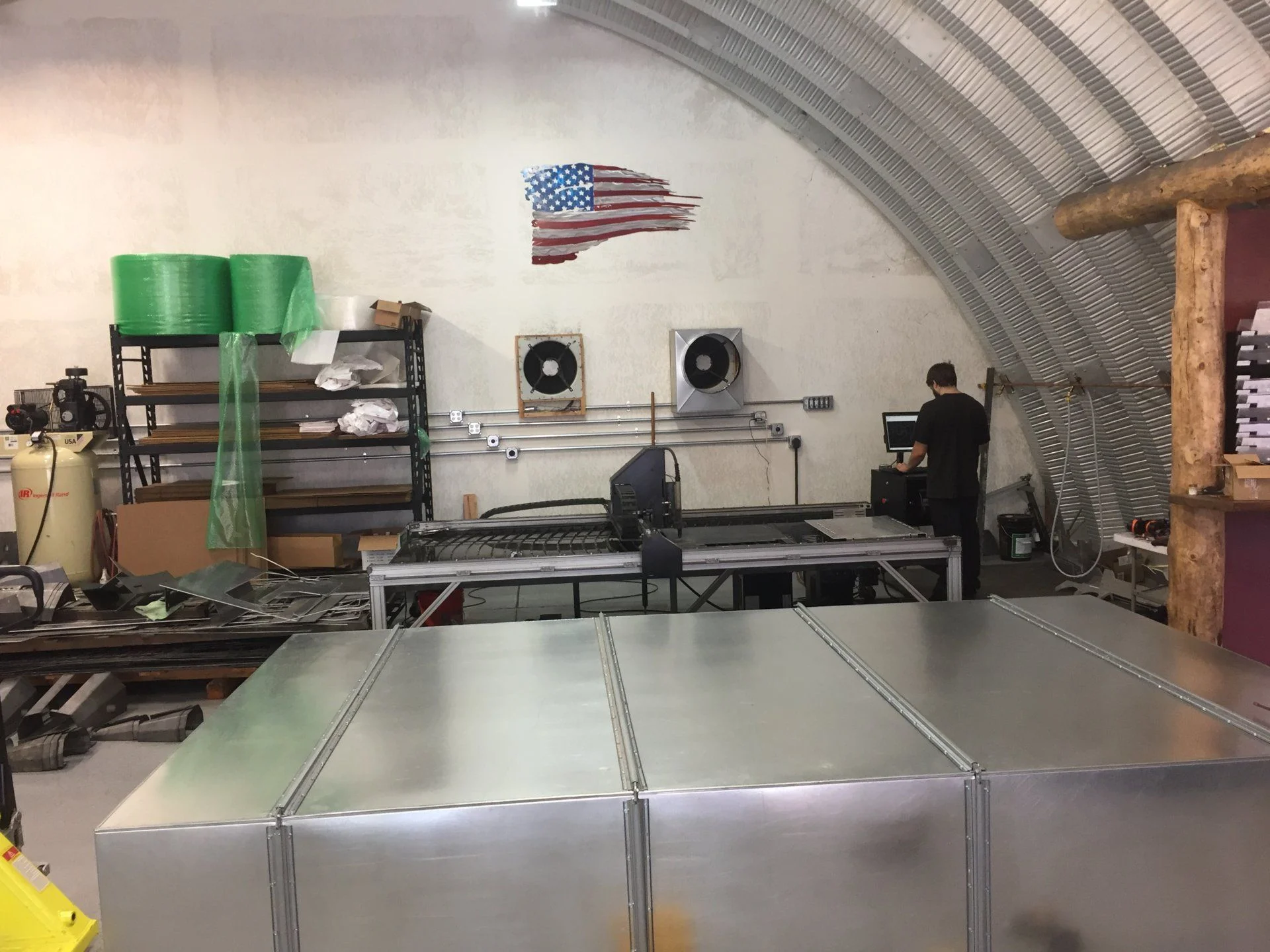

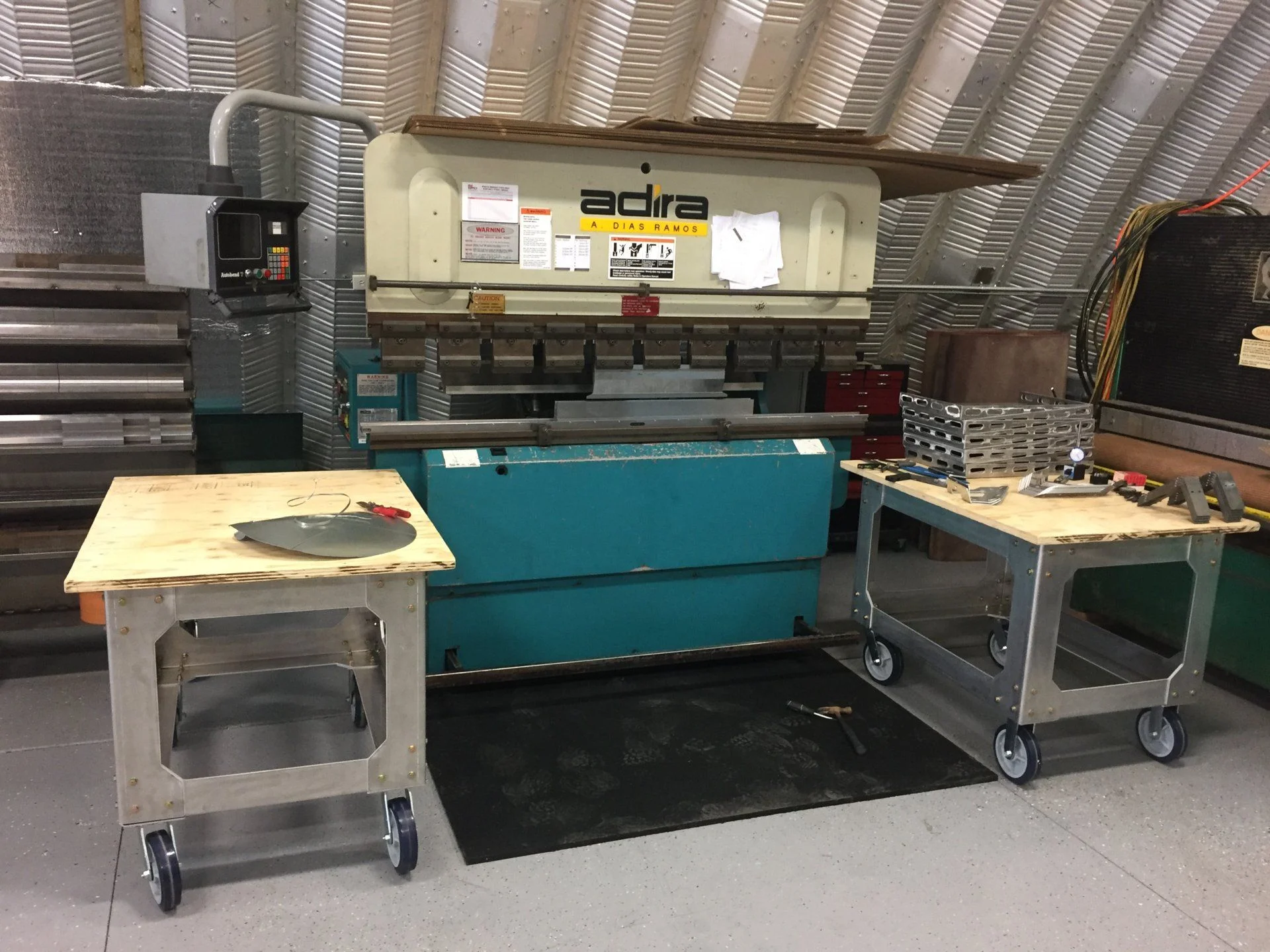

    Installed a 7x12 hood over the plasma, we use 2 large swamp coolers, reversed the motors so they are pulling air out through the pads to filter. Still need to duct them to the hood and add some lights underneath. Also got the press brake area set up with some custom aluminum handling carts and a custom cart for all the brake tooling. Also got the electric done on the back wall with a phase converter for the brake and time saver. IMG_1493.JPG IMG_1498.JPG IMG_1494.JPG

  5. Rigger

    Rigger Ramble Tamble Staff Member Moderator

    Messages:
    5,102
    Media:
    4
    Albums:
    1
    Likes Received:
    2,545
    Joined:
    May 18, 2007
    Location:
    Wyoming
    Looks great. Nice clean shop.

    benc likes this.
  6. abuck99

    abuck99 SILVER Star

    Messages:
    2,490
    Likes Received:
    1,500
    Joined:
    Nov 8, 2015
    Location:
    ATL
    Beautiful set up! Going to have to venture West someday for a factory tour.

    bozncsurf and benc like this.
  7. chappohj47

    chappohj47 Chappo Built SILVER Star

    Messages:
    1,178
    Likes Received:
    168
    Joined:
    Mar 4, 2013
    Location:
    Aus
    Beautiful craftsmanship on that flag mate

    benc likes this.
  8. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014
    Would be my pleasure to show you around!

    abuck99 likes this.
  9. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014
    Finished up the hood tonight!
    Works great, no more fumes in the shop when cutting. IMG_1504.JPG IMG_1505.JPG

    G-Cat likes this.
  10. GLTHFJ60

    GLTHFJ60 Rum Runnin' SILVER Star

    Messages:
    23,554
    Likes Received:
    8,100
    Joined:
    Apr 18, 2005
    Location:
    Durham, NC
    Nice work with the hood. Do you have a water table under that plasma? Curious what brand the plasma table is as well.

  11. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014
    Thanks.
    Yes, there is a water table but it just wasn't cutting it for the fumes and dust.
    The table is an archlight dynamics 5x10.

    GLTHFJ60 likes this.
  12. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    11,031
    Likes Received:
    2,605
    Joined:
    Sep 14, 2003
    Location:
    Centennial, Colorado
    Very nice Ben

  13. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014
    Thanks!

  14. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014

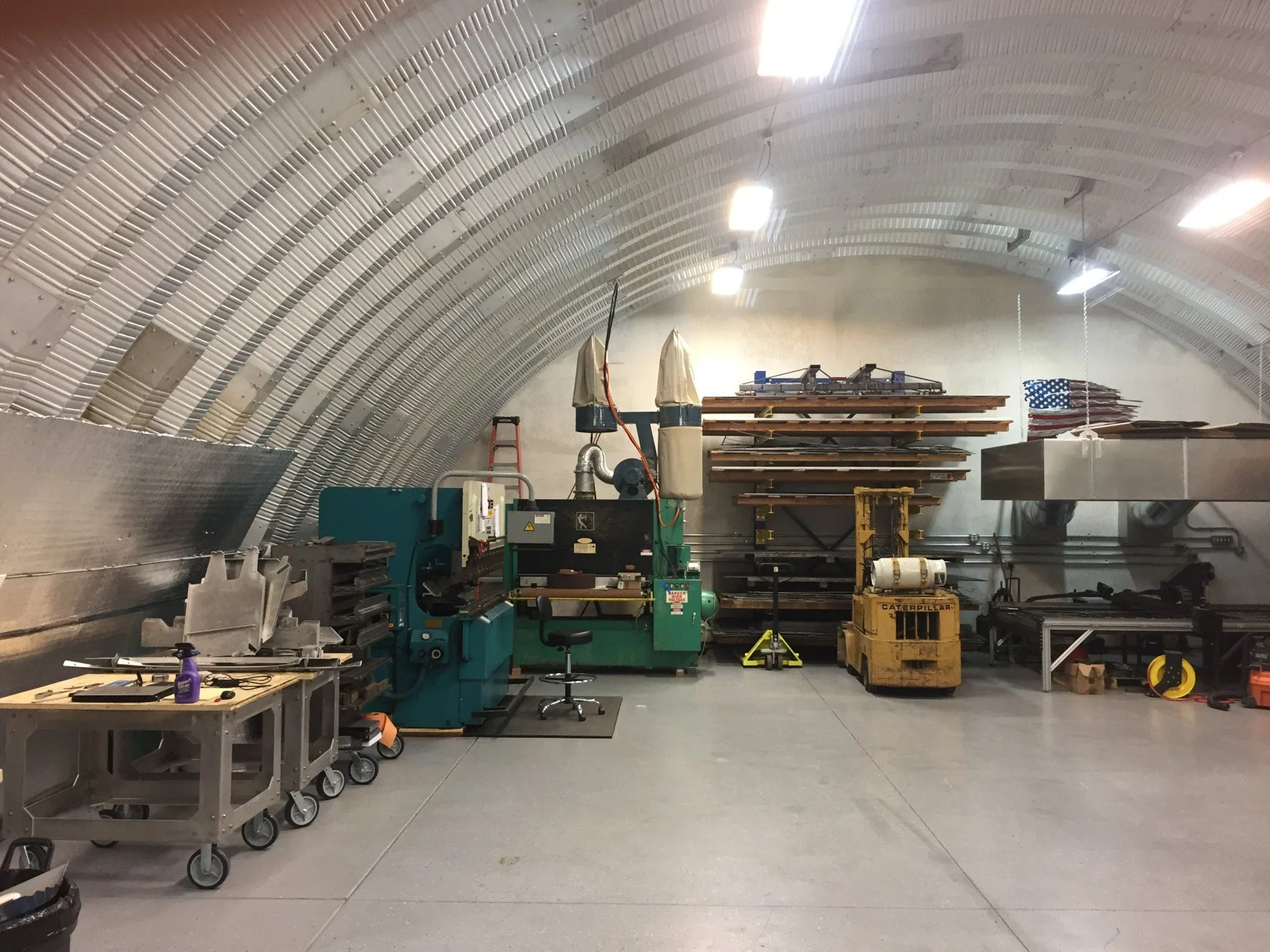

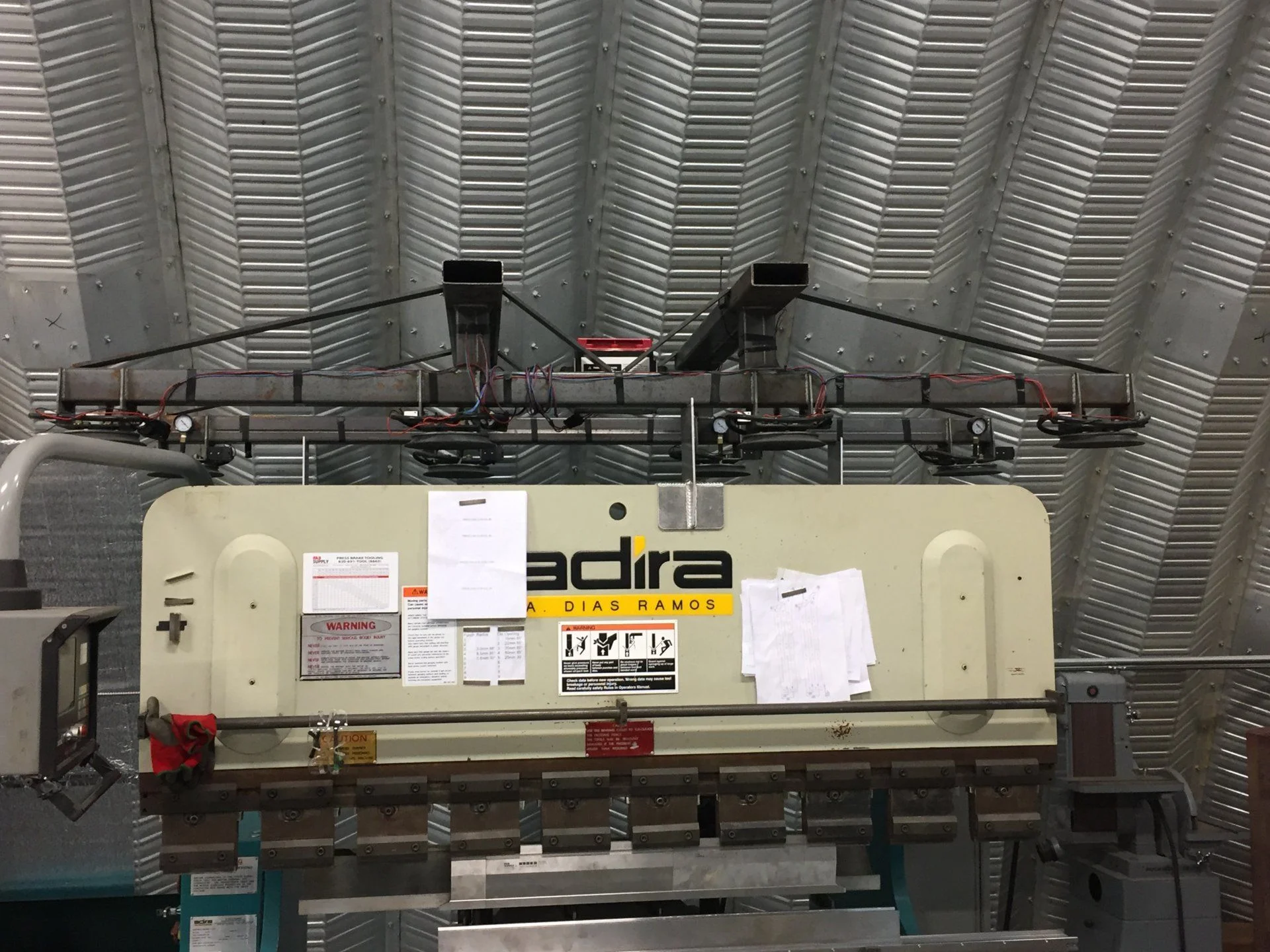

    Added a cantilever pallet rack for all the plate! Also built a rack for the suction lift on top of the press brake. IMG_1631.JPG IMG_1646.JPG IMG_1647.JPG

    G-Cat, CSteppe82, firestopper and 3 others like this.
  15. gunracer1

    gunracer1

    Messages:
    29
    Likes Received:
    20
    Joined:
    Sep 10, 2017
    Location:
    azle tx, aguilar co.
    nice shop, any idea what it cost you per sq foot for the shop with concrete?

  16. benc

    benc Supporting Vendor Supporting Vendor

    Messages:
    2,034
    Likes Received:
    3,989
    Joined:
    Jul 14, 2014
    I believe I'm in the building about 40k.
    I did everything myself except the concrete. I had a friend do that and got a good price. I also picked up the building for cheep off Craigslist.
