Carb Linkage Pics

[FluByU]

I need some help with the carb linkage on my 73. Can someone please post pics of all the linkage including the throttle cable for me? I have looked and looked and cant find any good shots.

Thanks



[merlinridesagain]

try this post:

https://forum.ih8mud.com/40-55-series-tech/499045-71-carb-question-idles-very-high-pics.html

although in the second picture there should be a spring and not a piece of bailing wire



[FluByU]

I have looked at those, but I need one of the throttle cable attaching to the carb. That one doesnt look right.



[subzali]

https://forum.ih8mud.com/40-55-series-tech/223738-early-70s-carb-throttle-cable.html



[FluByU]

I have seen that one also, again it isnt the same as mine. I have the throttle cable linkage on the drivers side of the carb not on the passengers. The cable attaches to a bellcrank with a rod connecting the bell crank to the carb. Thanks for the help though.



[subzali]

Hm. These are both '72's, but the cable is intended to come in on the passenger side:
Aisan Carburetor Rebuild - Rising Sun Member Forums

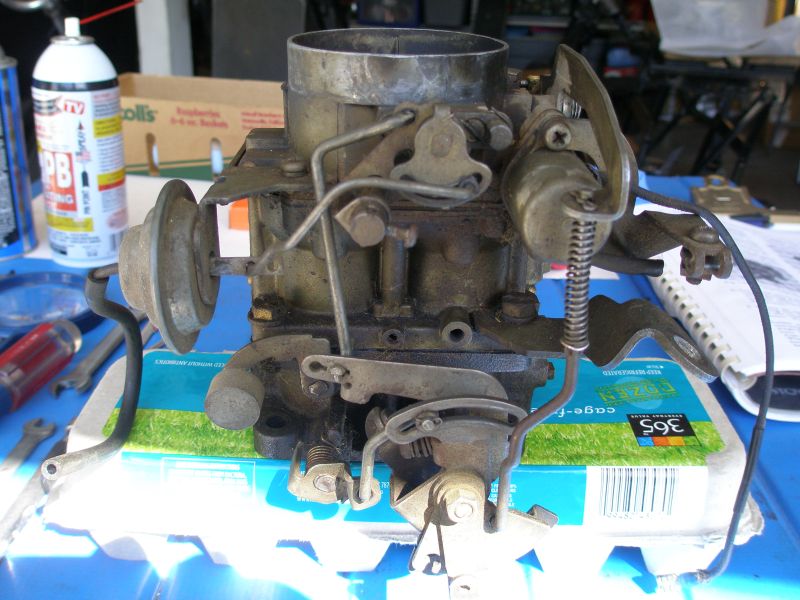

See the cable holding bracket in this picture:

Aisan DD38/38 Carburetor Rebuild - Rising Sun Member Forums

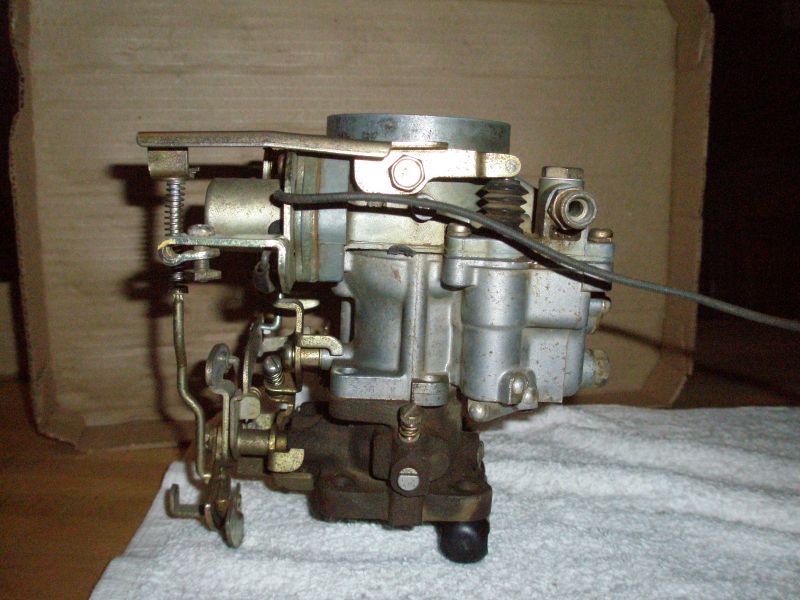

Again the cable holding bracket is on the passenger side:

All the ones I remember seeing come in from the passenger side, but I'm certainly not an expert and especially not as familiar with earlier cable setups - do you have any pics of your setup you could post?



[subzali]

Hm. Looking at SOR it seems that '73 does have a slightly different setup, but it still looks like it comes in from the passenger side:

'68-'72:

'73:



[merlinridesagain]

There is this:

https://forum.ih8mud.com/40-55-series-tech/368636-carburator-linkage-picture-request.html

looks very different from my 71...



[FluByU]

That's what I was looking for. Here are pics of mine but the throttle cable seems to long and it's routed funny.



[FJ40Jim]

That cable is too long.

At the very least, move it off the exhaust manifold before it catches fire.
