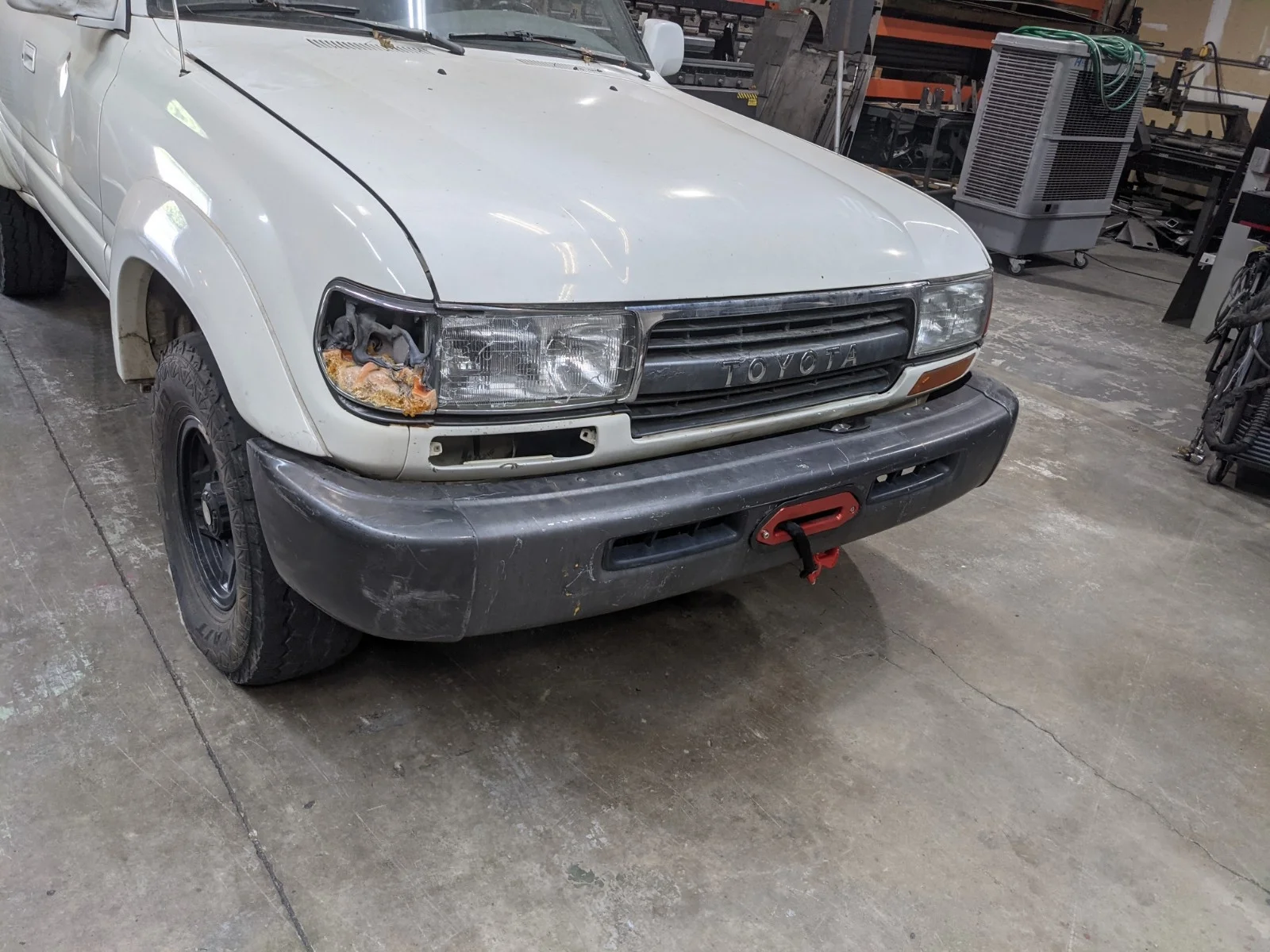

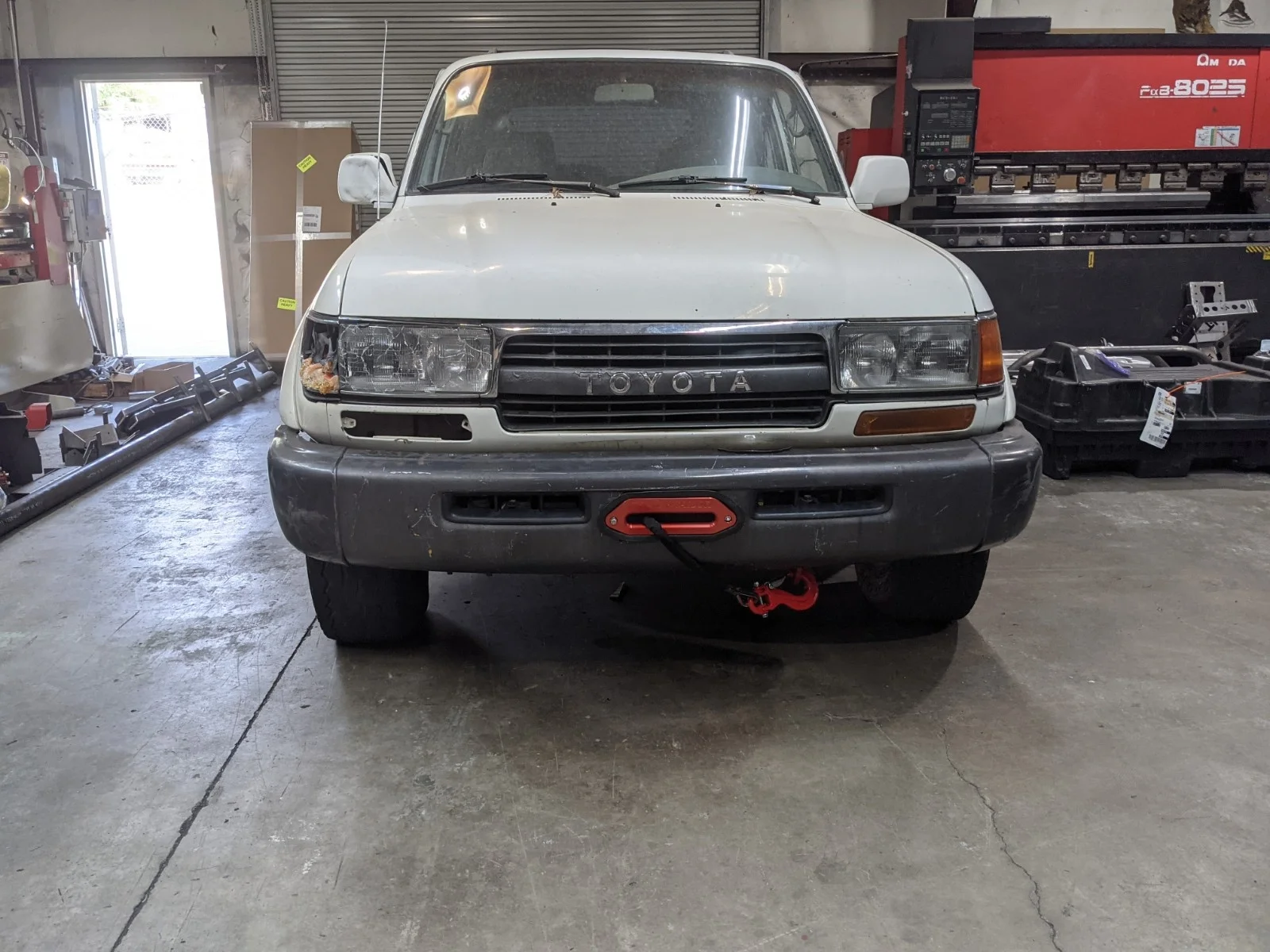

This is been on the To Do list for A WHILE. Sorry for the delay on this but it has been insanely busy for me. We make HWMs for the 100, LX470, GX470, LX570 early and 200 Series early and late with nearly 400 units in the field worldwide.

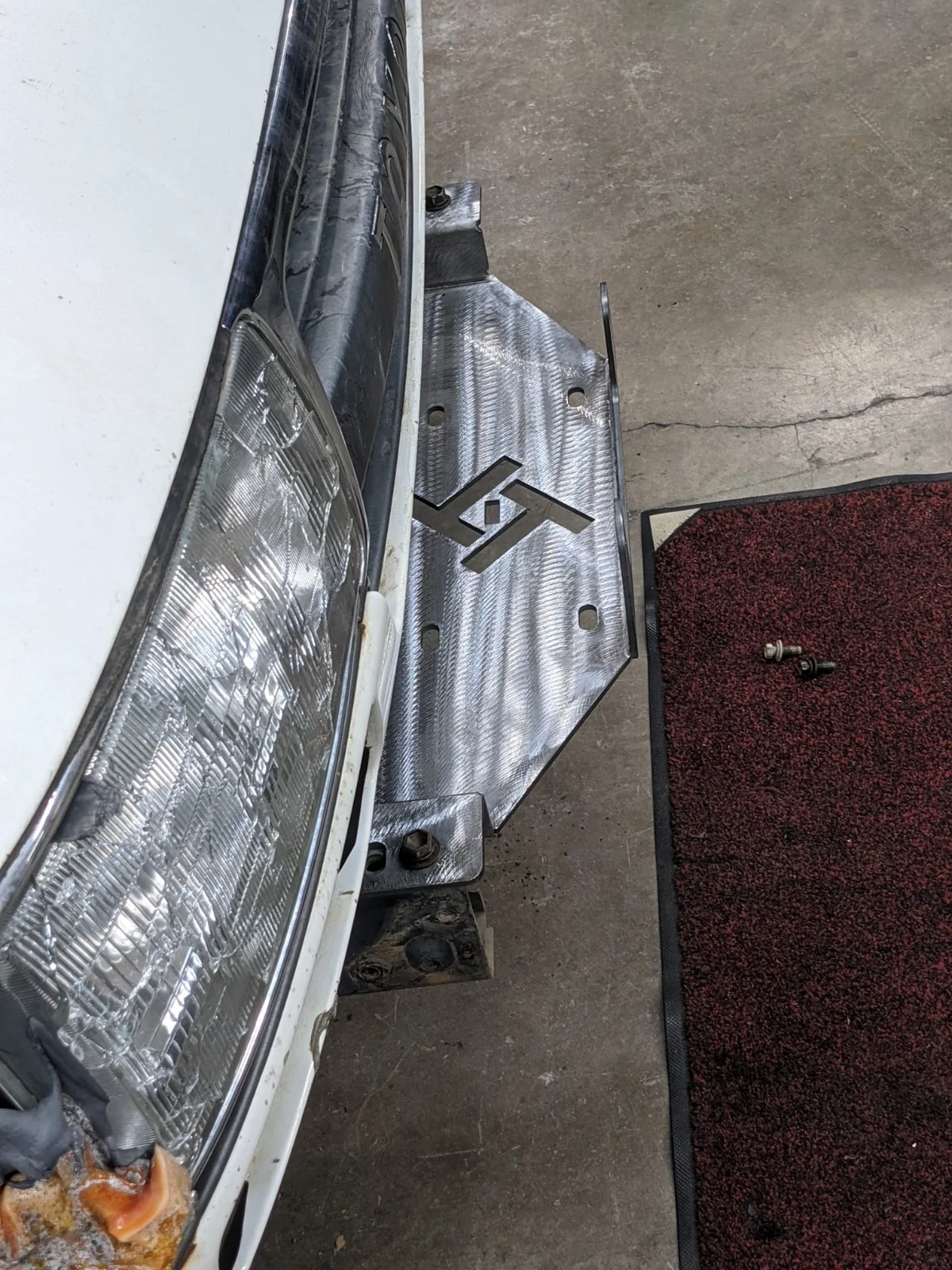

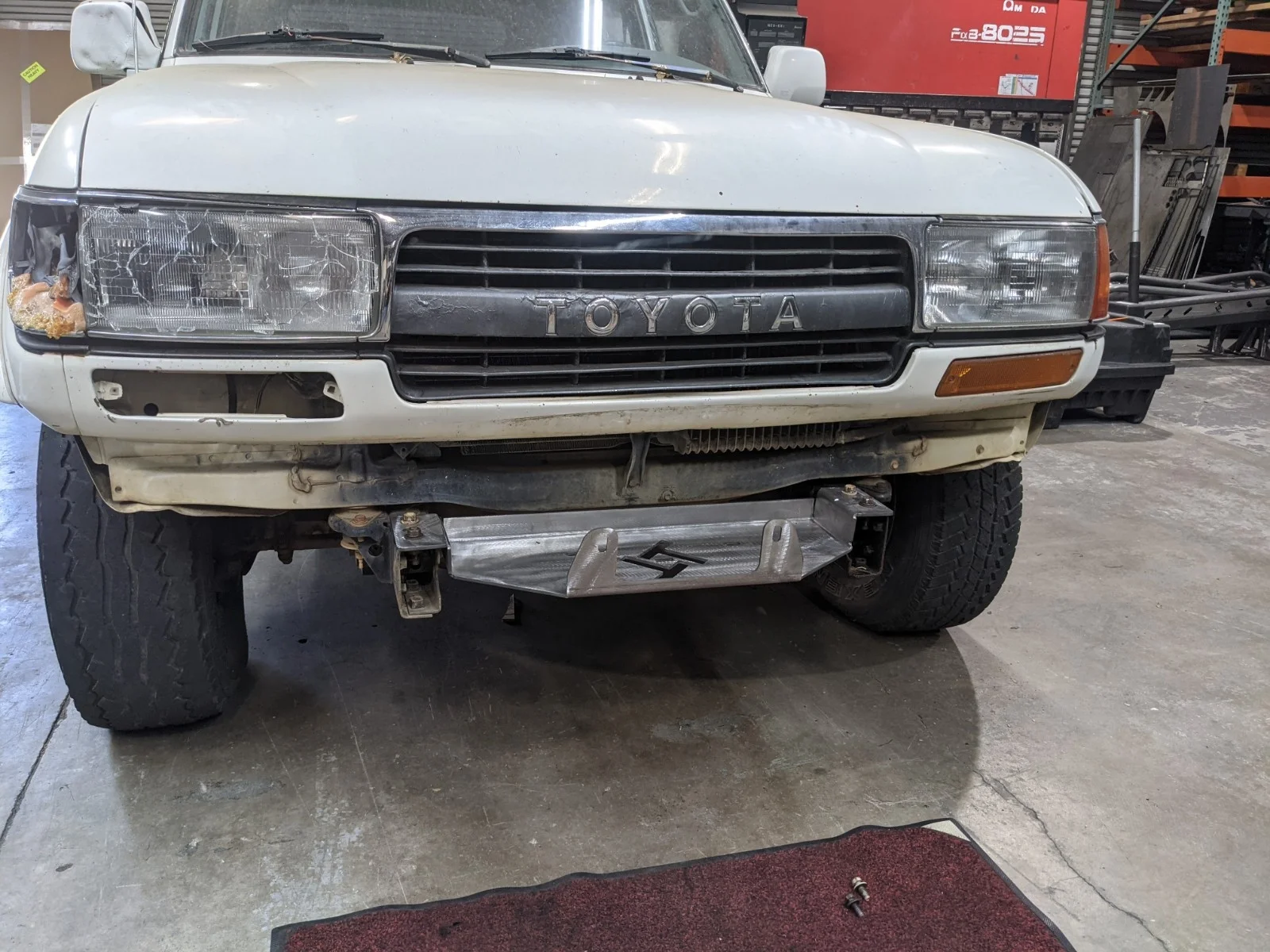

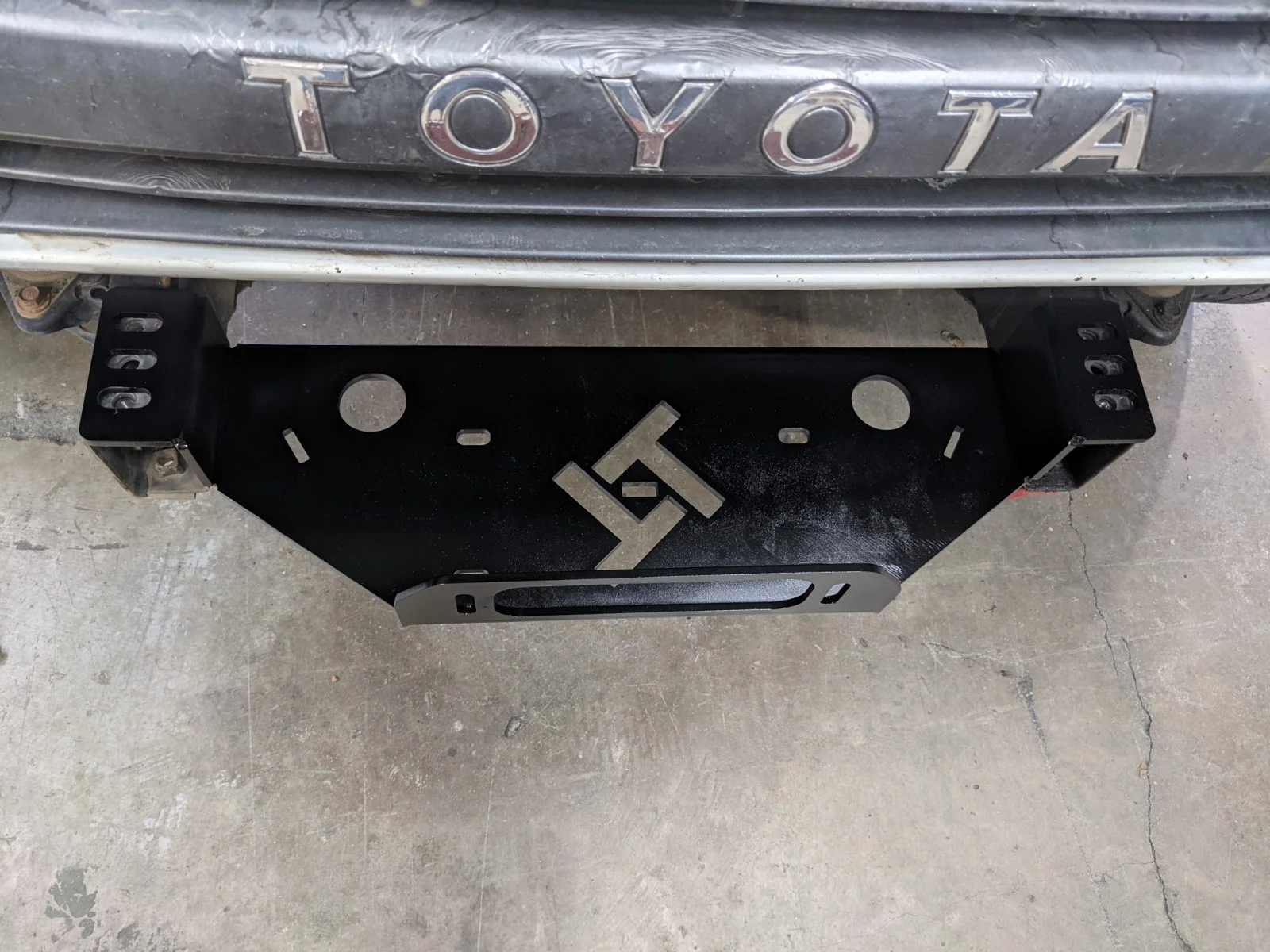

These will be made from laser cut 1/4" HSLA steel and CNC bent. Fully welded and come with fairlead spacers for those that want the fairlead away for the bumper face as shown (different folks for diiferent strokes)

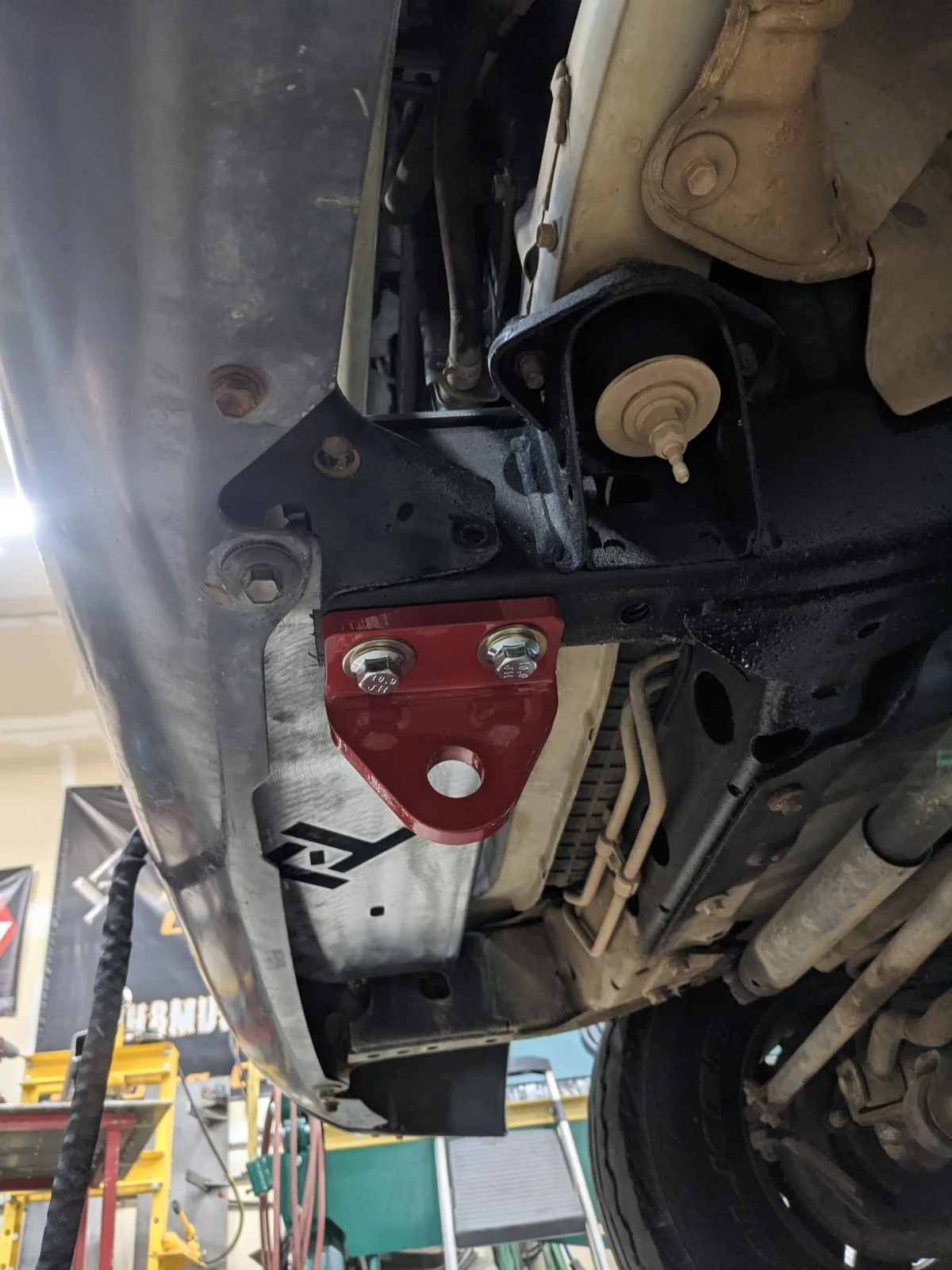

I'll be making three small changes and then these head to the laser cutter for production. 1) lower the winch approx. 1/2" to operate the clutch handle more easily, 2) Full surround on fairlead and 3) underside cross winch plate brackets for extra support and more strength.

Pending laser cutter time these will be available in 2-4 weeks powder coated with hardware.

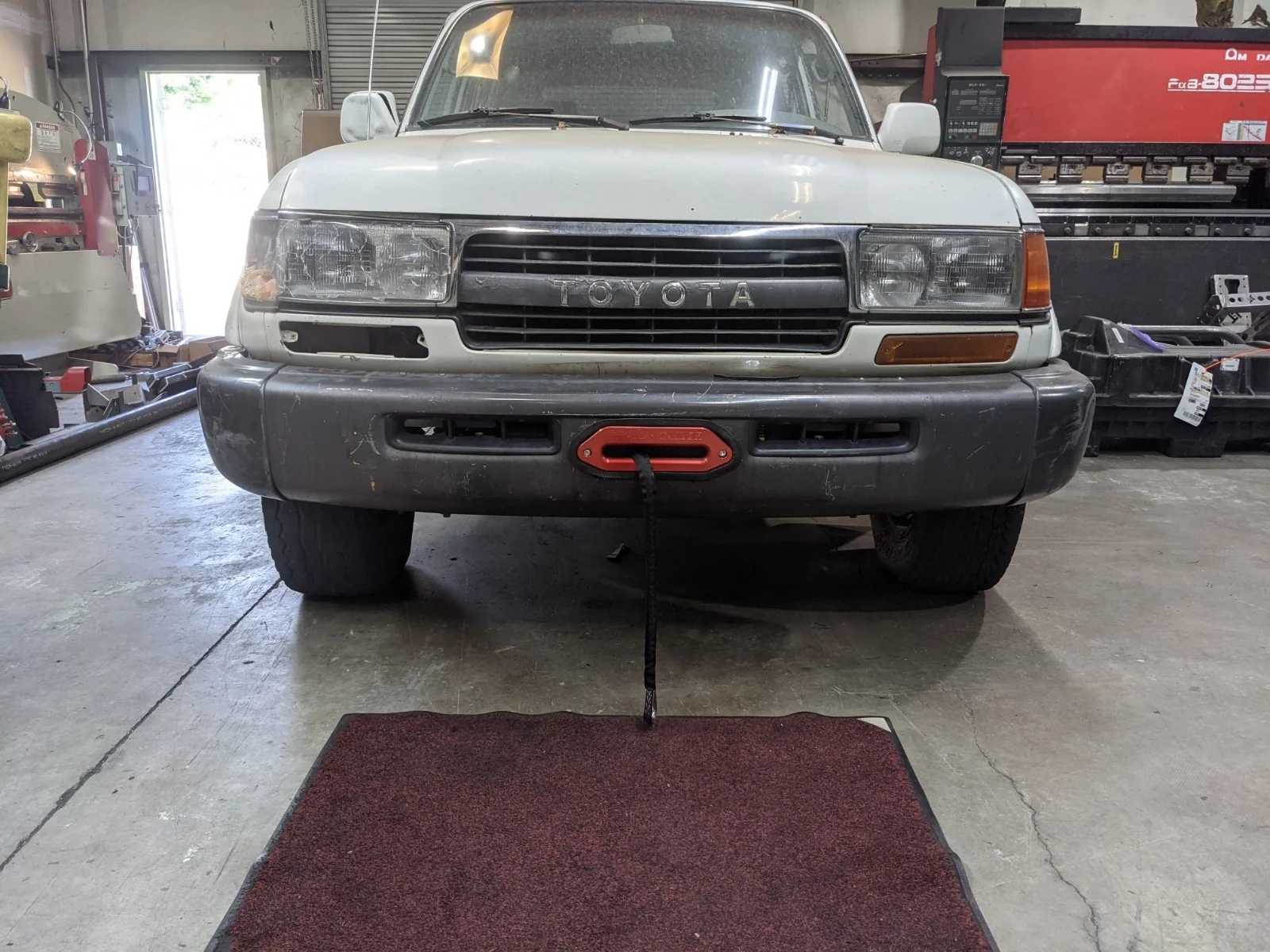

Sorry about the "donor" 80... It is a Carr Fire rescue and we I use for R&D.

Next up......to set my front and rear bumper jigs and to release the rear tire and jerry can carrier arms to use with the stock rear bumper.

Jason

View attachment 2722514

This looks awesome! When will they be on the website to order? Thanks

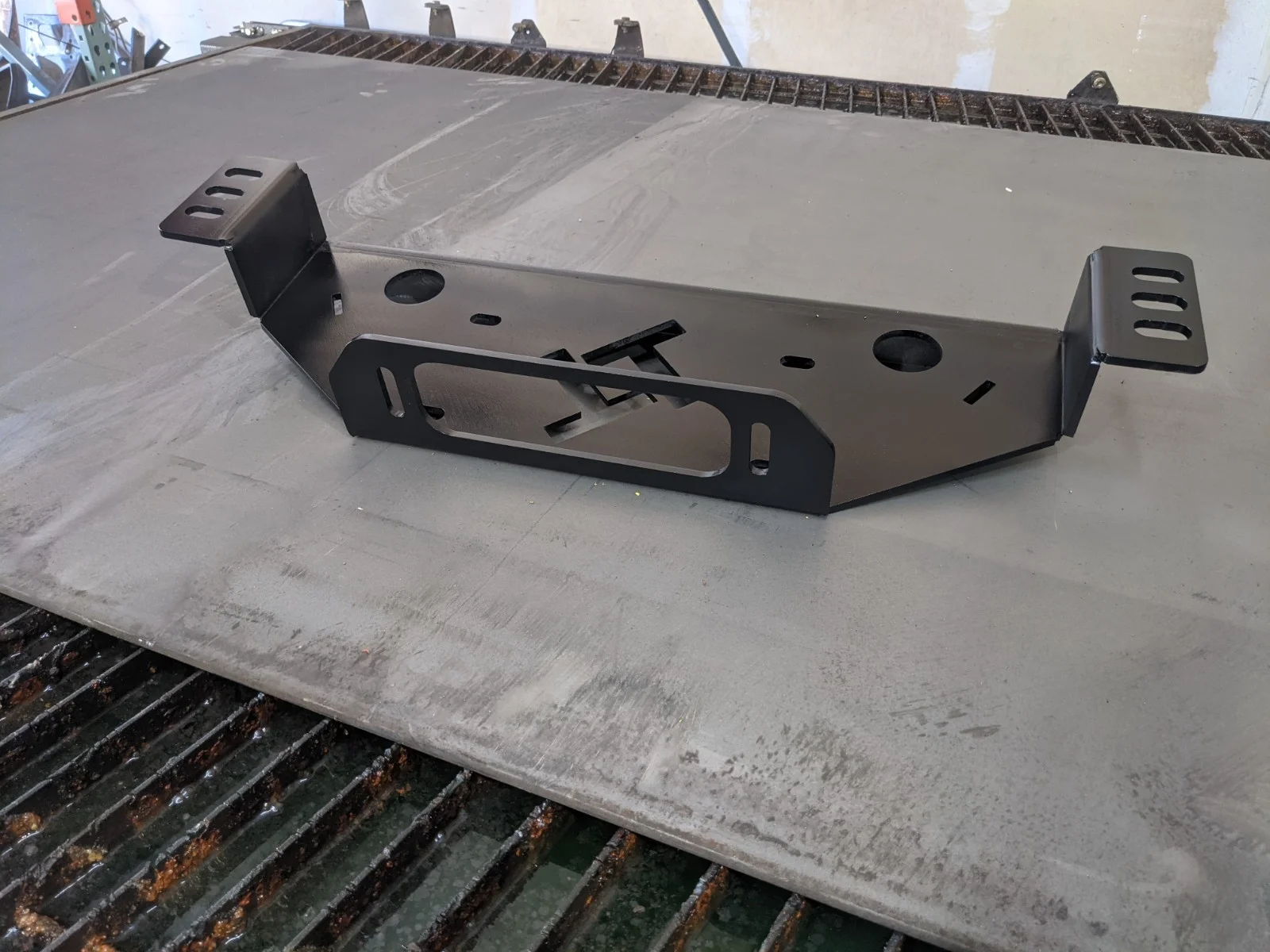

I've made the changes on my CAD files. I'll recut on the plasma table tomorrow and check everything. Then send to the laser cutter for production.

Yes, I have a 5 x 10 CNC plasma table and no time to run parts on it. Cheaper and faster to send to my laser cutter.... crazy busy right now.

Hopefully on the website next week for purchase with a lead time.

Jason

I will definitely be a buyer for this. Do you have a rough idea for a price point?


Changes were made and sent to my laser cutter. Looking like a 340-400.00 ballpark range right now. I have quite a few interested right now. Will be less than my other offerings to begin with due to interest.

Should have the quote back tomorrow and will publish on the website for pre-buy on the next day or two.

Jason

Glad to see it made it to production, I have been itching to buy one for a year. Is there a list, or do we have to wait for it to go live on the website?
Thanks!

Is it designed for a certain model winch? Seems cozy for, say, a Warn Zeon 10k, behind the bumper and under the valence.

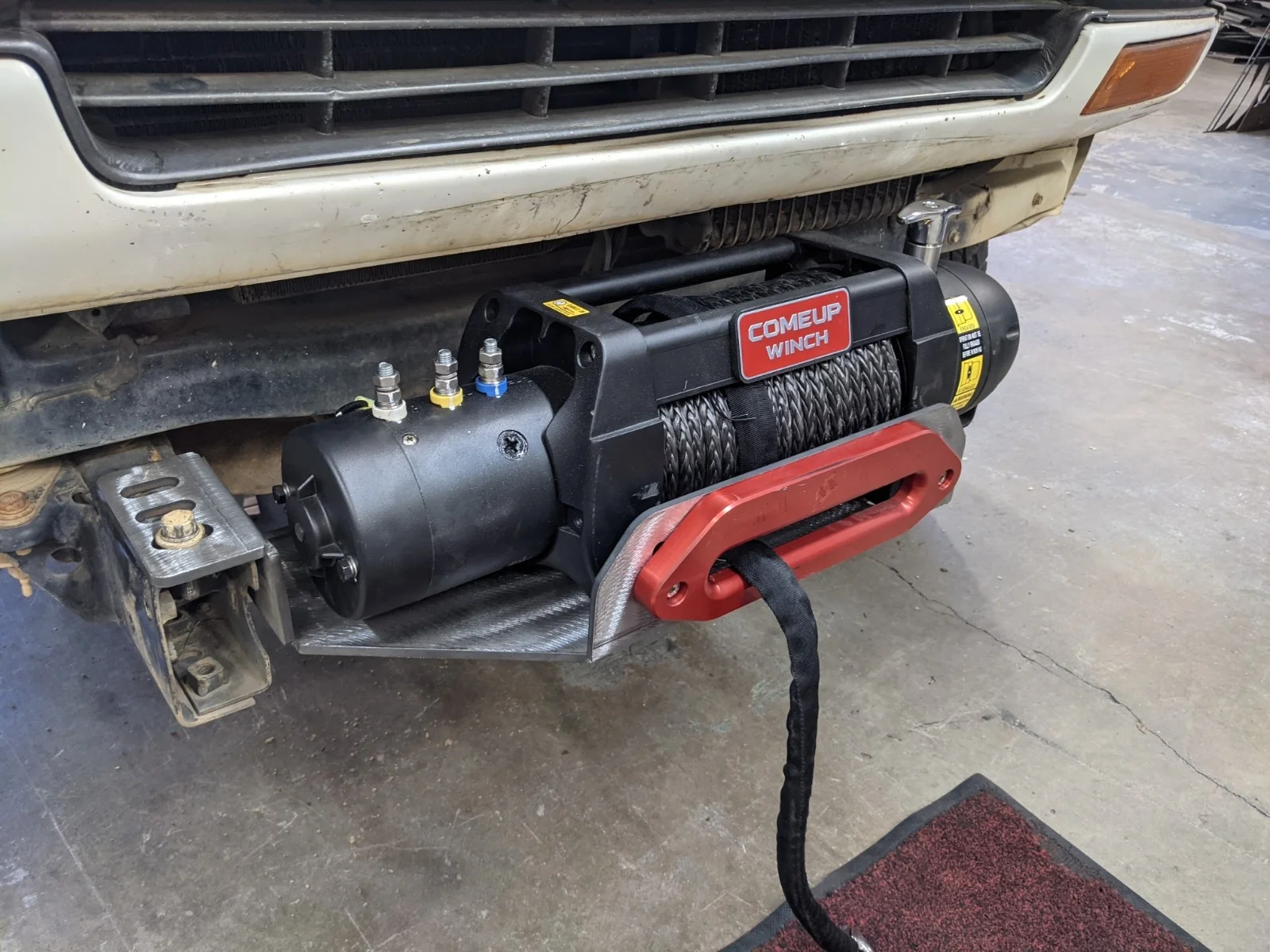

Should fit most winches with controller relocation required. This is a ComeUp Seal Gen 2 - 12.5rs.

24" wide x 8.2" tall x 6.5 deep

The inner 80 frame is narrow as you know and is the limiting factor on the winch choices for this design. 24.5" is the max width. As long as the winch is similar to the dims below, it'll work with a zero center line design. Offset winch more than likely will not work.

ComeUp SG2- 9.5 and 12.5, Warn Zeon 10 & 12 , HF Badland 12 and Apex all with controller relo will fit. I lowered the winch 7/8" so the there is approx. 1" between top of clutch handle and bumper now.

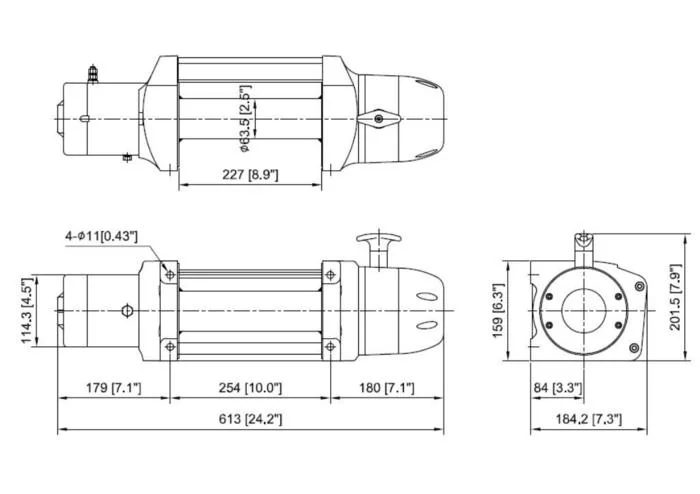

ComeUp SG2 - 12.5rs (Foot down install and clutch handle clocked to top)

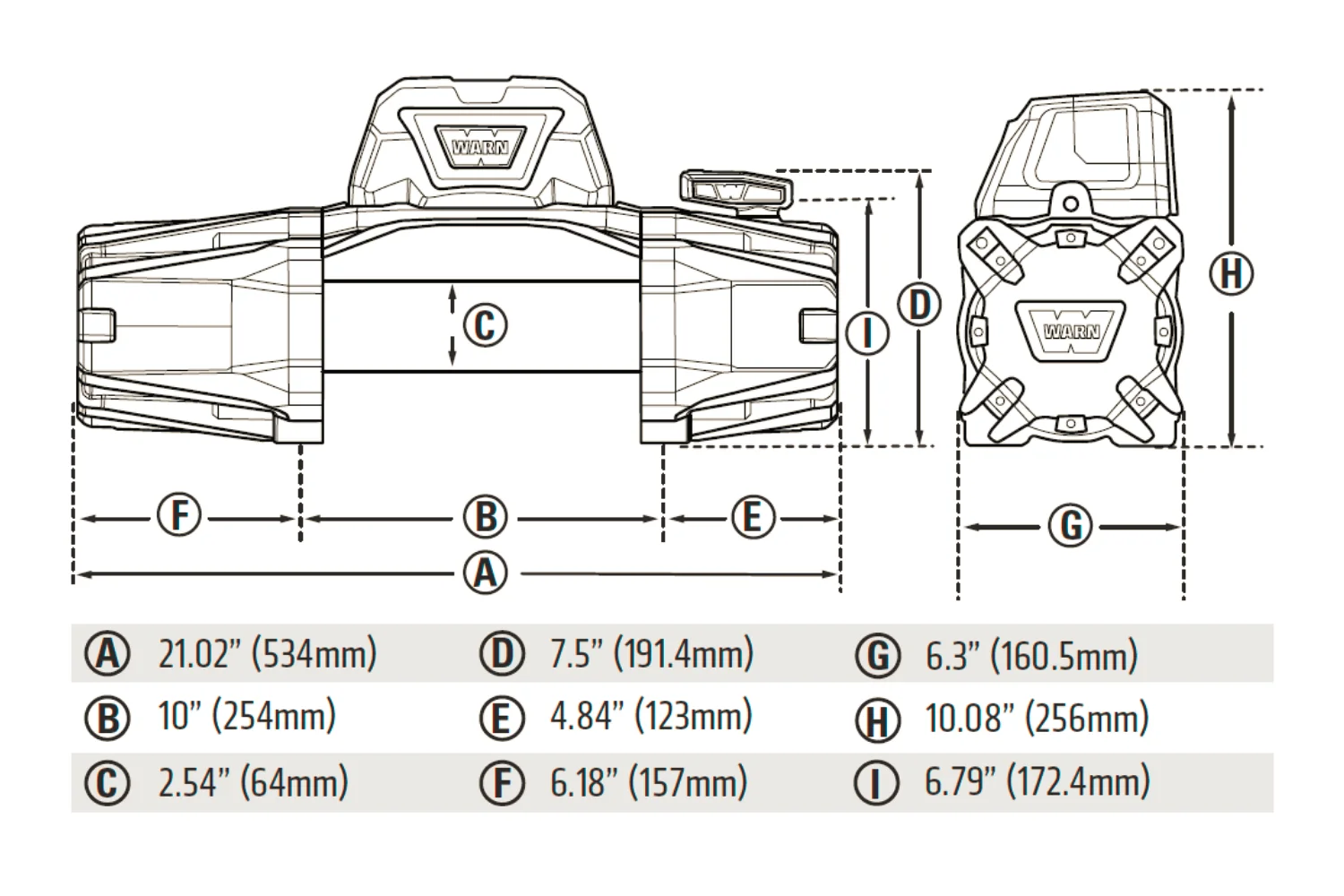

Zeon 10/12

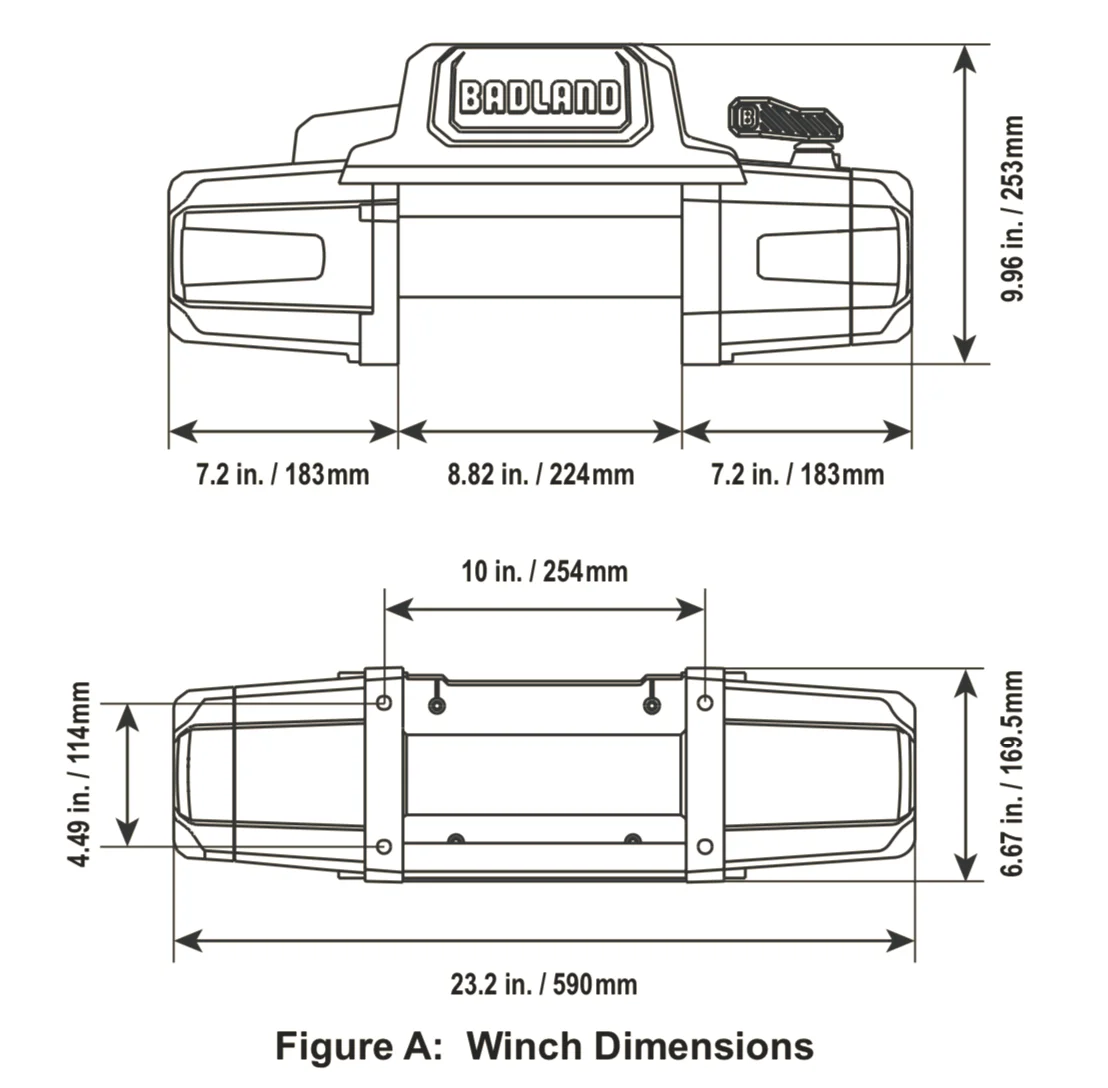

HF Badland APEX


Glad to see it made it to production, I have been itching to buy one for a year. Is there a list, or do we have to wait for it to go live on the website?
Thanks!

Andrea will have them up on the website by this weekend under the 80 Series tab. Laser cutting, weld out and powder lead time is 3-4 weeks. You will be able to pre-buy this weekend.


Jason

Andrea will have them up on the website by this weekend under the 80 Series tab. Laser cutting, weld out and powder lead time is 3-4 weeks. You will be able to pre-buy this weekend.


Jason
Sounds good,
Thanks Jason!

Next up......to set my front and rear bumper jigs and to release the rear tire and jerry can carrier arms to use with the stock rear bumper.
Interested - I'd love a jerry can carrier to accompany my factory swing out

PRICE IS 385.00 POWDER COATED PLUS SHIPPING.

CHANGES ARE MADE AND LEAD TIME FROM LASER SHOP IS 2 WEEKS.

I have 27 on the list and only ordered 20 due to age of this project. The pictures do not show the back plate for extra support, but will be added on the these along with under plate support brackets.

trailtailor.com

Jason
