For Sale 3FE EGR block off plate & exhaust manifold plug (1 Viewer)

Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
5,113
Location
Alabama

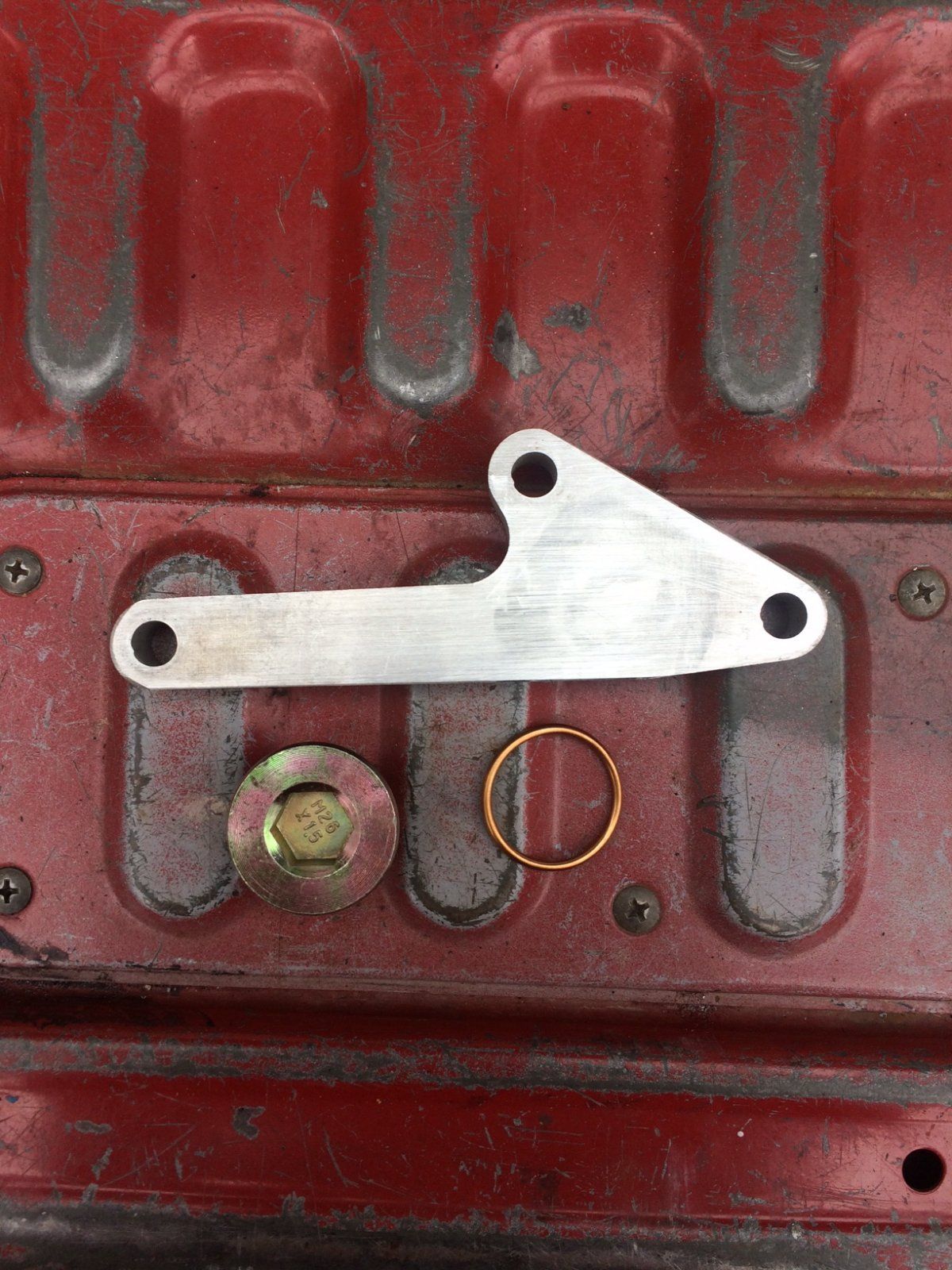

For desmogging a 3FE this aluminum plate is used to cover the opening in the intake manifold. The drain plug has the correct threading to securely screw into the exhaust manifold where the EGR had been plugged in. The allen headed drain plug comes with a copper crush washer.

$30+ shipping.

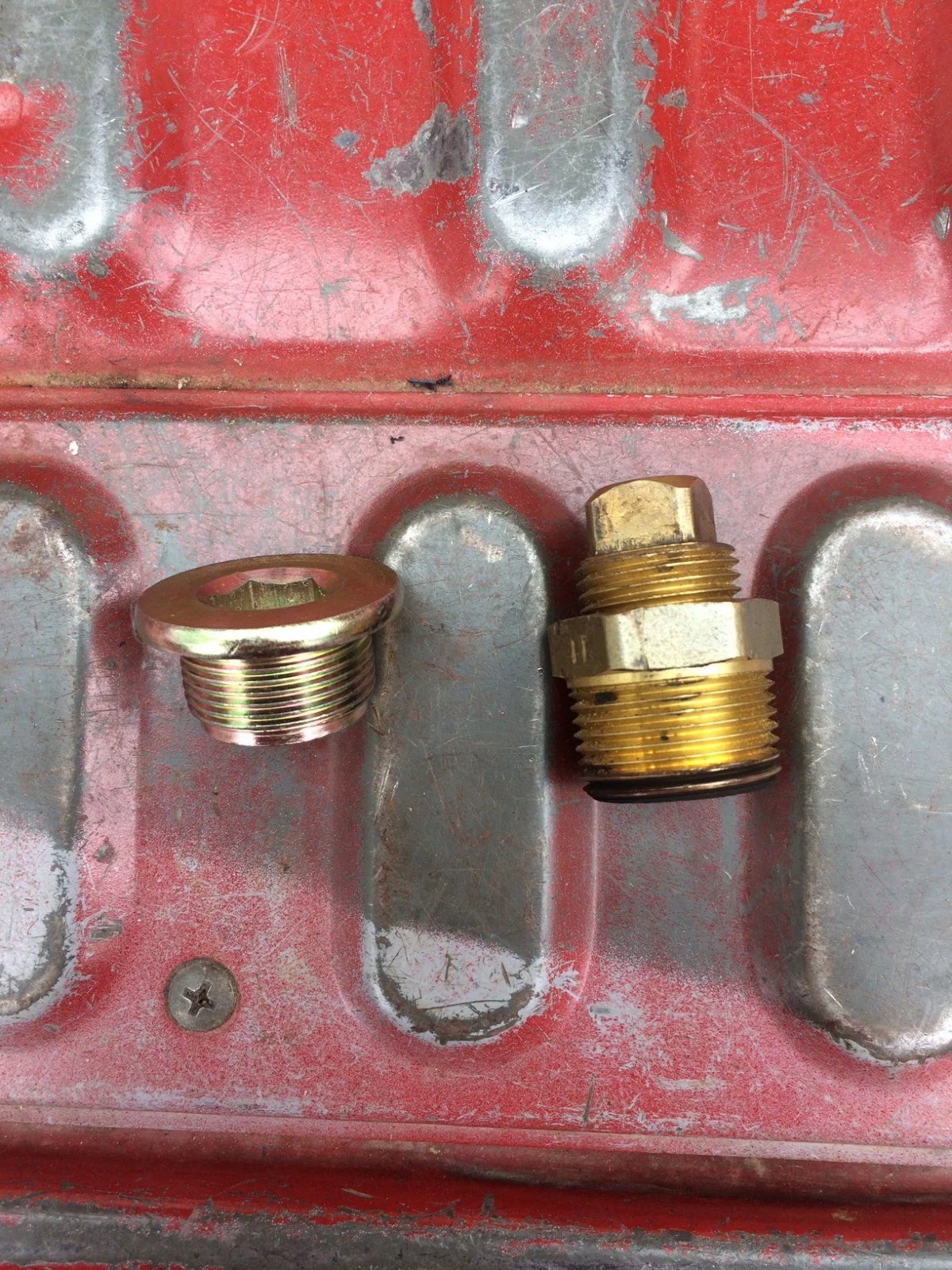

For comparative purposes a drain plug is shown next to a brass plumbing plug some have used to fill the exhaust manifold. The drain plug seats fully while the plumbing plug only engage a few threads in the manifold.


Last edited:
Joined
Feb 8, 2017
Messages
344
Location
Portland Maine
For desmogging a 3FE this aluminum plate is used to cover the opening in the intake manifold. The drain plug has the correct threading to securely screw into the exhaust manifold where the EGR had been plugged in. The allen headed drain plug comes with a copper crush washer.

$30+ shipping.

View attachment 1383420

For comparative purposes a drain plug is shown next to a brass plumbing plug some have used to fill the exhaust manifold. The drain plug seats fully while the plumbing plug only engage a few threads in the manifold.

View attachment 1383423
Godwin, do you still have these for sale?

Joined
May 13, 2016
Messages
14
Location
Social Circle, GA
I know you've sold these already, but I'm in need of something better than the brass plug. Dang thing comes out every two months or so. Do you remember the part number for drain plug?


Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
5,113
Location
Alabama



I know you've sold these already, but I'm in need of something better than the brass plug. Dang thing comes out every two months or so. Do you remember the part number for drain plug?
Dorman # 090-099.
