1HD-T Museum Pieces (1 Viewer)

[perrobravo]

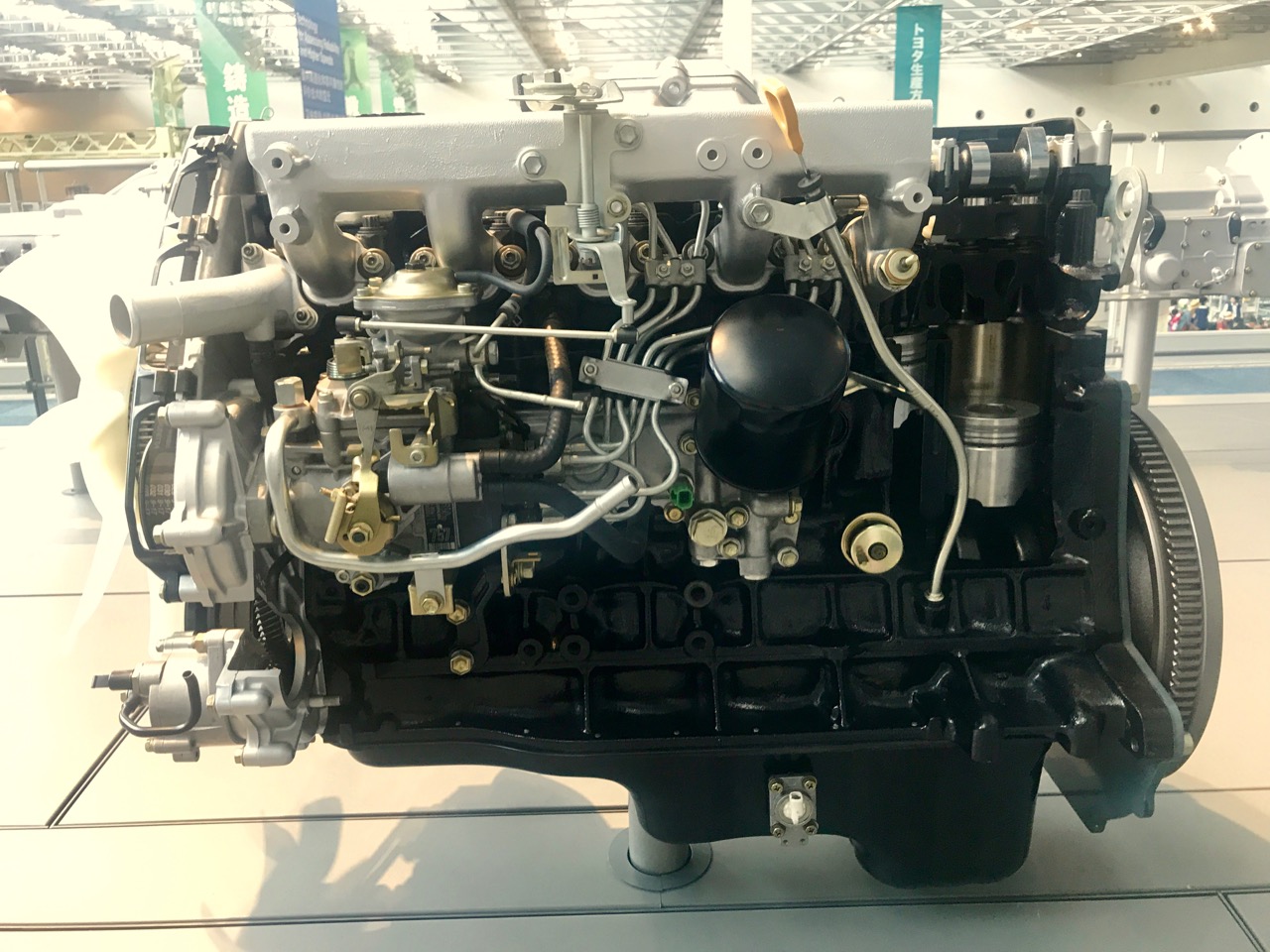

Was in Nagoya this week and stopped by the Toyota Commemorative Museum of Industry and Technology to see what Land Cruiser bits they may have on display. Didn't find any complete Land Cruisers, but came across this 1HD-T and took way too many pictures. Here are a few for reference, but mostly for fun.

@Mighty690 , isn't that your truck pictured alongside the Coaster on the 1HD-T plaque? Anyone know what "Toyota Reflex Burn" is?

Since the museum gift shop did not have a parts department, I admit I was tempted to harvest a few myself.

Unrelated...it seems this is actually NOT @beno 's headshot!



[roscoFJ73]

Great pics of a great engine.



[diby 2000]

Wow. That's what they look like when they are clean!

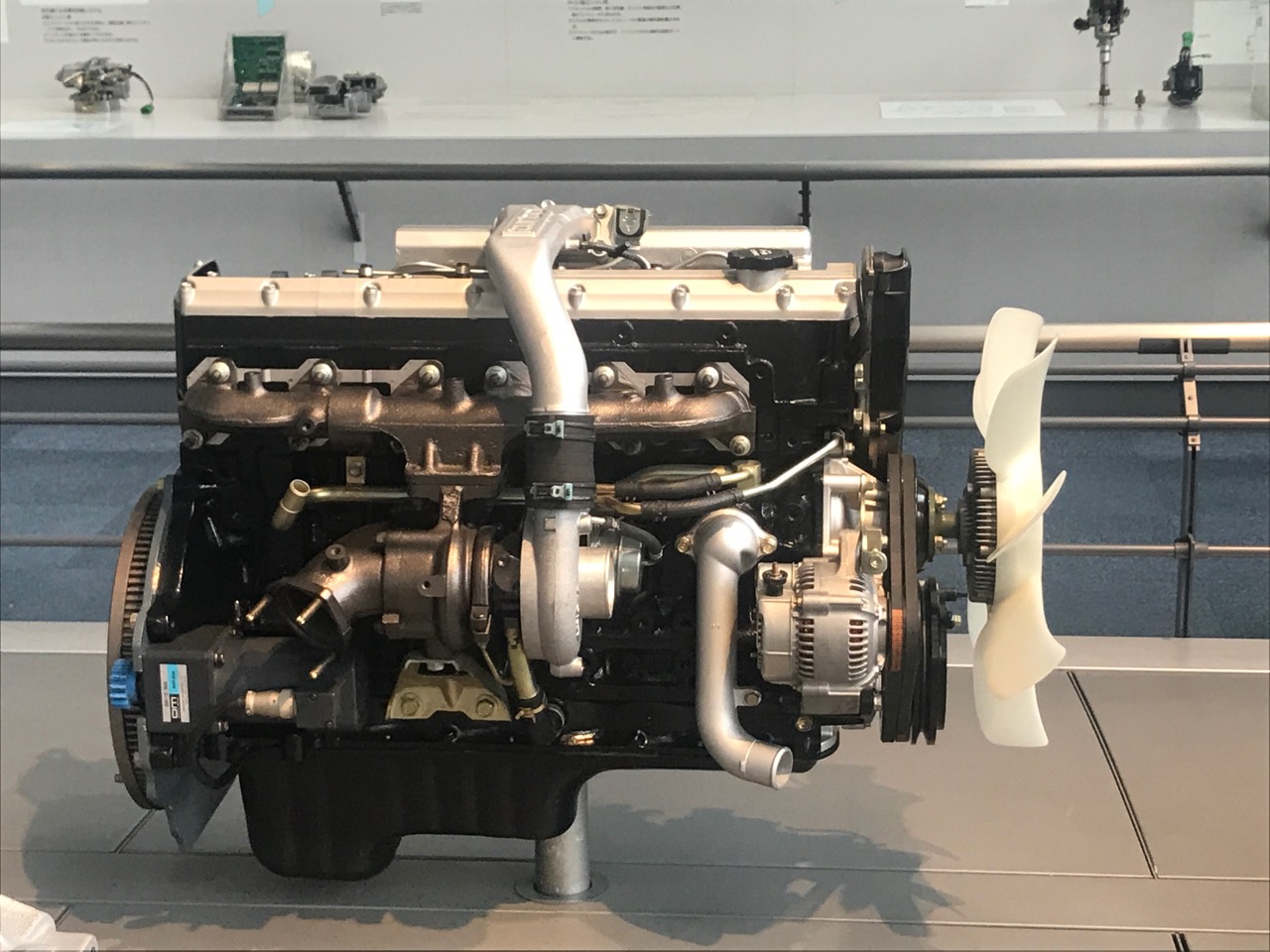

What's the electrical gizmo driven by the flywheel, beneath the turbo?



[ForealBoreal]

pre oiler?



[Douglas S]

Wow. That's what they look like when they are clean!

What's the electrical gizmo driven by the flywheel, beneath the turbo?

My guess would be an electric motor to run the engine as part of the display.



[diby 2000]

My guess would be an electric motor to run the engine as part of the display.

That is probably it.



[GreaseMonkeyJP]

There is also a 70 series SWB chassis located very close to the engine sections. However I think that it was just labeled as a 4WD chassis.

There are actually 3 Toyota Museums in the Nagoya/Toyota City area. This one is definitely the best, but there is a more car centered one out to the East of the city.



[chapel gate]

Nice. But that engine doesnt belong in a museum yet..



[mudgudgeon]

Nice. But that engine doesnt belong in a museum yet..

I think it does, it looks like it has a bit of an oil leak, and low compression in pot #6



[bugsnbikes]

that and it probably needs the BEBS changed and a crank warrantee if its pre 1992

nice that they ended up using a warrantee return with a hole in the block to show off those purdy pistons.....wow they did clean that up nice tho.



[Mighty690]

that and it probably needs the BEBS changed and a crank warrantee if its pre 1992

nice that they ended up using a warrantee return with a hole in the block to show off those purdy pistons.....wow they did clean that up nice tho.

LOL!



[Tapage]

caught my eye the sensor .? at the pan on the IP side ..



[tweeek]

caught my eye the sensor .? at the pan on the IP side ..

Low oil sensor



[bugsnbikes]

Low oil sensor

aka rod has exited the block sensor.



[Tapage]

Low oil sensor

first time I saw it in an 1HD-T engine ..



[tweeek]

first time I saw it in an 1HD-T engine ..

Hmm, I have it on my 93



[Douglas S]

Hmm, I have it on my 93

Mine has the port on the side of the oil pan but there is a small cover plate bolted to it and no sensor.



[tweeek]

Mine has the port on the side of the oil pan but there is a small cover plate bolted to it and no sensor.

Interesting. Year? Wonder if they starting adding it after the major parts changes 08/92



[mudgudgeon]

first time I saw it in an 1HD-T engine ..

Same. My '90 never had it. My HZJ105 has it.



[IanB]

I'm 99% sure my '93 has it, noticed it when R&Ring my starter a few weeks back.
