1986 FJ45 Wiring Harness Search (US) (3 Viewers)

[ToyotaMatt]

It's amazing that you can still buy a brand new Toyota wiring harness (at least for a 1979-1980 FJ45). I bit the bullet and bought one.

View attachment 3875386

View attachment 3875387

,

so which one did you end up biting the oem YAZAKI bullet sheaths on ....?

The 81210-90626C or 81210-90643B



[Terrax]

,

so which one did you end up biting the oem YAZAKI bullet sheaths on ....?

The 81210-90626C or 81210-90643B

82210-90626



[ToyotaMatt]

82210-90626

what is the differences between them ?



[Terrax]

what is the differences between them ?

Production year, he said they were the same.

Harness Assy, Wiring Cowl To Headlamp, No.1

[01.1979 - 09.1979] FJ4#..LHD 82210-90626

Harness Assy, Wiring Cowl To Headlamp, No.1

[09.1979 - 07.1980] FJ4#..LHD..GEN 82210-90643



[ToyotaMatt]

Production year, he said they were the same.

Harness Assy, Wiring Cowl To Headlamp, No.1

[01.1979 - 09.1979] FJ4#..LHD 82210-90626

Harness Assy, Wiring Cowl To Headlamp, No.1

[09.1979 - 07.1980] FJ4#..LHD..GEN 82210-90643

- those two part numbers are not the same , one has the letter C in the part #

- see the RH harness has a Forked Terminal on a large gauge black wire w/ red small piece of gloss loom over it at the end , that is a Clue to take note of ...

- there is a difference , but im sure it's minor .... your right the microfiche applications to models are so very close too



[stewt]

Hey everyone,
A little update on my moms and I progress,
Wiring Harness has been completely mapped out by me and we have ordered wiring, terminals, etc.

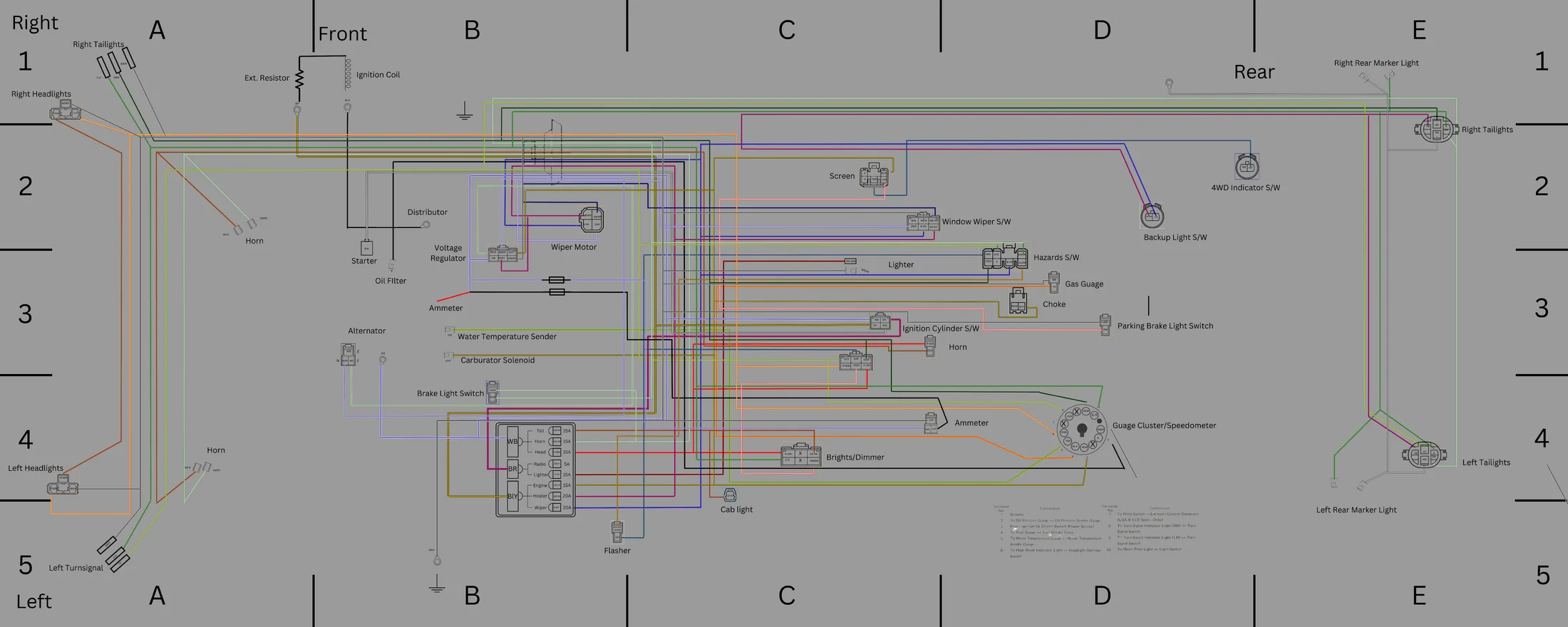

I'll attach a photo of the diagram.

-Stew



[stewt]

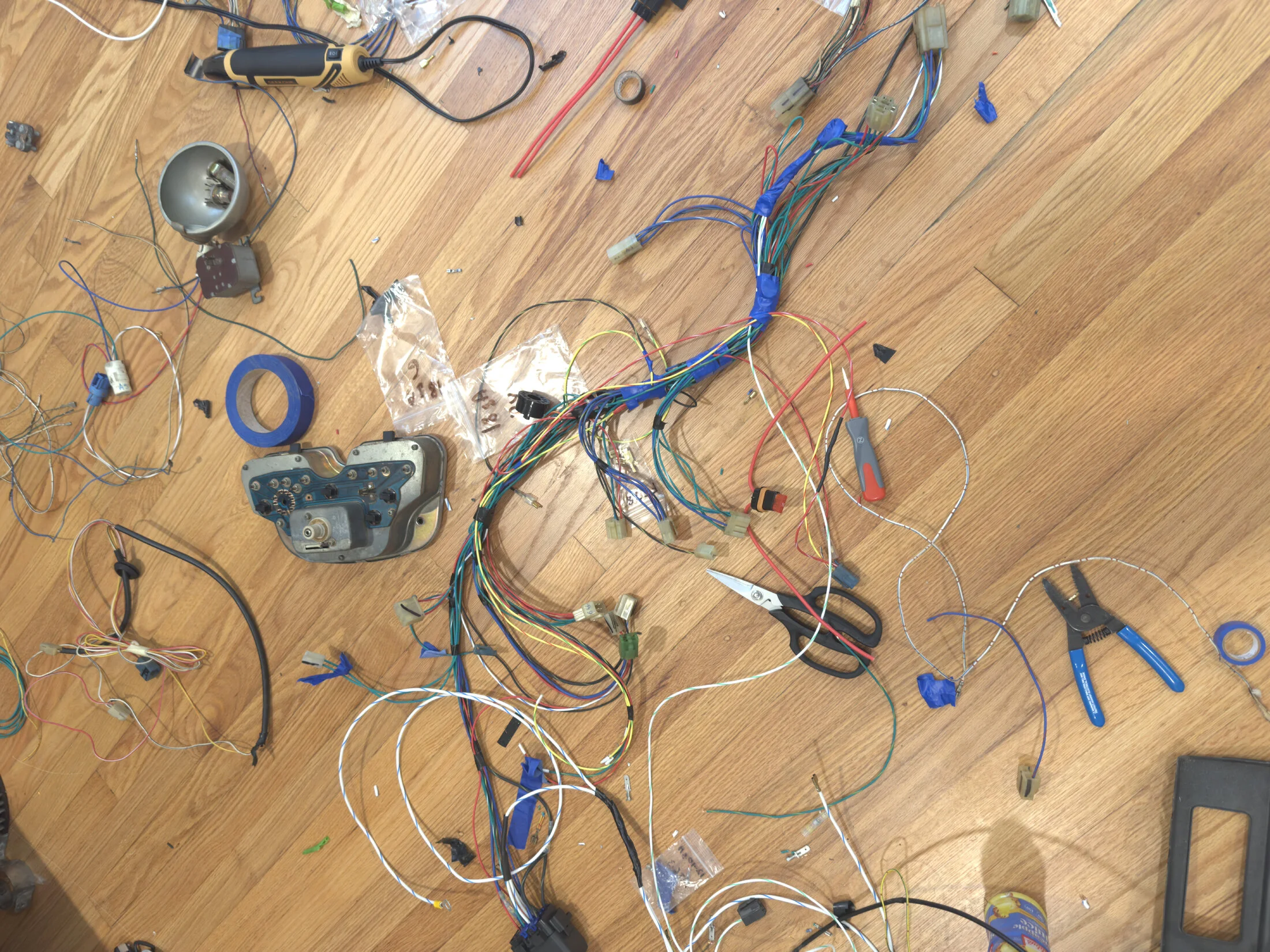

More progress…



[MOTOV8R]

Nice progress. I recommend loom wrap or quality auto grade tape. I also used a loom like this after I wrapped mine.

https://a.co/d/b0gS0Xw
