1976 FJ40
I have reviewed other "engine fuse" issue threads on this site, but they are slightly different than my issue. When I turn my key to accessory mode, the engine fuse blows immediately. I can still start the engine and it seems to run fine. I have limited experience with auto electronics so I am looking for some guidance.
I understand that the following are on the engine fuse circuit:

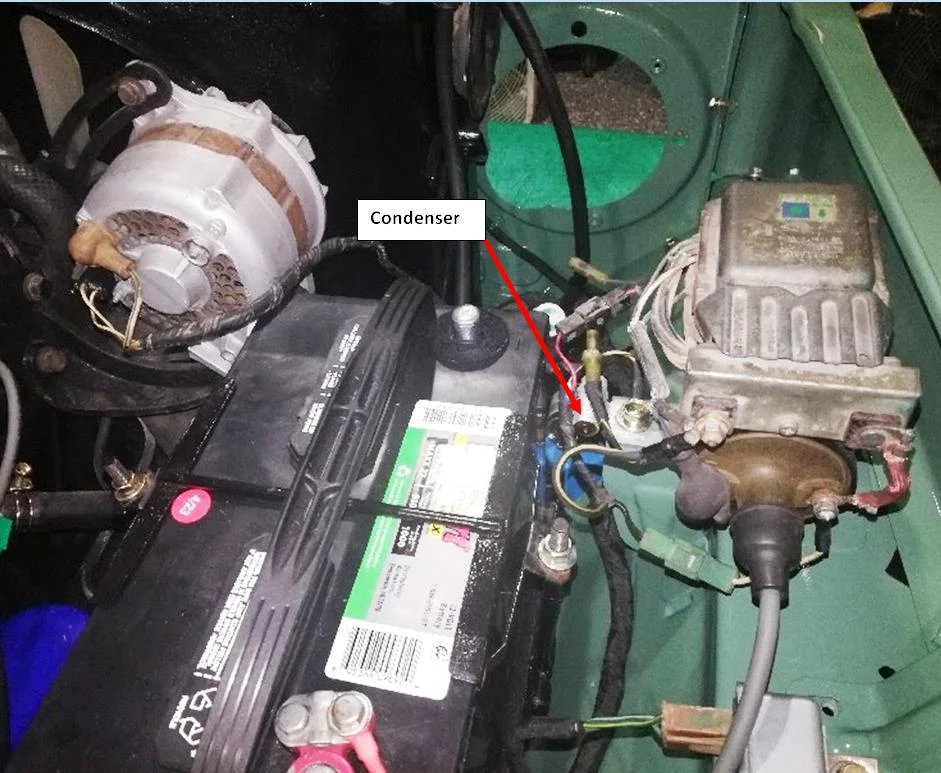

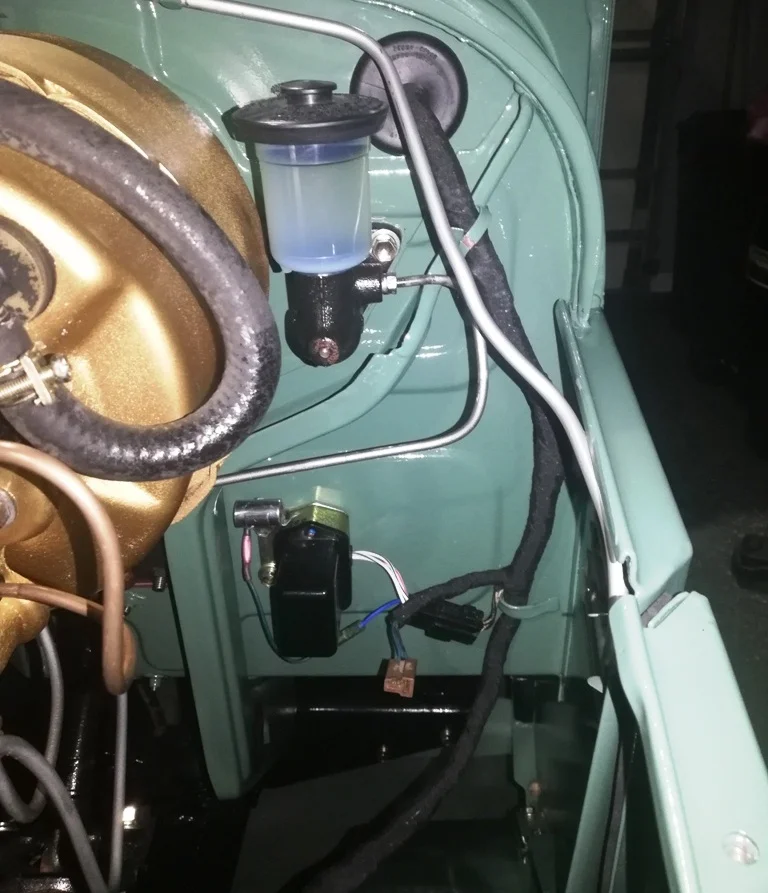

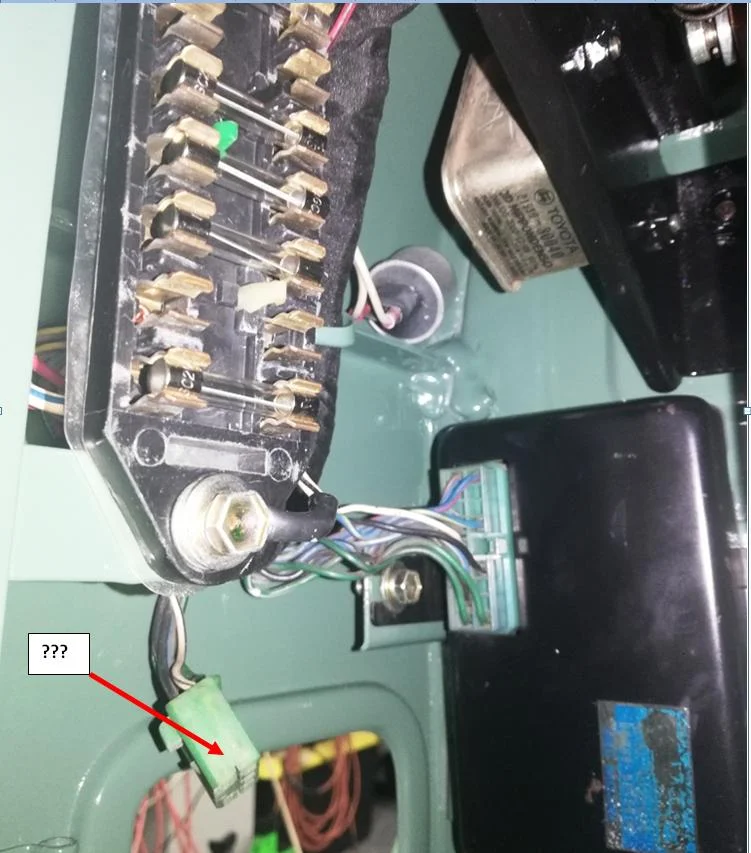

What is this connection for? I do not see it anywhere in my wiring harness references (see image).
I have reviewed other "engine fuse" issue threads on this site, but they are slightly different than my issue. When I turn my key to accessory mode, the engine fuse blows immediately. I can still start the engine and it seems to run fine. I have limited experience with auto electronics so I am looking for some guidance.
I understand that the following are on the engine fuse circuit:
- Regulator
- VSV (my vehicle seems to be desmogged so I do not have one)
- Fuel cutoff solenoid (I have a Weber38 so I don't think I have one)
- Emission computer
- Cooling fan controller (no carb cooler fan installed - no relay or motor)
- Maintenance interval detector (my MID is connected to the wiring harness, but not being used as I have a bypass speedometer cable)
What is this connection for? I do not see it anywhere in my wiring harness references (see image).
