Here we GO!

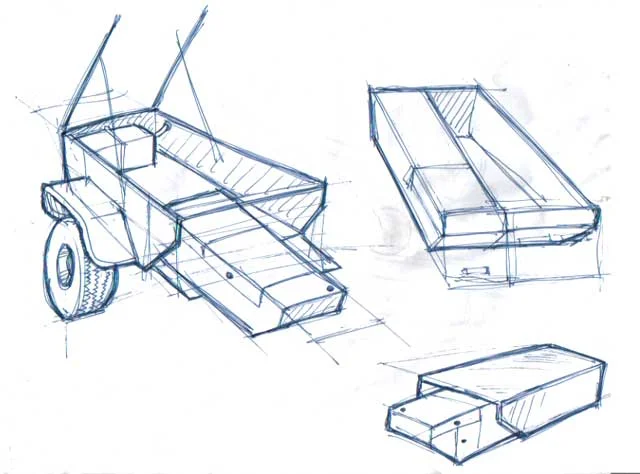

After nearly 9 months of planning, designing and gathering parts, I am ready to start my scratch built, homemade trailer for expedition/camping style travel. I have been greatly inspired by this site and ExPo to make this thing. Special thanks to Exiled, MikeS, Brownbear, Wesintl, and AxleIke for helping me out this far. My Goal: To create a small capable trailer that will be able to chase my fj40 over trails rated up to 3.5, and allow my wife and I to enjoy some of the modern conveniences of a small pop up trailer. We want to see all that Colorado, and Utah have to offer, and the rear end of a fj40 just doesn’t lend to multi-day camping/wheeling trips. My Design Criteria: Strength to match the fj40 without killing our lightweight approach. Simple, in both operation and design. FJ40 Cruiser track width. 3500# axle. Matching wheels and tires to tow vehicle. (35” MTR’s) 6x5.5”hubs Roof Top Tent. On board Air (CO2). On board 12v Power. On board LPG. On board Water. On board shower and sink. On board kitchen. Multi-hitch options, pintle and ball hitch. Must be smurf blue with a white top. Building verses Buying: After months of research, advice and searching, I decided to scratch build my trailer for a several reasons: 1. Most of the trailers I looked at needed heavy modifications to get them to do what I am wanting from a trailer. Take the m101 trailers from Canada. They are SWEET little trailers with a proven track record, and are nearly bomb proof. However, by the time I add a lid, extend the tongue, swap the hubs, buy new wheels, and install a tailgate, I could be well on my way to building one. Not to mention the time smoothing dents or repairing rust. I am NOT saying this is a bad way to go, but after comparing the cost of tracking one of these trailers down, adding shipping to my house, repairing, and modifying it, I can easily build my own. There isn’t that much to one of these little trailers. 2. Cost, I will come out ahead of buying a professionally built unit like the Adventure Trailer (though they are one of the finest trailers I have ever seen). All said and done, I should come in right around the cost of a modified m101 or m416. 3. I love to build things! This project will be as much about the journey as the end product. I work with people for a living and to be able to work with my hands is a MUST in my free time. It will take longer and most likely cost a bit more than expected but in the end I will love building this thing from scratch. 4. I can do it right… MY WAY , and only do it once, instead of modifying over and over as things go along…yeah right, is anything every really finished?My Design: I picked up one of those Mombassa Tents when they were going like hotcakes last fall. That inspired me to look into a trailer, have always wanted one, but the RTT got the ball rolling. I am planning on a main cargo box and a two drawer sliding system with a lid on top. One drawer will be a slide out kitchen and storage, while the other side will be gear storage. The RTT will go on top of the lid, really nothing new to the trailer world, but hey, if it ain’t broke… I will have a tailgate and under bed storage for hard spares (axles and such) that don’t need to be accessed often. The chassis will be a simple ladder frame made from 2x3x.120” tubing. I will have a 3x3x.25” tube as the main drawbar, with a 2.5x2.5x.5” tube that can adjust its overall length and connect to the hitch. Doodles are worth 999 words so here are a few, the first pic shows the (rough) final frame design. The second pic is of the drawer concept and what the trailer should resemble when finished. __________________ Drew F. Rising Sun 4x4 Club 76 FJ40, 85 fj60 Engine and Ignition, 35" MTR's, Warn 8074, 4" of lift TPI, snorkeled, racked, Mini-truck P/S... and sometimes running. Friends don't let friends drive Thornbirds... My camping trailer build up thread. Last edited by REZARF; 05-31-07 at 10:58 PM. Reason: messed up the pic |
|
|
|
|
|
#2 |
|
IH8MUD Lifer - No Appeal
Join Date: Aug 2003
Posts: 2,508
![]() |
Looks like a winner to me Drew. I d recommend that a trailer that classy should have a Maggiolina on top, tho...
__________________ '96 FZJ80, locked, Hanna sliders, ARB bumper, Kaymar rear with spare carrier, 45 gallon Longranger aux fuel tank, OBA, Hella 4000's, OME lift, 285/75/R16 Revos & AutoHome Maggiolina rooftop tent, etc. Custom Cruiser trailer with OverLand tent www.AutoHomeUS.com TLCA Member #14874 |
|
|
|
|
|
#3 |
|
IH8MUD Rookie
Join Date: Dec 2006
Location: Louisville, CO
Posts: 38
![]() |
cant wait
|
|
|
|
|
|
#4 |
|
IH8MUD Lifer
|
Today I mocked up the axle. I needed to get some hard measurements before starting to cut and weld. I got my axle from Randy at www.abctrailerparts.com they are a great business and I highly recommend them. I wanted to see what kind of clearance I needed between the axle spring perches and the inside of the tire. It looks as though I will have a 42” wide frame and clear the tires with room to spare. These springs don’t flex all that much like vehicles suspension. The hitch will do most of the articulating.
Here is a pic of all the parts with the kit, and a shot of how I taped off the axle to make my measured lines a bit easier to see. I also used a few 2x4’s to mock up the frame width to aid in measuring. __________________ Drew F. Rising Sun 4x4 Club 76 FJ40, 85 fj60 Engine and Ignition, 35" MTR's, Warn 8074, 4" of lift TPI, snorkeled, racked, Mini-truck P/S... and sometimes running. Friends don't let friends drive Thornbirds... My camping trailer build up thread. |
|
|
|
|
|
#5 |
|
IH8MUD Lifer
|

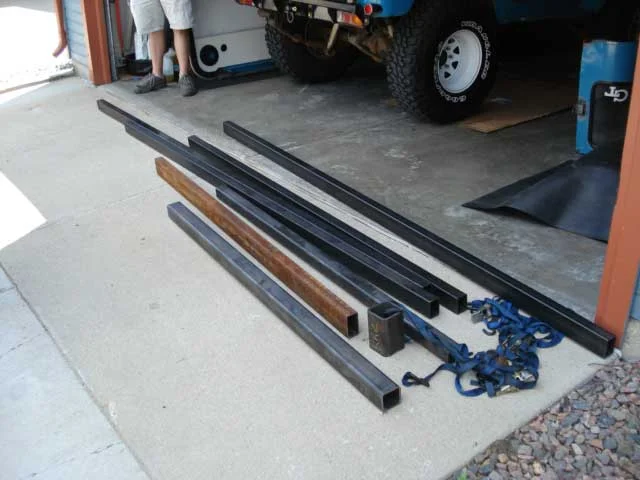

A run to the local steel yard netted all the steel needed for the chassis.

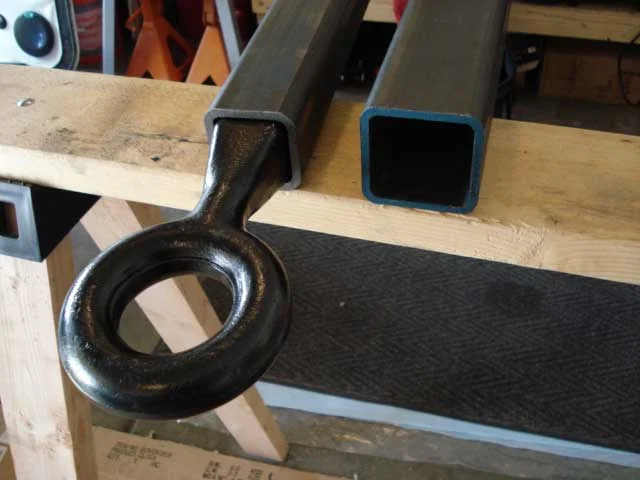

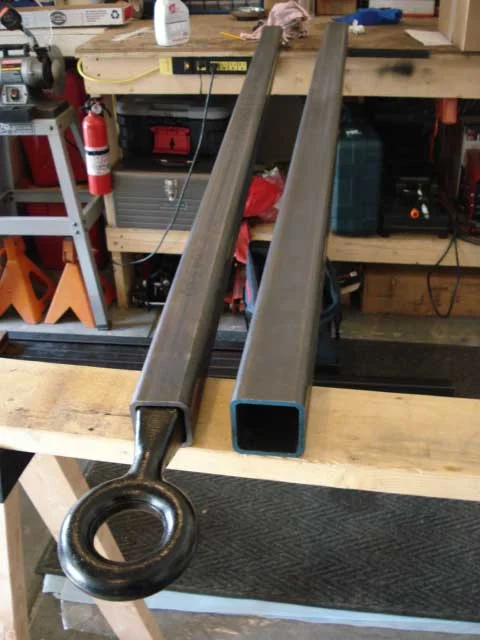

I am using: 2 x 3 x .125” for the cross members, the frame side rails, and the triangulating tongue supports. 2 x 4 x .125” for the rear bumper. 3 x 3 x .25” for the main tongue (chassis portion). 2.5 x 2.5 x .25” for the extendable tongue. You can see in the pics how the lunette fits into the 2.5” material easily, and then it slides into the 3” material as well. MikeS gets credit for the idea here, thanks Mike! This will also allow me to slide a 2” ball coupler as well. I like this for the simple reason that I can drive the trailer in relative peace on the way to the trail, then let the banging begin once at the trail head, simply by swapping out the coupler for the lunette. I will use standard hitch pins for quick and easy swapping. Does it look like a trailer yet? __________________ Drew F. Rising Sun 4x4 Club 76 FJ40, 85 fj60 Engine and Ignition, 35" MTR's, Warn 8074, 4" of lift TPI, snorkeled, racked, Mini-truck P/S... and sometimes running. Friends don't let friends drive Thornbirds... My camping trailer build up thread. |
|
|
|
|
|
#6 |
|
IH8MUD Junior
Join Date: Jan 2007
Location: Vancouver Canada
Posts: 124
![]() |
Way Cool, Just what this forum needs, Please don't take a year to build it though
![]() I'm about to launch into a M101 project this Saturday and plan to do everything to it that you mentioned in the start of this thread...LOL Only difference for me is the cheap purchase price and the fact it was only 10 mins from my house. What are you planning to use for drawer slides? Keep the pics coming... ![]() ![]() |
|
|
|
|
|
#7 |
|
Always wrenchin
|
That looks like a cool project, have fun with it.
![]() __________________ I ain't gonna hit ya..........ahhh the hell I ain't! - John Wayne I have a RED cruiser fetish. Support our Troop's. Journeyman Sheet Metal Worker. Sometimes I drink beer and surf mud.................at the same time! Then I can't remember what I posted
|
|
|
|
|
|
#9 |
|
IH8MUD Thread Killer
Join Date: Jul 2003
Location: Hopewell NJ
Posts: 992
![]() |
Looks like its going to be a winner.
I think the one thing you may not like is the trailer springs . They are short and will make the trailer "jumpy" on the road and dont flex as well off . Thats the only thing I can see you might want to change and toss a set of longer springs under it . __________________ Todd 64' FJ40, 79' FJ40,(gone) 86' BJ70, 92' FJ80,(gone) 96' FZJ80 just 3 cruisers now 66'M416 and a 92' M101CND
|
|
|
|
|
|
#10 |
|
IH8MUD Lifer
|
Thanks guys.
Exiled, it is hard to fall asleep at night as I think through every aspect of this thing... it will be fun for sure. Koffer- Your totally right. I looked at all the suspensions out there, from air bag trailing arms, to torsion axles, to long leaves... my decision came down to reliability and tried and true performance. No doubt it will bounce a bit, but I picked up a few secret tips while down under this past winter... I will reveal them later. As a side note the short springs are designed to help control swaying loads, and carry the weight of the cargo... these springs won't do much to help dampen the bumps, but I have a lot of tire sidewall to work with. Thanks! Drew __________________ Drew F. Rising Sun 4x4 Club 76 FJ40, 85 fj60 Engine and Ignition, 35" MTR's, Warn 8074, 4" of lift TPI, snorkeled, racked, Mini-truck P/S... and sometimes running. Friends don't let friends drive Thornbirds... My camping trailer build up thread. |
|
|
|
|
|
#11 |
|
IH8MUD Lifer
Join Date: Jan 2005
Location: Reno
Posts: 4,606
![]() |
Awesome Drew! Jeez...I gotta quit reading this thread...its getting me inspired to start building something again
.__________________ Modded '99 for on-trail exploring: 315's, 4.88's, AO drawers, Slee rr, TJM fr, ARB fr locker, good music for ears, Waeco CF-50, PowerGate with 2nd battery, home brew tube type sliders & t-case skid plate, 9.5XP/X-line, LF 170's, OEM 864's, Fox 2"remotes at each corner, 12mm body lift... KE7NCM |
|
|
|
|
|
#12 | |
|
IH8MUD Lifer
|
Quote:
I will most likely use some of the nylon or poly strips to aid the sliding action. And yup, I hope I don't take a year, but who knows, I am going to do it right... when time allows. Remember this is my therapy. Rezarf <>< __________________ Drew F. Rising Sun 4x4 Club 76 FJ40, 85 fj60 Engine and Ignition, 35" MTR's, Warn 8074, 4" of lift TPI, snorkeled, racked, Mini-truck P/S... and sometimes running. Friends don't let friends drive Thornbirds... My camping trailer build up thread. |
|
|
|
|
|
|
#13 |
|
IH8MUD Addict
Join Date: Dec 2006
Location: central nm
Posts: 714
![]() |
Looks great, and way more useful than the shrink.
Love the lunette/ball swap option. I concur with a Maggi up top, and happen to have one I could perhaps be talked out of. ![]() __________________ Oct 84 tan fj60, 260k mi -- FS $3k OBO Sept 84 tan fj60, 202k -- new to me Dobermobile/ K9 SAR truck, 2.5" BDS suspension enroute85 Honda Accord, 110k -- commuter 91 Kawasaki Concours, 50k -- on the road again |
|
|
|
|
|
#14 |
|
IH8MUD Lifer
|

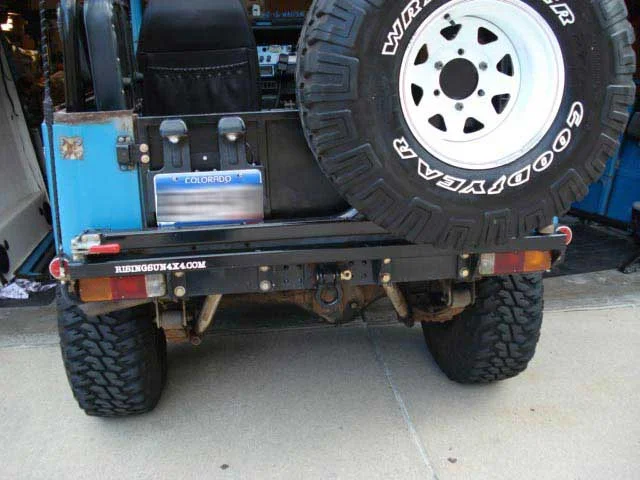

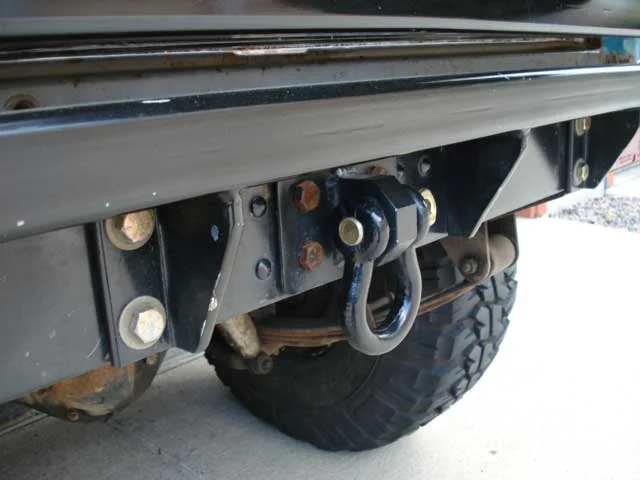

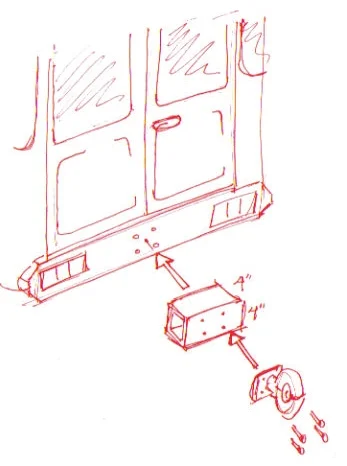

I got to sneak a little more work in on the trailer today. I got the hitch figured out. My fj40 has a home made tire carrier/bumper combo that I made last year to get a 35” spare out of my rear bed. I planned on using a pintle/hitch combo that I have used for years, but failed to cosider or realize that the pintle had to swing open to allow connection of the coupler… bummer.
