Wheels that work, part numbers (2 Viewers)

[studawg]

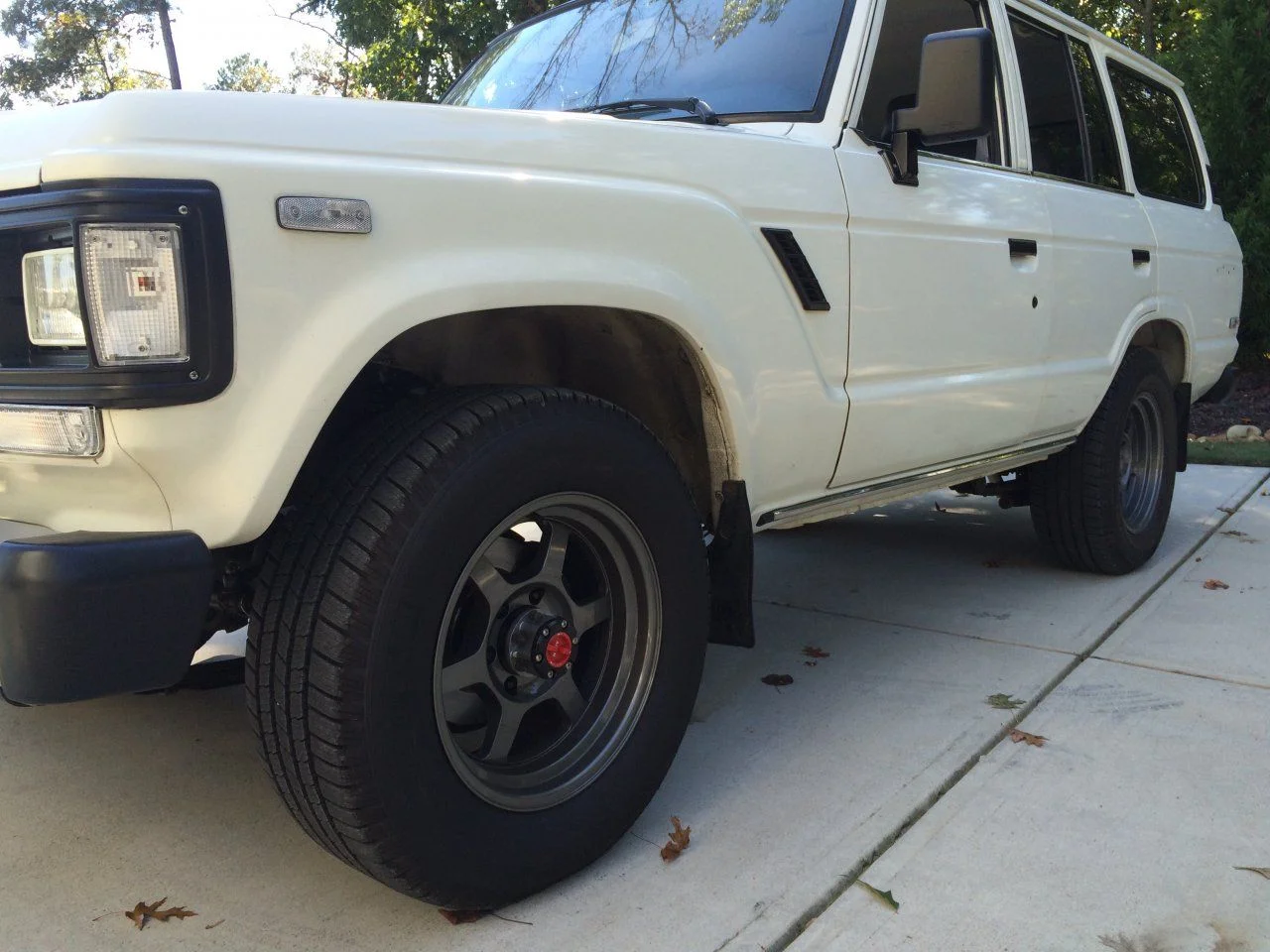

Wheel Vintiques 16x7, 4" backspace from Summit Racing.

Part #12-670604

Summit link

EDIT: No spacers needed on my 62 with stock calipers, etc... thus, "wheels that work"



[txnight]

89cruiser, those are great. Is that a 235/85/16 you have mounted on there?



[studawg]

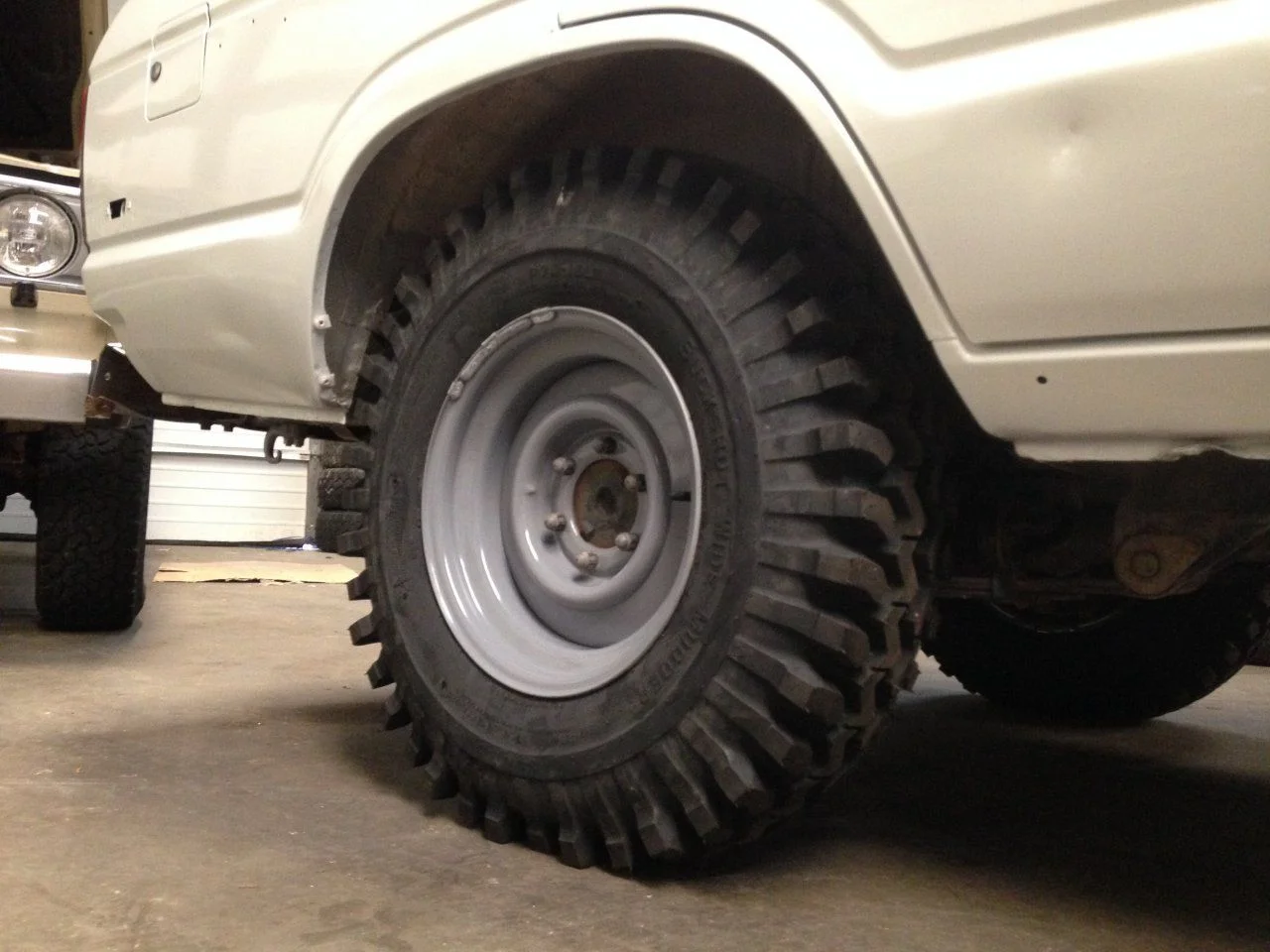

Thanks, I love them. Thats a P78, right at 33" 32" tall, section width is 9.25 and tread width is about 8.5 mounted on the 7" wide rim.

EDITED



[Output Shaft]

@89cruiserfj62
Freaking awesome. Is that gray their factory paint? Or did you PC them?
Do they bolt right up with no issues?

I believe my search is over!

Thanks for posting.



[studawg]

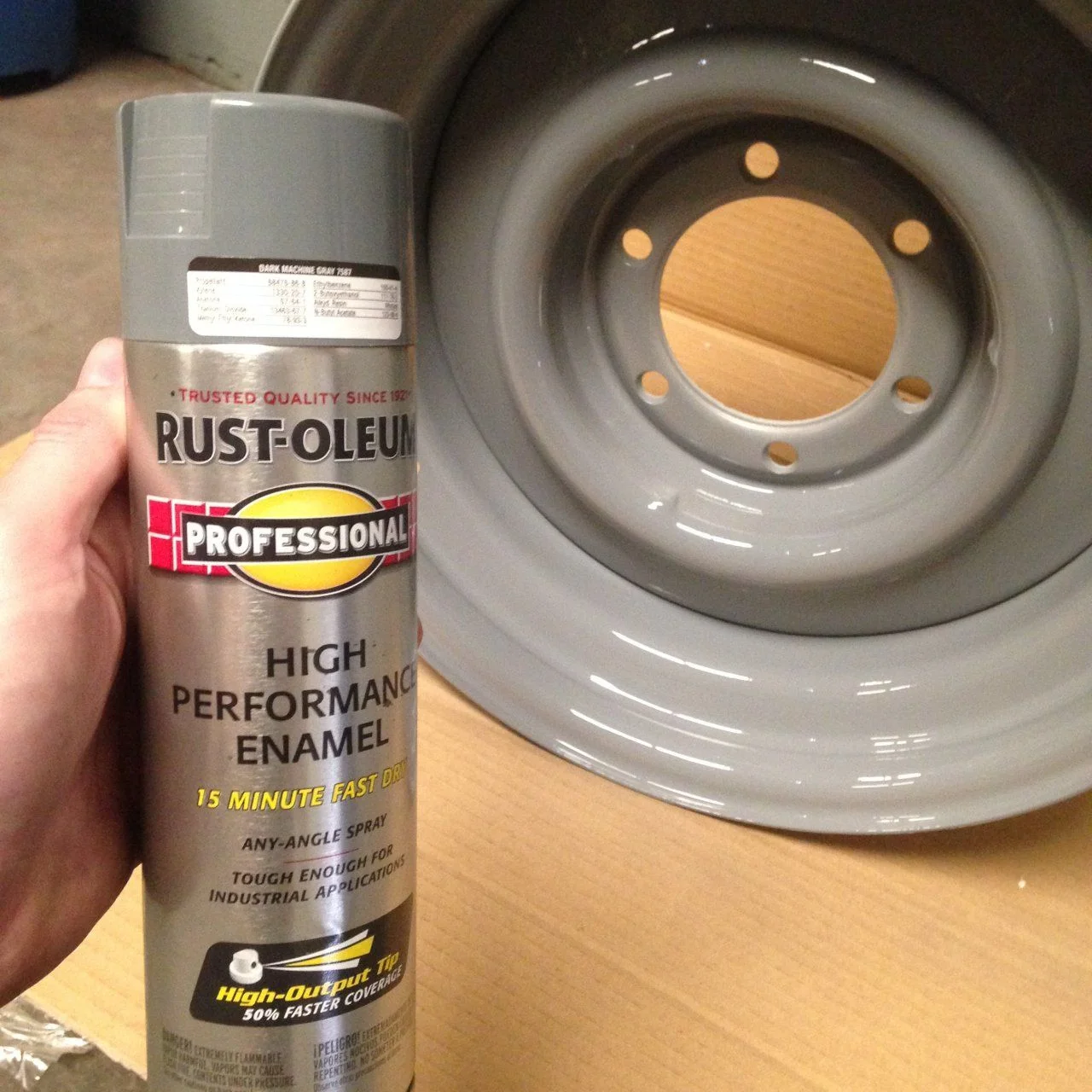

They come in gray primer, but I painted them with this.....

"Dark Machine Gray". Not perfect, but close.



[txnight]

I have been sitting here thinking up different tire combinations that will work on my truck. I'm thinking 235/85/16 could work nicely? Tall and skinny!



[Landpimp]

did not see a reply, would like to know if they bolt up with no need for spacers.

killer looking wheel, I am actually almost excited about buying wheels again. Its these Summits or OEM 16x?(6")

@89cruiserfj62

Do they bolt right up with no issues?

.



[IBFJ62]

Those really do scream out 'old school'.. Very cool.



[olija]

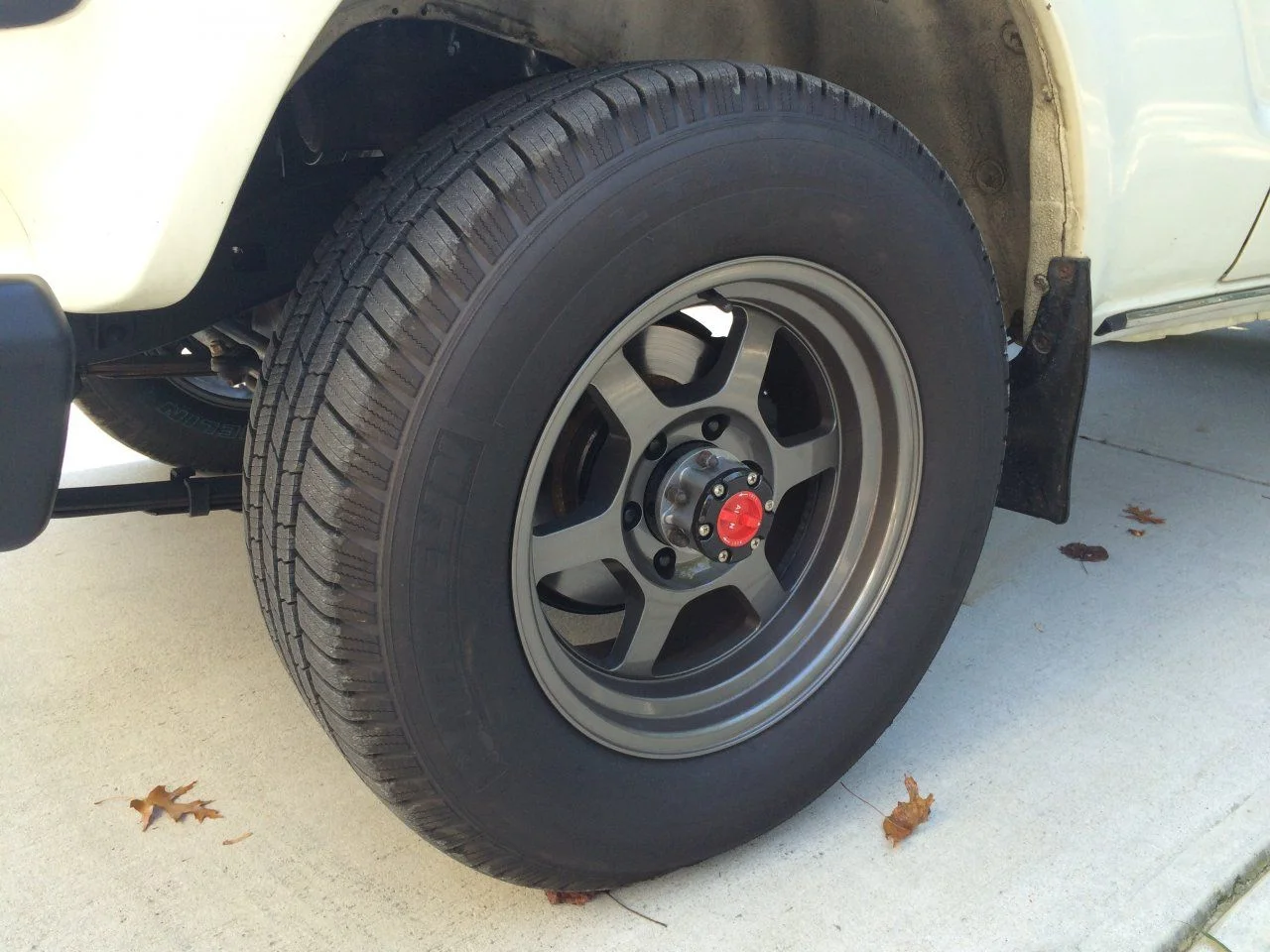

Wheeler's Off Road 15x8 Type B- works with a 1/4" wheel spacer



[studawg]

did not see a reply, would like to know if they bolt up with no need for spacers.

killer looking wheel, I am actually almost excited about buying wheels again. Its these Summits or OEM 16x?(6")

No spacers needed, also available in 16x6.



[Landpimp]

Thanks

Think 255/85/16 on those rims will be just what I am looking for and they will work on all my 40/45/60



[code 621]

Thanks @89cruiserfj62 -- I've noticed those in the Summit catalog but they slipped my mind. I was preparing to buy spacers for 17" Tacoma wheels but my heart was in steelies! & these are the same price as spydertrax



[studawg]

Thanks @89cruiserfj62 -- I've noticed those in the Summit catalog but they slipped my mind. I was preparing to buy spacers for 17" Tacoma wheels but my heart was in steelies! & these are the same price as spydertrax

Yeah I thought I wanted the 16x6 splits then I learned about the tubes, then I looked into the Tacoma spares and discovered you needed spacers so I moved on and then found these.



[englechad]

I second that these wheels from summit work great.

NO spacers .

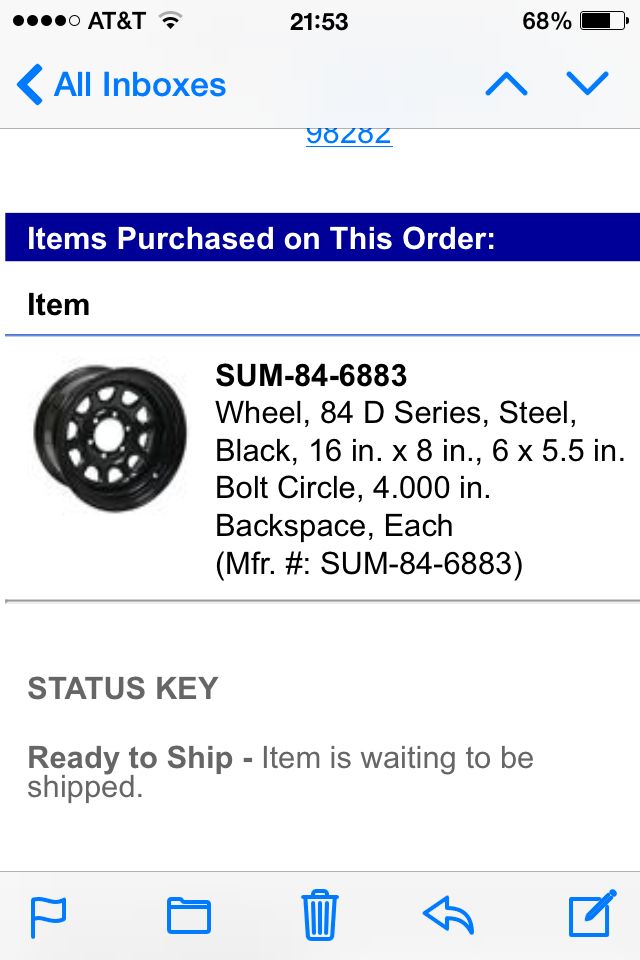

http://m.summitracing.com/parts/SUM-84-6883

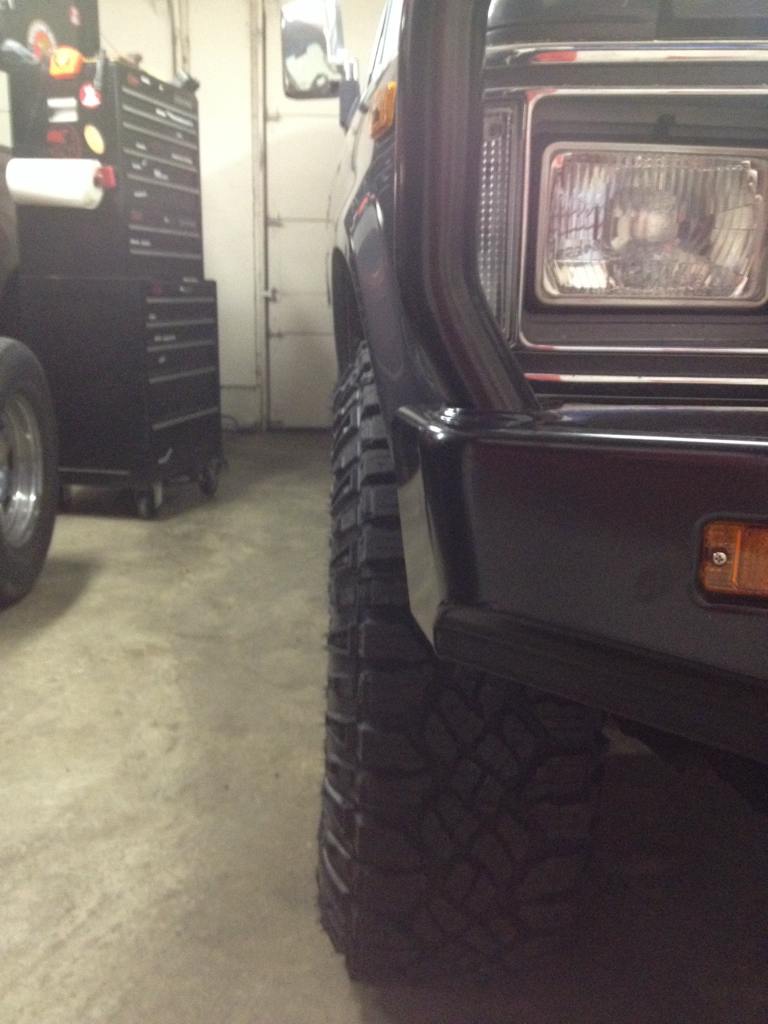

No rubbing . Plenty of clearance .

And 50 bucks.

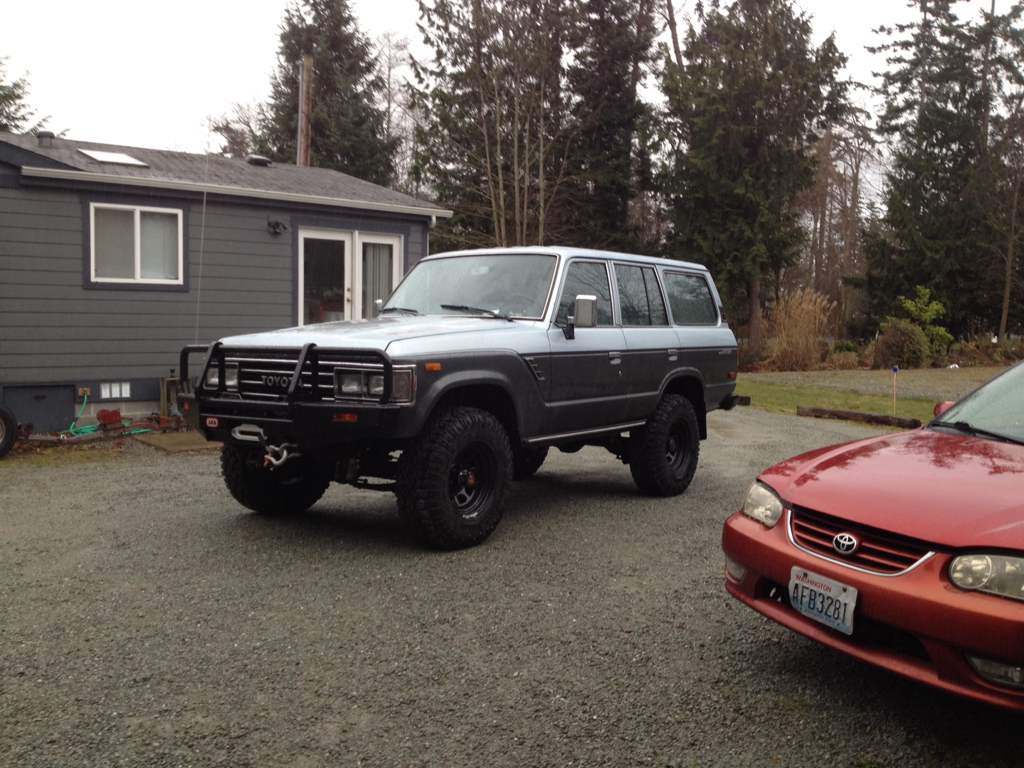

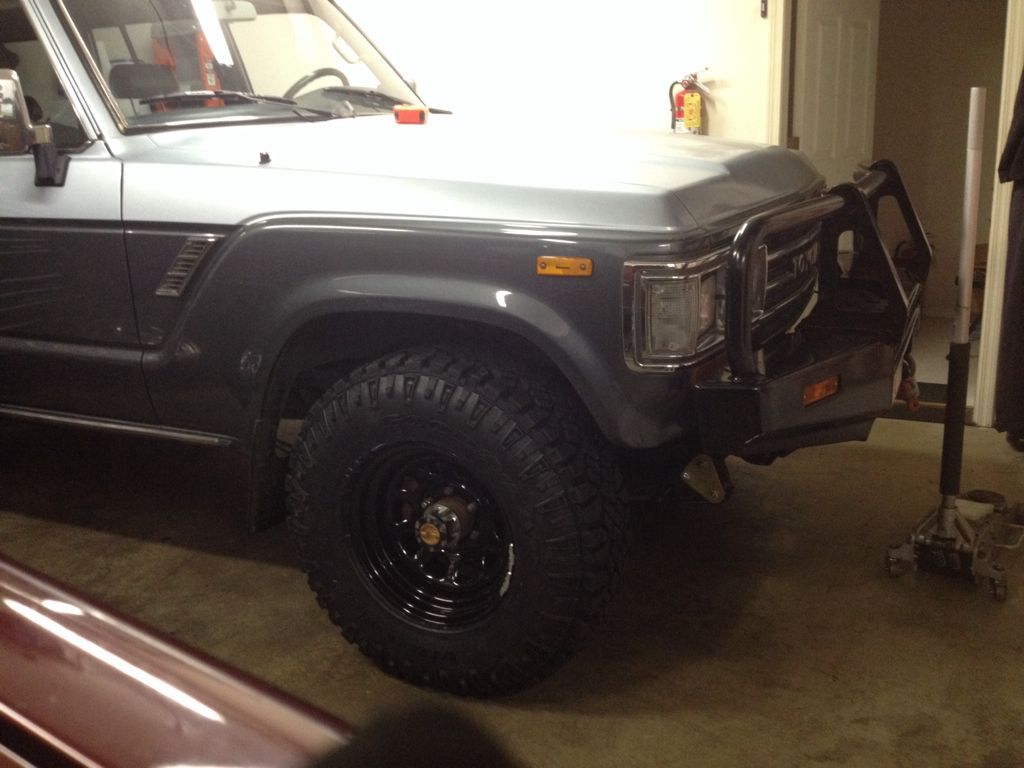

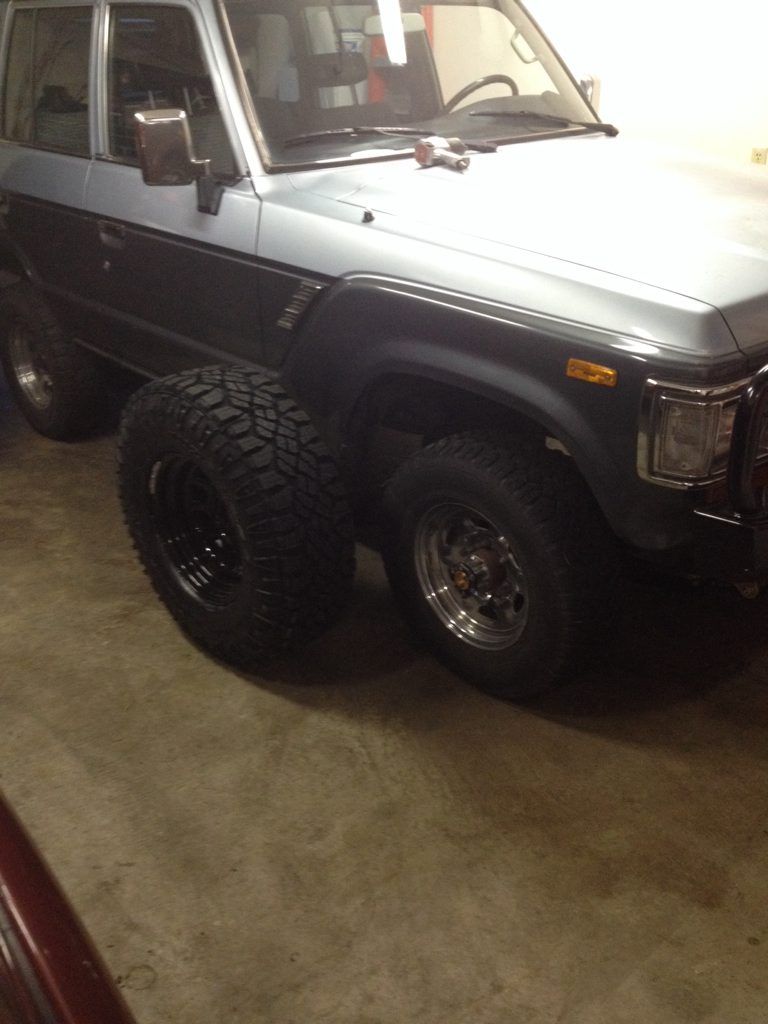

These with 285/75/16 duratracs .

View attachment 1020441View attachment 1020442View attachment 1020443View attachment 1020444View attachment 1020445View attachment 1020446


...via IH8MUD app

Do these fit on a 60 as well?



[Output Shaft]

Yes,
The 60 and 62 are identical as far as wheel fit goes.



[englechad]

Thank you! I thought they were but, wanted to double check.



[SoCalJB]

@SoCalJB do you have pictures with rubber on them. I really like these wheels

Hot off the tarmack....pics with rubber.



[Borick]

Yes,
The 60 and 62 are identical as far as wheel fit goes.

This is true.

Do these fit on a 60 as well?

I tried a set of these (the substitute "vision" wheel, actually) on my FJ40 and my FJ60. They fit on the rear but not on the front. On the front they rubbed the calipers (front disc on the 40). Rather than return the wheels I used a 1/4" spacer on the front, which I wasn't really happy about, but it's working fine.



[Landpimp]

so they fit the front of the 60 but not the front of the 40? wonder if the 40 has had its calipers changed to 4runner or something

This is true.

I tried a set of these (the substitute "vision" wheel, actually) on my FJ40 and my FJ60. They fit on the rear but not on the front. On the front they rubbed the calipers (front disc on the 40). Rather than return the wheels I used a 1/4" spacer on the front, which I wasn't really happy about, but it's working fine.



[Borick]

so they fit the front of the 60 but not the front of the 40? wonder if the 40 has had its calipers changed to 4runner or something

They didn't fit either vehicle. The 60 does have 4runner calipers, but 40 calipers are stock.
