BSM Horizontal Axis Measurement Please (1 Viewer)

[heliwill10]

Updated: This is for Trouble code C1AC1 Master Module Horizontal Axis Misalignment; This also displays "Check BSM System" on dash monitor.

If you trimmed plastic like me, get into mud, and then don't clean it all out... This will likely happen to you! These are NOT the 4 round parking sensors on rear bummer. This sensor sits under the rear taillight and is a square looking box. See image below:

I need to realign my BSM radar sensor... If someone has access to the service manual I need the angles, height and distance measurements. I have a GX460 Luxury 2018. Same idea as this video...

Thanks,

Will



[Acrad]

FSM that should cover your ‘18 here

OneDrive

1drv.ms

from this post

Arch Stanton's 2013 GX460 premium & 2020 editions of 2010-2021 Lexus GX460 Repair Manuals

Hi guys, New to this community. I figured I'd introduce myself & my GX460. I'm not actually an off-road guy. I decided to join this community because I found more valuable information here than anywhere else when doing research for my GX460 purchase. I'm coming from the Volvo Swedespeed...

forum.ih8mud.com



[heliwill10]

You are the Man! Thanks! Info I need is in there.



[heliwill10]

I made this 9" equilateral triangle reflector out of cardboard and aluminum foil. I can't take credit for this setup. I found this over on tacoma world (I think)

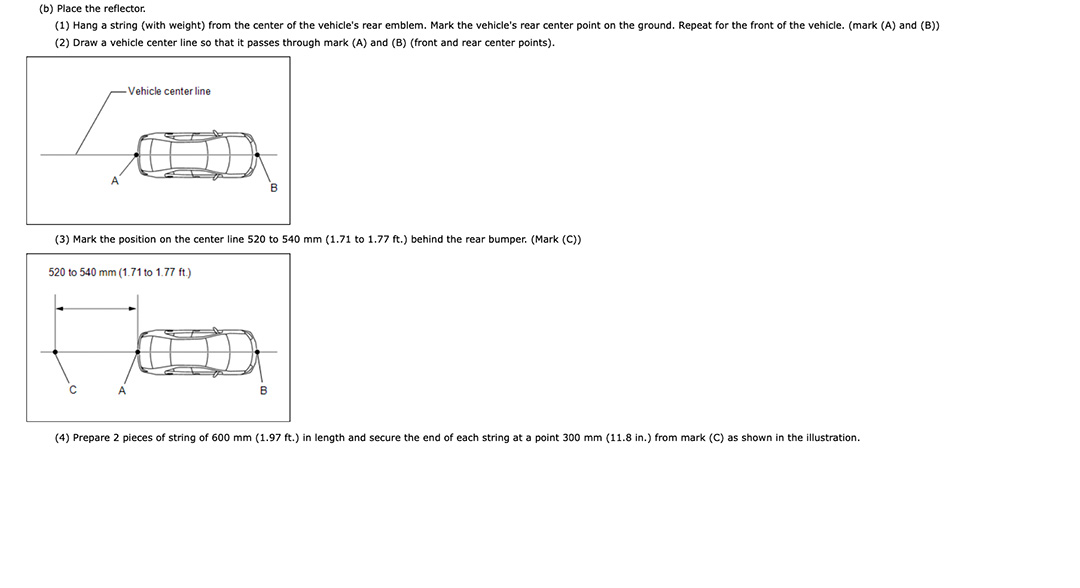

These are the screenshots from the FSM on the position it needs to be...



[heliwill10]

A couple of notes:

1. My sensor was not bent from damage, rather it was caked in mud. So... the bumper plastic does not need to be removed.
2. Use the axis display in TIS to fine tune the location of the reflector
3. Code will disappear off TIS, but you will need to cycle the ignition for the BSM system caution to disappear
4. Watch the video in first post
5. Remember (Master) is drivers side and (Slave) is passenger side.

Here is my super high tech string setup:

Good Luck!



[heliwill10]

Another note about techstream:

I order this scanner: Amazon.com - https://www.amazon.com/dp/B078N34ZPW?psc=1&ref=ppx_yo2ov_dt_b_product_details

You need to download and install the software from the scanner manufacturer's website for the drivers to work. This software will NOT work on Windows 11.

You can find a several YT videos on how to install TIS.
