First, I apologize for starting a new thread on this build, but it's been a couple years since I last posted.

I just completed everything but paint and finish upholstery and thought I would start a new clean thread of the complete build to this point. Sadly, I will be selling this build and decided it might be best for the next owner to pick the color and materials for the finish.



[charliemeyer007]

Looks like a Tesla or DeLorean FJ40



[SSCR]

Yep, still no paint on the aluminum tub...

Some specifics on this build:
Powertrain- GM LC9 Vortec 5.3 with 4L60E trans, late model FJ60 split transfer case with twin sticks.
Body- Aqualu FJ40 stretched 10"
Suspension- King coil overs on all four corners, Spidertrax 9 axles, ARB front and rear lockers, 3 link up front with 4 link trailing arms in the rear.
HVAC- Vintage Air Magnum IV
Gauges- Dakota Digital cluster



[SSCR]

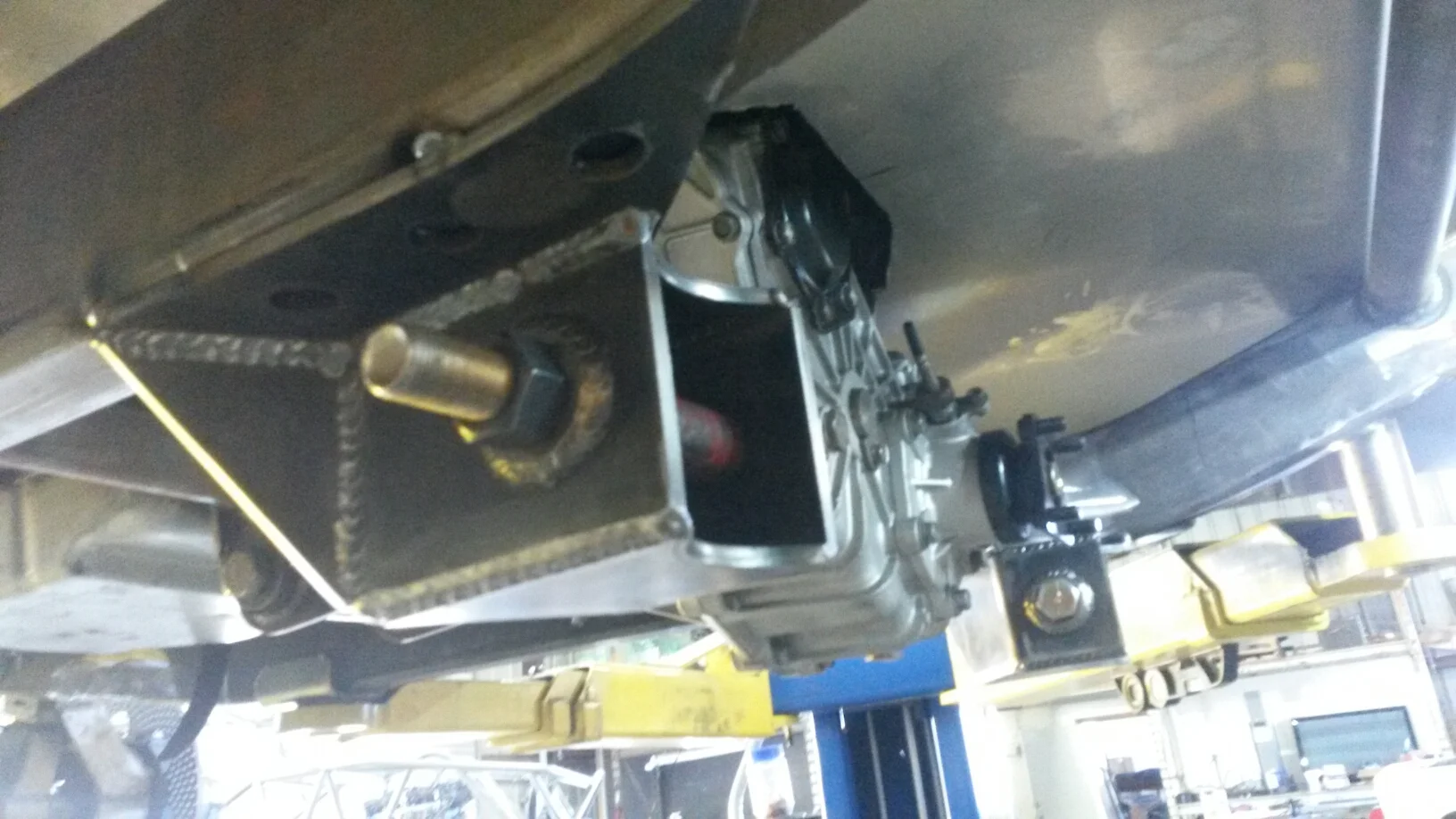

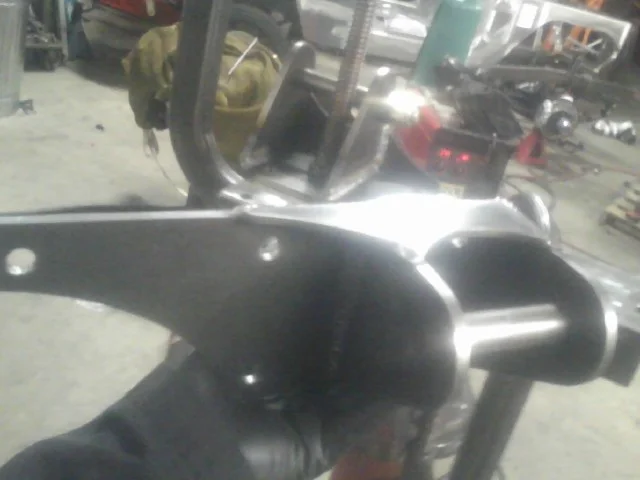

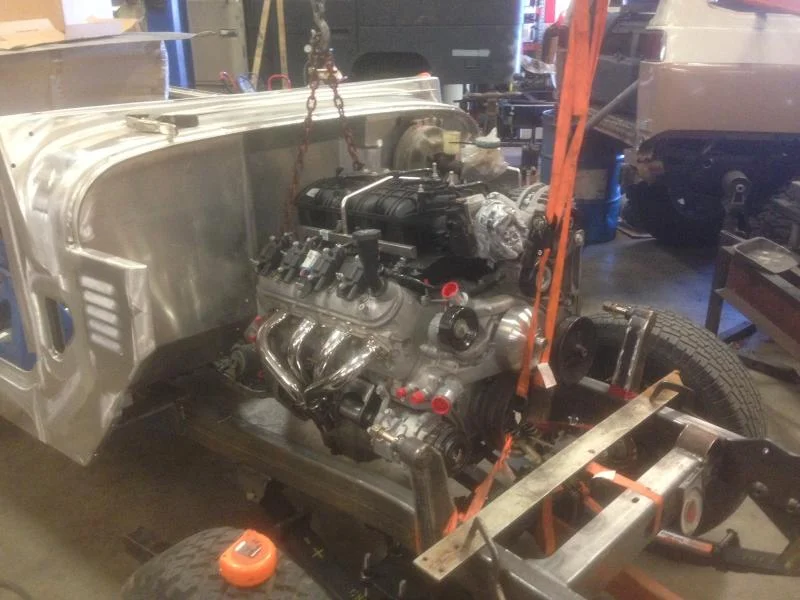

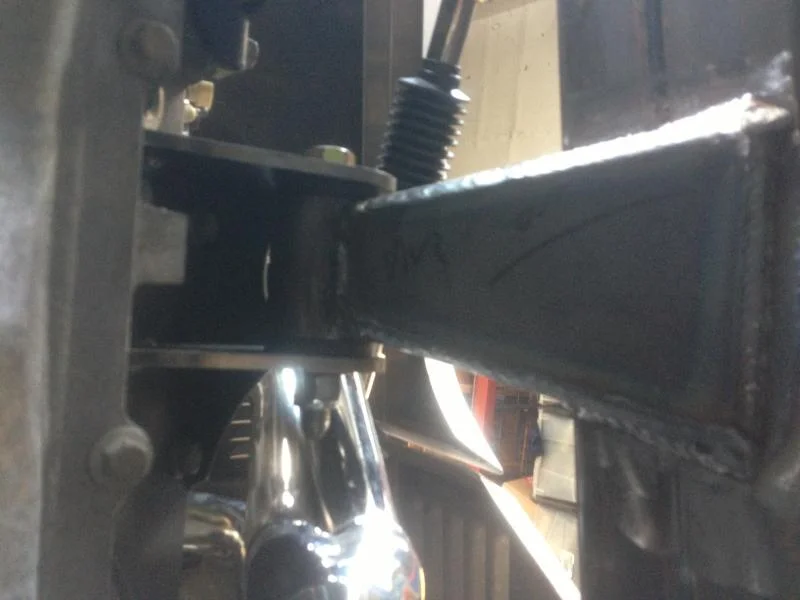

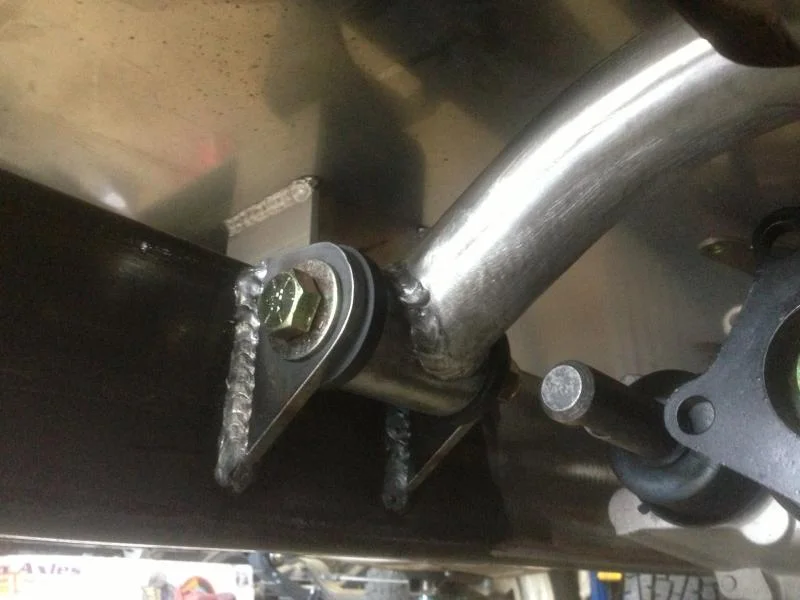

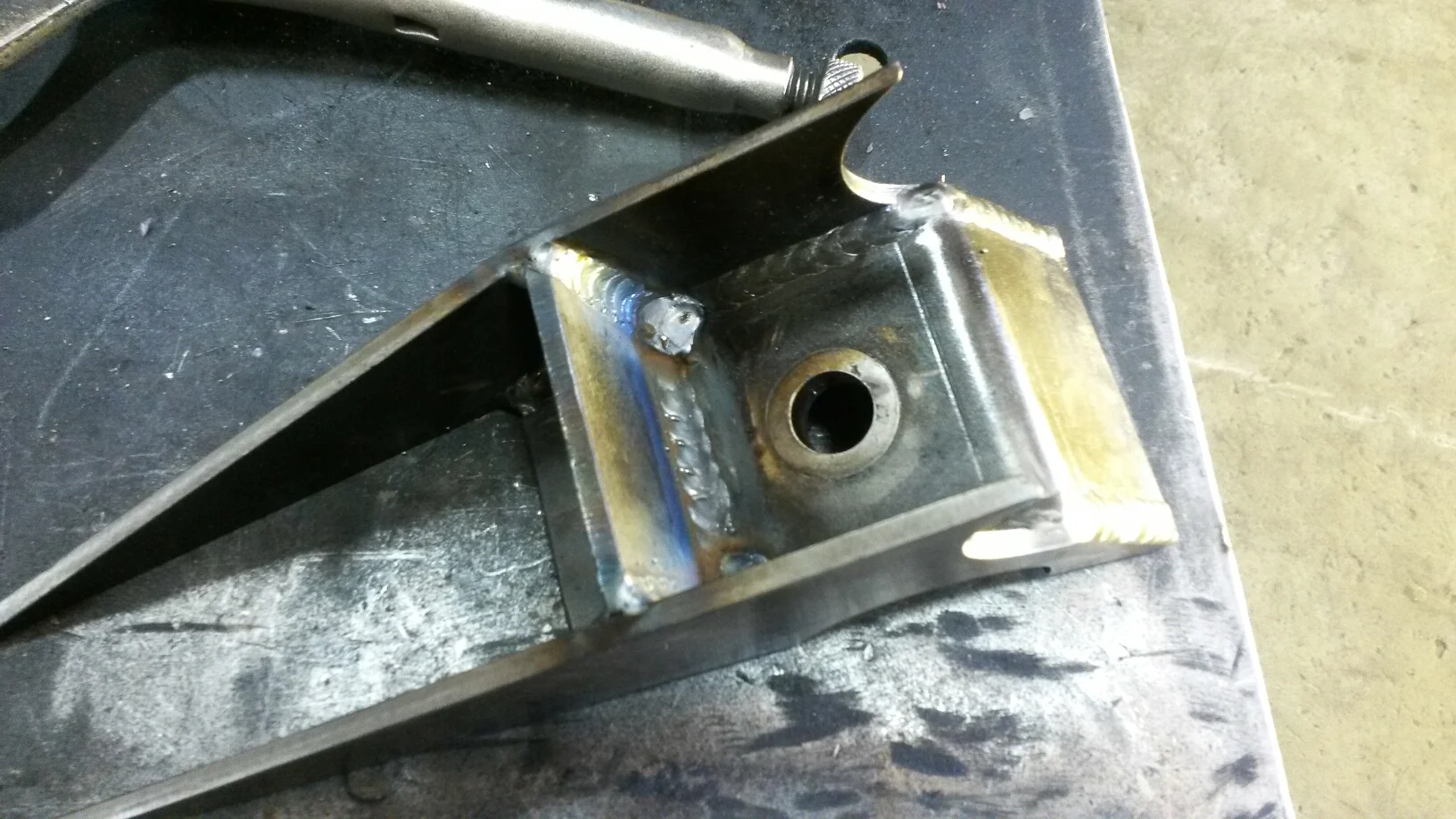

Here are some early photos setting the engine and fabrication of the brackets (engine, trans, T case). All fabrication, suspension work done by a professional shop in California. I only wish I had this kind of welding skills...



[SSCR]

Couple more the motor mounted...



[SSCR]

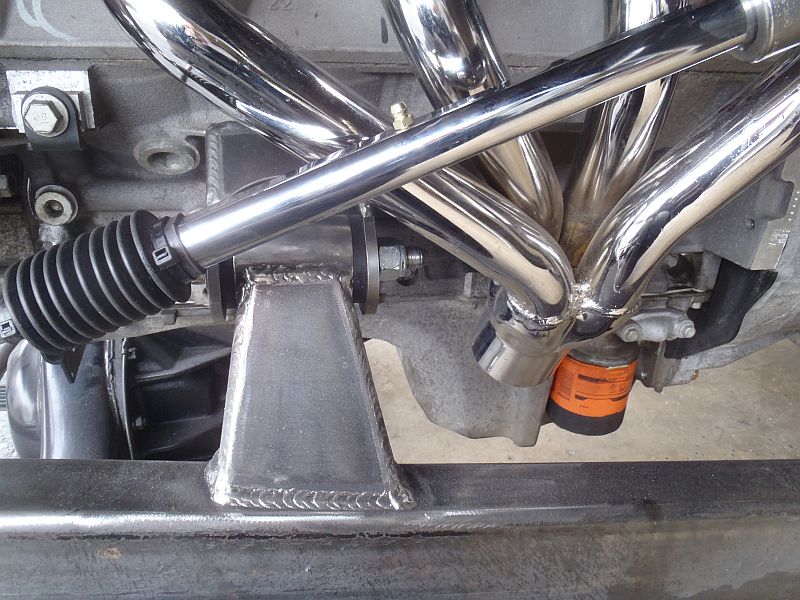

Steering linkage fabrication and installation.



[SSCR]

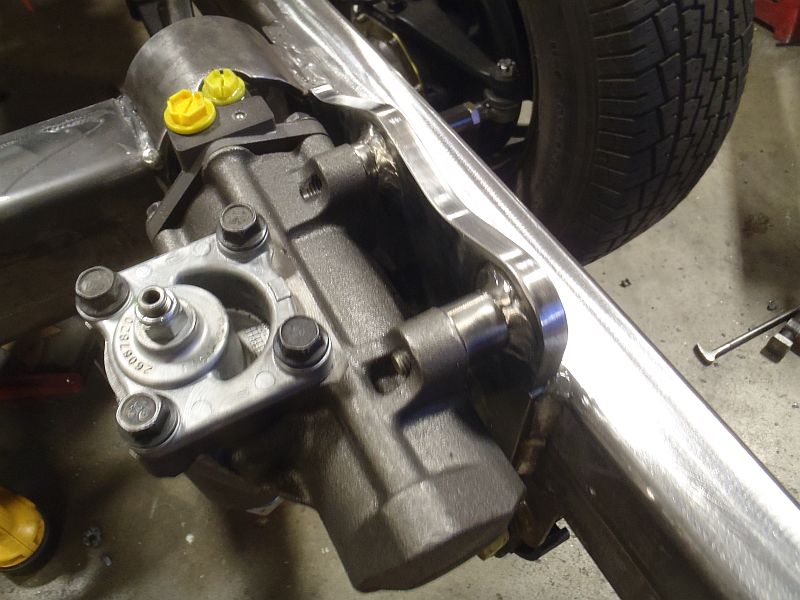

Steering box mounted up front...



[SSCR]

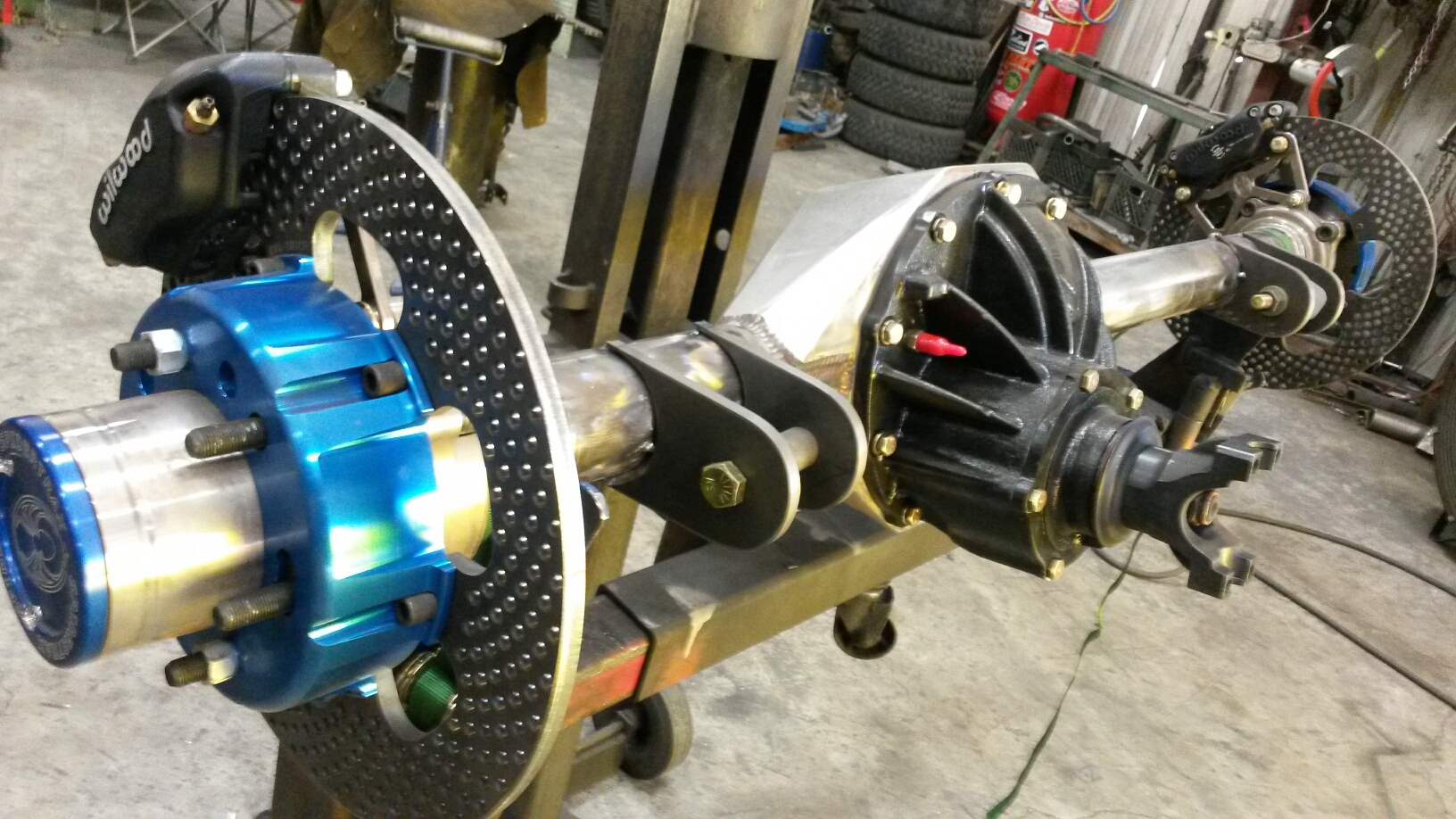

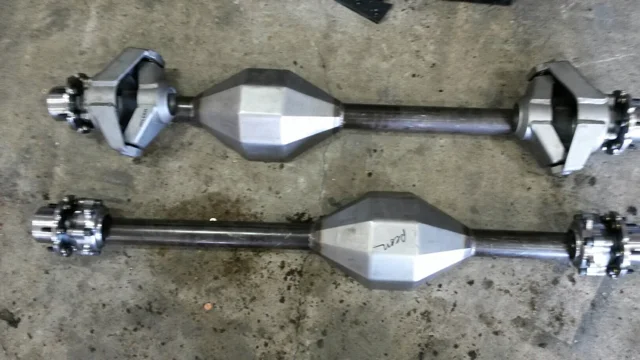

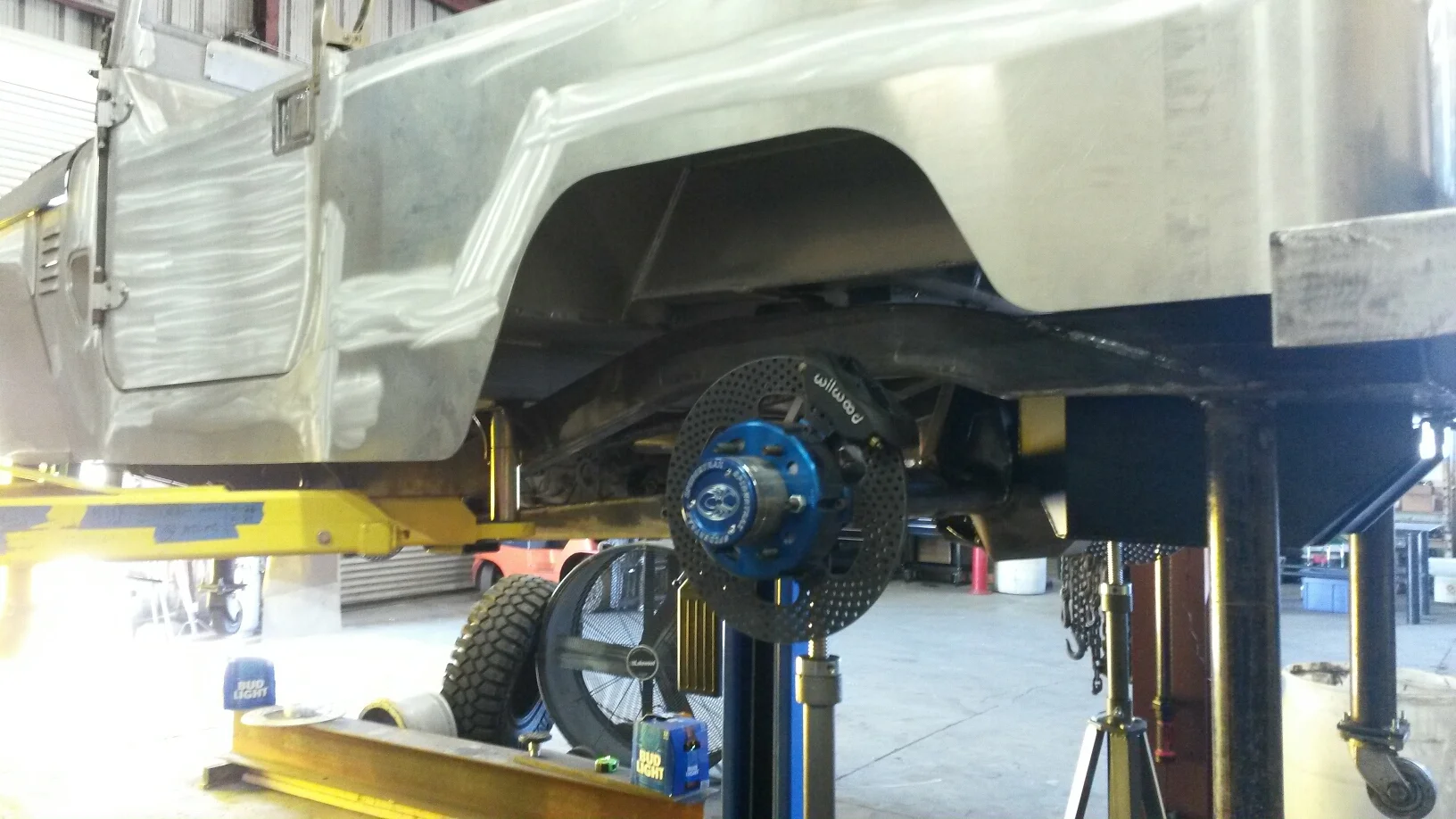

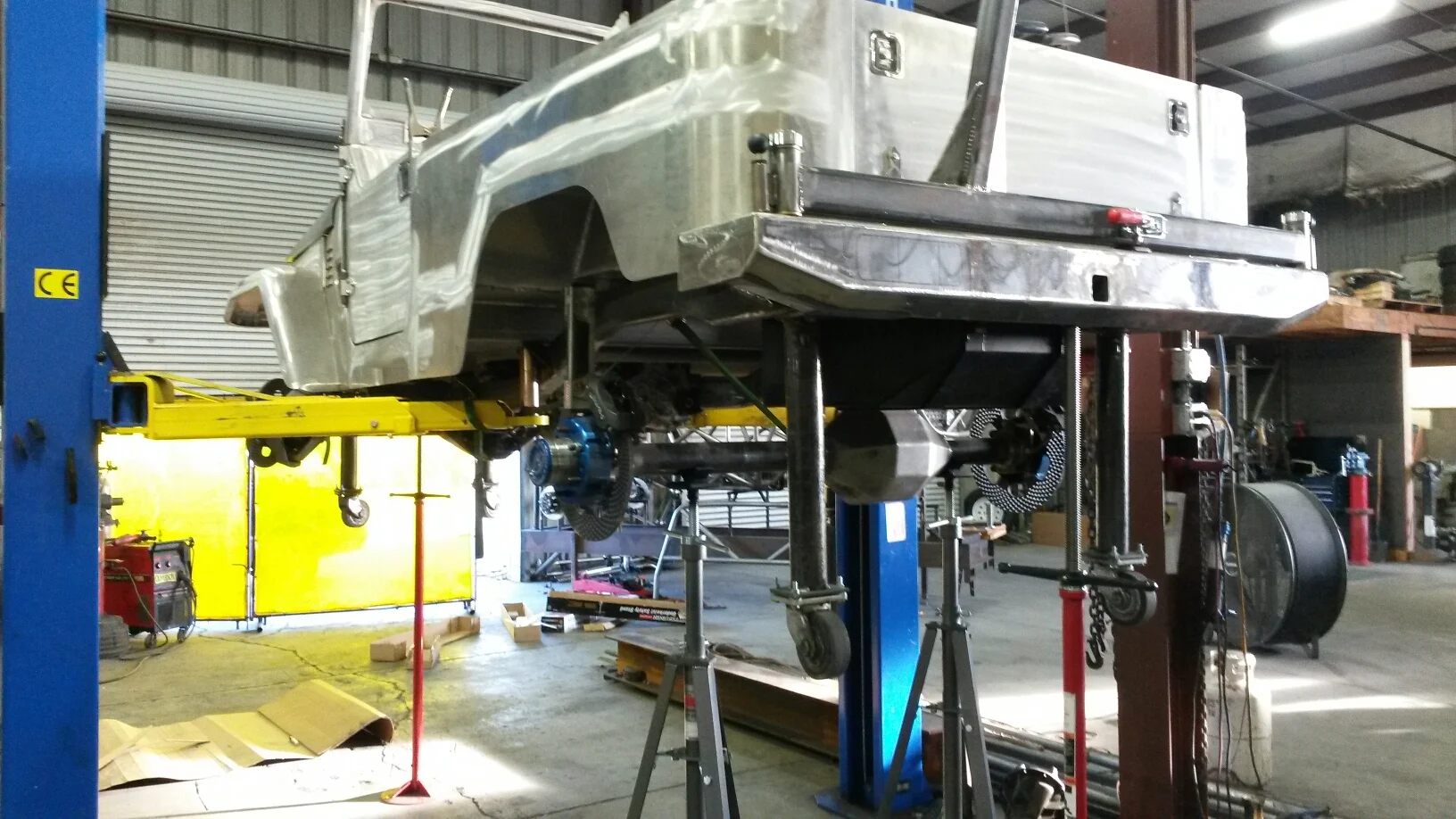

Axles sorted out and cut down for this application. Staged up on the frame and body to get proper measurements for operation and clearance...



[SSCR]

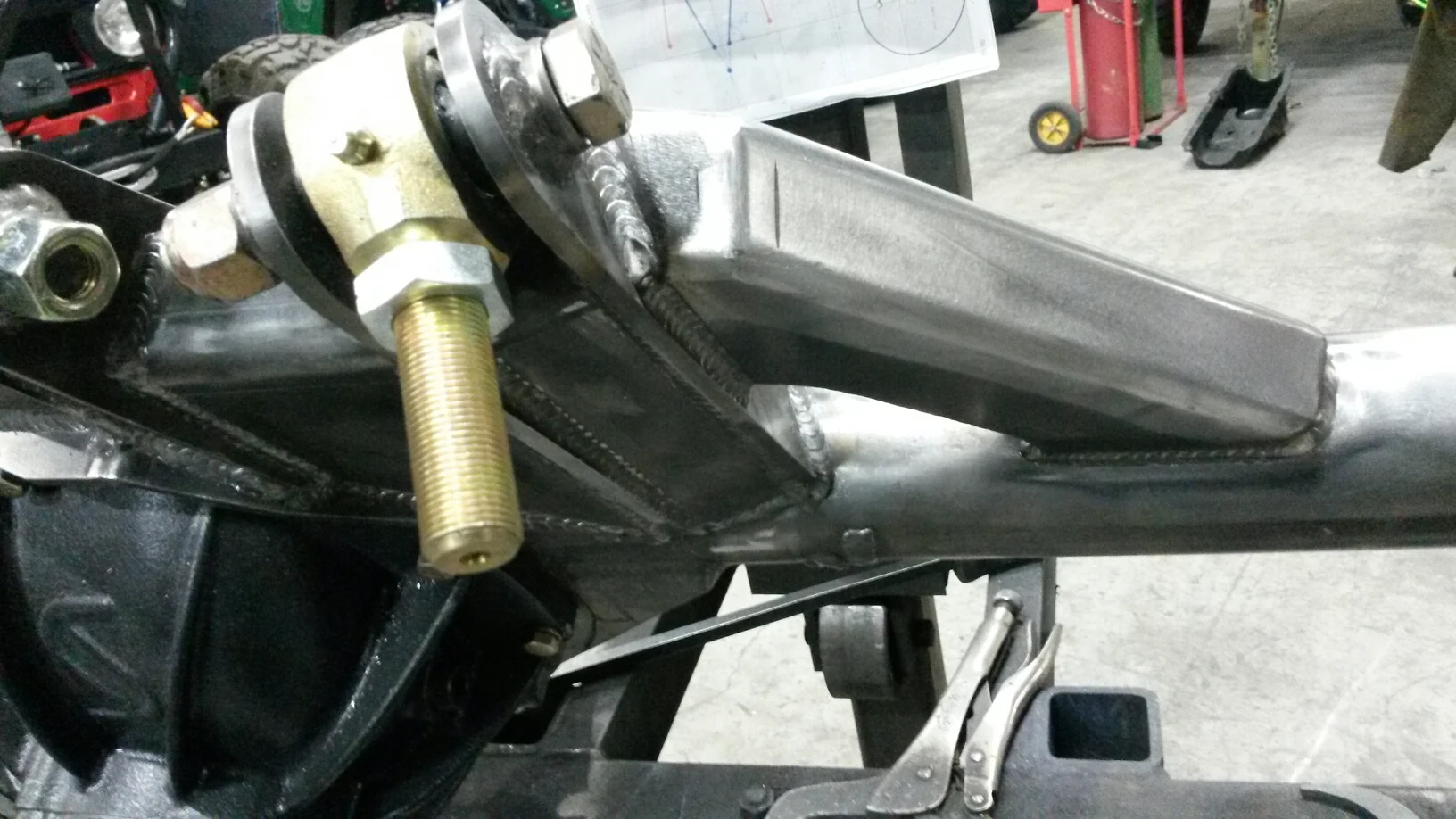

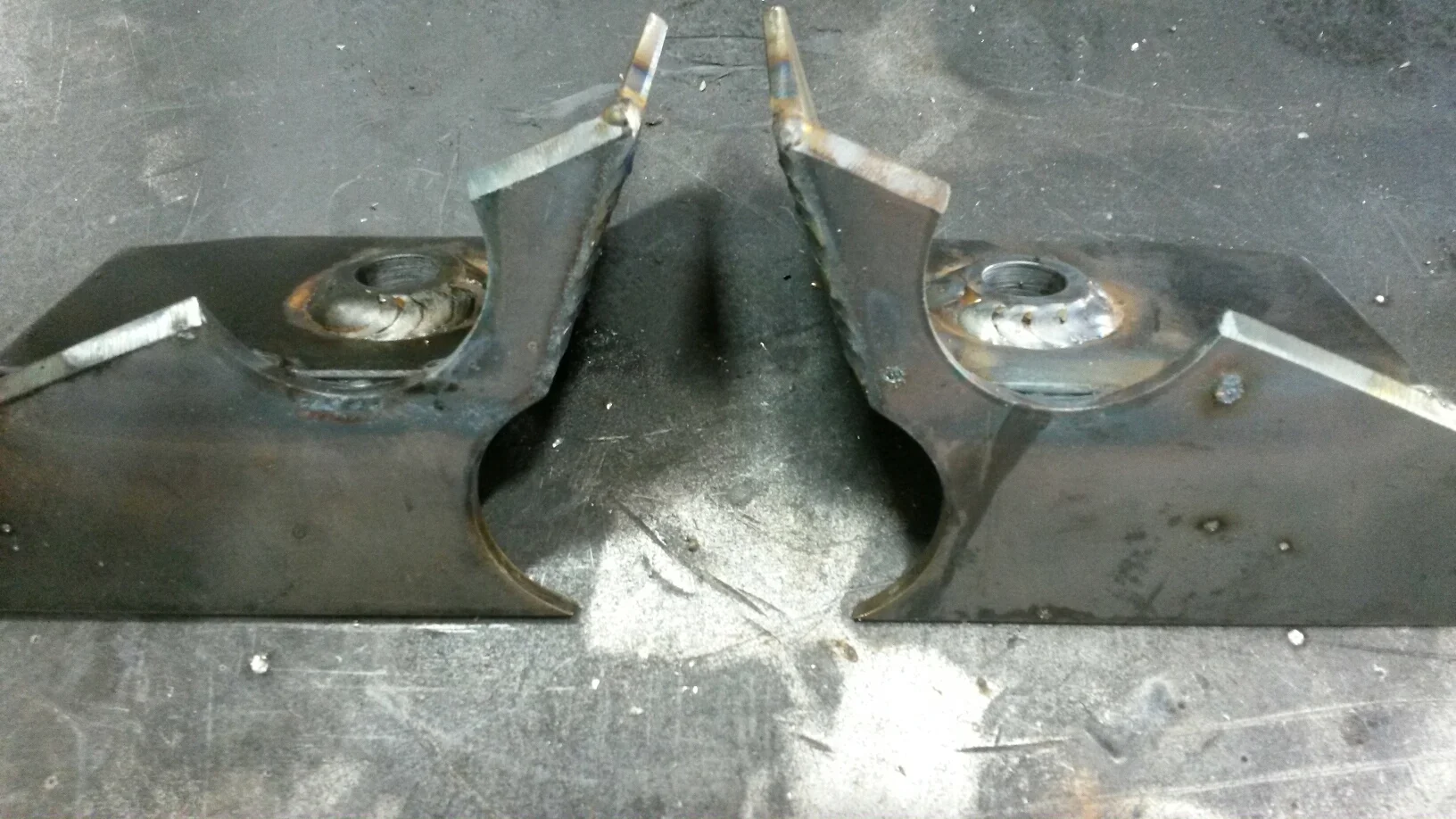

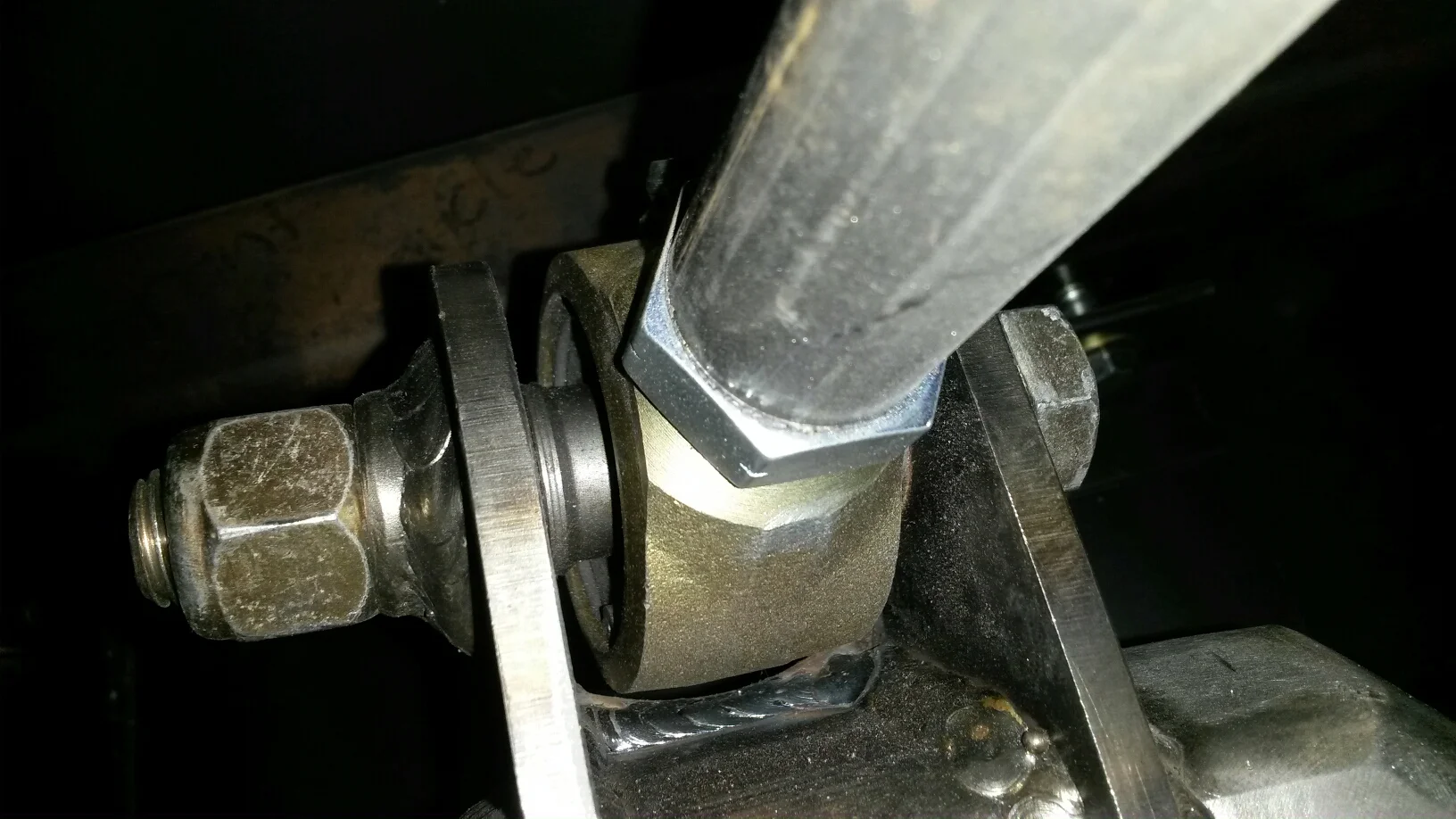

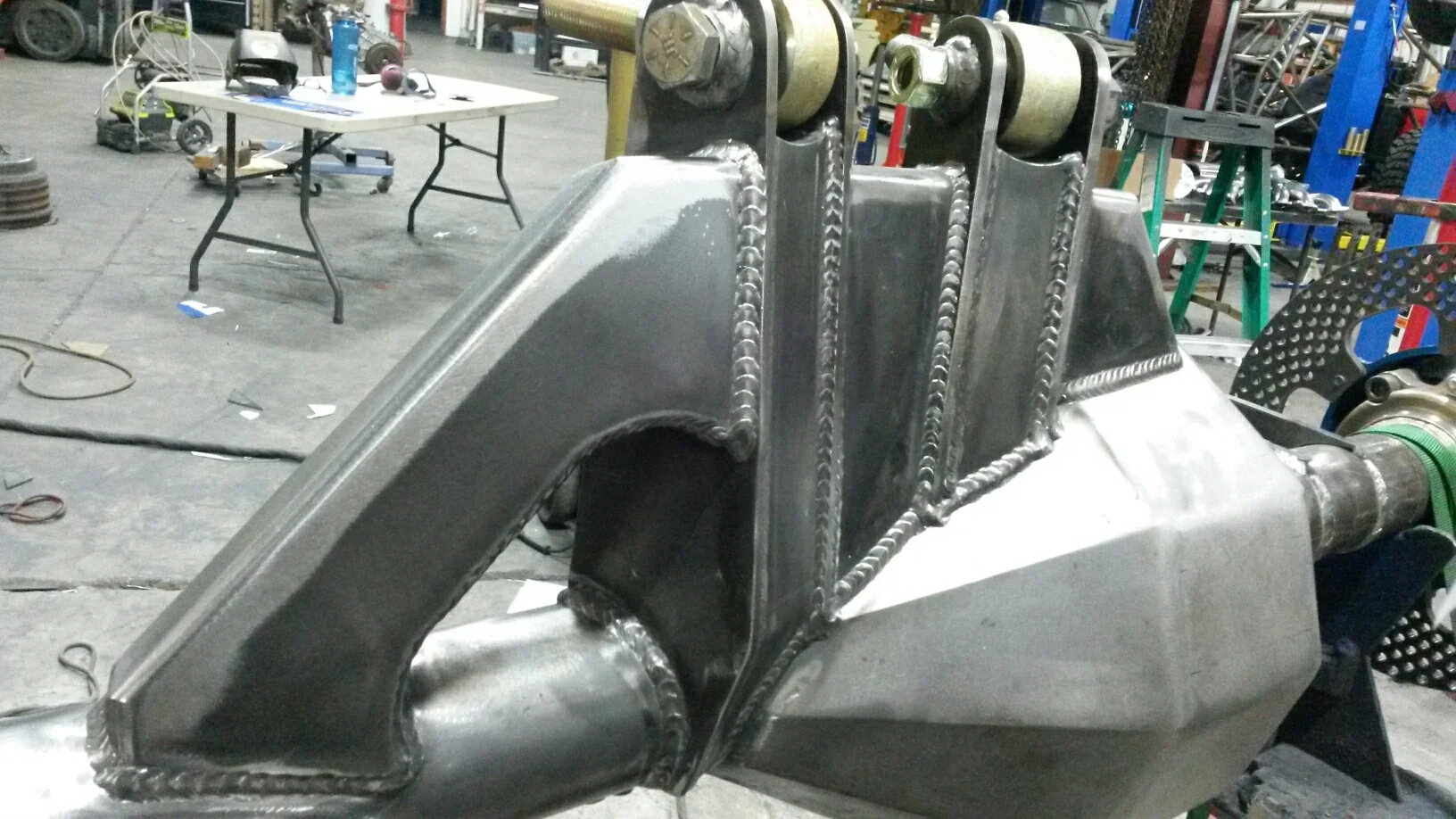

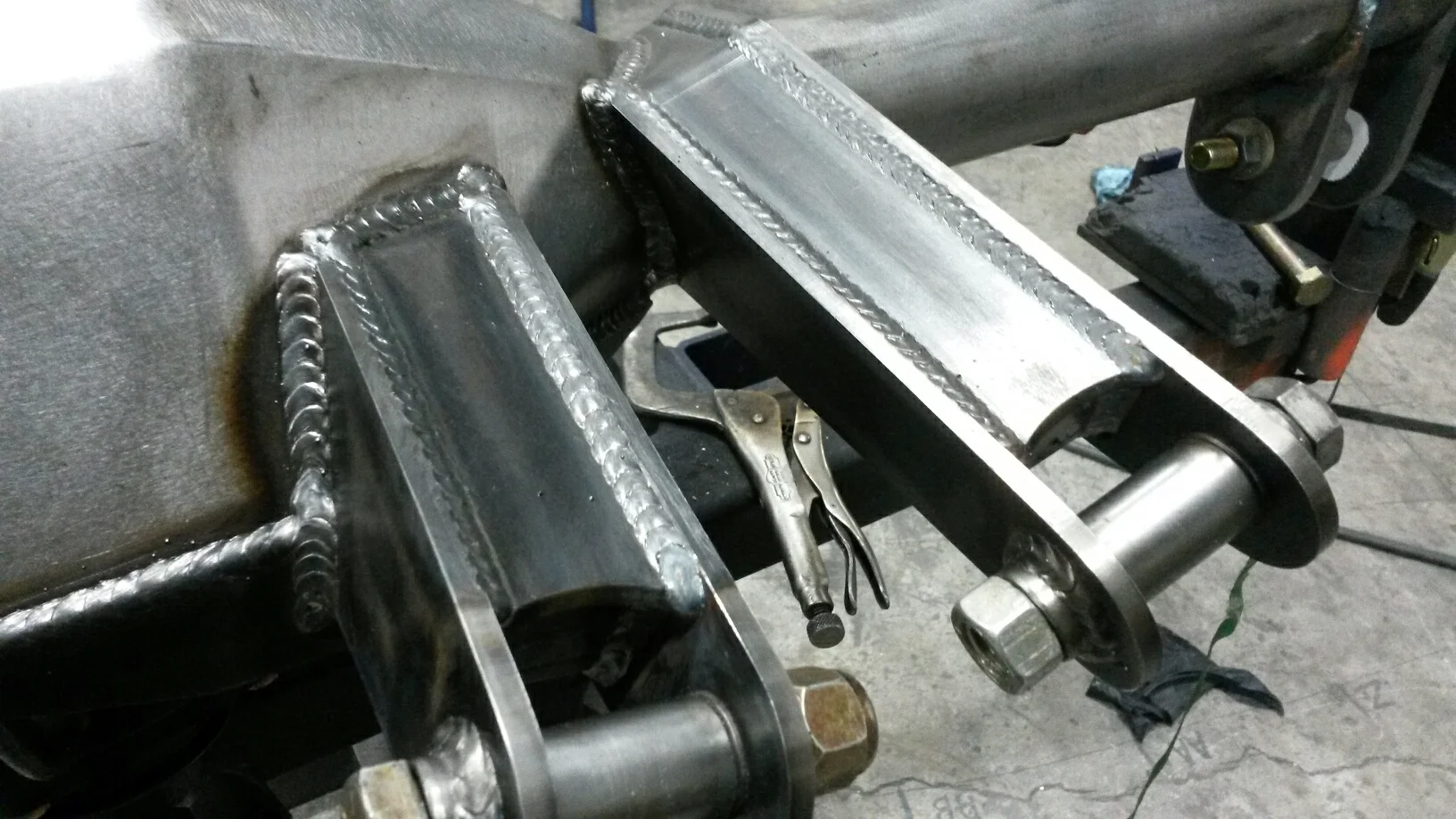

Fabrication for linkage on rear axle....



[SSCR]

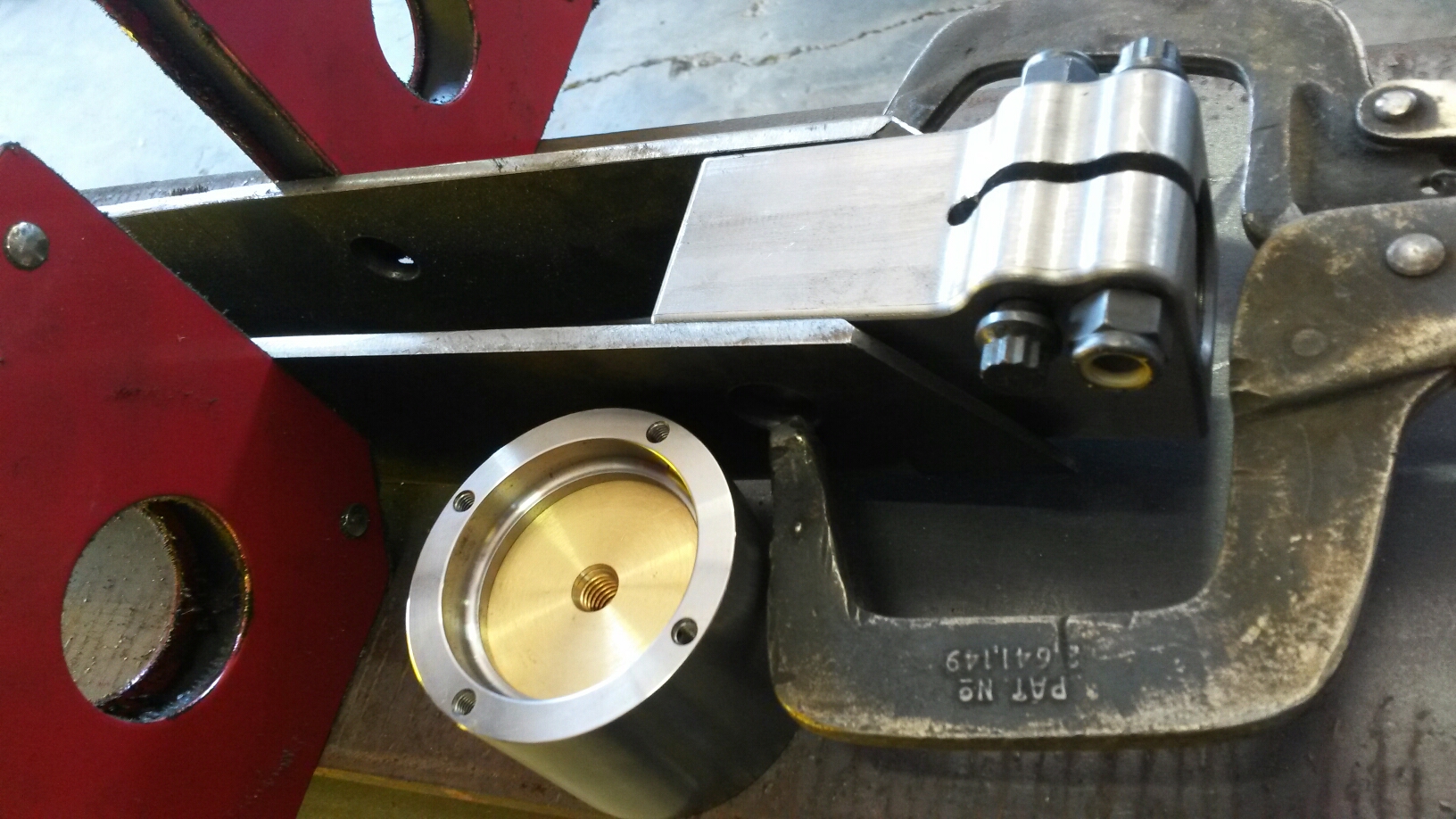

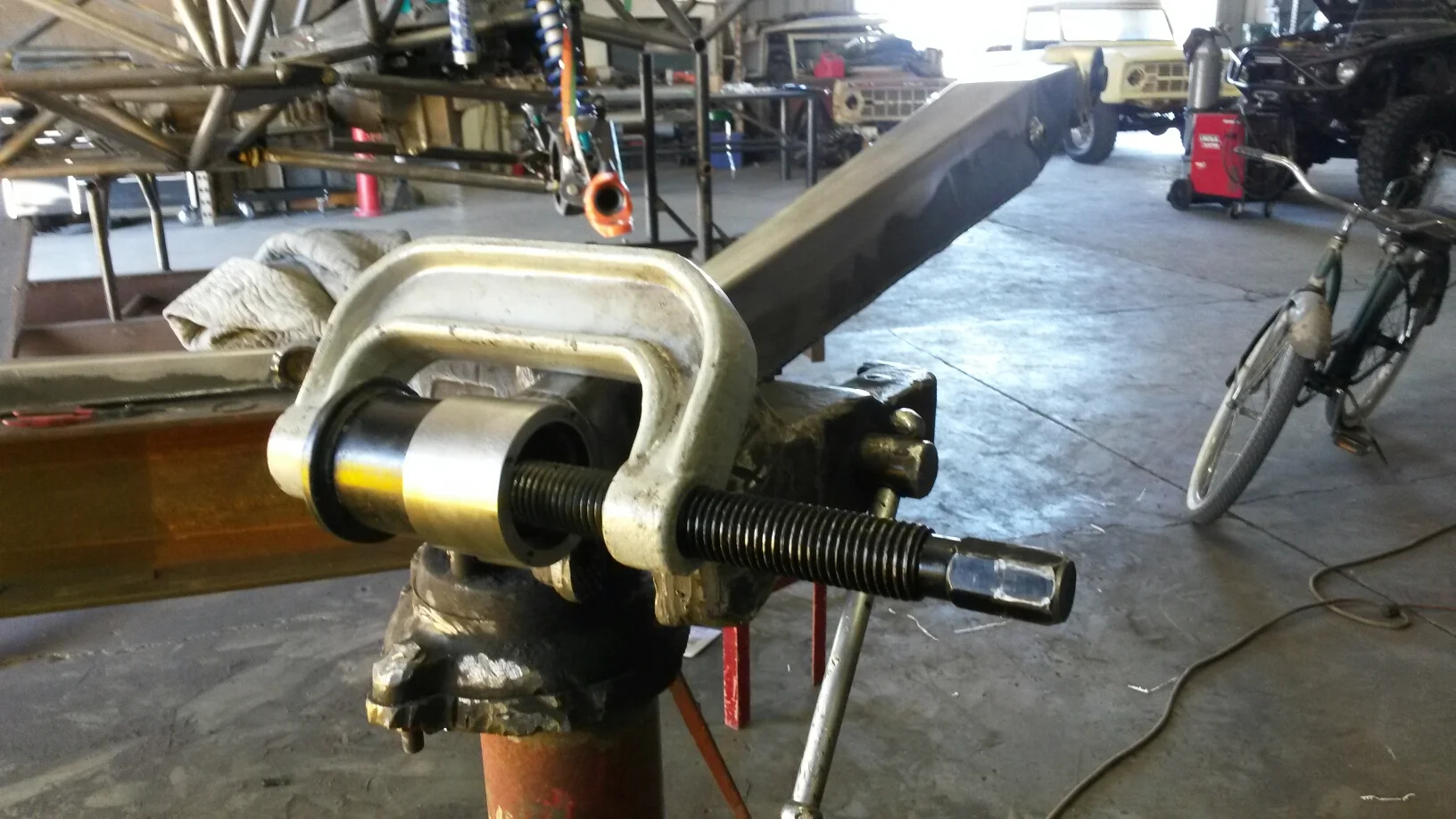

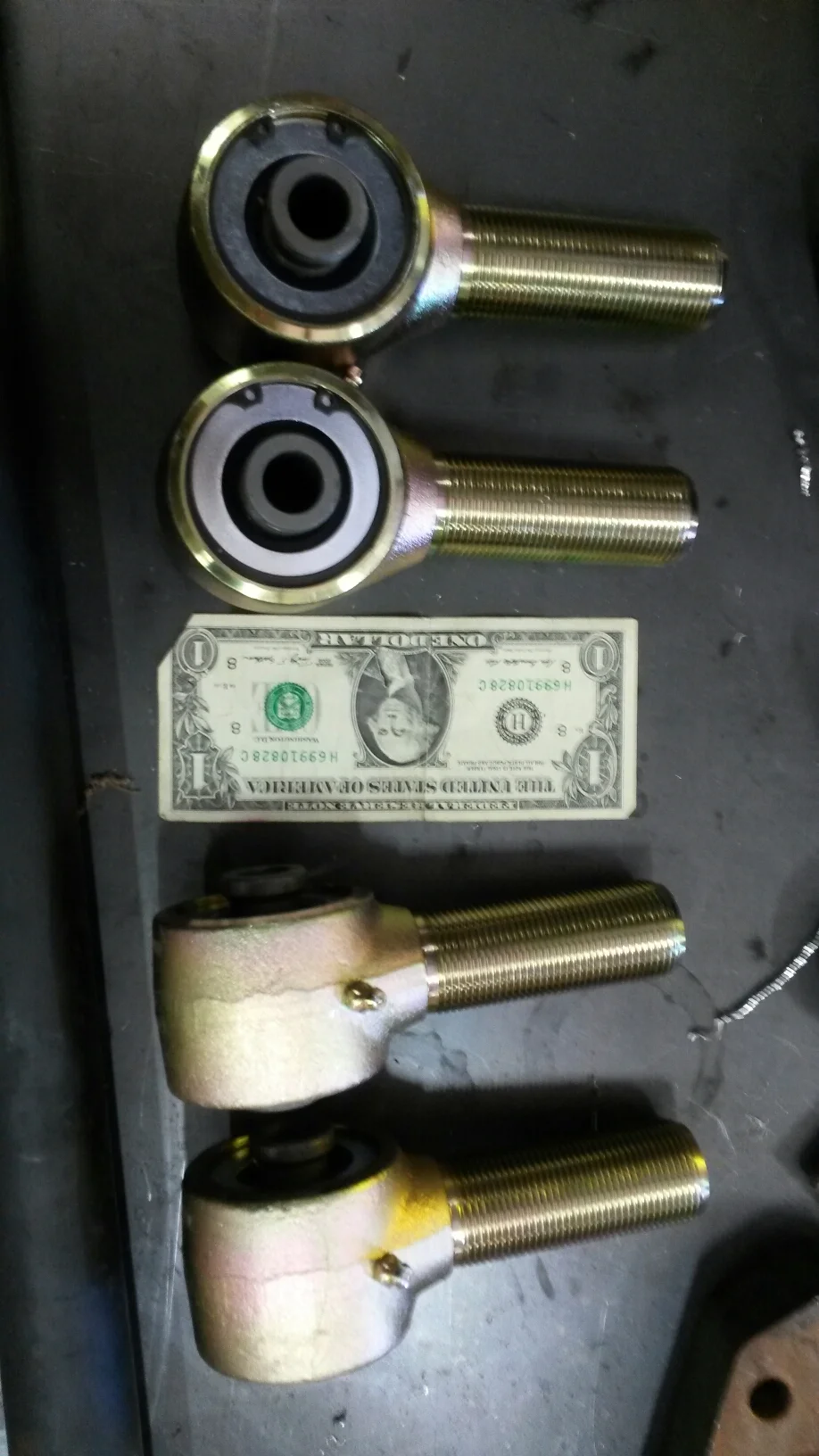

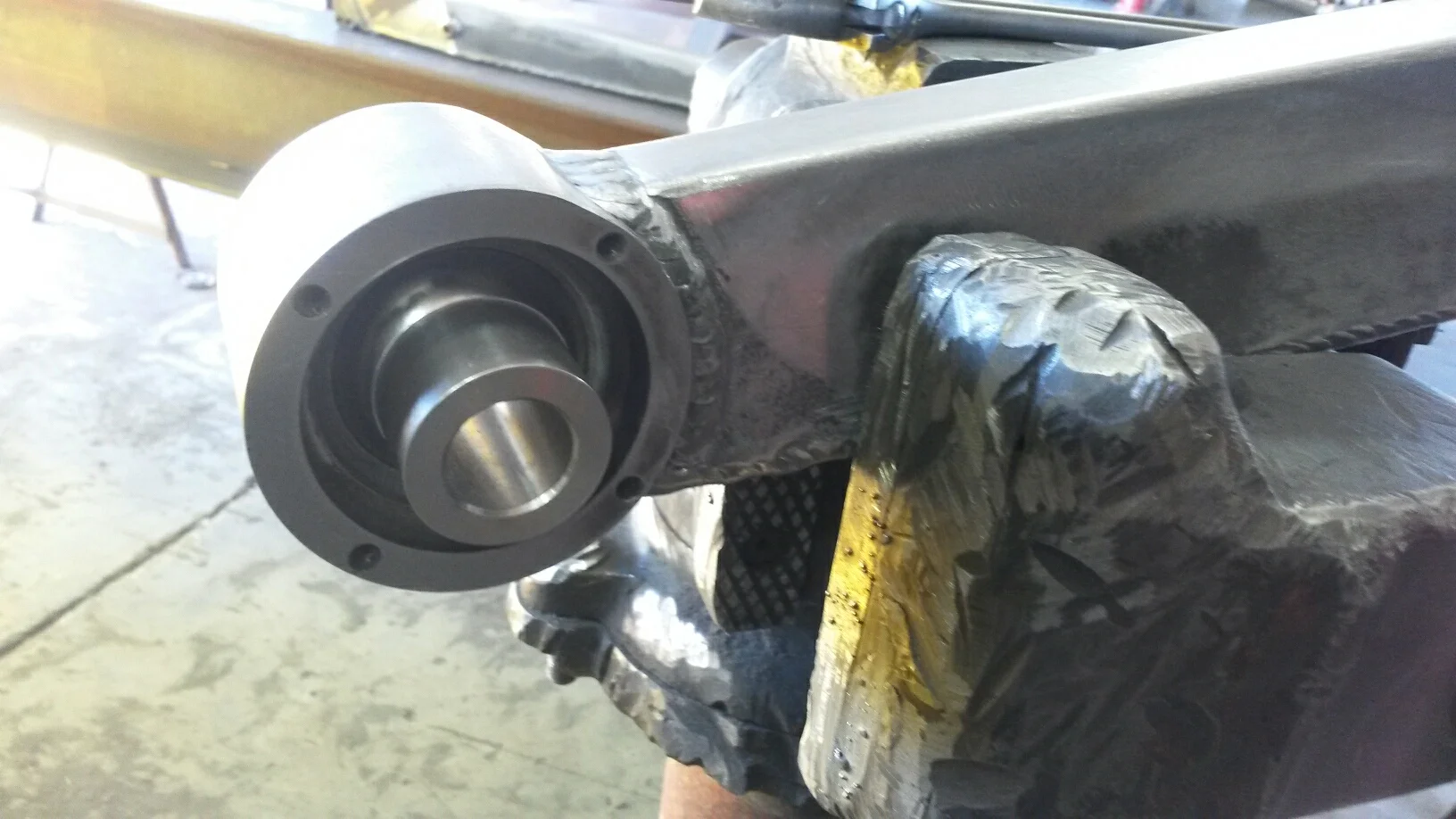

Here is an idea of the size of these Johnny Joints, very beefy...



[SSCR]

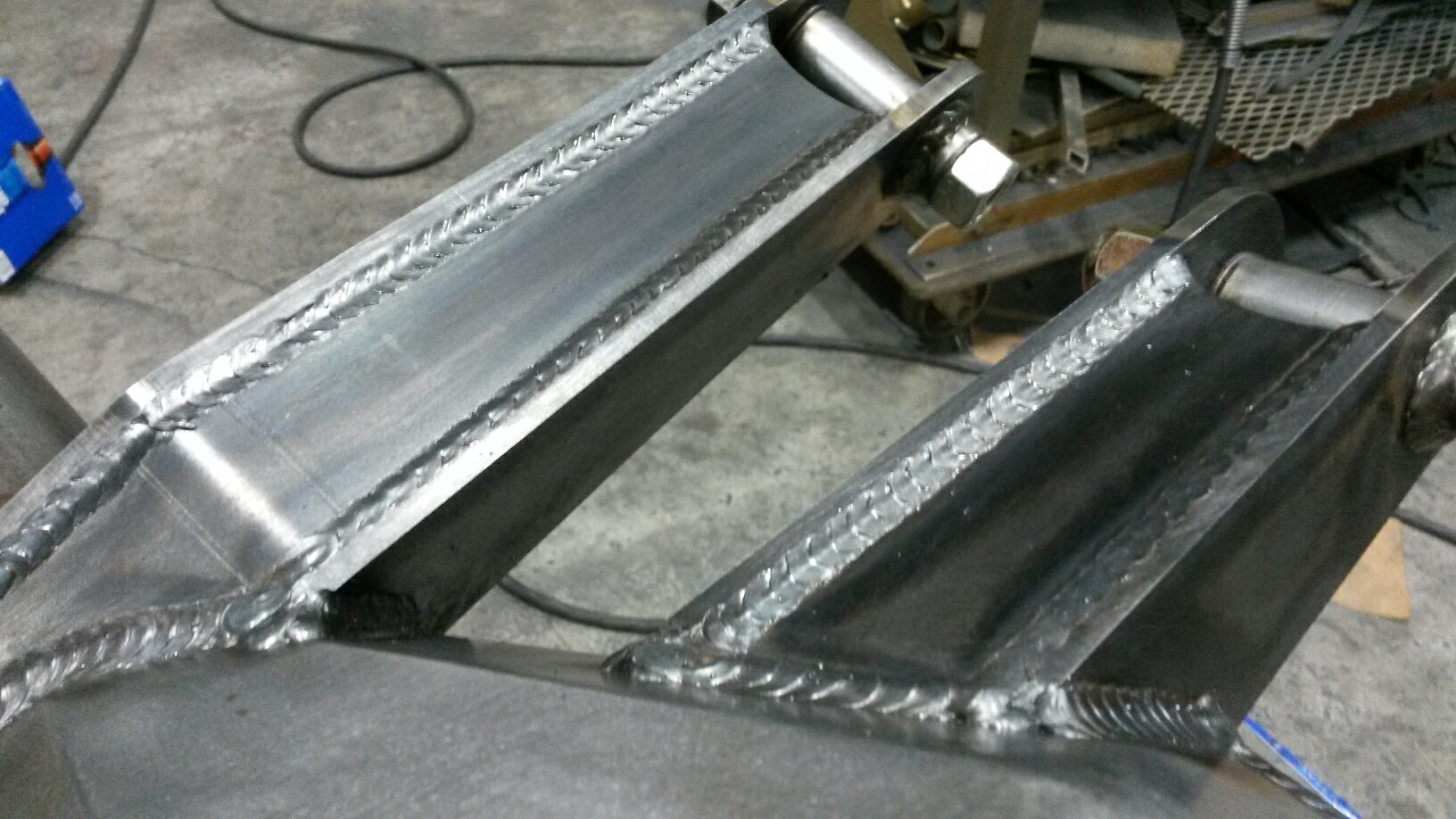

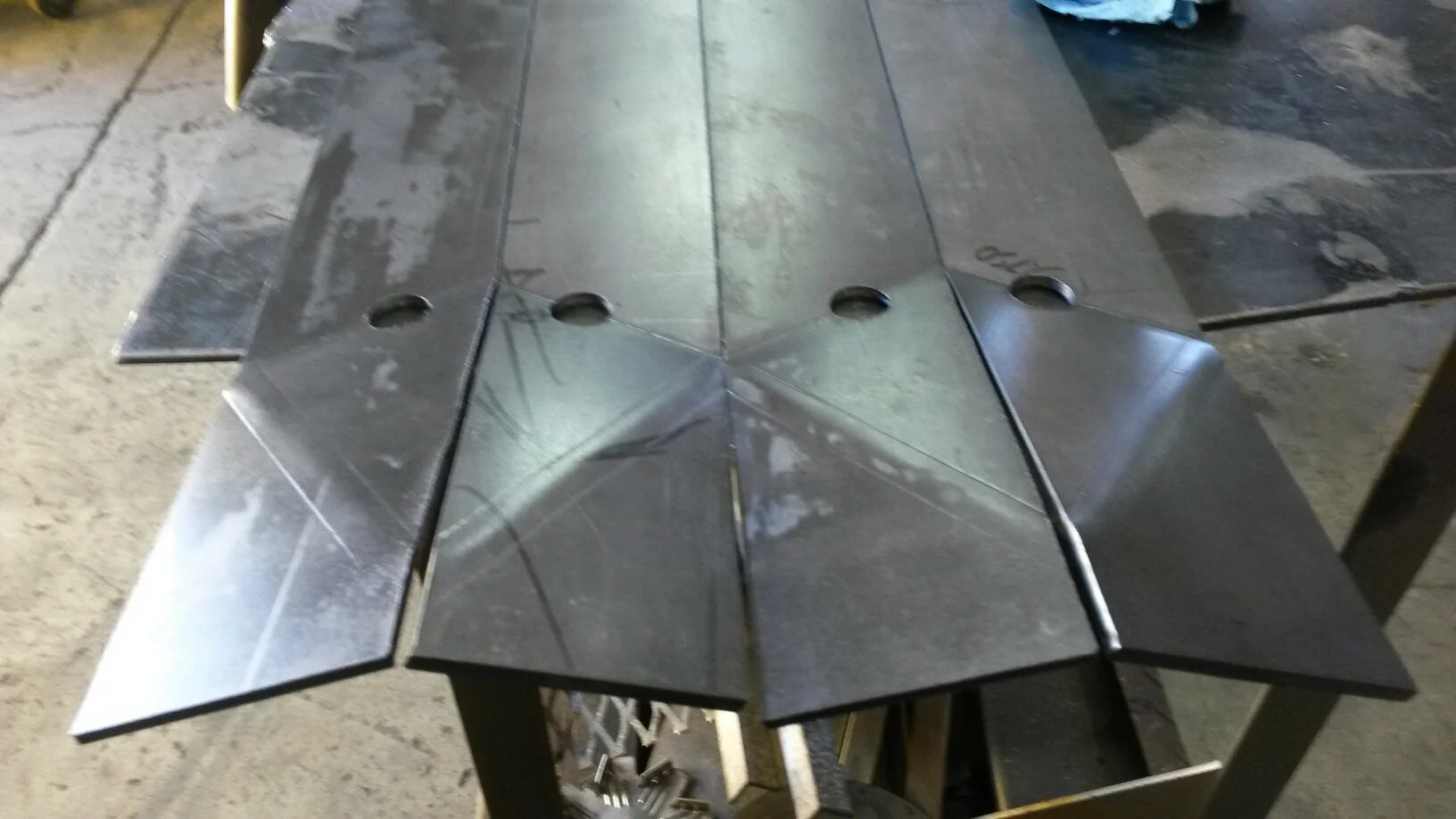

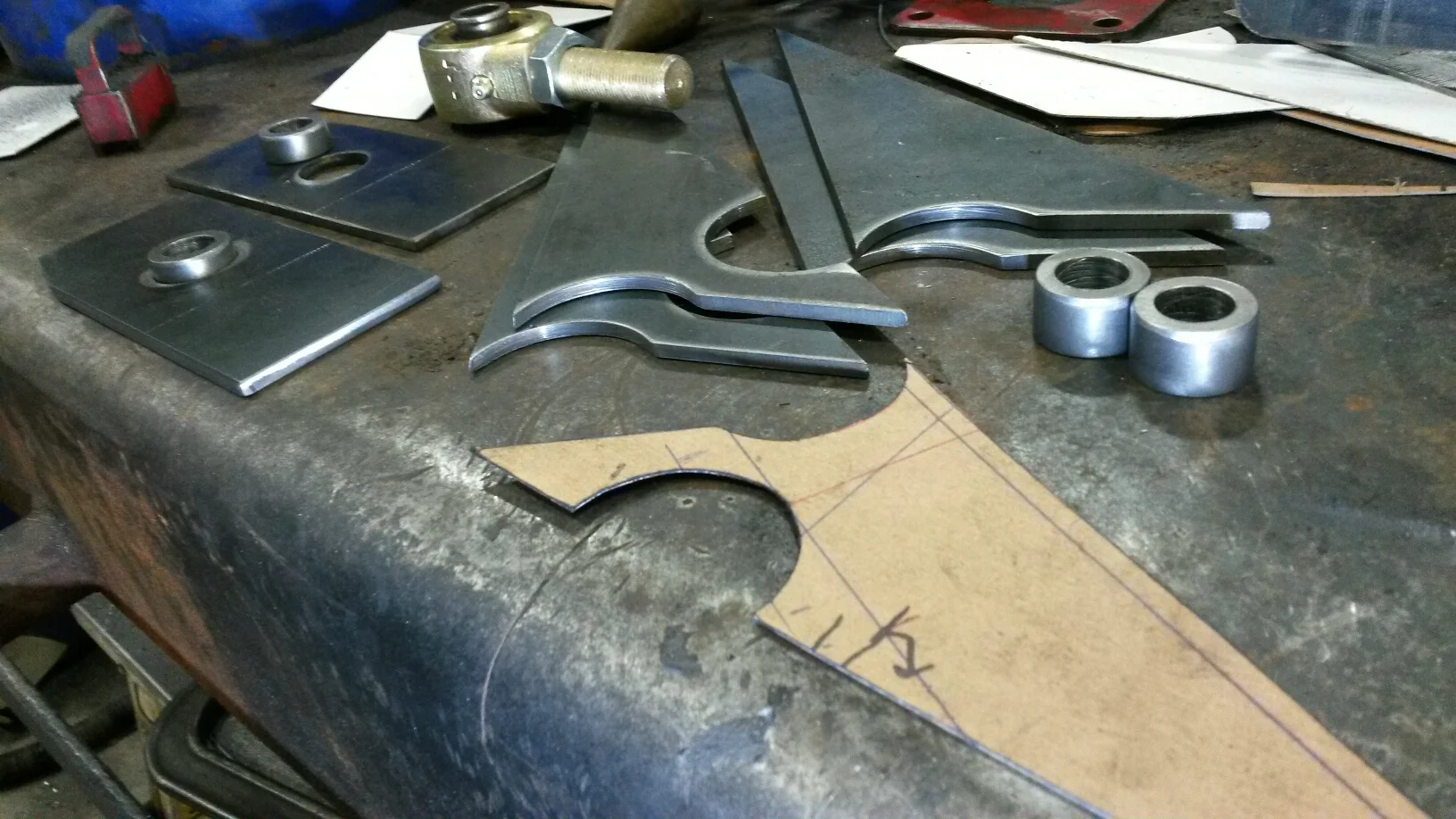

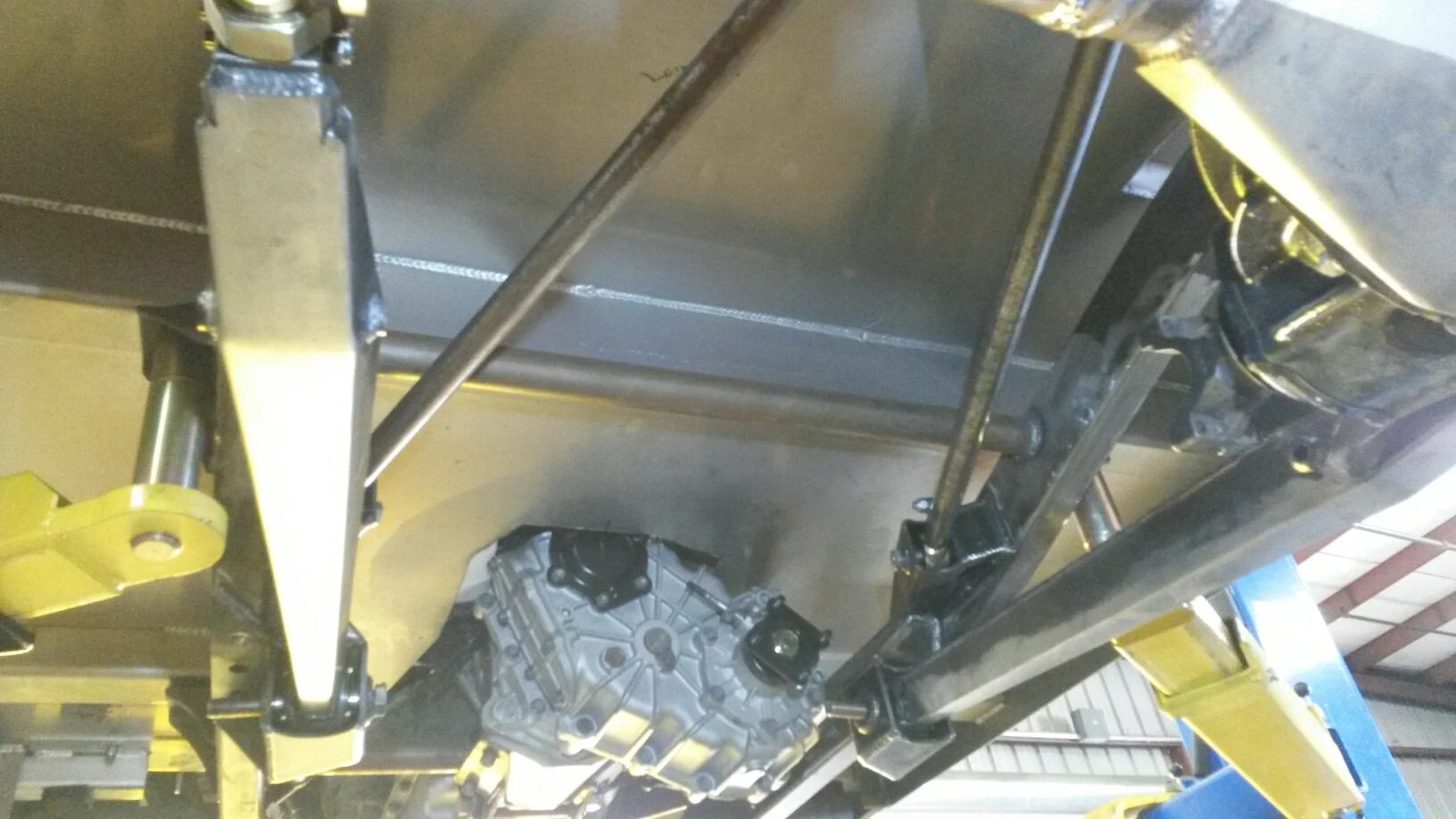

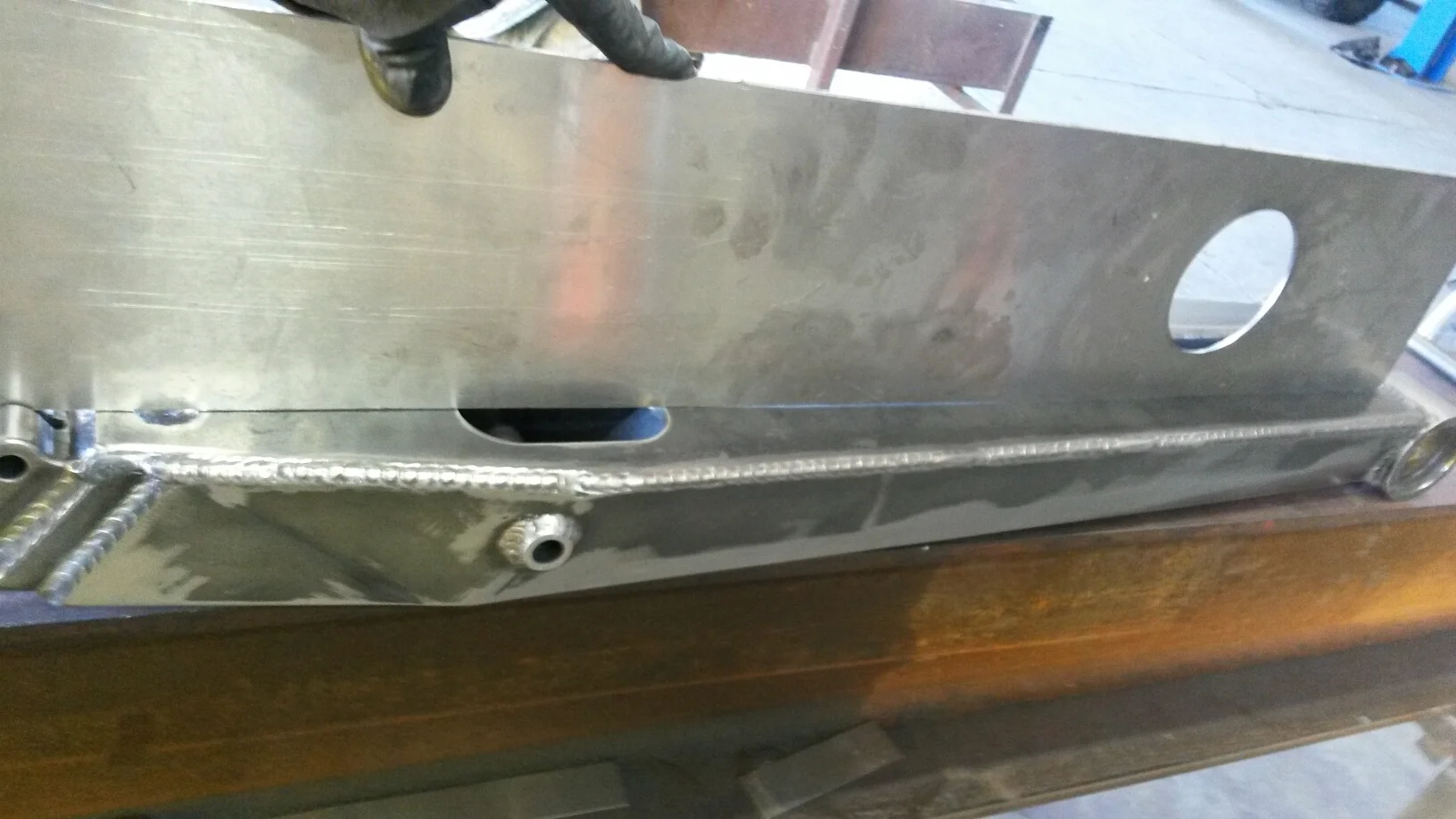

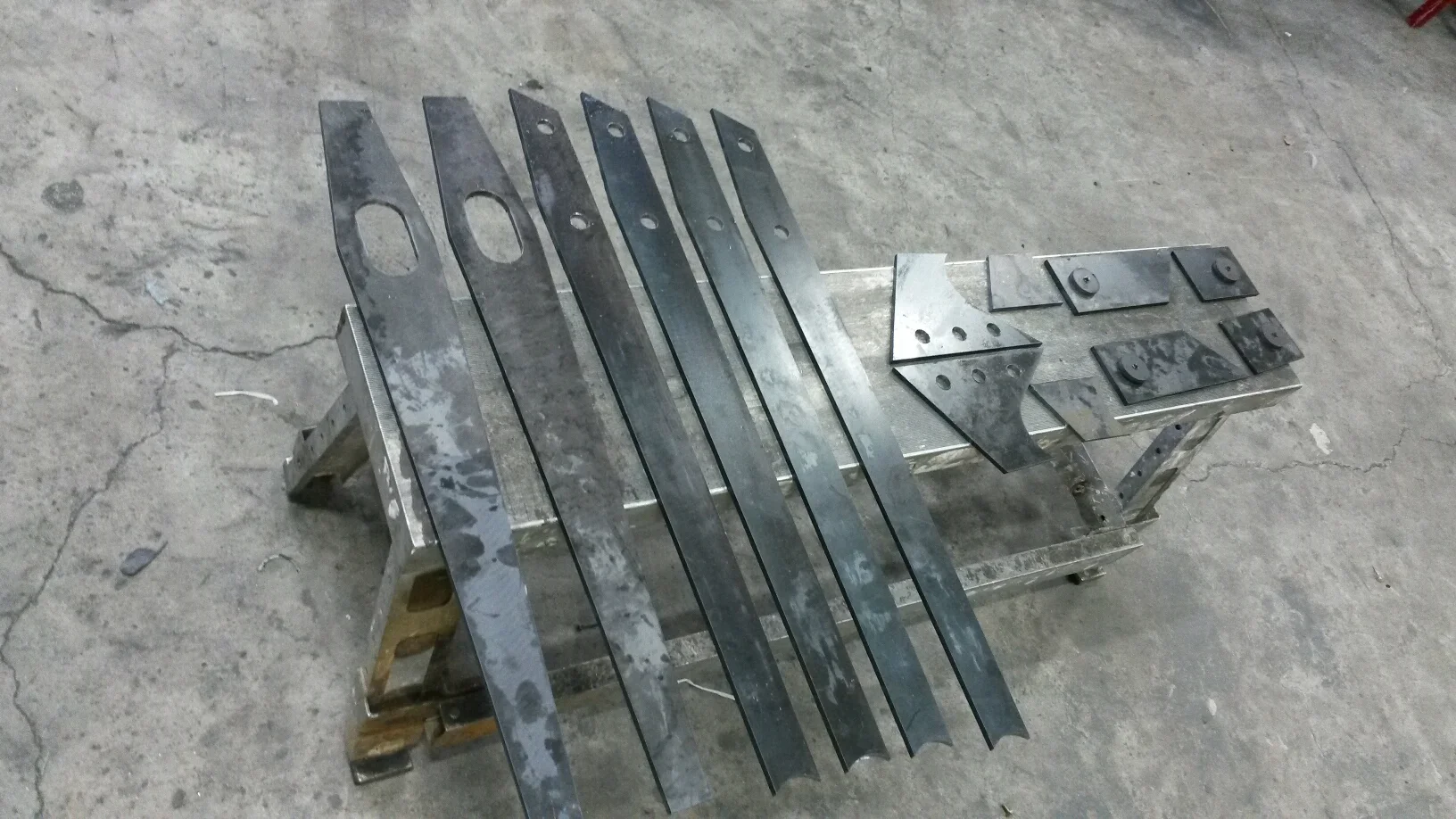

Trailing arm fabrication, ton of work in these...



[SSCR]

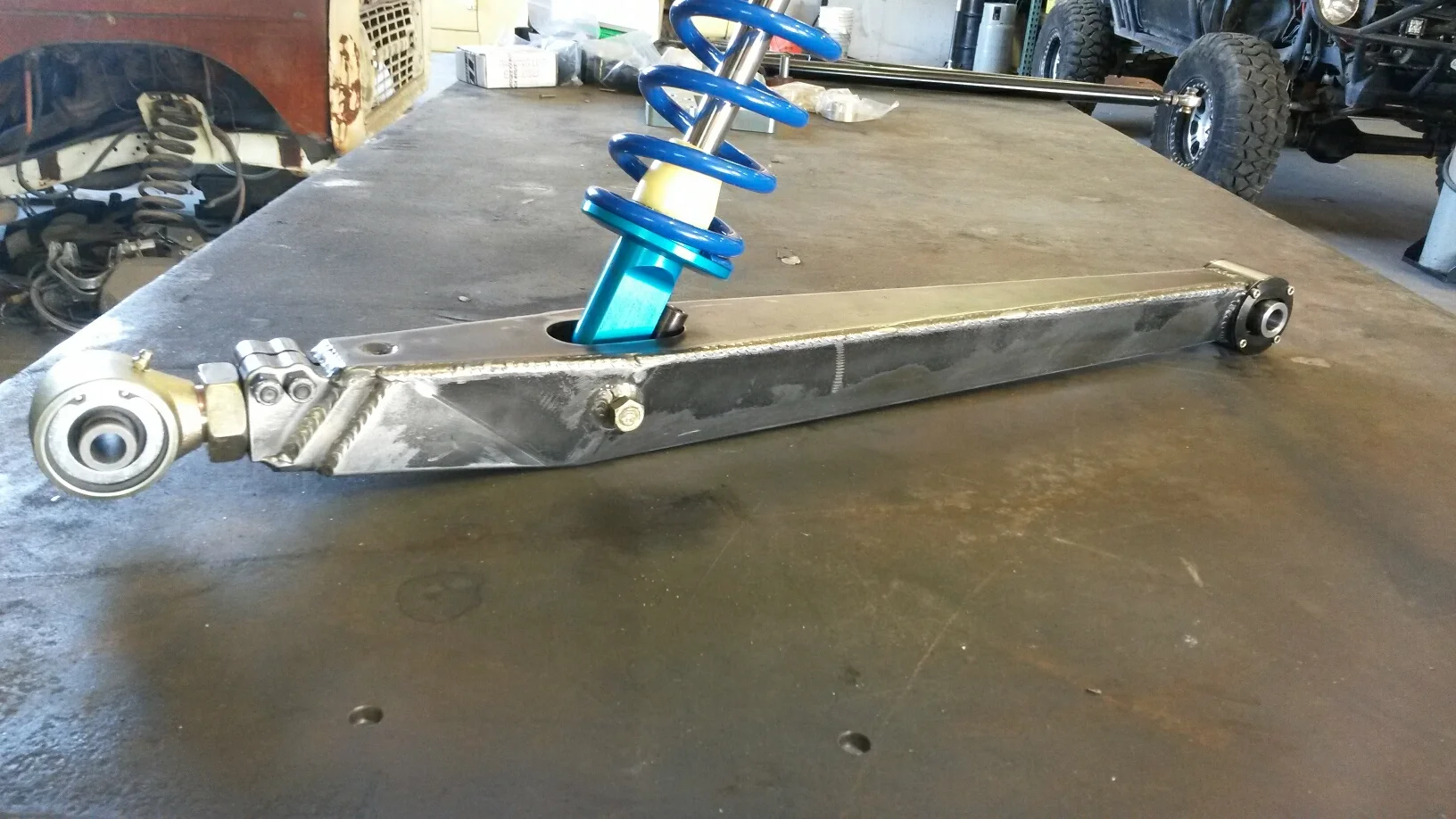

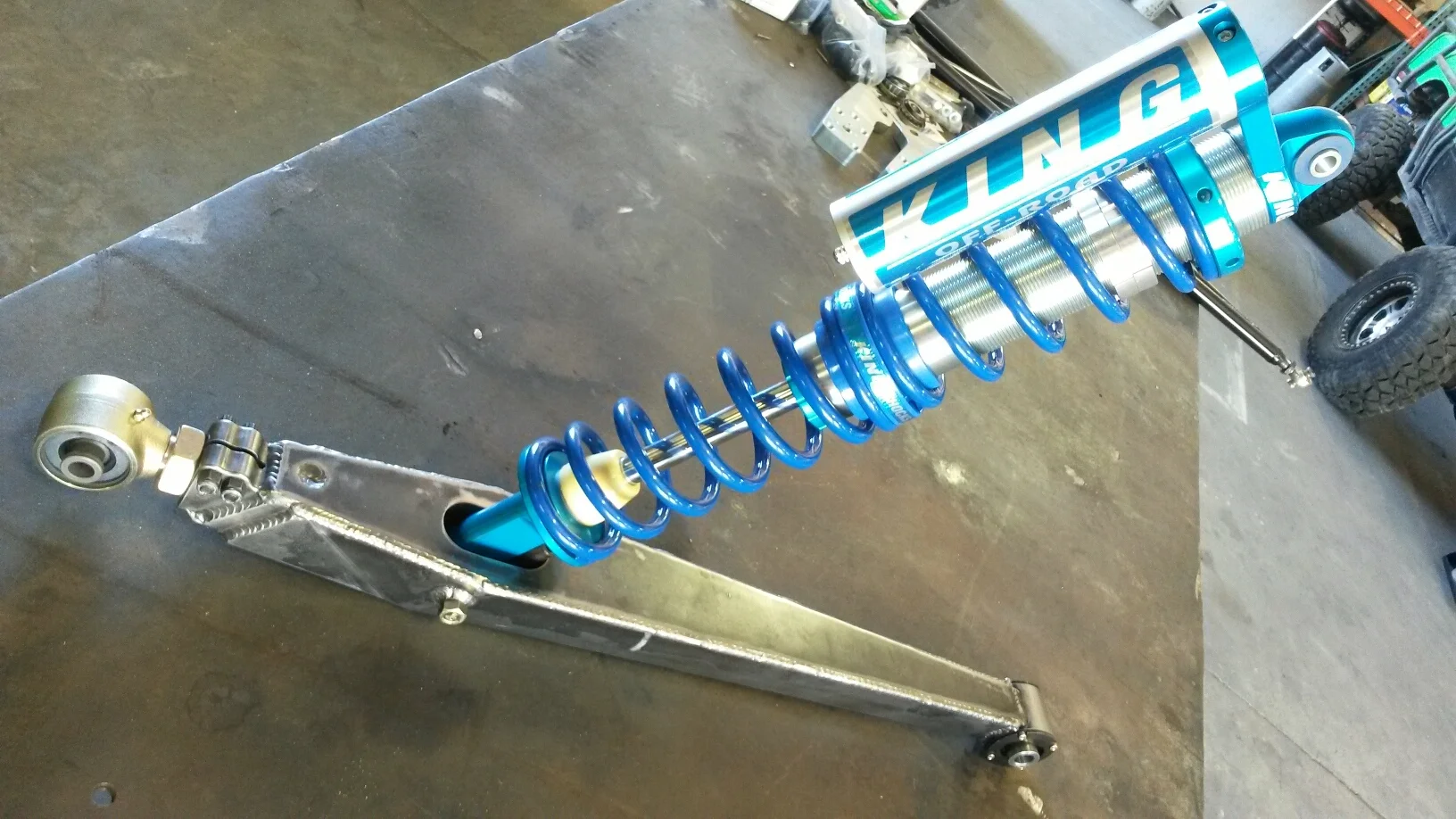

Finished and staged with coil overs to check operation.



[SSCR]

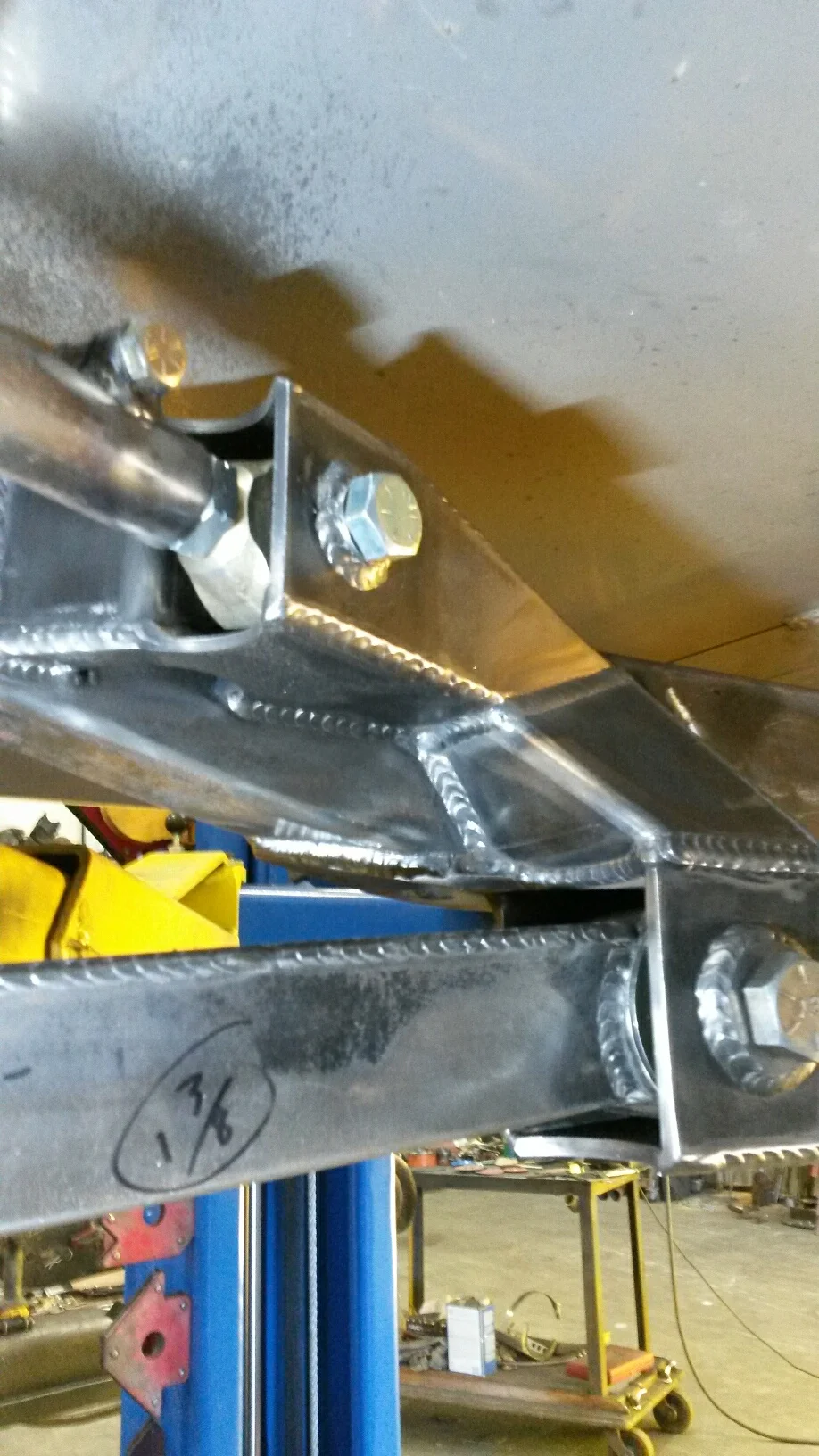

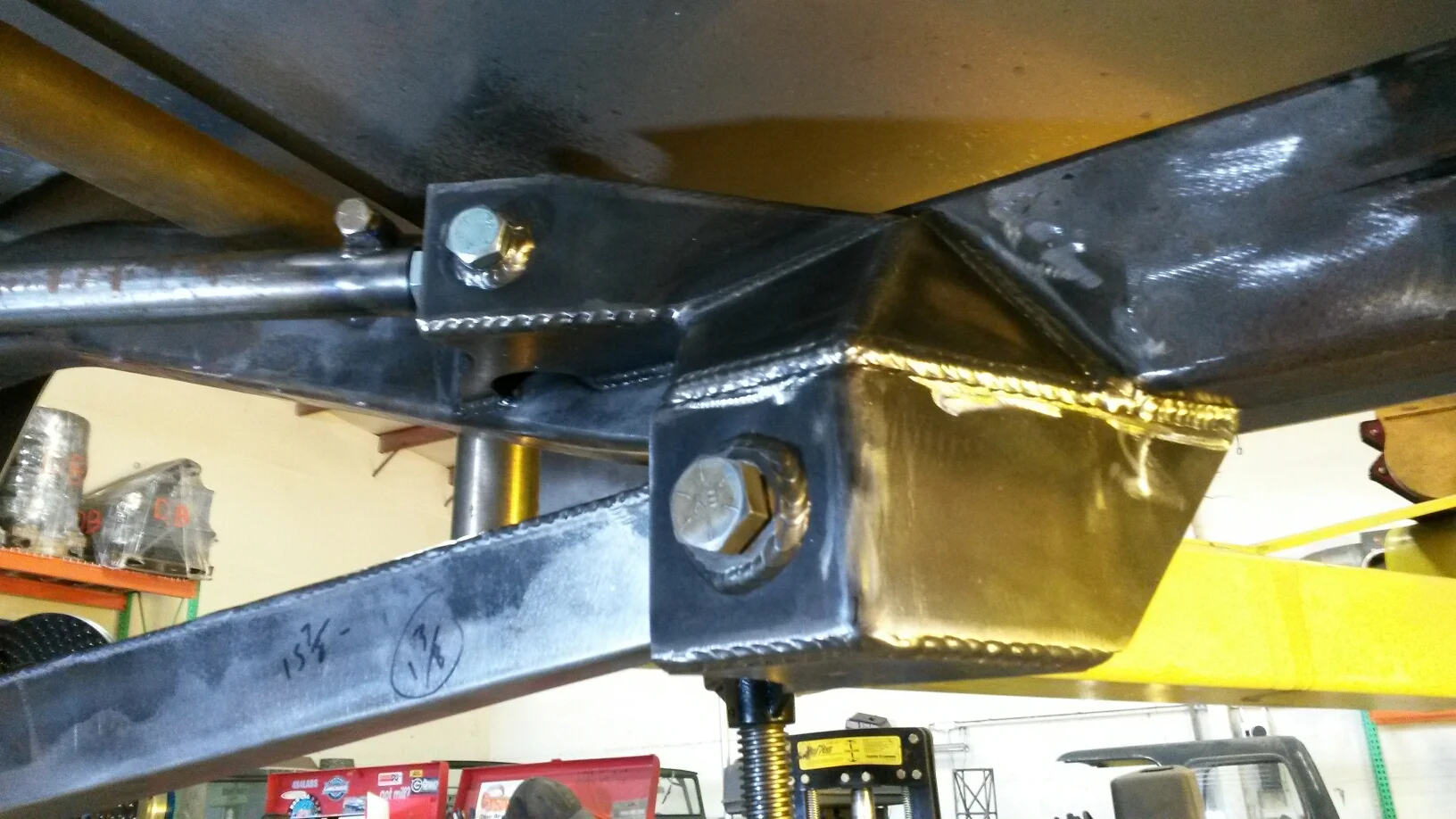

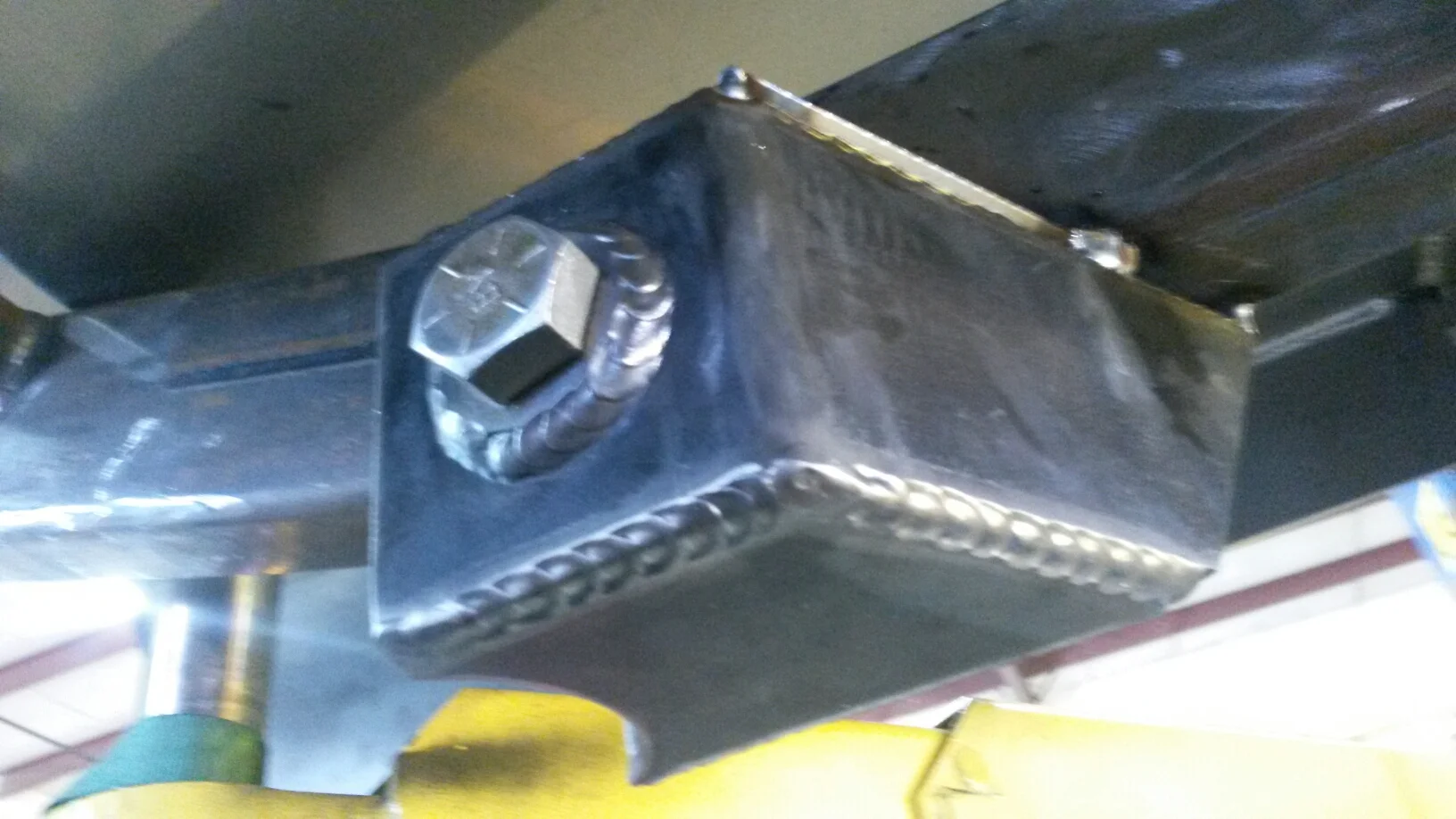

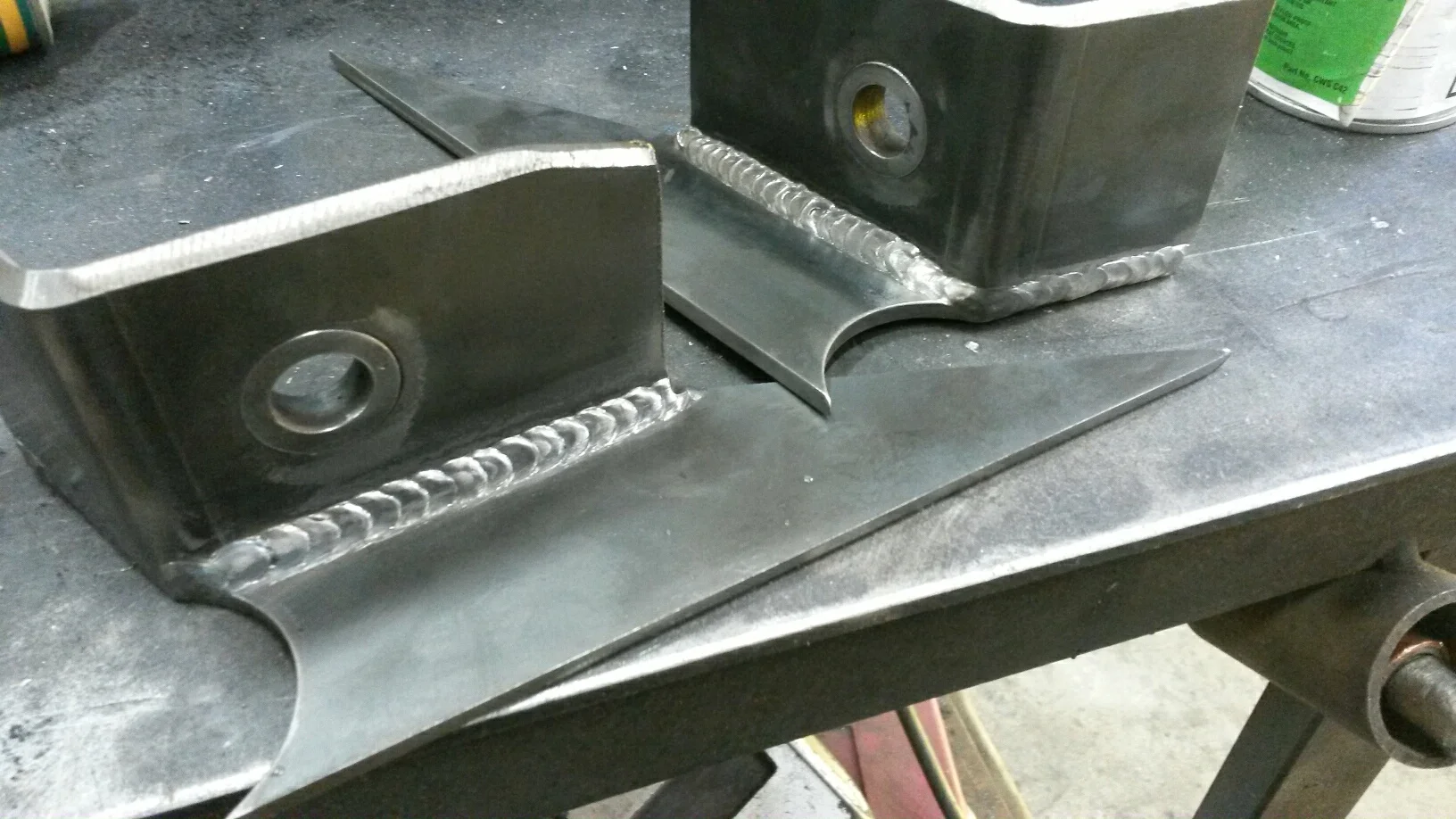

Trailing arms to frame fabrication...



[SSCR]

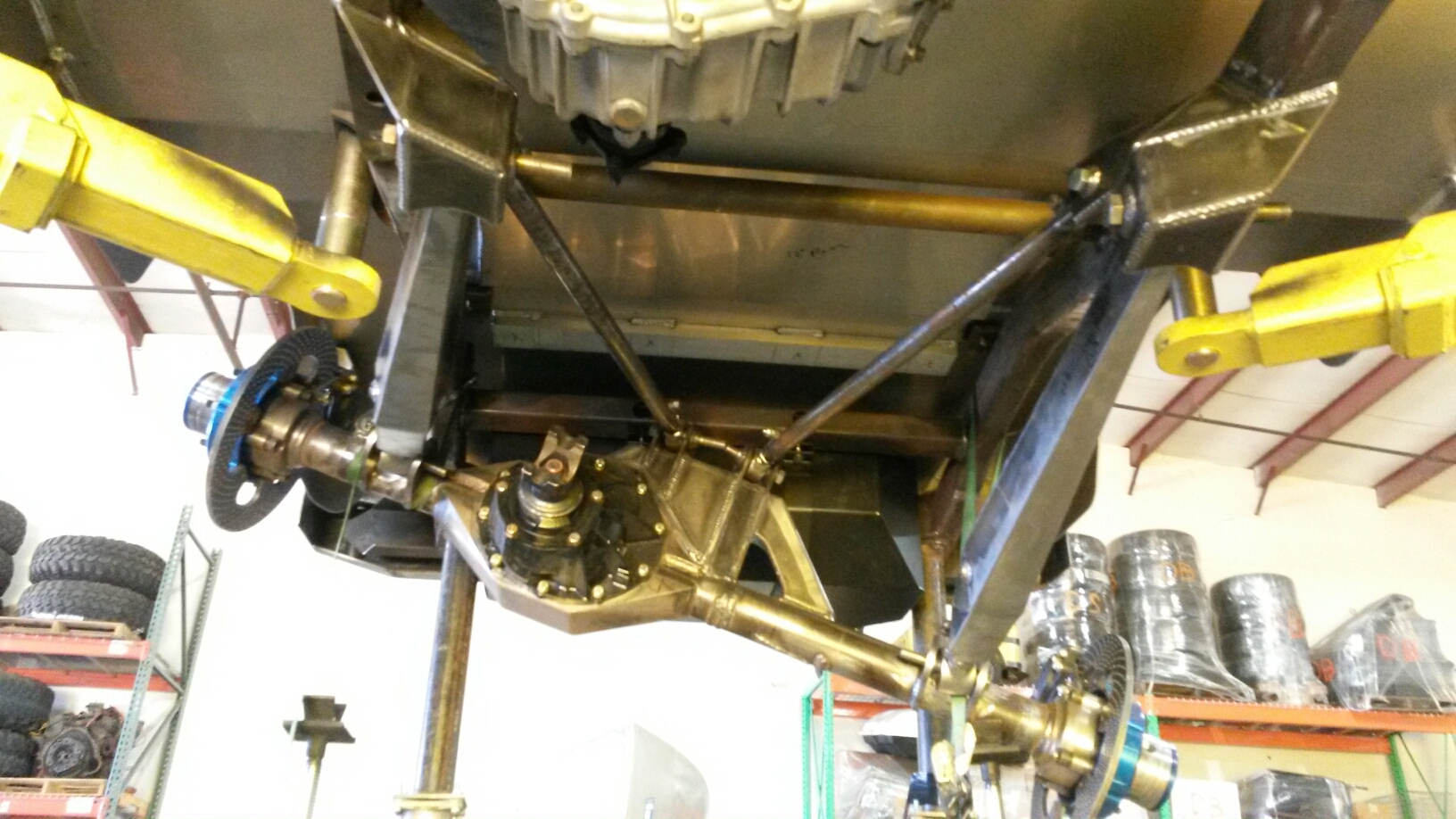

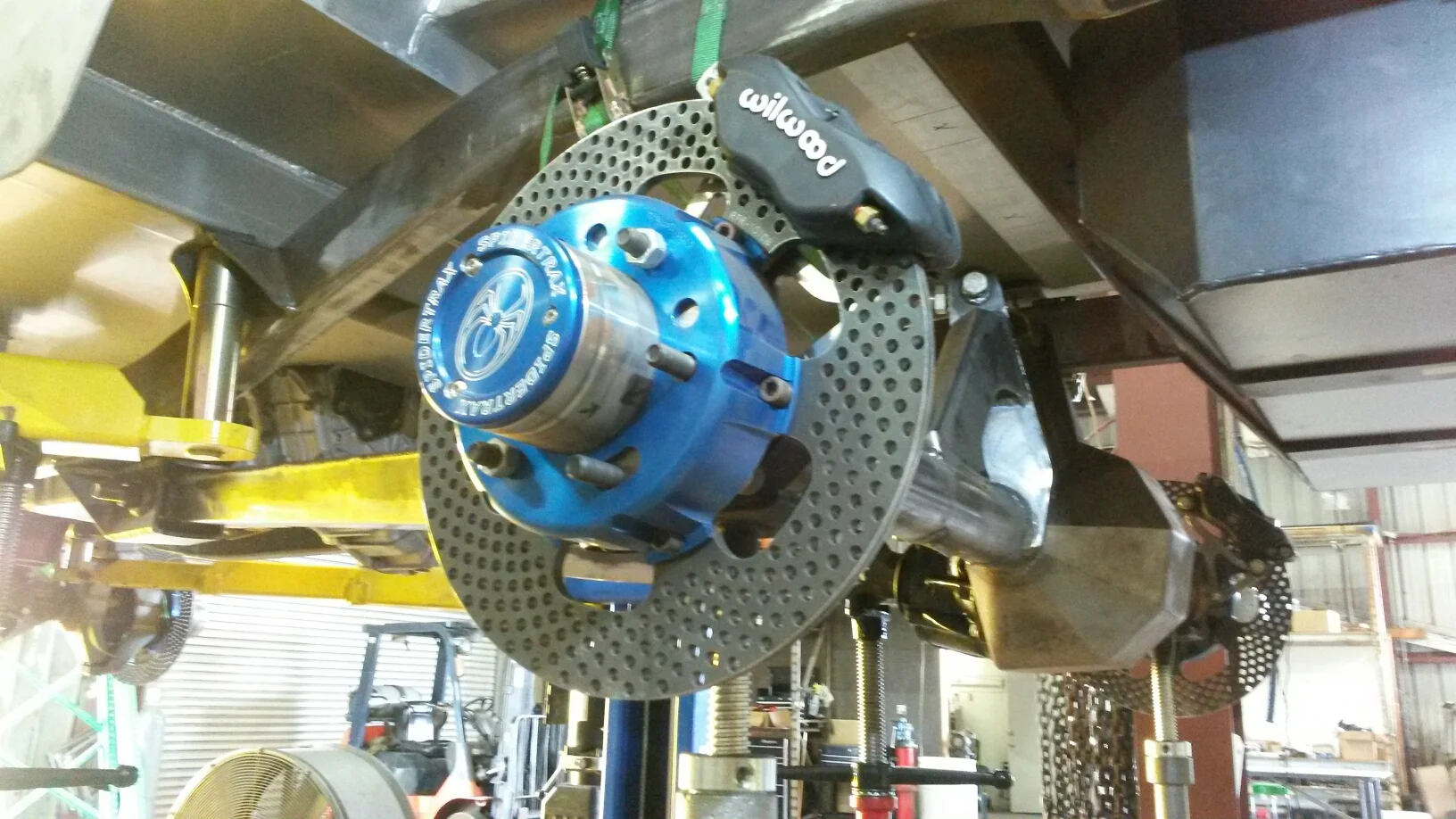

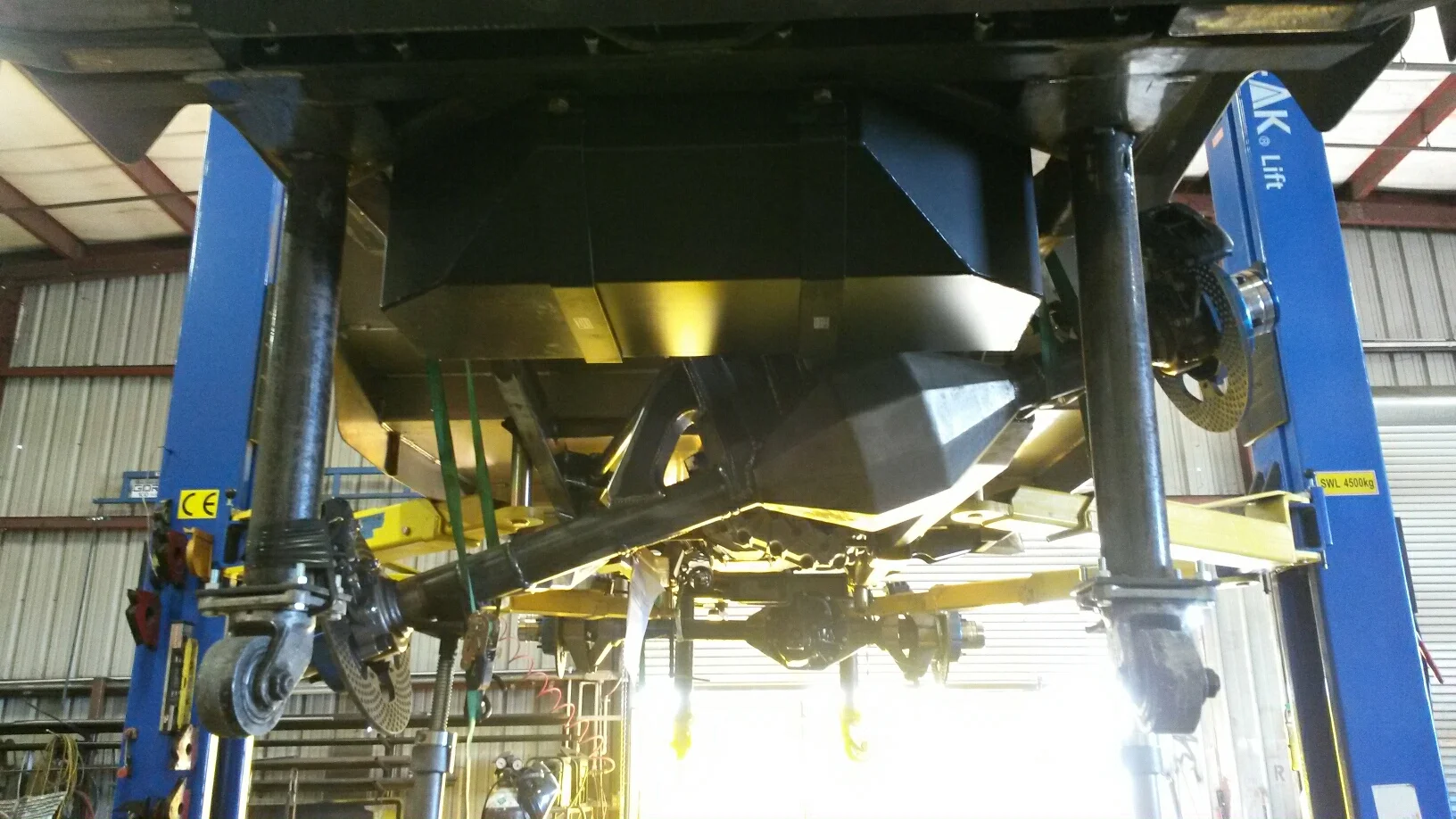

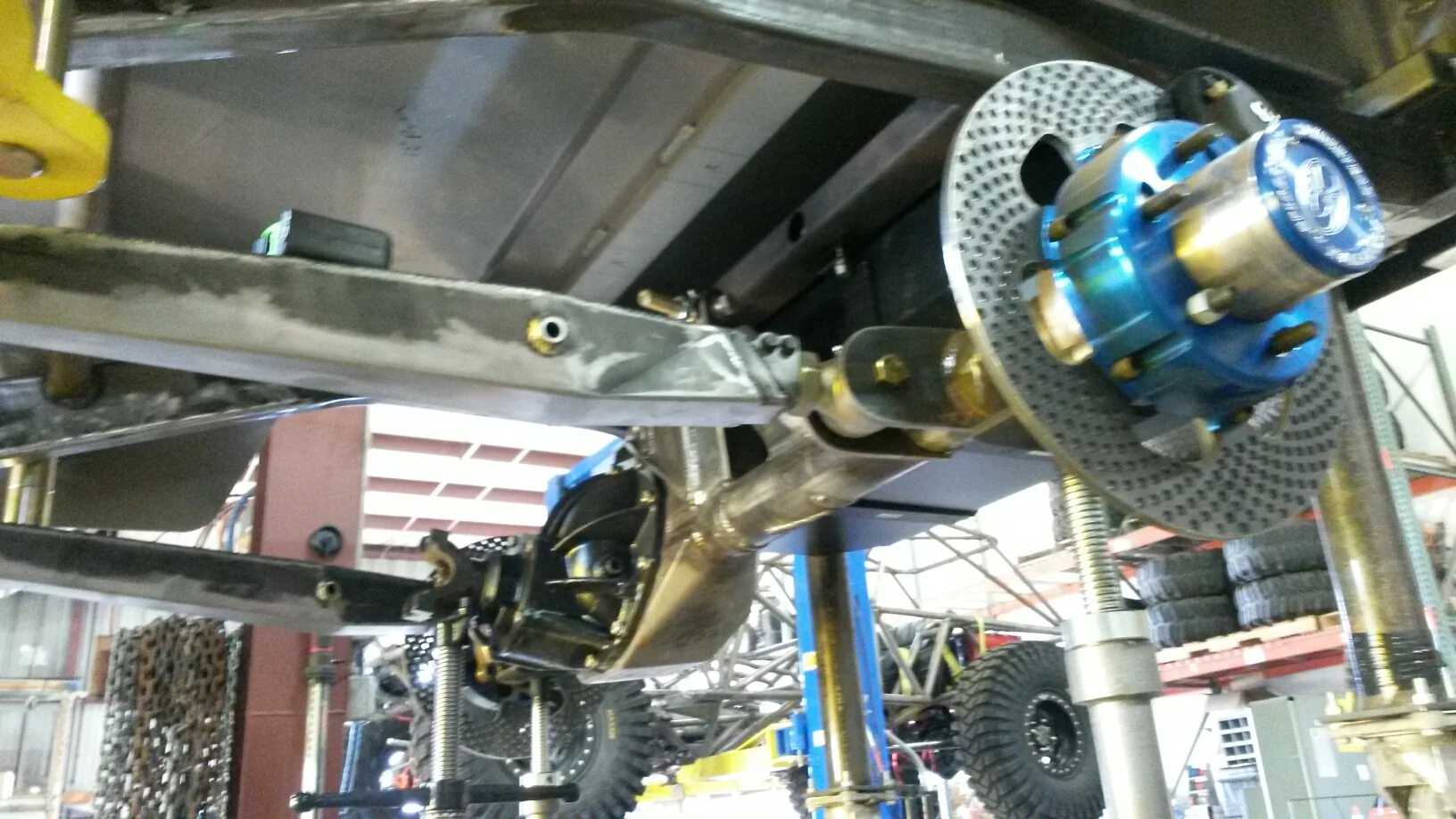

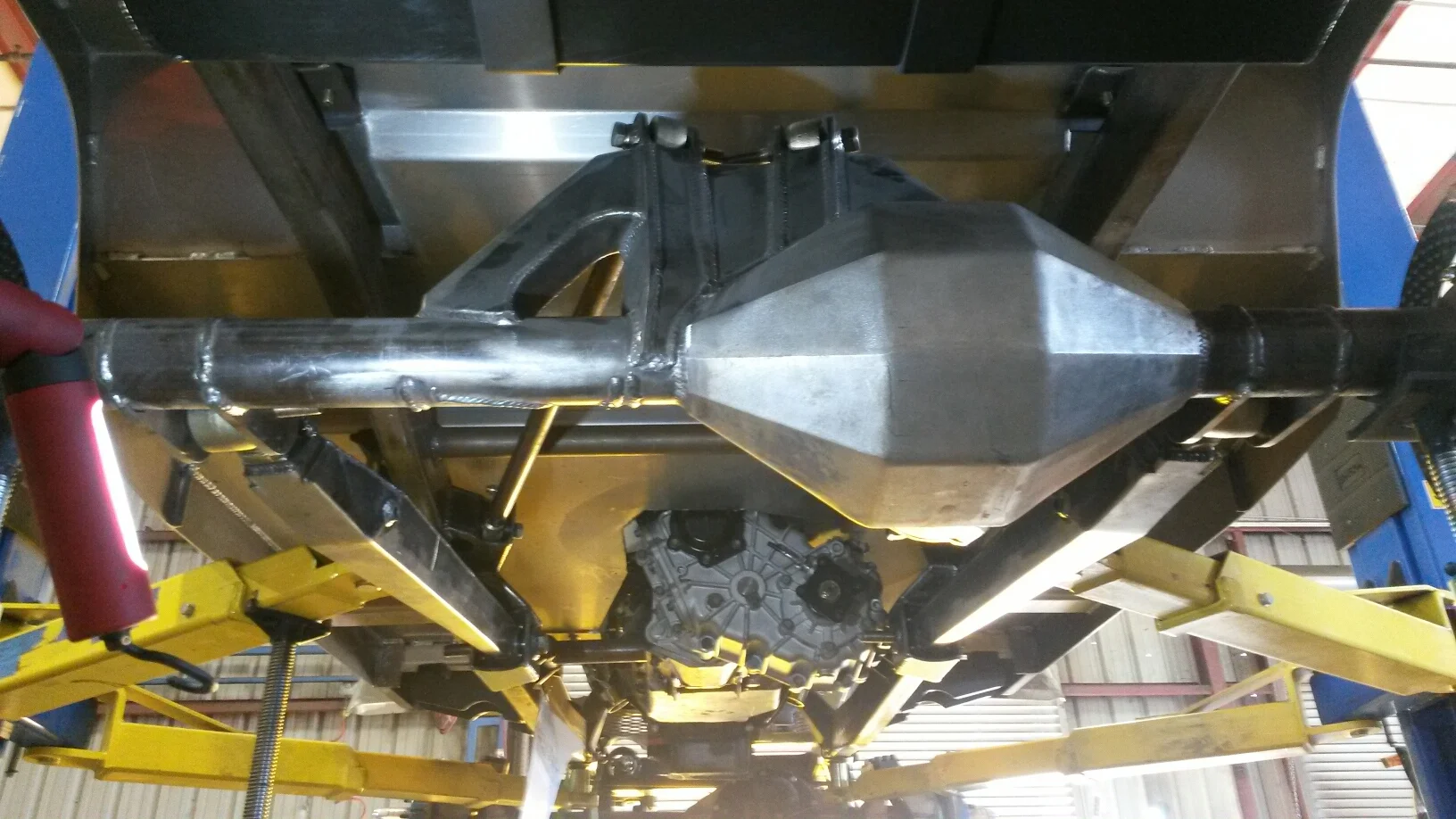

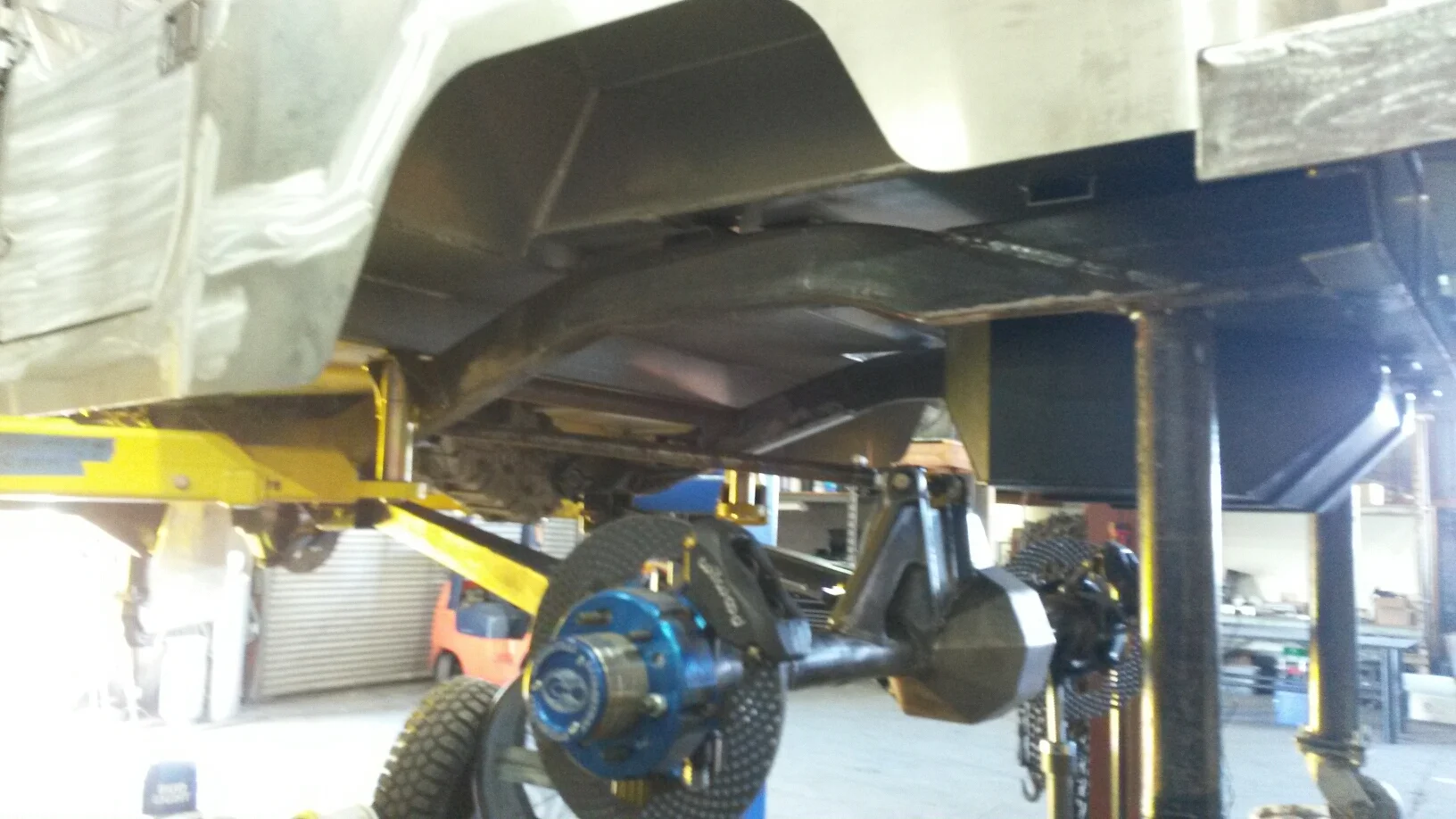

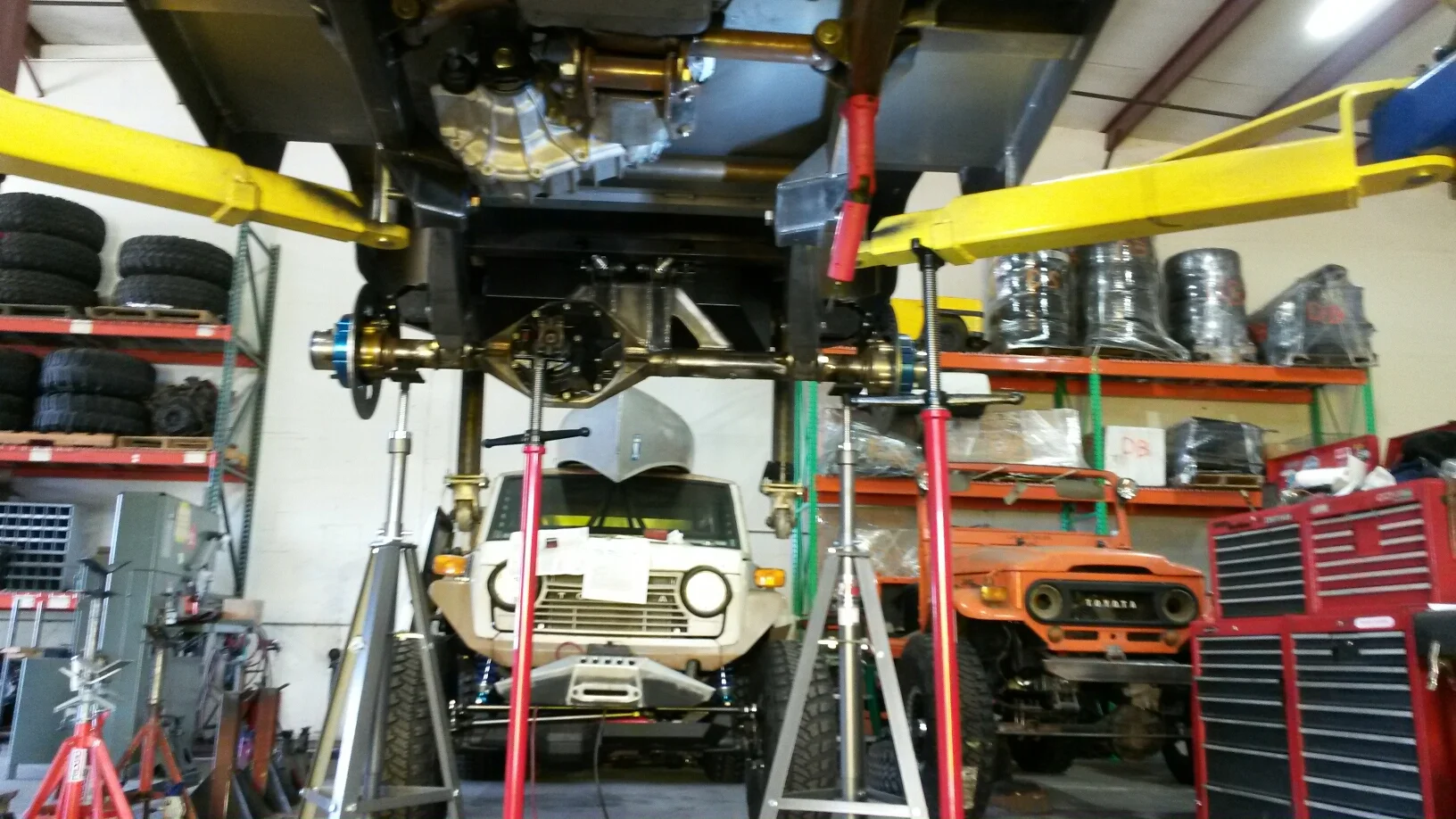

Rear axle mounted...



[SSCR]

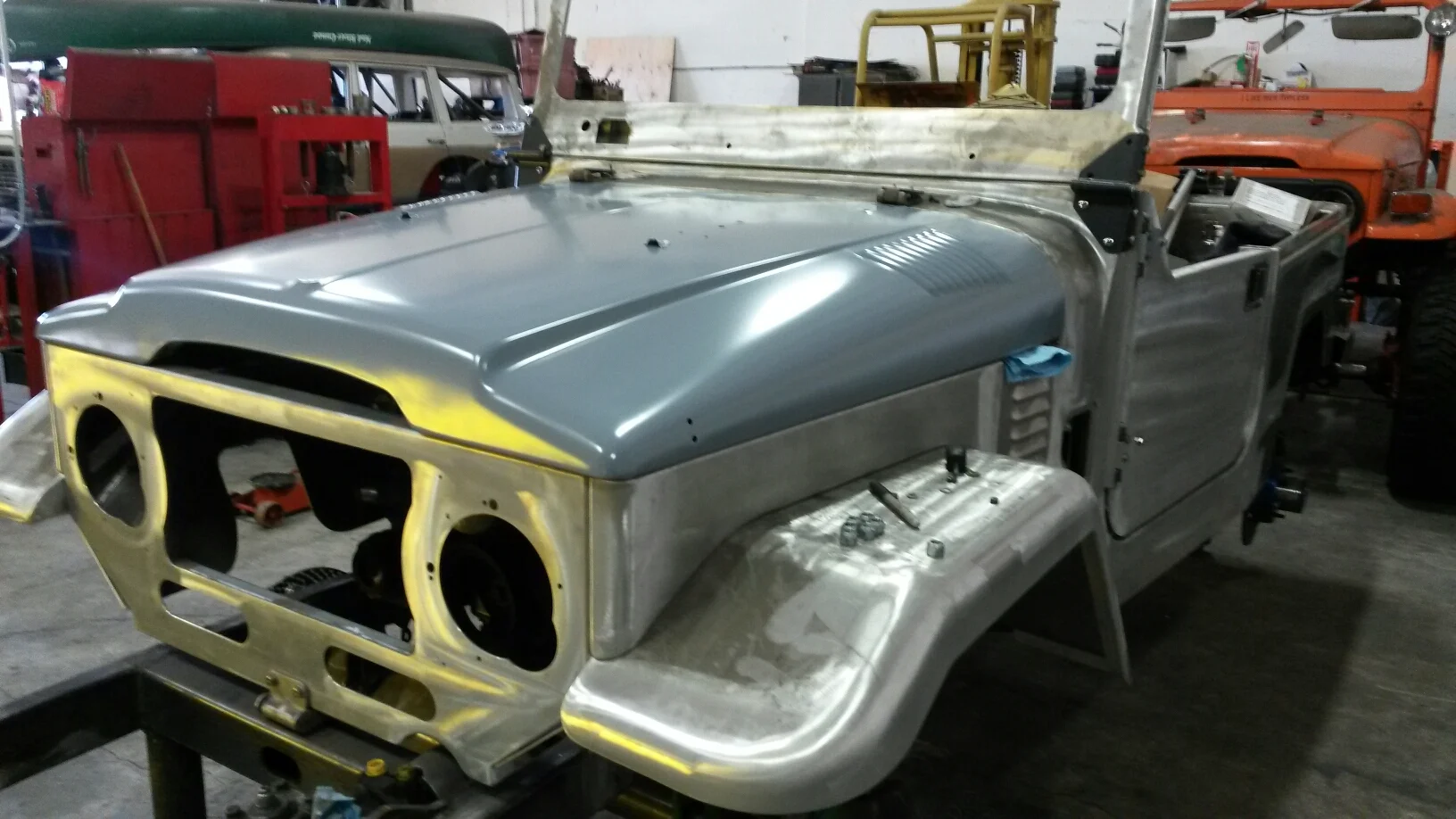

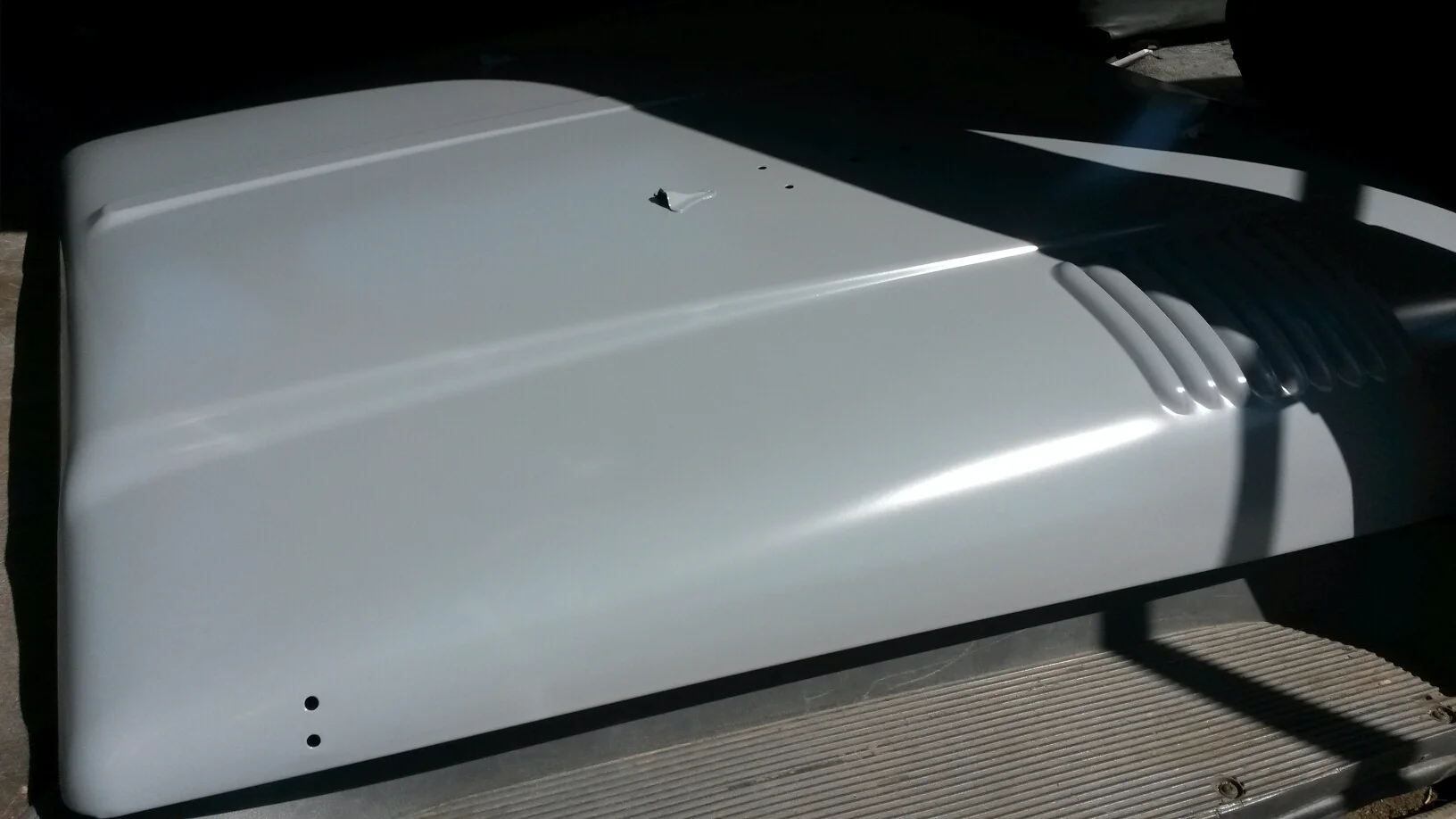

1974 hood I got from a fellow mud member in perfect condition. I had it blasted, and powder coated from a great nearby shop that I will be using extensively with this build...



[SSCR]

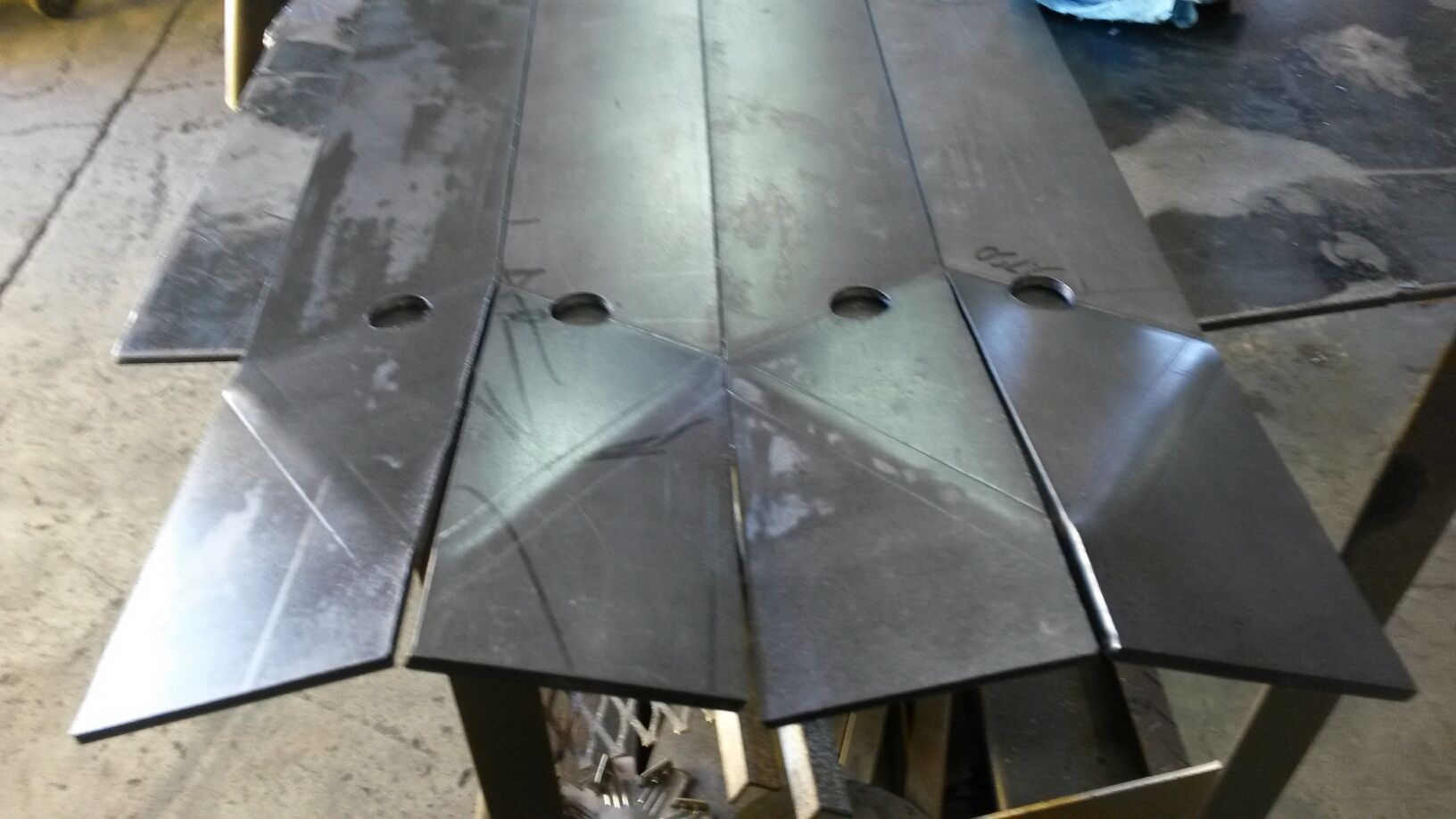

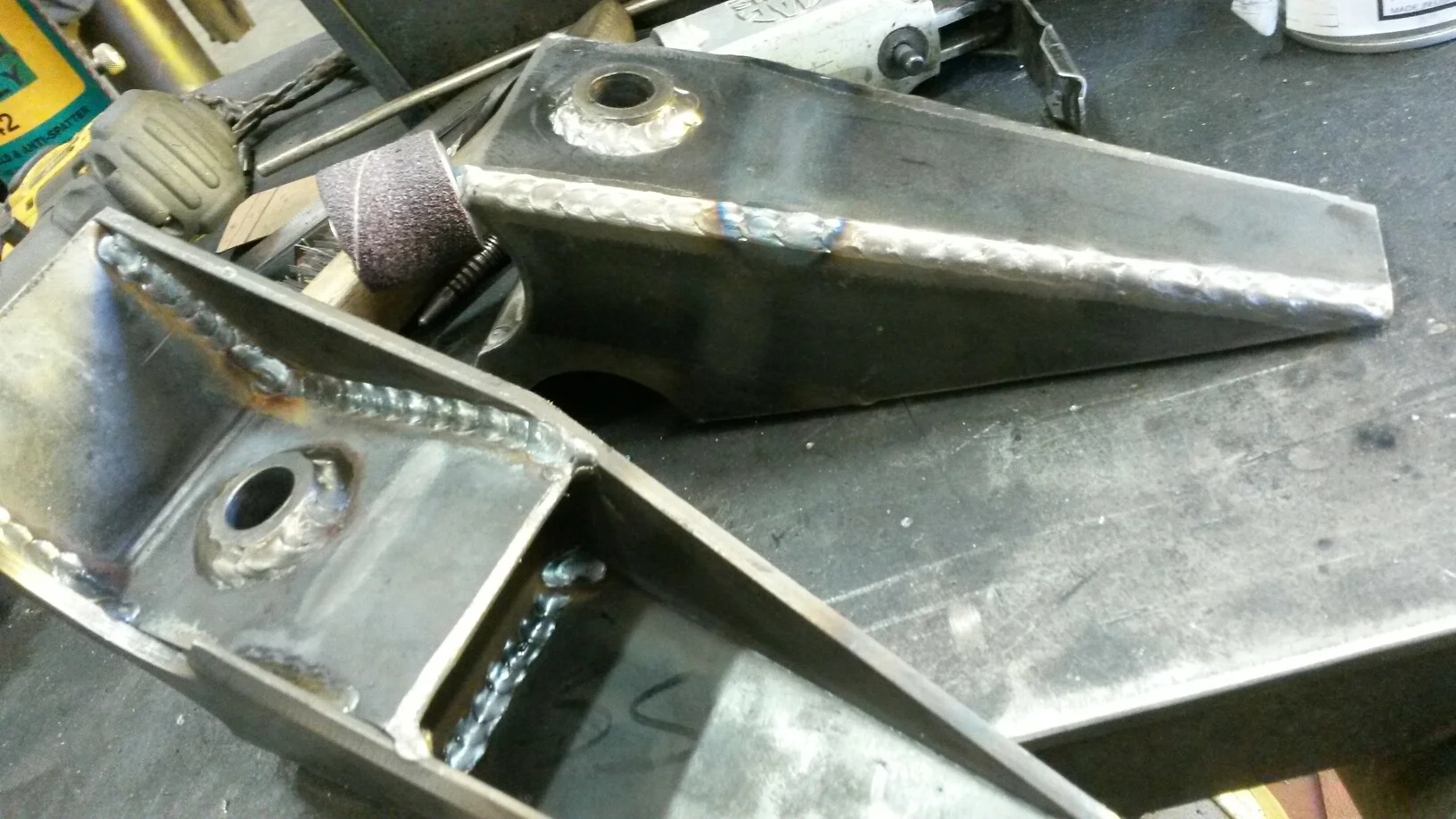

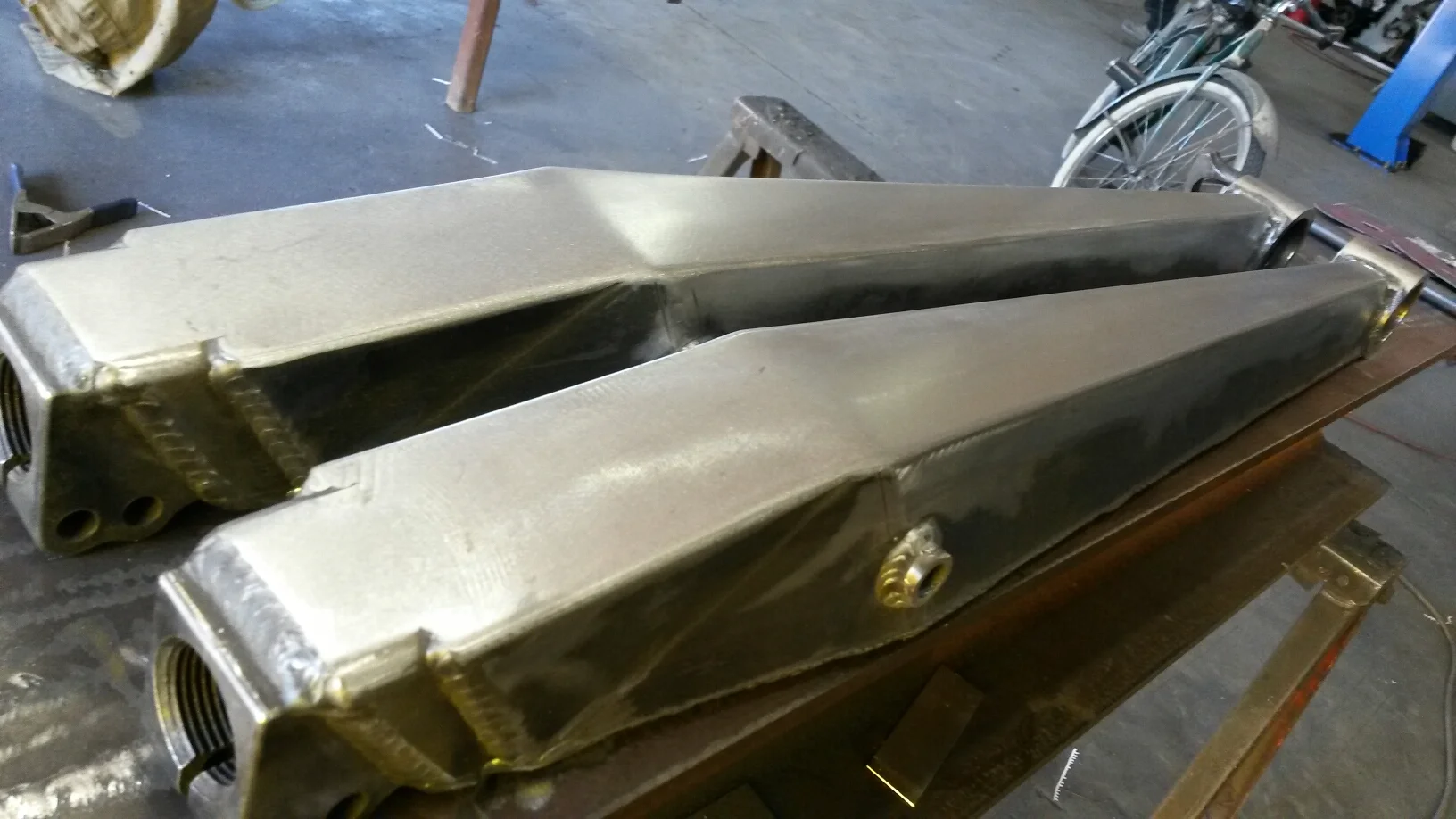

More pics of all the work that went into the trailing arms...



[SSCR]

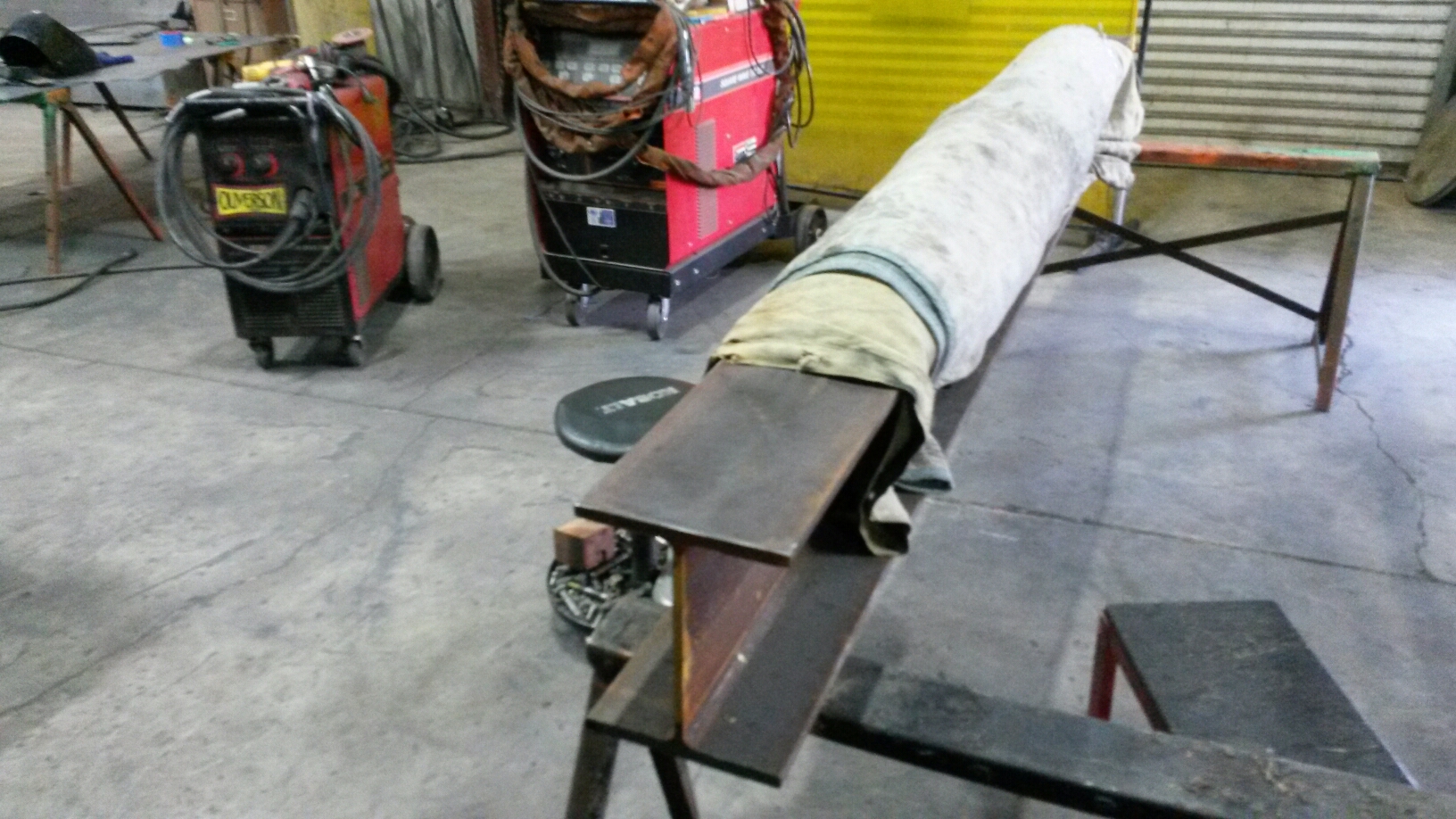

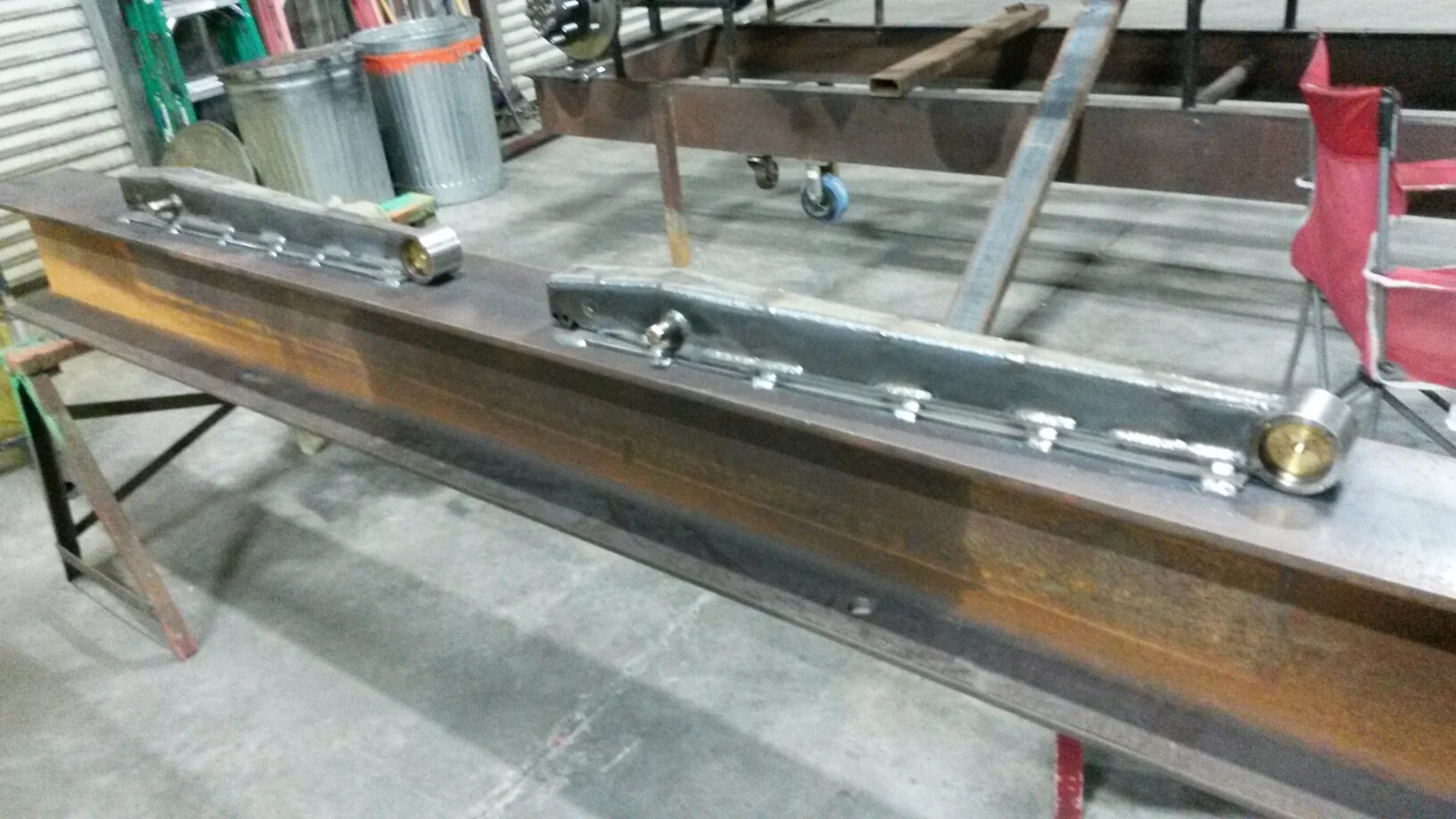

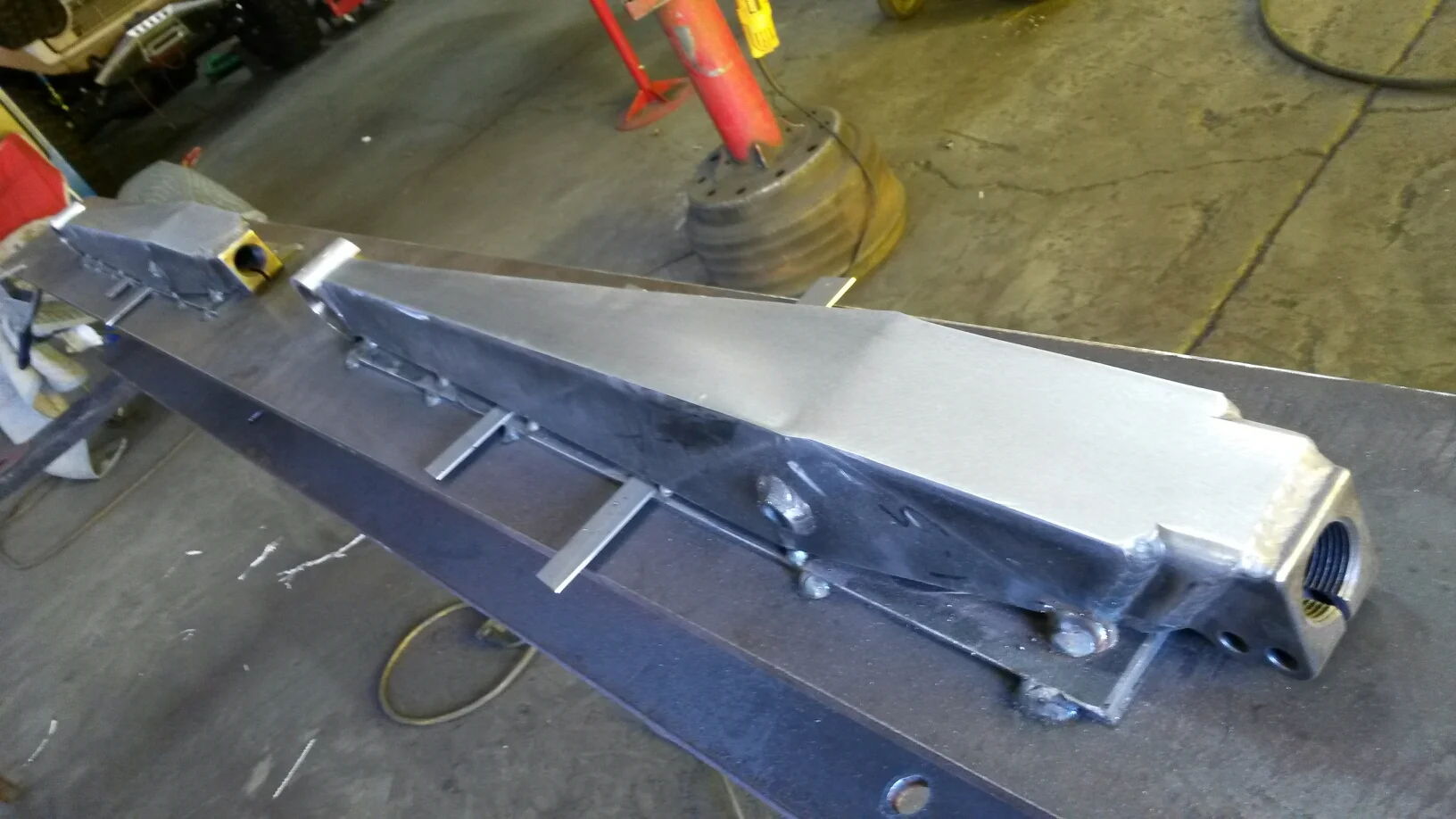

The arms had to be slowly welded and then wrapped to remain perfectly straight.



[SSCR]

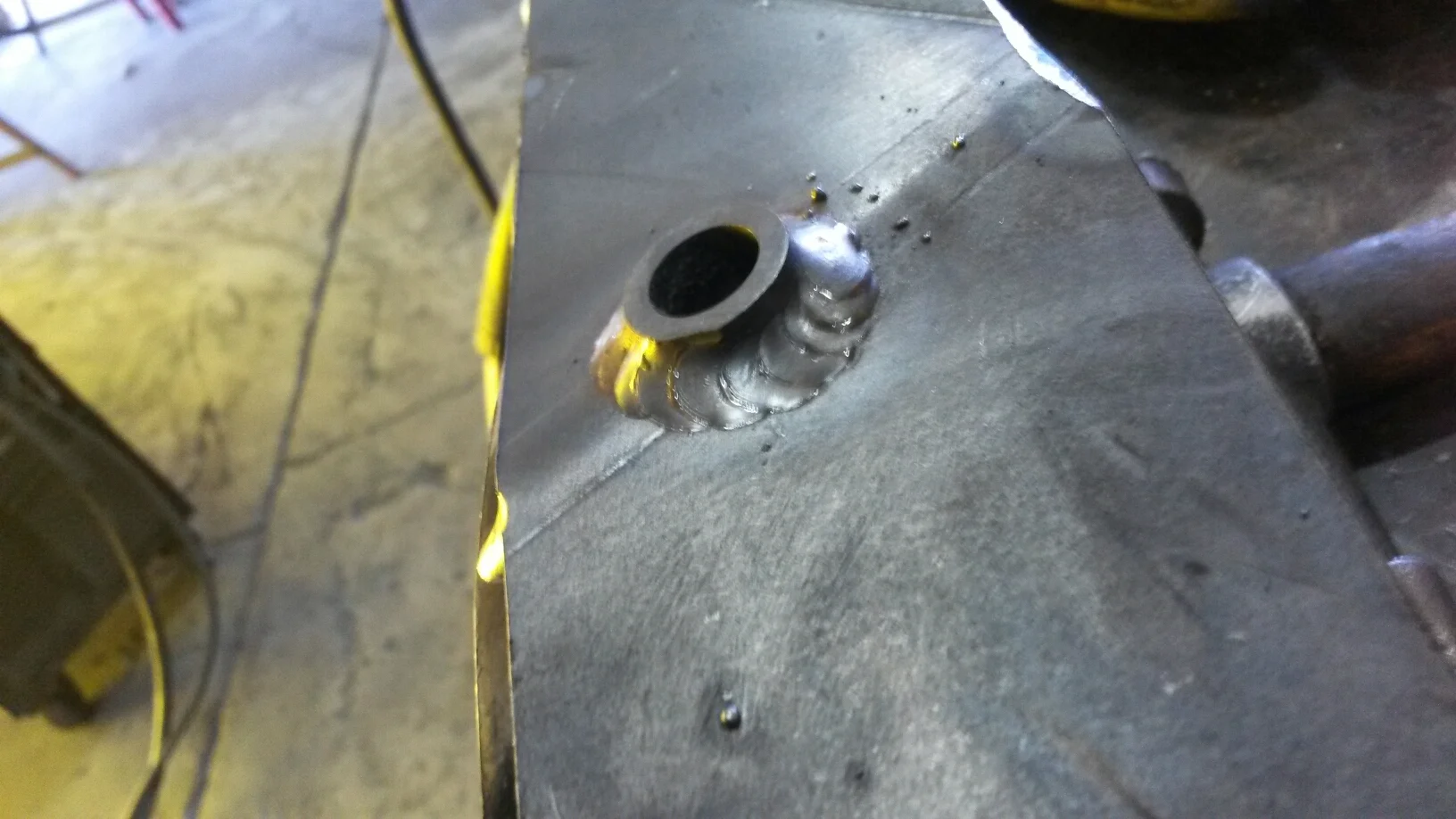

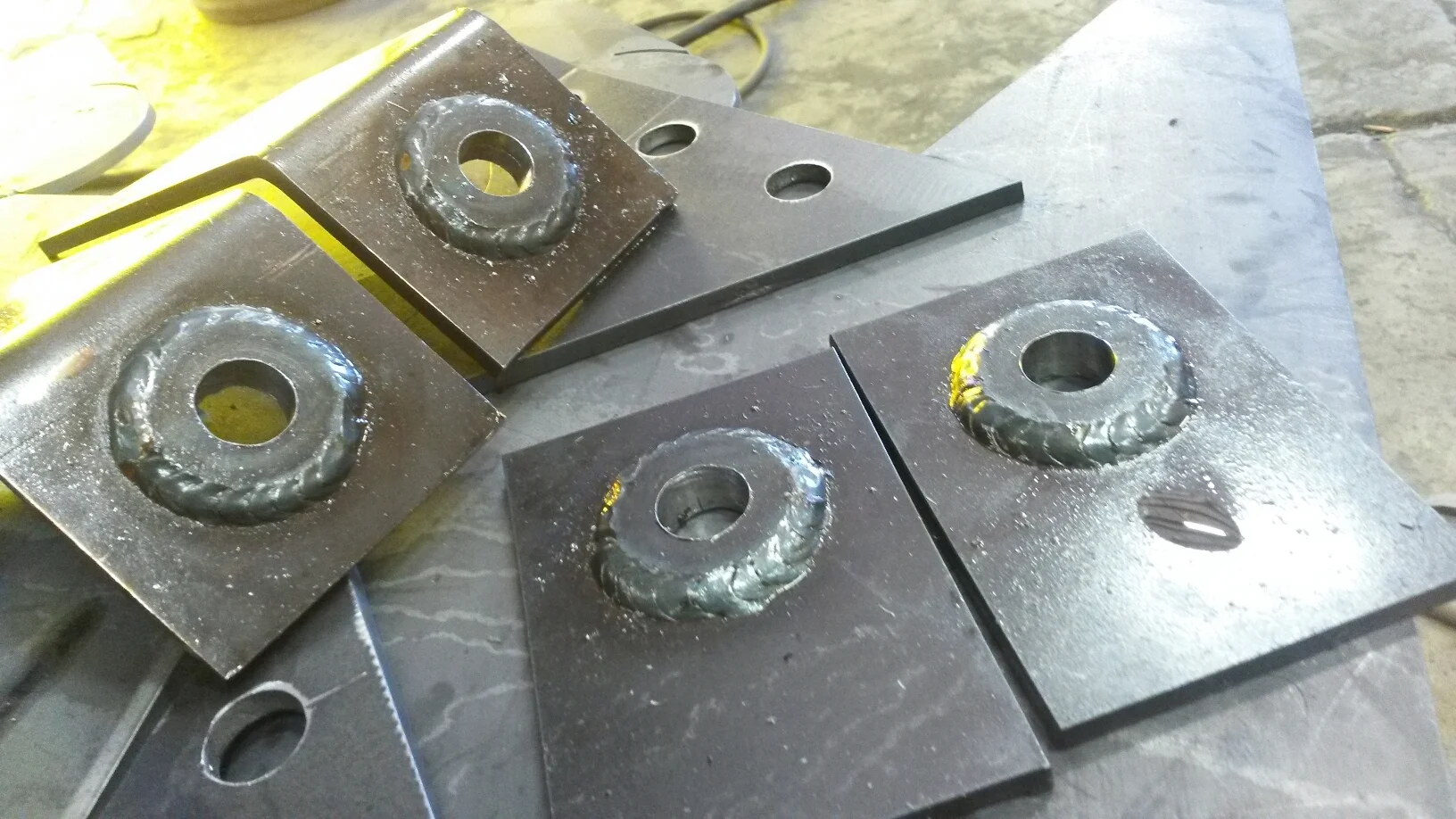

More of the frame work to accept the linked rear suspension.
