Like the subjects says, post a picture of your truck or 4Runner, and tell us about it. If you have a lot of pics and mods, and feel up to it, sign up for the rig of the biweek, and you'll get a whole thread to yourself!

Lets keep the chat to a minimum (That means none! ) If you have a question about someones truck, start a new thread, or PM them, so we don't clutter this up.

Last edited by 2ndGenToyotaFan; 07-31-07 at 06:17 PM.
2ndGenToyotaFan is offline   Reply With Quote
Old 02-14-07, 11:10 AM   #2
No longer pre-approved...

2ndGenToyotaFan's Avatar

Join Date: Jan 2006
Location: Yreka, CA
TLCA# 13872 Sign Up!!! You know you want to!
Posts: 3,160
2ndGenToyotaFan is on a distinguished road
I'll start.

I'm driving an 89 4Runner named the James Caird. Read about the origin of the name here.

It has a 22R-E and a 5 speed and is pushing 300k now, but I have reason to suspect the engine and tranny have both been messed with at some point.

Tires are 33x10.5 BGF MT's.
Torsion bars are cranked up front and 3 inch longer than stock shackle in the back for about 1.5 inch lift all around.
Marlin 4.7 transfer case gears.
Stock 4.10 differentials.
95 SR5 4Runner bucket seats.
93 Hilux Surf Clinometer/Altimeter from New Zealand
Upgraded 4Crawler headlight wire harness and headlights.
Custom pinstriping down both sides.
Attached Images


Last edited by 2ndGenToyotaFan; 11-25-07 at 12:15 AM.
2ndGenToyotaFan is offline   Reply With Quote
Old 02-14-07, 12:11 PM   #3
KLF
IH8MUD Lifer

KLF's Avatar

Join Date: Apr 2003
Location: Southern NH
Posts: 1,589
KLF
My turn:



Specs:

1987 Xcab Hilux SR5 pickup
211,XXX miles
22RE engine
Rust-free (no, really it is)

Mods/Upgrades

Solid Axle Swap, '85 Toyota front axle, home-brew front hanger
Front hi-pinion e-locker from FZJ80, 4.88 gears
Rear Tacoma e-locker, 4.88 gears
Pipe-cap armored axles, shaved & drain plugs removed
BFG MT 35x12.50R15 trail tires on black steelies
BFG AT 33x10.50R15 street tires on SR5 alloy wheels
Old Man Emu springs, F&R (heavy/heavy)
Sky Mfg U-bolt flip kit
Bilstein 5100 shocks, all corners
Home-brew 1" body and engine lift
Sky Mfg hi-steer arms
BudBuilt tie-rod & draglink
Longfields in front axle
Warn HS9500 winch on FROR front bumper, Amsteel blue winch line
Hella 550FF fog lights under front bumper
Hella E-code headlights w/upgraded wiring harness
Engnbldr RV cam, ARP cyl head studs
DOA steel timing chain guides
LC Engineering header
Custom-bent 2-1/4" stainless header-back exhaust (Skip's Exhaust)
BudBuilt crossmember & skidplate w/1" lift
Butt-ugly red interior swapped out to gray w/cushy SR5 seats
Alpine head unit, JL 300W amp, MB Quart speakers
Midland 29-290 CB, 4' Wilson fiberglass antenna
AllPro transfer case e-brake
Rear disk brakes, Sky Mfg brackets
Braided stainless steel brake lines
Upgraded 1" V6 master cylinder, booster, and front calipers
Sky Mfg front axle widening kit, IFS front wheel hubs
Optima red-top battery
Custom home-brew sliders with side protection
Crappy Smittybuilt rear bumper
Huge box in the bed, full of spare parts, fluids, and tools

I'm sure I'm missing a few things. I drive this truck approx. 15,000 miles a year, it'll wheel some hard-core stuff then drive back home in comfort.

Future plans:

Rebuild and install the R151F "turbo" tranny sitting in my basement
Marlin 4.7 crawler gears in transfer case
Custom rear bumper
Install OEM factory sunroof
Gas tank lift w/HD skidplate
Dual battery setup
On-board air


__________________
KB1OSF
'87 Toyota xcab SR5 - SAS'd, stuff
'98 Lexus ES300
'04 Toyota Highlander

Last edited by KLF; 03-01-07 at 08:08 AM.
KLF is offline   Reply With Quote
Old 02-14-07, 02:55 PM   #4
IH8MUD Lifer

WristPin's Avatar

Join Date: Sep 2005
Location: The NW, Cascade Mountian Range
Posts: 4,165
WristPin is on a distinguished road
1980 Truck
20R head 22R block
weber carb w/homemade snorkel
Cherry bomb glass pack w/homemade smoke stack
35" TSL ssr's
stock gears
rear blocks
Camo paint
Camo net
gutted interior







One wheel peel! oh yeah!


Here is my truck, Valentines blue truck, and JoeRock's 4Runner:




__________________
Wristy
A.K.A. Lunchmeat
check the FAQ!
1980 RN37
1989 RN101
1986 RN64
Quote:
Originally Posted by Rezkid View Post
ridin quads and blastin' mofers...life don't get much better than that

Last edited by WristPin; 02-14-07 at 03:06 PM.
WristPin is offline   Reply With Quote
Old 02-14-07, 03:03 PM   #5
IH8MUD Lifer

WristPin's Avatar

Join Date: Sep 2005
Location: The NW, Cascade Mountian Range
Posts: 4,165
WristPin is on a distinguished road
This is my 1986 4Runner.
22RE
Bone stock. needs rear springs:




__________________
Wristy
A.K.A. Lunchmeat
check the FAQ!
1980 RN37
1989 RN101
1986 RN64
Quote:
Originally Posted by Rezkid View Post
ridin quads and blastin' mofers...life don't get much better than that
WristPin is offline   Reply With Quote
Old 02-14-07, 03:08 PM   #6
IH8MUD Lifer

WristPin's Avatar

Join Date: Sep 2005
Location: The NW, Cascade Mountian Range
Posts: 4,165
WristPin is on a distinguished road
This is my 1989 stunt double truck
22RE
4" lift.
Hedder thrush glass pack
mostly stock








this is all of them, including Joe Rock's 4Runner


__________________
Wristy
A.K.A. Lunchmeat
check the FAQ!
1980 RN37
1989 RN101
1986 RN64
Quote:
Originally Posted by Rezkid View Post
ridin quads and blastin' mofers...life don't get much better than that
WristPin is offline   Reply With Quote
Old 02-14-07, 04:50 PM   #7
IH8MUD Regular

Talos's Avatar

Join Date: Jan 2006
Location: Iceland
Posts: 234
Talos is on a distinguished road

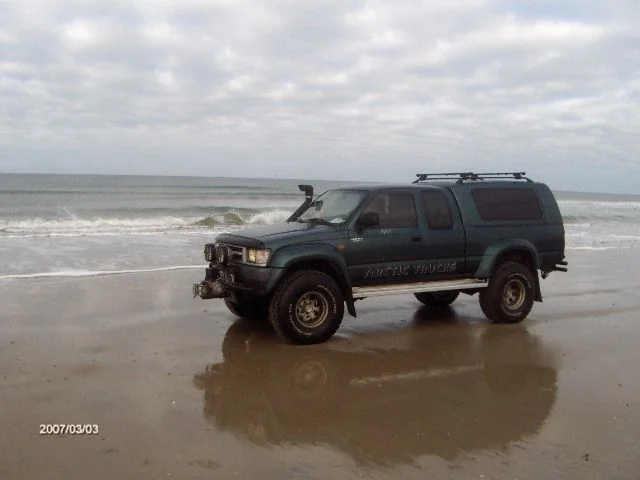

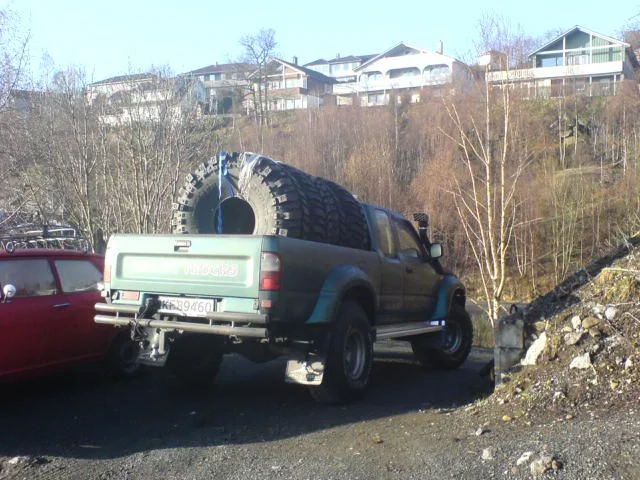

just thought I´d pop in a pic or two of my toyota HiLux

it´s a 1989 model
5.29 ratios
springs front and rear (nissan patrol in front and 3-link in rear)
38" mudders
lockers front and rear
130L fuel capacity
VHF and CB radios plus a GPS unit
12" woofer (yup :P) and CD
3L engine (diesel 2.8L) with a CT-20 turbo and a big intercooler
and probably lots of other stuff I´m forgetting

and the pics







__________________
-1971 Toyota FJ-55 44" 302 etc.
-1993 Toyota Carina E 2,0 GLi
-1987 Toyota HJ-61 38" 12H-T http://forum.ih8mud.com/showthread.php?t=134457
Hj-61 intercooler: http://forum.ih8mud.com/showthread.php?t=181830
Talos is offline   Reply With Quote
Old 02-15-07, 05:25 AM   #8
IH8MUD Addict

Jonathan_Ferguson's Avatar

Join Date: Jul 2003
Location: Glen Waverley, Victoria, Australia
TLCA# June 9th, 2002
Posts: 894
Jonathan_Ferguson
Jonathan Ferguson's 1985 Toyota Hilux LN65

To do List:
Affix Exhaust Gas Temperature Probe into Exhaust Pipe. Done - 7th March, 2007.
Adjust Injector Pump.
Rear Leaf Springs. Done - 16th to 20th April, 2007.
Rear Dampers. Done - 16th to 20th April, 2007.
Sought out the mounting of the Radios.
New Radio Aerial.
Remove Gearbox Fill Plug. Done - 3rd & 4th April, 2007.


__________________
1986 Nuclear Reactor
1985 Toyota LN65R

LIFE AIN'T WORTH LIVING WHEN YOU DIE BEFORE YOU'RE MEANT TO!

Last edited by Jonathan_Ferguson; 04-21-07 at 02:32 AM.
Jonathan_Ferguson is offline   Reply With Quote
Old 02-15-07, 06:26 AM   #9
IH8MUD Addict

Bob_Garrett's Avatar

Join Date: May 2003
Location: Shawnee, KS
TLCA# 9268
Posts: 903
Bob_Garrett
1983 Standard Cab
22R w/ 255k mi.
5 spd

Marlin 4.7 t-case gears
Marlin Hy-Steer
Alcan springs (4")
Monroe shocks
5.29s
FJ80 Hi-Pinion front diff w/ ARB
Aussie rear locker
SR5 gauges
Celica GTS seats
Custom front bumper w/Warn 9.5XP winch
Custom rock sliders
315/75-16 Goodyear MTRs
Vented front rotors w/ V6 calipers
Lonfield front inner axles
Smurfield birfs
Attached Images



__________________
"Inside every old person is a young person saying "What the F*** happened?"

Bob
95 FZJ80
83 Mini-Truck
Tornado Alley Cruisers
Shawnee, KS
Bob_Garrett is offline   Reply With Quote
Old 02-15-07, 06:58 AM   #10
IH8MUD Rookie

Marc P's Avatar

Join Date: Jul 2006
Location: Santee, CA
Posts: 58
Marc P is on a distinguished road

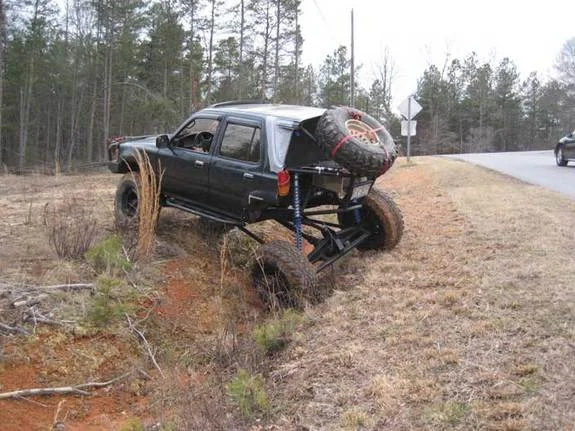

Truck Model/Year: 1995 4runner
Engine: 3.slow
Tranny: auto
Transfer Case(s): stock
Front Axle & Gear: SAS, Toy axle, 4.88, TRD E-locker
Rear Axle & Gear: 4.88 Detroit
Front Springs: All-Pro/Stock rears hybrid
Rear Springs: OME 860 coils
Tires & Rims: 33x12.5 X-terrains
Frame Mods: none
Body Mods: sliders, bumpers, Budbuilt crossmember, TG diff armor
Other Mods: Taurus fan, custom intake/exhaust





__________________
1995 Runner, SAS, armored, locked, and more goodies

Last edited by Marc P; 03-29-08 at 11:17 PM.
Marc P is offline   Reply With Quote
Old 02-15-07, 09:56 AM   #11
IH8MUD Rookie

Join Date: Nov 2006
Posts: 33
norcalsvx is on a distinguished road


mods:
downey fiberglass fenders
downey dual shock kit w/ billys
downey idler arm brace
budbuilt skid
budbuilt x member
OME torsions
SDORI BJ spacers
new ball joints, idler arm
engbldr street RV head w/ 261c
engbldr Timing chain kitw/ steel rail
LC oil pump/water pump
LC valve cover
Downey intake
LCE header
Flowmaster
LCE wires, cap,rotor
Low pro stops
clear corners (not installed yet)
Grant steering wheel
RJS 3 point harness
3" shackles (not installed yet)
rear billys
total choas brace
33x10.50x15 BFG muds on street locks
(the street locks where free so dont hate on them...lol)
www.Roundeyes.com Headlight up grade


__________________
1994 toy 22re
Engbldr. street rv head 261c,LC header,Downey dualshocks, BJ spacers, OME torsions, 33x10.50 BFG muds budbuilt xmember/skid plate
2006 Subaru Forester XT
1994 Subaru SVX
1979 Mazda rx7

Last edited by 2ndGenToyotaFan; 02-15-07 at 03:39 PM. Reason: Keeping things neat.
norcalsvx is offline   Reply With Quote
Old 02-15-07, 11:50 AM   #12
IH8MUD Junior

Join Date: Jul 2006
Posts: 142
cruiserbent is on a distinguished road
heres littlerunner.bone stock right now.engines out of her to at the moment.puttin in new rings & valve.

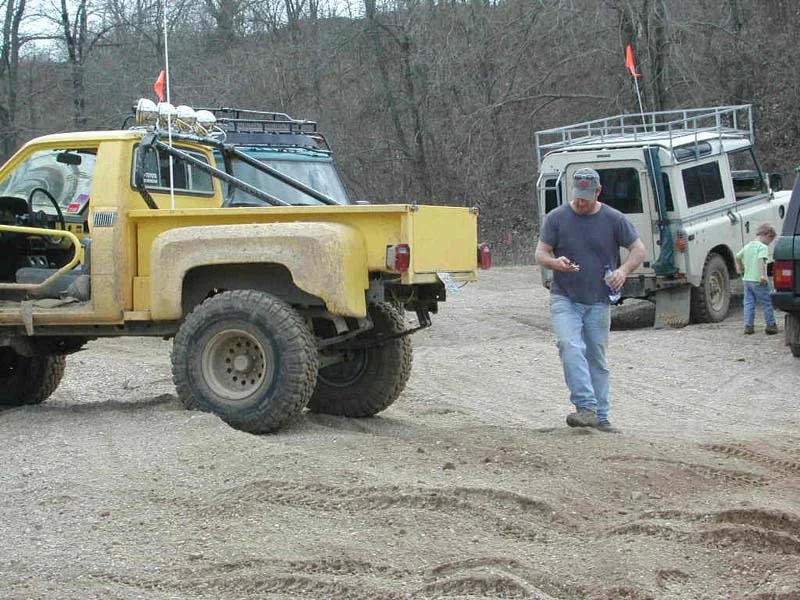

this was at LBL in Ky.wheelin with fj cruiser teams-my first time

Last edited by cruiserbent; 02-15-07 at 11:59 AM.
cruiserbent is offline   Reply With Quote
Old 02-16-07, 05:06 PM   #13
IH8MUD Junior

Join Date: Feb 2007
Location: Weatherford, Tx
Posts: 126
84pickup is on a distinguished road
here's my 84 pickup
i'll get some good offroad pics soon.
mods: custom bumper to be made soon around trial-gear winch mount that's about it. more to come when i get a job.
here's my dad's FJ
mods to that: winch bumper from demello offroad, 2" lift coil springs from OME


__________________
the only way to get a j**p where a toyota goes, is on a trailer full of broken j**p parts behind the yota. its a HEEP thing.
84pickup is offline   Reply With Quote
Old 02-19-07, 03:30 AM   #14
IH8MUD Addict

Jonathan_Ferguson's Avatar

Join Date: Jul 2003
Location: Glen Waverley, Victoria, Australia
TLCA# June 9th, 2002
Posts: 894
Jonathan_Ferguson
Jonathan Ferguson's 1985 Toyota Hilux LN65

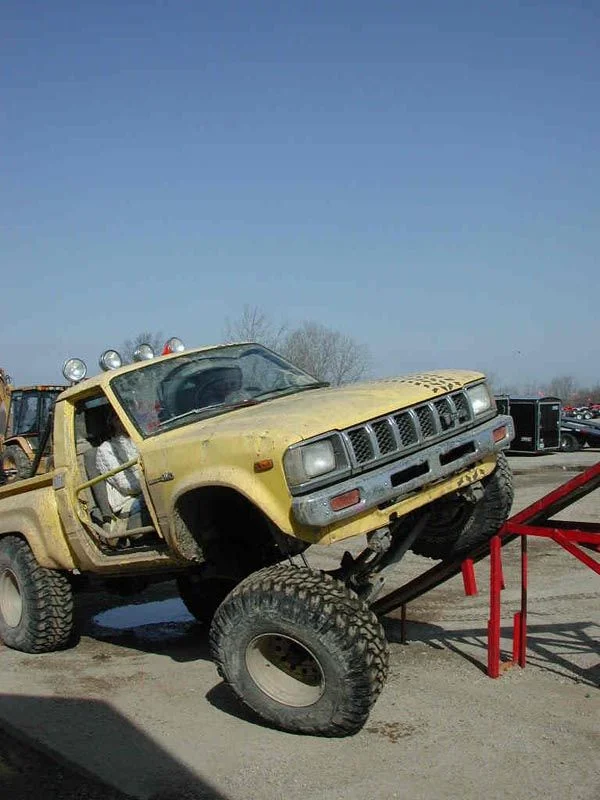

Saturday the 17th of February, 2007. - Front & Rear average RTI on 20° Ramp 501.736111111


1460/2880*1000=506.944444444 on a 20° Ramp


1430/2880*1000=496.527777778 on a 20° Ramp


__________________
1986 Nuclear Reactor
1985 Toyota LN65R

LIFE AIN'T WORTH LIVING WHEN YOU DIE BEFORE YOU'RE MEANT TO!

Last edited by Jonathan_Ferguson; 02-19-07 at 05:11 AM.
Jonathan_Ferguson is offline   Reply With Quote
Old 02-21-07, 08:51 PM   #15
IH8MUD Regular

customcruiser's Avatar

Join Date: Jun 2003
Location: Mooresville, NC -- Lake Norman
Posts: 409
customcruiser is an unknown quantity at this point
94 4Runer SR5 V6 Auto
--SAS'd AllPro Kit w/5" Springs Bilstein 5150's
--Custom 3-Link w/16" Fox Coilovers & 16" 250/250 King Springs
--Chopped and Bobbed Rear
--(5) HUMVEE Double Beadlocks converted to 6 Lug Toyota
--36x12.50 Michilian Military OZ Tires
--Stock Drivetrain
--ARB Bull Bar
--Milemarker M8000 Front Winch
--Xtreme 1500 Rear Winch
--60" Cast Hi-Lift Jack
--Marlin Crawler Sliders
--OffCamber Square Driveshafts
--OffCamber Steering Box Brace
--OffCamber CO2 Setup
--Rear Disc Brake Conversion
--Yukon Spool w/4.88's
--FJ80 HP 8" Welded w/4.88's
--Lowrence IFinder GPS
--(2) Hella 500's
--(2) Rock Lights
--Optima Yellow Top
--Cobra CB w/Firestick II
--Alpine Receiver
--Clarion 4 Channel Amp
--Alpine Class D Amp
--Memphis 4.25's; Nakamichi 6.5's
--JL Audio 12W6

http://memimage.cardomain.net/member...90_92_full.jpg
http://memimage.cardomain.net/member...90_95_full.jpg
http://memimage.cardomain.net/member...90_99_full.jpg
http://memimage.cardomain.net/member...0_101_full.jpg
http://memimage.cardomain.net/member...0_102_full.jpg
Attached Images



__________________
94 4Runner SR5 V6
**SASed**
3Link w/Coilovers
Pirate4x4 Build Thread

03 Tundra Tow Rig/DD
customcruiser is offline   Reply With Quote
Old 02-24-07, 07:34 PM   #16
IH8MUD Rookie

swerks's Avatar

Join Date: Feb 2007
Location: Wauwatosa, Wi.
TLCA# 18112
Posts: 21
swerks is on a distinguished road
86 Turbo 4Runner, engine rebuilt. custom rolled on rustoleum paint job( by ME!) 2.5 in complete exhaust. more to come
Attached Images



__________________
99 SR5 V6 Auto 4WD, deck plate, TRD exhaust, Donahoes/Bilsteins,cornfed spacers, Waag Nerfs, Wet Okole's, Load warrior, Optima red top 86 Turbo SR5 4Runner (work in progress)(Money pit)
swerks is offline   Reply With Quote
Old 02-26-07, 07:02 AM   #17
IH8MUD Junior

Symon623's Avatar

Join Date: Feb 2007
Location: Peoria AZ
Posts: 102
Symon623 is on a distinguished road
New to this site not to wheelin though. Did the Jeep thing for 15 years after my first "mini" which served me very well, but in my native Washington State the trails at times were too tight for all the sheetmetal of a truck, so along came the Jeep, now a new turn in my wheelin hobby has come along and it's back to a truck.

Am good and ready for some good abuse from the Cruiser guys and hope to get out and wheel with some of ya this summer when mine gets done.



Here's where I'm at so far. On the front springs, steering done, needs rear suspension yet and then all the little crap. 85 SC, GM 4.3/700r4 and Dana 300 case. a couple of 60's with 5,38's and Detroits and some 37" Goodyear shoes. Links and coils front and rear plus a few other goodies alng the way. The pic shows the rig at ride height. Trimming will comence when the suspension is all done.


__________________
Sy
ARC/High Country Renegades
85 Syota - 4.3/700r4/300/60's
Symon623 is offline   Reply With Quote
Old 02-26-07, 01:34 PM   #18
In the garage

John Smith's Avatar

Join Date: Jun 2004
Location: Maryland
TLCA# 9074
Posts: 1,531
John Smith is an unknown quantity at this point
1987 Regular Cab 22R in the family since it rolled off the lot.
Replaced both front fenders due to rust.
Built custom flat bed due to origianl bed rusted away.
Repainted Rustic Green, early LC color.
1" BL on cab.
31x12.5x15 BFG MT
Detroit EZ-locker in the front, open rear, stock gears.
No longer sees trail duty after building up the 40 for the trails.
180k somthing miles on original drivetrain.
Replaced the water pump twice, both rear axle bearings, changed timing chain, replaced brakes a few times over the years, Clutch master and slave twice, radiator once, clutch once. That is it! Never owned a better vehicle that cost so little to maintain.



__________________
79 FJ40 & 78 FJ55
http://users.starpower.net/johnsmith <- Detailed ToyBox install instructions
Please help save the Upper Tellico OHV area, Donate to the Rescue Tellico Fund http://www.sfwda.org/trails/tellico/donate.html
John Smith is offline   Reply With Quote
Old 03-04-07, 01:44 PM   #19
Ghetto Fab Master

Straydog's Avatar

Join Date: Oct 2006
Location: Camp Hill, PA
TLCA# 16782
Posts: 358
Straydog is on a distinguished road
My 87 4runner

BudBuilt front skid
4in Pro Comp stage 2 lift (PO installed )
Locking the rear
Marlin 4.70 transfer case(in route)
BFG 33in mud terrians
4.56 gears (PO installed )
SAS in the future








I need to learn how to work the pictures better.
Attached Images



__________________
SEAN

85 extra cab pickup with the soul of a 4runner. Woo Hooo



Go outside and do that!

Last edited by Straydog; 03-04-07 at 02:04 PM.
Straydog is offline   Reply With Quote
Old 03-07-07, 06:34 PM   #20
IH8MUD Rookie

Join Date: Mar 2007
Posts: 1
1uz4runner is on a distinguished road
94 4runner sr5 3.0,auto,4" superlift 31x10.50 for now looking 4 some 33x12.50 and 15x8 wheels w/3.75 or so backspace and a homebrew intake new here not to car or trucks though.
Attached Images

1uz4runner is offline   Reply With Quote
Old 03-09-07, 07:24 AM   #21
IH8MUD Junior

Twisty's Avatar

Join Date: Nov 2006
Location: Sunshine Coast, QLD, Australia
Posts: 199
Twisty is on a distinguished road
My 94 4runner...specs are

1uz-fe Lexus V8
Cruiser Coils in Rear
BJ Spacer and wound up torsion bars up front (bout 4" susp lift)
Rancho 9000x Shocks
2" Bodylift
4.88's diffs with rear air locker
Custom rear bar, tyre carrier and sliders by Custom 4x4 Fabrications
TJM front bar
Recaro seats with custom trimmed interior
17x9 Brute B201 wheels
315/70/R17 (35x12.5) Mickey Thomson MTZ's
Dual Batterys to run a Evacool Beer Fridge
and other bits and pieces.








See here for more pics/details.
http://forum.ih8mud.com/showthread.php?t=126143


__________________
1978 FJ40
4" Lift, 3F, F&R AirLockers
Daily - 33 MTZ 15x10 ClassicLock
Offroad - 35 TrXus MTs 15x10 ClassicII


Twisty is offline   Reply With Quote
Old 03-11-07, 05:08 AM   #22
IH8MUD Rookie

Join Date: Mar 2007
Posts: 27
solli is on a distinguished road
My girfriends 2000 HiLux Arctic truck.
Artic truck can be bought as a option pacage at the local Toyota dealer in Norway.
It is built by Arctic Truk in Drammen, Norway, and that is a shop owned by some guys from Island that lives in Norway now.
In Norway it's hard to get plates on a truck that's not orginal, but the guys at Artic Truck can do it, and Toyota gives full warranty on the job!!!
It rolls on '35 B/F and have a 2.4 turbo diesel.
Attached Images

<
