YWST: Vacuum T-Case to Manual Shift Conversion Kit (1 Viewer)

[cruiseroutfit]

Yeah, We Stock That!

Have a vacuum controlled 2WD-4WD split transfer case and prefer manual? Hunting a donor transfer case for an older Cruiser conversion and can't find a manual 2WD-4WD? We've got the fix! Fits 1980+ Split Transfer Case applications originally equipped with the vacuum shift actuator. Requires disassembly of the transfer case (refer to Factory Service Manual) and drilling/tapping the t-case for the Detent Nut (Requires 15x1.50mm RH Tap)

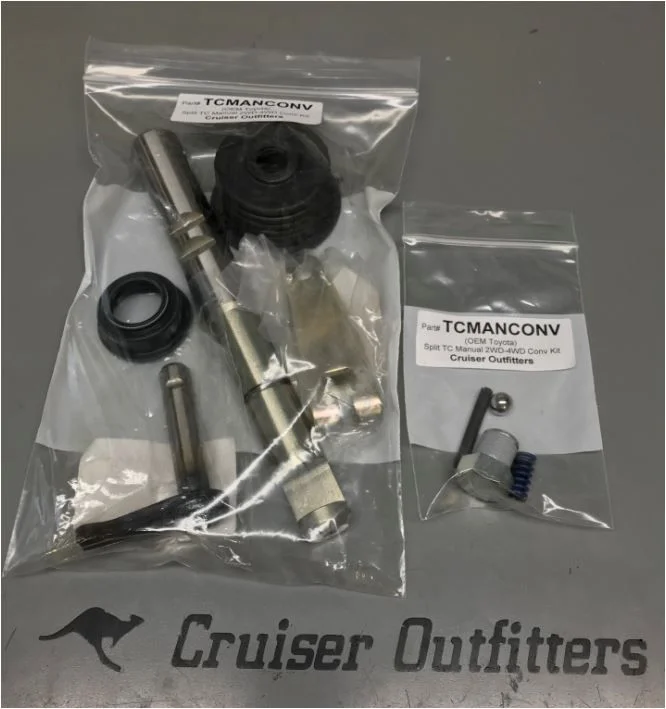

This kit includes the needed components to convert the case. Linkage is not included but is available (see part# AA715569 or TCSCSHFTKIT on CruiserTeq.com).

Part# TCMANCONV - $172.50

Purchase 24/7 on CruiserTeq.com

2WD-4WD T-Case Conversion Kit - Fits 1980+ Split Transfer Case Applications

2WD-4WD T-Case Conversion Kit - Fits 1980+ Split Transfer Case Applications

cruiserteq.com

Please call the shop if you would like to place a phone order:
801-563-1277 - info@cruiseroutfitters.com
www.cruiseroutfitters.com



[SteveJackson]

Sweet!



[cruiseroutfit]

There has been some inquiry on the items needed to complete this kit. Please reference the following diagram for the donor/used parts you will need to source from a vehicle matching the era of your transmission selection.

Parts you would need to source.



[BMValentine]

Thanks Kurt. Any recommendations on where to start looking to hunt those parts down?



[cruiseroutfit]

Thanks Kurt. Any recommendations on where to start looking to hunt those parts down?

I'd post up here on Mud in the wanted section. @ginericLC CruiserYard or Classic Cruisers. You'll need to match up the linkage to the year of transmission you are using.

We are working on a complete kit solution, I'm not sure if we'll sell it individually or only with our complete new Transmission/T-Case combo's. We've had many inquiries from those that have ordered them thusfar and it's something I'd like to have. No ETA on those parts at this time.



[arcteryx]

Wow, I didn't know you carried those Kurt! So glad to know!



[BMValentine]

So am I just going to get the transmission linkage and adapt it to the transfer case? Sorry for the dumb questions...I’m going to be using this on my 1989 FJ62



[cruiseroutfit]

Wow, I didn't know you carried those Kurt! So glad to know!

They've been selling for just a few months now but we've found some customers happy to have a kit



[cruiseroutfit]

So am I just going to get the transmission linkage and adapt it to the transfer case? Sorry for the dumb questions...I’m going to be using this on my 1989 FJ62

Correct



[cruiseroutfit]

Bump, we just assemble another batch of these kits. Available for immediate shipping.



[Chuck78]

You have my attention!

Do you get many people asking about using these to convert to a twin stick manual shift set up?



[cruiseroutfit]

You have my attention!

Do you get many people asking about using these to convert to a twin stick manual shift set up?

Yes, in fact more as of recent. We stock the AA and Valley Hybrids twin stick kits and can build a setup that mates the twin-stick and manual conversion kits to get you the needed parts. For the AA kit I’d have to assemble those as all of our current in-stock kits are assembled to work with stock linkage. The Valley Hybrid kit is a direct fit and we can ship together as soon as today. Please call shop to order, I’m away



[SKULLYOTA]

email sent



[cruiseroutfit]

email sent

The guys at the shop get you all taken care of?



[SKULLYOTA]

You bet man! Excellent service as usual



[NookShneer]

@cruiseroutfit i have a M15 x 1.5 Tap to donate to your customers conversion.



[SKULLYOTA]

@cruiseroutfit i have a M15 x 1.5 Tap to donate to your customers conversion.

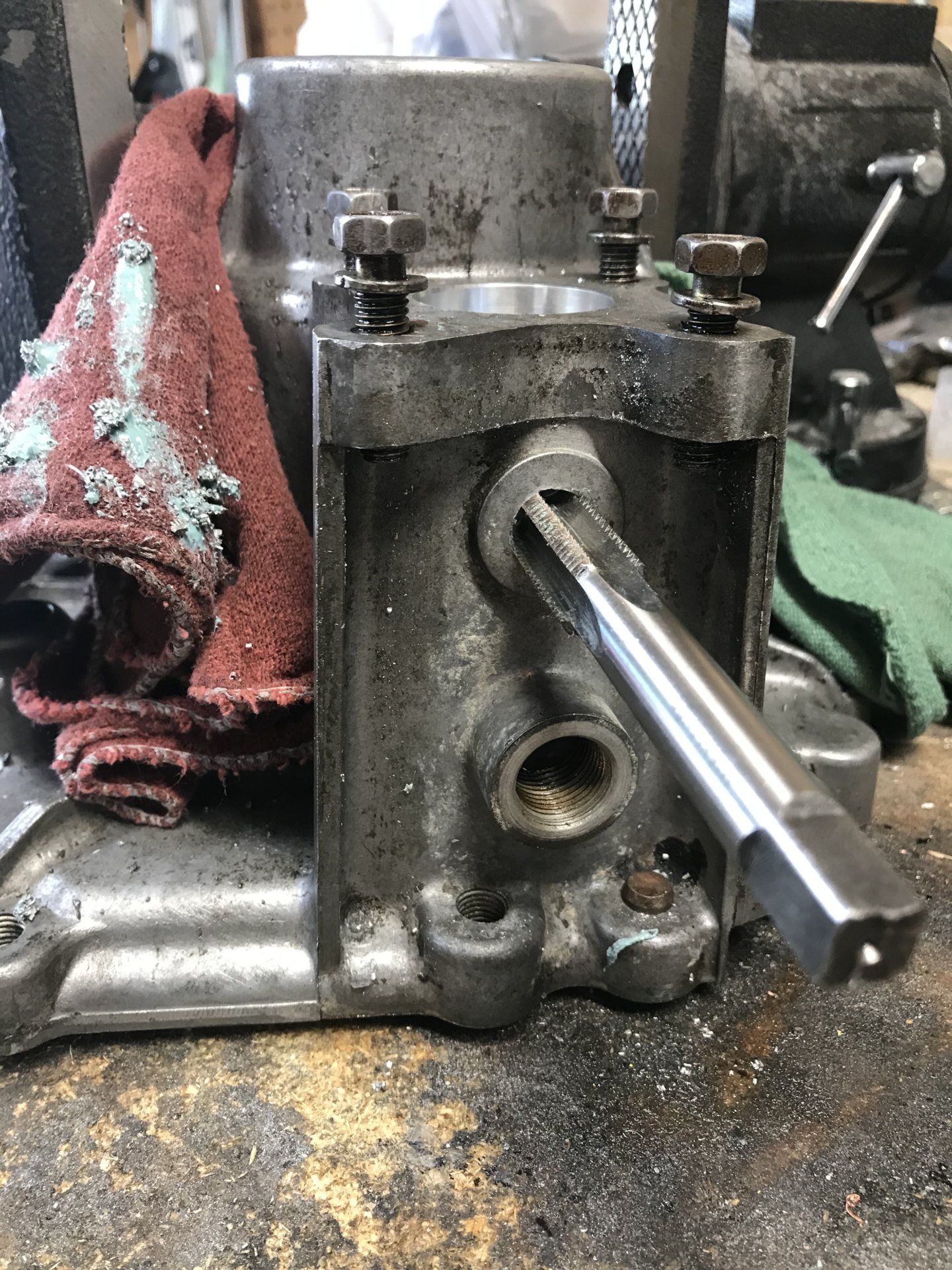

View attachment 1993028

I bought mine on Amazon, pretty good price



[cruiseroutfit]

@cruiseroutfit i have a M15 x 1.5 Tap to donate to your customers conversion.

View attachment 1993028

Nice! How did the conversion work out?



[NookShneer]

Nice! How did the conversion work out?

Still on the bench. I need to get everything back together. But I’ll et you know



[SKULLYOTA]

Old thread, but I finally installed mine in my HZJ73, along with an AA twin stick. works awesome
