SOLD WTB Original Drivers Seat for 1969 1970 1971 FJ40 (2 Viewers)

[KentOffill]

Vehicle Model

1. 40 Series

Location

Kansas City, Missouri United States

WTB Original Drivers Seat for 1969 1970 1971 FJ40. I have a 1970 and only have a few parts. I have 2 rails, bottom bracket that sits on the tool box, the the bottom seat frame. I am looking for a bargain in any condition. Would be great if I could find someone close to Kansas City. Thanks....



[Yotajeff]

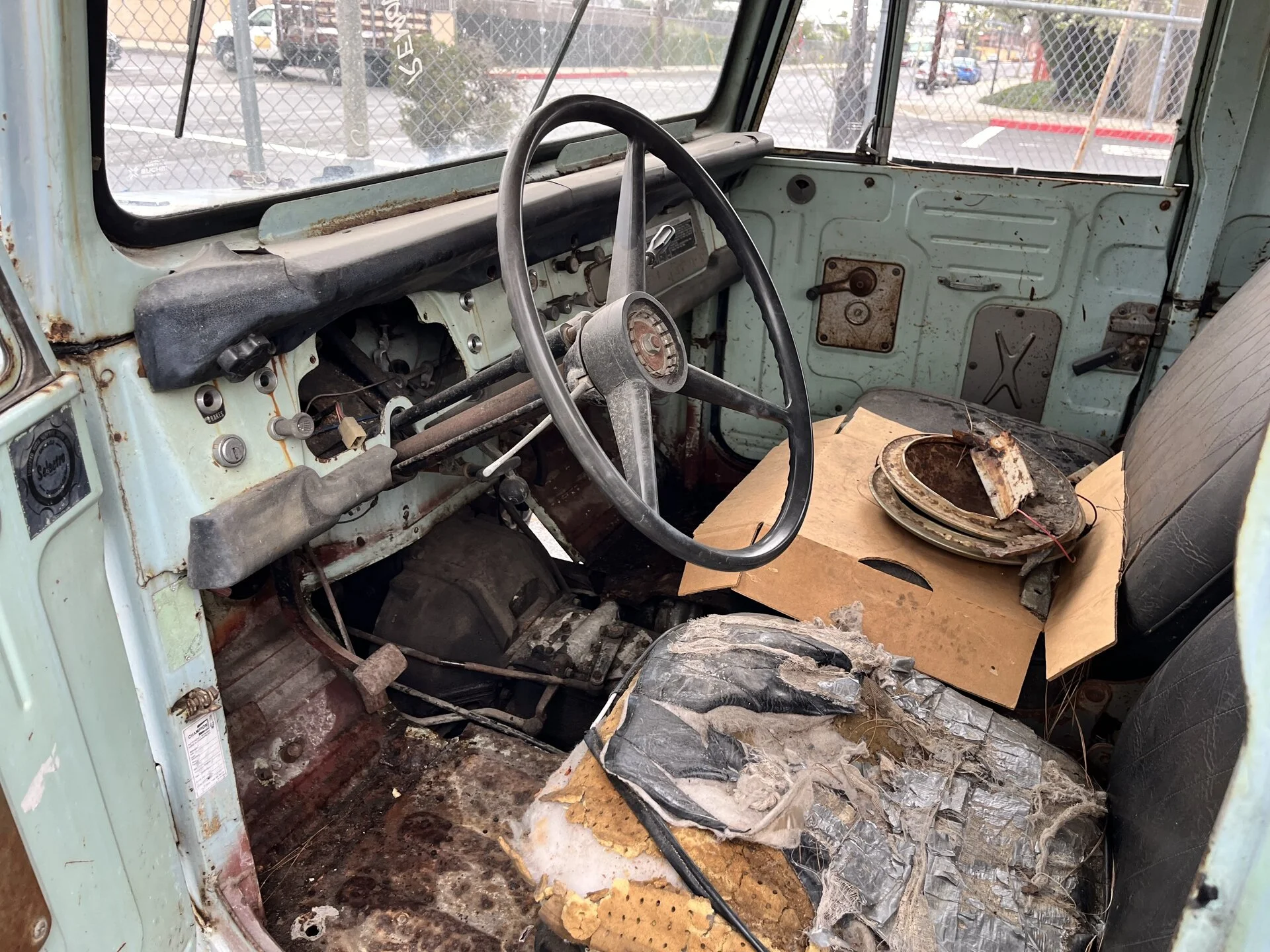

I have these that need upholstering. Unfortunately for theyre in Los Angeles so shipping could get expensive. 818-900-8321



[KentOffill]

What year is it? Is the drivers seat original? Does it sit on the toolbox? How much would you sell the drivers seat with its hardware for? Thanks...



[KentOffill]

Still looking for original drivers seat. I found a few parts stashed in a box I forgot about, so I only need the bottom and back seats with cushion springs. I have the bottom frame that sits on the tool box and the plate that sits on that including the rails.



[KentOffill]

Bump...



[hyhpe]



[Living in the Past]

WTB Original Drivers Seat for 1969 1970 1971 FJ40. I have a 1970

70 model had two versions of driver's seat. The early one that's in my 10/69 (70 model) uses a plastic Tee handle you pull to flip the back forward. 11/69 switched a lever you moved forward to release the back. You most likely need 11/69-9/72. The 9/67-11/69 would work but the early style Tee handle breaks and is hard to operate.



[65swb45]

That is a very good point Paul.



[KentOffill]

70 model had two versions of driver's seat. The early one that's in my 10/69 (70 model) uses a plastic Tee handle you pull to flip the back forward. 11/69 switched a lever you moved forward to release the back. You most likely need 11/69-9/72. The 9/67-11/69 would work but the early style Tee handle breaks and is hard to operate.

Thank you for that information.



[KentOffill]

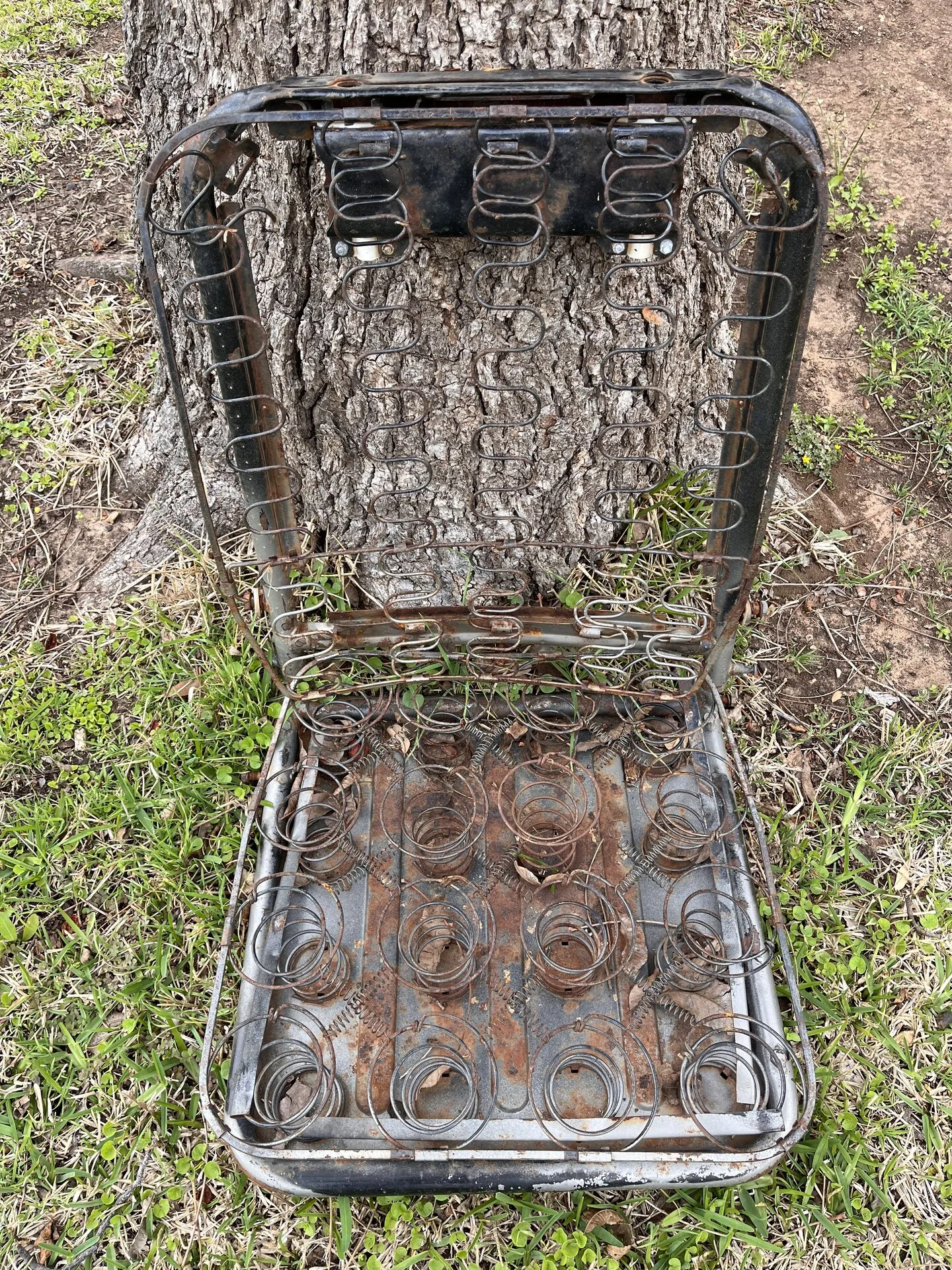

View attachment 3595639

What year is that from?



[hyhpe]

Not sure but it is same as a 1970.



[Living in the Past]

Not sure but it is same as a 1970.

Not seeing a latch on the outside but those holes for headrest I seeing started 10/69 in the JDM. I have some 71 seats with the passenger split back. I can feel the holes for the headrest.

I would interest in the distance from the inside on one hole to the far side of the other hole to figure center to center on headrests. I show the JDM headrest the same 10/69-1/79. That a bench seat and think it wider than our 9/72-1/79 buckets. Would nice if they were the same but I doubt it.



[KentOffill]

Not seeing a latch on the outside but those holes for headrest I seeing started 10/69 in the JDM. I have some 71 seats with the passenger split back. I can feel the holes for the headrest.

I would interest in the distance from the inside on one hole to the far side of the other hole to figure center to center on headrests. I show the JDM headrest the same 10/69-1/79. That a bench seat and think it wider than our 9/72-1/79 buckets. Would nice if they were the same but I doubt it.

My biggest concern in what I buy is that my 1970 FJ40 came with reupholster covers for the front seats and I did the passenger bench seat and it fit perfectly. I need the bucket seat covers to fit on the seat that I buy so everything matches. Do you know the year range of the bucket seats (minus tool box frame, etc...seat only) that should match to reupholster covers for a 1970? If I buy a raw frame as shown hyhpe I have the rest of the parts to make it work but if the raw frame doesn't fit my covers I just wasted a bunch of time and money...have a lot of time but little money. I have another guy who has a seat from 1965 and it is pretty complete but not sure of fitment. Thanks for your help.



[RobFJ]

I have an early seat if you’re interested. I measured it compared to the front seat I installed in my 1969 and all of the dimensions come out the same (back plates, screw placements, etc). Here’s a few pics of the seat and screw placement measurements.



[KentOffill]

Not sure but it is same as a 1970.

Another gentleman that was working on a deal with me came through. If things don't work out I will check back in to see if you still have it. Thanks...



[KentOffill]

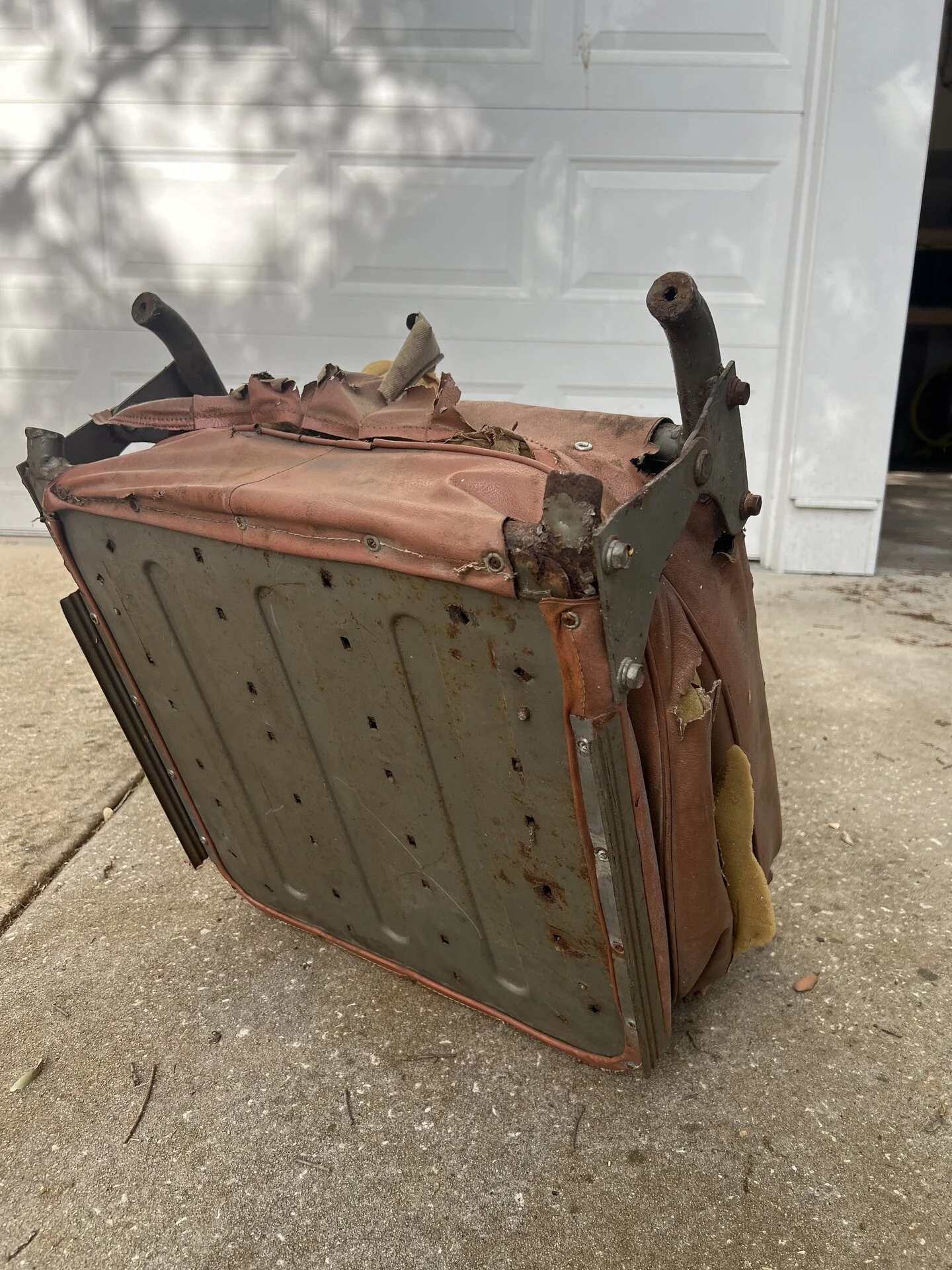

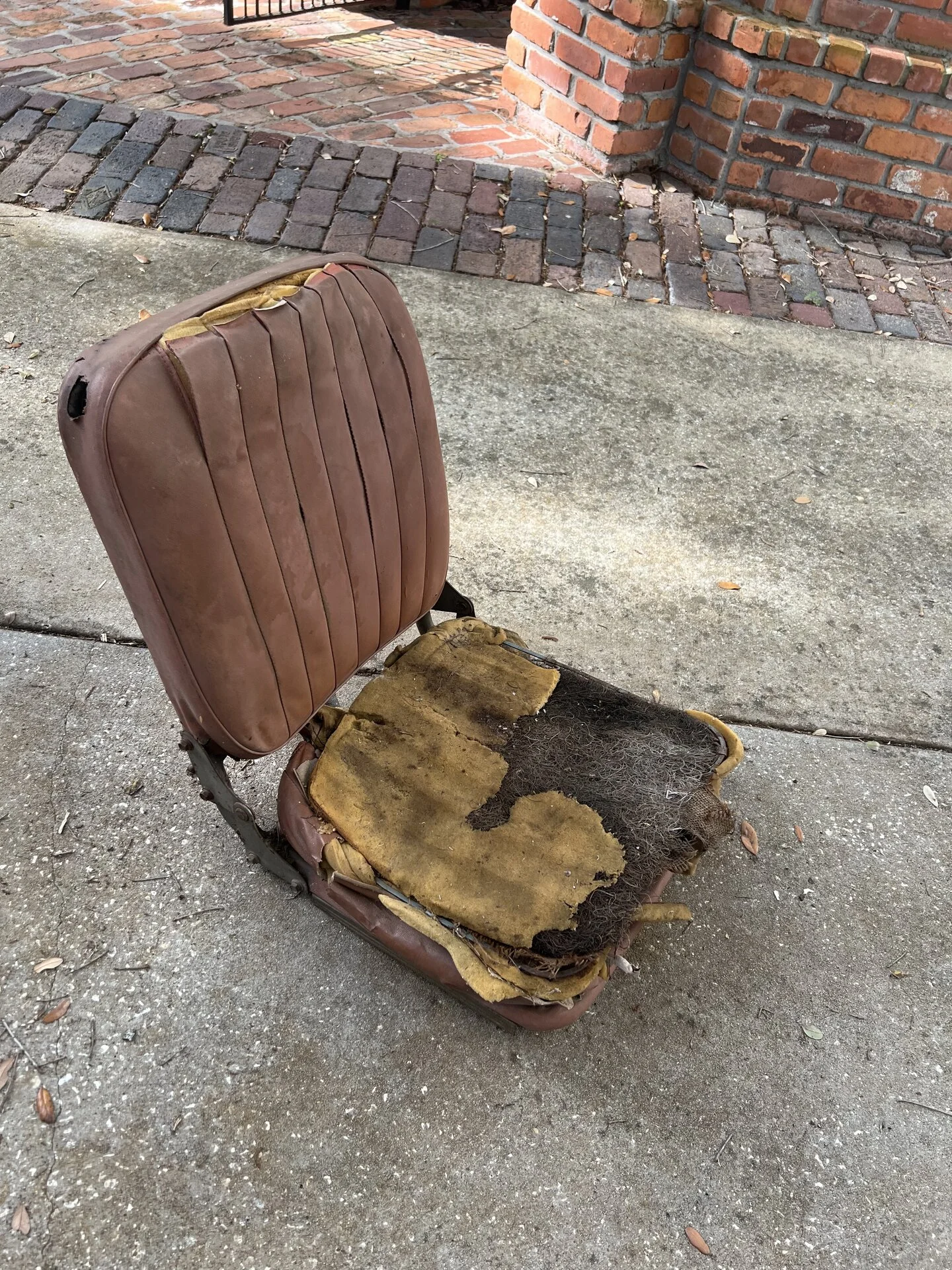

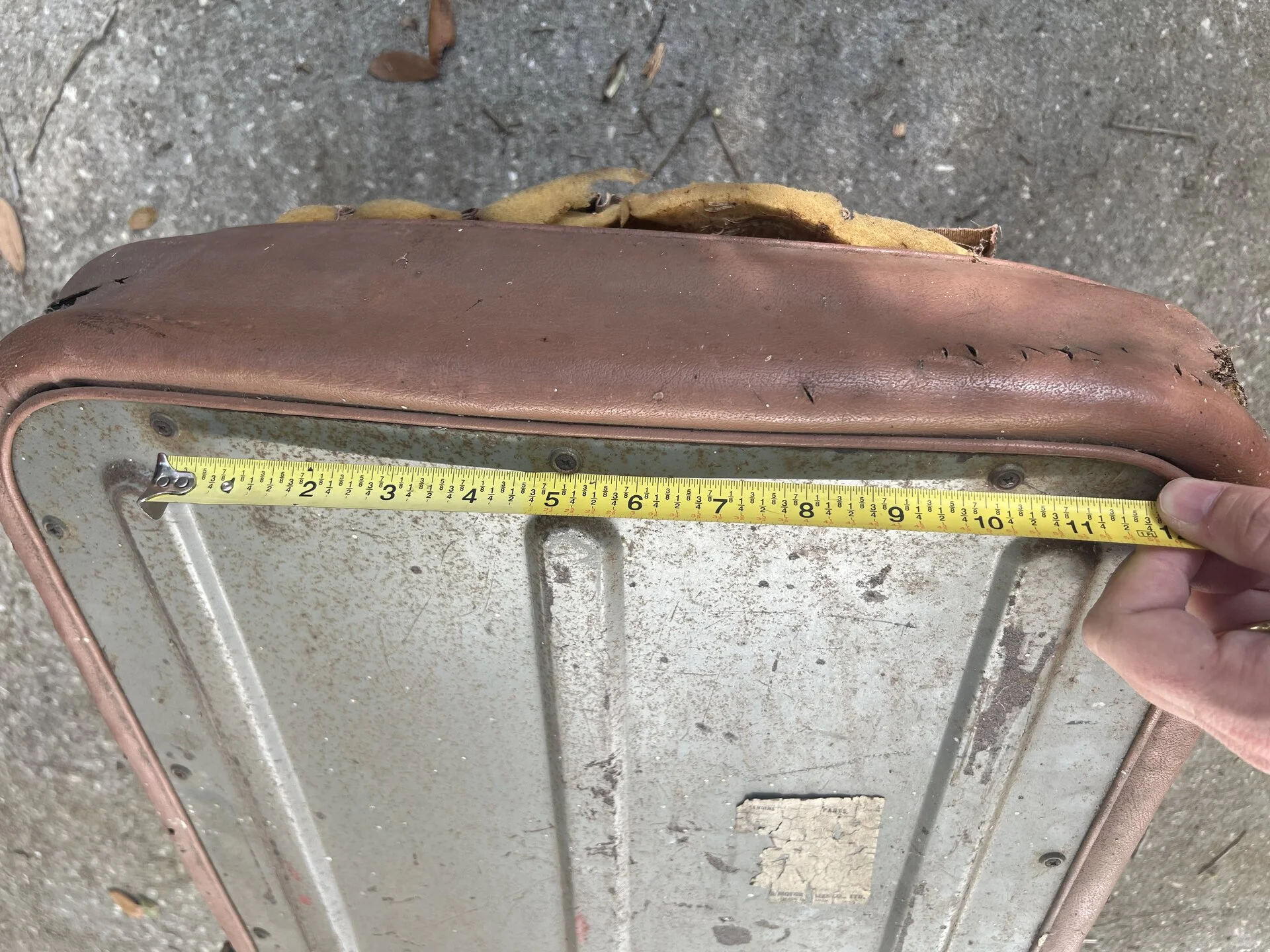

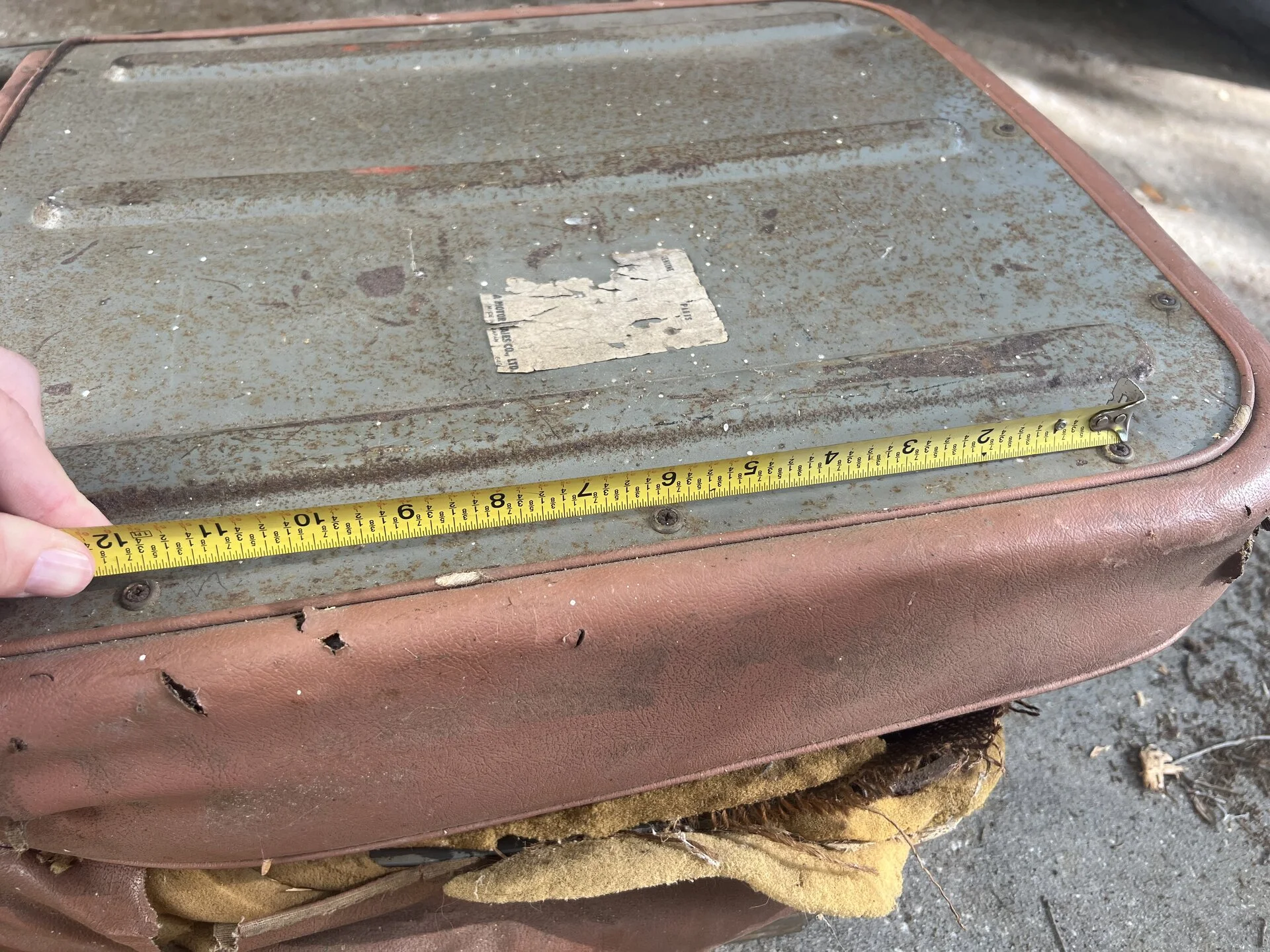

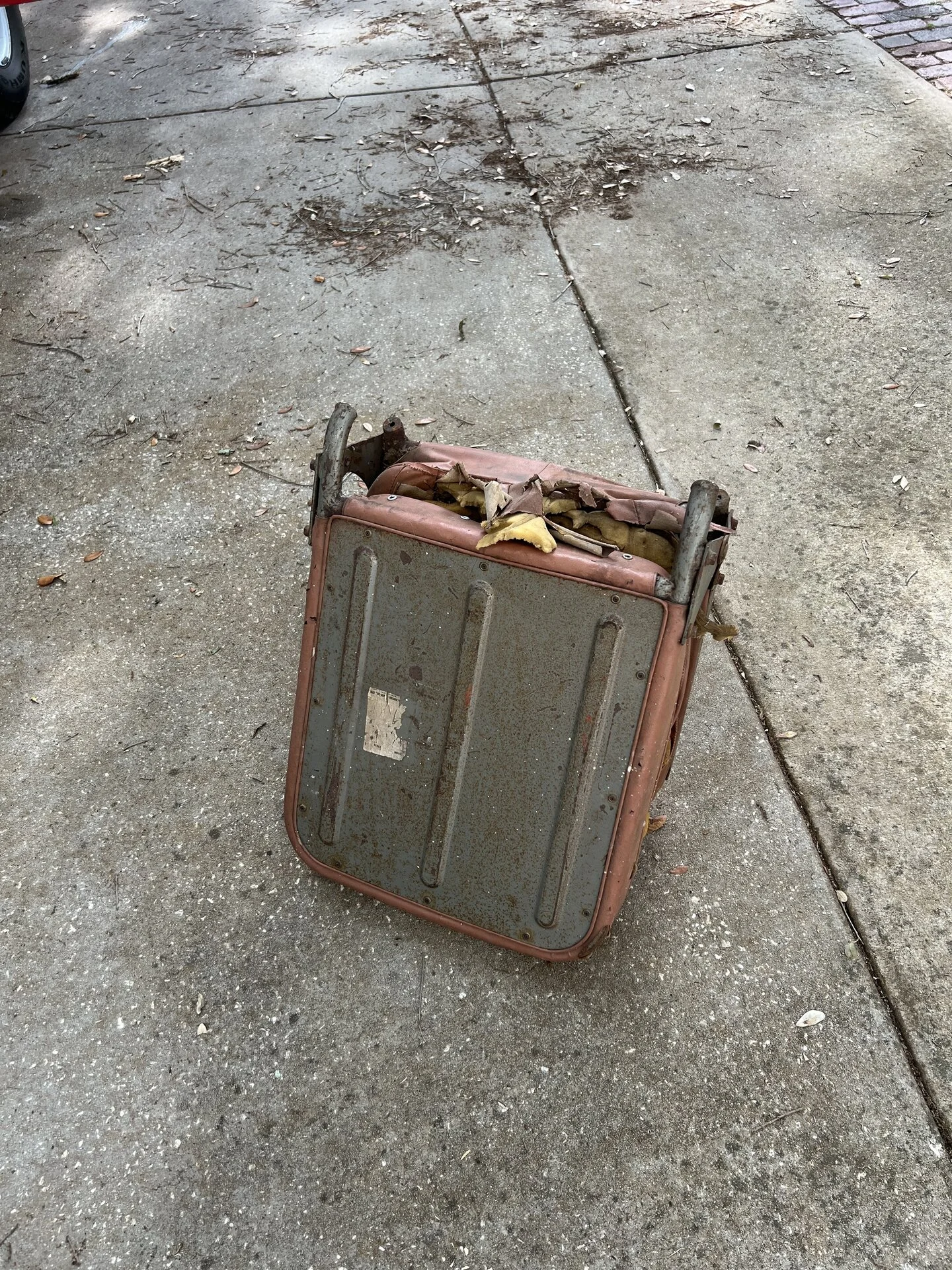

I have an early seat if you’re interested. I measured it compared to the front seat I installed in my 1969 and all of the dimensions come out the same (back plates, screw placements, etc). Here’s a few pics of the seat and screw placement measurements.
View attachment 3597025View attachment 3597026View attachment 3597027View attachment 3597028View attachment 3597029

Another gentleman that was working on a deal with me came through. If things don't work out I will check back in to see if you still have it. Thanks...
