wiring diagram for turn wiper light switch (2 Viewers)

[85lc]

Does anyone have the wiring diagram for the turn / wiper / light switch? My switch works fine except the connection for the bright lights appears to have a short or broken wire. My brights will not go on though I can blink the light by pulling back on the switch.



[Dubs2017]

This thread is a good resource for troubleshooting

Headlight troubleshooting thread - https://forum.ih8mud.com/threads/headlight-troubleshooting-thread.423985/



[g-man]

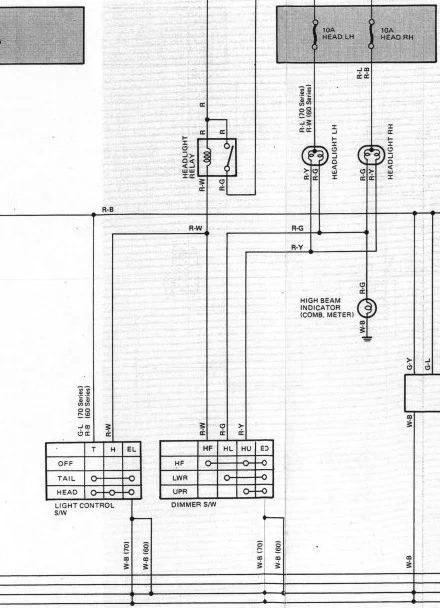

wires at the bottom are ground, wires running off to the left are tail light power/relays etc and the wires running off the page to the right go to running lights. this is for USA 84-90. I have heard of some issues with aftermarket led lighting installed on FJ62 and loss of high beam. So if yours is a 62 may want to search on that.



[g-man]

Note the it says "60 series" in parenthesis just above the light control s/w in the bottom left. This means that in a 60 series the wire color is R-B or red with black stripe. Notice R-W or red with white stripe is indicated for power coming from the headlight relay and feeds both the dimmer switch and the headlight s/w.



[g-man]



[85lc]

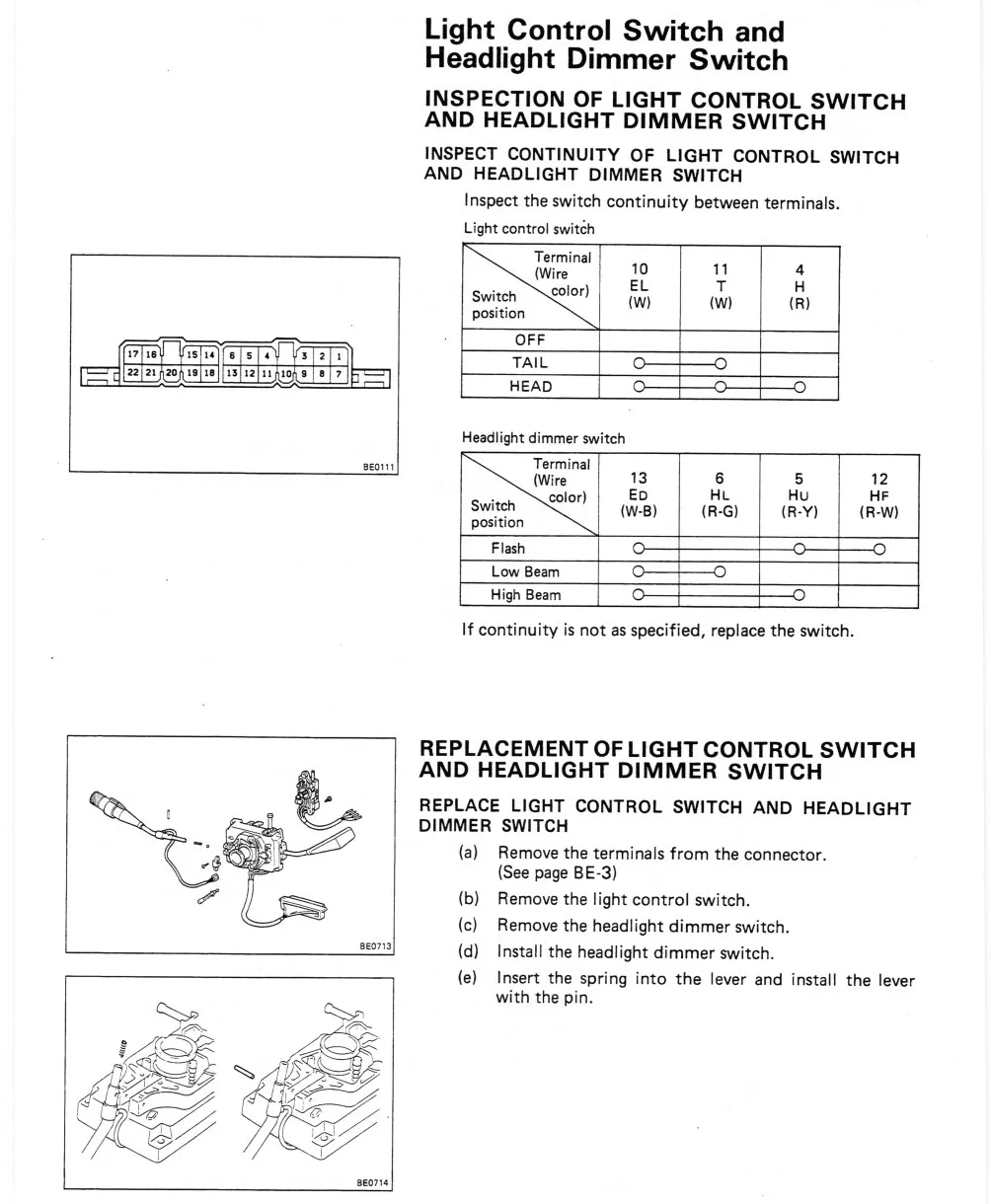

View attachment 3565843

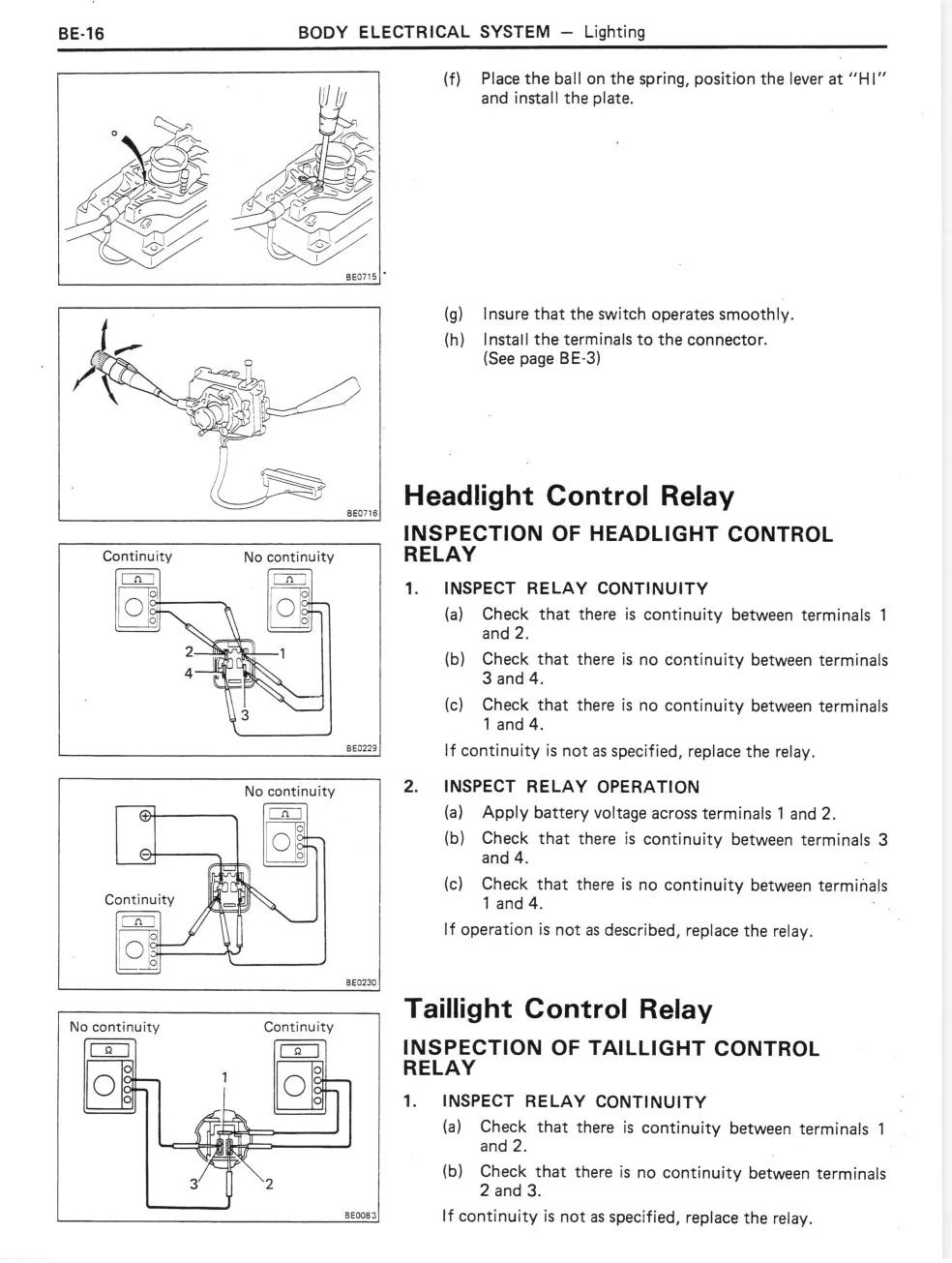

View attachment 3565845

G-man,
Thanks. Just what I was looking for.
