Winch mount-in progress

MaddBaggins

Remember the KnightRider!
Joined
Feb 22, 2005
Messages
3,548
Location
The Old Pueblo
Winch mount - done

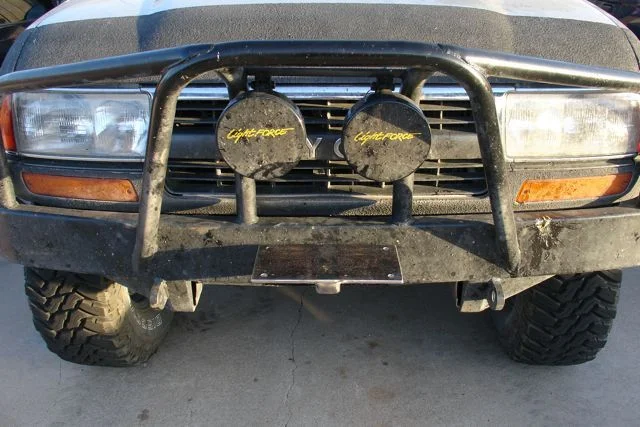

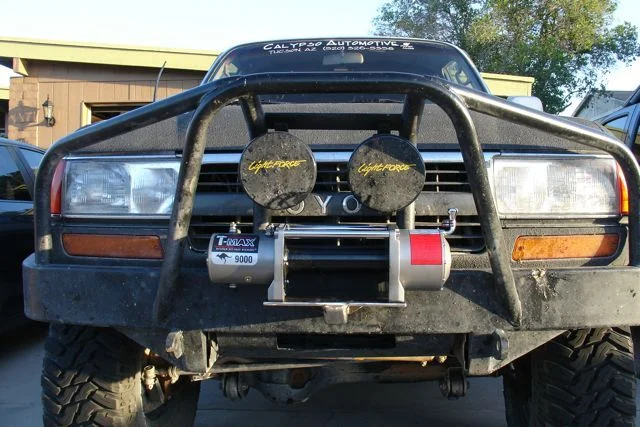

So I have finally purchased a winch and started to build a winch mount. Some of you may remember that 3+ years ago when I built my front bumper, I planned on putting in a receiver style winch on my rig. That day has come and here's a few pics of the project in progress.

Never mind the bug spatter, I drove thru Florence on Saturday. Bugs everywhere! Check out the splat under the drivers head light.

Last edited:
Joined
Sep 16, 2002
Messages
1,642
Location
Tucson, AZ
Let me know when you plan to go out for "winching practice". I've got a new (to me) Warn that I'd like to play around with.

Rocky


MaddBaggins

Remember the KnightRider!
Joined
Feb 22, 2005
Messages
3,548
Location
The Old Pueblo
Great idea!
Hopefully I'll get this done this week. I still need to fab up the brackets for the fairlead, wire it up, and spool on the synth line I got for it.


splitshot

Head cook, Bottle washer, and Peace keeper.
SILVER Star
Joined
Nov 17, 2006
Messages
7,696
Location
Rodent Central, Az
Cool, now I'll have someone to pull my junk out :D

Quite the bug splat, immagine catching that one in the face on a motorcycle :eek:

Joined
Apr 4, 2006
Messages
2,191
Alvin, would it be worthwhile bracing the bottom between the receiver tube and the mount plate? I'm thinking of a situation where the pull is mainly on one side of the drum.


MaddBaggins

Remember the KnightRider!
Joined
Feb 22, 2005
Messages
3,548
Location
The Old Pueblo
Alvin, would it be worthwhile bracing the bottom between the receiver tube and the mount plate? I'm thinking of a situation where the pull is mainly on one side of the drum.


Do you mean gusset from the plate to the tube? I did add one on each side at the rear of the plate and I'm thinking of adding another more toward the front of the plate.

Joined
Apr 4, 2006
Messages
2,191
Do you mean gusset from the plate to the tube? I did add one on each side at the rear of the plate and I'm thinking of adding another more toward the front of the plate.

Now that you mention it, I can see it in the back. I thought about a gusset going all the way to the outside edge of the plate.

Joined
Aug 19, 2004
Messages
674
Nice work...I'd gusset front and rear on the winch platform. Brian has this setup with his 90 4 Runner and likes it. Will it fit in the rear receiver so you could pull from the rear?

Joined
May 26, 2005
Messages
7,972
Location
Phoenix
Website
www.tontorecreationalliance.org
I recently got a receiver winch, and Tools pointed out that some people have bent the receiver tube with side pulls. I'm gonna shim both ends of the mount so that if the tube starts to bend, it will hit the bumper right away. I'm thinking of some threaded rod at each end, so it can be adjusted for use on the rear or on someone else's truck. Clear as mud? I'm also thinking of running a piece of 1/4" plate inside the tube top and bottom to reinforce it a bit. Solid would be better, and if I ever make my own mount (this one is a Ramsey) I'll start with a solid 2"x2". Drilling that should be fun... :D

-Spike


MaddBaggins

Remember the KnightRider!
Joined
Feb 22, 2005
Messages
3,548
Location
The Old Pueblo
Nice work...I'd gusset front and rear on the winch platform. Brian has this setup with his 90 4 Runner and likes it. Will it fit in the rear receiver so you could pull from the rear?

With an extension it will fit in the rear bumper. I'll worry about that later. Front end first.


MaddBaggins

Remember the KnightRider!
Joined
Feb 22, 2005
Messages
3,548
Location
The Old Pueblo
I recently got a receiver winch, and Tools pointed out that some people have bent the receiver tube with side pulls. I'm gonna shim both ends of the mount so that if the tube starts to bend, it will hit the bumper right away. I'm thinking of some threaded rod at each end, so it can be adjusted for use on the rear or on someone else's truck. Clear as mud? I'm also thinking of running a piece of 1/4" plate inside the tube top and bottom to reinforce it a bit. Solid would be better, and if I ever make my own mount (this one is a Ramsey) I'll start with a solid 2"x2". Drilling that should be fun... :D

-Spike

Nice idea on the shims. My plate is within 1/4" of the bumper, I could easily add stops to it so it doesn't get side to side movement.


MaddBaggins

Remember the KnightRider!
Joined
Feb 22, 2005
Messages
3,548
Location
The Old Pueblo

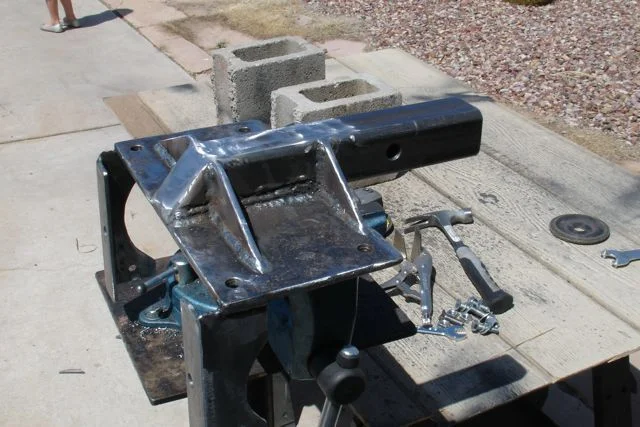

Construction is finished. Now it just needs paint, wire it up and spool on the rope.

I added extra gussets underneath and some shims at the rear of the plate to limit side to side movement.
The fairlead brackets are welded at the bottom and bolt to the top of the winch at the top. They are shaped to fit the body of the winch.
The control box bracket is welded to the fairlead bracket.

I didn't mention before, but the main plate is 3/8" plate, the receiver tube is 1/4". The gussets and brackets are either 1/4" or 3/16" plate and L bracket.

Pics

Last edited:

MaddBaggins

Remember the KnightRider!
Joined
Feb 22, 2005
Messages
3,548
Location
The Old Pueblo
some more

When the painting is done, I'll get some more pics of the finished project. Then the wiring and spooling on the rope and she's done.

Last edited:

MaddBaggins

Remember the KnightRider!
Joined
Feb 22, 2005
Messages
3,548
Location
The Old Pueblo

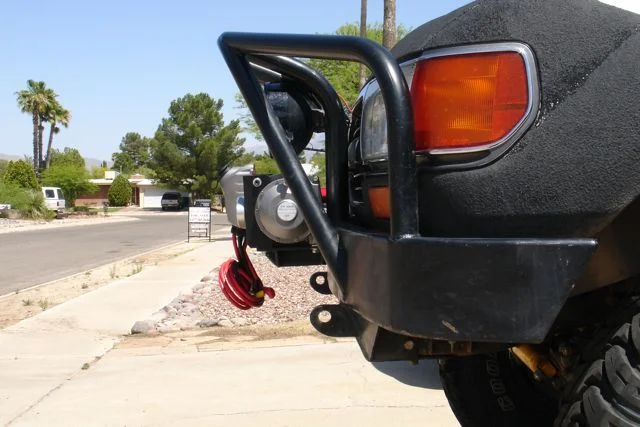

Here it is painted and mounted up. All thats left is wiring it and spooling on the rope.

Check out my reflection in the light cover. yes I washed the truck today, only the second time this year.
