What is in m my 14 bolt

Joined
Oct 6, 2004
Messages
1,575
Location
Longmont, CO

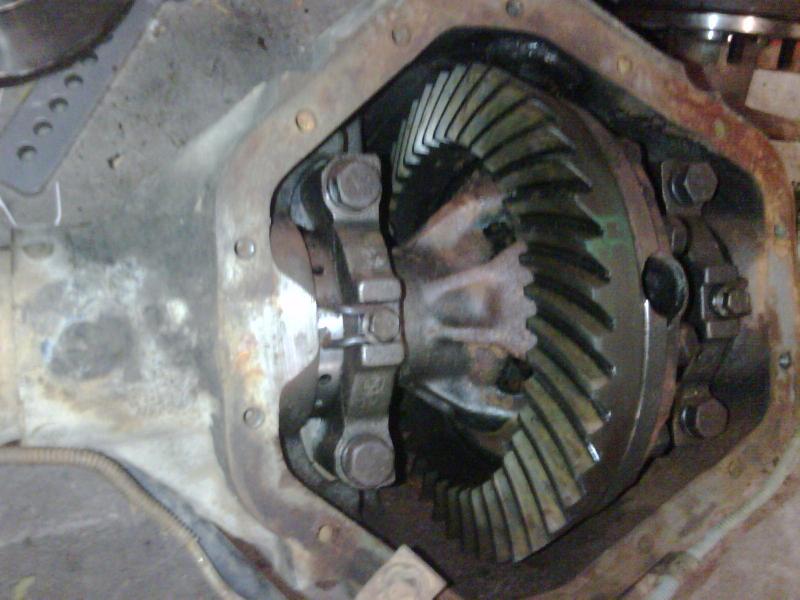

This is my first 14 bolt and I dont know what i'm looking at when I opened this guy up. I dont see spider gears. Is this a posi unit?
14bolt diff a.jpg


Poser

Oh...Durka Durka Durka.
s-Moderator
Supporting Vendor


Joined
Oct 1, 2003
Messages
20,197
Location
MN
What happens to the opposite axle shaft when you rotate a axle shaft?

Joined
Oct 6, 2004
Messages
1,575
Location
Longmont, CO
Cool thanks guys.

pirate4x4 said:
These pics are of the carrier removed. Mine is fully welded up making it a huge spool. I have read about some folks just welding the spider / side gears by filing in the valley's between the teeth and then reinstalling them. I personally have never understood this. It's not as if you need to save the carrier, since they are cheap and extremely plentiful. Also, I would think that in this manner, those welds would see quite a bit of shock loading. It's also a real bugger to reassemble the carrier and gears after you have just welded up the teeth and are trying to save the carrier.
what do you guys think of this?


Mace

rock scientist..
Staff member
s-Moderator



Joined
Feb 17, 2002
Messages
21,461
Location
Las Vegas
It's a 14 bolt, what do you want to hear about it?? lol

BTW, lincoln locking those things is uber easy.

Weld the living crap out of it.


Mace

rock scientist..
Staff member
s-Moderator



Joined
Feb 17, 2002
Messages
21,461
Location
Las Vegas
On mine I took it apart and welded the teeth together. It never failed, but I have since replaced the spiders with a mini spool.

I am not a huge fan of welding the carrier to the teeth on a 14 bolt. Mostly because a detroit uses the stock carrier on a 14 bolt. If you weld it like the pictures show, you will never get the case halves apart.

An ARB does replace the stock carrier tho..

Joined
Feb 16, 2006
Messages
233
Location
FT Collins, Co
If its got 4 "holes" in the sides, theres a cross inside which equals spider gears. If instead of the 4 holes, youve got 3, its got a gov lock in it. That carrier is junk, got find a open carrier and put a detroit, spool, etc, whatever in it.

Joined
Oct 18, 2006
Messages
546
Location
Lake Tahoe
You could look around for a used detroit.....14 bolt detroits are about the cheapest lockers ($$$ wise) out there. If you aren't gonna drive it on the street much break out the lincoln :)


Mace

rock scientist..
Staff member
s-Moderator



Joined
Feb 17, 2002
Messages
21,461
Location
Las Vegas
If its got 4 "holes" in the sides, theres a cross inside which equals spider gears. If instead of the 4 holes, youve got 3, its got a gov lock in it. That carrier is junk, got find a open carrier and put a detroit, spool, etc, whatever in it.
Sure looks like an open carrier to me..
