My FJ has a GM 2 Jet rochester carburetor. He fashioned a coat hanger from the throttle to the accelerator. It works, but I would like to repair it correctly. Does anyone have any input on how I can connect my new SOR pedal and cable to this correctly?

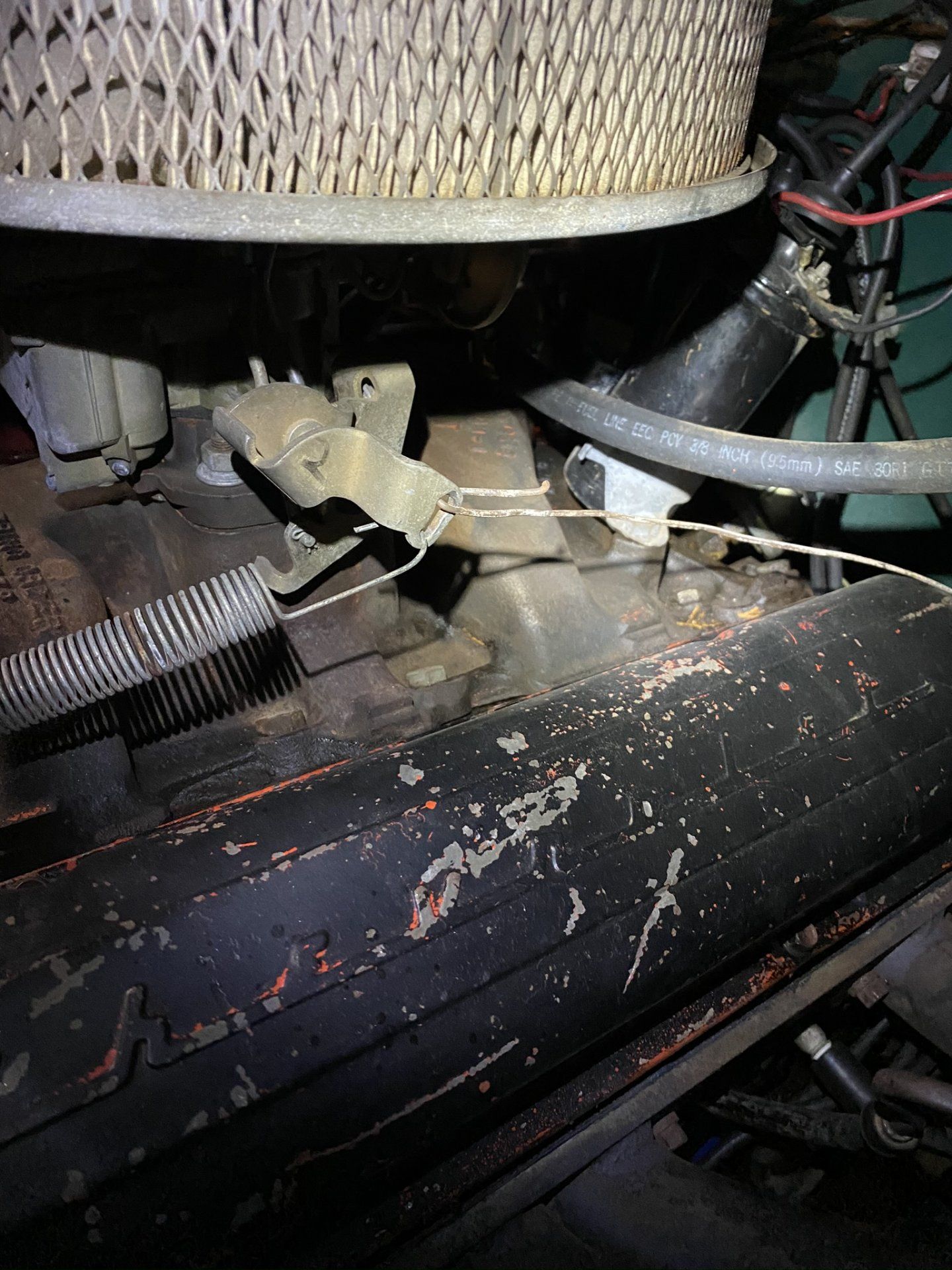

GM Carb hanger linkage.JPEG

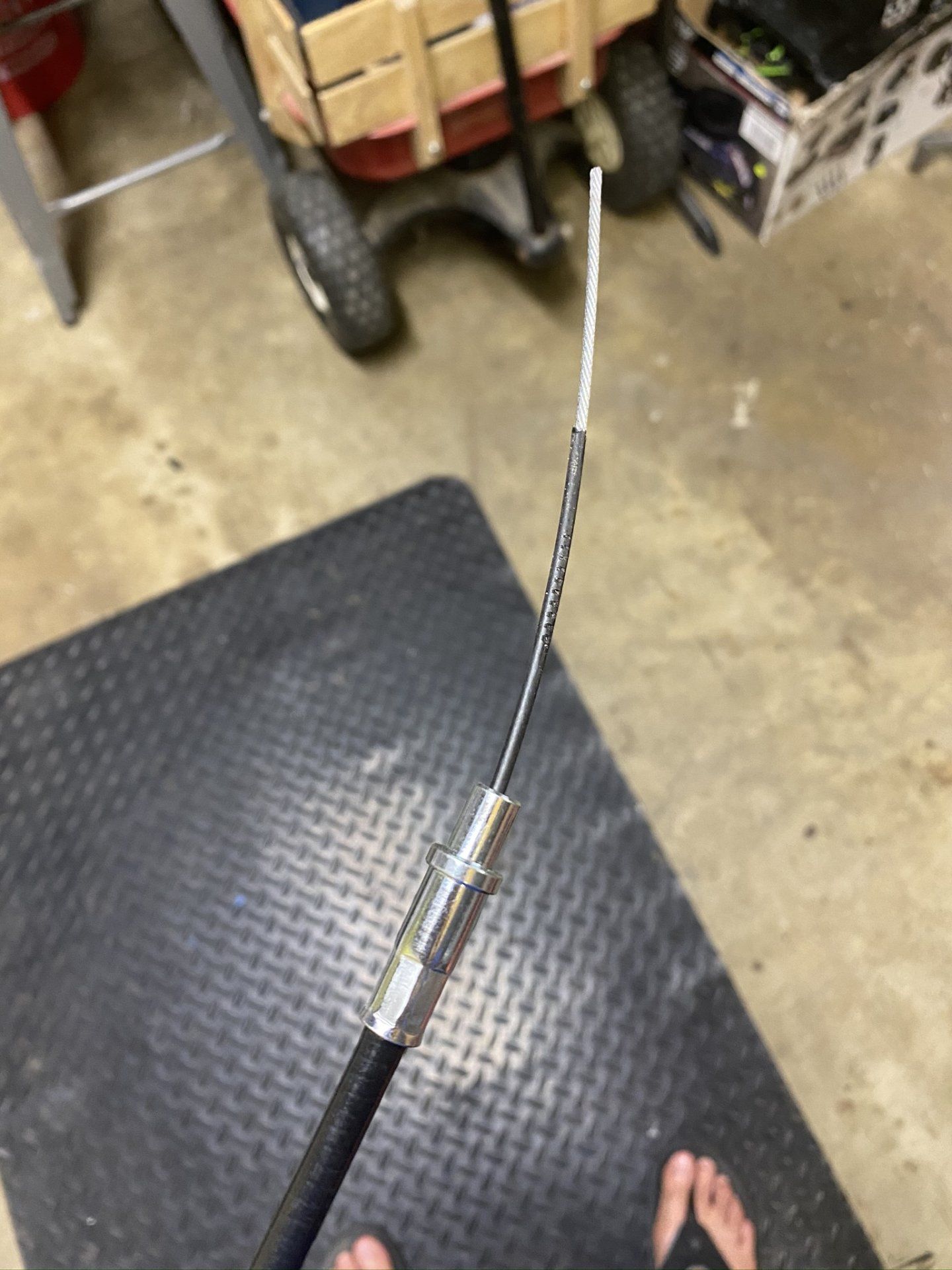

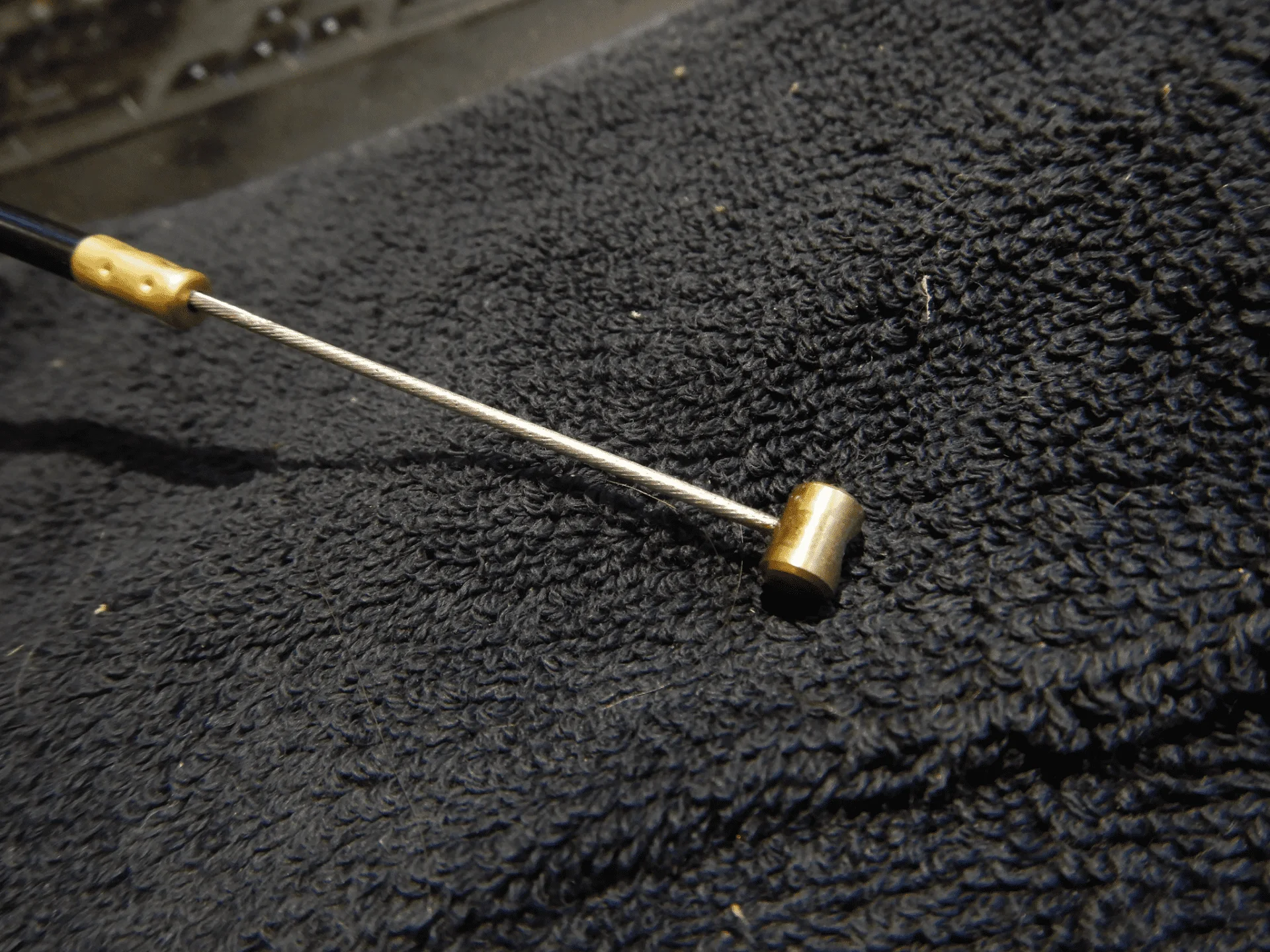

SOR accelerator cable.JPEG

Joined
Apr 2, 2008
Messages
9,534
Location
Victoria, BC


don’t know that carb, but I’ve used bike brake parts to connect throttle cables to connect to stock carb linkages. The linkage doesn’t appear to be there now.


ToyotaMatt

Factory Focus-Point Mind-Set Aproach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
12,206
Location
EAST COAST


PM me please ..............

i should be able to meat your needs






Joined
Dec 13, 2012
Messages
1,103
Location
KY

Behind the "2" on your linkage is a ball sticking out that the throttle should be connected to.

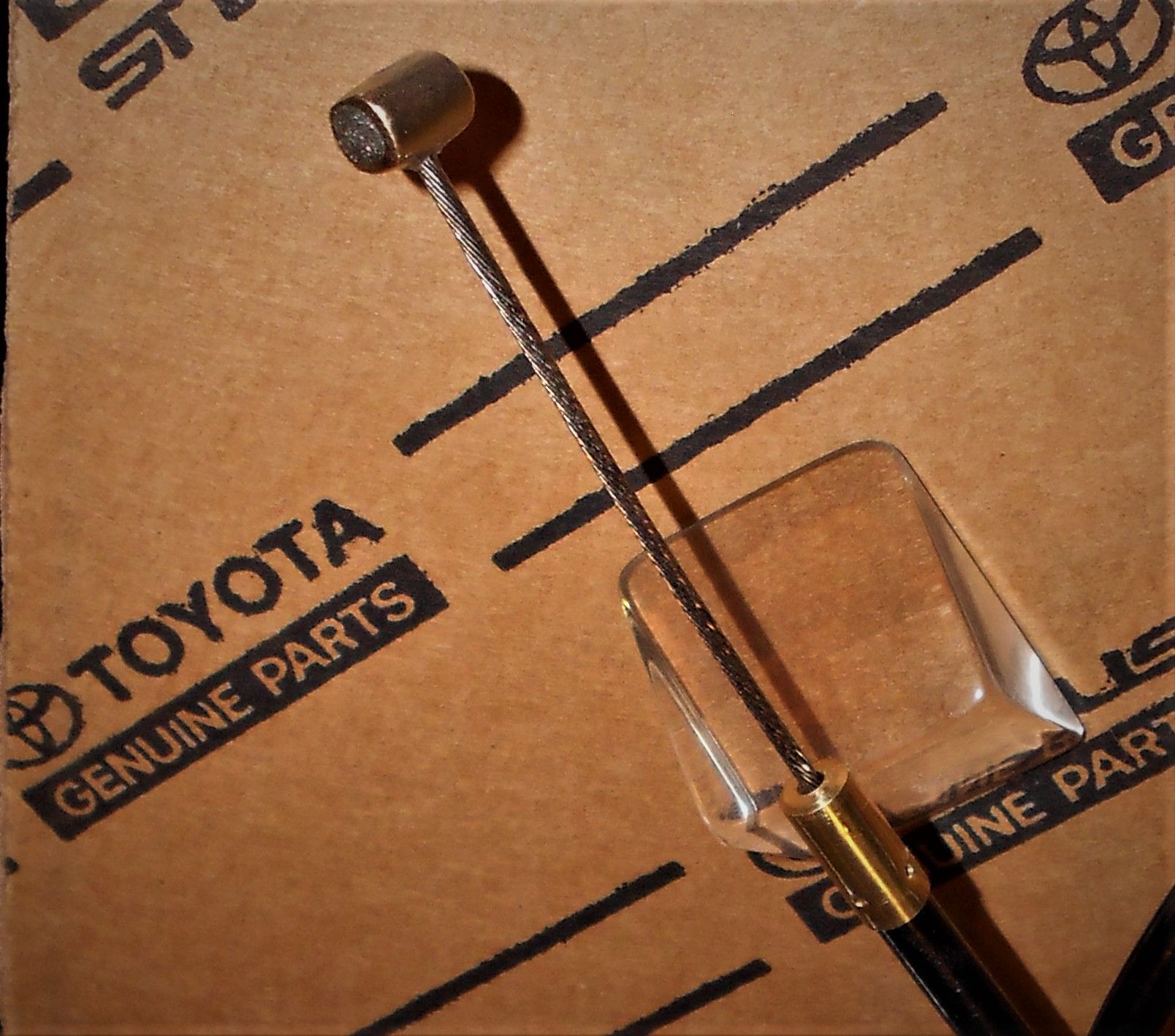

Something like this is what you need. It may require replacing the ball because they come in different sizes.



You will also need a bracket that the cable adjuster will pass through and allow adjustment of the cable.

Joined
Dec 13, 2012
Messages
1,103
Location
KY

Super helpful! Any ideas on where I would find the bracket and linkage assembly??
Companies like Lokar and Edelbrock would be a good place to start. Because you have a single 2 barrel carb it means less options as most of the brackets are built for 4 barrel setups or 3 two barrels. Look at the Edelbrock 8036 as it mounts to the 2 last intake bolts.



It is setup for the square plastic cable holders but a couple washers or bending your own bracket with a hole would be easily fabricated.

Lokar S-1034 should connect your cable to the carb.



I hope this helps and there are other options out there.


RWBeringer4x4

Mechanically Challenged
SILVER Star
Joined
Jul 11, 2012
Messages
4,932
Location
The People's Republik of Maryland

I have a V8 and a Rochester Quadrajet carburetor, which is basically the same thing you have with some extra vacuum actuated secondaries for when you need to go super fast.

I used a Lokar universal (cut-to-length) throttle cable P/N: TC-1000HT36
On the carburetor/intake you will need a bracket to mount the cable housing - I used something like P/N: 4914001 pictured below - but not exactly that. There are a bunch of universal brackets out there or you can build your own:


I built a patch to cover up the throttle linkage hole and give the other end of the cable something to mount to. I'll snap some pictures at lunch.


RWBeringer4x4

Mechanically Challenged
SILVER Star
Joined
Jul 11, 2012
Messages
4,932
Location
The People's Republik of Maryland

Ok here is my setup - something similar should work for you but there are plenty of ways to address this.

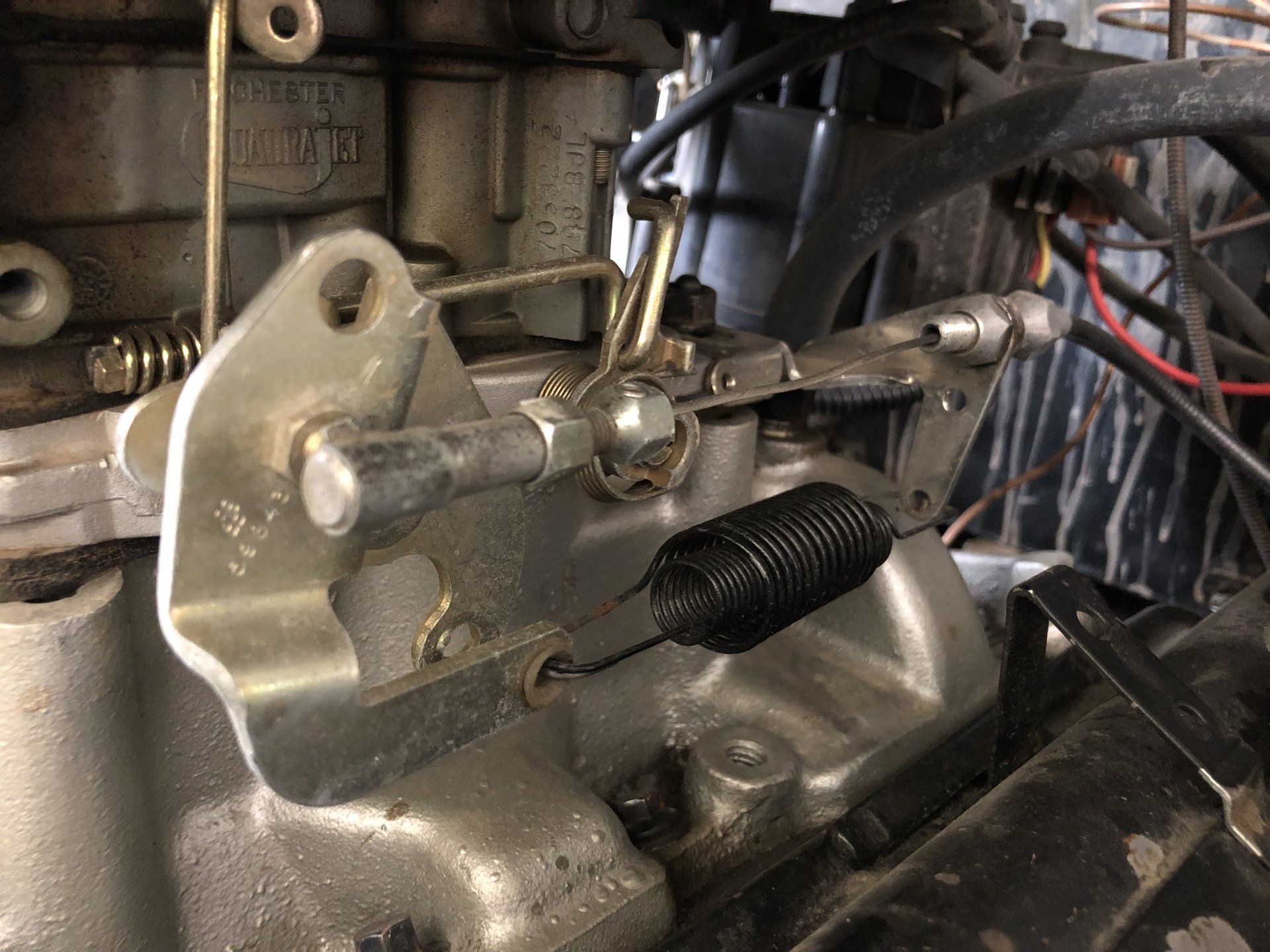

Lokar cut-to-length cable routed through the rear bracket I’d mentioned previously. Your cable end might be different (mine was a ball and socket) but the Lokar cable comes with a bunch of different ends. Throttle return spring routes back to the same bracket.

NOTE: on my old Buick Quadrajet that was on there before this one, the throttle action was reversed, so my throttle return spring had to run forward. It was the same idea it just required a second bracket mounted off the front of the intake manifold.

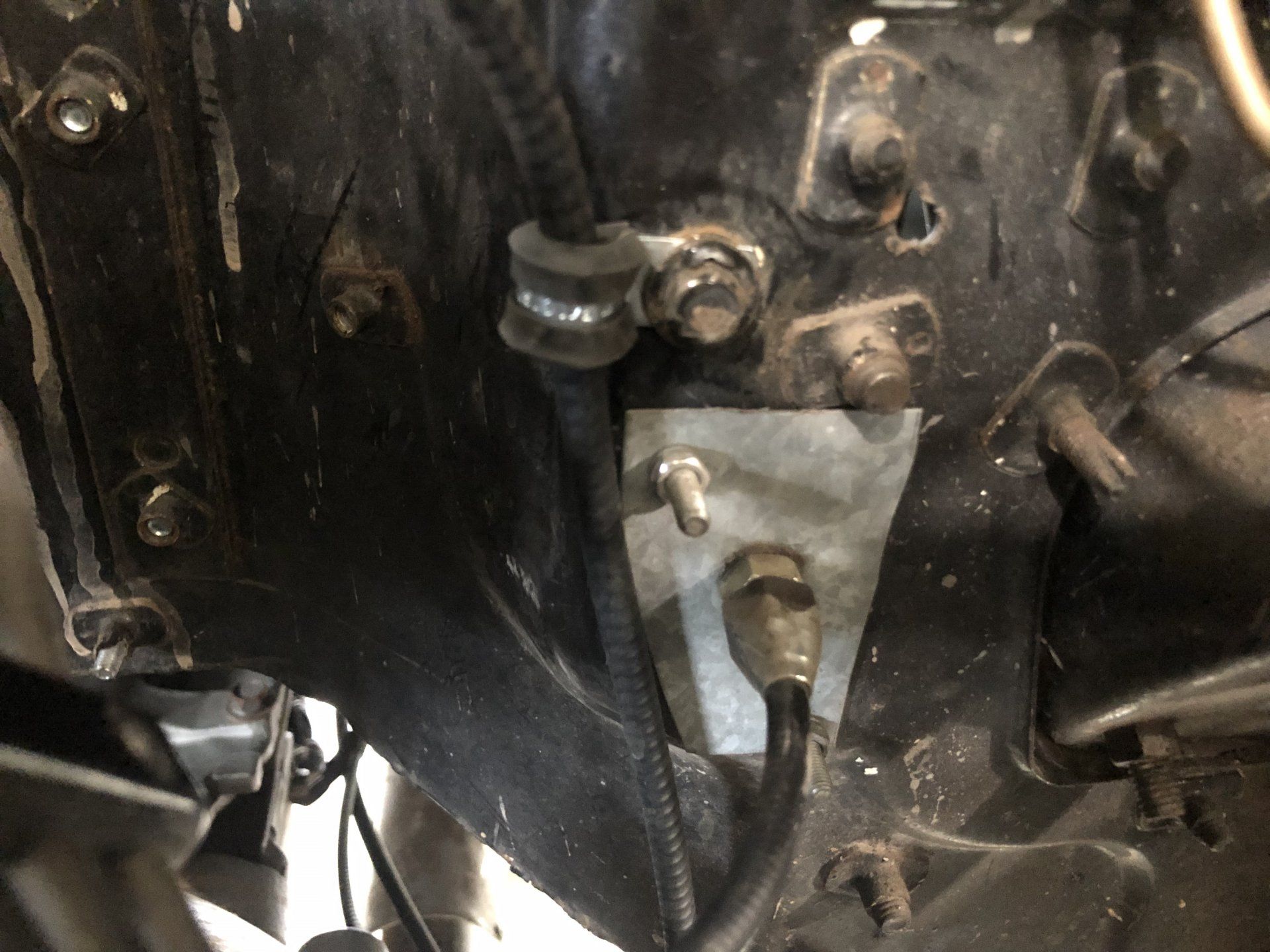

Here is the patch of aluminum I cut to cover the throttle linkage hole - nothing fancy just a piece of aluminum sheet metal bolted to the firewall with a hole in the middle for the other end of the cable housing to mount to.


Here is the pedal - I’m not sure if the SOR pedal is OEM or something different but oftentimes the OEM pedal will need to be modified to accommodate a cable instead of a linkage - this involves setting it back a bit to get the proper cable throw and sometimes adding a bracket to accept the cable end.

The PO is responsible for my pedal - it isn’t pretty but it gets the job done.


Slightly closer up of the “modification.” I didn’t like the size of the ball on the cable end as compared to the size of the hole in the pedal so I’m responsible for the copious stacking of “safety washers.” Again not ideal but it has been getting the job done for 5-6 years now.

If I was going to do any part over this would be it but for the time being it works.

Last edited:
Joined
Jun 5, 2007
Messages
4,978
Location
Brea, Calif.


Another choice, my ebay #264869163799, length trimmable, just need mounting bracket out on the engine side.

Joined
Aug 25, 2020
Messages
22
Location
Los Alamitos, CA
Finished it up yesterday! Accelerator feels great, much more reactive especially compared to the hanger set up. Thanks to everyone for the pics and advise. Ended up using a stainless steel electrical outlet cover for the firewall hole and the SOR cable and linkage kit.

On to the missing fan shroud, and than to tackle the disc brakes.

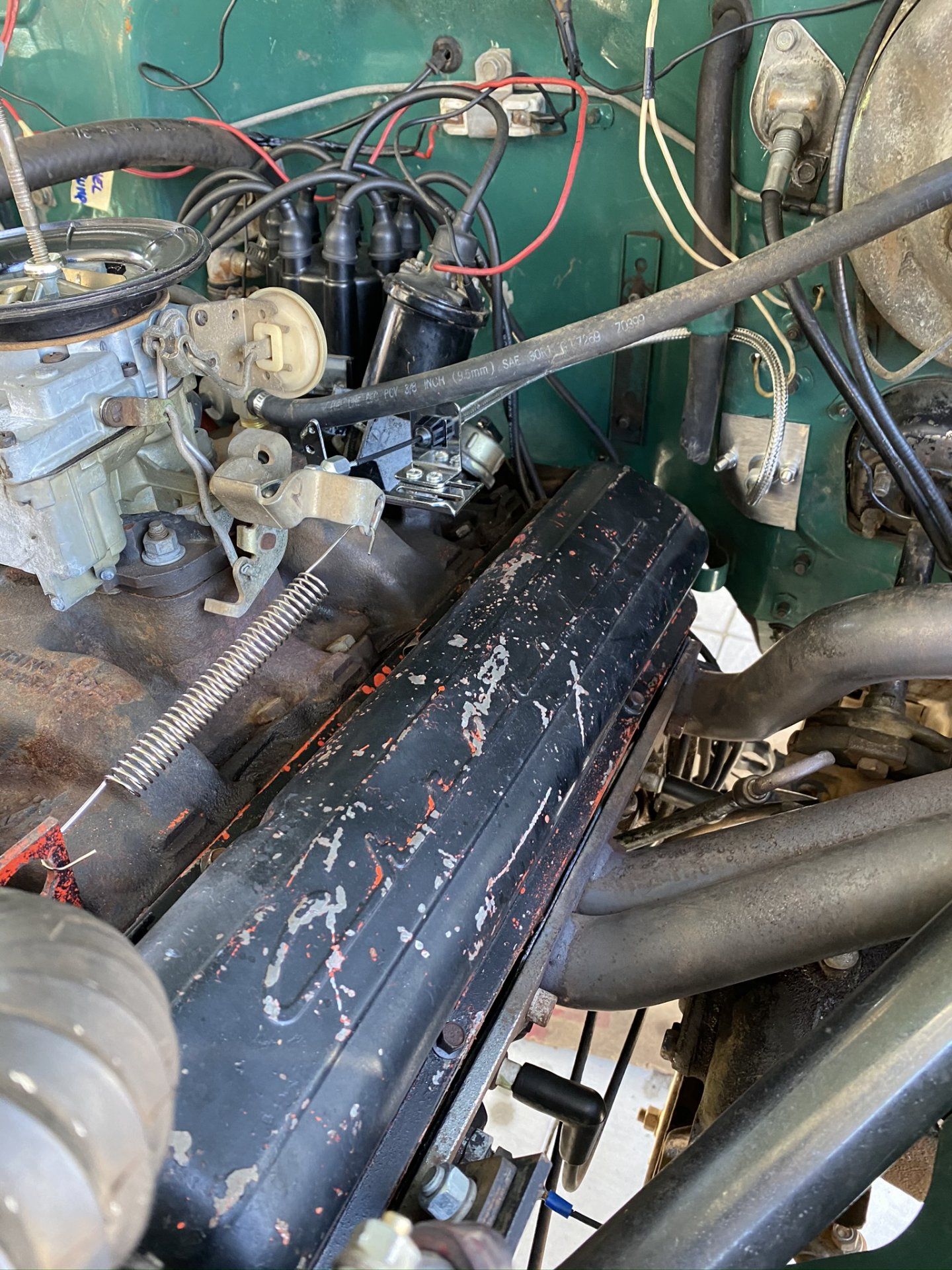

upgraded linkage 1.JPEG

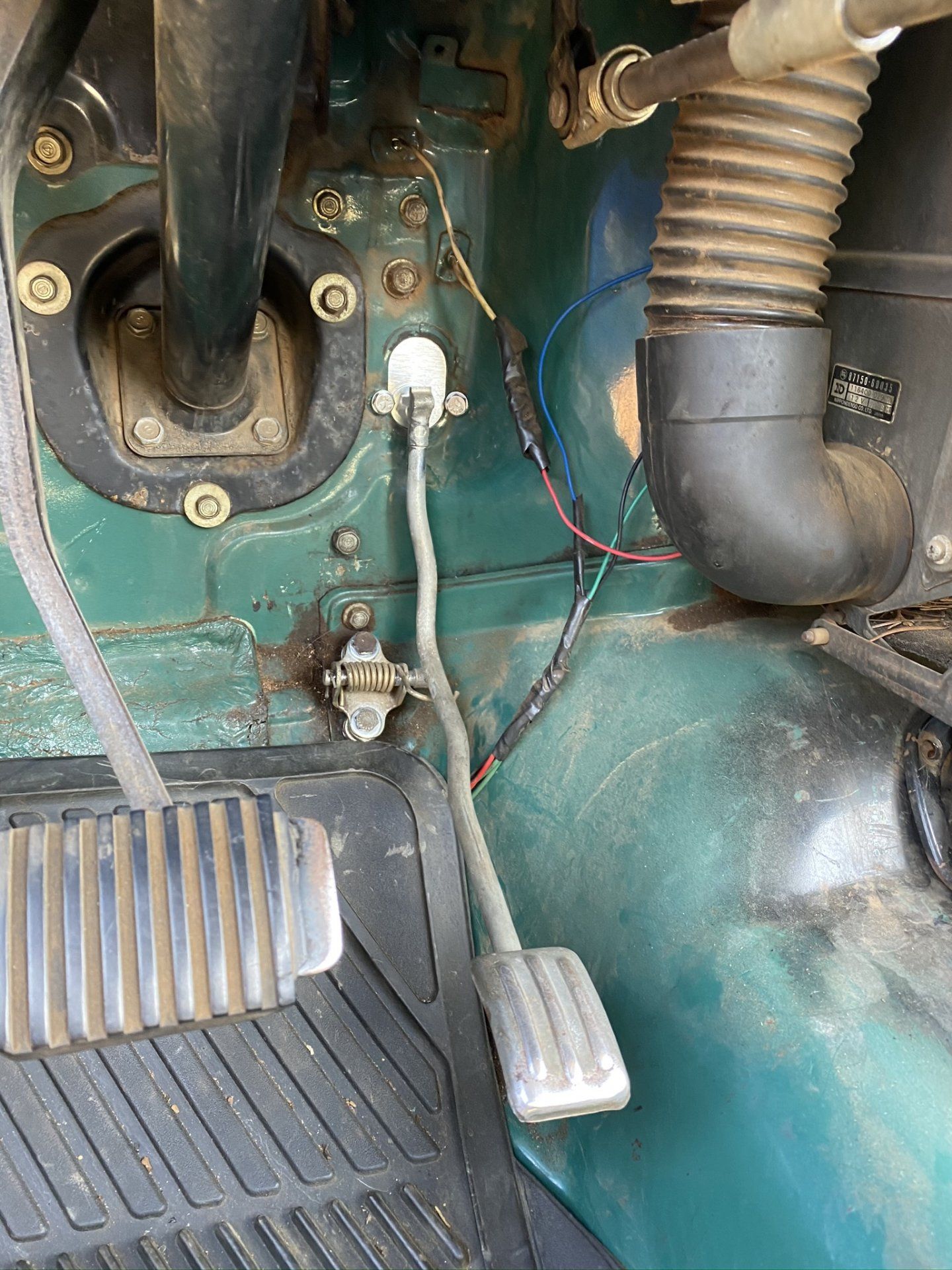

Upgraded linkage 2.JPEG
