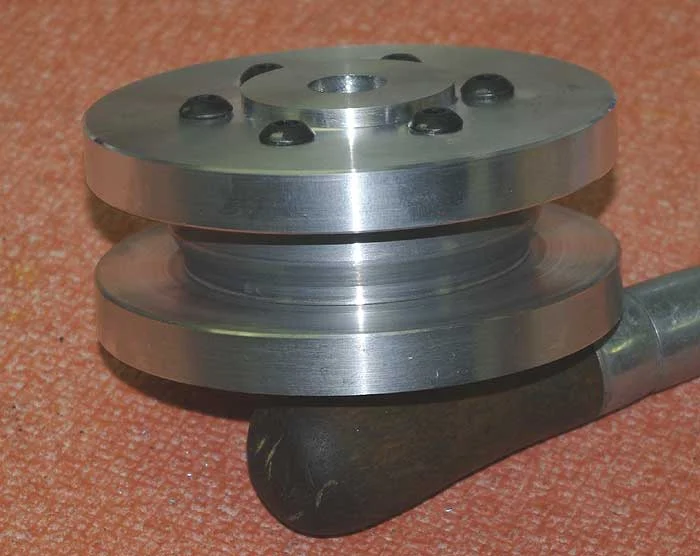

Finished the die, it even fit the bender. Didn't have any floor anchors or a hammer drill, so bolted on some scrap and parked the truck on it.:hillbilly:

Joined
Jul 20, 2004
Messages
24,774
Location
Chandler, AZ
Website
www.tontorecreationalliance.org

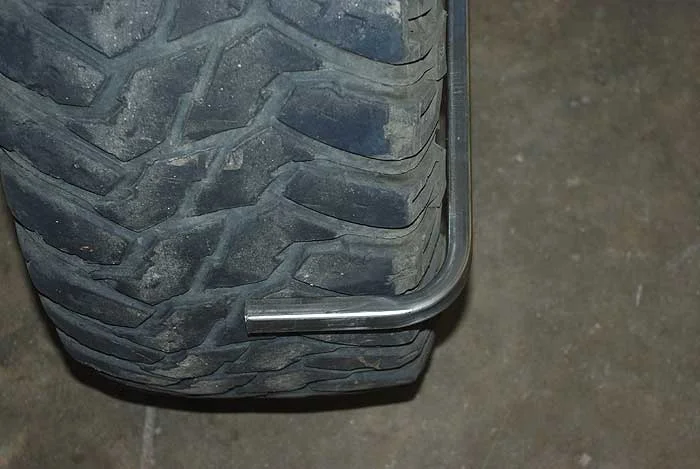

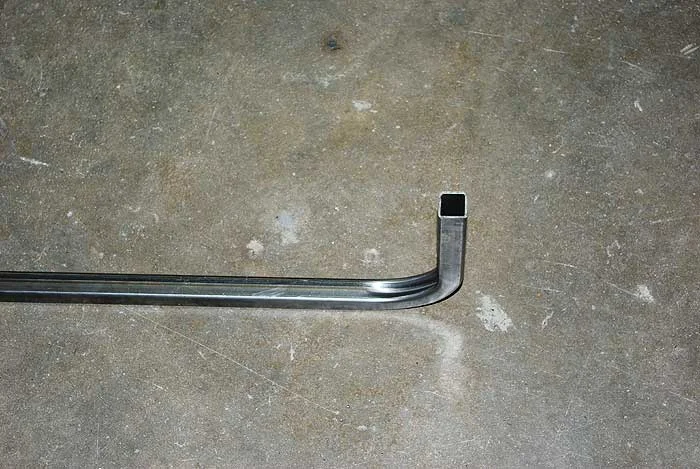

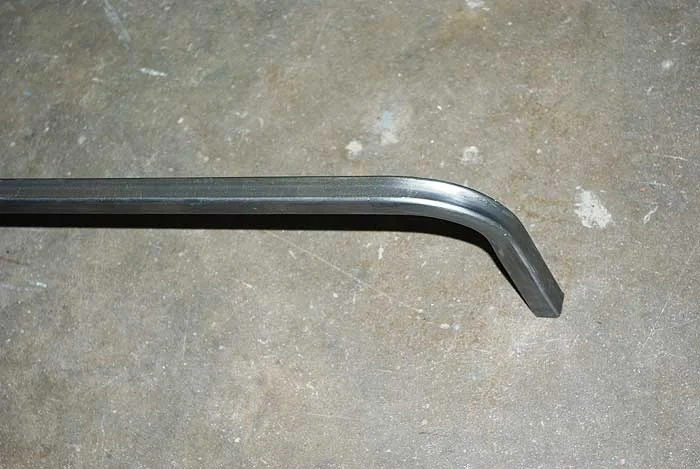

Made a test bend, not the best, but not bad for the first attempt. Need to test a few other setups. The radius looks good for the tire carrier?

Joined
Jan 15, 2007
Messages
4,376
Location
Scottsdale, AZ
Wow!:eek: After tripping over that thing for five years, you suddenly decide it's useful?:hillbilly::whoops:

Joined
Sep 23, 2009
Messages
4,236
Location
Arizona
Looks great Kevin!! What is that inside radius for the bend? I think that would be perfect for all the bends. How much material was lost in the bend so I can calculate the lengths before bend when I detail the pieces. I am working on the details today. Progress is good!! :cool:

Joined
Jul 20, 2004
Messages
24,774
Location
Chandler, AZ
Website
www.tontorecreationalliance.org
Looks great Kevin!! What is that inside radius for the bend? I think that would be perfect for all the bends. How much material was lost in the bend so I can calculate the lengths before bend when I detail the pieces. I am working on the details today. Progress is good!! :cool:

The OD of the inner part of the die is ~2.75", would guess that is close to bend inside? It was getting late, so didn't measure anything, will have to do some more bends to get numbers.

Joined
Sep 23, 2009
Messages
4,236
Location
Arizona
I will bring a sceptor with me this week when my bumper arrives at your place to check out how they fit.

Joined
Jul 20, 2004
Messages
24,774
Location
Chandler, AZ
Website
www.tontorecreationalliance.org
Looks good, probably too good for AZTony:flipoff2:

What does the front of the strap hook to?

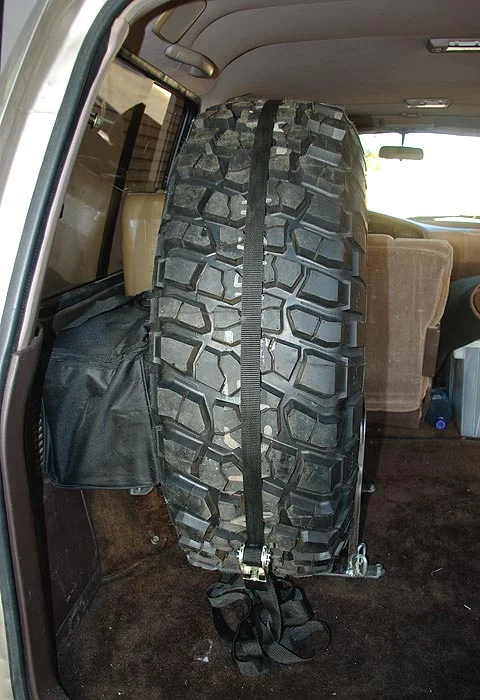

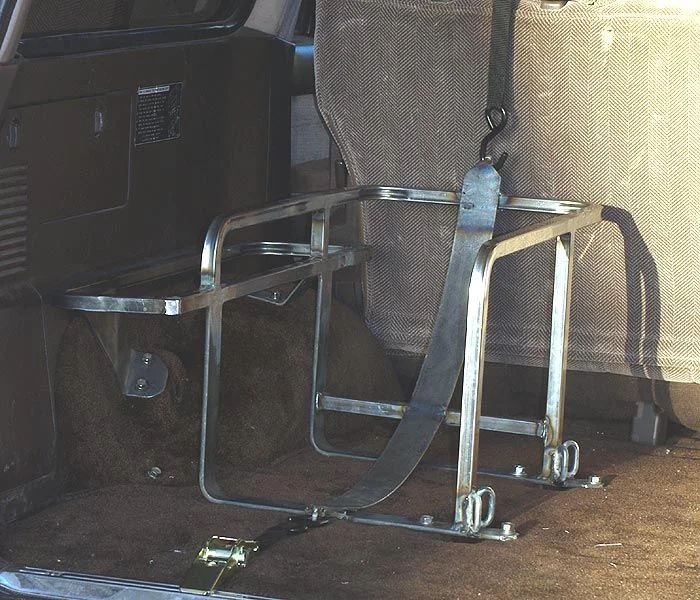

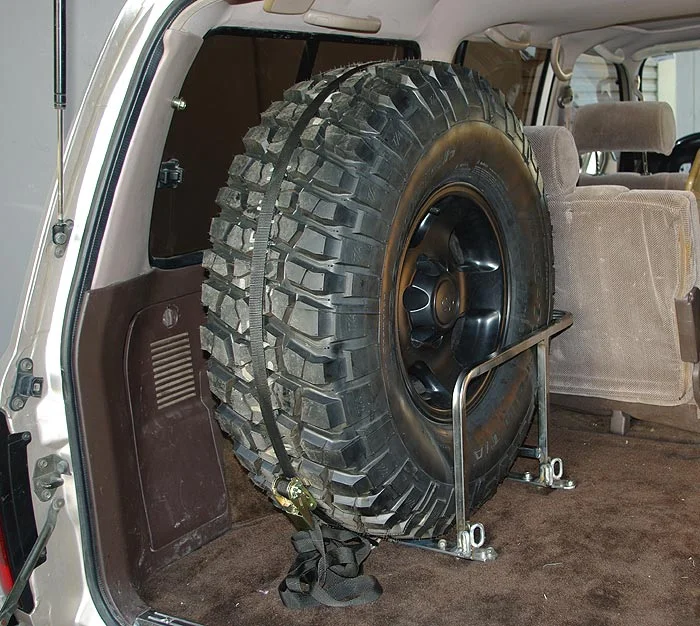

A piece of metal strap, bent to the curve of the tire, has loops on each end. Works great, roll the tire in from the back and cinch it down with the ratchet strap.
