Now I want to play with the TC lockup code and see if I can program it in OBD Fusion...



[duncancsu]

I have spent a lot of time trying to get my gauges works with LC 5.7 2008
Finally done, here is list of settings I used:

Gear Position:
Abbr1: Sft Abbr2: Pos
TData: 07E021DA000000
TCtrl: 92 RCtrl: 21
RPos: 1808 Mtch:61DA00
X:0001 /: 0001 +:0000
Out Format: 00 Ave: 00
Left/Right: 20

Torque Converter Lock Up Status:
Abbr1: Lck Abbr2: UP
TData: 07E021DA000000
TCtrl: 92 RCtrl: 21
RPos:1901 Mtch:61DA00
X: 0001 /:0001 +: 6000
Out Format:0D Ave: 00
Left/Right:10

Transmission Temp (Torque Converter) Celsius:
Abbr1: Trn Abbr2: C
TData: 07E021D900000
TCtrl:92 RCtrl: 10
RPos:1810 Mtch:210000
X: 0001 /:0100 +: FFD8
Out Format: 00 Ave:00
Left/Right:31

Transmission Temp (Pan) Celsius:
"Abbr1: Trn Abbr2: ""C
TData: 07E021D900000
TCtrl:92 RCtrl: 10
RPos:0810 Mtch:210000
X: 0001 /:0100 +: FFD8
Out Format: 00 Ave:00
Left/Right:31"


To have Fahrenheits instead of Celsius you have to replace Out Format from 00 to 10.
I have realized, that lock up indicator not really important, since Gear Position indicator shows additional 8 symbol when TC is locked (for instance 5 became 85 on display).

Also thinking to try Alternator Duty Ratio, Actual Fuel Temperature and Return Fuel Temperature gauges, but this looks not really important for me.

I assume you would also have to change C to F or is this not necessary?



[Rinat]

I assume you would also have to change C to F or is this not necessary?

Yes , this i mentioned in bottom of my message. For me important to have Celsius.



[duncancsu]

Yes , this i mentioned in bottom of my message. For me important to have Celsius.

Got it. Sorry, didn’t get very much further. Thanks for the reply



[mihailkurkiev]

Just to keep the information consolidated, I am sharing the configuration that is working on my 2014 GRJ200 - 4 liter 1GR with 5 speed A750F.



[LTSR]

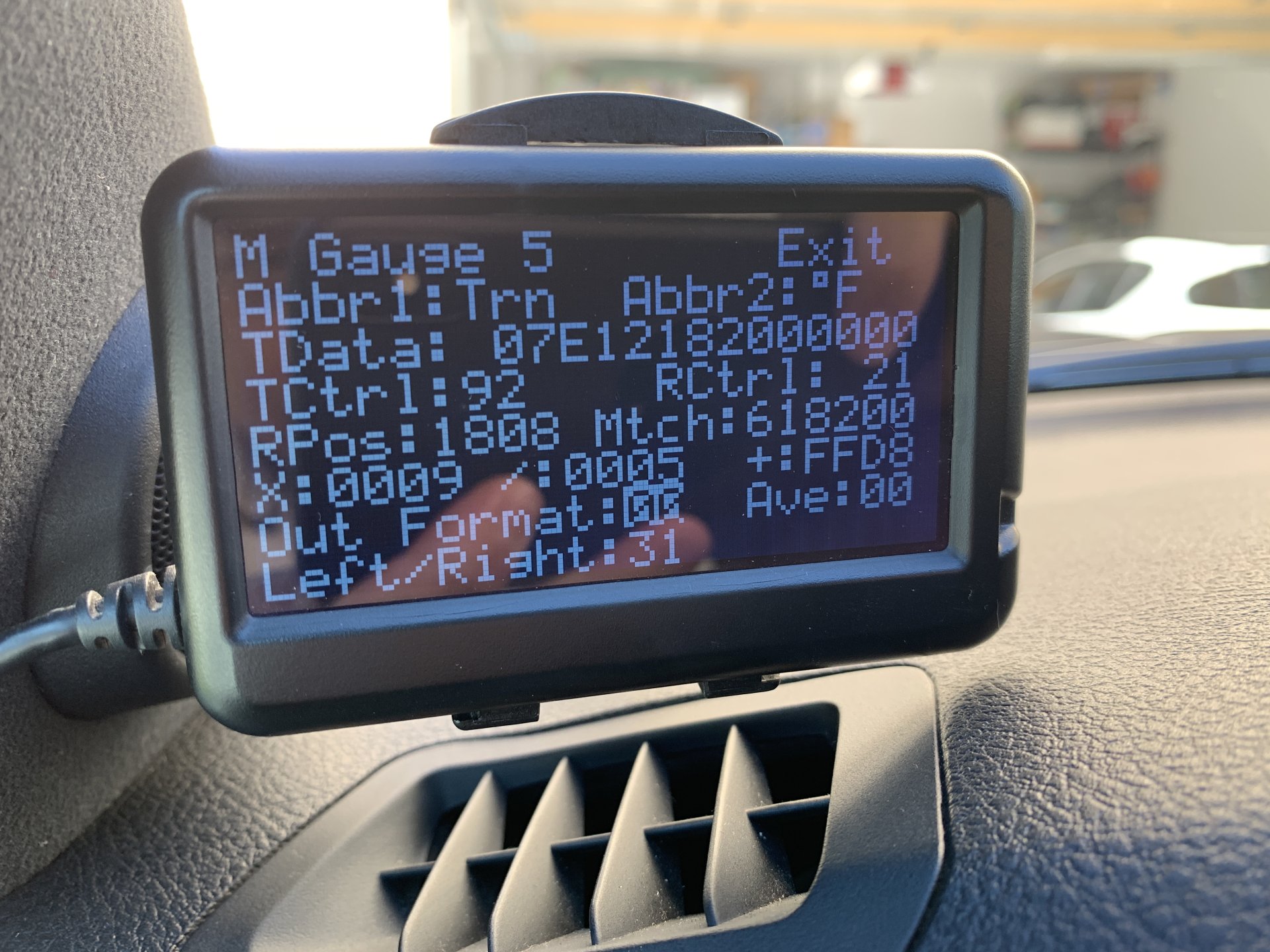

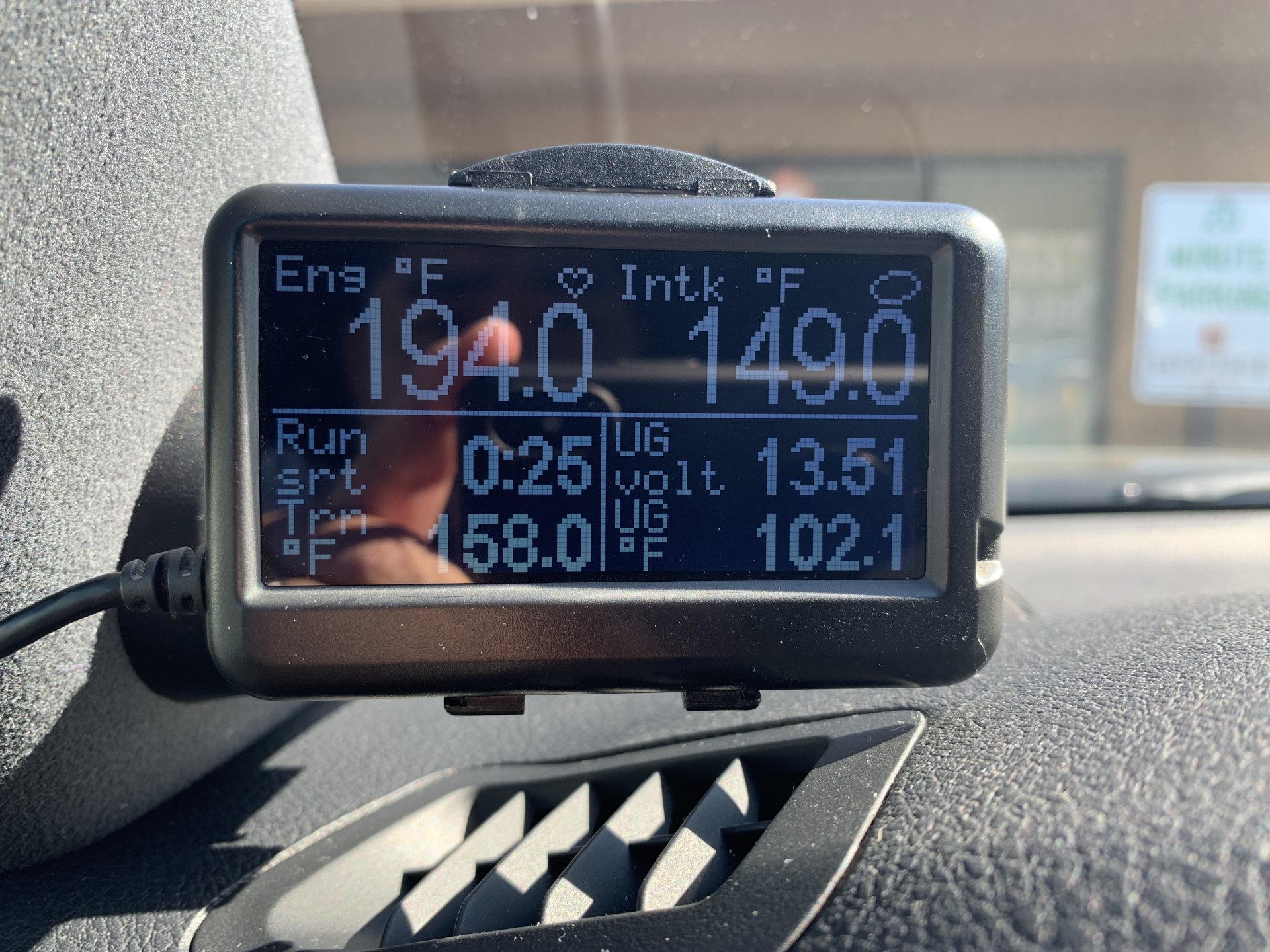

thanks to @TomasAllan i got the trans temp monitored on my 2018 8-speed. I did try the parameters in the ultra gauge manual for 2016+ Toyotas but it did not work. Attached is the required m gauge parameters for trans temp at the pan.



[sleepycruiser]

thanks to @TomasAllan i got the trans temp monitored on my 2018 8-speed. I did try the parameters in the ultra gauge manual for 2016+ Toyotas but it did not work. Attached is the required m gauge parameters for trans temp at the pan.

View attachment 2922770

View attachment 2922771

How do you have that mounted?

I need to pick one of these up for trans temps.



[LTSR]

How do you have that mounted?

I need to pick one of these up for trans temps.

that’s just the ultra gauge windshield mount. I switched to the vertical surface mount because I tinted my windshield and didn’t want the suction cup possibly damaging the tint

mounting options can be found here: UltraGauge EM Plus and MX Mounting Page - https://www.ultra-gauge.com/ultragauge/support/Mounting_Options.html

here is the vertical surface mount



[vegas12]

Very new to all this what is “torque converter lock up” ? How does it help to know?



[sleepycruiser]

Hey guys! I just purchased a 2013 LC and wanted to get the Ultragauge MX v. 1.4. The preprogramming selection lists a LC 200 4.6L, 4.7L, and and 4.5L 2007- mid 2016. It doesn’t list the 5.7L. I’m guessing that this is a misprint and I need to select this one, but I’ve seen others that are using the Tacoma/ tundra CAN programming. I emailed them and their reply was to read the FAQ and knowledge base. I figured someone on here could give me a quick answer! Also are the trans temp parameters posted earlier still working for everyone or is there updated info? Thanks in advance!

Do you remember if you got the AUS Land Cruiser option or the Tacoma? Ultragauge is telling me Tacoma, but just want to make sure I can program the trans pan and torque converter for my 2011 LC.



[greenseaman]

I do not remember! If I can find out somehow, I’ll let you know, if you haven’t already figured it out! Sorry for the late response! I just checked it!
