SM465 Plate Adaptors

Joined
Dec 8, 2003
Messages
1,013
Location
So Cal
Not sure if this is the right place or not.

I am thinking of getting some SM465 adaptor plates made up. Is there any interest in this? Are people just using the AA adaptor or the "kit" from Classic cruisers?

I can get as few as 10 made, however the more I get made, the cheaper they would be.

Let me know..

Figured I would get a list going. When I get to 10, we can move forward..

01 Shawn Russell - Paid In Full
02 Non-Mud User
03 Jakes40 - Deposit Paid
04 VA.Cruiser X2 - Paid In Full
05 homebuiltcruiser - Paid In Full
06 Gotta40 - Deposit Paid
07 TLCHopII - Paid In Full
08 deliverance - Paid In Full
09 toytadan - Paid In Full
10 tech6023 - Paid In Full

*** Update •••

PM's sent to all the people on the list. I am moving forward on these. If anyone else wants in, let me know now!

The programming is done, so as long at it is all correct, it should not take too long to have these in hand. I would assume on the high side 30 days before you have them.

I need to get a deposit from you. You can paypal me if you wish or ask me for my mailing address.

I need 100.00 up front (non refundable if you change your mind) and the rest before I ship.

$250.00 total shipped to the lower 48.

Please include you Mud screen name so I can mark you down as paying the deposit.

*** Update 02/15/2011 ***

Order for adaptors placed.

Last edited:

Poser

Oh...Durka Durka Durka.
Supporting Vendor
Joined
Oct 1, 2003
Messages
20,465
Location
MN
Steel or aluminum?


$$$$$ ? (ballpark for just the plate)

Joined
Dec 8, 2003
Messages
1,013
Location
So Cal
Aluminum. Just the plate and bolts, no gaskets, no shaft, no shifters etc..

Depending on qty, $200 - $225 shipped, maybe less.

Shawn

Joined
Dec 8, 2003
Messages
1,013
Location
So Cal
No input guys? Too much $$? No one doing SM465 conversions?

Shawn


mattcamp

SILVER Star
Joined
Apr 27, 2009
Messages
1,414
Location
Portland/Vernonia Oregon
I would be interested, I want granny low. Would this be for a 2f /sm465 / 3spd transfer?

Joined
Dec 15, 2005
Messages
4,564
Location
Whitinsville, MA
I would think there would be a lot of interest. When you see them go up for sale they are sold quick.


mattcamp

SILVER Star
Joined
Apr 27, 2009
Messages
1,414
Location
Portland/Vernonia Oregon
So, I would still need to adapt the sm465 to the 2f?

Joined
Dec 30, 2006
Messages
1,348
Location
Smithfield, VA
I might be interested in one... I'm contemplating going with this setup as opposed to another setup I have on the bench right now...


bkfj40

Wishin i was in Wydaho
SILVER Star
Joined
Apr 5, 2002
Messages
3,463
Location
new erection, va
I'd be in for one at $150-$225 as long as you are including the hardware for it....I used one that Woody sold a few years ago and it was great!...

Joined
Aug 9, 2005
Messages
5,615
Location
Cary, NC
I had one made by a local machinist out of T61. We clocked the t-case as far as possible so the linkage is about 1/4" below the tub - makes for a nice flat skid plate that is about 2" below the frame rails.

I had a bugger of a time with the threaded holes stripping and the tcase walking off the plate. First tried steel threaded inserts pressed into the plate - but didn't take the different heat expansion rates of the Al vs Steel into account, and the inserts pulled out on the first trail run. Finally fixed the problem by cutting square pockets on the tranny side of the plate that sandwich boltheads between the plate and the tranny, effectively creating studs. This worked really well and would highly recommend looking at this approach for anyone making the plates out of Al. I think the root cause turned out to be my design.

I had a "crossmember support" built into my skid, that bolted to the back of the tcase. Then I found out I had a broke DS front motor mount. I think the motor/tranny/tcase was trying to twist, but the rear crossmember support (bolted to the tcase) was trying to hold the tcase still. I believe this caused deflection in the bolts holding the tcase to the plate, resulting in them "wallering" and eventually stripping.

Just something to look out for if you utilize a crossmember support that ties to the tcase. I'd almost recommend trying to tie the tranny somehow instead.

:beer: Ramon

Joined
Aug 9, 2005
Messages
5,615
Location
Cary, NC
This should help:

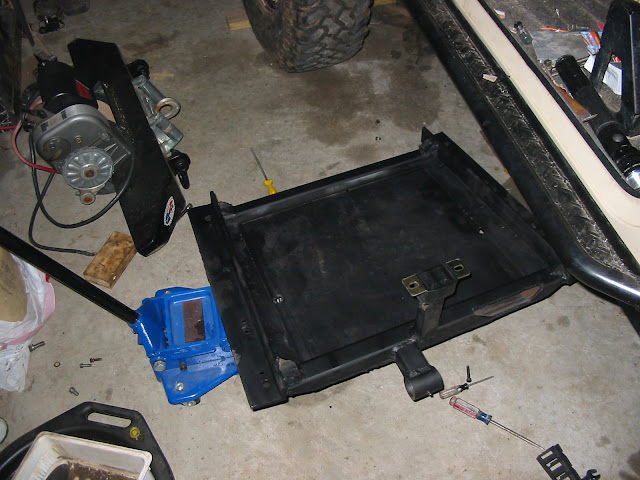

Tcase crossmember/skid plate assembly:

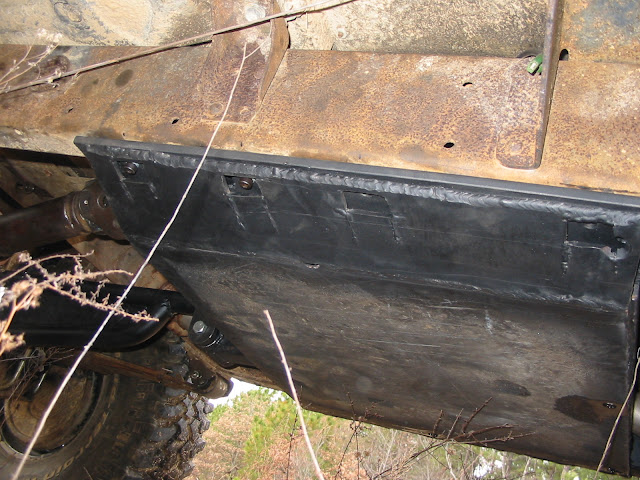

Skid bolted to frame rails:

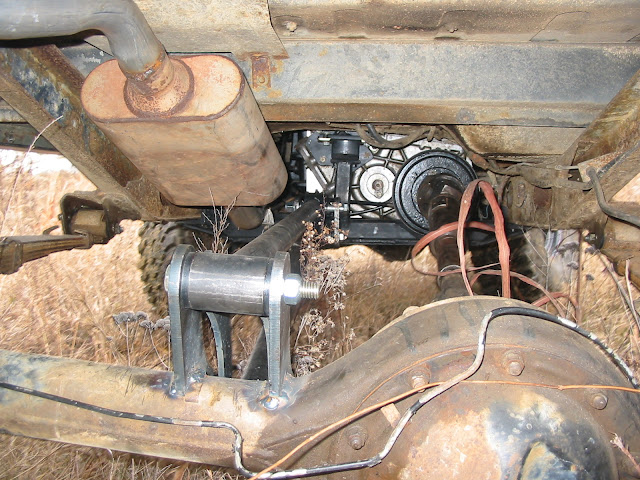

How tcase mates to crossmember/skid assembly:

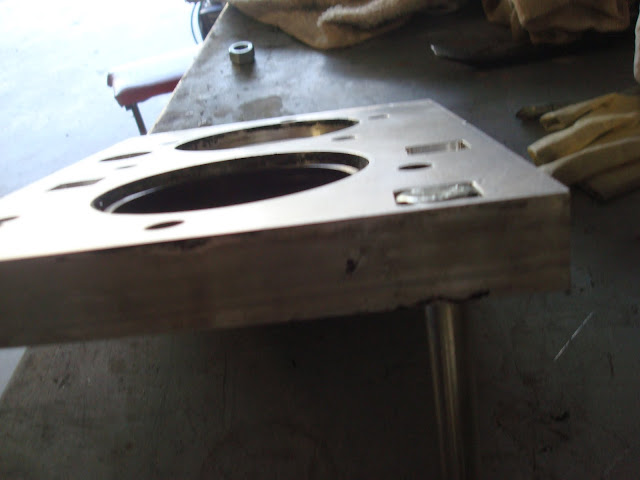

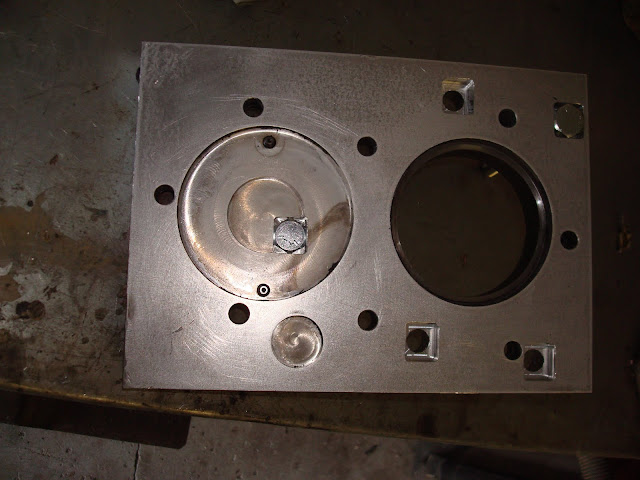

Tranny side of adapter plate, note bolt head pocket (couple of bolts in for fitment check):

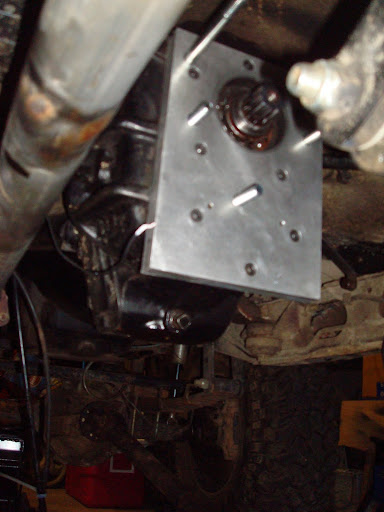

Plate installed to tranny, before mating tcase. Bolts are now acting like studs:


Clear as mud now?

:beer: Ramon

Joined
Dec 8, 2003
Messages
1,013
Location
So Cal
Started a list of interested people (See first post). When I get 10 people, we can move forward.

Thanks
Shawn

Last edited:
Joined
Mar 9, 2006
Messages
116
Location
Chattanooga TN.
I'm interested. may try to make one if this doesn't go anywhere in the next few months. can't seem to find anyone making them now for some reason.

Joined
Dec 8, 2003
Messages
1,013
Location
So Cal
Cool. A few more and I can have them made.

Shawn
