Saginaw twisted spline?

Joined
May 23, 2004
Messages
888
Location
Chattanooga, TN
Well...I guess this either happened on "Bends and Dents" at Gray Rock or in my yard when I broke the drag link on a unseen stump. :doh:

As you can see below I "candy-caned" the splined output shaft on the Saginaw gear which begs the question...what do I do now? Do I have to have a new box drilled and tapped ( I have WTOR's ram assist) or can I just replace the output shaft?

BTW Poser, the H41/Orion is great! More to follow on that soon..

Fire away...
Sag Spline twist2.jpg


Poser

Oh...Durka Durka Durka.
Supporting Vendor
Joined
Oct 1, 2003
Messages
20,464
Location
MN
Todd-


I replaced my steering gear in '99 with a Cadilac/J20 steering gear when the used '71 Impala steering gear that I had been using since '91 did that.

I have since installed a ported steering gear from PSC for the hydraulic assist set up that I am using.


Glad that everything went smoothly with the H41/Orion.

Thank you!


-Steve


Poser

Oh...Durka Durka Durka.
Supporting Vendor
Joined
Oct 1, 2003
Messages
20,464
Location
MN
Absolutely, that would be the best way to go.


If the pinion is twisted like that, what is the condition of everything else? Just get a quality steering gear ported and ready to go and swap it out.


:beer:


65swb45

Elder Statesman
Supporting Vendor
Joined
Apr 14, 2004
Messages
33,448
Location
818-953-9230
Website
www.marksoffroad.net
I saw a twisted sector ONCE, a couple of years ago at the Hammers.

Belonged to some guy from TX named Nolen.

He said it was "work hardened".

:eek: :eek: :eek:

x2 on what Steve said. The force that 'created' that presumably is strong enough to damage any other part in the box of a smaller size [which is pretty much EVERYTHING!]

Joined
May 23, 2004
Messages
888
Location
Chattanooga, TN
While getting ready to call PSC tomorrow and went out to count the input shaft splines and measure and found this... :confused:

This maybe a stupid question, but is there supposed to be a flat spot on the splined shaft? If not, why the fawk is it there? If so than I have a 13/16 30 spline...does this make sense???

Todd
Input Shaft.jpg


Poser

Oh...Durka Durka Durka.
Supporting Vendor
Joined
Oct 1, 2003
Messages
20,464
Location
MN
Flat spot- Yes.


13/16"- 36 spline (If there were splines in the flat area, they would total 36)

Joined
Mar 31, 2003
Messages
2,045
Location
Phoenix Oregon
I have seen quite a few barber poled output shafts in the last few years, usually after someone hit a full size truck in the front tire though.
Dave

Joined
May 23, 2004
Messages
888
Location
Chattanooga, TN
not heavy enough :flipoff2:

Snapped the drag link like a twig, but guess it held out long enough twist the sector shaft...

Unlike some people, I'm perfectly willing to put my stupidity up for the world to see.

:cheers:

Joined
Mar 31, 2003
Messages
2,045
Location
Phoenix Oregon
Find a new ptiman arm while you are at it, chances are it tweaked as well.
Dave

Joined
Apr 11, 2009
Messages
188
Location
Eagleville, TN 37060
Website
lottakidsinc.blogspot.com
Todd-


I replaced my steering gear in '99 with a Cadilac/J20 steering gear when the used '71 Impala steering gear that I had been using since '91 did that.


-Steve

Sorry about the hijack Todd. Steve, what models were the J20's used in? ALso for both of you, which adapter kit do you recommend? I found one at one time that had a strong looking collar thing but now I can't find it ... maybe Proffit's?

Thanks Guys!


pardion

SILVER Star
Joined
Nov 5, 2005
Messages
5,176
Location
Camino, California
This is starting to be more common on the rubicon, usually they just shear off. I carry a spare SECTOR SHAFT, very easy to replace on the trail. take off your pittman arm, remove the top 4 bolts from the top of your steering box, pop out the broken/bent sector shaft, slide in your spare and bolt together, Adjust the free play. Now you are up and running again. John


Poser

Oh...Durka Durka Durka.
Supporting Vendor
Joined
Oct 1, 2003
Messages
20,464
Location
MN
Sorry about the hijack Todd. Steve, what models were the J20's used in? ALso for both of you, which adapter kit do you recommend? I found one at one time that had a strong looking collar thing but now I can't find it ... maybe Proffit's?

Thanks Guys!


NAPA part number is 51-6529



J20 is a Jeep 3/4 ton 4x4 pickup...

1976 is the year that I use when 'looking it up' online or with another auto drone store...



:beer:


EWheeler

4 Cruisers, No Garage !
GOLD Star
Joined
Apr 5, 2008
Messages
2,372
Location
Menifee, CA

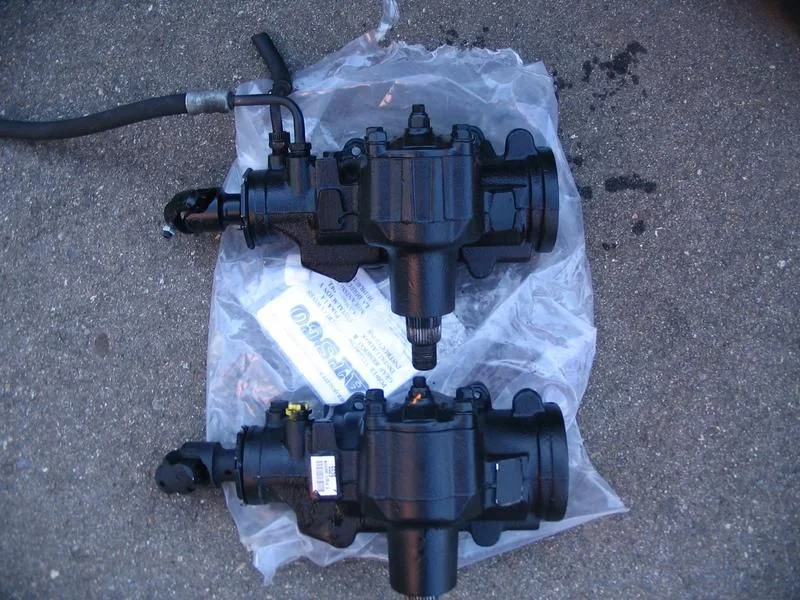

Auto Zone's part number is just 6529. I got mine for around $200 ish if I remember correctly. This box is definitely the way to go, I love mine. Here is a picture showing the larger J20 box compared to a 4 bolt box that I snagged out of a mid 80's wagoneer.


EWheeler

4 Cruisers, No Garage !
GOLD Star
Joined
Apr 5, 2008
Messages
2,372
Location
Menifee, CA

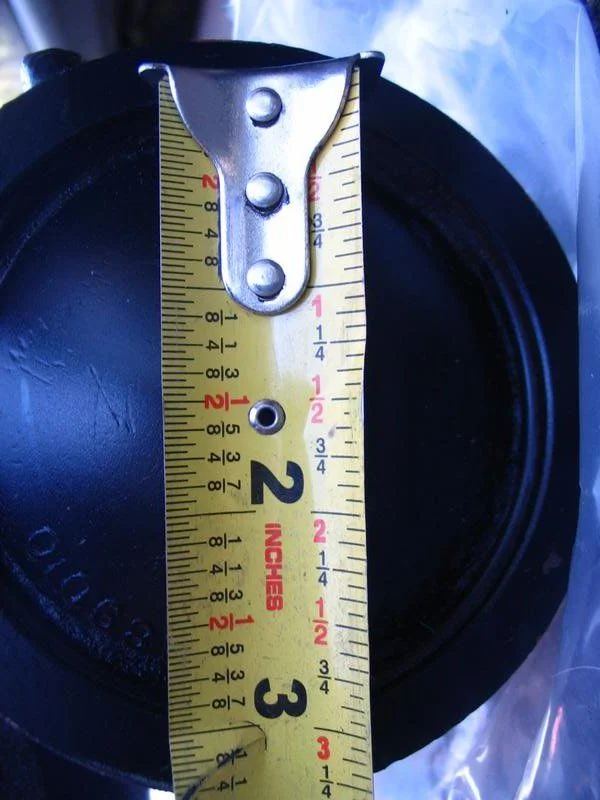

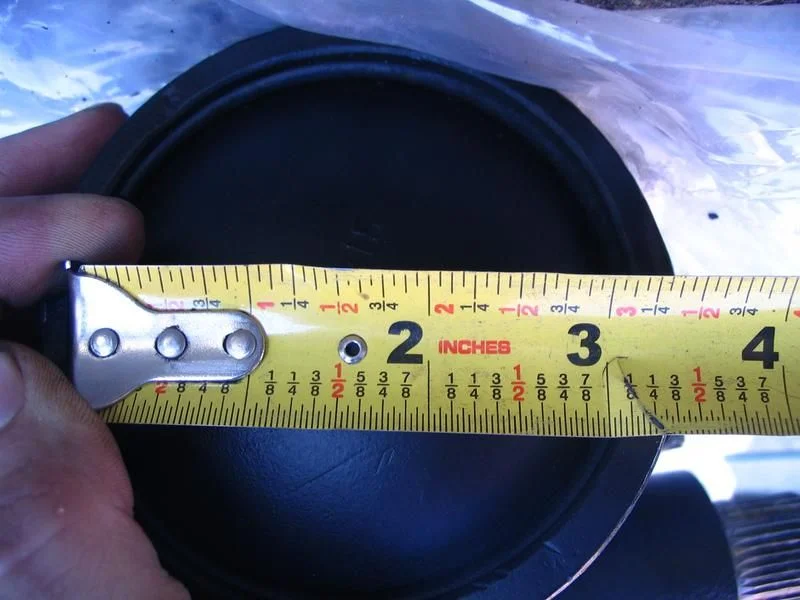

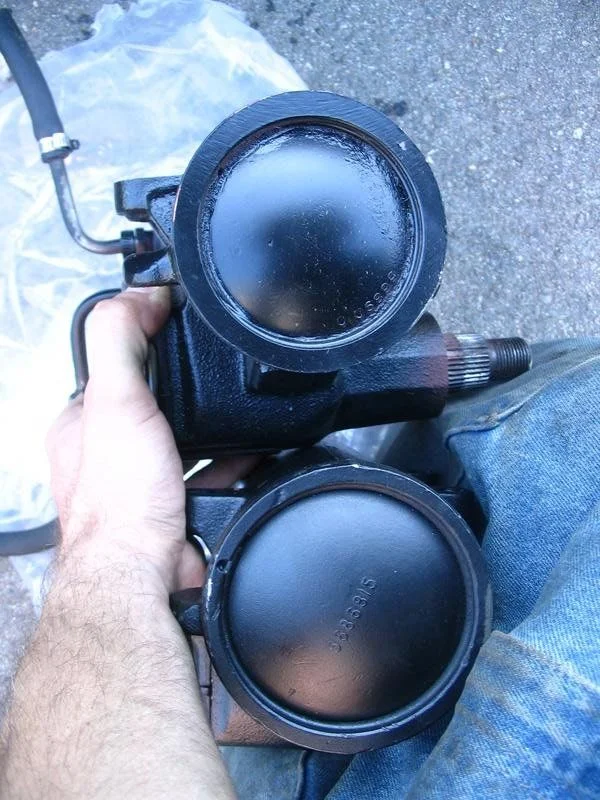

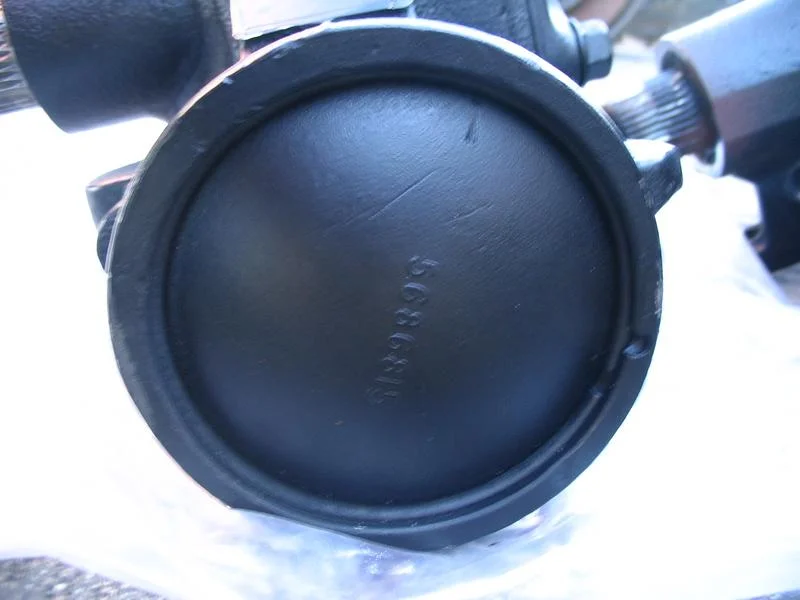

More:
