Radiator Support Rust

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

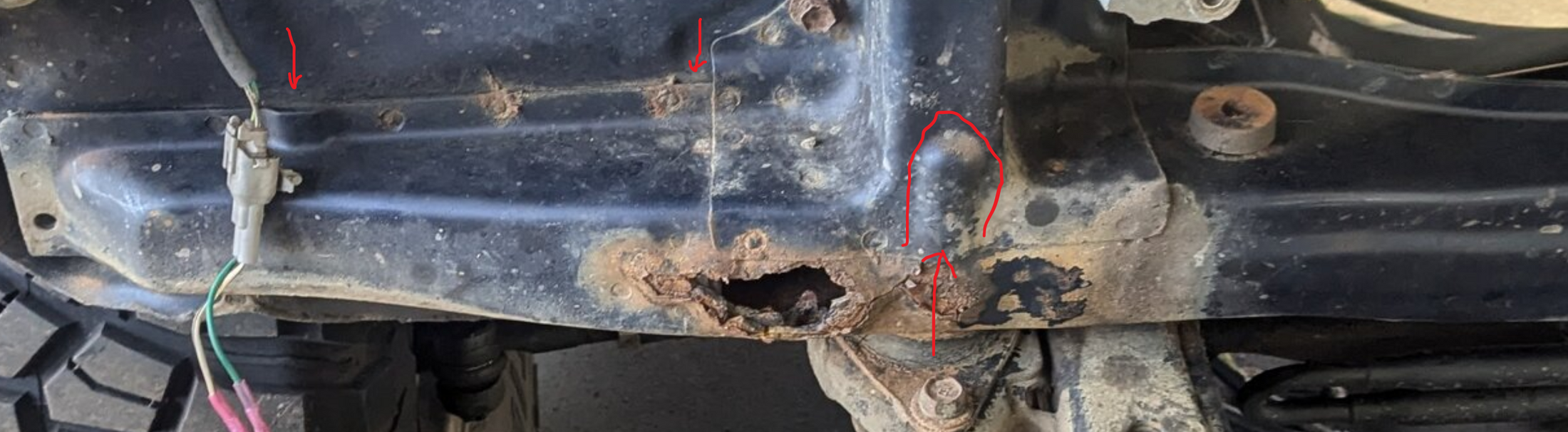

Looks like a couple of slit vents on the upper side of that support which also might let water (and road salt/chemicals) into that area. Appears also that there's no seam sealer where those panel sections are spot welded together, also a place for rust to start. The spot welds themselves IME can rust but that often is just surface rust (see photo copied from above, not my vehicle):

IDK why Toyota put ? vent/slit on top of that panel (smaller arrow left)??

FZJ80 radiator support panel showing rust.PNG


FWIW, when I replaced the radiator in my 97 model a few years ago I cleaned, primed and painted all the hidden areas below/around the radiator including the area underneath the radiator reservoir tank and battery, cross members, etc. however I didn't spray anything inside the radiator support section. This thread is a good reminder to include spraying rustproofing inside that support panel/assembly, something like 3M Cavity wax or Boeshield.

When I get a chance I'll look at that area closer to see how rustproofing might be applied inside, that rubber bumper on the right top of the photo above should have a hole underneath large enough to snake the spray wand down into the cavity. It could also be sprayed on/into those weld seams.

Last edited:
When I replaced the radiator in my 97 model a few years ago I cleaned, primed and painted all the hidden areas below/around the radiator including the area underneath the radiator reservoir tank, cross members, etc. however I didn't spray anything inside the radiator support section. This thread is a good reminder to include spraying rustproofing inside that support panel/assembly, something like 3M Cavity wax or Boeshield.

It appears there are a couple of slit vents on the upper side of that support which might let water (and road salt/chemicals) into that area. Also appears that there's no seam sealer where some of those panel sections are spot welded together, also a place for rust to start. The spot welds themselves IME can rust but that often is just surface rust (see photo copied from above, not my vehicle):

View attachment 3854447



FWIW, when I get a chance I'll look at that area closer to see if there's an opening to get a long spray wand inside. That rubber bumper on the right top of the photo above should have a hole underneath large enough to snake the spray wand down into the cavity.

Looks like a couple of slit vents on the upper side of that support which also might let water (and road salt/chemicals) into that area. Appears also that there's no seam sealer where those panel sections are spot welded together, also a place for rust to start. The spot welds themselves IME can rust but that often is just surface rust (see photo copied from above, not my vehicle):

IDK why Toyota put ? vent/slit on top of that panel (smaller arrow left)??

View attachment 3854447

FWIW, when I replaced the radiator in my 97 model a few years ago I cleaned, primed and painted all the hidden areas below/around the radiator including the area underneath the radiator reservoir tank and battery, cross members, etc. however I didn't spray anything inside the radiator support section. This thread is a good reminder to include spraying rustproofing inside that support panel/assembly, something like 3M Cavity wax or Boeshield.

When I get a chance I'll look at that area closer to see how rustproofing might be applied inside, that rubber bumper on the right top of the photo above should have a hole underneath large enough to snake the spray wand down into the cavity. It could also be sprayed on/into those weld seams.
Great observations. The lack of seam seals would would definitely let moisture and salt in. The new core support appears to have the seams sealed, where my old one did not. Perhaps that's the manufacturing flaw for later model 80s. I will apply some 3M cavity wax where I can here as a precaution. Thank you.

Thank you for posting this up.

Previously I've sprayed 3M cavity wax into multiple open and blind cavities in my 80 including the tail gate, hatch, quarter panels, cross members, box sections, door pillars, hood, doors, fenders, and rocker panels. The rear most section of the rocker panel has another separate cavity you can get to by removing one small plastic plug on the bottom rear of the rocker panels. Also, while working in the quarter panel from the cargo area, spray around the wheel hump, forward and down, to where it meets the rocker panel ("dog leg" area) with a long wand. This IMO is where rust often first starts in the rocker panels. If possible I clean areas out and let them dry before spraying the wax. Other areas to protect, when the carpet is pulled up, is over each body mount bolt and into those cavities. FWIW

The radiator support discussed in this thread will now get cavity wax applied internally soon.

About to get into this radiator mount project

Do you have to evacuate and move part of the AC system? How involved is that?

I have a good beat on everything else I think - but not much experience with AC work

About to get into this radiator mount project

Do you have to evacuate and move part of the AC system? How involved is that?

I have a good beat on everything else I think - but not much experience with AC work
I don't remember if you HAVE to or not, but it makes the job so much more easier to remove the A/C condenser. The second you break open the A/C system, you have a few things you have to do though. I'm sure something in the FAQ or someone on the forum has figured out how to do it without removing the condenser, but I went ahead and replaced my fan clutch, radiator, A/C compressor, condenser, cooler, and dryer all in one go.

Don't forget that the radiator and the fan and shroud have to all go in together, I think!

The fan and shroud come together and then the radiator.
The ac should be evacuated correctly as to not let the coolant into the atmosphere.

Just chiming in to show my 97 with cancer in the same spot.

Hoping it's small enough to just cut out that section and weld in good metal. I was gonna procrastinate, but this thread has me thinking I should get it done.


Mines got it in the exact same spot the other side is rust free, not sure if I’m gonna do anything the rest of the truck has some cancer in some of the usual areas.
