Question about wire diagrams

[electroapprentice]

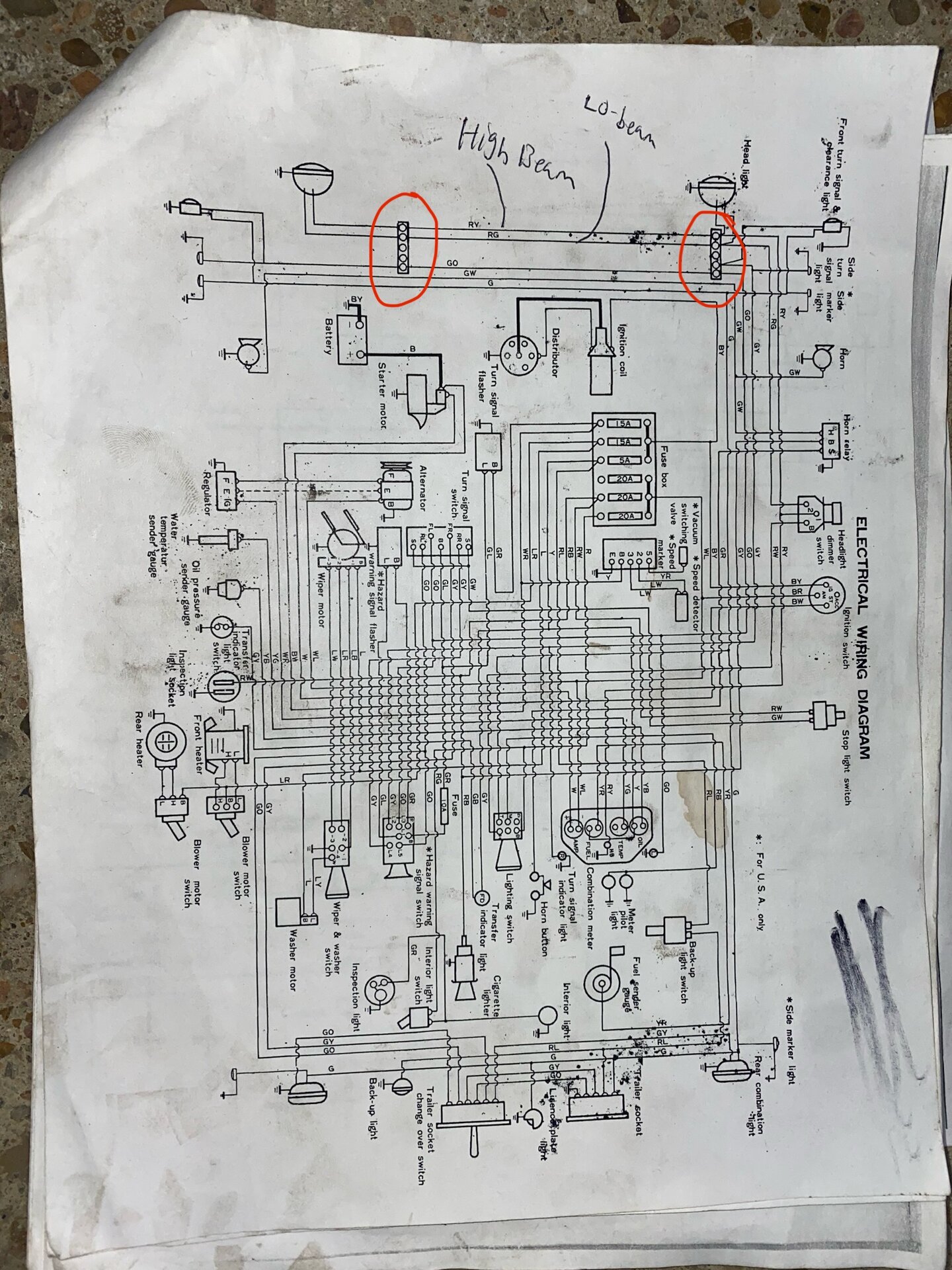

As per my previous posts I’m working on a 69’ 40 harness and am trying to sketch out my own diagrams but for singular components like the headlights or the horn circuit and while reading my printed diagram I see a rectangular block that has no labels I’m wondering is that just to show a splice in wires or is it a relay?



[peesalot]

Question, are you working on a 69' fj40 ? the diagram above you are working on does not match the 69' dia. in Coolermans site although it is similar just not labeled same.



[pb4ugo]

IDK, it looks like it doesn't really make a difference. You should probably pick a thread to work out of rather than starting a new one each time you have a question.



[73FJ40]

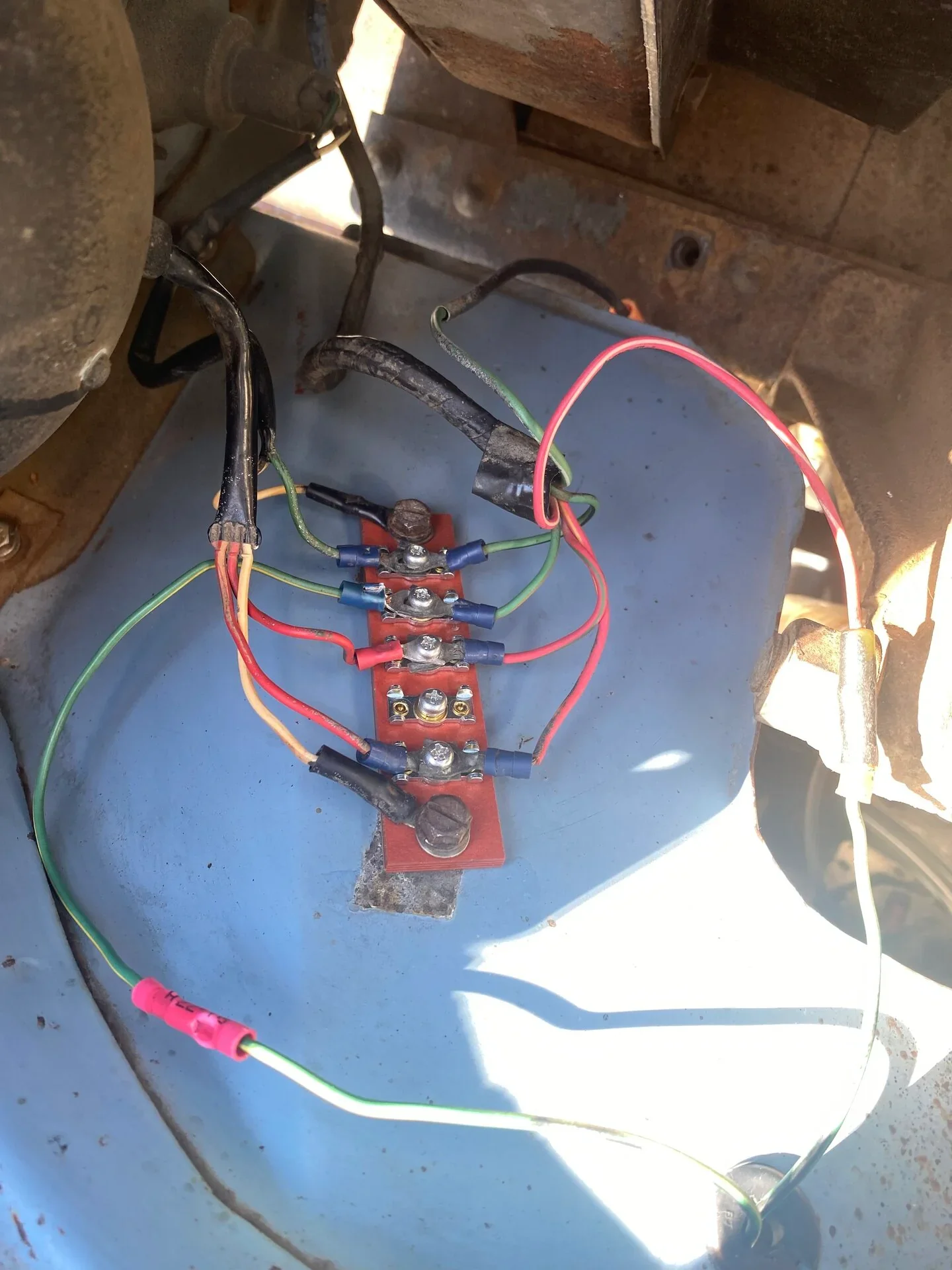

The red circles highlight terminal blocks used in older FJ40's



[electroapprentice]

Question, are you working on a 69' fj40 ? the diagram above you are working on does not match the 69' dia. in Coolermans site although it is similar just not labeled same.

Yeahhhh that’s something I realized as I dug deeper, my boss gave me a 71 diagram so yes similar but not exact. Just making do with what I got right now, though I just got a link to coolermans site for the 60s models wire diagrams.



[electroapprentice]

IDK, it looks like it doesn't really make a difference. You should probably pick a thread to work out of rather than starting a new one each time you have a question.

Hm good point I didn’t think of that..



[pb4ugo]

Get on Coolermans website, Below ""Schematics" click on "schematic links" then scroll down to the 68-70 diagram. Immediately below it click on the 62-70 and it will pull up a 68-70 diagram.
