Project penetration oil -

tucker74

Moderator
Joined
May 12, 2003
Messages
4,952
Location
Austin, TX
So now that I've completed my 3FE swap in the 40, it's time to rebuild that old 8274 I picked up for it off of craigslist. Motivated by lshobie's recent YouTube thread on how to tear one of these down, I pulled out the PB Blaster and tore into it :lol:

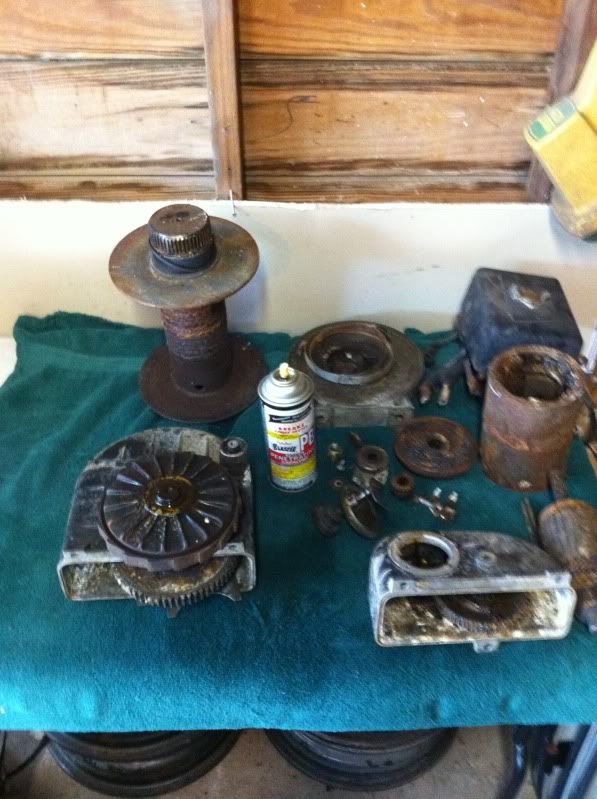

What I started with:


Removed the solenoid pack (needed a breaker bar):




Next I separated the case (had to rig a breaker bar extension since I only have 3/8" allen sockets)



Holy Toledo Batman!

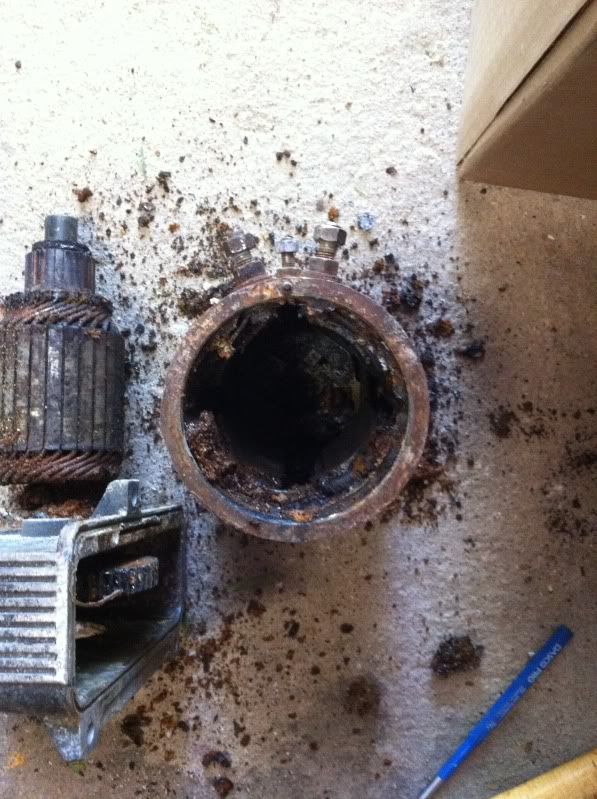

Then I separated the motor:


That's not good :frown:




I was stopped in my tracks at this point, time to let the penetrating oil do it's business :doh: The amazing thing was everything turned after a little tinkering with it :clap:






Somehow I don't think this is going to be as easy as lshobie & flintknapper's :bang: Good thing I only paid $20 for this thing :grinpimp:

To be continued ...

Last edited:

tucker74

Moderator
Joined
May 12, 2003
Messages
4,952
Location
Austin, TX
So I've already sourced a new solenoid pack, roller fairing and cable for this. Looks like I'm gonna need both the upper and lower rebuild kits and some bearings as well as a new motor. Was surprised to find the splined shaft, guess we'll see how well everything cleans up after some media blasting :)

Tucker

Joined
Mar 8, 2007
Messages
2,240
Location
vancouver B.C. Canada
Wow that is harsh!

Last edited:
Joined
Feb 1, 2004
Messages
3,036
OMG, sorry but I am laughing my head off, that winch is so fricking bad! but for 20 bucks hey what the heck! Lets see the pics when you get it cleaned up.


tucker74

Moderator
Joined
May 12, 2003
Messages
4,952
Location
Austin, TX
OMG, sorry but I am laughing my head off, that winch is so fricking bad! but for 20 bucks hey what the heck! Lets see the pics when you get it cleaned up.

My thoughts exactly :D Was able to get the brake apart yesterday after about a week of soaking in PB Blaster. The only piece I've yet to disassemble is the clutch, eying the billet Gigglepin replacement if I can't get it to separate. So far I've sourced new bearings for the top case (6203RS/B68s), plan on ordering the lower housing and brake rebuild kits from Warn. Wanted to see what else i needed first, plan on ordering the upgraded brake shoes from Gigglepin. Going to drop the motor off at my local shop and see if they can rebuild it, otherwise it's probably going to be a $70 knock off from db-starter.

All the pieces are going to bead blasting, the case and brake pieces will be powder coated. I'm betting I'm into this thing for under $300 total completely rebuilt ;)

Tucker

BTW: ping me if anyone needs a set of Torrington B68 bearings for the top gear, I had to order a lot of 11 of them.

Joined
Feb 1, 2004
Messages
3,036
Good call on the gigglepin shoes, the warn type break apart the first time you use them with the old style brake. The gigglepin haven't given me any grief yet.

The 70 buck motor will work just fine - I use one and have pulled hard and long with it - no problems - and mine looks like new still - seal everything on it very well!


tucker74

Moderator
Joined
May 12, 2003
Messages
4,952
Location
Austin, TX
Never got around to posting the final pics from the disassemble, here's the brake and upper housing pictures:

Brake parts and gears:



Lower housing:




Few new parts I've been gathering:




The amazing part is only the motor, motor bearing, and clutch were seized. I could dump the rest of this stuff in parts cleaner and replace the motor and bearing and it would all work :p

That's not on the agenda though, thread will be lying dorment for a bit while I source some parts from the UK and have all this blasted.

Stay tuned ...

Tucker


tucker74

Moderator
Joined
May 12, 2003
Messages
4,952
Location
Austin, TX
Just looking at my top cover in the sunlight I was able to decifer the serial number and date for the first time. It S/N 277860 and date code IO5, meaning it was built on 9/12/75. That's pretty cool since my 40 was one of the first '76 models with a '9/75 manufacture date. These two were just meant to be together :grinpimp:

Tucker

Joined
Mar 8, 2007
Messages
2,240
Location
vancouver B.C. Canada
Your serial may be to high to be a 1975. I have a 1978 and my serial number is 112864.
I believe your 8274 is a 1985. You have the original motor on yours and it is a splined shaft, another give away of the 80s.

It does have the metal cover (plug in) on the original solenoid box , 70s era.

Last edited:
Joined
Jan 22, 2003
Messages
8,118
Location
Kansastitty
Tucker, is that the bow winch from the U-505?:D


tucker74

Moderator
Joined
May 12, 2003
Messages
4,952
Location
Austin, TX
Update -

So I got all the parts back from the powder coating a few weeks ago, finally go a little time to play with it. Everything was soda blasted to remove the grease, then hit with aluminum oxide to remove the rust. I had the case & brake components done silver, and the drum black. Not perfect but looks a lot bit better IMO:

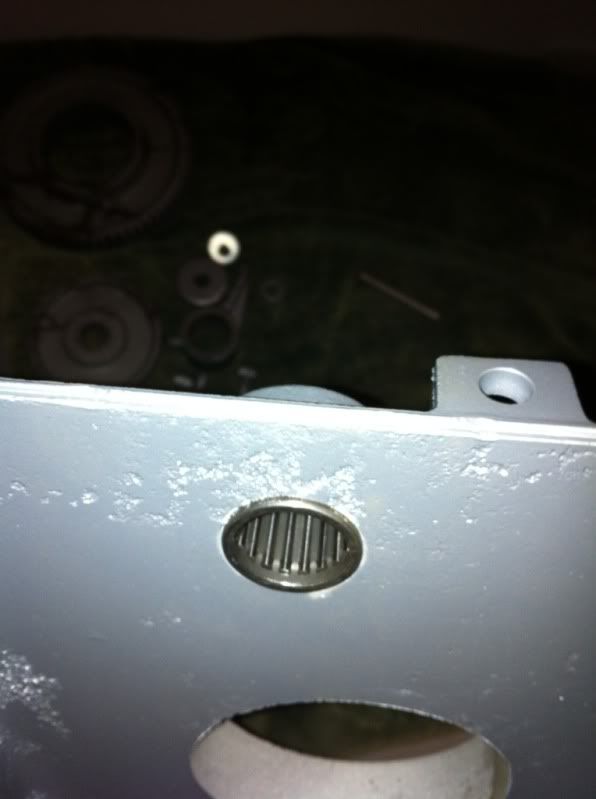

Also got the new bearings installed:





Assembled the top case:



I've got the lower rebuild kit in hand, but am waiting on the Gigglepin stuff from England (upgraded brake shoes & clutch).

:cheers:

Tucker

Joined
Mar 8, 2007
Messages
2,240
Location
vancouver B.C. Canada
Nice work !

Joined
May 14, 2004
Messages
333
Location
The Great State of Texas
Tucker, How did you get the brake apart???
I've had an old 8274 that I have soaked the brake several times and still can not get the outer plate to separate from the shaft.


tucker74

Moderator
Joined
May 12, 2003
Messages
4,952
Location
Austin, TX
mkaustin said:
Tucker, How did you get the brake apart???
I've had an old 8274 that I have soaked the brake several times and still can not get the outer plate to separate from the shaft.

Brass drift and a BFH ;). You could also try electrolytic rust removal if you've removed the shaft, did you get the keys out?

Tucker

Joined
May 14, 2004
Messages
333
Location
The Great State of Texas
No, the key was not out far enough to have pulled it out. It did drive in a little w/o much effort, so it's not that rusted but the outer plated has not nudged.
I'll need to find a good brass drift and take out some aggravations.

Joined
Nov 6, 2006
Messages
1,495
How was dealing with Gigglepin? Every inquiry after my first one has gone unanswered. What parts did you order from them and what was the shipping time?

What motor are you going to run?
