I've been thinking for some time now that we need a thread dedicated solely to the Owner's Manuals (OMs) that went with our vehicles when they were sold new.

(Many owners wish to get the correct OM for the vehicle .. but how else will they know which one is applicable to their vehicle, other than by perusing a thread like this.)

There's plenty of different OMs because here's just what I've managed to collect so far:



To make this thread most useful, I think it is good idea for those of us who are certain they have the original Toyota-supplied OM for a particular vehicle to post up:
  1. The year and model of the Land Cruiser concerned
  2. The country in which the Land Cruiser was sold
  3. The language used in the OM (English, French, German or whatever)
  4. Images of the front and rear covers of the OM (to show exactly what it looks like externally)
  5. An image of the Foreword Page or wherever else the print-year of the Owner's Manual is displayed (to verify the print-year for everyone)
:beer:

Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand
Cover images of US spec Owner's Manuals and Owner's Guides are discussed here. These covers plus Owner Service Manual and Emission Control/Maintenance Manual covers are pictured here.......

Incredible....

I'm familiar with your "Refurbishing an Early Tool Roll thread" but I had forgotten it contained this information on OMs:

Operation Manual / Owner's Manual - FJ40

Item 13 in the early tool roll Content List is the Operation Manual. Not surprisingly, this manual is often missing from the kit. Including the correct manual will provide a nice finishing touch to a refurbished tool roll. But finding a manual in decent shape may prove to be a challenge.

Images of the original covers from North America FJ40 manuals follow. These are from (Mud) and the internet. Some of the manuals do not have dates; dates provided are estimates based on available information. Please post corrections or additional manual images.

These manuals were provided with the large tool rolls.

1963 : This manual includes an image of a VIN number beginning with '3', manual number 6040, cover is dark green/light green/purple.


1964 : Very similar to the above, manual number 6008, cover is brown/gold/red (67azcruizr).


1965-1966 : 1965 was the first year for the "4 Wheel Drive" emblem (67azcruizr).


1967-1968: Need photo(s). Apparently a 1968 dated manual was produced.

1969-1970 : This one is dated.


1970-1971 : I've seen several 1970 FJ40s with this manual. Although the parts catalog shows the changeover to the medium tool roll in 3/69, the large tool roll was included with some 1970 model year vehicles.


Operation Manuals or Owner's Manuals were not included as part of medium tool rolls or zipper pouch tool kits. Even so, having an original manual will complement any OEM tool kit. These are examples of North America FJ40 Owner's Manuals from 1972 on.

1972


1973


1974. Undated versions of this manual were included in some 1974 vehicles.


1975


1976. Owner's Manuals were completely redone in 1976. For the first time, the content was written in the U.S. and then sent to Japan for printing. Prior to 1976, the manuals were written in Japan in Japanese, and then translated into English. The information presentation was changed to include more photographs, and key information was listed on the back cover for easy reference.


Owner's Guides were introduced in 1976 as well.


1977. Cover image still depicts round-head side view mirrors, and front vent windows.


1978. Cover image perspective is somewhat lower and to the passenger side than before. New details include the rear vent windows, fuel tank door, radio antenna, sun visors, square-head side view mirrors, and driver side only tow-hook. The upper hinge appears to be missing from the passenger door.


full


1979. Cover image modified to reflect the new square bezel; new detail includes the passenger side head-rest. The front license bracket is moved to the left and outlined, making it more visible.


View attachment 1084634

1980 (overton)


Separate "California Only" versions of the Owners Guide are produced.
View attachment 1084635

1981. Cover image modified to add the FJ60, the smaller image includes less detail than before.


View attachment 1084636

1982


People appear on a manual cover, for the first and only time in this collection. Wonder what message Toyota was trying to send with these vignettes.
View attachment 1084638

1983


1984


Your contribution to our knowledge-base exceeds my imagination Bill!
:beer:

PS. I hope you don't mind me copying this stuff over here. I searched for threads on Owner's Manuals and found nothing of consequence before starting this one. (I reckon it's a good idea to have all our OM information in its own dedicated thread.)

Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand
And while technically an FJ25 is not an FJ40, it always has been to my unsophisticated mind so here's another amazing post from that thread:

Operation Manual - FJ25

Item 13 in the FJ25 tool roll Content List is the Operation Manual. Images (from Mud) of the original covers of FJ25 manuals included with tool rolls follow.

See Operation Manual / Owner's Manual - FJ40 for images of FJ40 manuals from 1963-1984.

1958 (ClemsonCruiser)


1959-1960 (Cruiser_Nerd)

And this pic (also from wscbill's tool roll thread) shows how an Owner's Manual was actually given its own pocket in the early tool rolls (which is something else I'd either forgotten or overlooked):



:beer:

Last edited:

78fj40mg

TLCA #23510
Joined
Sep 13, 2008
Messages
4,072
Location
PNW, WA.
1978 FJ40
USA
English

full



full



full



full

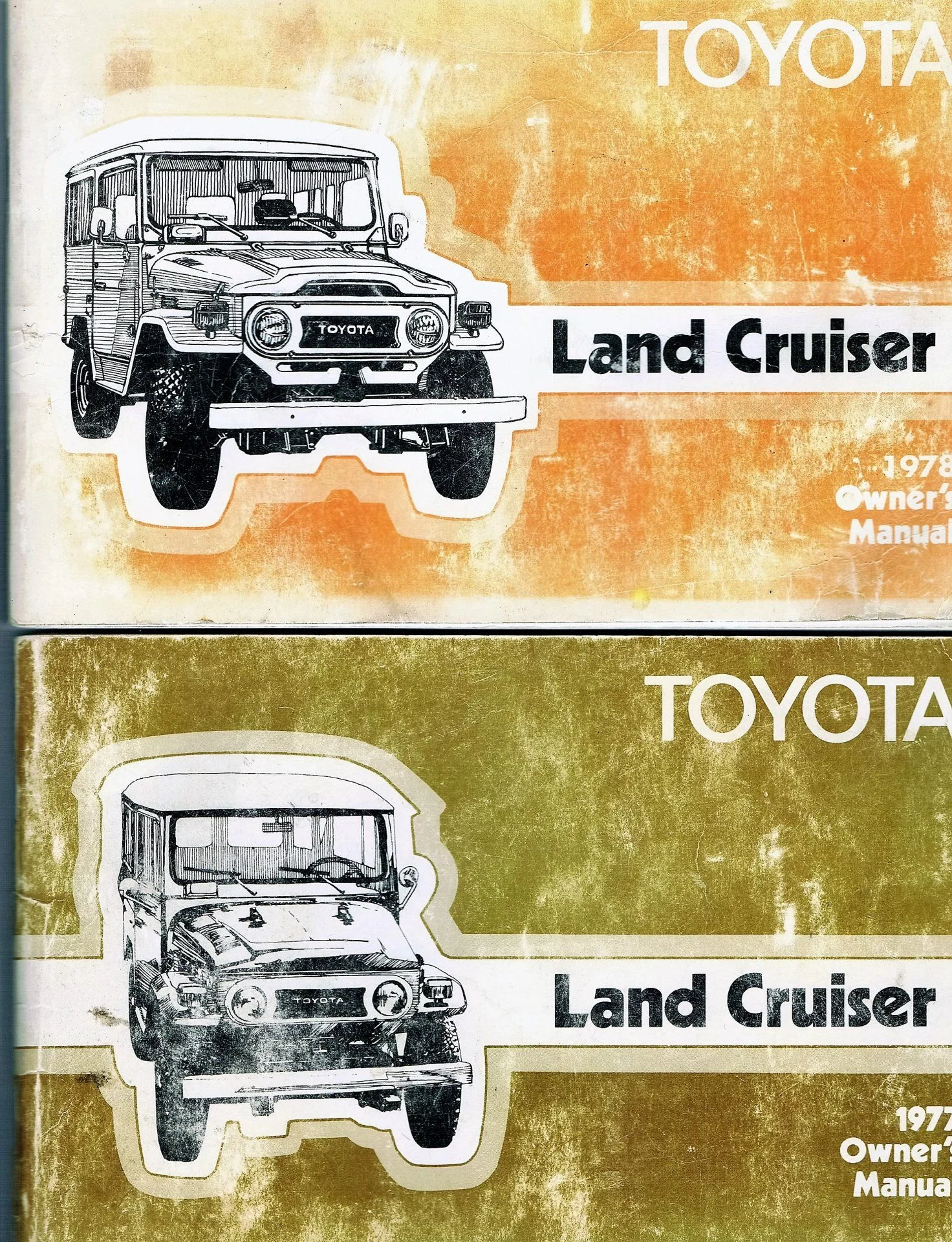

Here's my little collection of manuals consisting of a 1977 and 1978

full

Last edited:
Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand

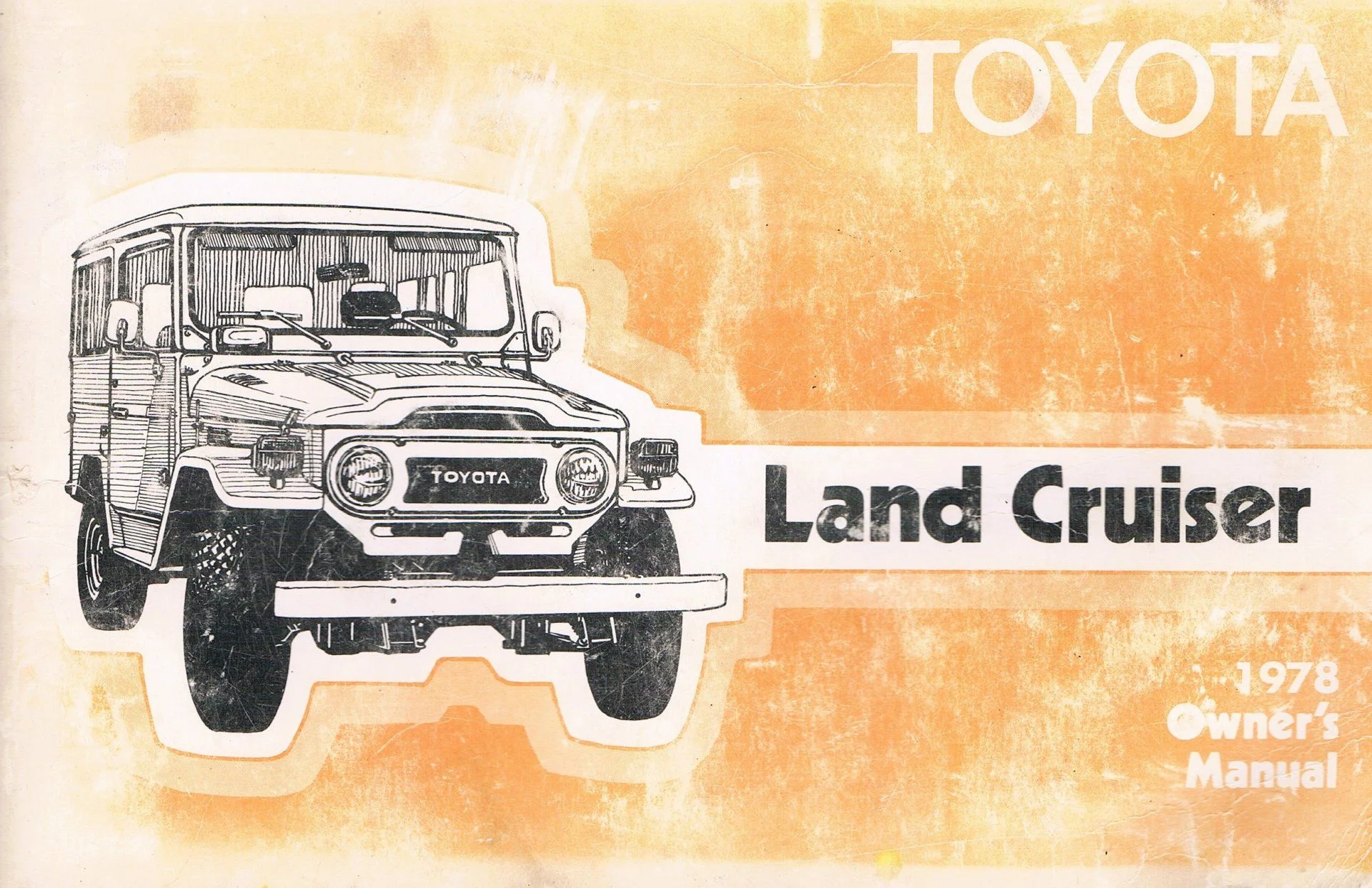

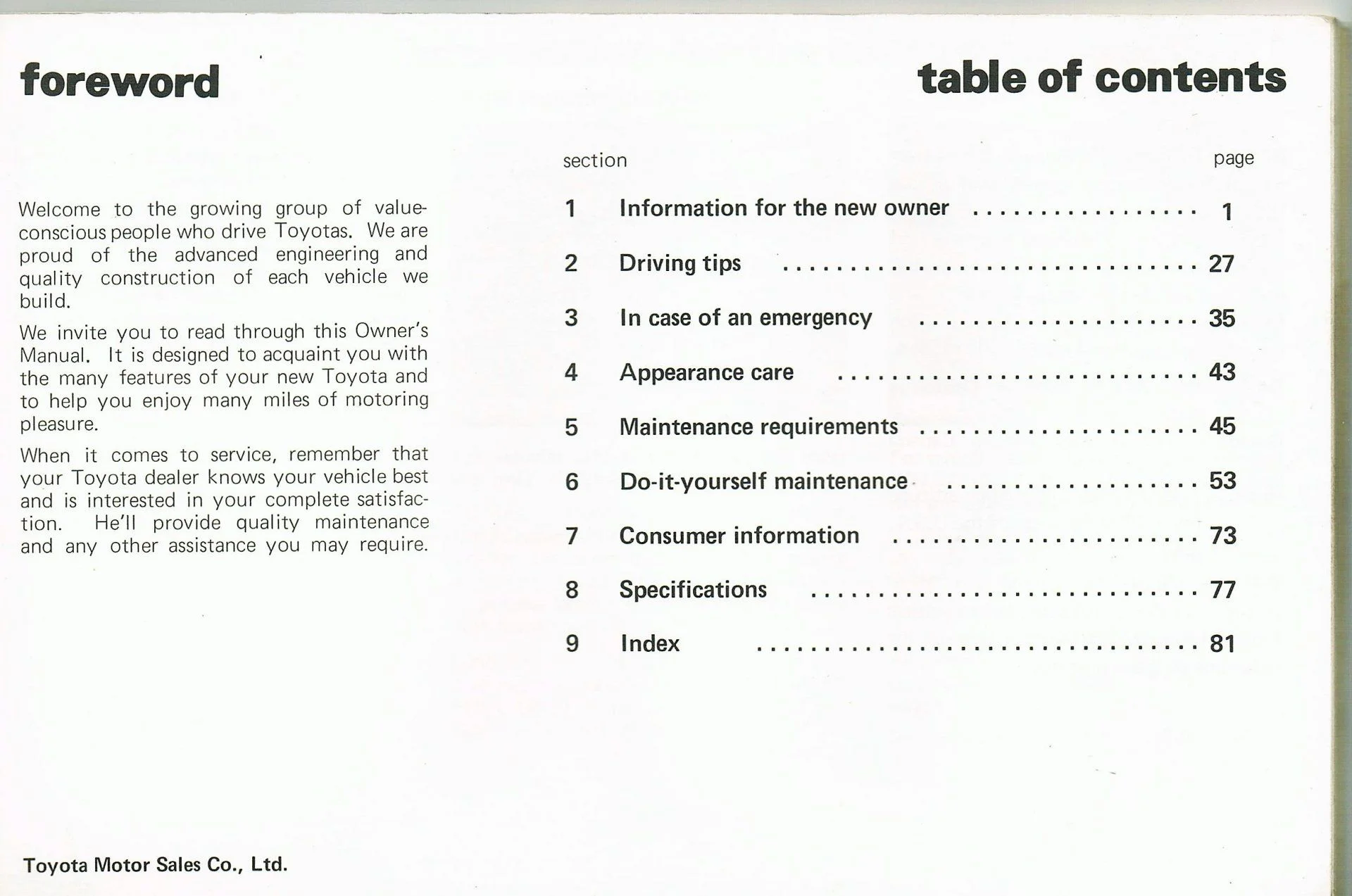

1978 FJ40
USA
English

full

full

Thanks Mike.

I get the impression that "orange" is a colour Toyota used predominantly to distinguish USA-market OMs from others (and as such, I've noticed that from April 1972 ... when the first diesel 40-series was introduced as the HJ45 ... they exclude diesel information that is included the the "green" versions).

Edit later: As this thread has progressed, it has become apparent to me that there are orange-coloured OMs that include information on diesel 40-series models as well as those that don't...(and both often bear the same publication number/code).

But is that 1977 OM really "brown"... If so, it's very interesting to me because I think it could be the first time I've seen a brown one..

:beer:

Last edited:

78fj40mg

TLCA #23510
Joined
Sep 13, 2008
Messages
4,072
Location
PNW, WA.
Thanks Mike.

I get the impression that "orange" is a colour Toyota used predominantly to distinguish USA-market OMs from others (and as such, I've noticed that from April 1972 ... when the first diesel 40-series was introduced as the HJ45 ... they exclude diesel information that is included the the "green" versions).

But is that 1977 OM really "brown"... If so, it's very interesting to me because I think it could be the first time I've seen a brown one..

:beer:

Thanks Tom!

The 1977 manual is actually a mustard/greenish color, but who knows it might have been brown at one time. Although the internal pages of the manual are in above average condition the cover shows some signs of being used and the cover is slightly faded.
Hopefully others will chime in and include some pics of a 1977 manual for color comparison.
Thanks for starting this thread as it will be an interesting one.

Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand
Thanks again Mike. I've noticed the rear cover on the later Owner's Manuals appear to include a date code. So I think your 7804 means April 1978 was its print date.

Here's the deal for the OM that came with my 1979 BJ40 (which has some cover-wear too):

1979 BJ40

New Zealand

English language





So if I'm reading my date-code correctly, this owners manual was printed in May 1979 (just 2 mths before my BJ40 came off the production line).

:beer:

PS. Since the rear cover has the date code, I don't need to show the internal page where the year 1979 is again typed.

EDIT: I've been wondering what the "A" and "E" represent that often appear on the covers and/or on the ends of the Publication Numbers. I'm thinking "A" could be "America" (Edit: or America + Canada) and "E" could be "Europe" (edit -...or Europe + Australia + NZ). I'm hoping to be able to work out such things once the thread has had more-widespread input (however long that may take)....

Last edited:
Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand
I've just gone through my Owner's Manual collection and recorded for each one the print-year (when I could find one) and the print month too (when a full date code was provided).

So here's my first pic again with that information included:


I've also shown which OMs had information on diesel models (because people in the USA for instance may not have that diesel information in their orange-coloured versions of those same OMs).

If anyone's wondering - Yes .. I got the Sept 1980, Aug 1974 and 1969-71 OMs from the USA so they're not from this part of the world.

The two OMs with the question marks over their print dates have no print-date-information on them that I can find. So I've given a year-range for each based on what @wscbill posted in his magnificent tool roll thread.

I have another OM but it is only in the form of a pdf file.. I was told it is a 1964 and this appears to be the cover page:



I think it may have come from @JohnnyC ?

However such a cover page doesn't appear in wscbill's posts, so perhaps it is an inside page rather than cover page? :meh:


PS. If anyone has an Owners Manual not yet pictured in this thread, please please please post up a picture of it....:)

Last edited:
Joined
Nov 19, 2013
Messages
936
Location
Ont - Canada

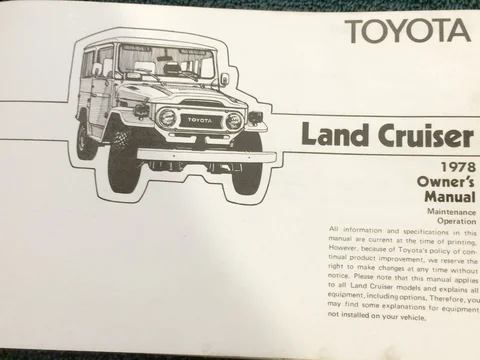

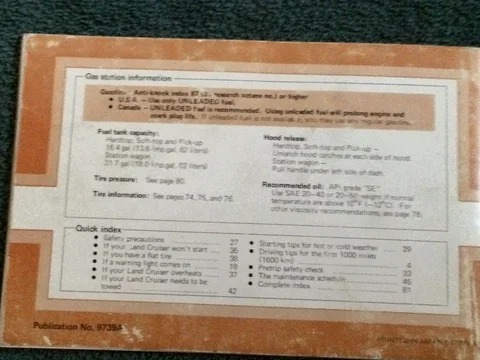

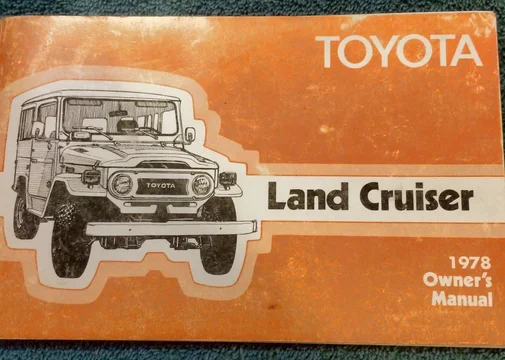

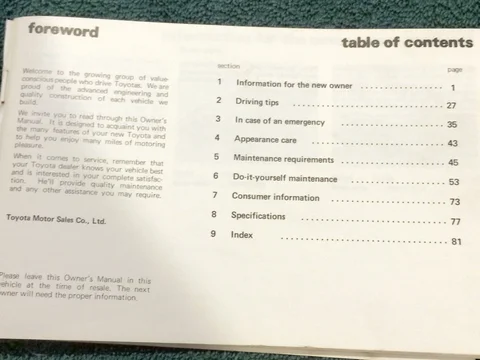

The manual from my USA 78 fj40 (Nov77 build date). Printed in English. Its a little different than 78fj40mg's 78 manual posted above i.e. his is 93+ pages, mine is 81+ pages, primary because mine doesn't have a diesel engine section. Not sure why, except perhaps mine is an earlier version. The back cover says printed in Japan 02-7709-00. Publication No. 9739A.

File 2015-09-05, 5 56 31 PM.jpeg 2015-09-05 17.22.58 HDR.jpg 2015-09-05 17.26.00 HDR.jpg 2015-09-05 17.27.16 HDR.jpg

Last edited:
Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand
The manual from my USA 78 fj40 (Nov77 build date). Printed in English. Its a little different than 78fj40mg's 78 manual posted above i.e. his 93+ pages, mine is 81+ pages, primary because mine doesn't have a diesel engine section. Not sure why, except perhaps mine is an earlier version. The back cover says printed in Japan 02-7709-00.....

Thanks Winnie.

I knew I'd learn useful stuff.

So it looks like there are orange-coloured versions that include diesel information as well as those that don't.

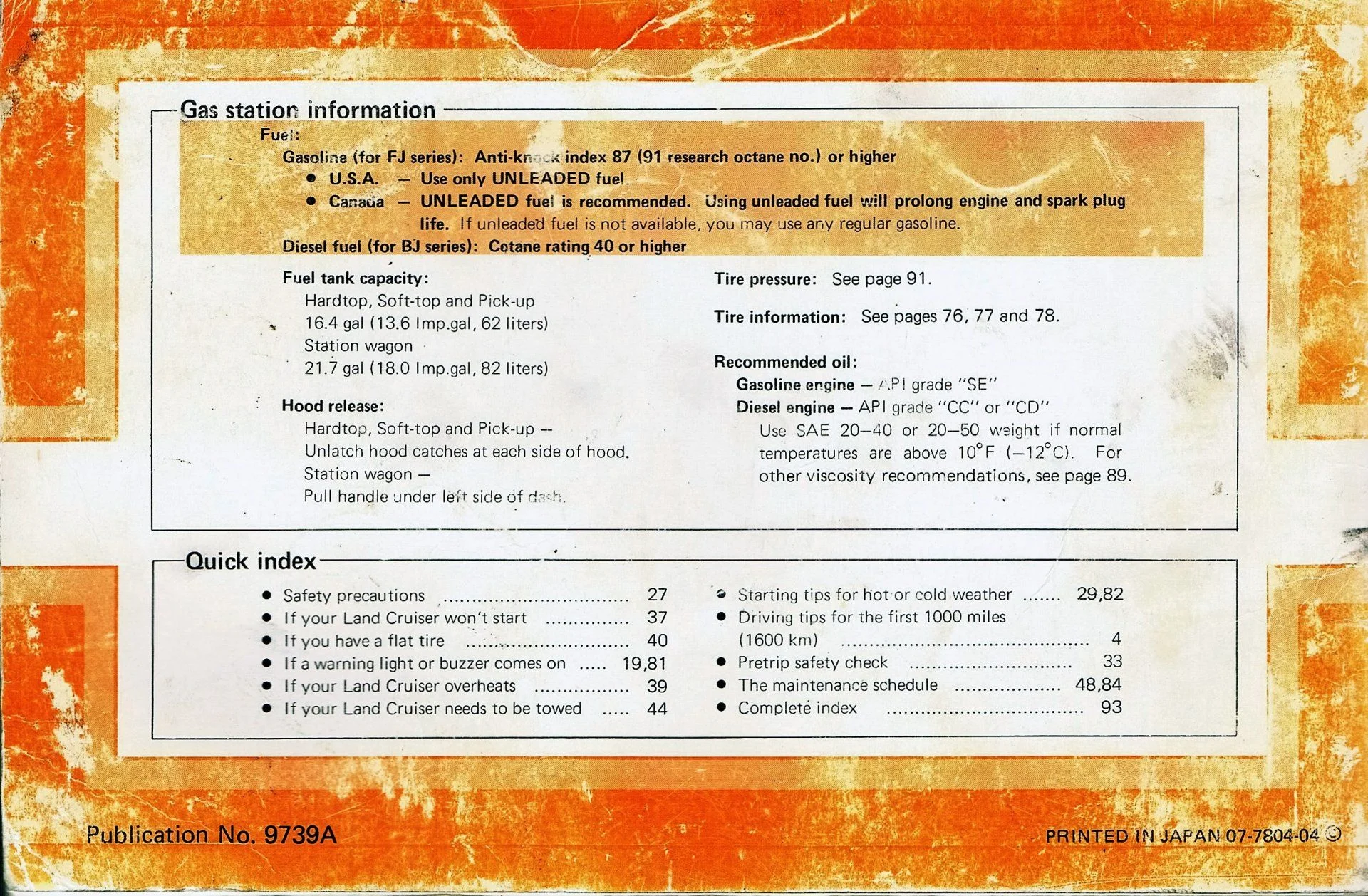

Both yours and Mikes are orange-coloured and both are Publication number 9739A. Yours was printed Sept 77 and his was printed April 1978. His is 93+ pages and yours is around 10 pages less (without the diesel info)

(I didn't notice until now the diesel information appearing on the rear cover of Mike's April 1978 OM.)

Maybe the larger versions (with diesel info) were originally sent with vehicles destined for North-America/Canada... But if so, this begs the question of "why not give Canada the green versions?"

I guess Toyota was determined to use the orange colour-code for all exports to continental America?

:meh:

Edit: And I note your rear cover appears more brown than orange on my computer so I suspect the brown colour I thought I saw on Mike's 1977 OM is really orange too. ..........And another edit later........I'm wrong ...... In 1977 it appears Toyota apparantly indeed went briefly to using a brown/beige colour for the covers

Last edited:
Joined
Nov 19, 2013
Messages
936
Location
Ont - Canada
Yeah, maybe that was the intention i.e. orange for NA/Canada. I forgot, I have a 77 manual also. It has brown/beige covers. Its 81+ pages also. Printed in Japan 02-7611-01. Publication No. 9720A.

Last edited:

bj40green

Tssss, tssss
Joined
Dec 13, 2010
Messages
3,458
Location
Atenas, Costa Rica
A little more info on my 1978 OM
Publication No. 9739A Printed in Japan 06-7803-03 96 numbered pages
USA: Use only UNLEADED fuel.
CANADA: UNLEADED fuel is recommended
FJ40LV hard top, BJ40LV hard top, FJ40L soft top, FJ45LP pick up, FJ55LG station wagon.


So it seems that there are several version for this year.

Rudi


78fj40mg

TLCA #23510
Joined
Sep 13, 2008
Messages
4,072
Location
PNW, WA.
Tom, my 1972 FJ40 manual print date it is unfortunately no longer legible, I can barely read some of the date '0372XXXX?.
