Very cool. Looks like it used FF hub bodies with a dust flange installed. We need to fine one of these for the Land Cruiser Heritage Museum!
original 40's toyota trailer
- Thread starter Folkert
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Cool find!
Brakes on a such a light trailer? Is that a service brake or just a parking brake? Good luck with your restoration. Would love to see more.
Brakes on a such a light trailer? Is that a service brake or just a parking brake? Good luck with your restoration. Would love to see more.
More details:
-I have been researching, and T10 is almost exactly to bantams & willys ¼ trailer regarding brake systems and hitch system. Lunnete is the same.
-Brake system only works as a hand brake by cable system. Mine is missing!! I need to find more info and try to replicate the system.
- Front and side reflectors are the same as 55s series amber side and 40 series rear red round. Rear reflectors are Koito with a triangle shape, one is missing. No idea where to find it…
-Rear taillight/brake (local legal requirement) I think I will use a 69-73 series 40 round lamp. I don’t know if the white trailer above in this thread is in original shape, because those tail light are too similar to Land Rover Defender tail light (Bullet type).
-I have been researching, and T10 is almost exactly to bantams & willys ¼ trailer regarding brake systems and hitch system. Lunnete is the same.
-Brake system only works as a hand brake by cable system. Mine is missing!! I need to find more info and try to replicate the system.
- Front and side reflectors are the same as 55s series amber side and 40 series rear red round. Rear reflectors are Koito with a triangle shape, one is missing. No idea where to find it…
-Rear taillight/brake (local legal requirement) I think I will use a 69-73 series 40 round lamp. I don’t know if the white trailer above in this thread is in original shape, because those tail light are too similar to Land Rover Defender tail light (Bullet type).

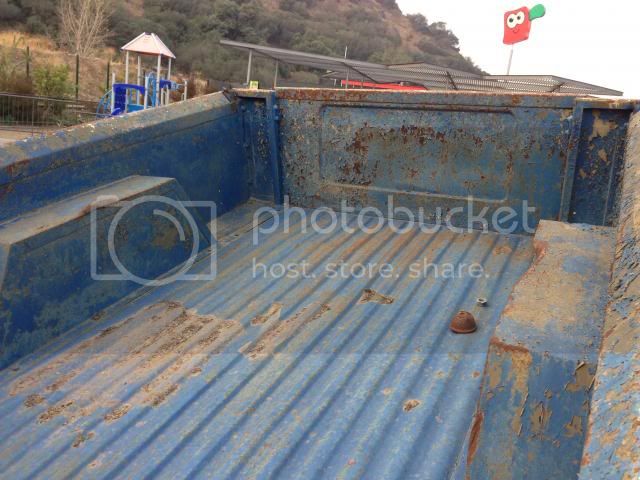

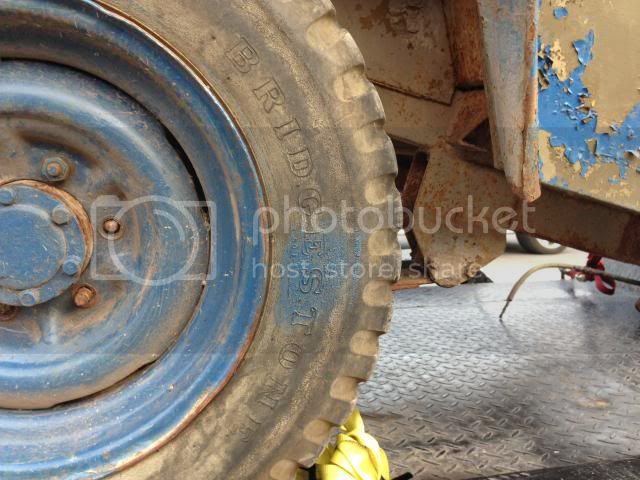

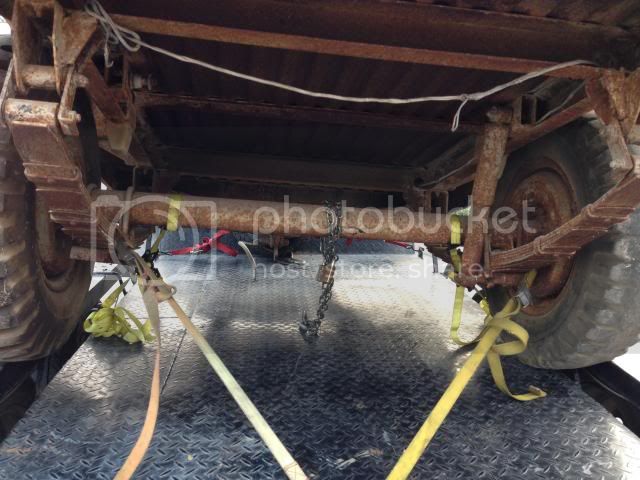

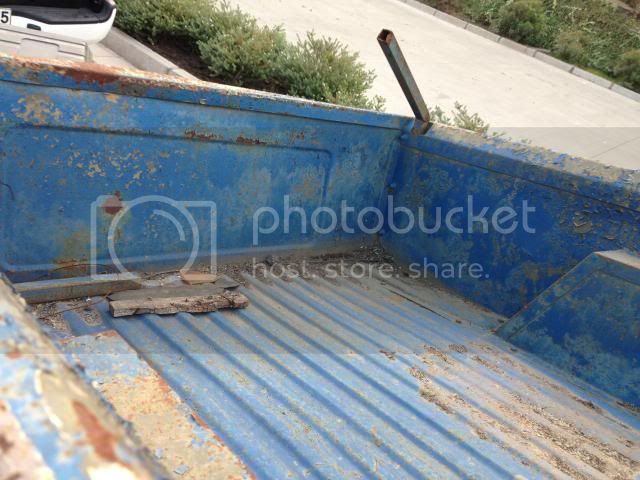

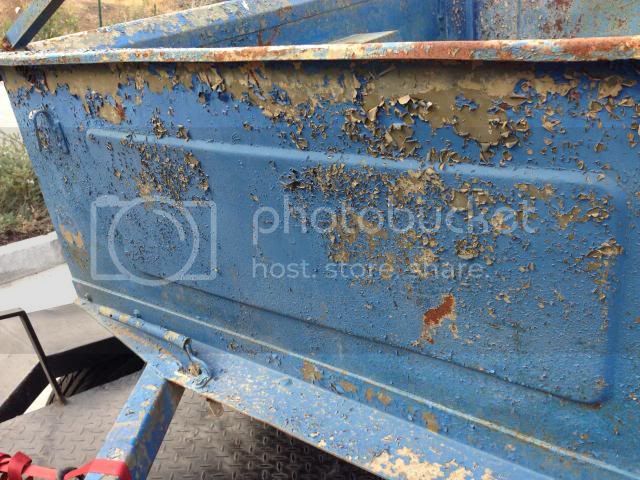

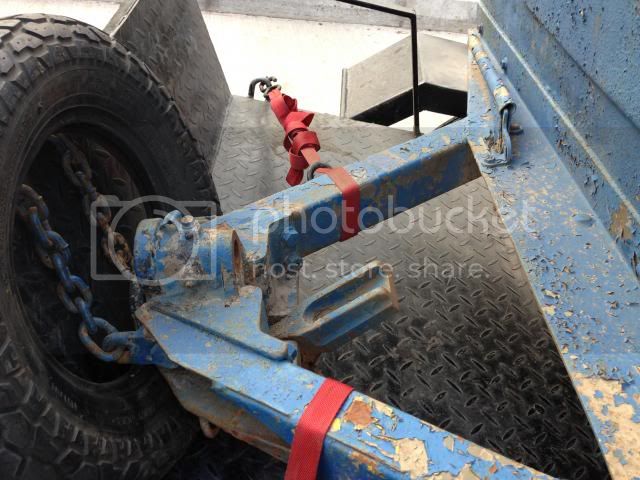

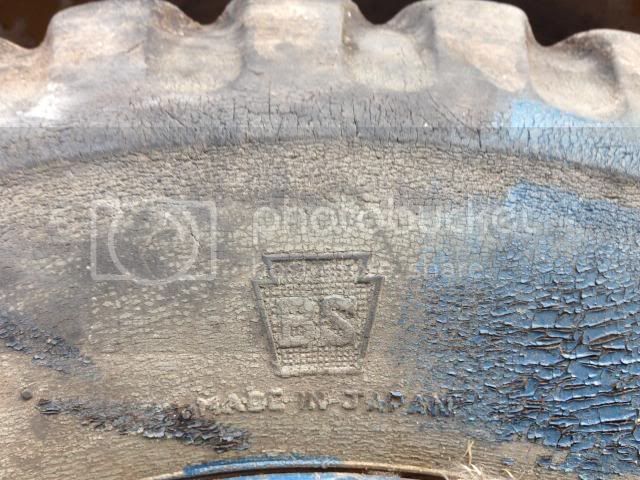

More pics:
Nice find on the T10. Good luck with the restoration. I would love to see how the restoration goes so don't forget to post pictures.
Maybe will be a better idea to start a new thread with this restoration, but I think I will post this initial “autopsy” process in this thread as a T-10 documentation.

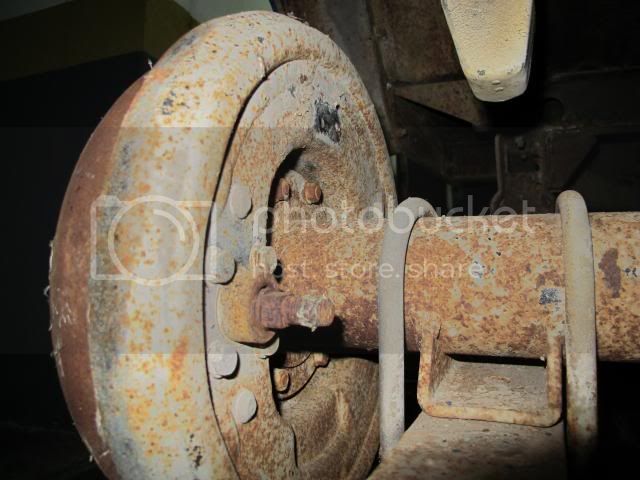

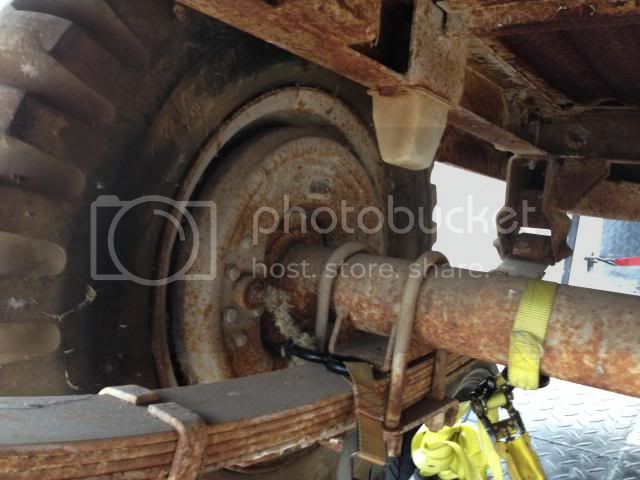

-Starting with the axle and drum brakes:
-I didn’t take a photo, but the hubs externally are similar to a FF hub, but after remove the cap, I found a BIG axle nut, like a typical trailer hub.

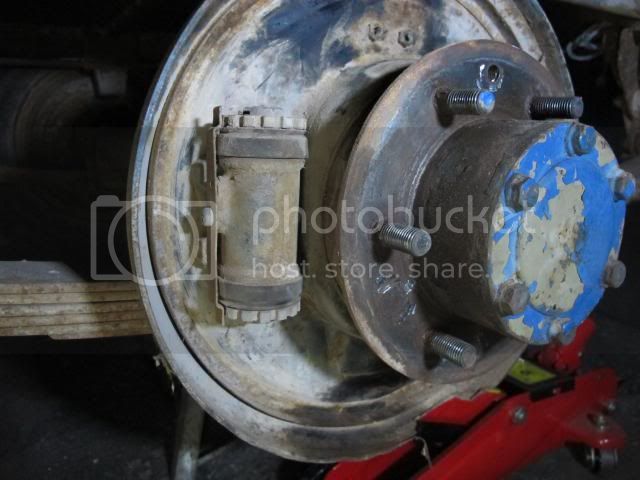

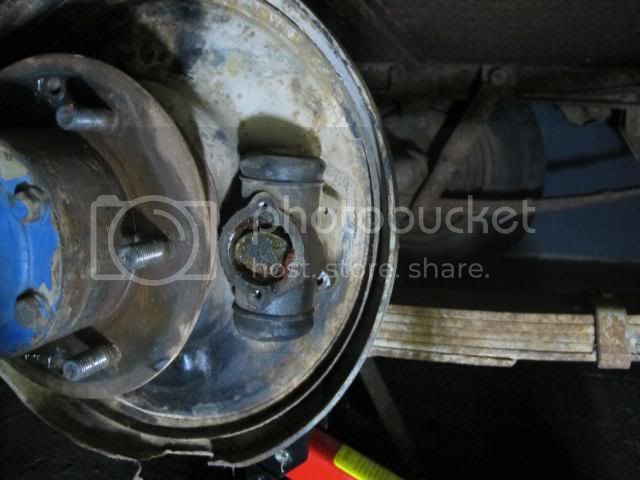

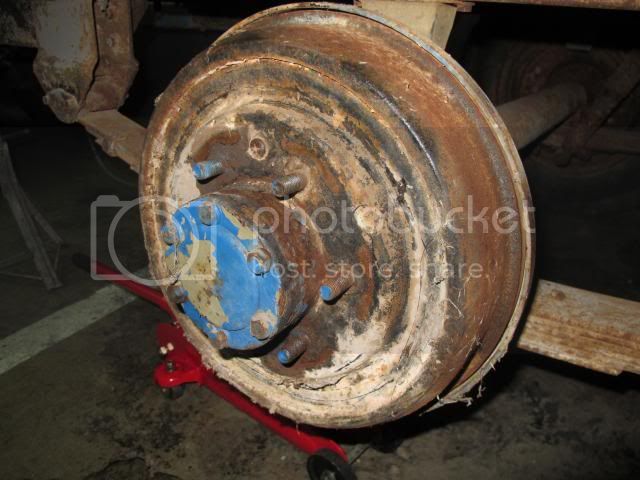

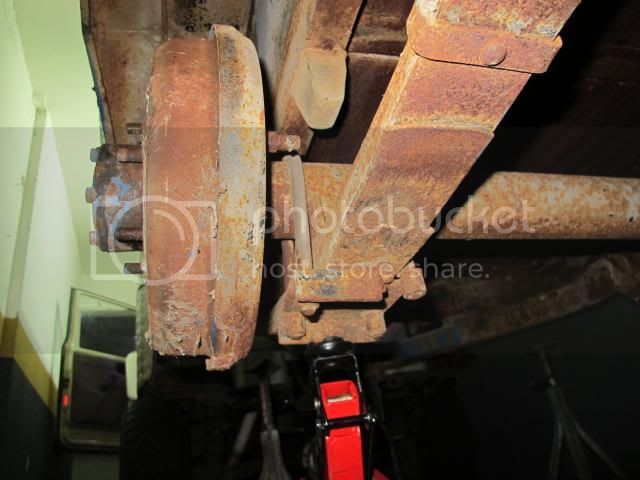

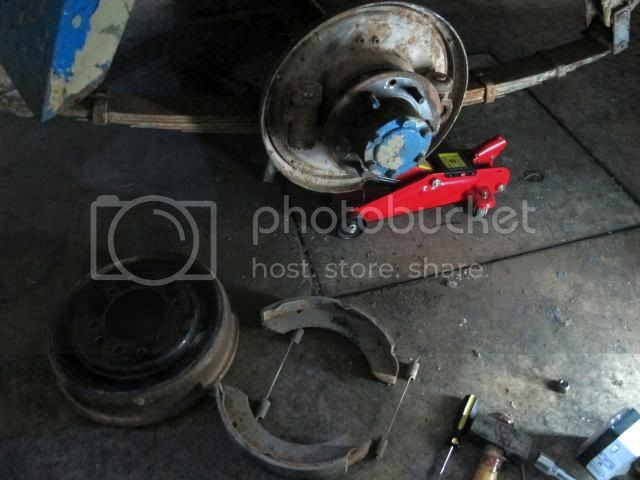

-The drum looks like a rear 40 series. Because is only a hand brake system, the pads are almost new from factory. The front brake cylinder is equals to a 40 series, including the regulators, but the special characteristic is that the fluid lines have been not including from factory, instead, Toyota installed a plug. Therefore those cylinders brakes acts like a fixed support for the pads with the regulation option. The rear cylinder have an mechanical system for the expansion. An “oval” shaft that is actuated from external lever pulled by a cable. (the cable and the lever are missing in my trailer, don’t try to find it at the pictures).

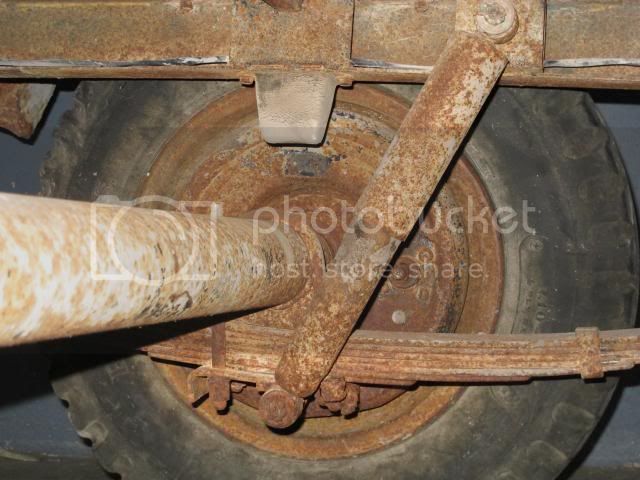

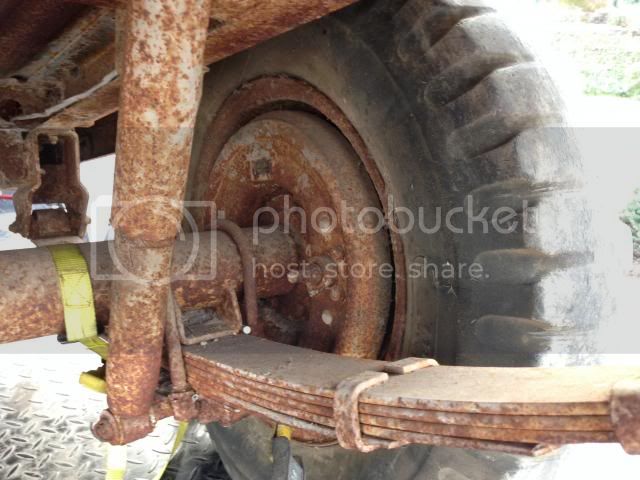

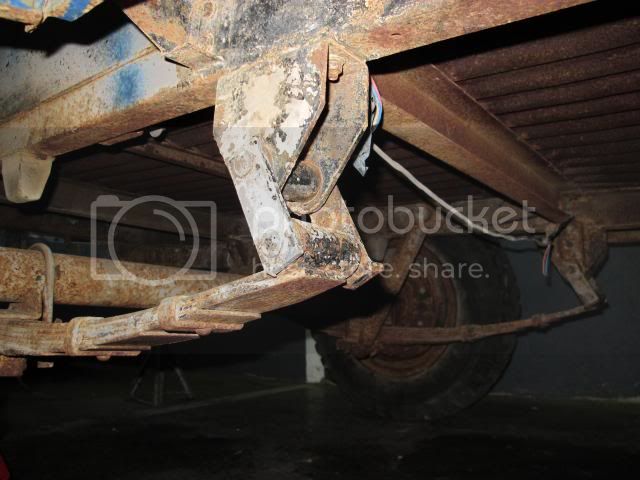

-Leaf springs, shocks mount and U bolts, looks the same as a 40 series.
BONUS:
-Even I will have to sandblast the whole body, after removing some reflectors, It was a pleasure to prove that the original color paint from factory was: Beige …. That by chance is color of my FJ40
. Therefore, is not necessary to think a lot to choose a color…. The final color will be the same as my rig and also the factory trailer color.
-Starting with the axle and drum brakes:
-I didn’t take a photo, but the hubs externally are similar to a FF hub, but after remove the cap, I found a BIG axle nut, like a typical trailer hub.
-The drum looks like a rear 40 series. Because is only a hand brake system, the pads are almost new from factory. The front brake cylinder is equals to a 40 series, including the regulators, but the special characteristic is that the fluid lines have been not including from factory, instead, Toyota installed a plug. Therefore those cylinders brakes acts like a fixed support for the pads with the regulation option. The rear cylinder have an mechanical system for the expansion. An “oval” shaft that is actuated from external lever pulled by a cable. (the cable and the lever are missing in my trailer, don’t try to find it at the pictures).
-Leaf springs, shocks mount and U bolts, looks the same as a 40 series.
BONUS:
-Even I will have to sandblast the whole body, after removing some reflectors, It was a pleasure to prove that the original color paint from factory was: Beige …. That by chance is color of my FJ40
. Therefore, is not necessary to think a lot to choose a color…. The final color will be the same as my rig and also the factory trailer color.
They look very similar to the ones we used to use when I was in the Air Force. We used to call them a TAC Trailer. They even have the large ring for towing.
@Pumarino
thank you for posting these great detailed pictures!!
More military type trailer types here>>> https://forum.ih8mud.com/threads/military-type-trailer-thread.323513/
thank you for posting these great detailed pictures!!
More military type trailer types here>>> https://forum.ih8mud.com/threads/military-type-trailer-thread.323513/
for the ebrake.... it could be like the m100 setup.... see here>>>> http://www.ih8mud.com/tech/pdf/trailer/m100-m115.pdf
More military trailer manuals here as well>>>> https://forum.ih8mud.com/threads/military-trailer-manuals.542873/
More military trailer manuals here as well>>>> https://forum.ih8mud.com/threads/military-trailer-manuals.542873/
9th Tokyo Motor Show 1962
Me again, after almost 9 years!.
I finished the restoration of the T10. Took me more than expected, but I had others personal projects to manage, but now I can post some pictures and "a long" 12 min video" with many photos of the whole process.
After all these years, not many information about T-10 apeared in internet, tried to contact some japanese guys with some questions, but no answer. Seems that te production was very limited and there are two types of body. The early models with round mudwards and the later production with the squared ones (mine)
I didnt find round amber reflectors and one missing triangular, therefore I had to replicate the triangular and use some "oval" koito reflectors for the front. Also change the round red laterals to oval red to keep the oval style. Regular steelies were replaced by split rims and the plate holder & light is custom made. A couple of a local replicas like underbody brake mechanism and the landing leg, but no mayor mods.
I hope you enjoy it
I finished the restoration of the T10. Took me more than expected, but I had others personal projects to manage, but now I can post some pictures and "a long" 12 min video" with many photos of the whole process.
After all these years, not many information about T-10 apeared in internet, tried to contact some japanese guys with some questions, but no answer. Seems that te production was very limited and there are two types of body. The early models with round mudwards and the later production with the squared ones (mine)
I didnt find round amber reflectors and one missing triangular, therefore I had to replicate the triangular and use some "oval" koito reflectors for the front. Also change the round red laterals to oval red to keep the oval style. Regular steelies were replaced by split rims and the plate holder & light is custom made. A couple of a local replicas like underbody brake mechanism and the landing leg, but no mayor mods.
I hope you enjoy it
