Oil pressure gauge not working (1 Viewer)

Joined
Jun 21, 2020
Messages
4
Location
UAE
Hi everyone,

I have a problem with the oil pressure sensor wiring, I have recently purchased a 100- series landcruiser and noticed that the oil pressure gauge is maxed out, upon inspection I noticed that there were no wires connected to the oil pressure sensor located on the engine, i have foudn the wire that probably lead to the oil pressure sensor, but it was cut, I searched everywhere for some clues on what wire connects to what, but with no hope. It is worth mentioning that i have opened the instrument cluster and inspected the gauge itself and turns out everything is in place, nothing burned and everything was working there with the gauge, can someone help with a picture of what would the wiring look like under the hood, its also worth mentioning that my engine is a 2UZ.


Ayune

SILVER Star
Joined
Feb 12, 2017
Messages
1,700
Location
Portland, OR

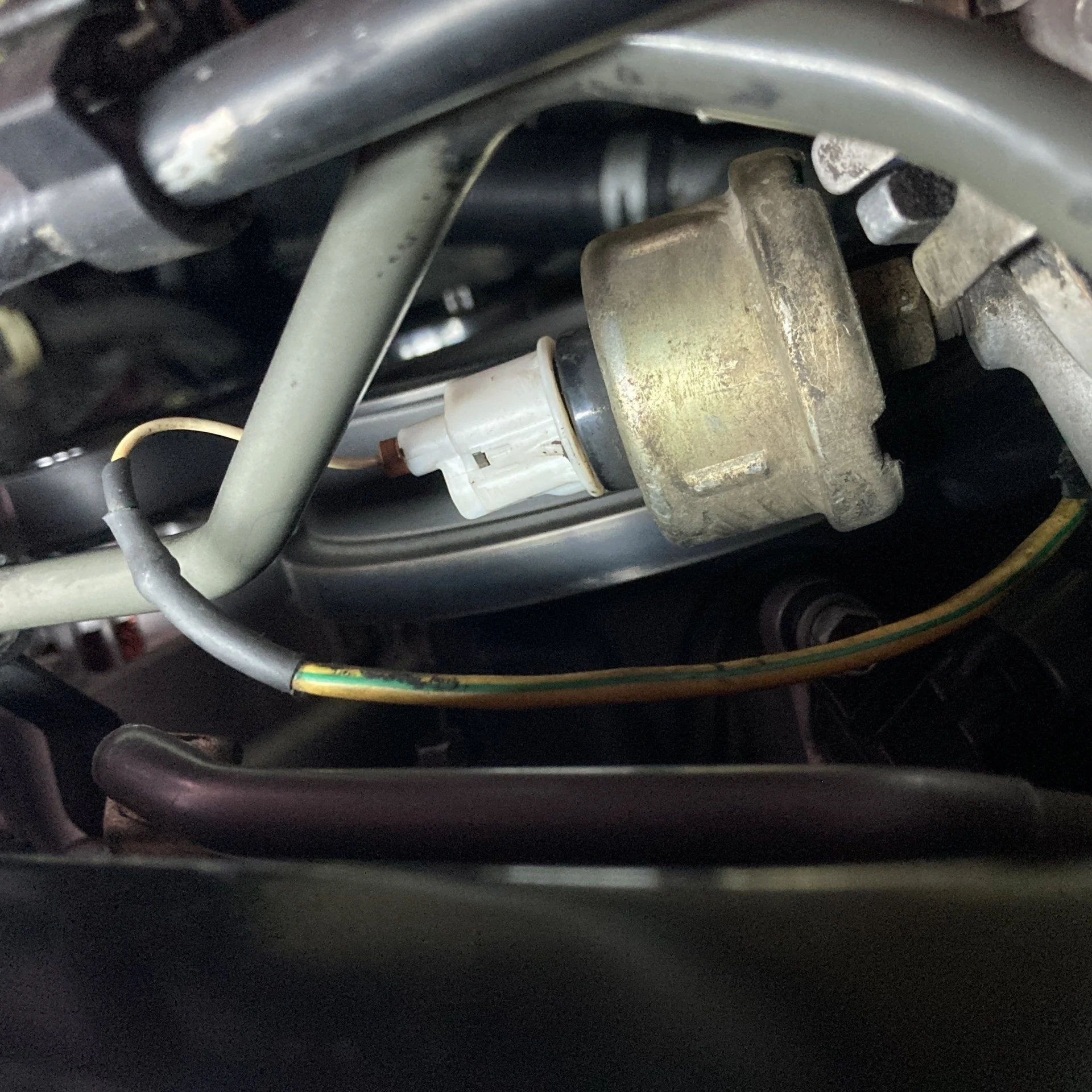

This is what it looks like from underneath looking up. One wire going to the oil pressure sender, yellow with a green stripe. It’s easy to break the wire while working on nearby things. You can see I’ve had to splice the wire in the past.

If you need to replace it: Oil pressure sender connector: p/n 90980-11363

Toyota Oil Pressure Sensor Connector With Wire (CONNECTOR F) 90980-11363 - https://www.yotashop.com/toyota-oil-pressure-sensor-connector-with-wire-connector-f-90980-11363/

Joined
Jun 21, 2020
Messages
4
Location
UAE
This is what it looks like from underneath looking up. One wire going to the oil pressure sender, yellow with a green stripe. It’s easy to break the wire while working on nearby things. You can see I’ve had to splice the wire in the past.

If you need to replace it: Oil pressure sender connector: p/n 90980-11363

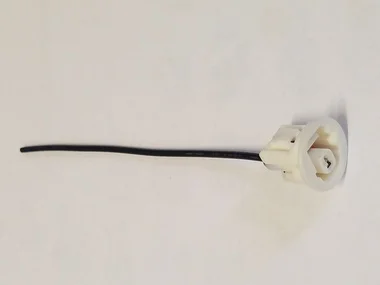

View attachment 2566659View attachment 2566660Toyota Oil Pressure Sensor Connector With Wire (CONNECTOR F) 90980-11363 - https://www.yotashop.com/toyota-oil-pressure-sensor-connector-with-wire-connector-f-90980-11363/
Thank you for the picture, this clears up everything 👍🏼

Joined
Jan 22, 2021
Messages
18
Location
Nebraska

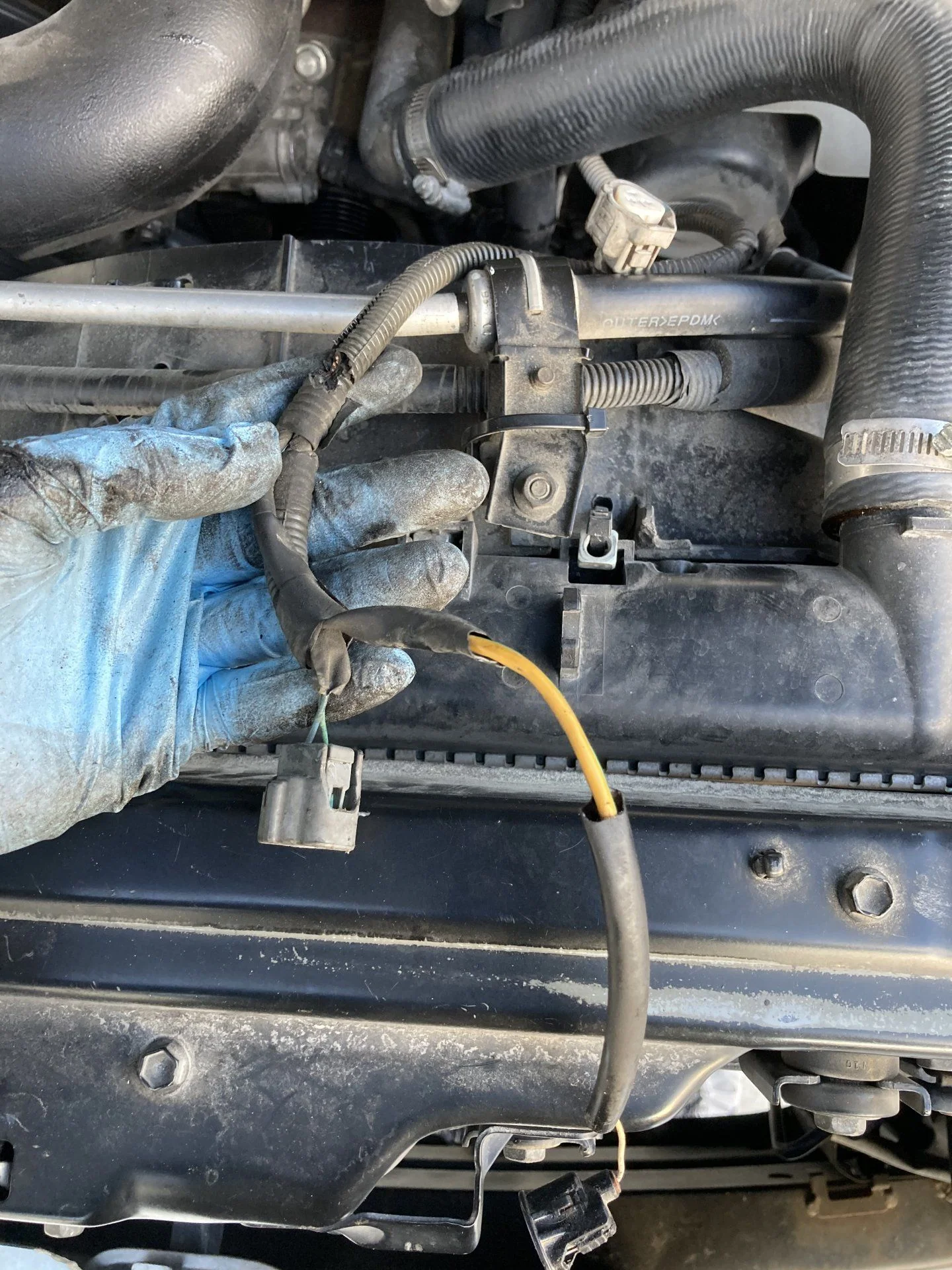

Mine was inop too the serpentine belt had cut it, harness its on comes down from the top with two other plugs. You can pull it all up for easier access to solder on your new pigtail
