Well, my catalog of poor ideas keeps growing...

I love this - can certainly relate!



[TheNomad]

ABS sensor guards. Got these from a friend so installed them for kicks. Have mounts for small rock lights on them. Hey, when in Rome.

ABS Sensor Guards from Ohana Rig Supply - Just for fun

Lexus, GX 460 gxor overland DIY lift upgrade Land Cruiser Prado tires roofrack storage modify toyota v8 luxury 470 150 gx470 gx460 offroad 4runner

nomadsgx460.blogspot.com



[r2m]

ABS sensor guards. Got these from a friend so installed them for kicks. Have mounts for small rock lights on them. Hey, when in Rome.

ABS Sensor Guards from Ohana Rig Supply - Just for fun

Lexus, GX 460 gxor overland DIY lift upgrade Land Cruiser Prado tires roofrack storage modify toyota v8 luxury 470 150 gx470 gx460 offroad 4runner

nomadsgx460.blogspot.com

Not sure if a small camera wouldn't be better to mount to them?



[TheNomad]

Little progress, grabbing a few hours here and there.

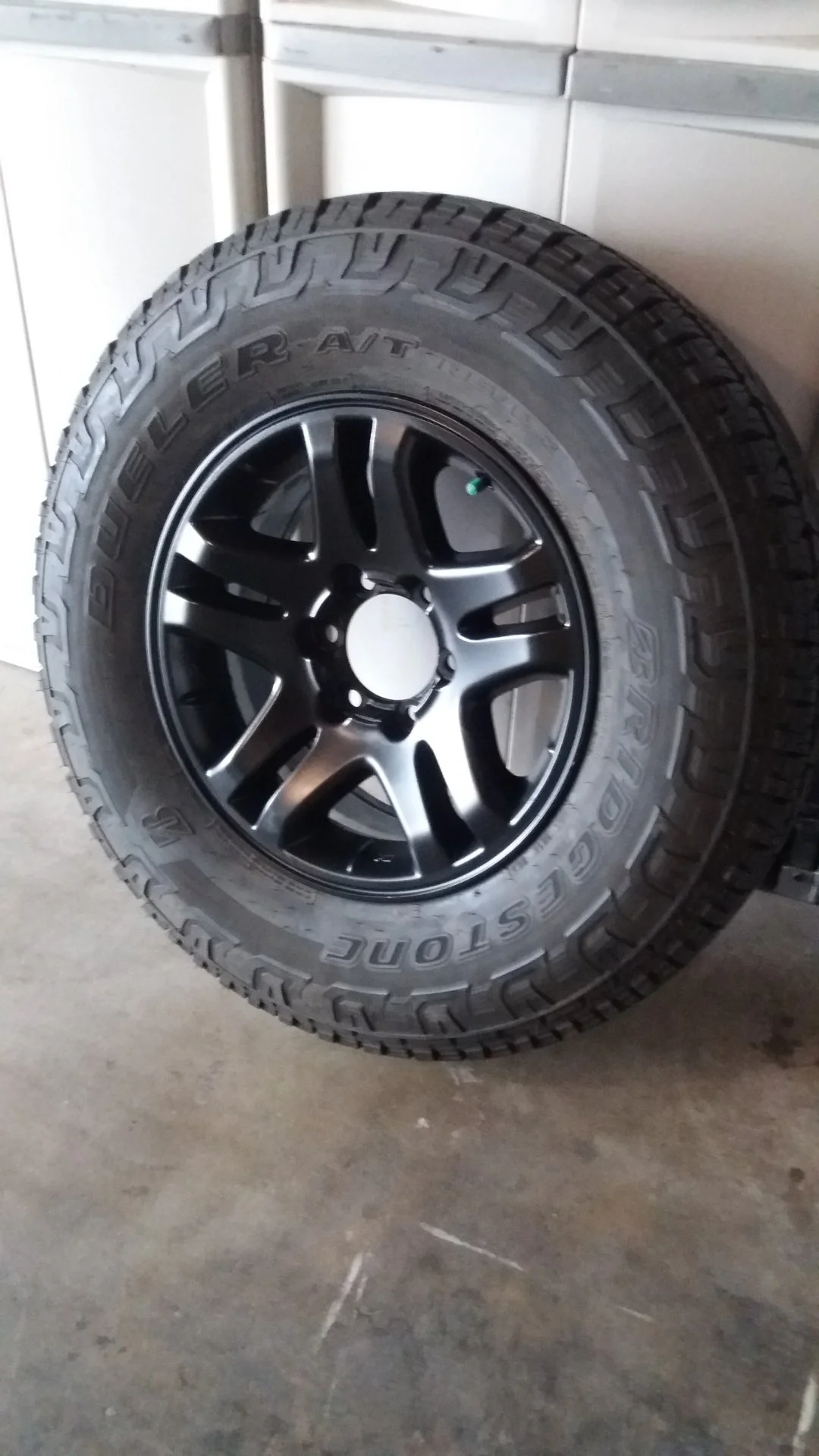

Wheels are painted satin black.

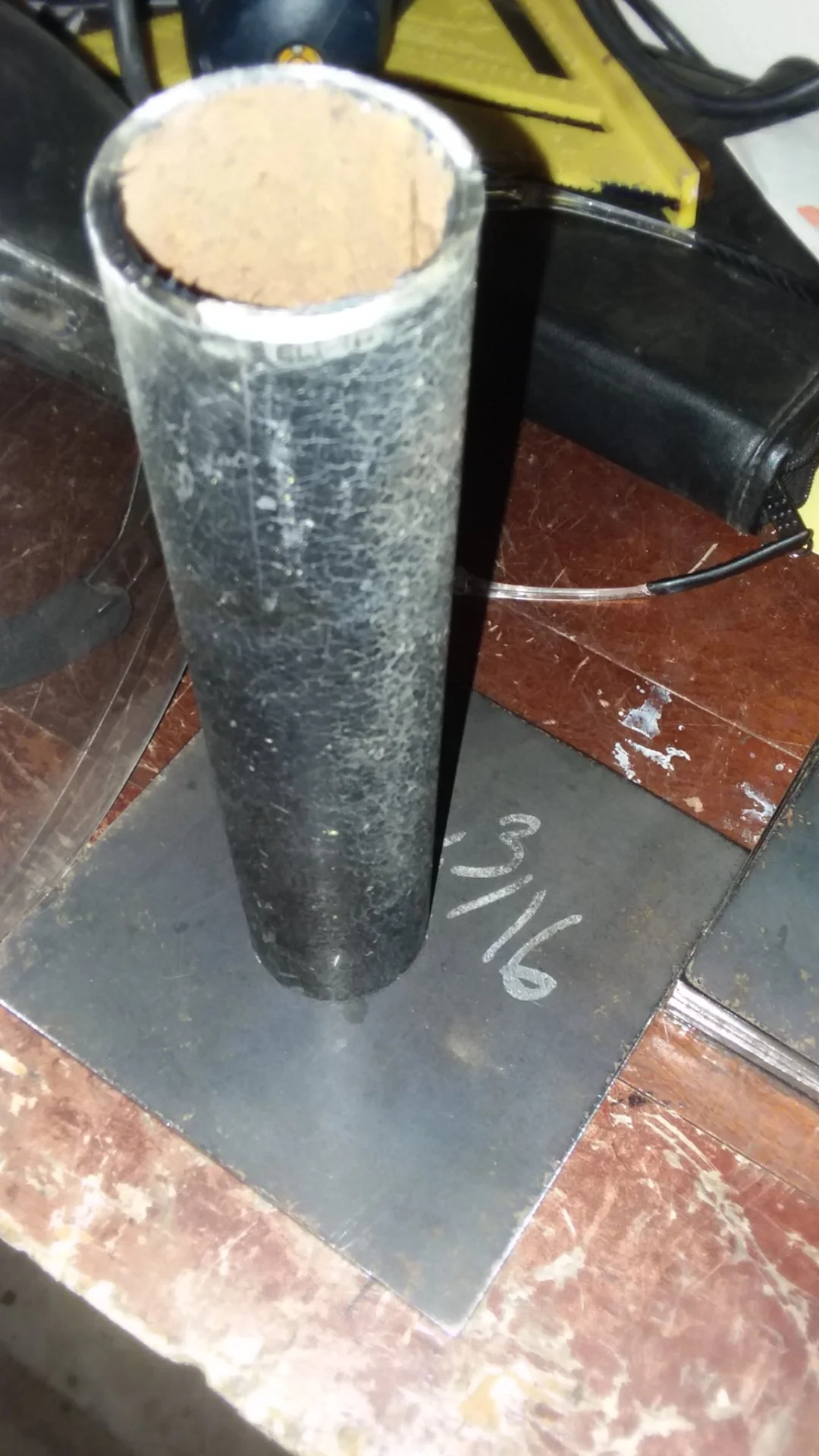

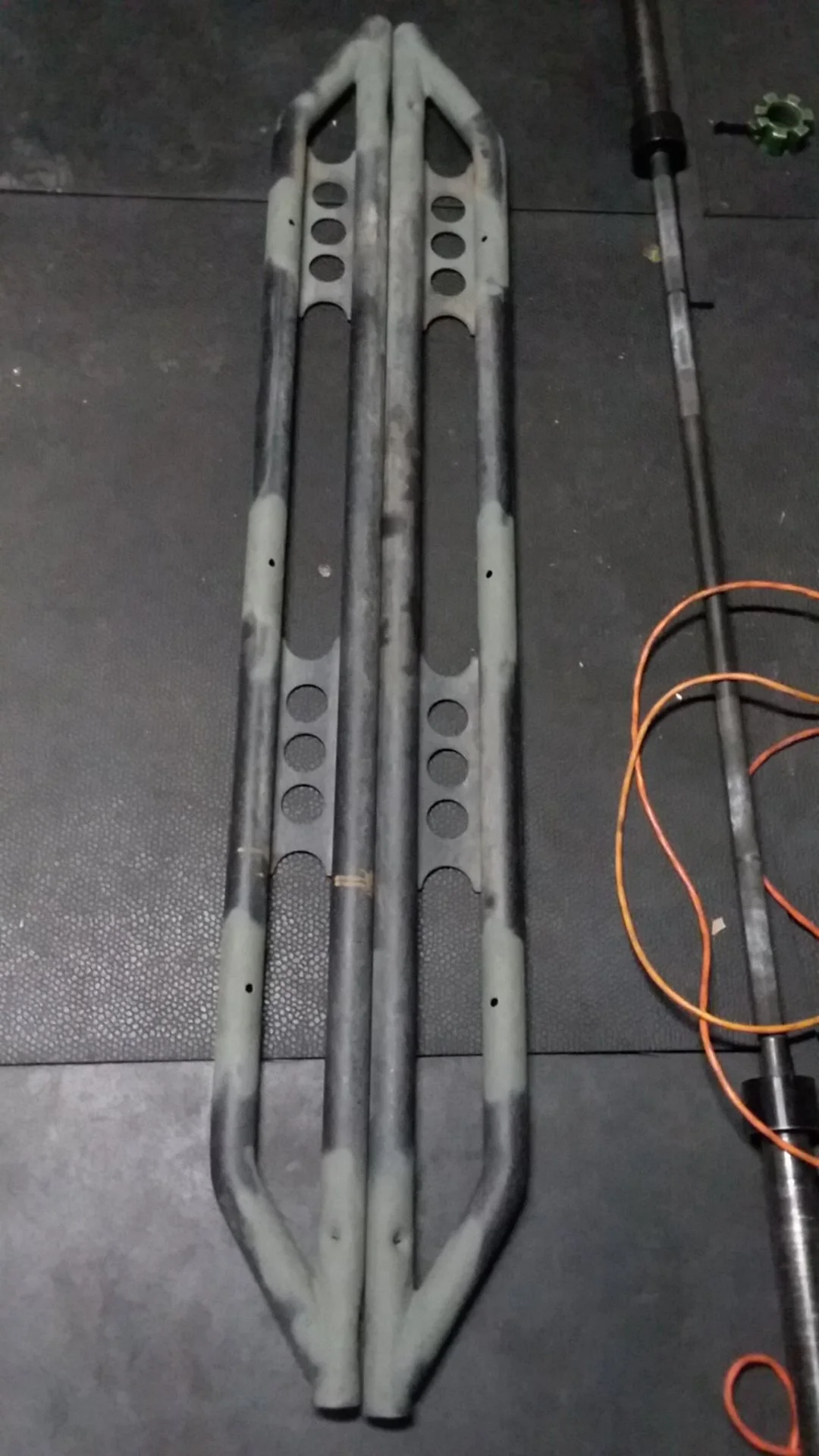

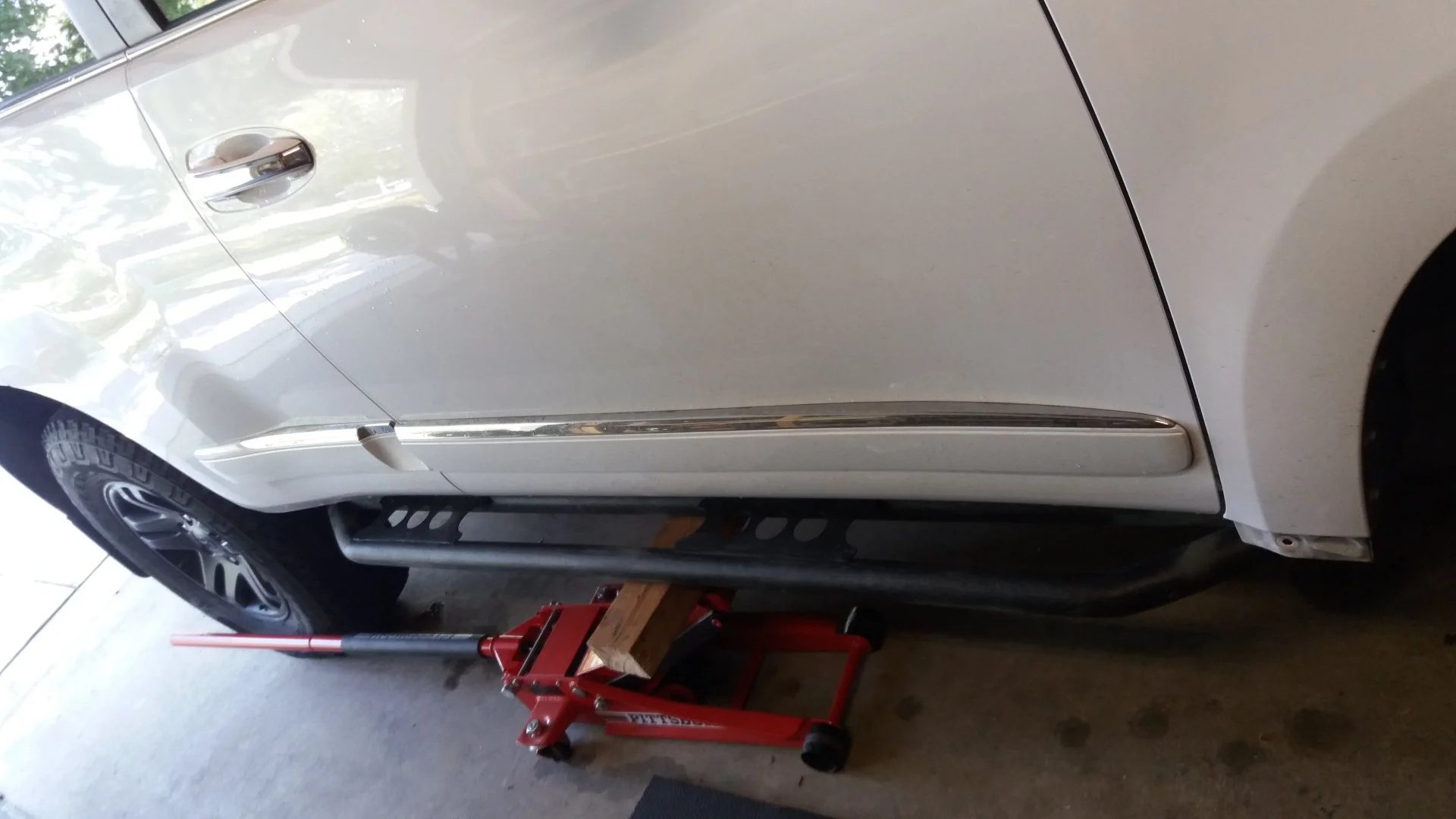

Sliders smoothed out and mount tubes cut. 3/16" plates are in and ready for layout.



[r2m]

Look'n good!



[TheNomad]

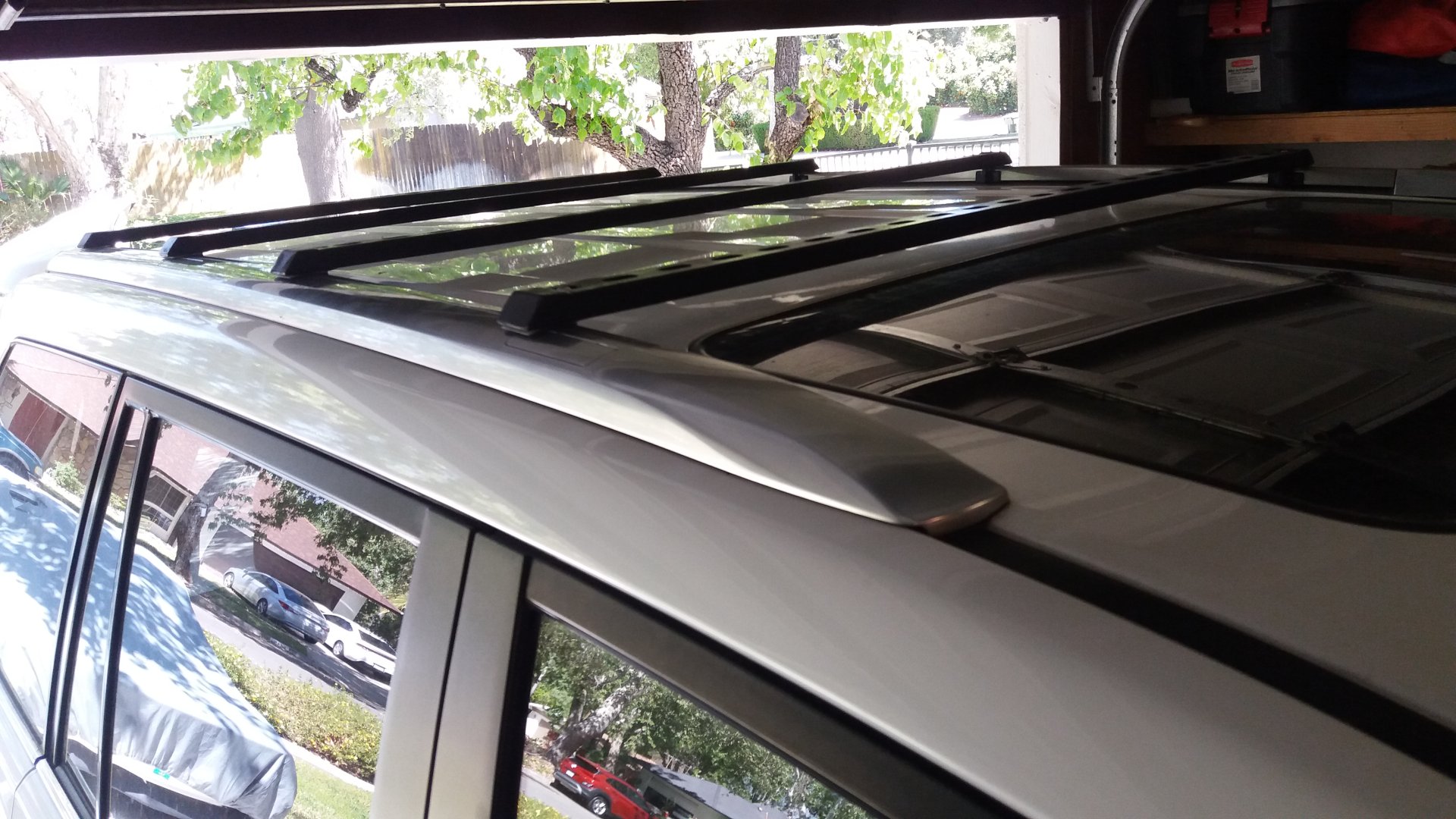

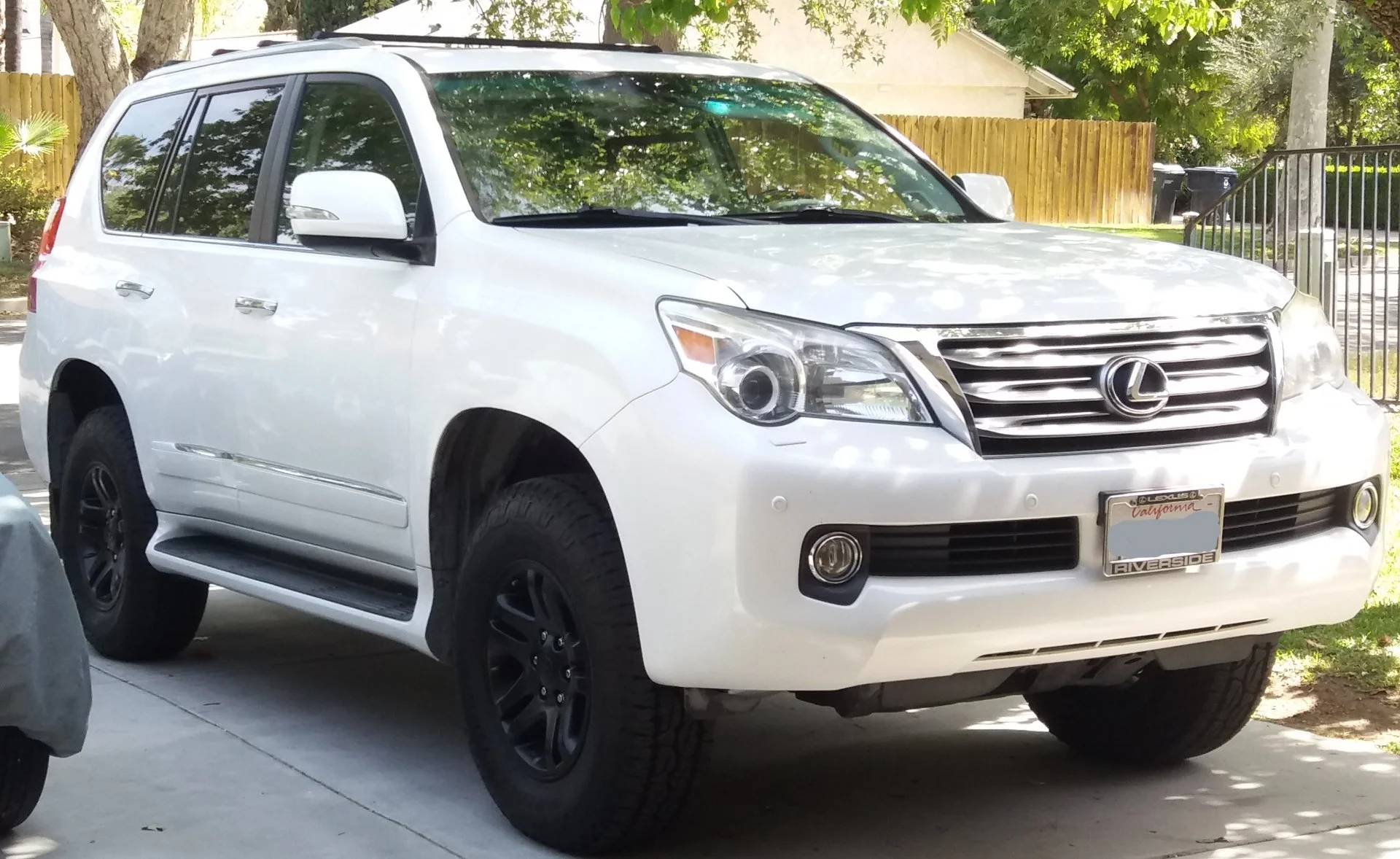

progress, painted bars and installed. Put wheels on when I changed the front brakes.
TPMS disable has an odd connection issue so I'll snip and solder again (very small wires).

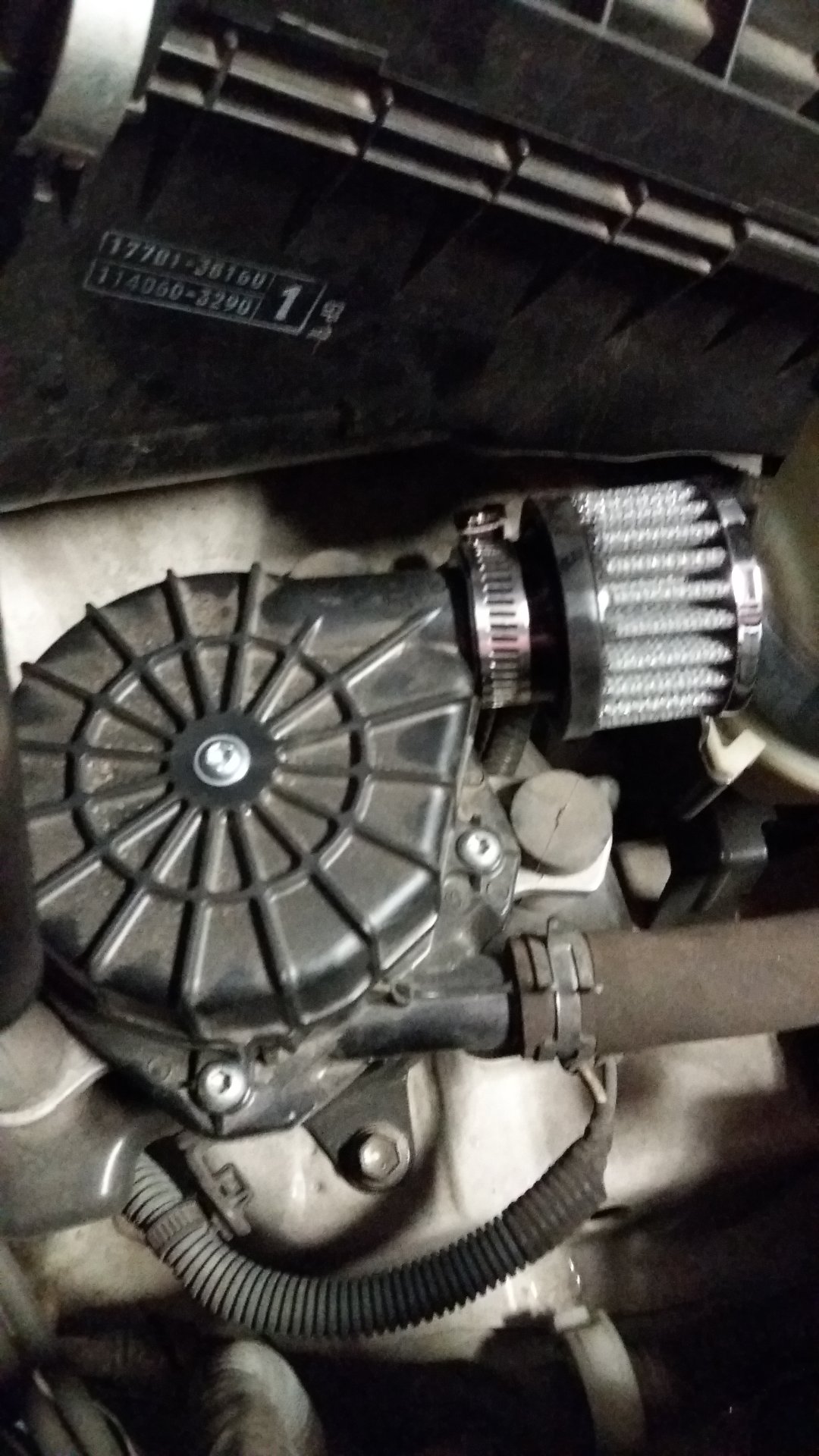

Removed the foam air pump intake to avoid future issues. It had been fixed by PO dealer and updated previously after causing issues.



[TheNomad]

So I wired the TPMS bypass switch CORRECTLY this time and it worked. Imagine that.

Sitting on the budget wheel and tire package and ready to start some other projects.
Picked up another set of rear cargo tiedown tracks from a BMW X3 to use on a removeable friction slide cargo drawer. It'll be about 4 to 5 inches tall, just to carry basic daily gear not seen from the windows. Easily taken out for any big cargo needs. Don't think I'll go sleeping platform height but have an idea for adjustable feet.

Today I fishmouth slider tubes, the hard way.



[OCGX]

I'm lovin' those crossbars. I'm sure people would like a write up on those.
I like how the GX looks with the Sequoia/Tundra wheels.
Keep up the great work.



[Bang Bang]

I'm lovin' those crossbars. I'm sure people would like a write up on those.
I like how the GX looks with the Sequoia/Tundra wheels.
Keep up the great work.

I’d love to see how these were made.



[r2m]

progress, painted bars and installed. Put wheels on when I changed the front brakes.
TPMS disable has an odd connection issue so I'll snip and solder again (very small wires).
Removed the foam air pump intake to avoid future issues. It had been fixed by PO dealer and updated previously after causing issues.

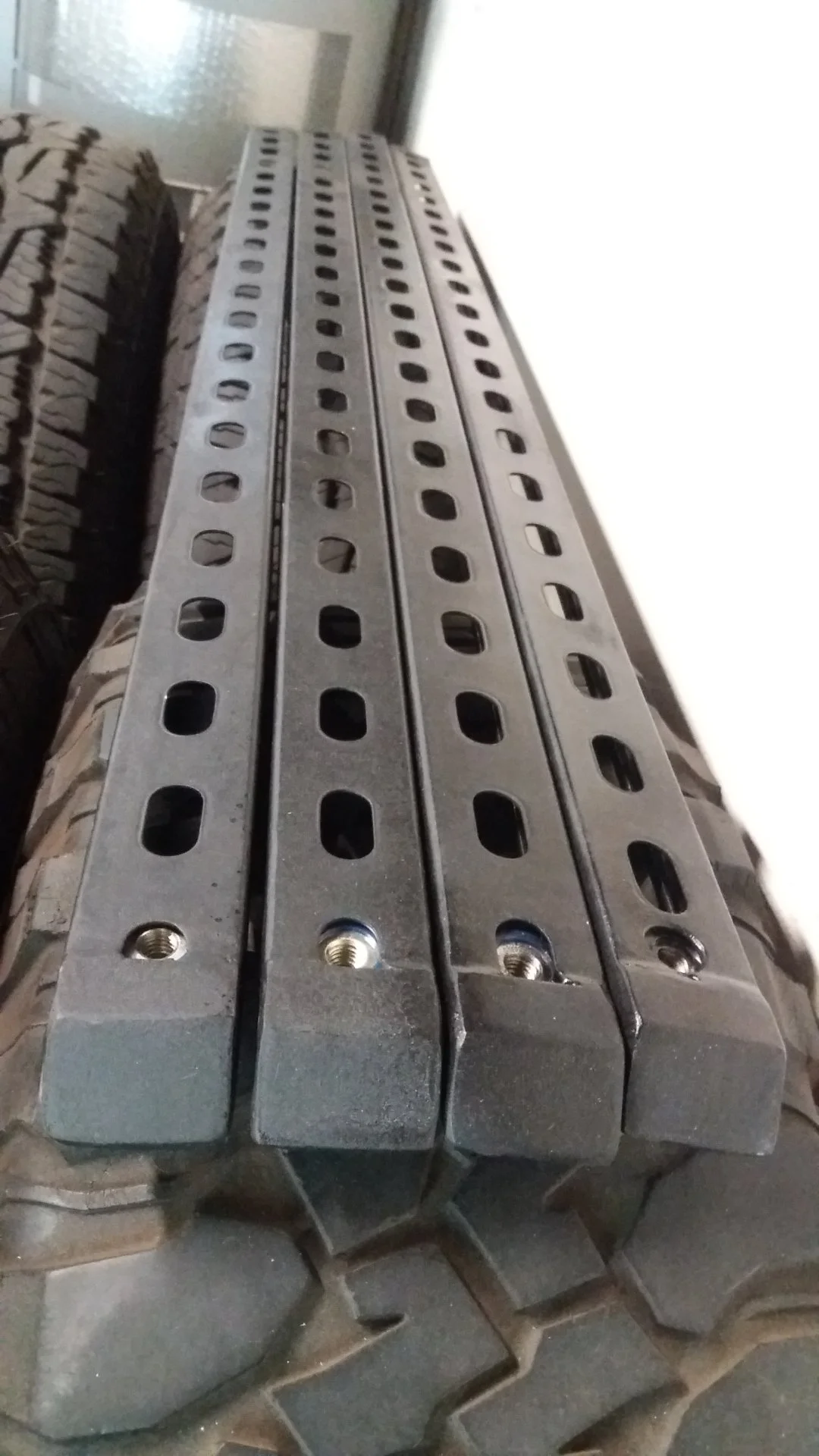

View attachment 2961399View attachment 2961406View attachment 2961413

Love how those cross bars have track holes for every/any configuration needed! How tall are they? Do you think they can handle the weight of a 150lb RTT? Roof top tents usually only have two rails running along the length wise on the bottom, which focuses the weight on two section of about 1.5"-2" of cross bar instead of distributing it along the entire width of the cross bar.



[TheNomad]

Writeup here: Cheapest DIY Heavy duty Roof Rack Crossbars for the GX460
These are just attached to the factory rails with factory style clamps.
With 4 per side now it would be stronger than the factory two bars but RTT need static and dynamic loading strength. Not sure.

There are thicker bars that can be used that will definitely not deflect at all but I chose the slimmer, about 1" tall.
These deflect a little when I span end to end and stand 185lb on the center. I'm sure these would be fine with the static load, especially multiple bars but I have no idea on the clamping strength/safety.

Edit- Actually these are basically the same design as the LFD bars, just a lower profile, and they seem to work for folks with RTT just fine. LFD just J-clamps to the factory bars as well.
So basically, I'd say yes. If you use full size superstrut, there's no deflection at all. You could also use the larger hardware. The curled edge of the superstrut makes a perfect J-clamp. No need to spend $100 on each bar.



[Bang Bang]

Writeup here: Cheapest DIY Heavy duty Roof Rack Crossbars for the GX460
These are just attached to the factory rails with factory style clamps.
With 4 per side now it would be stronger than the factory two bars but RTT need static and dynamic loading strength. Not sure.

There are thicker bars that can be used that will definitely not deflect at all but I chose the slimmer, about 1" tall.
These deflect a little when I span end to end and stand 185lb on the center. I'm sure these would be fine with the static load, especially multiple bars but I have no idea on the clamping strength/safety.

Edit- Actually these are basically the same design as the LFD bars, just a lower profile, and they seem to work for folks with RTT just fine. LFD just J-clamps to the factory bars as well.
So basically, I'd say yes. If you use full size superstrut, there's no deflection at all. You could also use the larger hardware. The curled edge of the superstrut makes a perfect J-clamp. No need to spend $100 on each bar.

I have no idea where to get the factory style clamps that you used. The superstrut I assume you got at Home Depot or Lowe's. Can you help a brother out?



[TheNomad]

Writeup here: Cheapest DIY Heavy duty Roof Rack Crossbars for the GX460
These are just attached to the factory rails with factory style clamps.
With 4 per side now it would be stronger than the factory two bars but RTT need static and dynamic loading strength. Not sure.

There are thicker bars that can be used that will definitely not deflect at all but I chose the slimmer, about 1" tall.
These deflect a little when I span end to end and stand 185lb on the center. I'm sure these would be fine with the static load, especially multiple bars but I have no idea on the clamping strength/safety.

Made the clamps. Sliced off a J shaped section of the superstrut, then welded a nut. If you look at the factory crossbars you'll see they are basically he same thing.



[TheNomad]

You can also take them from the stock roof bars and make a different solution



[TheNomad]

Progress isn't always pretty.



[r2m]

Maybe I should have posted that "Slow Ride" by Fogghat on this post!!!



[TheNomad]

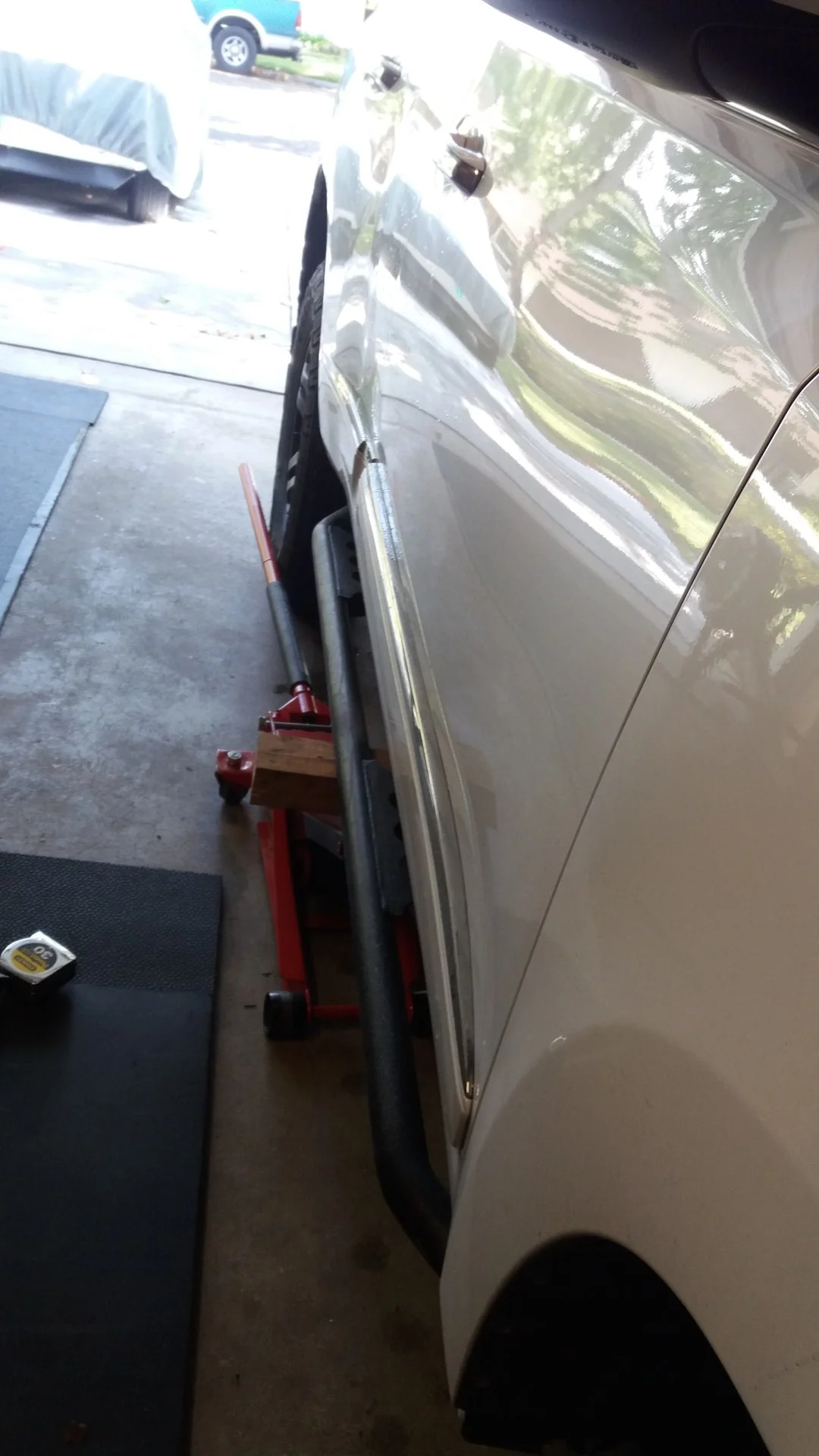

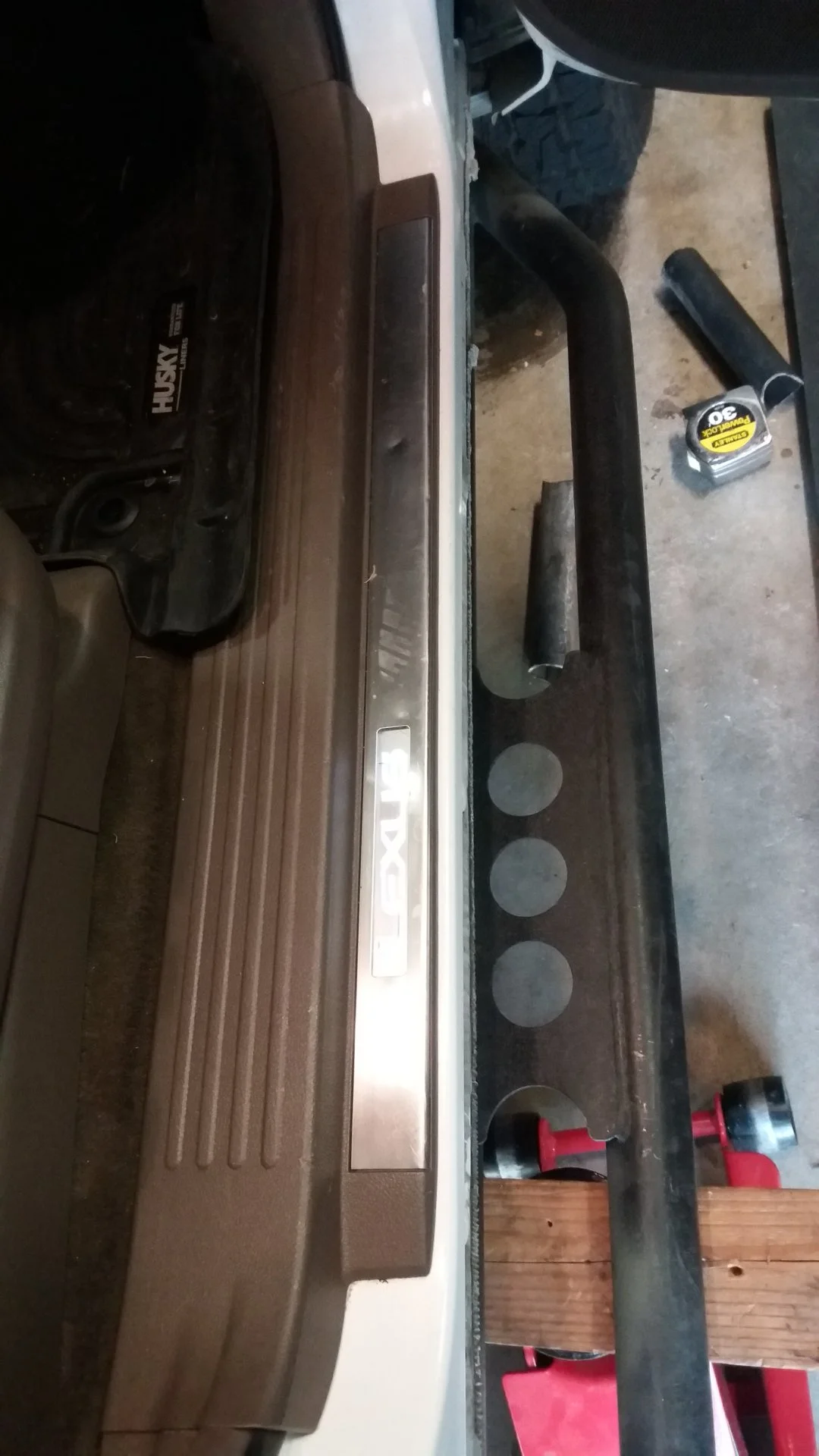

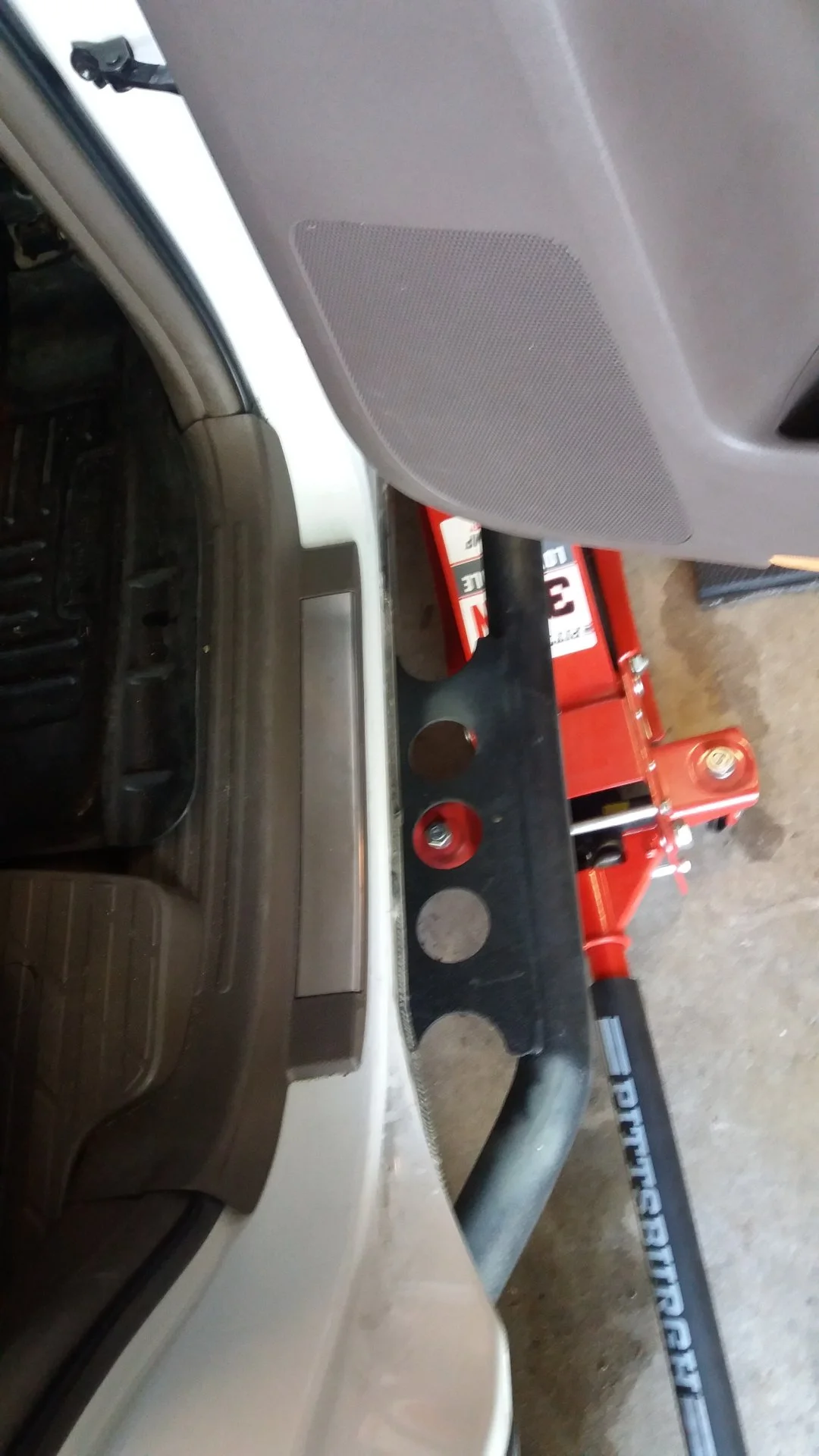

I will get it about .5 inch closer to the body than this and can position it either right here or .5 to 1" more outboard. I dont think i want the bar to stick out past the plane of the wheels. It can be positioned more inboard but the step becomes shallower. Im happy with where the steps are. Was able to locate them centered in the logos. Overall depth from the bottom edge of the door will be 5", maybe 4.5" min. I also dont think angling them up will make it look right due to the step platforms.
Tomorrow I weld.
