Builds My Willie (Toyota Land Cruiser HJ-61 thorough build)

odingski · Feb 16, 2016

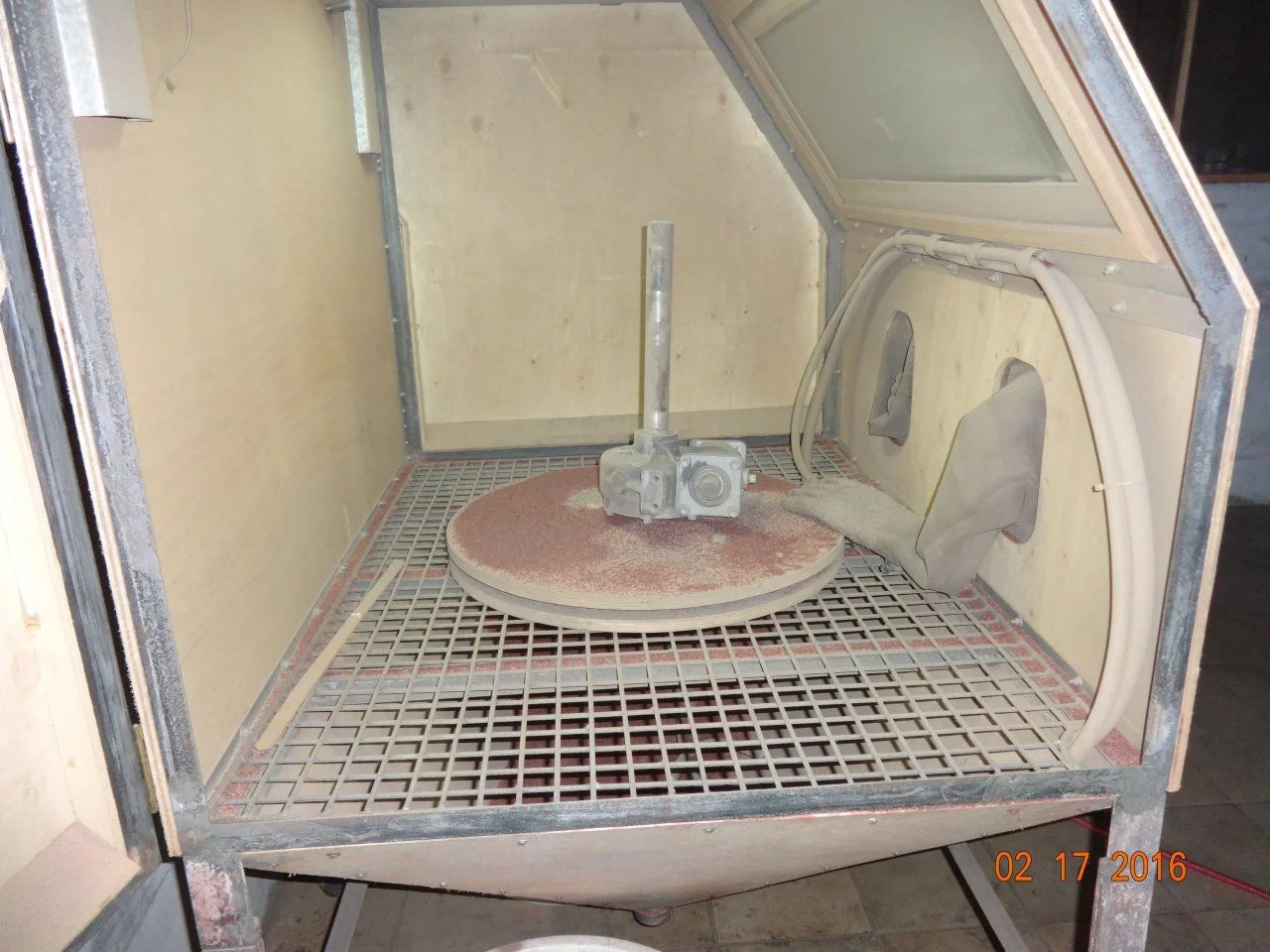

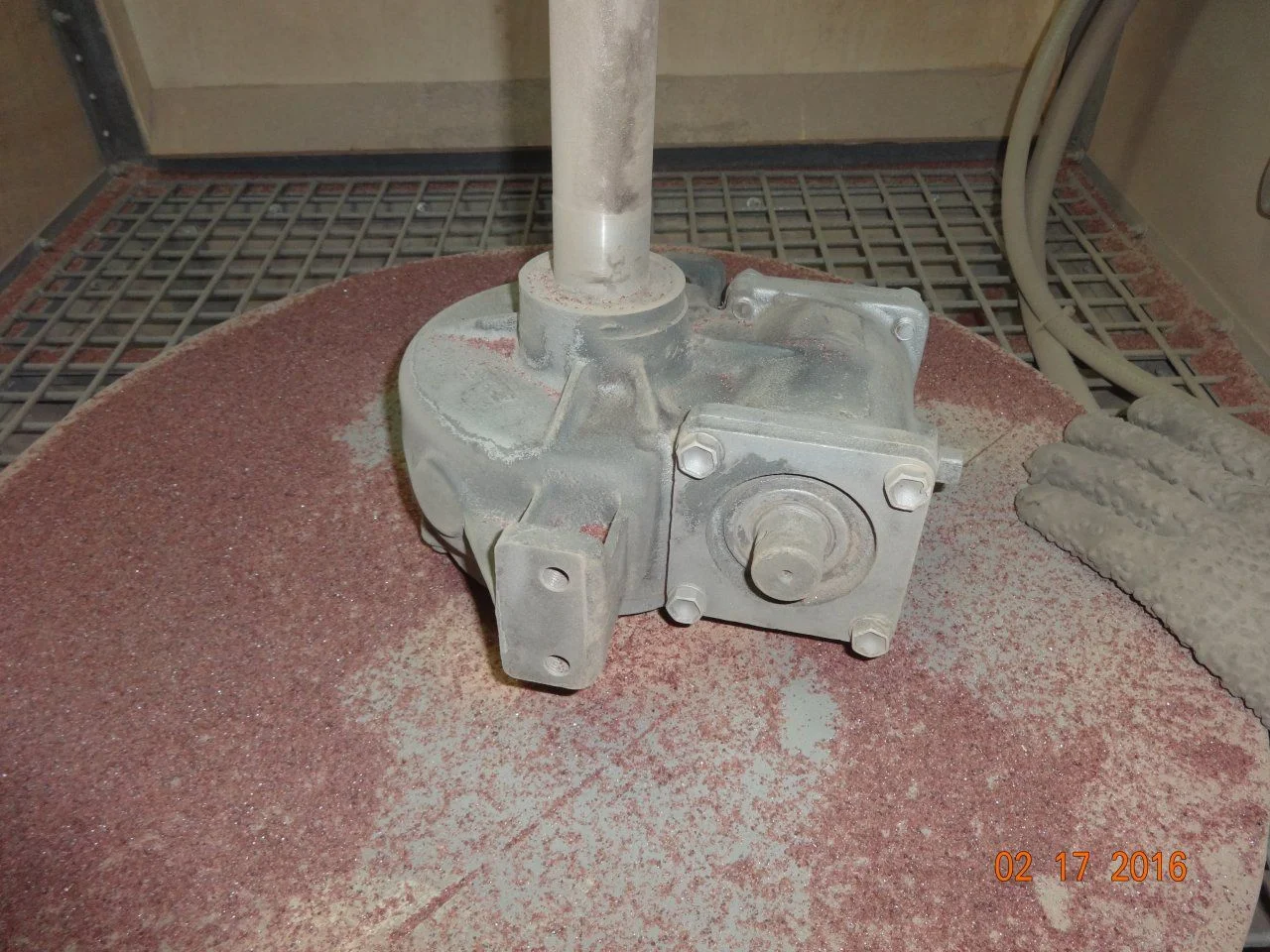

I just had to sand blast the casing of the winch.

Supermarine · Feb 16, 2016

Good ! will looks like brand new !

odingski · Feb 17, 2016

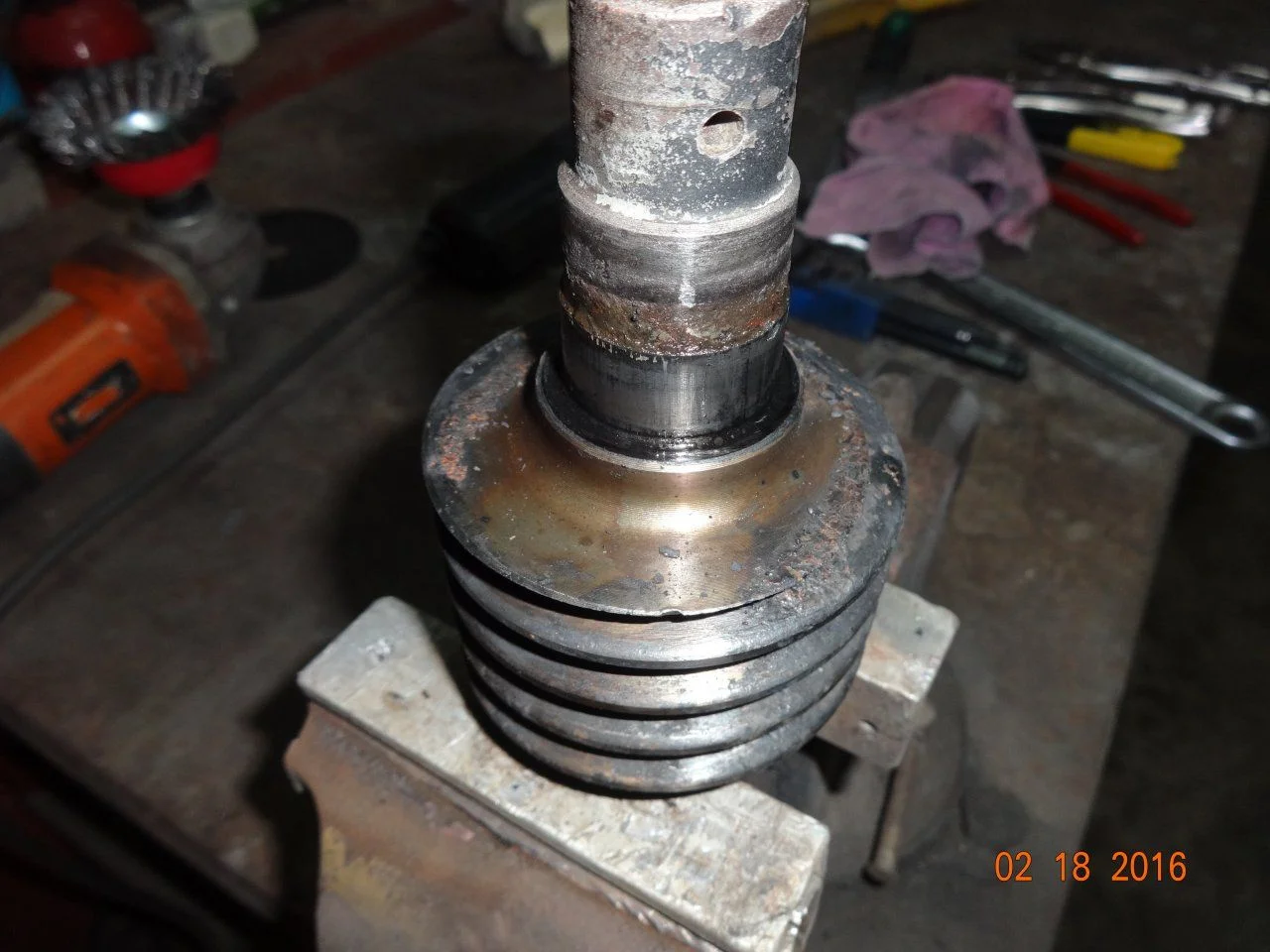

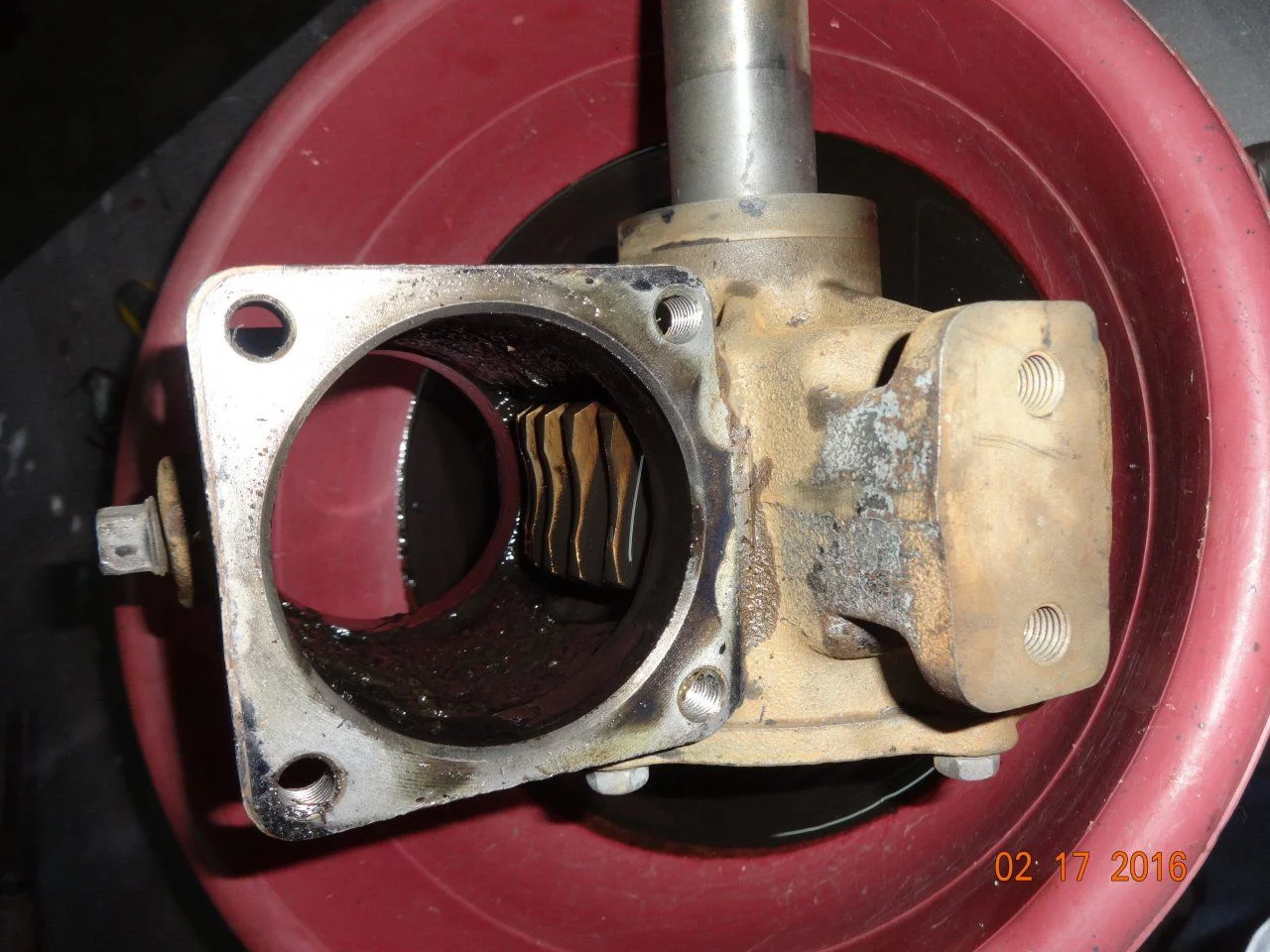

After the blasting and cleaning, I got the bad seal out. And worst, both bearings for the winch worm are really in bad shape.

HoJo 61 · Feb 17, 2016

Ouch. Looks like some water got in and did what it did. I got water in my winch too and wonder where it came from.. everything should be tight and sealed, except the output shaft seal. Condensation?

odingski · Feb 17, 2016

HoJo 61 said:
I have the exact same seal leaking. Did you have any kind of shim sheets under seal retainer, how many?

After the cleanup, it was evident that the oil seal had a dent and probably caused the leak. There were two shims in the front retainer and another two on the rear seal retainer. This is to adjust the compression for both worm gear bearings and set the play.

odingski · Feb 17, 2016

HoJo 61 said:
Ouch. Looks like some water got in and did what it did. I got water in my winch too and wonder where it came from.. everything should be tight and sealed, except the output shaft seal. Condensation?

I think the water came through the the main shaft seal and probably though the worm gear seal.

Supermarine · Feb 17, 2016

Maybe this could help you to rebuit you winch ...
May the force be with you !

Have look : WINCH

GLTHFJ60 · Feb 17, 2016

Can you still get the parts to rebuild the winch?

odingski · Feb 17, 2016

GLTHFJ60 said:
Can you still get the parts to rebuild the winch?

Seals and bearings, yes. And probably bushings too. Others, I'll check. Which particular part do you need?

odingski · Feb 17, 2016

Supermarine said:
Maybe this could help you to rebuit you winch ...
May the force be with you !

Have look : WINCH

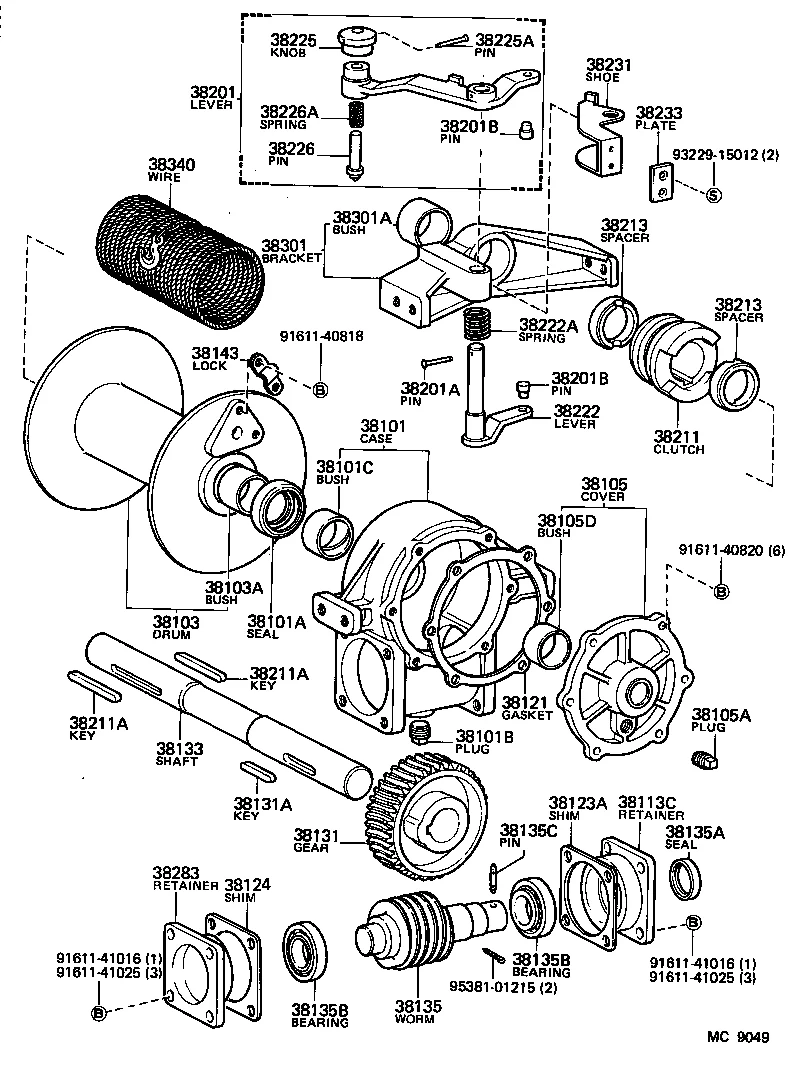

This winch is of another model. The photo below is the same as I have.

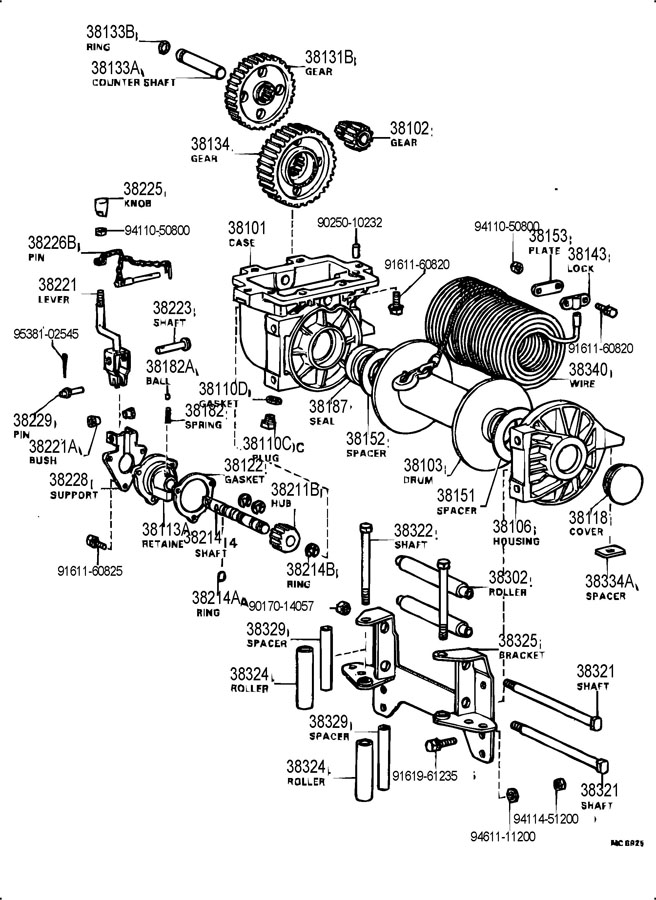

TOYOTA LAND CRUISER 60 FJ62LG-K - POWERTRAIN-CHASSIS - WINCH | Japan Parts EU

GLTHFJ60 · Feb 17, 2016

I don't need any parts. Was only curious if you'd be able to get them. Awesome work

odingski · Feb 17, 2016

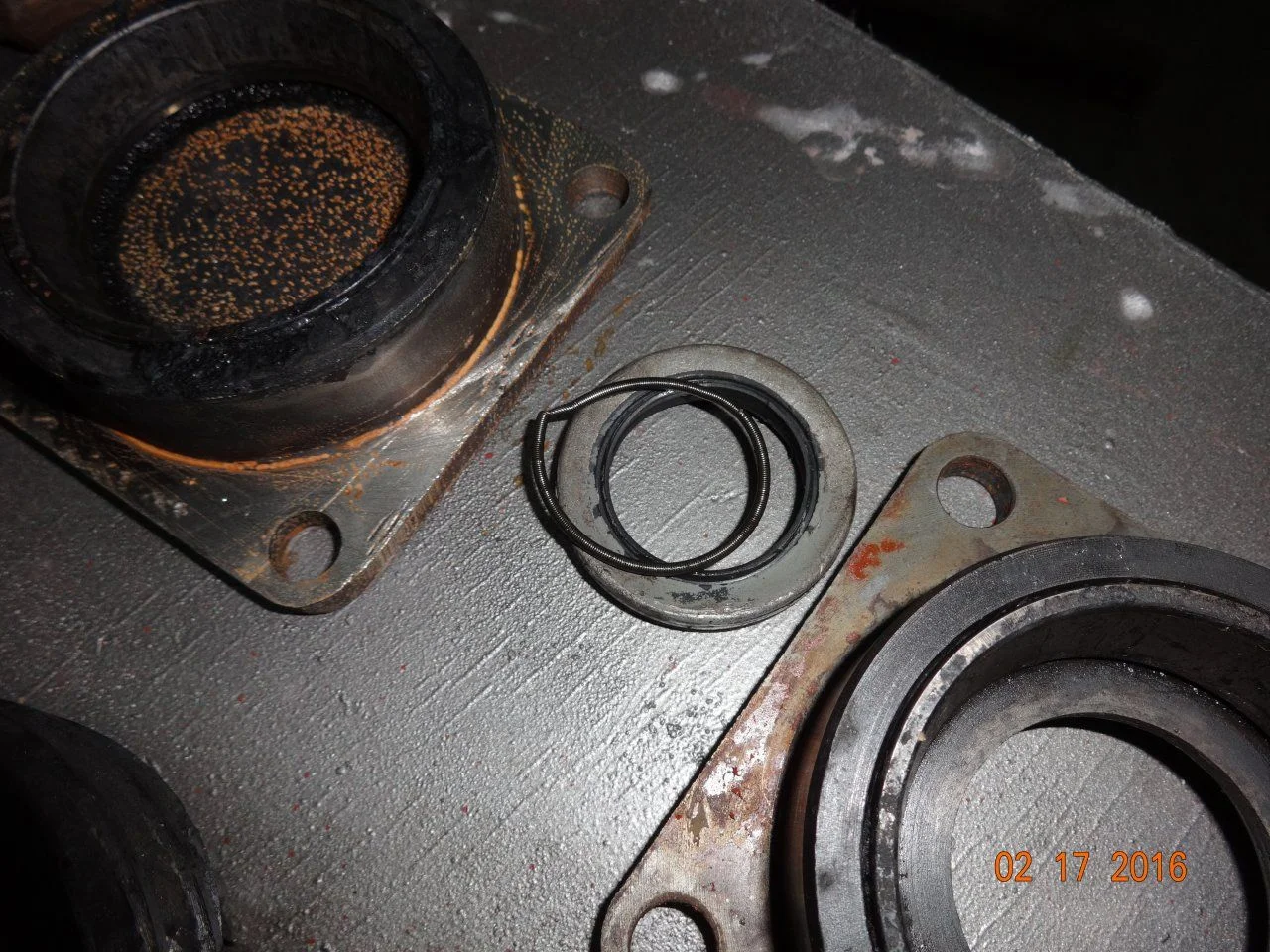

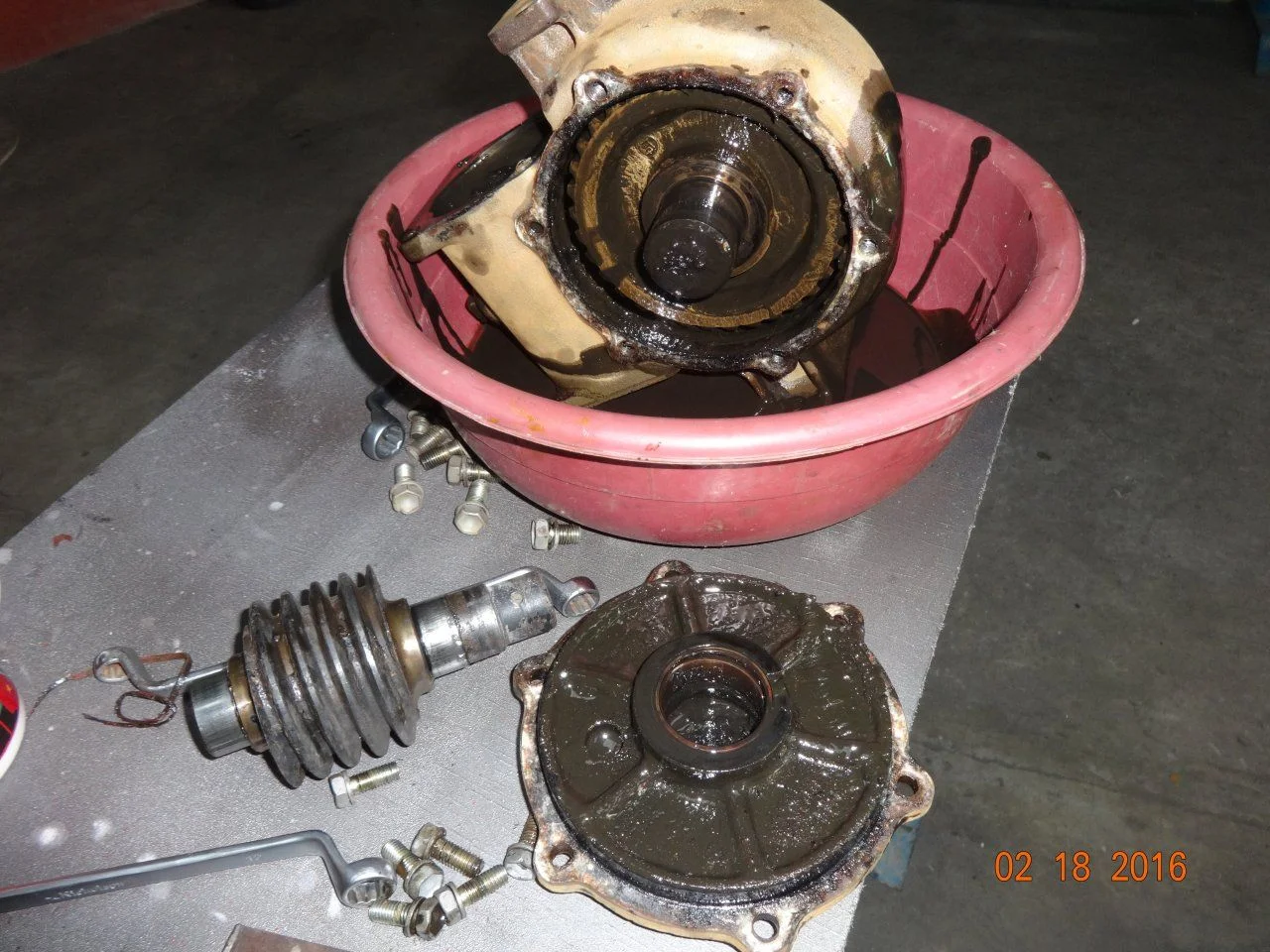

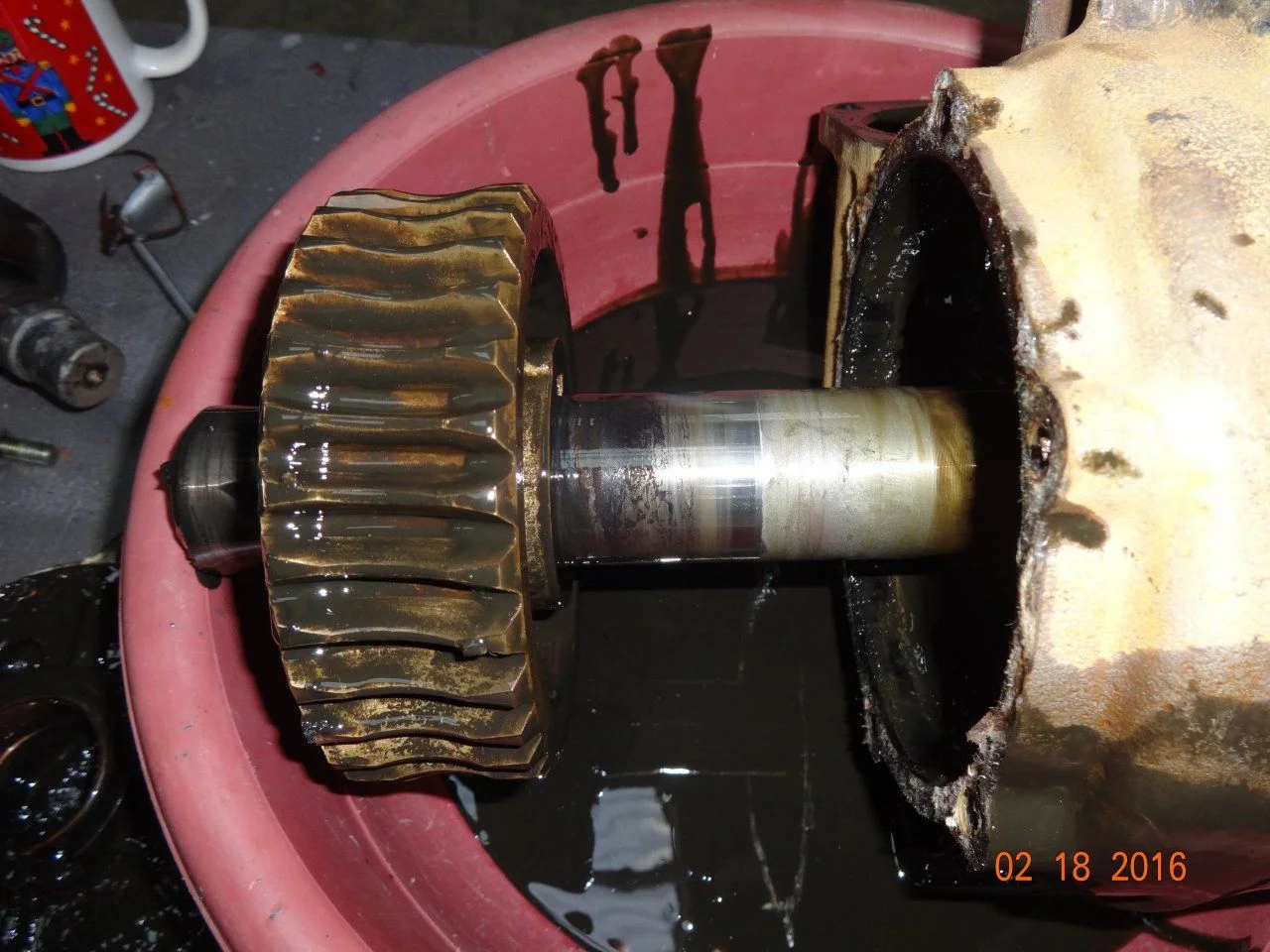

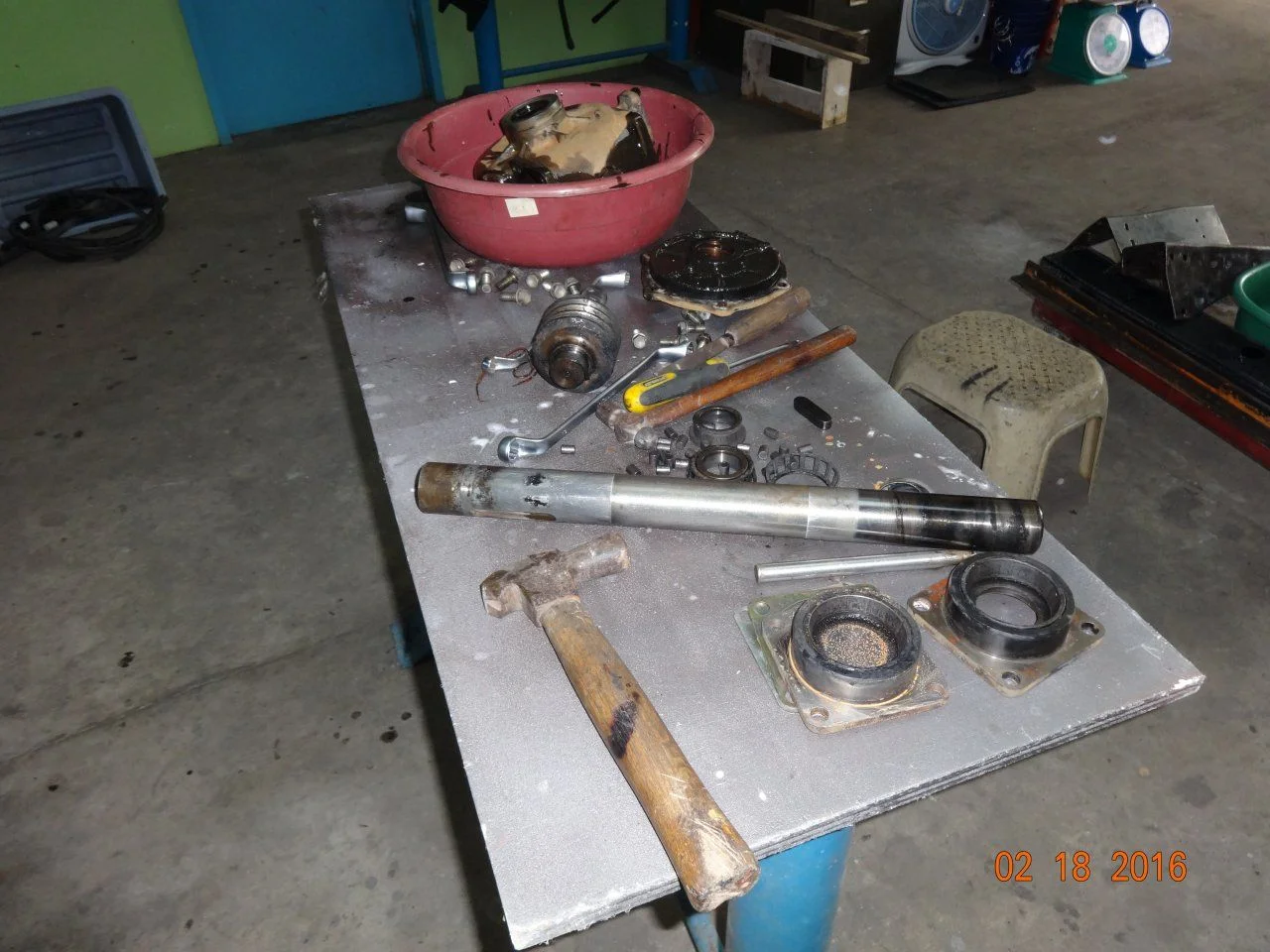

Finally got everything apart and best is to change the main shaft seal too.

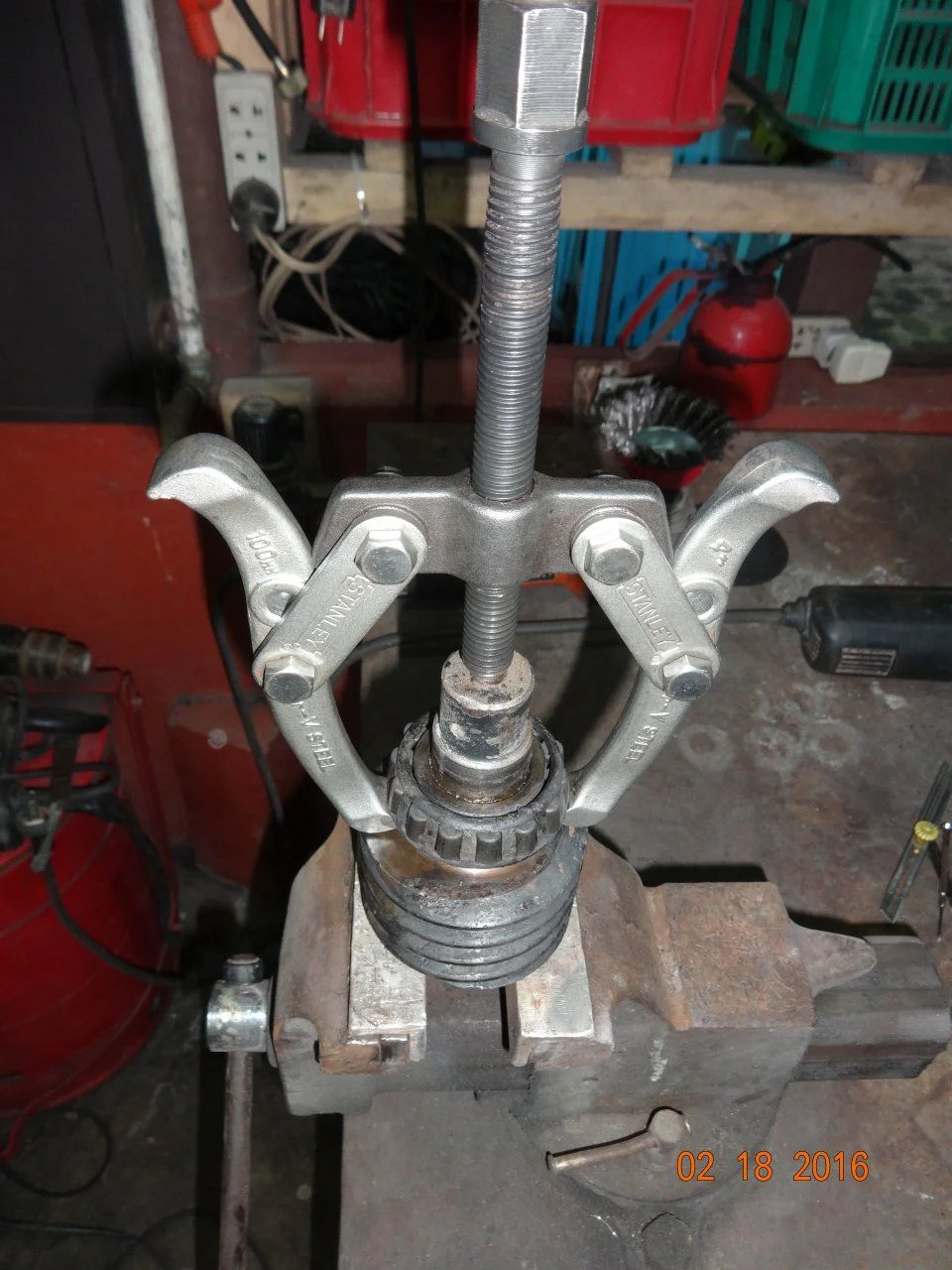

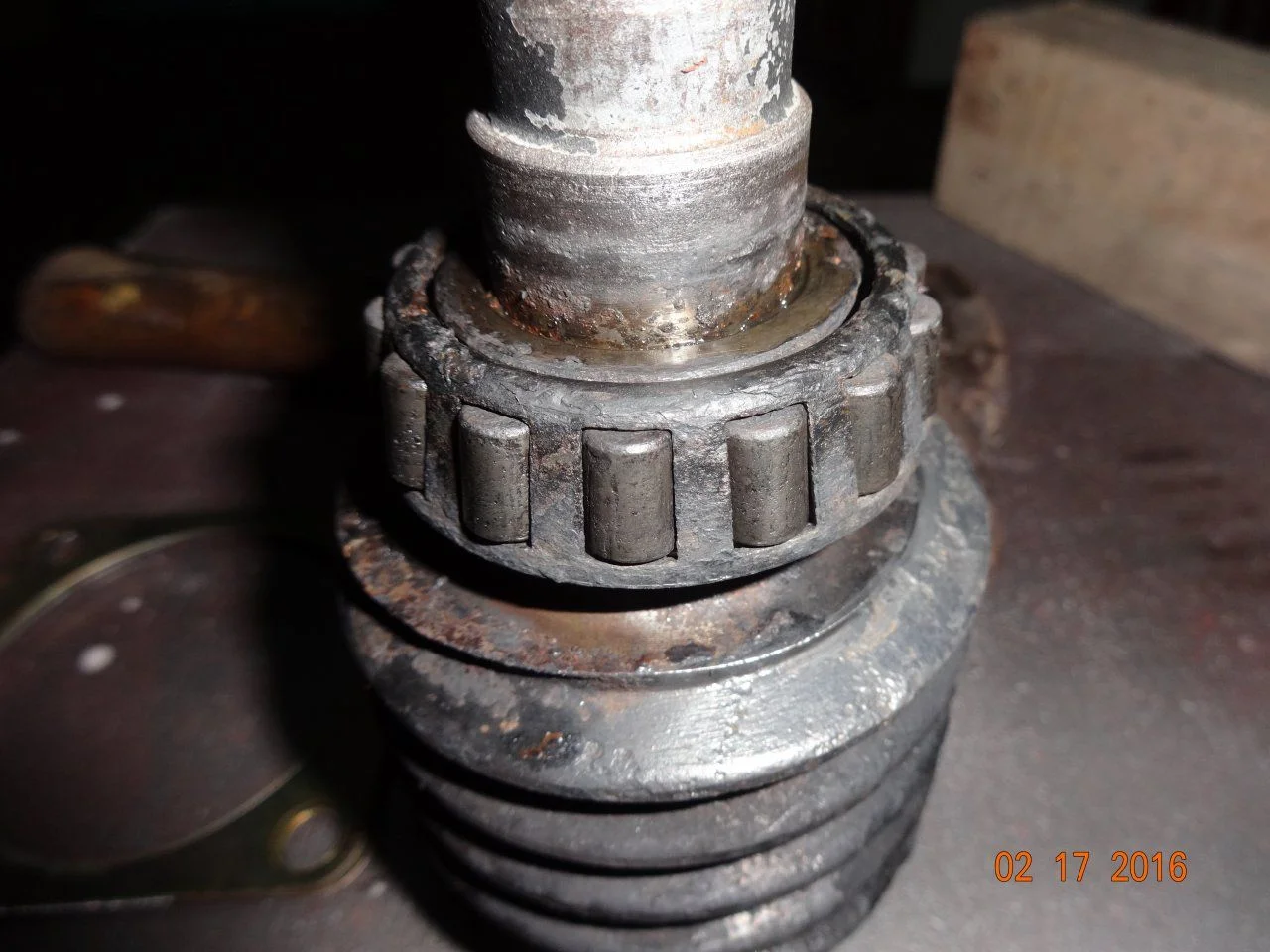

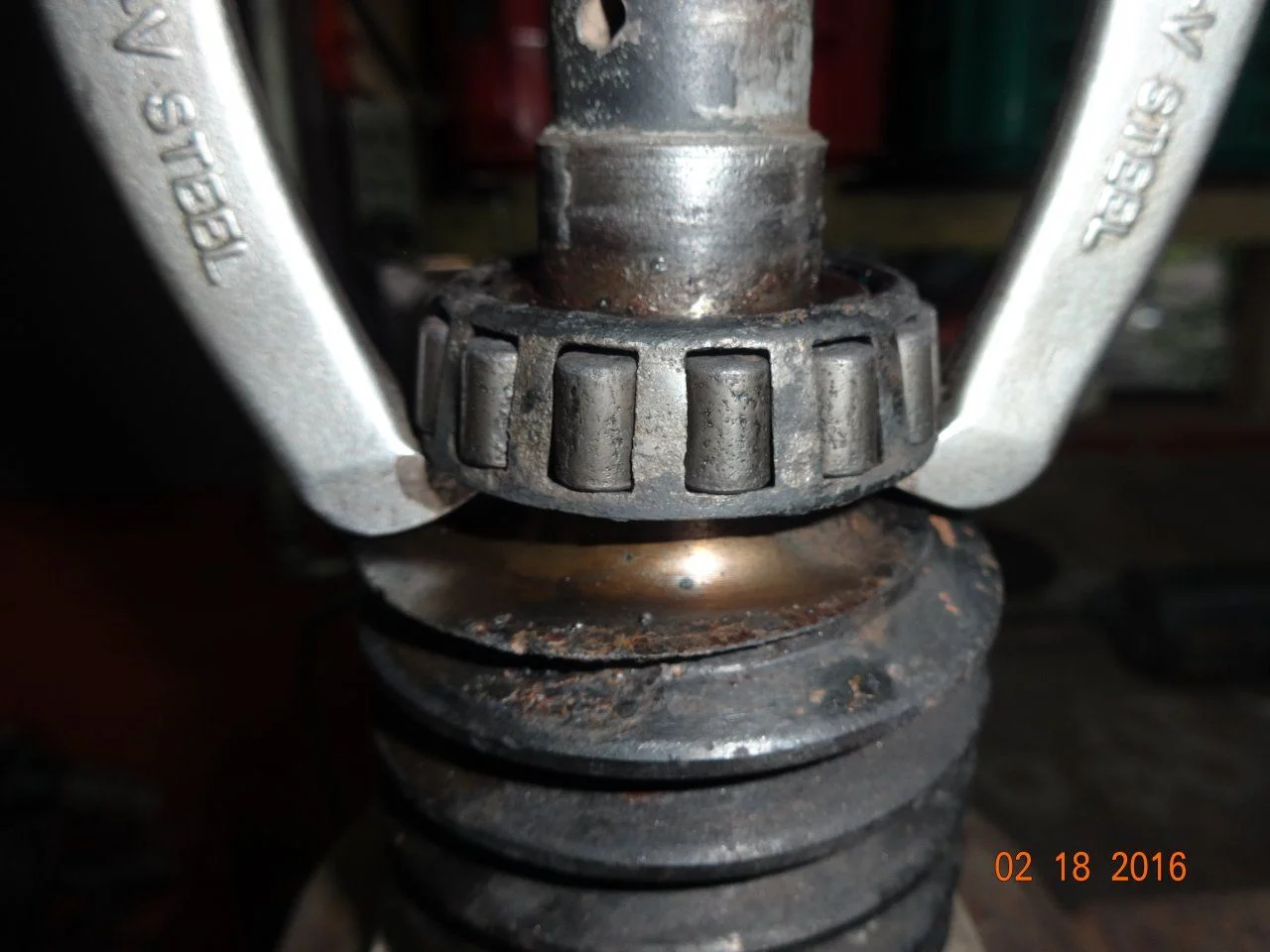

The roller bearings just came off the cage.

odingski · Feb 17, 2016

I think I will have this mod before assembly. Great idea from one of the forum

odingski · Feb 22, 2016

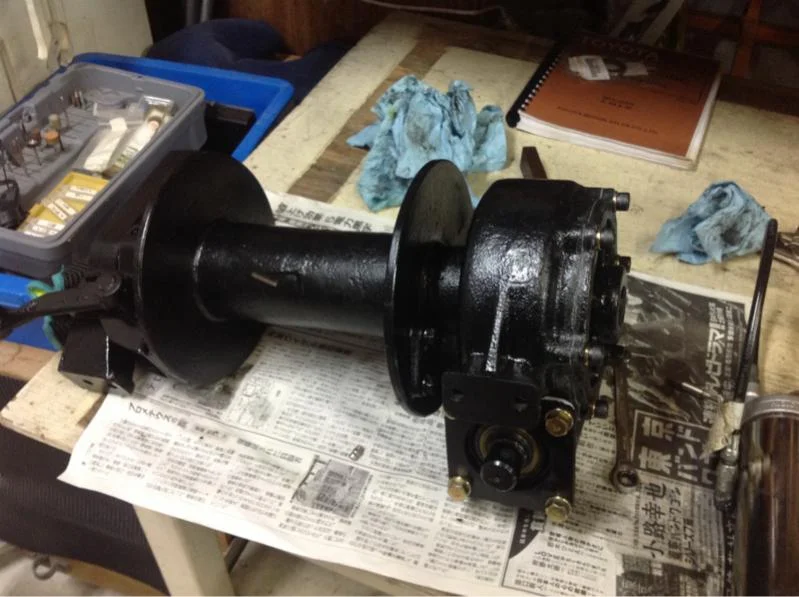

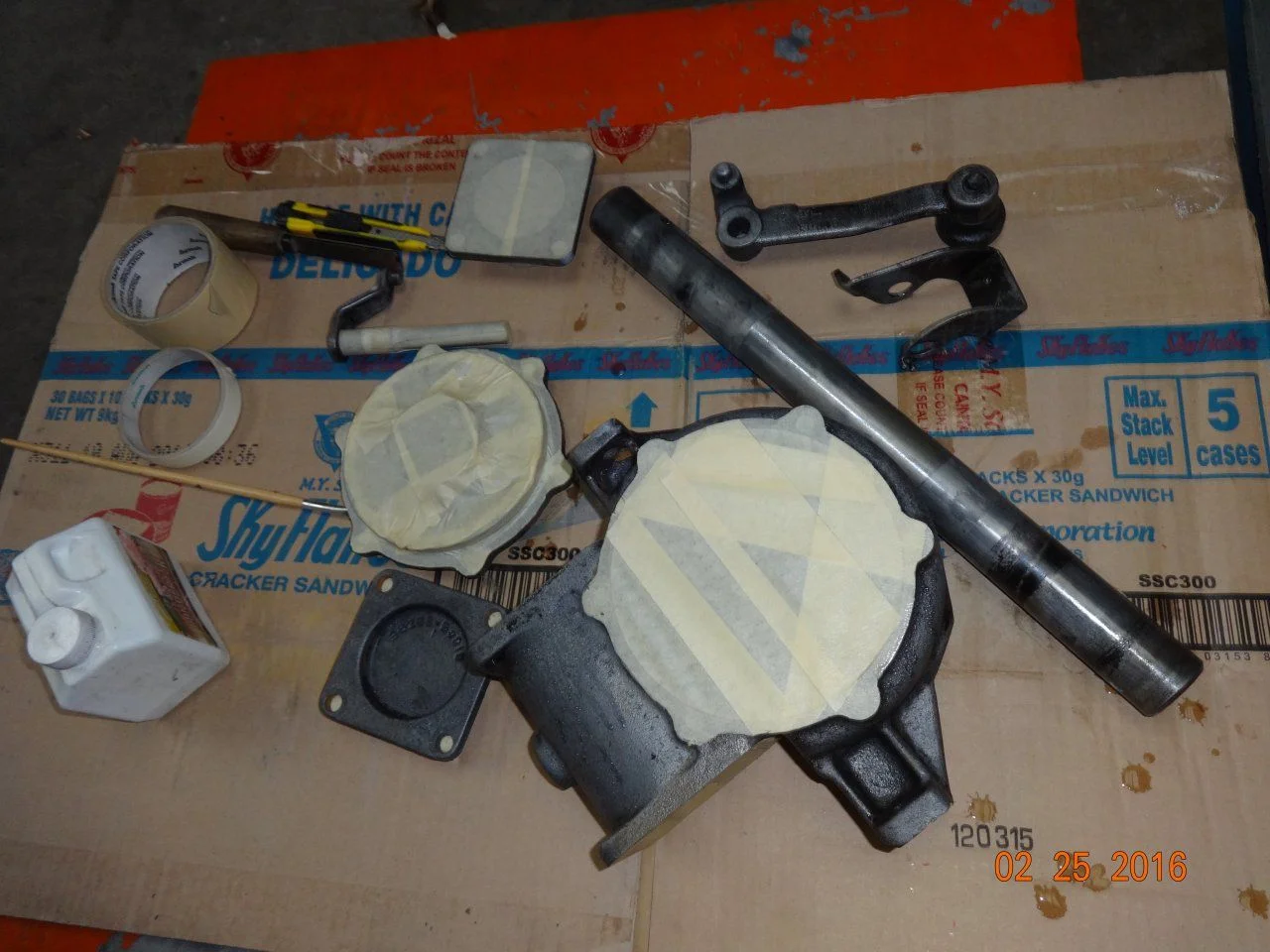

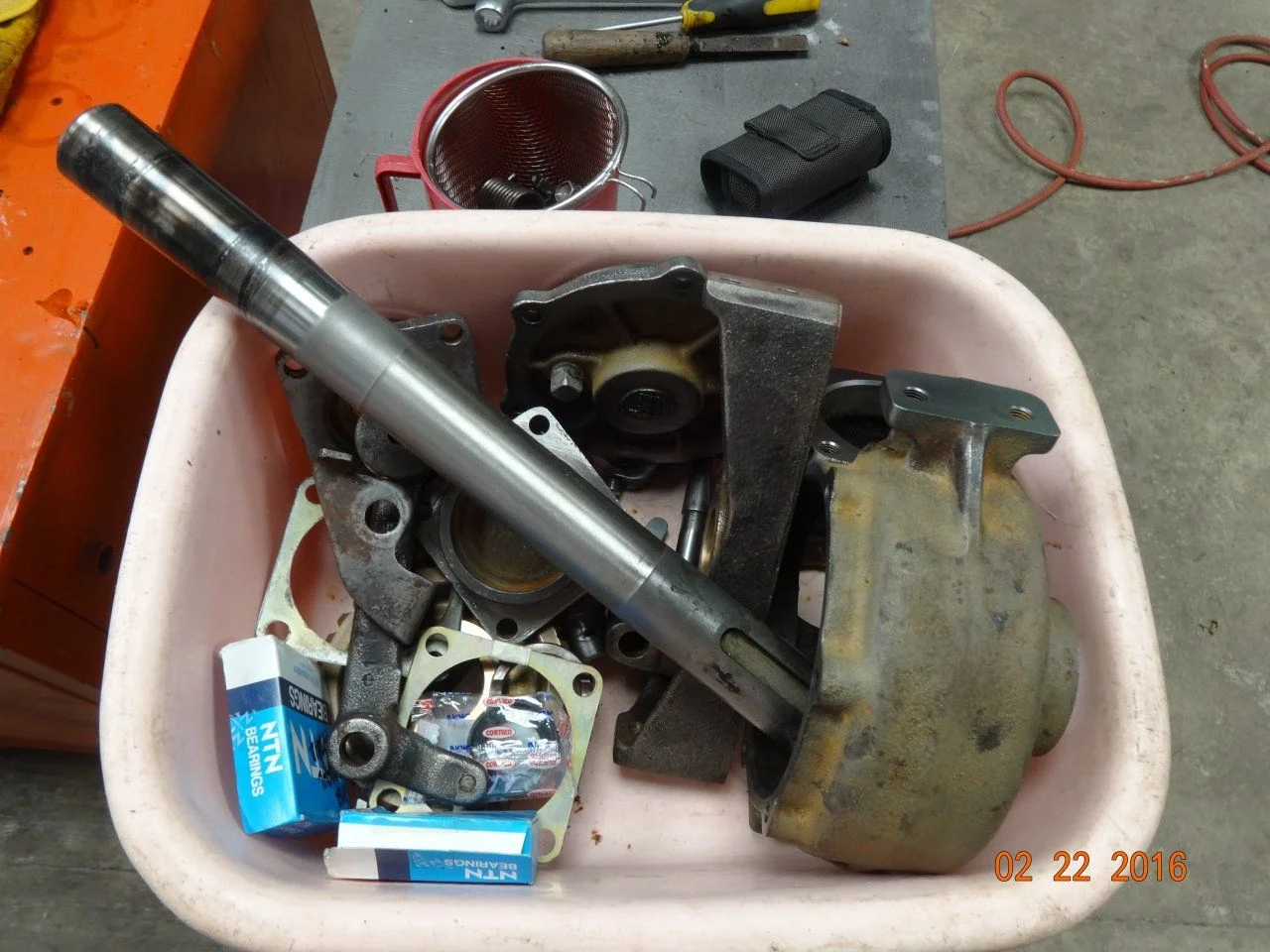

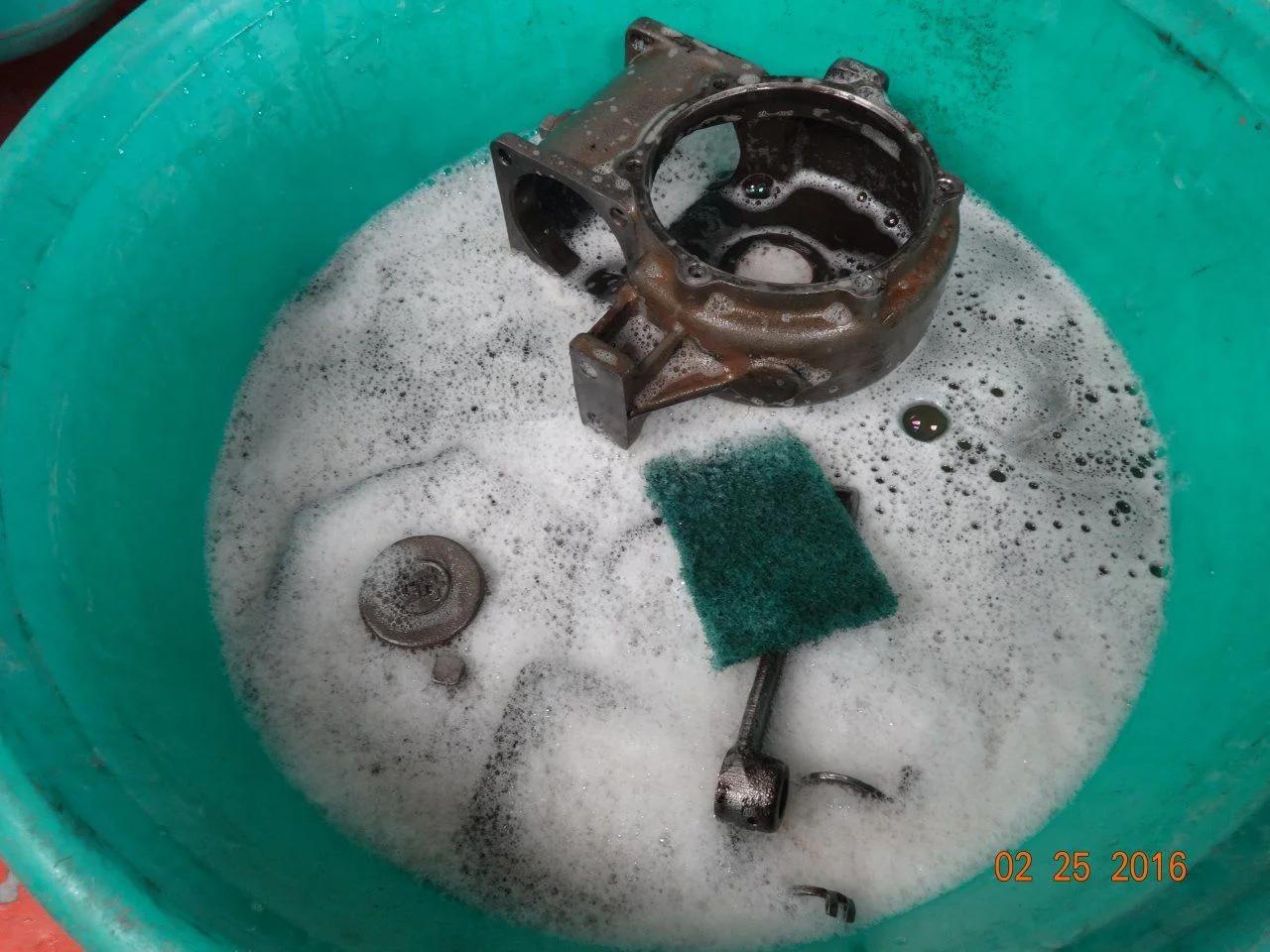

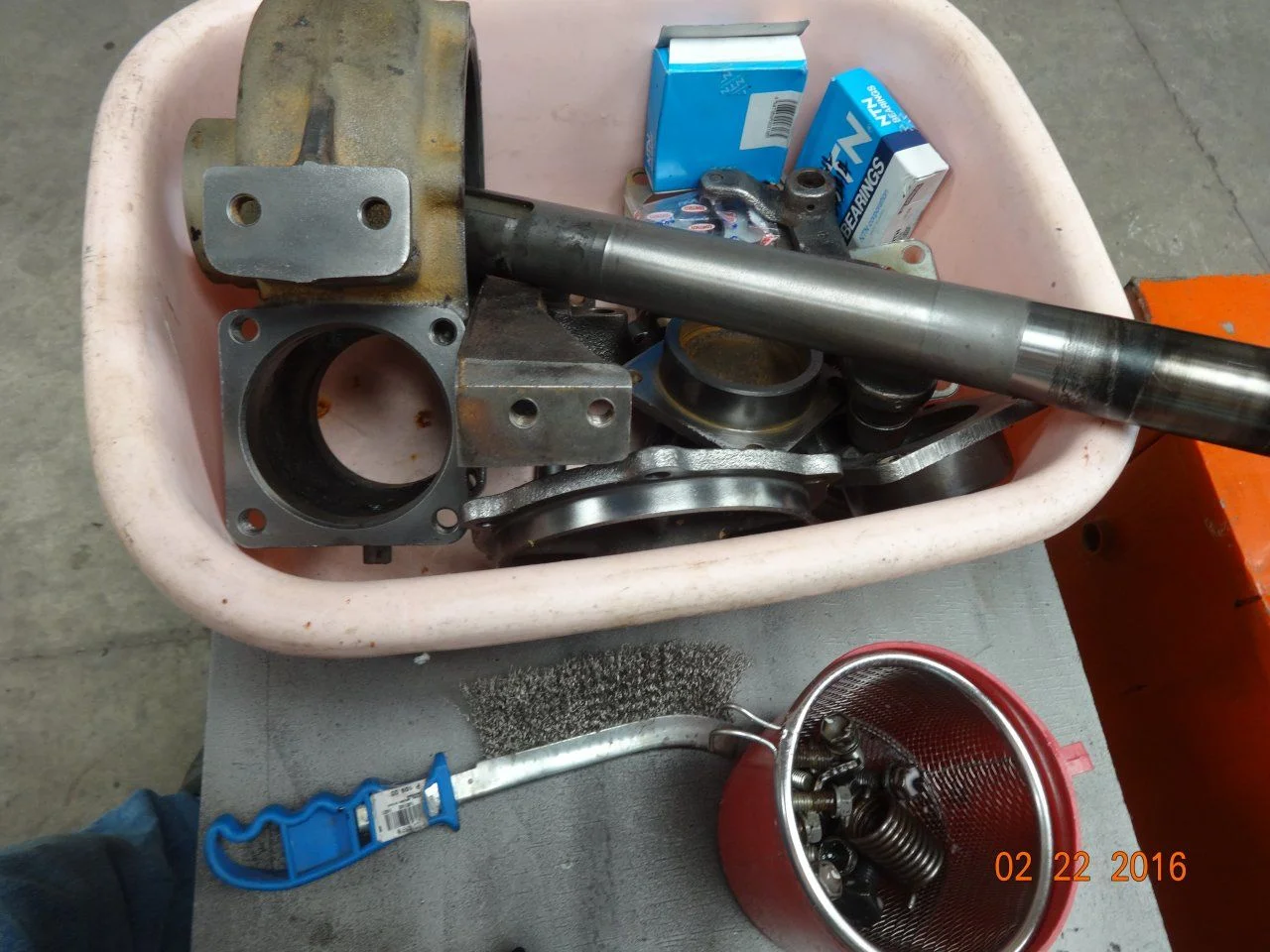

After a long weekend and having time with the family, the winch is ready for assemling.

odingski · Feb 24, 2016

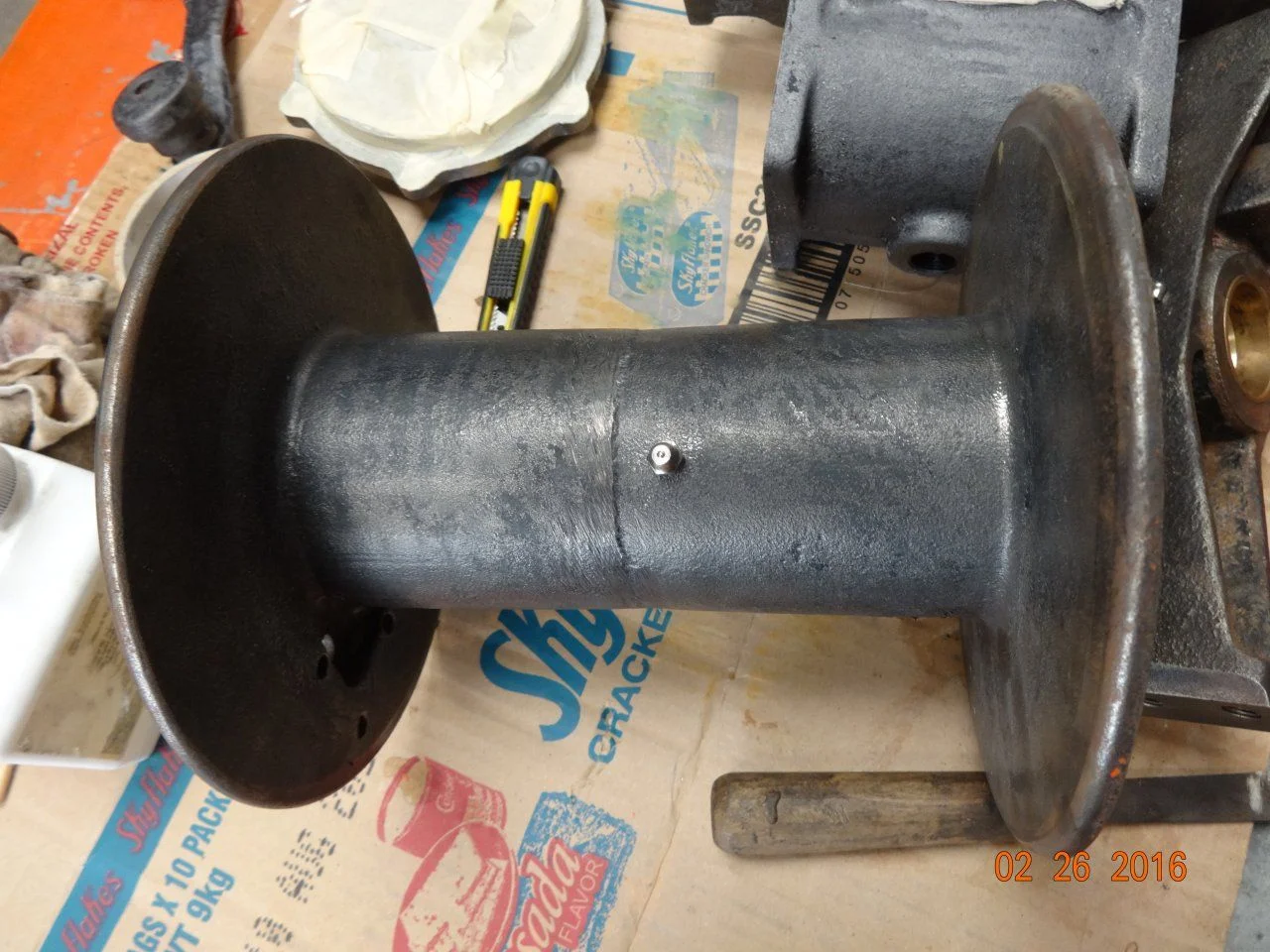

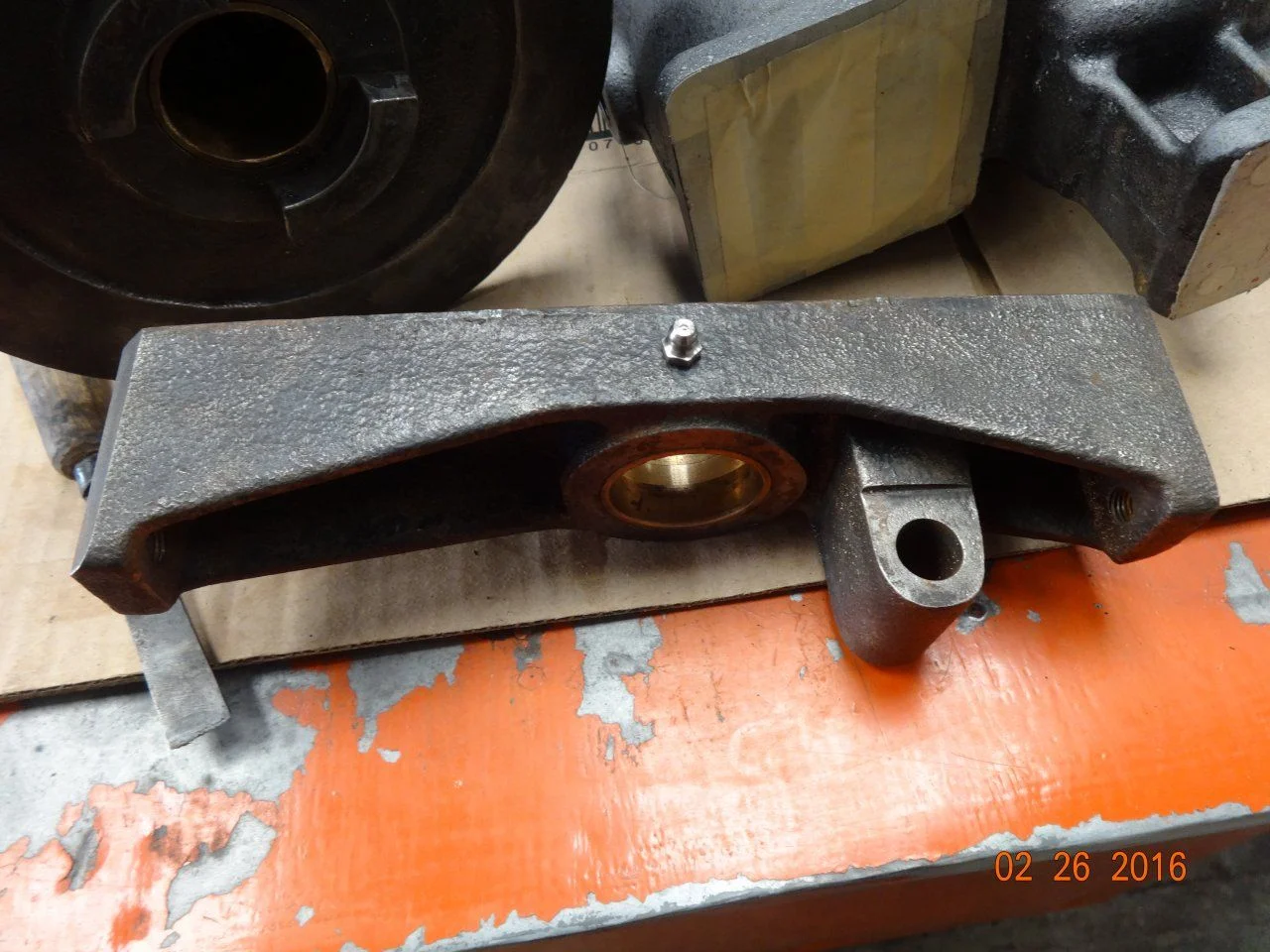

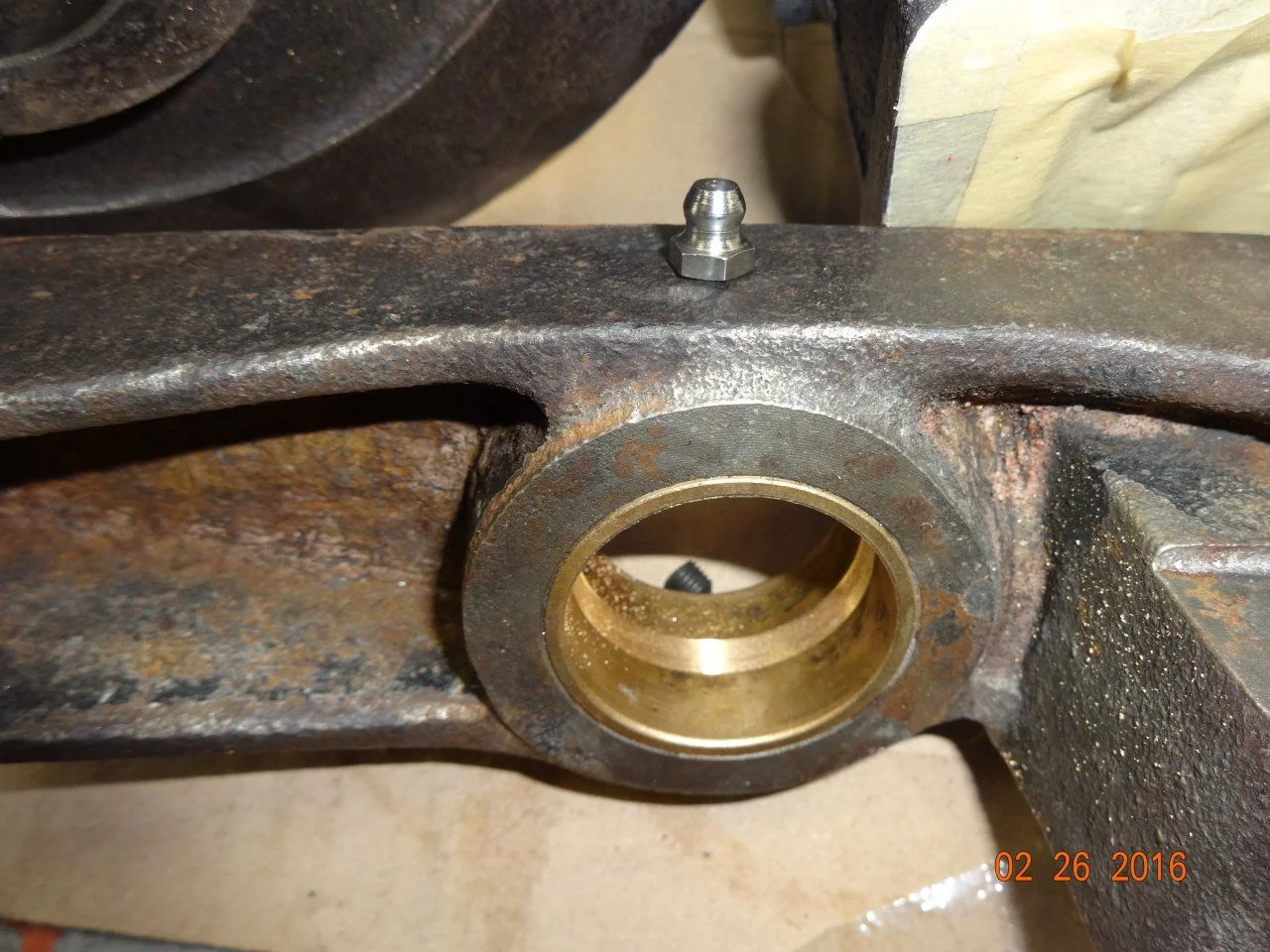

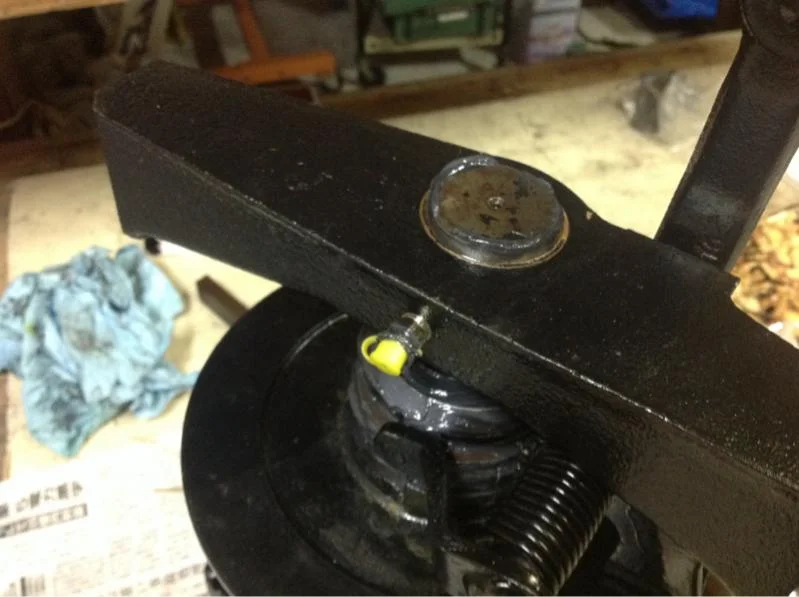

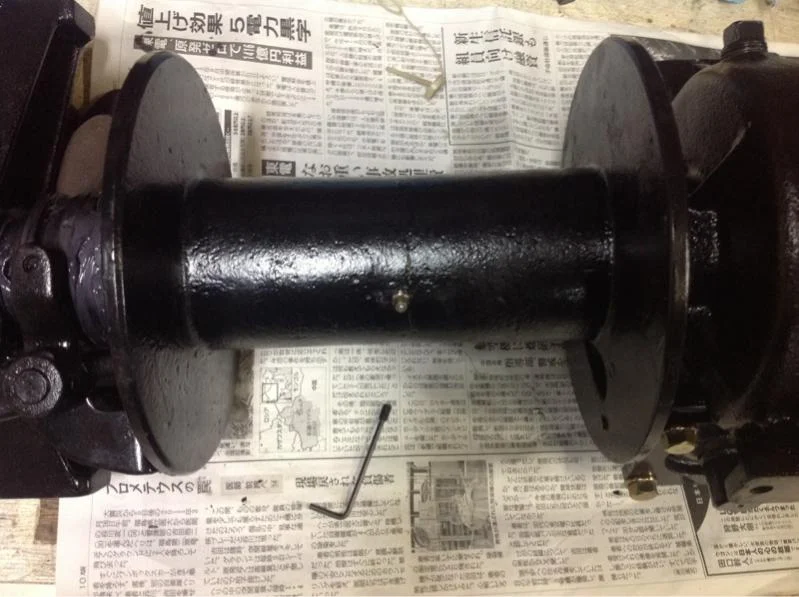

I have sent the winch roller and the winch end bracket for machining the grease nipple to the machine shop. Might be a day or two before it is done.

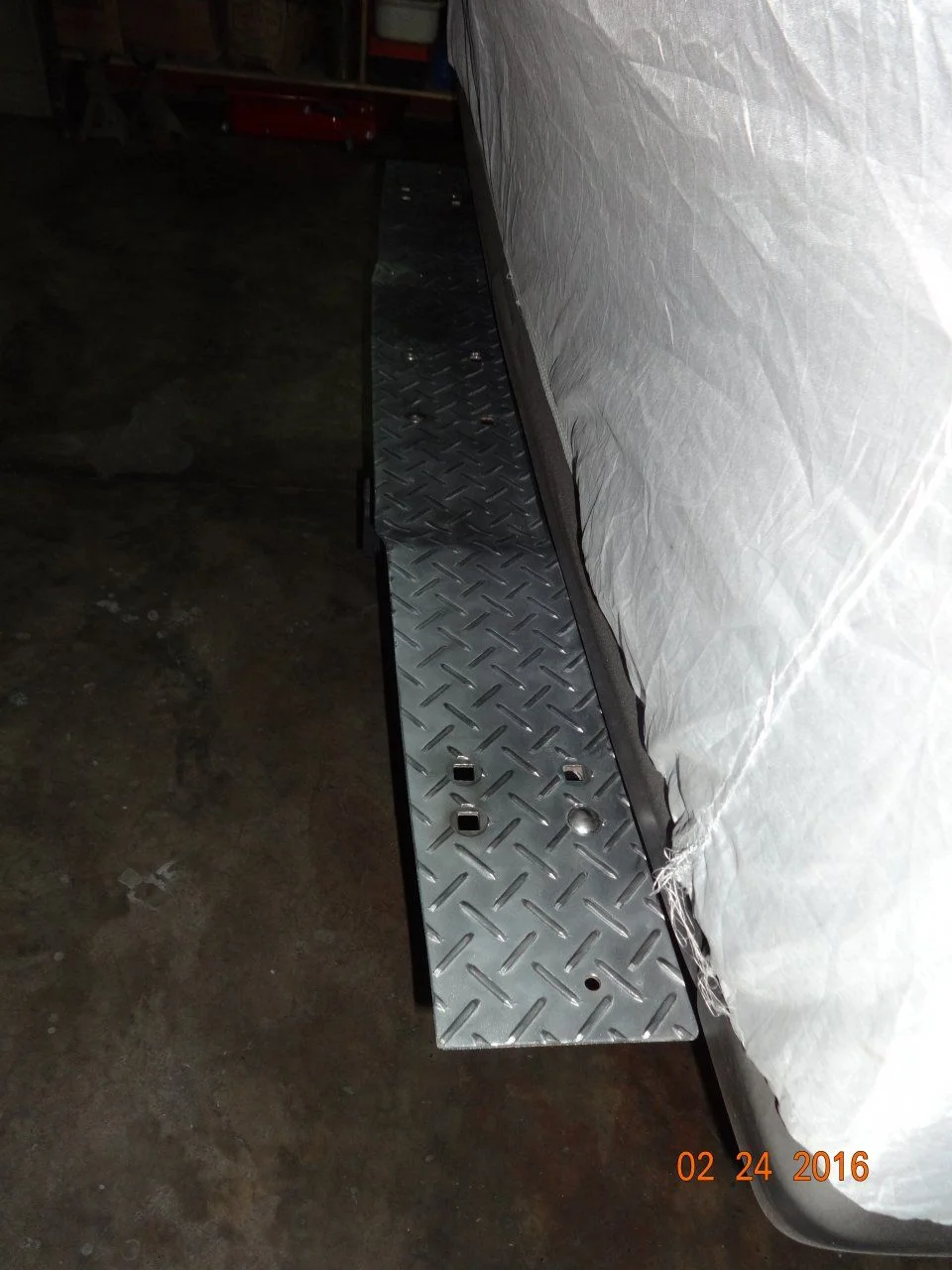

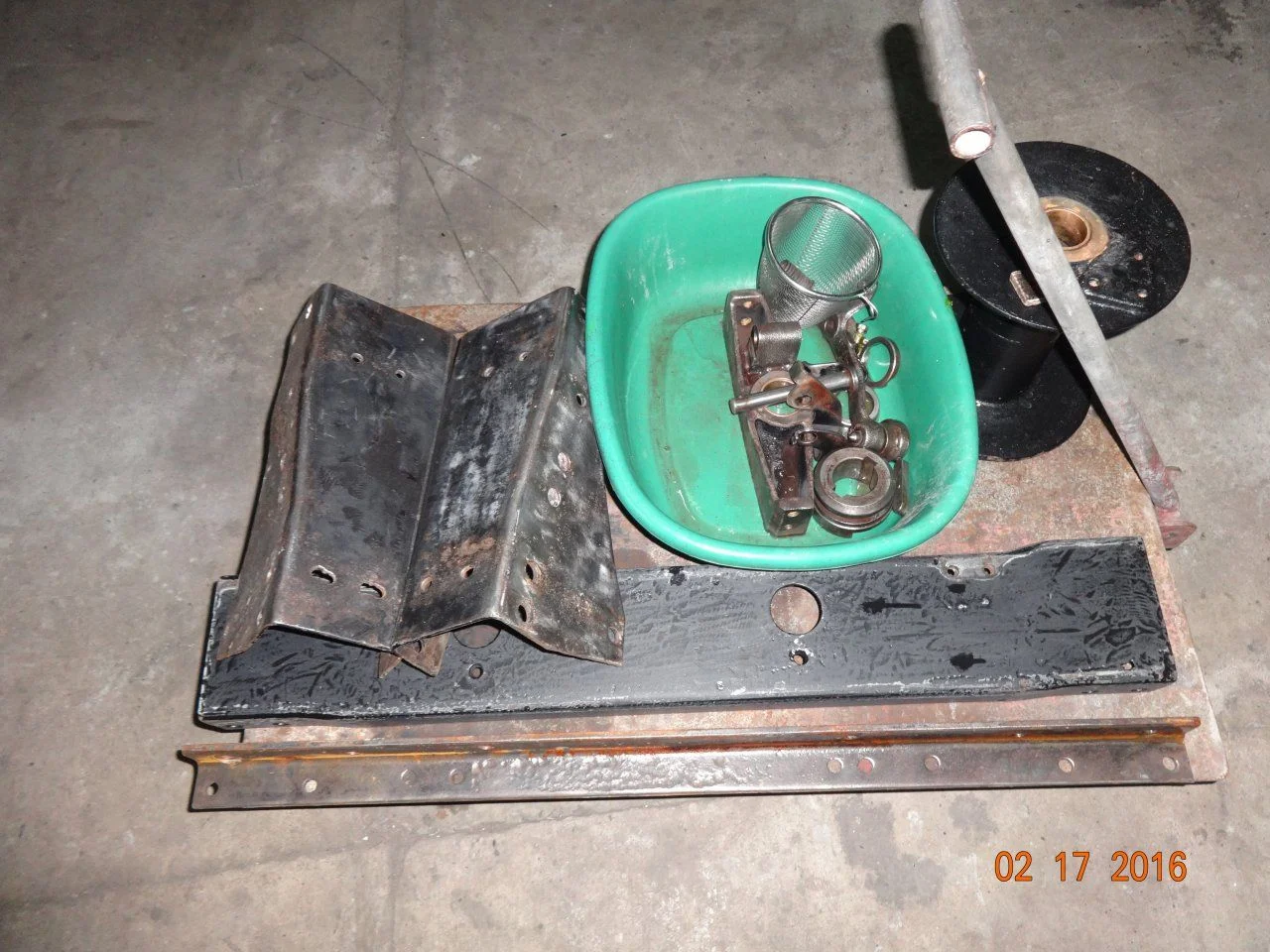

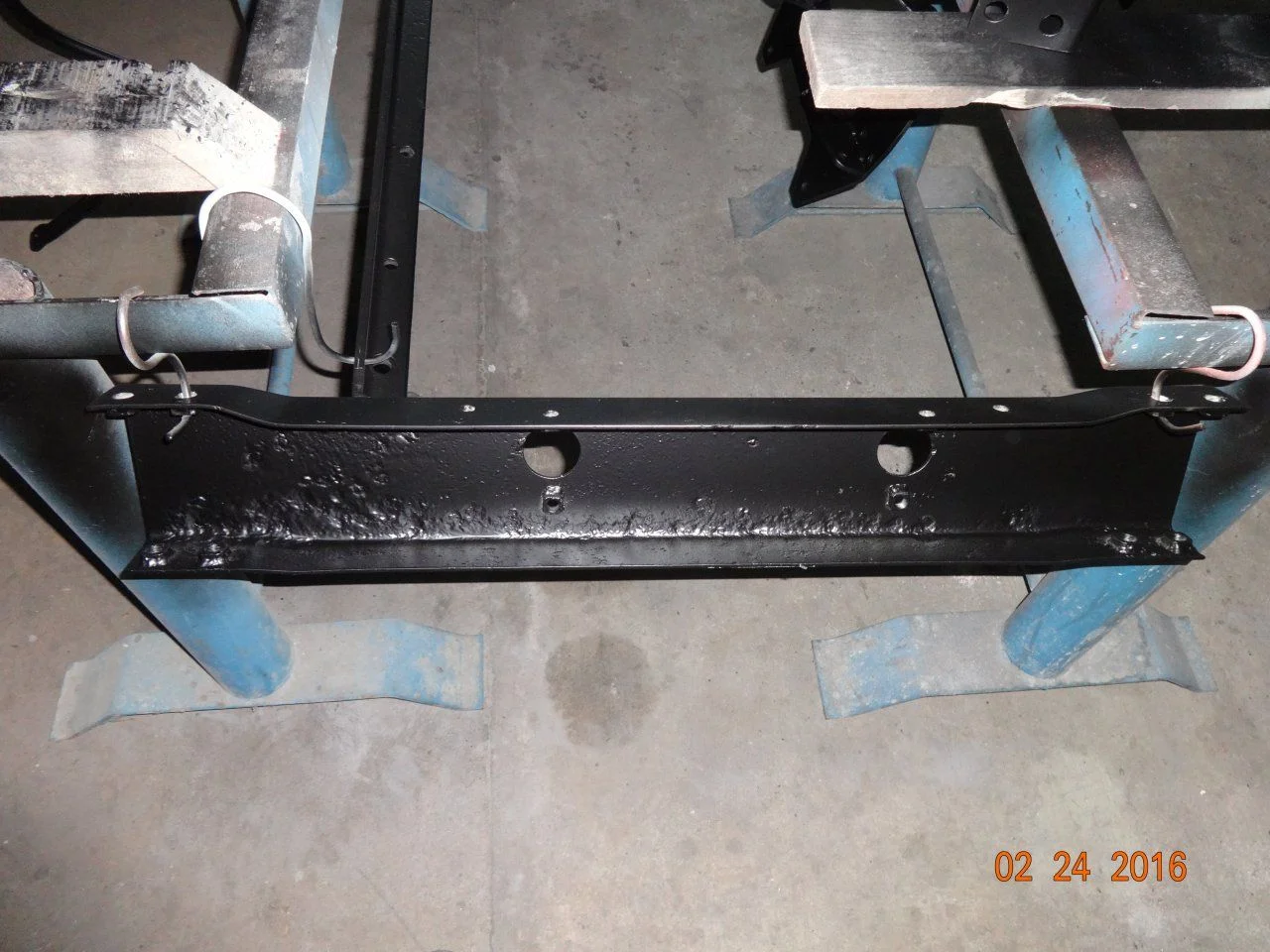

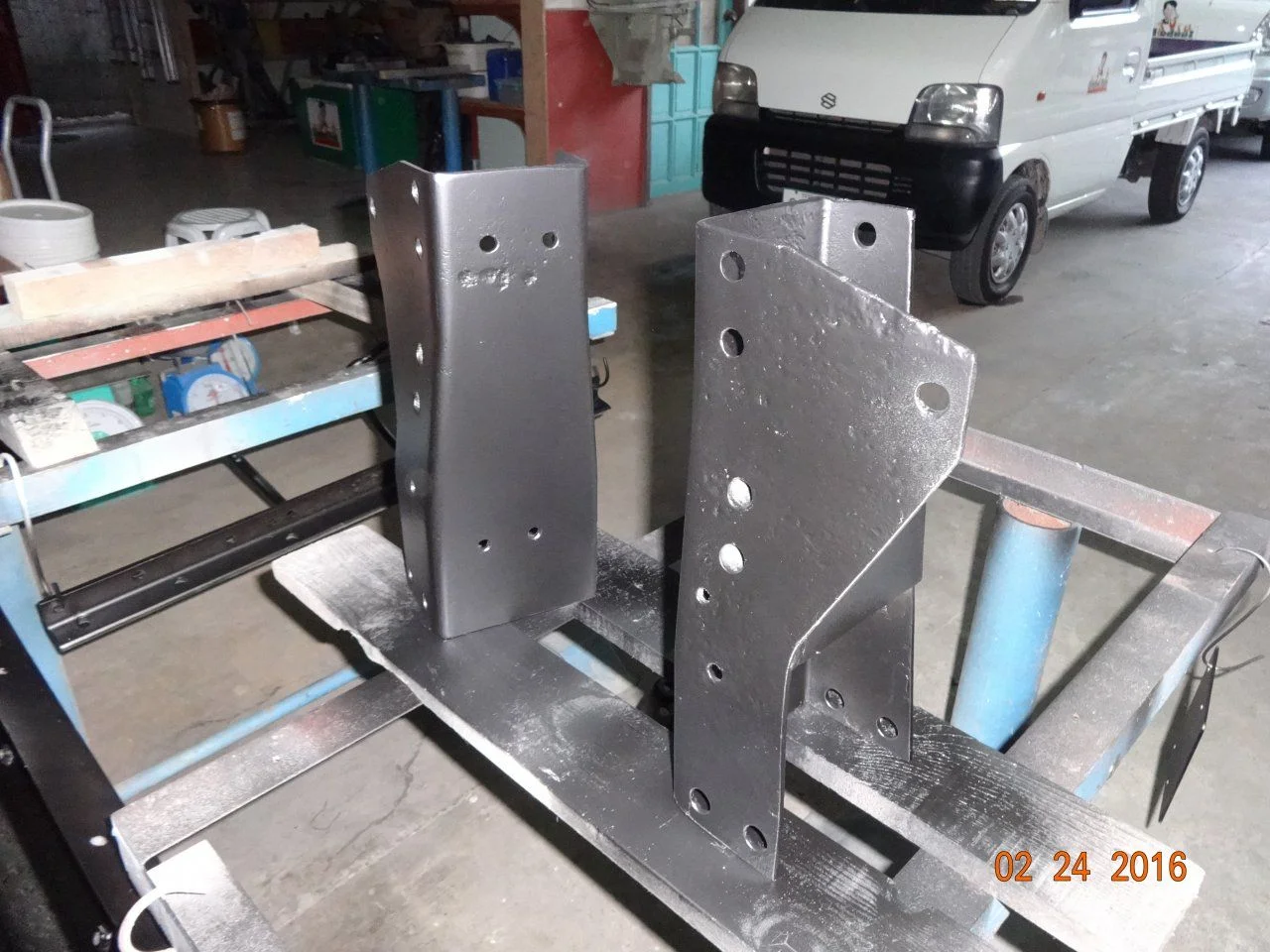

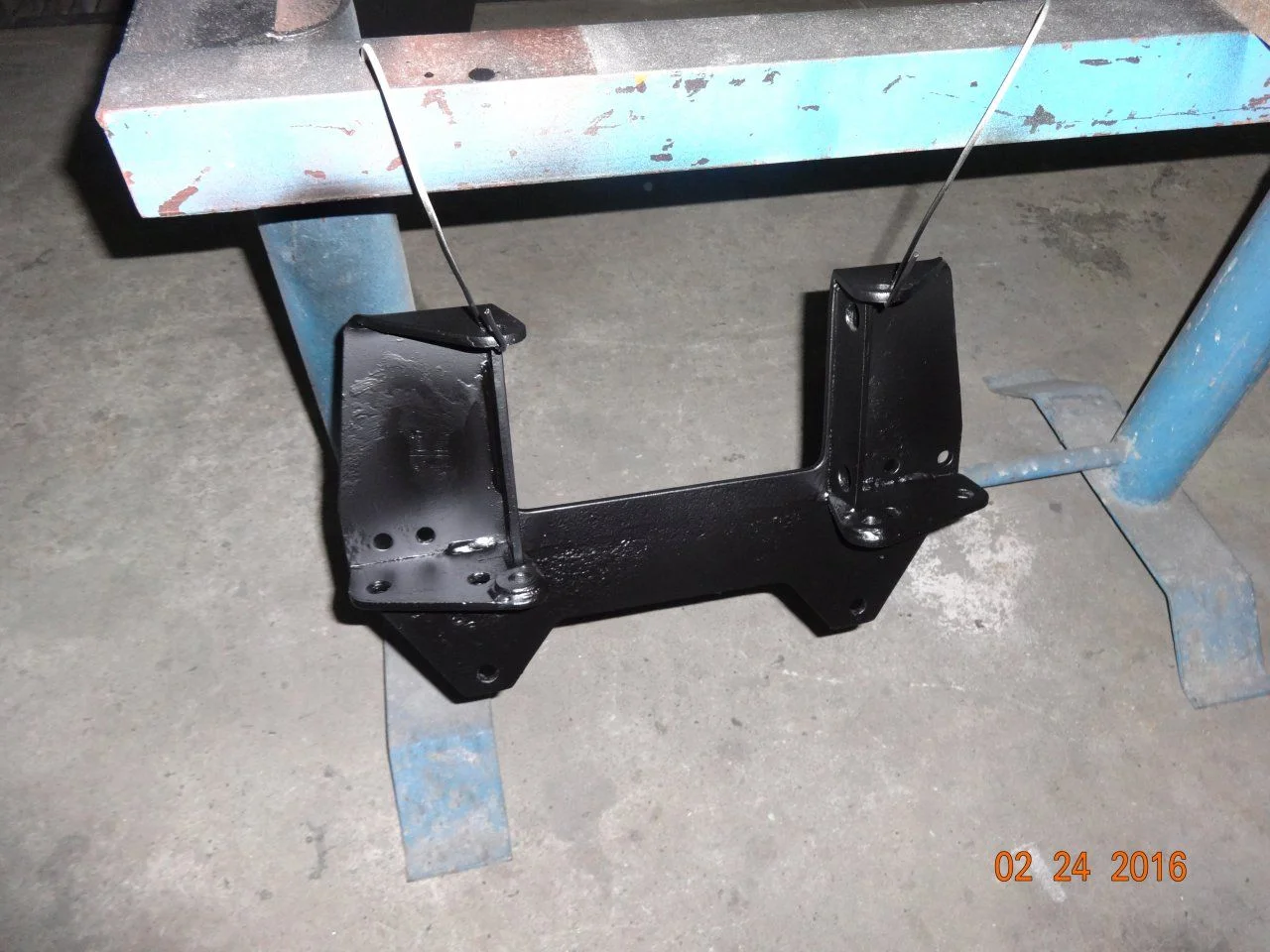

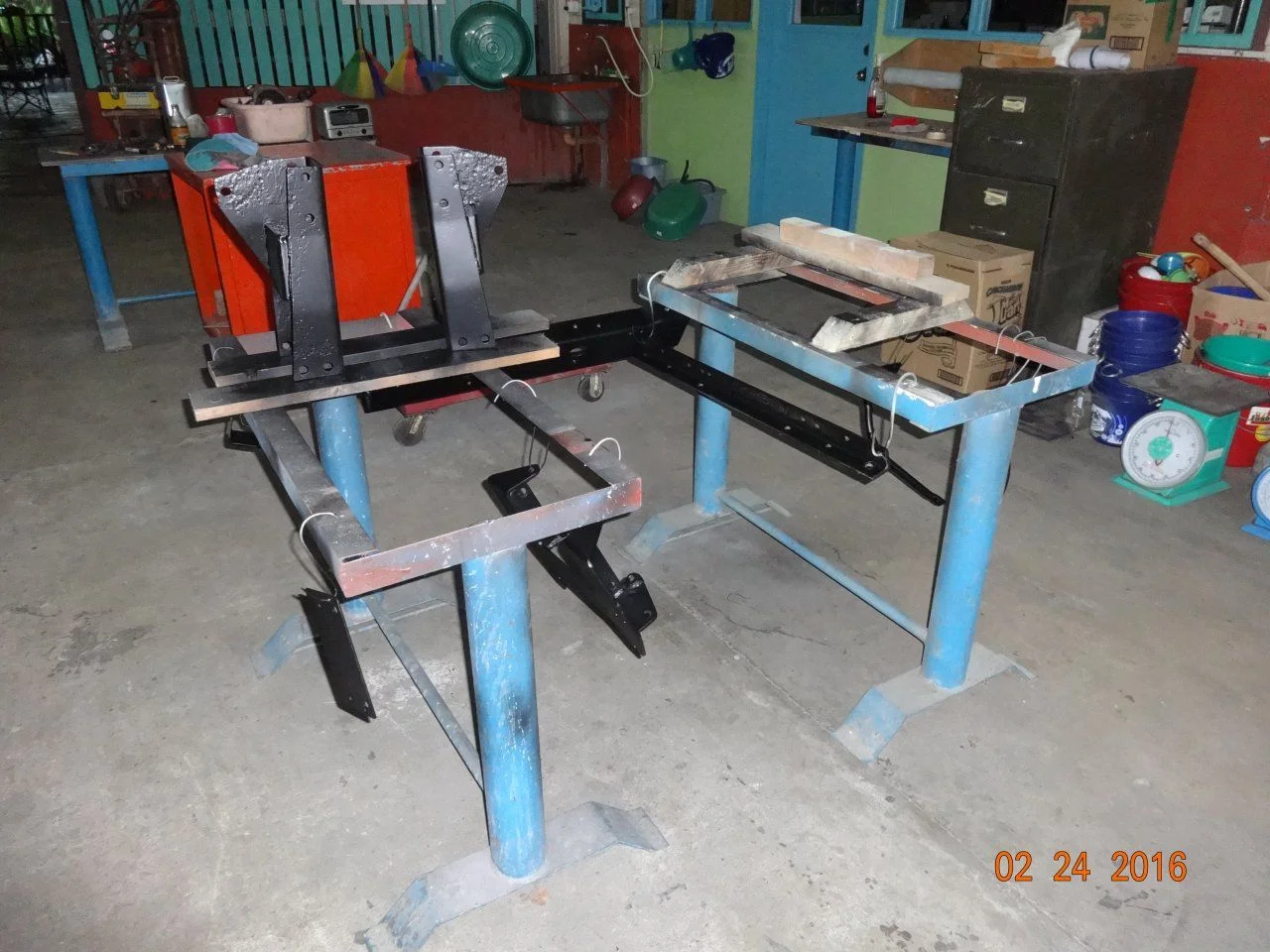

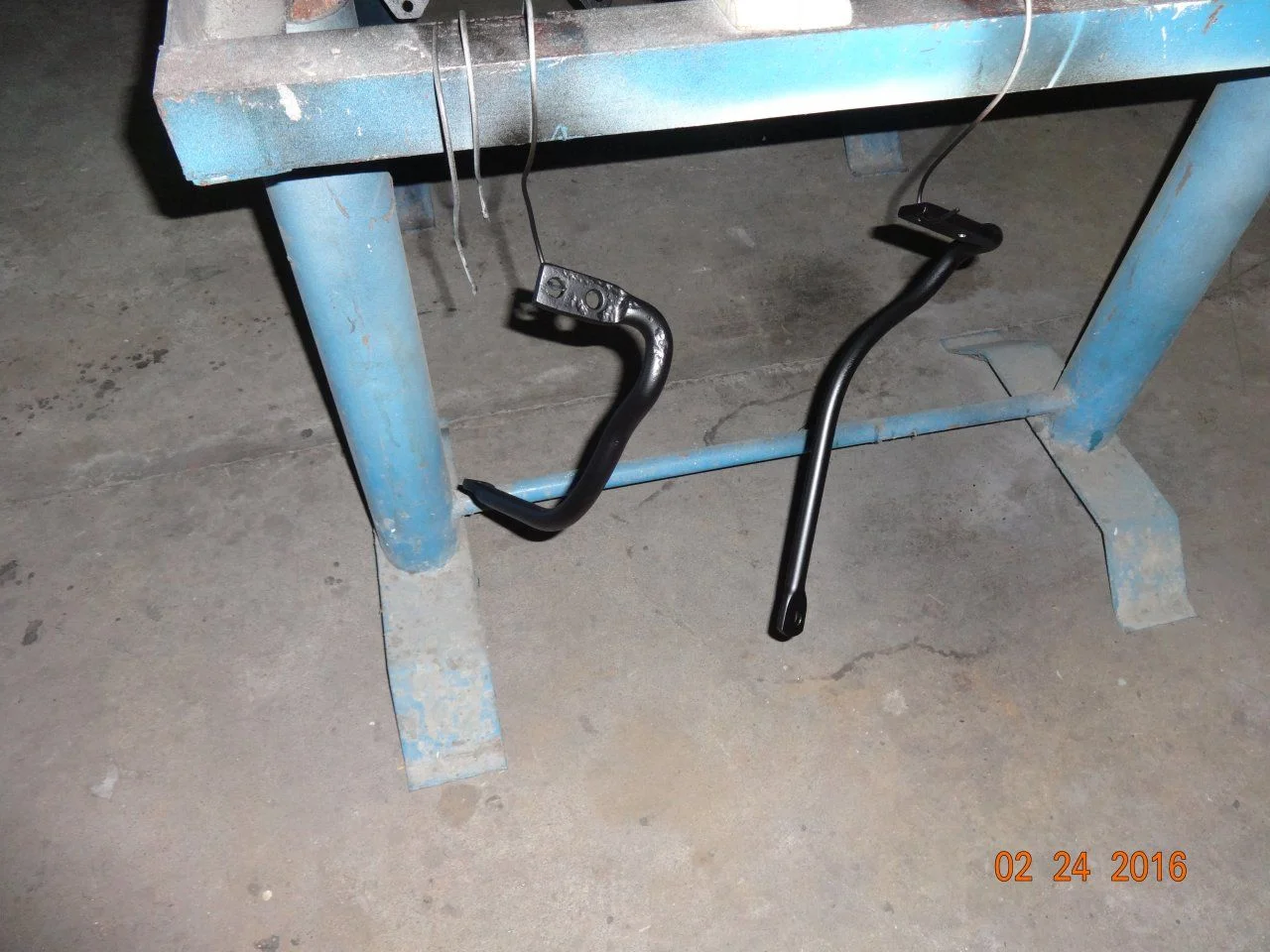

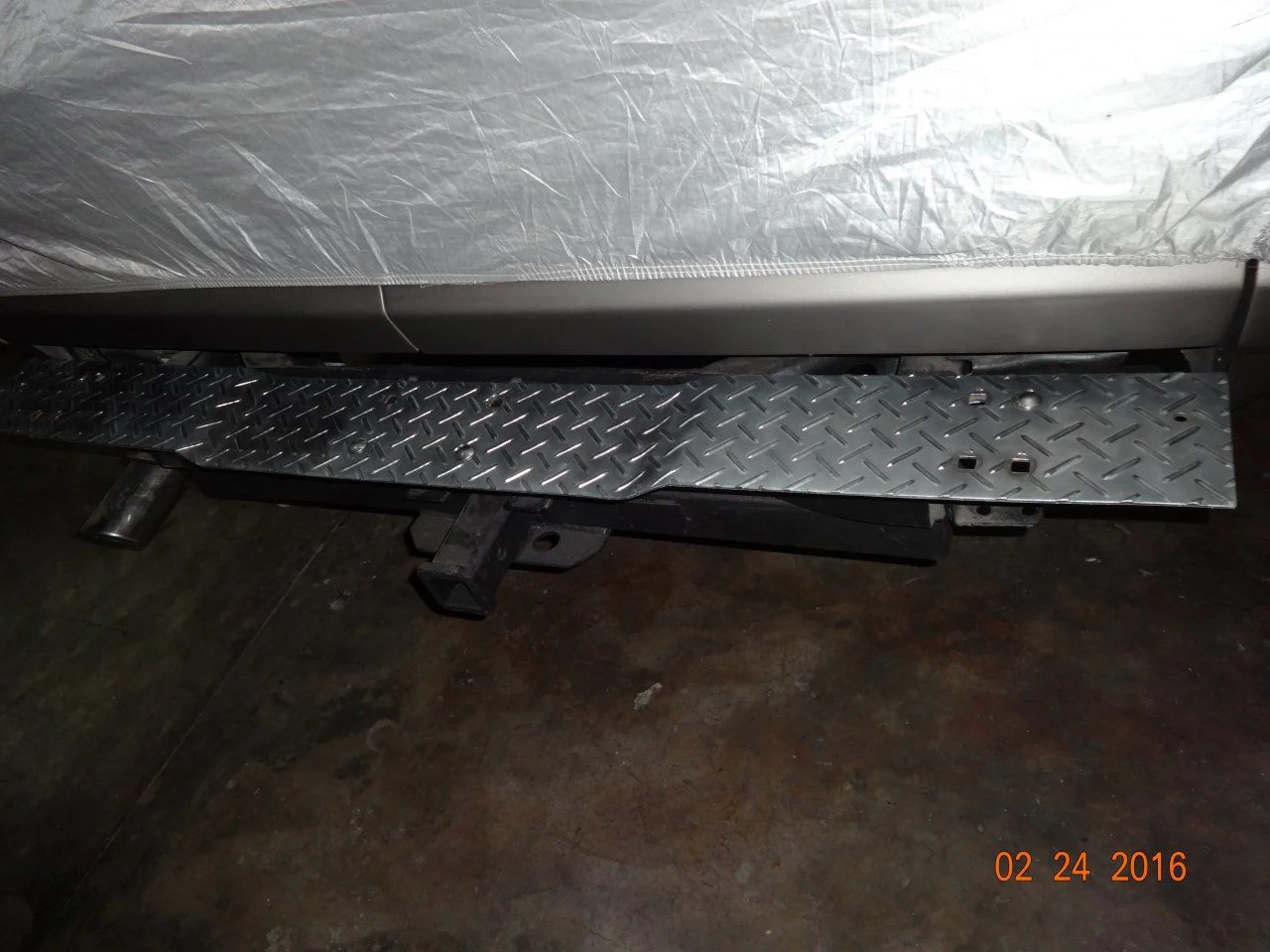

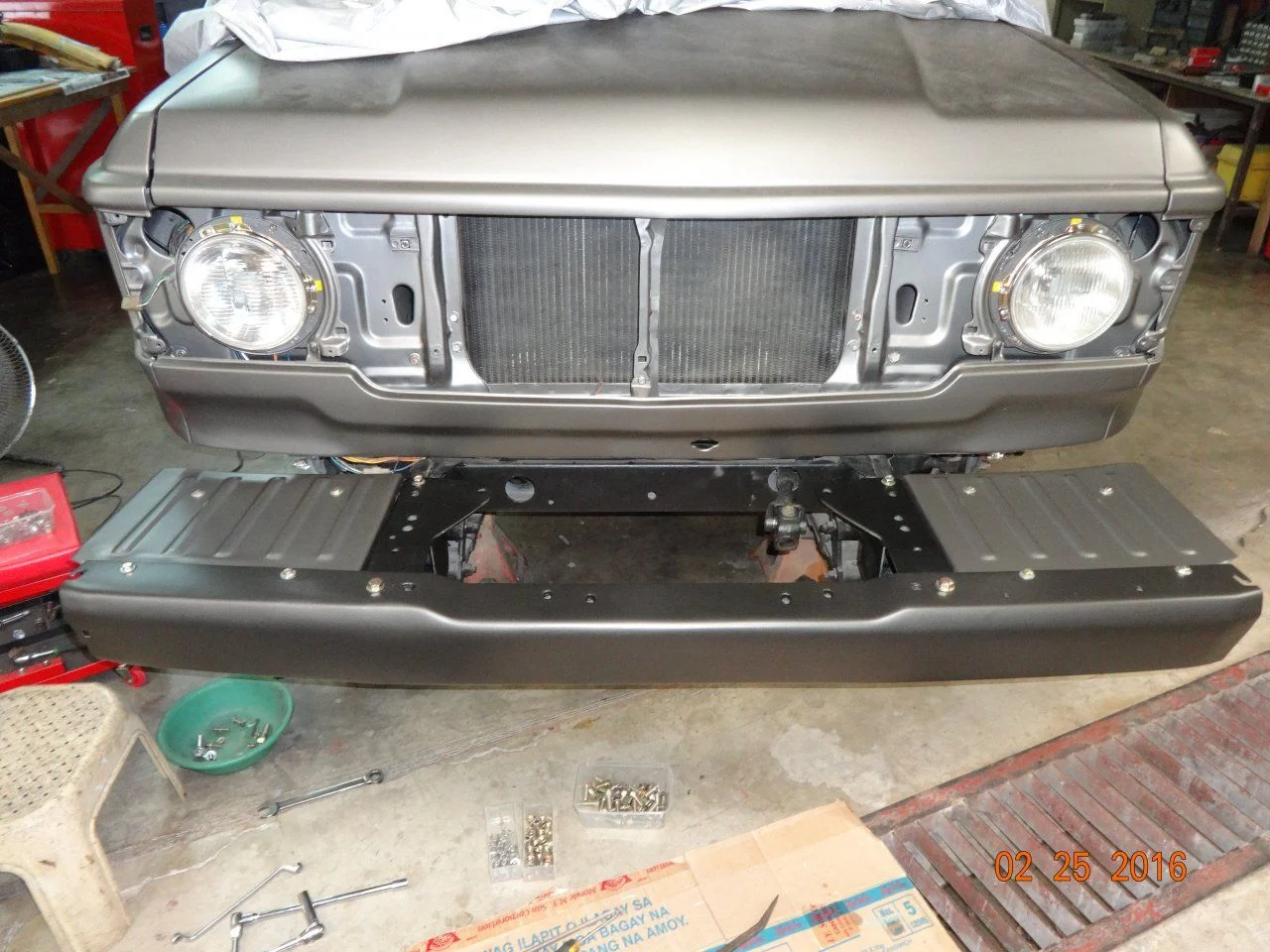

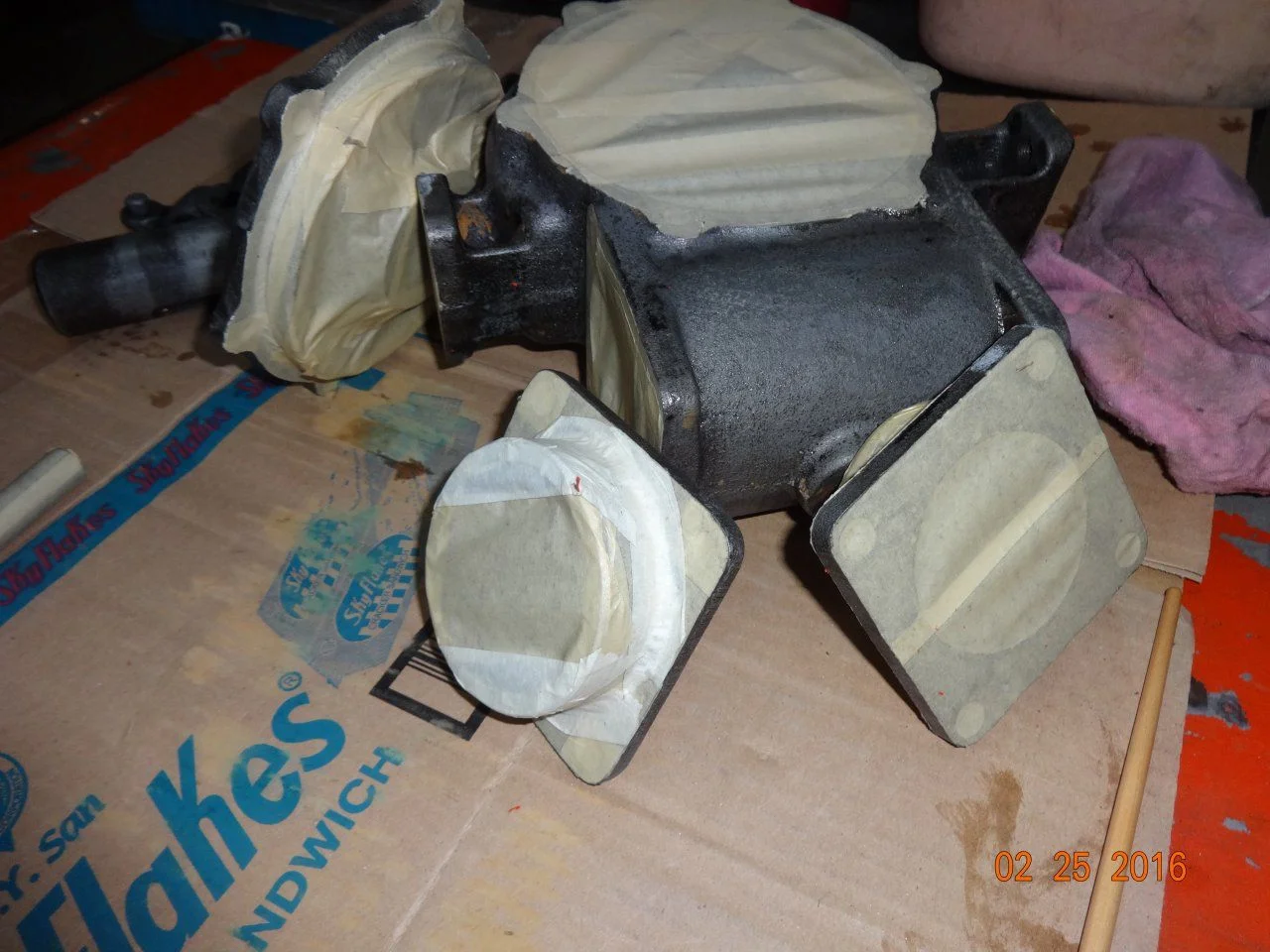

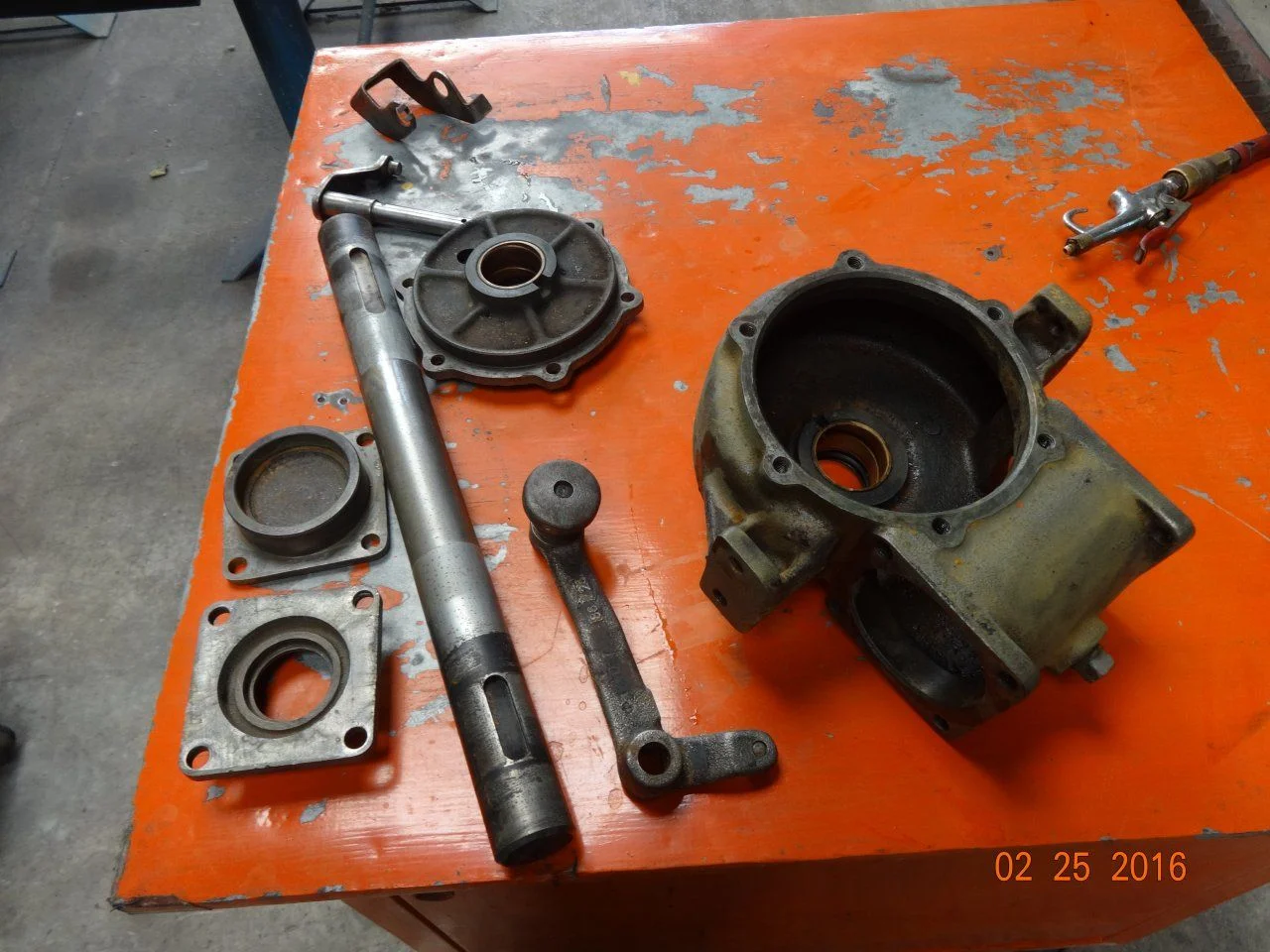

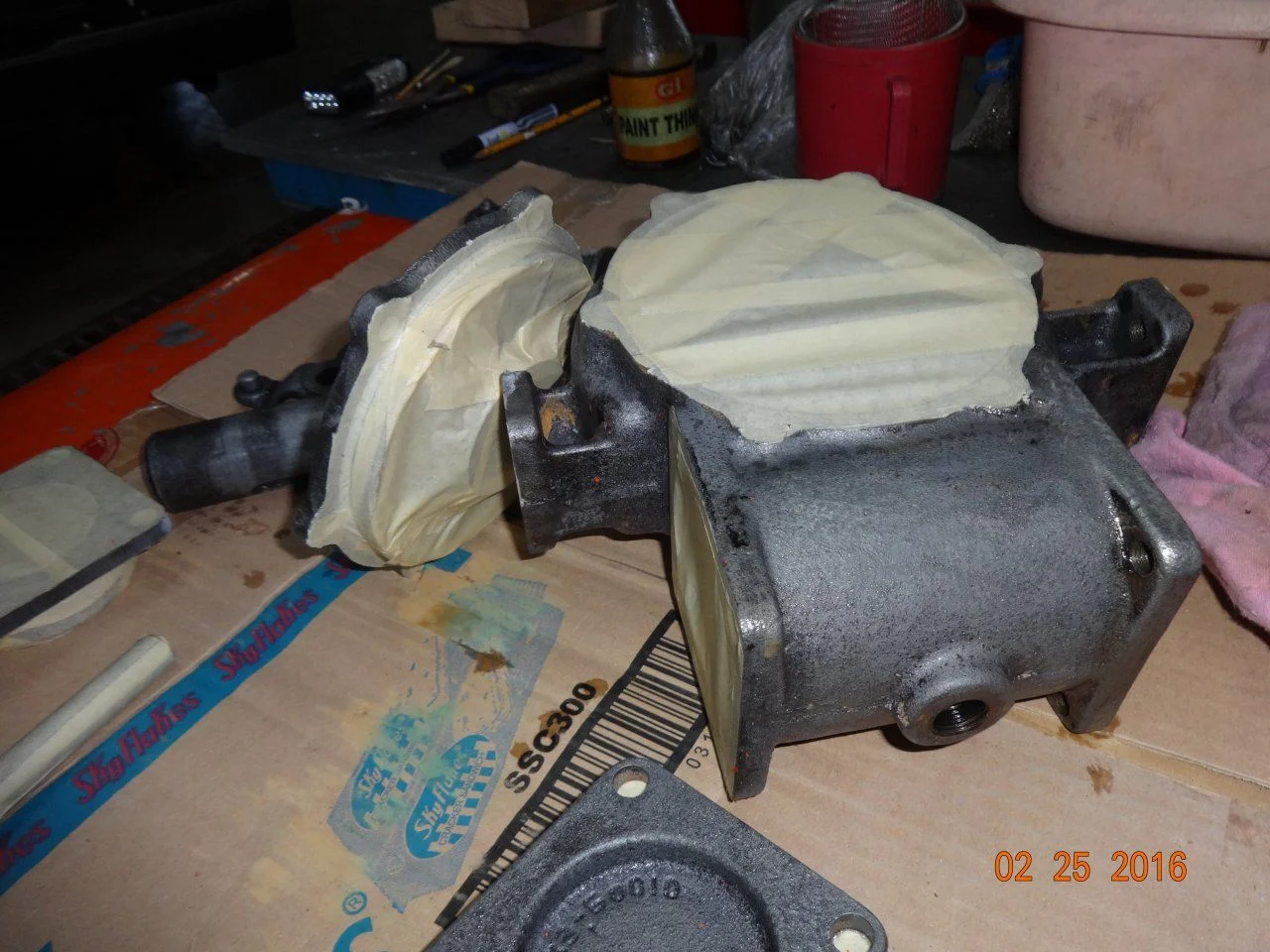

Meanwhile, I have prepared the front and rear brackets for assembly.
