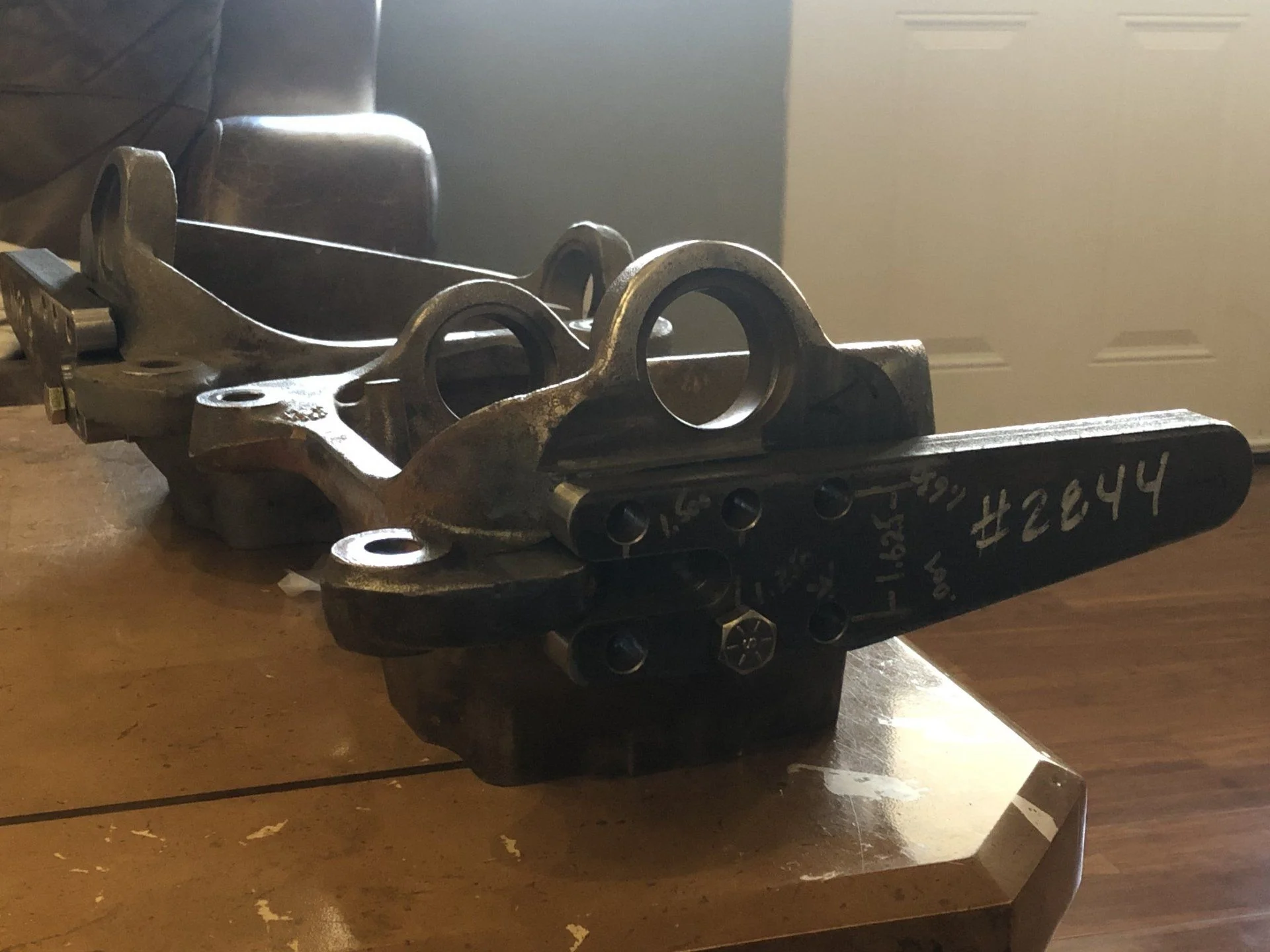

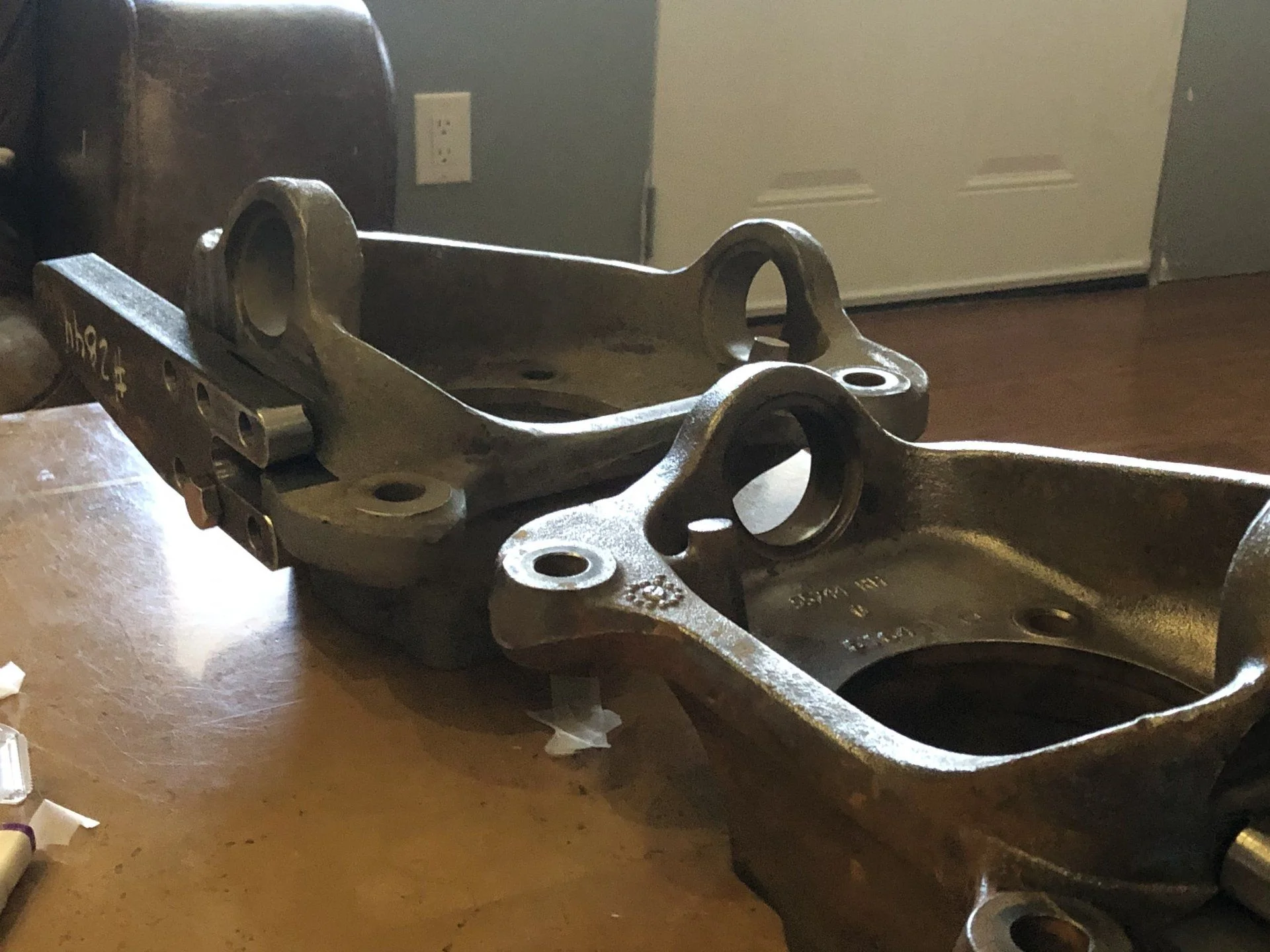

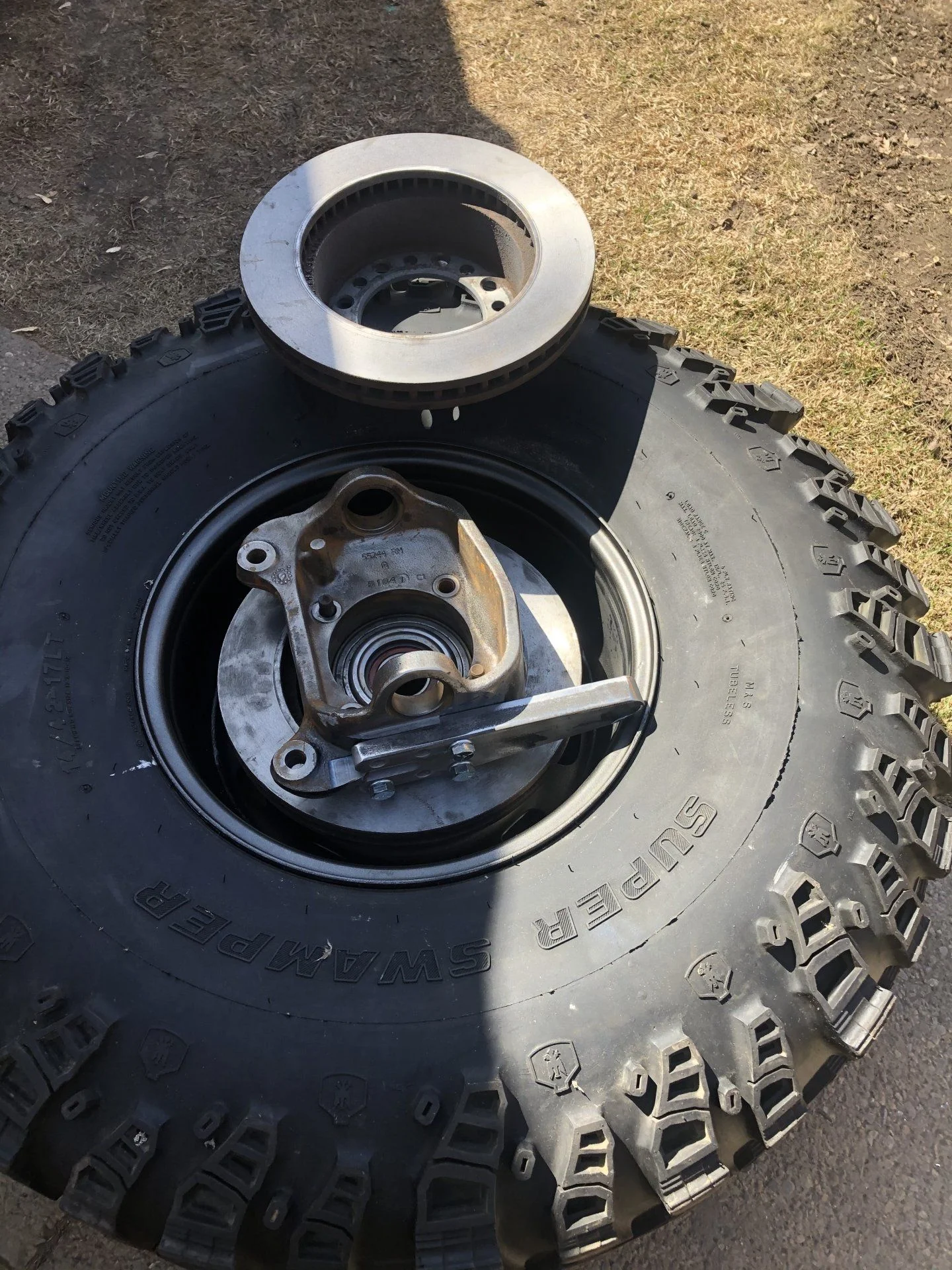

I got the high steer and knuckles back for the SD D60 front axle. I’m wanting to start getting things setup for TRE’s gonna roll a wheel/tire in the garage and check arm clearance by throwing a brake rotor and unit bearing in the wheel and then drop the knuckle on it maybe later today.

the question is thus:
When you line up Ackerman angle for drilling location, your lining it up to the kingpin, ball joint or pivot point. The centreline of this point isn’t a straight line up or down but rather points outwards towards center of tire patch.

so, am I using the centreline of the pivot point at the height or location of the steering arm (at point where it attaches) or just the average point of centreline )which would be a floating point that exists in the middle of the hub around where the middle of u joint or birfield pivots at its most central point) ?




Last edited:

cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
9,743
Location
Orlando Florida
Upper ball joint in this case since it is in the same horizontal plane with where the tie rod connection will be. That is per my suspension expert friend



cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
9,743
Location
Orlando Florida
he's asking about determining the short linkage vectors. which would be the shortest distance from the tie-rod connection to the kingpin axis inclination. which in his case would be the upper kingpin/balljoint.
