In case it helps some one else.

This took me half a day in my tilted driveway, spare was already removed.

I mostly followed the instructions, these are just some things I did that are 80 specific.

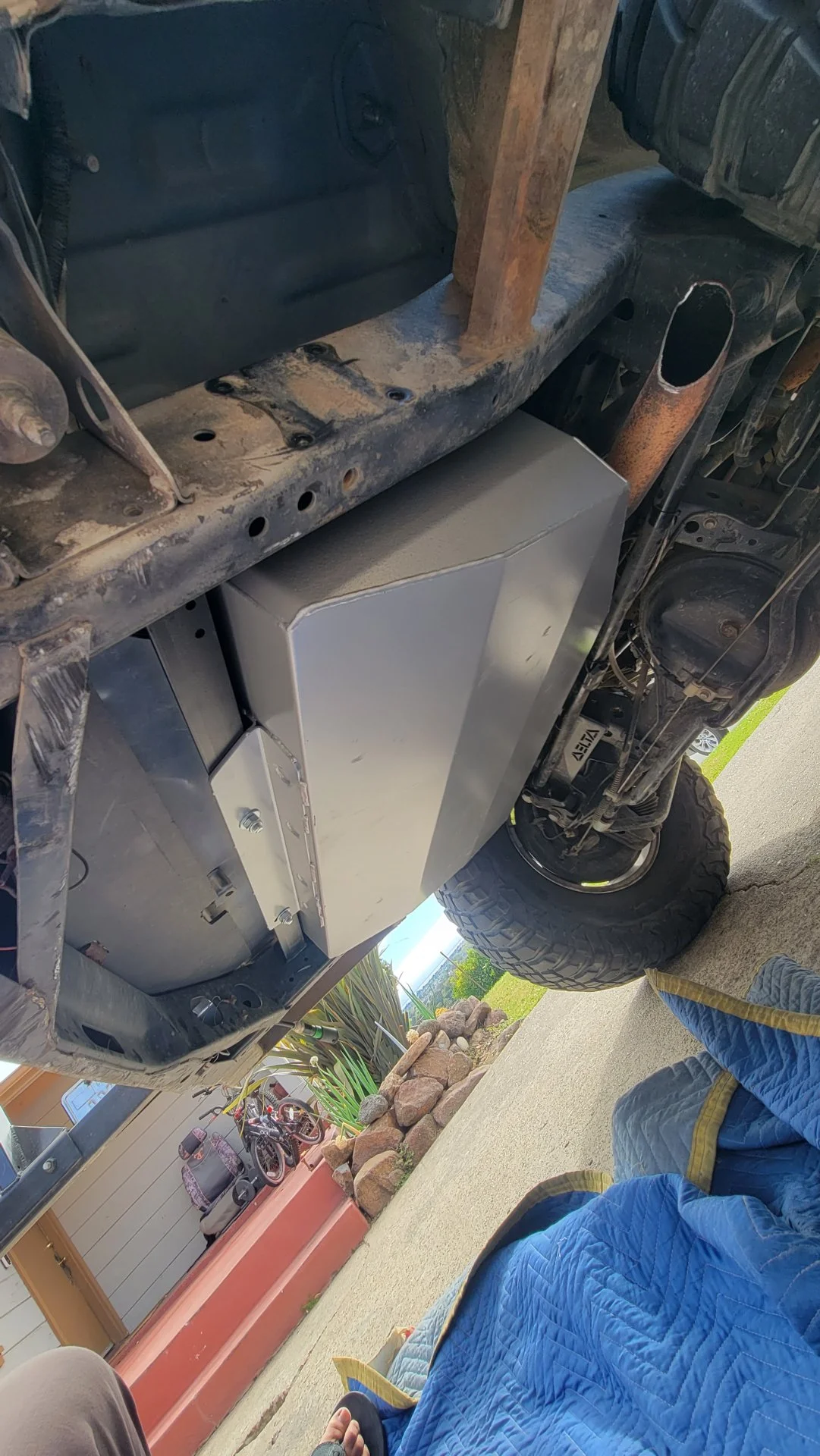

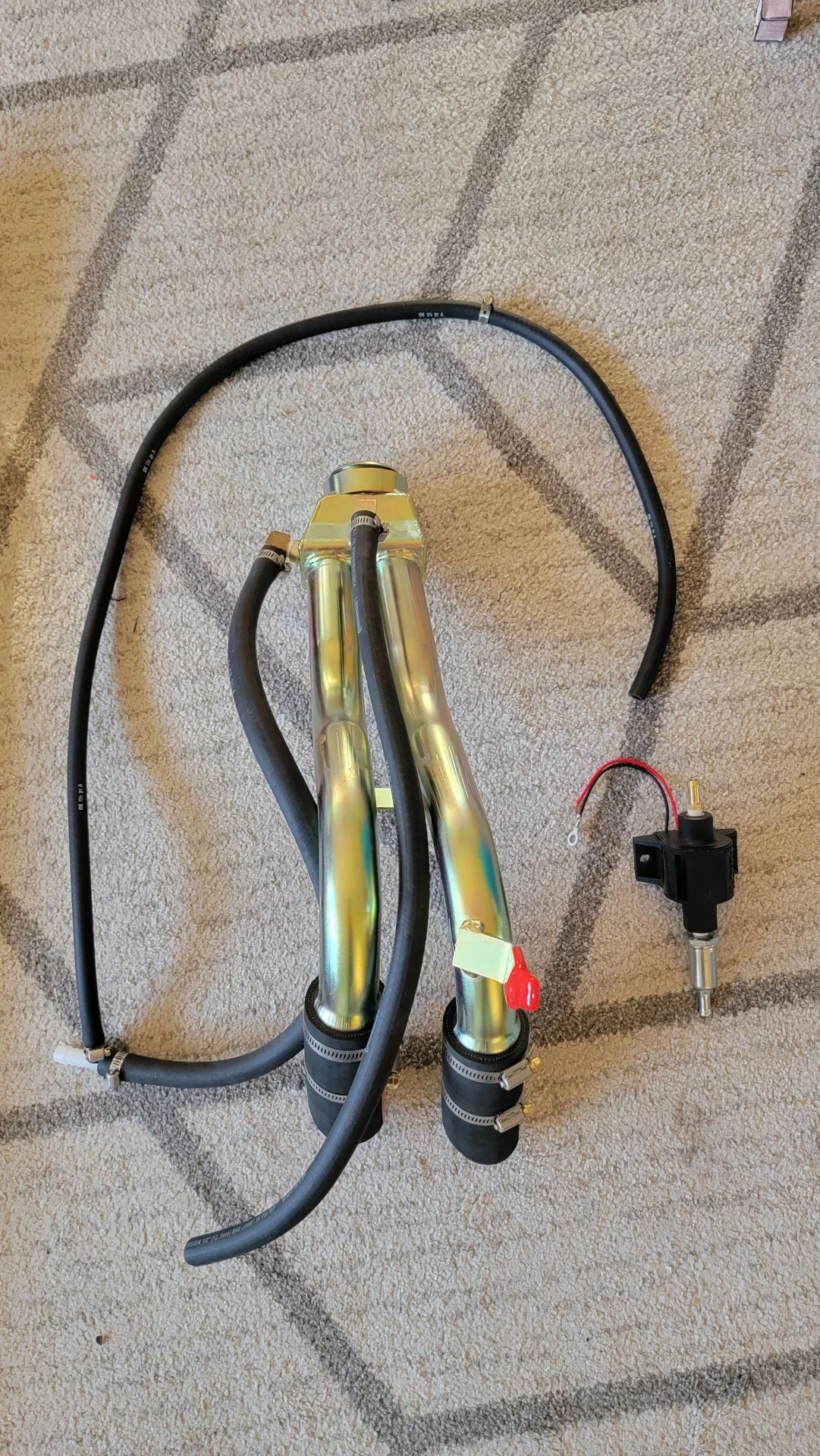

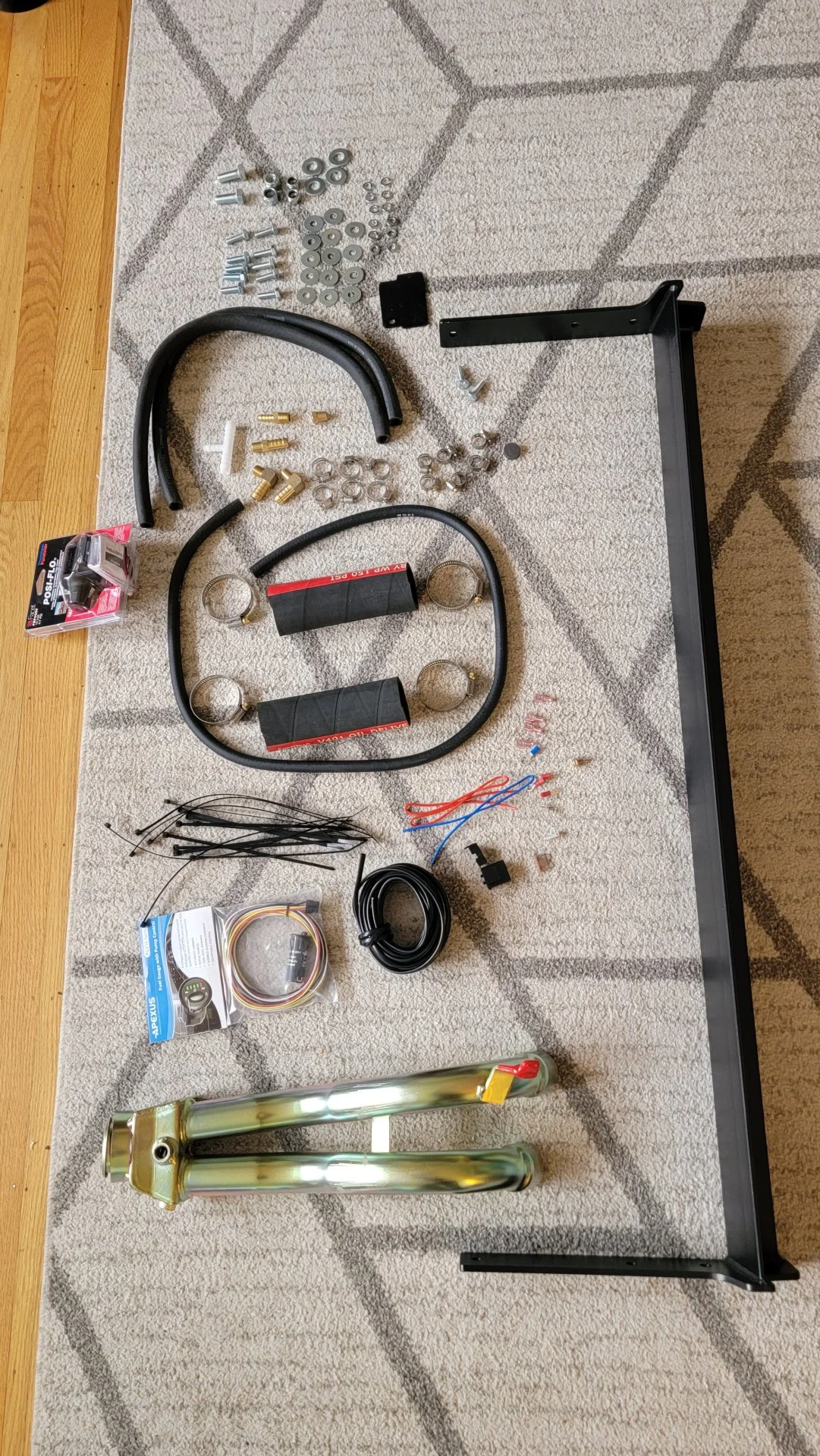

Included parts supplied with the tank, front tank mount is attached to the tank with a throw away nut. Use the nylocks for installation




Wiring

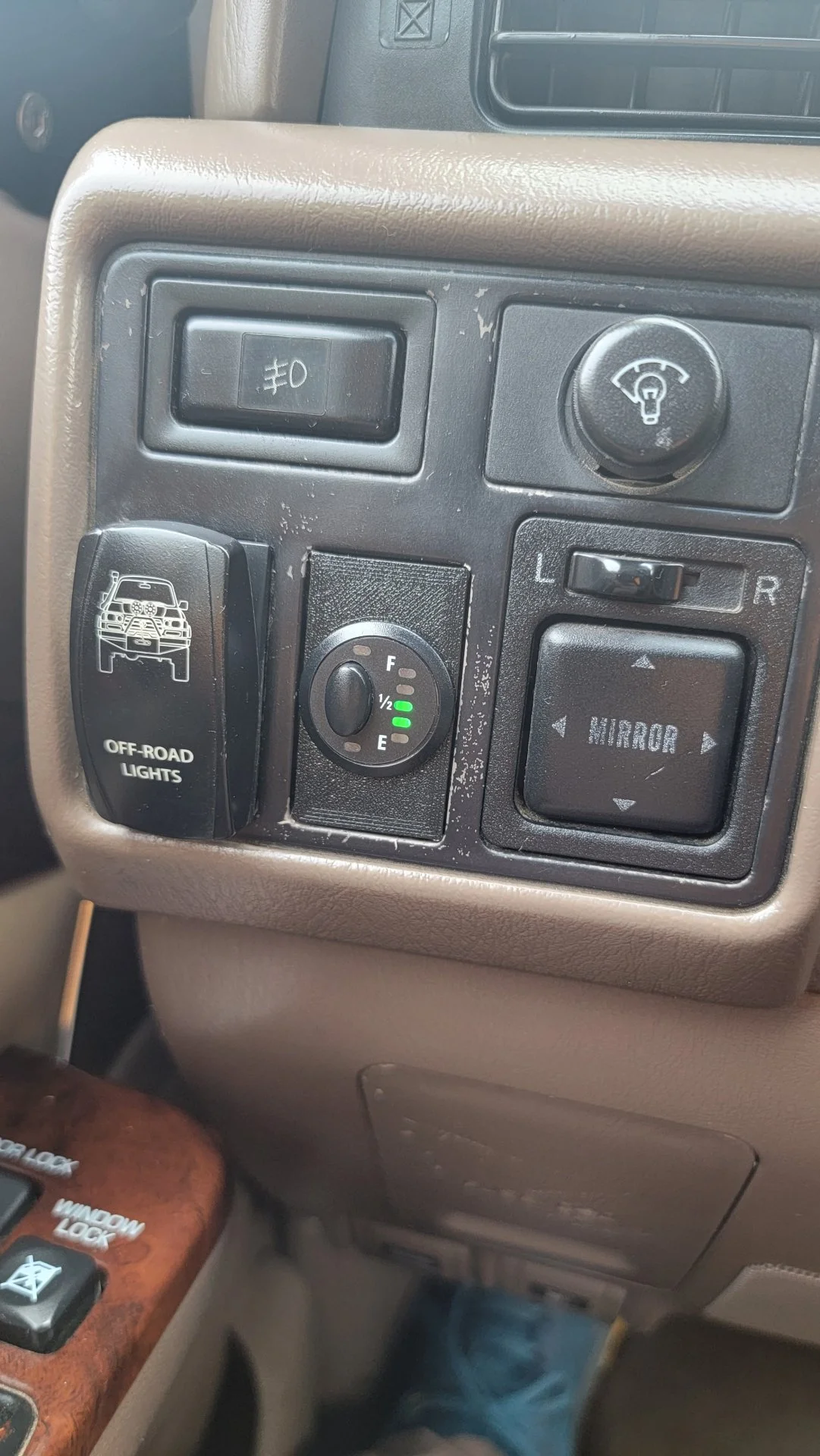

I 3dprinted a switch insert available from solvefunction.com

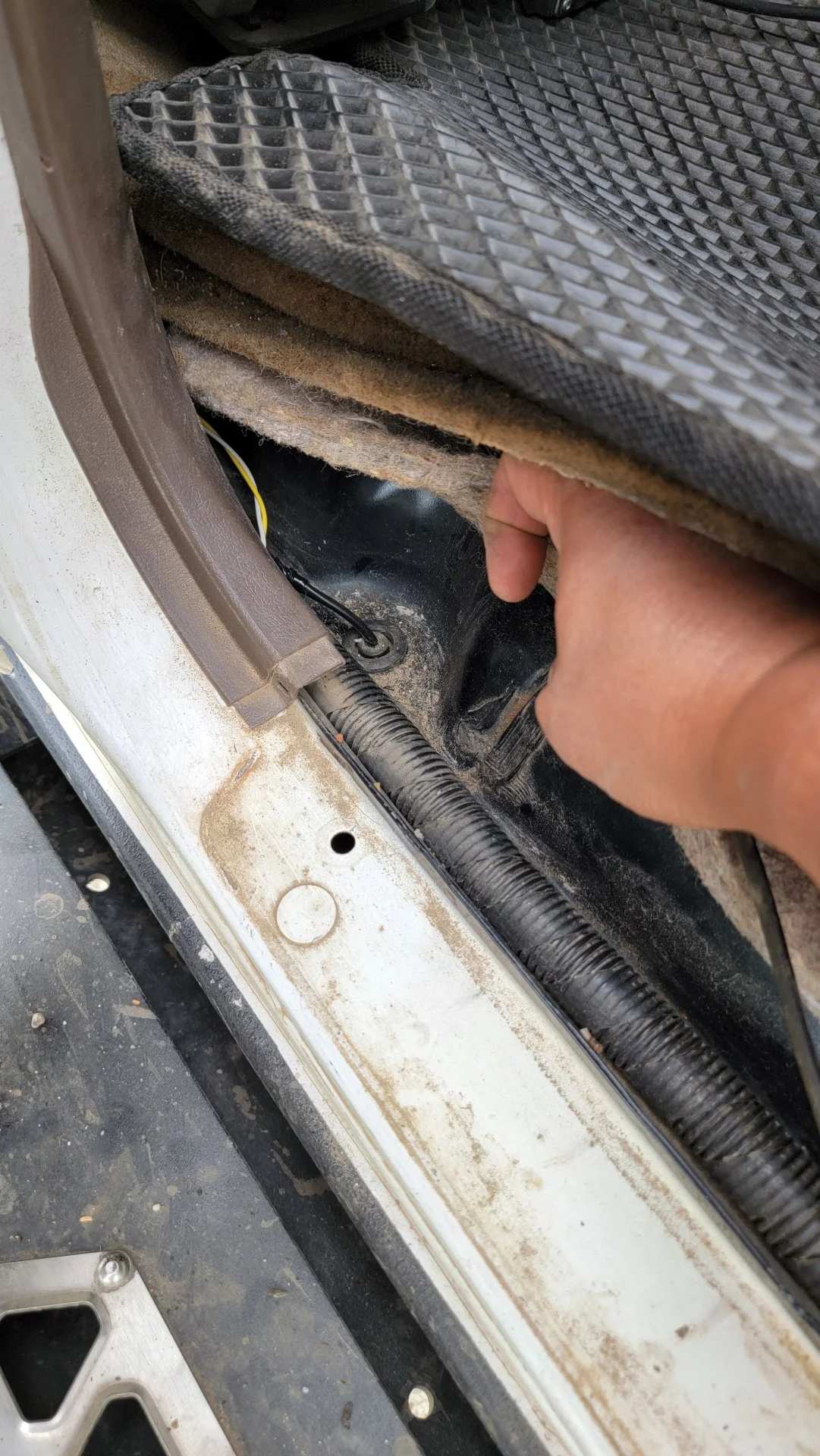

Ran the wires down the left side to a perfectly placed grommet in the rear passenger footwell.





Now to chop!

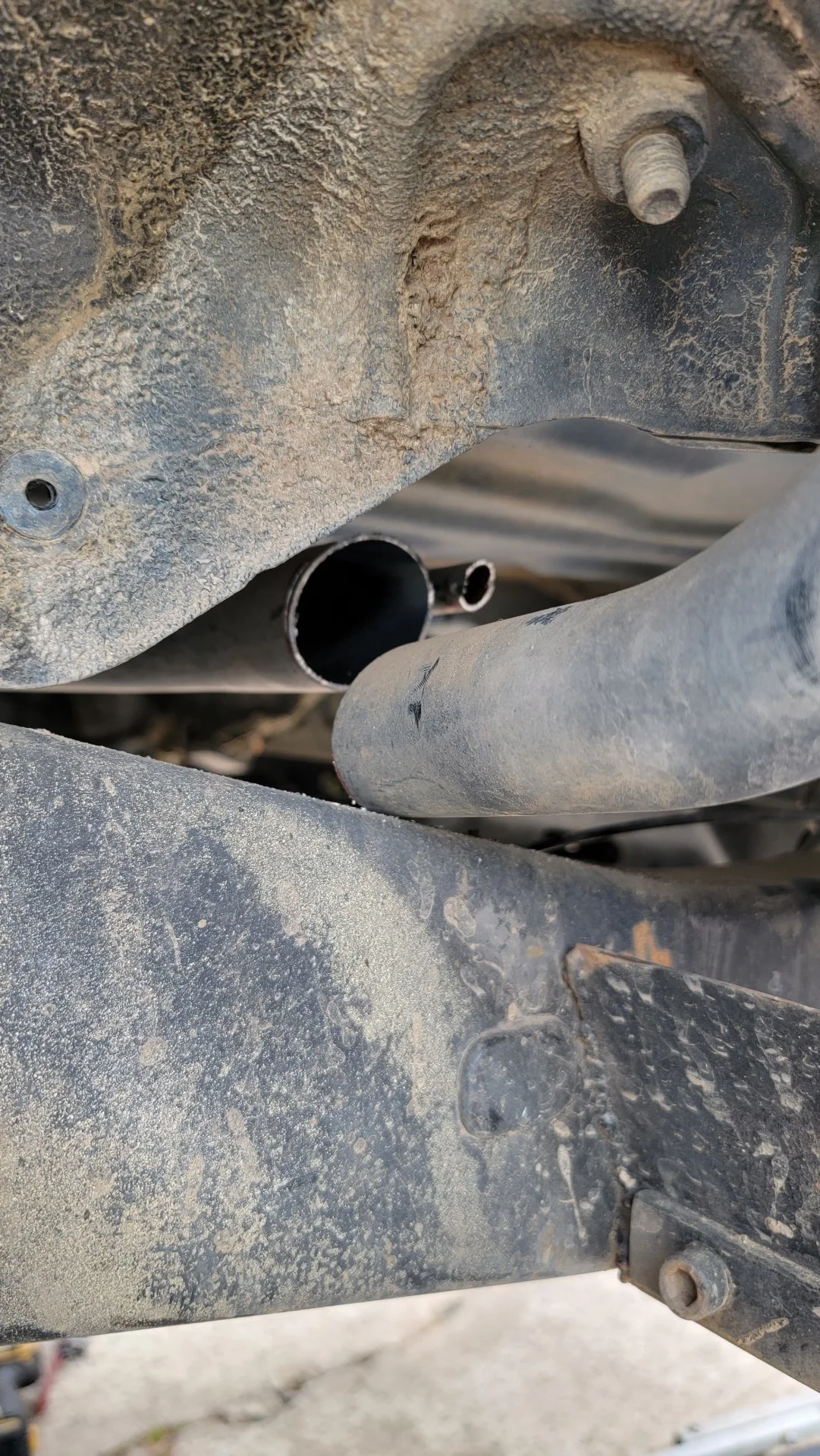

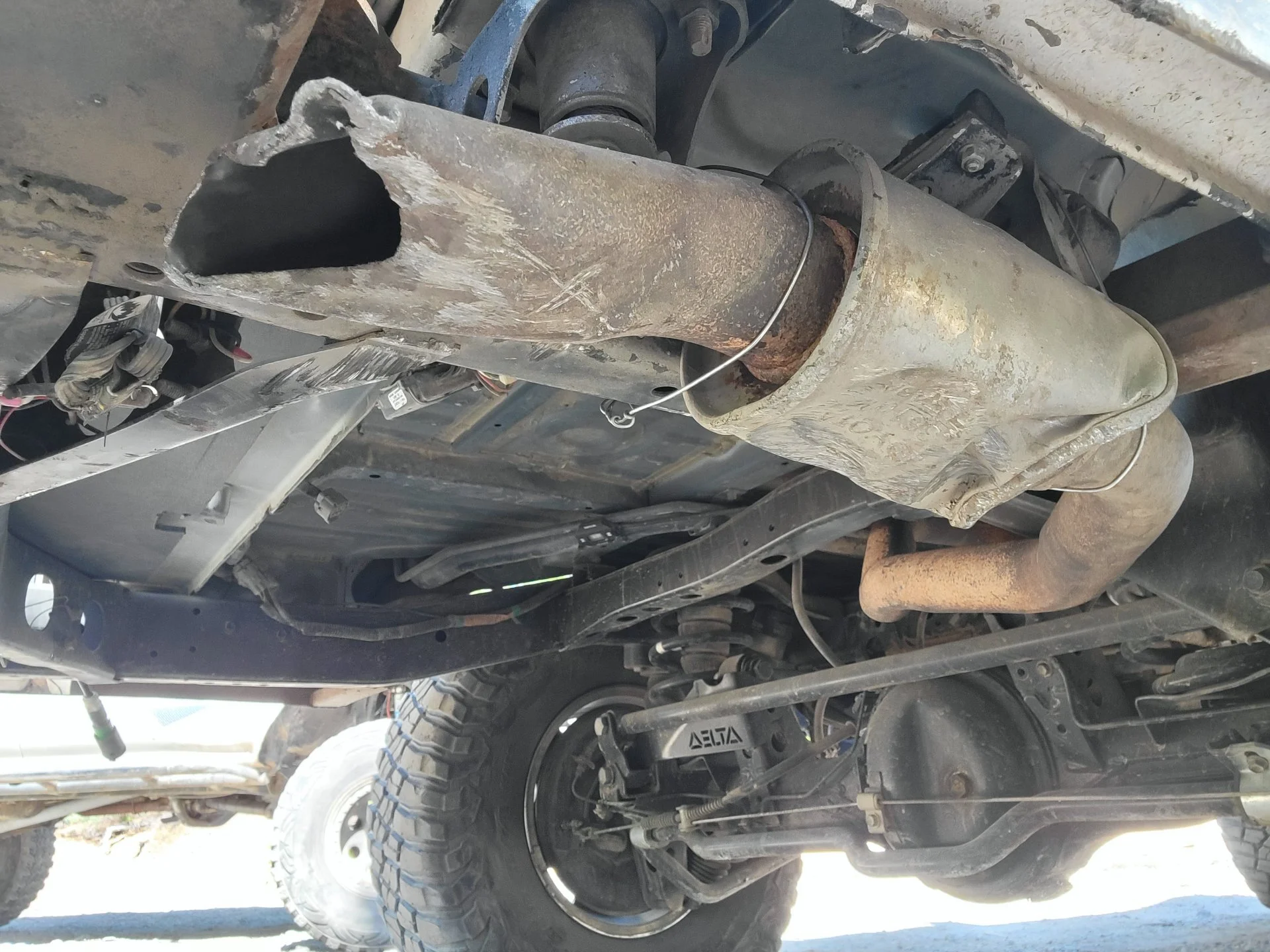

As the instructions said to cut fuel fill and vent on the inside of the frame rail.

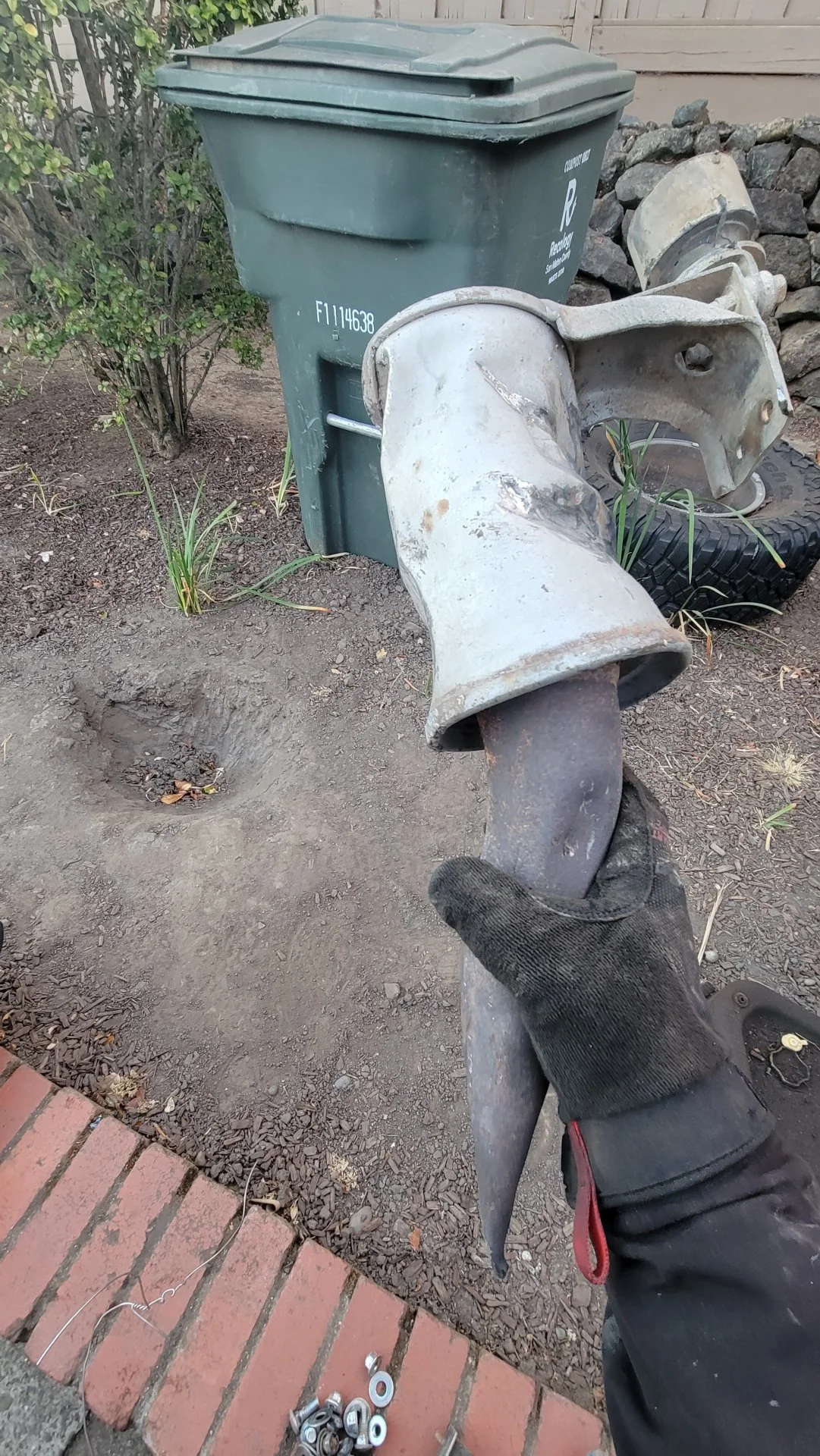

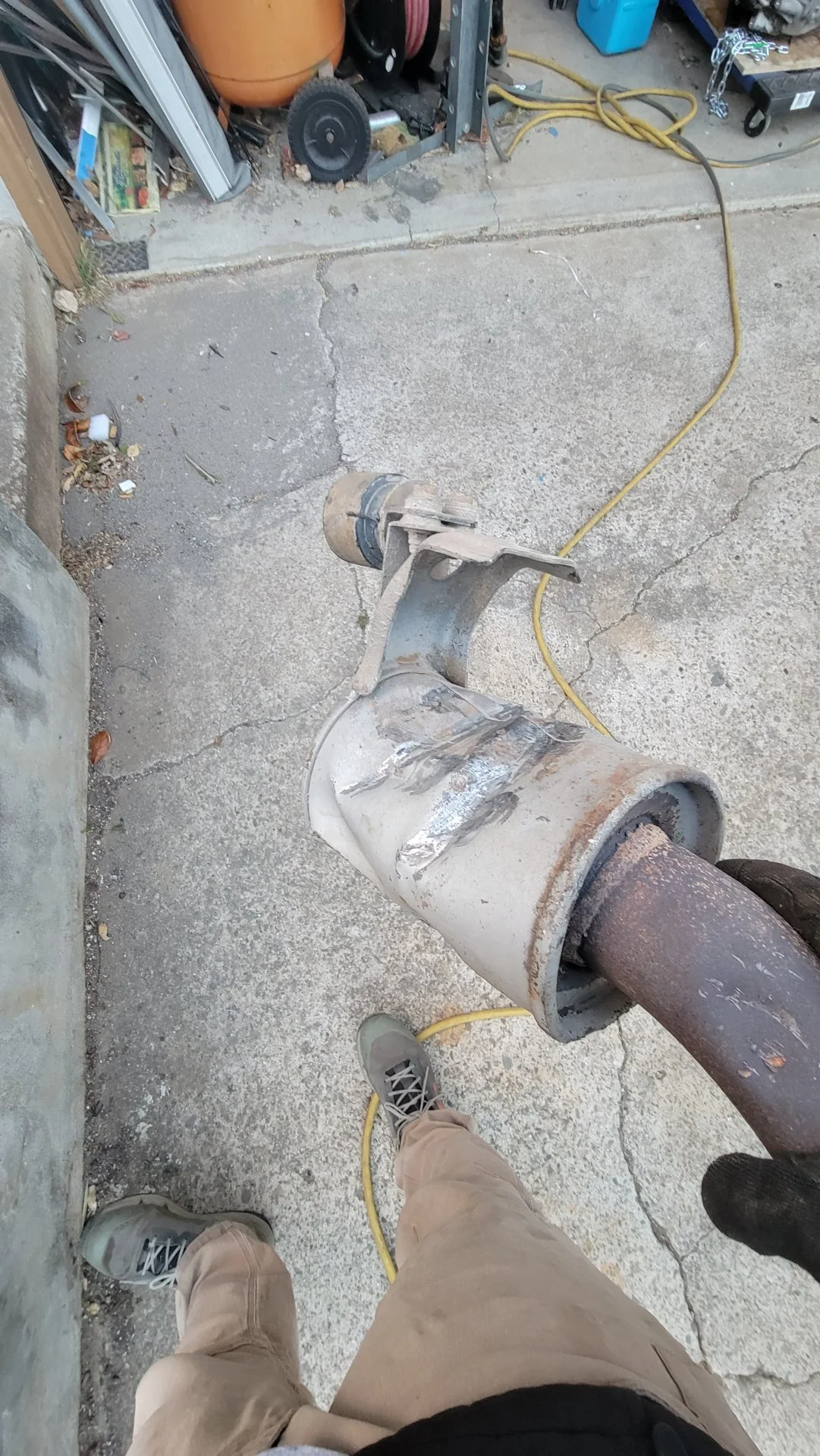

I used a reciprocating saw (sawzall), but did not need to remove or unclamp anything. Deburr please.

Last edited:

Outsane

Supporting Vendor
Joined
Oct 1, 2010
Messages
1,881
Location
San Mateo, CA
Website
solvefunction.com

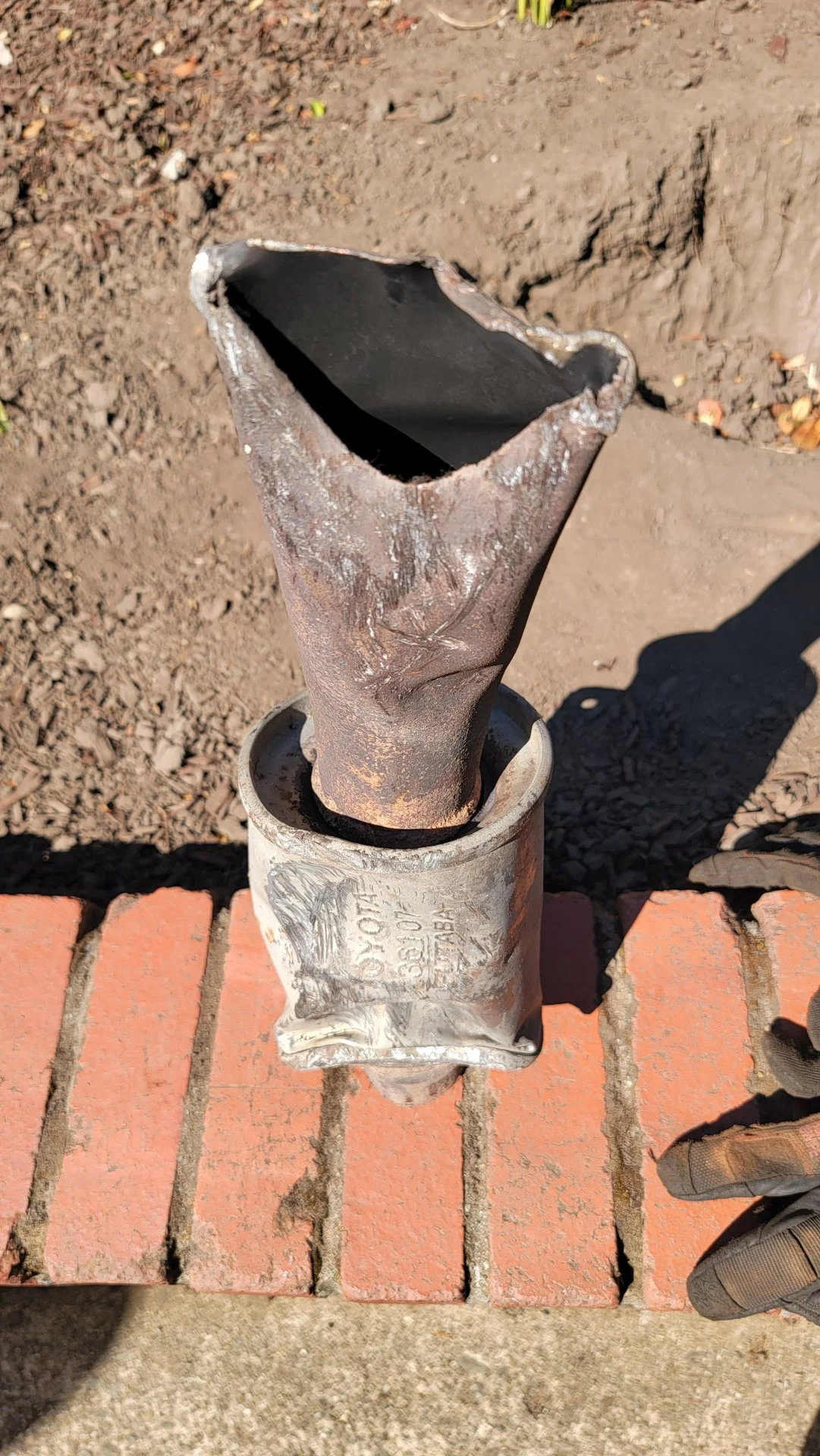

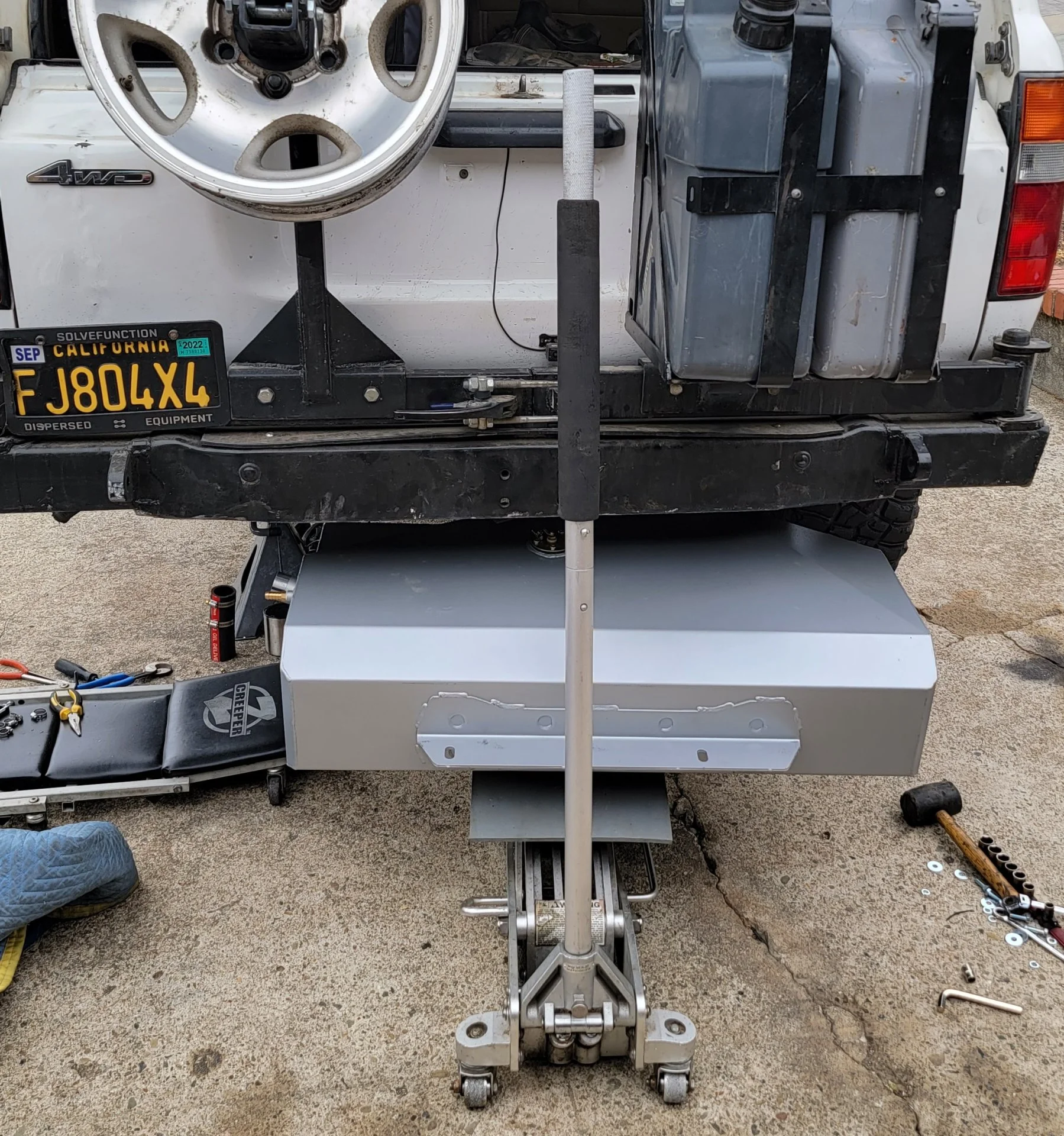

Another angle for the chop.

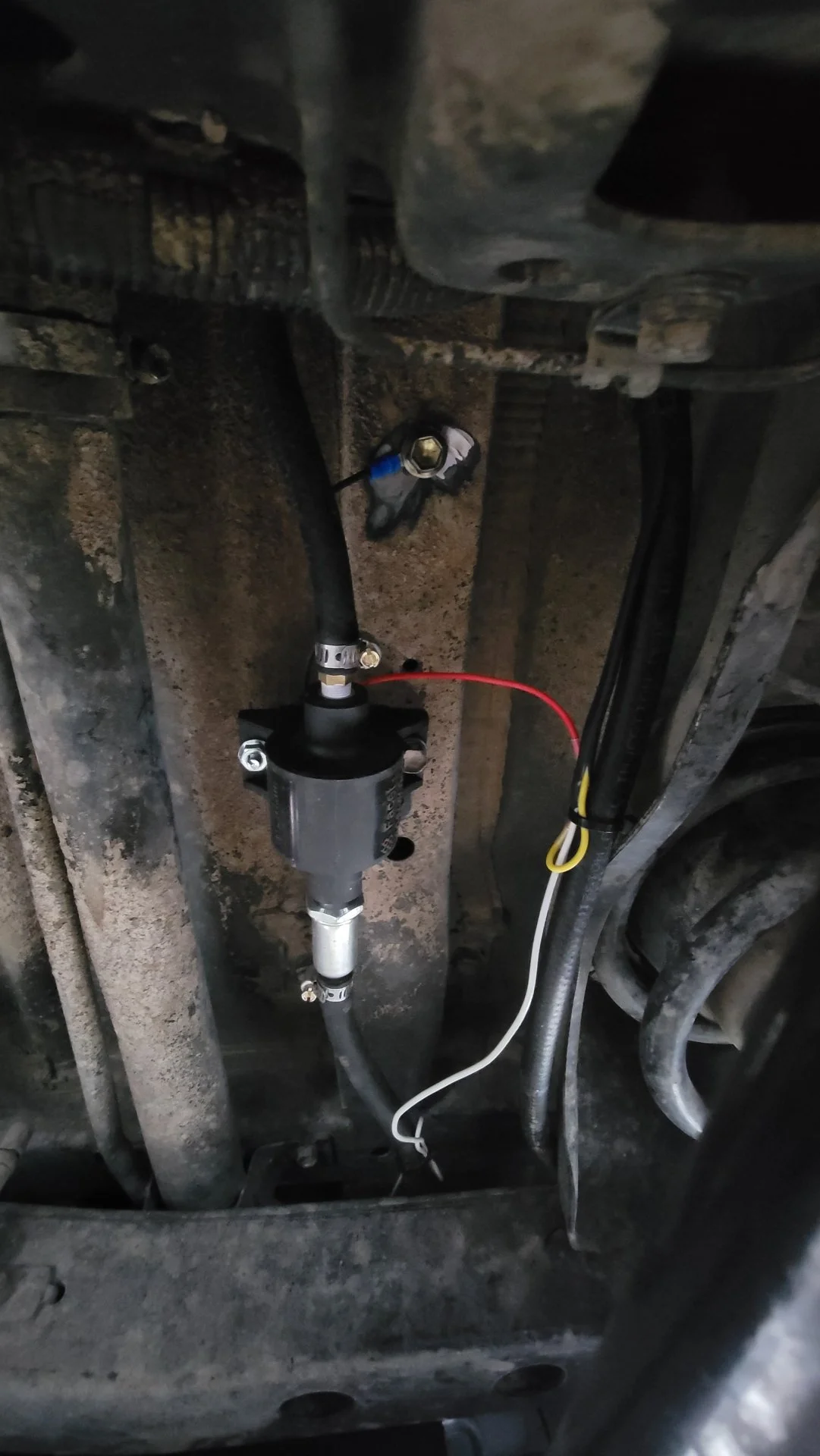

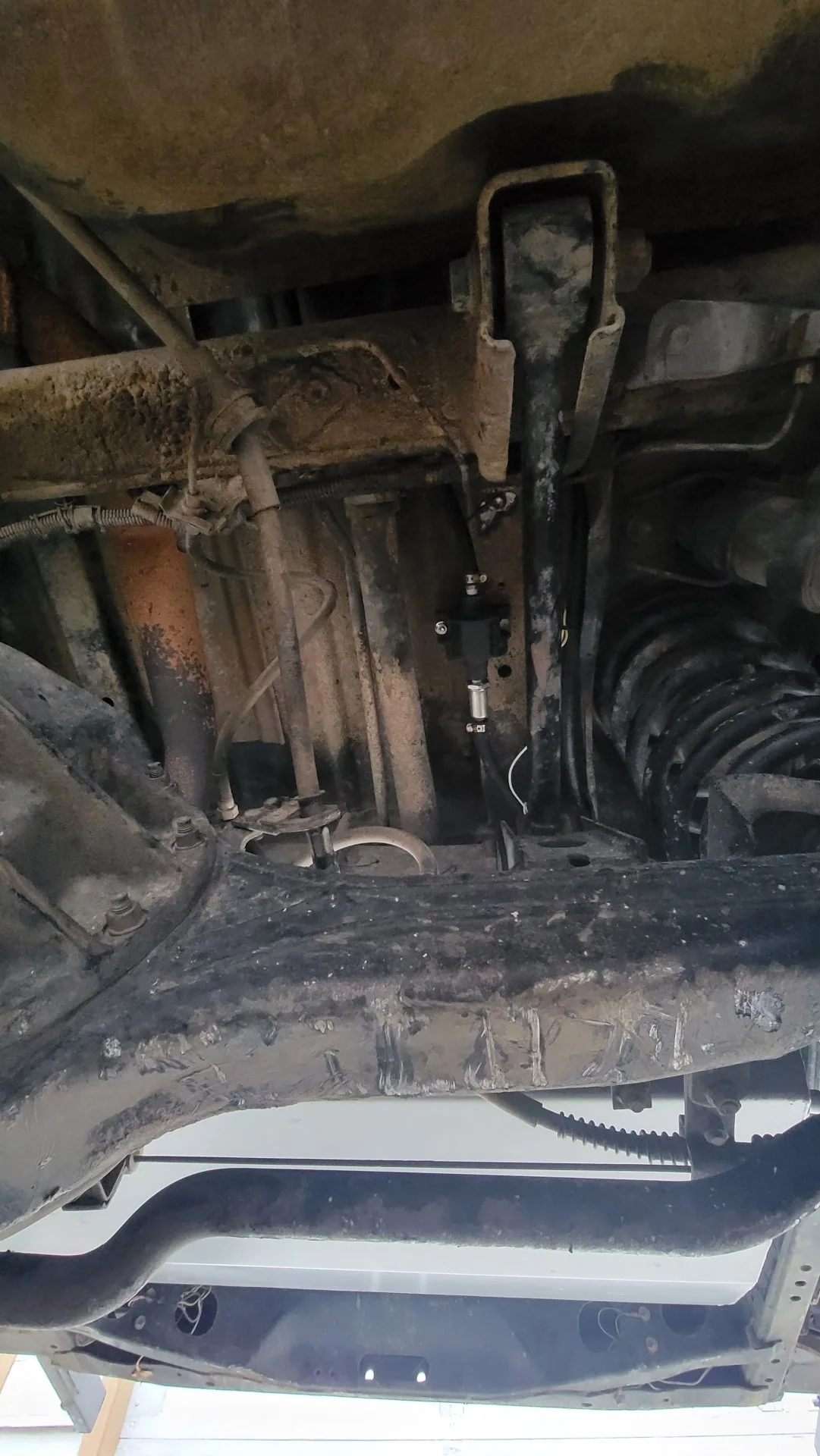

Wire mount in fuel pump
I followed Jason at Ozark Overland for this one to find a location. I did need to buy and extra 4ft of 3/8 fuel hose. Use the provided bracket and I o0ened up the holes to use bolts and washers to mount the pump to the plate and plate to an existing nut in the frame.



Assemble parts on the tank and fuel fill lines


Everything else is in good instructions.


Tachycardic

SILVER Star
Joined
Nov 2, 2019
Messages
559
Location
Nevada
How long did it take you to install the aux tank--electronics and all?

Joined
Feb 12, 2021
Messages
191
Location
New Idria 95043
Nice thanks for the write up, are you still happy you chose the 25 over the 42 gal?

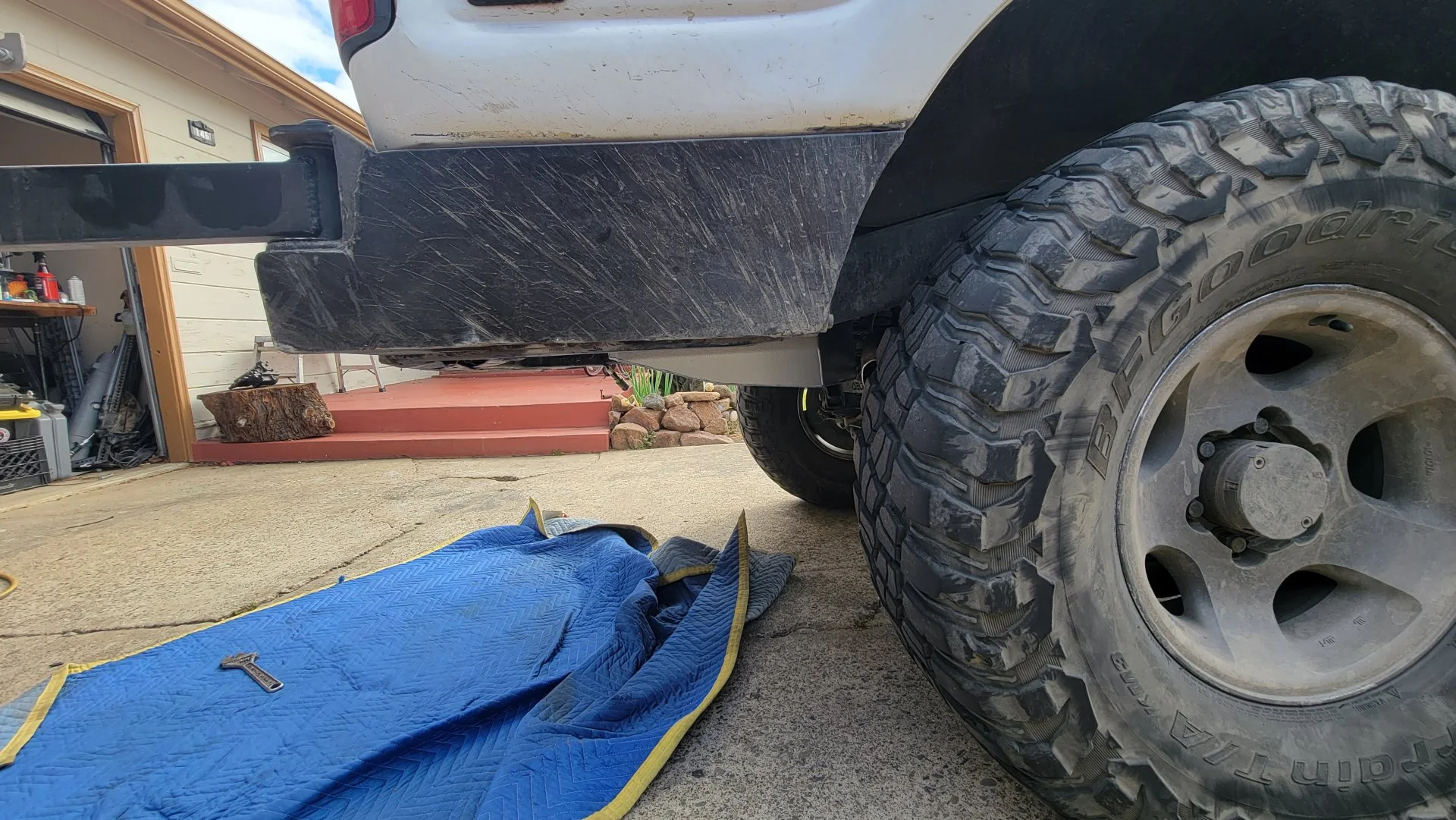

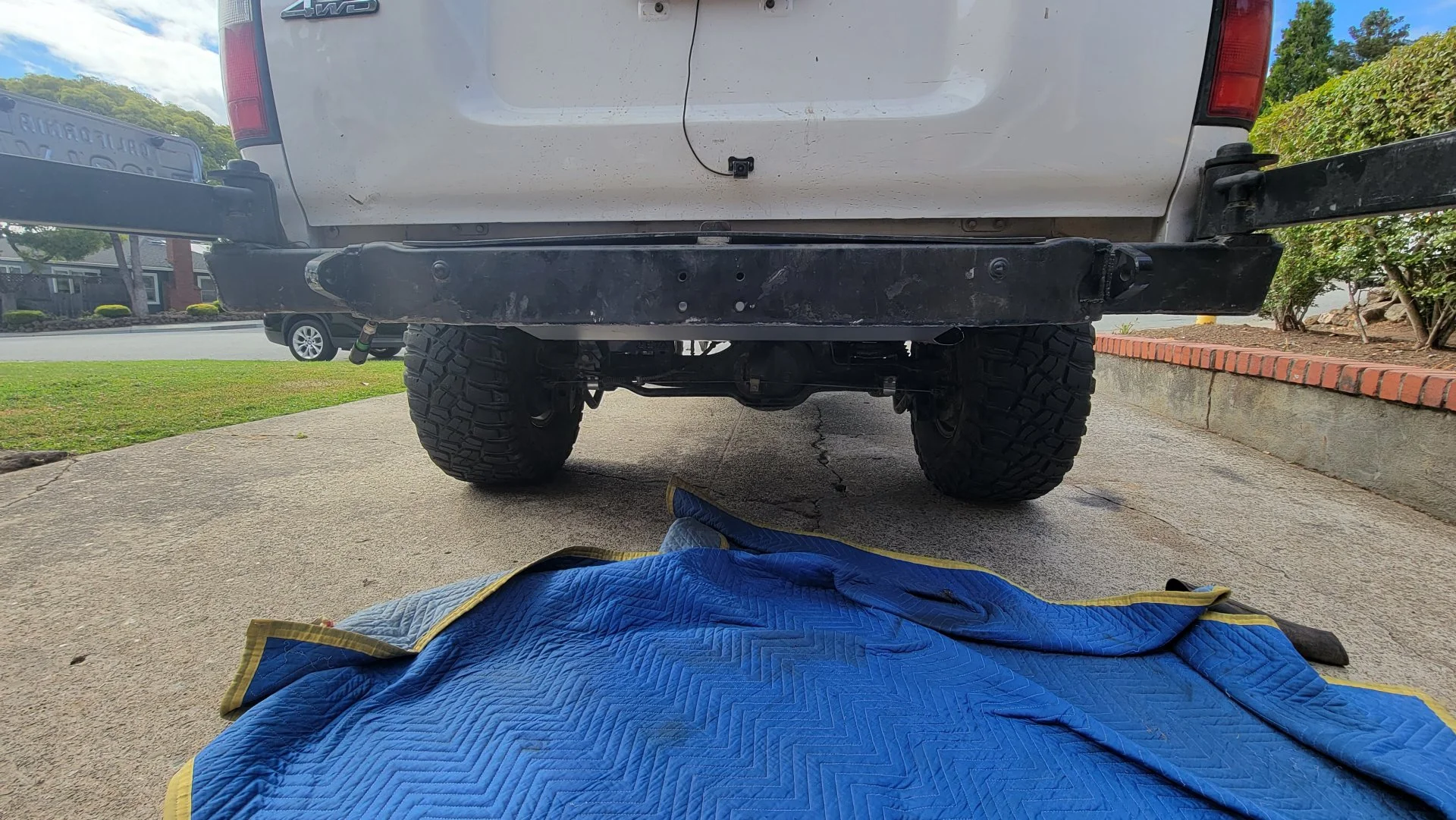

Would you mind providing a few pictures from 25-50 feet just to show the tank clearance etc.

So hypothetical question.... the manufacture ships directly to CA? asking for a friend...:hmm:


Tachycardic

SILVER Star
Joined
Nov 2, 2019
Messages
559
Location
Nevada
I like the clean lines of the 24gal tank. I've seen the 42gal tank and how low it hangs worries me. I mean, if his resonator is all crunched like that, there will be definite damage to the larger tank.

Joined
May 26, 2018
Messages
312
Location
Portland, Oregon
I want to do this so bad. not sure if I want the 25 or 40 gallon though. would be ridiculous to have almost 70 gallons of fuel. How long does it take to transfer fuel between tanks?


80t0ylc

Hill & Gully Rider
SILVER Star
Joined
Sep 24, 2008
Messages
3,517
Location
Canyon City, OR
The instructions on the fuel pump that was shipped with my LRA 24 gal. tank said that the pump should be mounted within 6” of the bottom of the tank. I missed that with my initial install and it developed fuel transfer problems on long trips with several long transfers. My initial pump position was to the bottom of the floor and I ended up moving it between the tank and rear axle. From your pic below, looks like your pump's location is on the floor, so just a suggestion.
