light wiring help

[the gimpey one]

OK so I want to wire my lights up onto my front bumper. Sticker on back says earth, middle tab says load and bottom says supply!

So battery to supply. Load to lights. Earth is ground. Lights have two wires. Also I know I need a fusible link btw power and lights. Also wires from lights are black and white. Black should be power. Is white ground?



[the gimpey one]

Back of switch



[89s rule]

You will make out best if you use a relay. I posted about this awhile back but still haven't done it myself. The simple things of wiring always throw me for a loop.



[the gimpey one]

I think I got it down just got to get some wire and install it!



[the gimpey one]

Well i do not have any stranded wire laying around. Guess a trip to radioshack is in order!



[Trollhole]

Need a relay and an inline fuse



[the gimpey one]

Well $35 later I got wire, fusible link, connectors and relay. Stupid fusible link will not take regular size fuse. Guessing it takes the mini fuse style.



[the gimpey one]

Got the lights mounted and wired up half way to the relay. Will finish tommorow.



[the gimpey one]

lol pissy pic! They are there though.



[NCFJ]

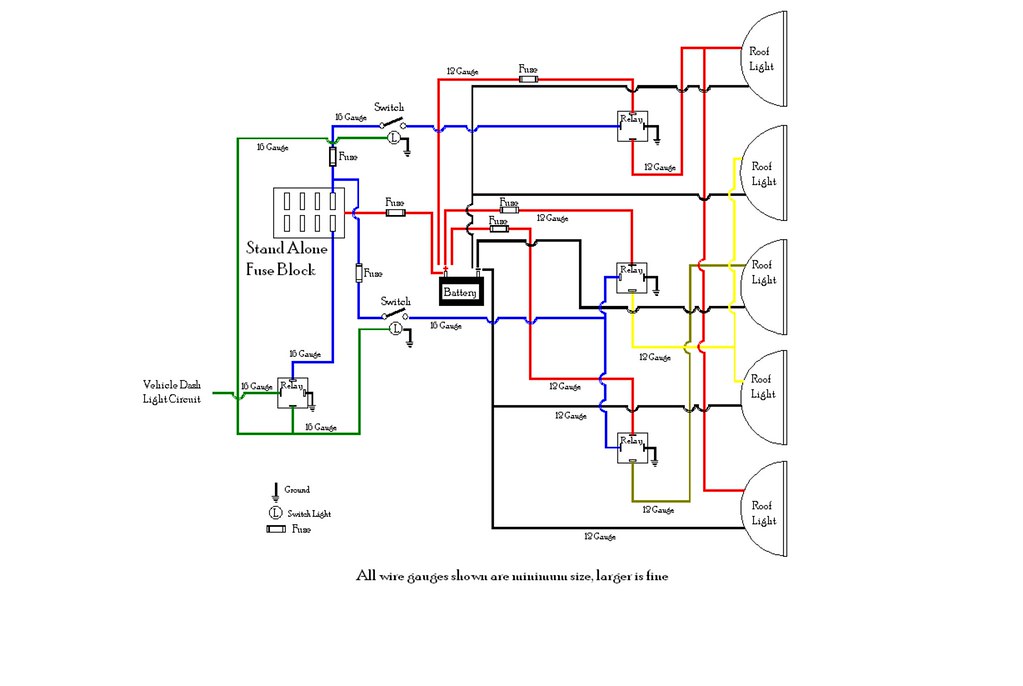

A little late, but here is a basic 5 light set up

This is how I wired the roof lights on the FJC



[the gimpey one]

And everything I have done the last 4 hers just melted! Fxxx this!
