The last big project on my diesel converted FJ60 is a custom made, rear bumper, rear tire carrier and front bumper.
When I first got into cruisers ten years ago I made my bumpers and tire carrier with limited welding knowledge, that being said, nothing ever failed.
Well now I have a lot more experience and I wanted to try and make some really nice stuff to suit my clean FJ.

I looked at many rear bumper designs here on MUD as well as all over the net for quite a long time. I guess I kind of went with a hybrid of a few designs. I wanted to make it my own :)
At the same time I am getting the tire carrier going, I am using a comp4x4 heavy duty spindle. I will be chopping up my old tire carrier and reusing the steel from that.
The bolts are all 1/2 inch grade 8.

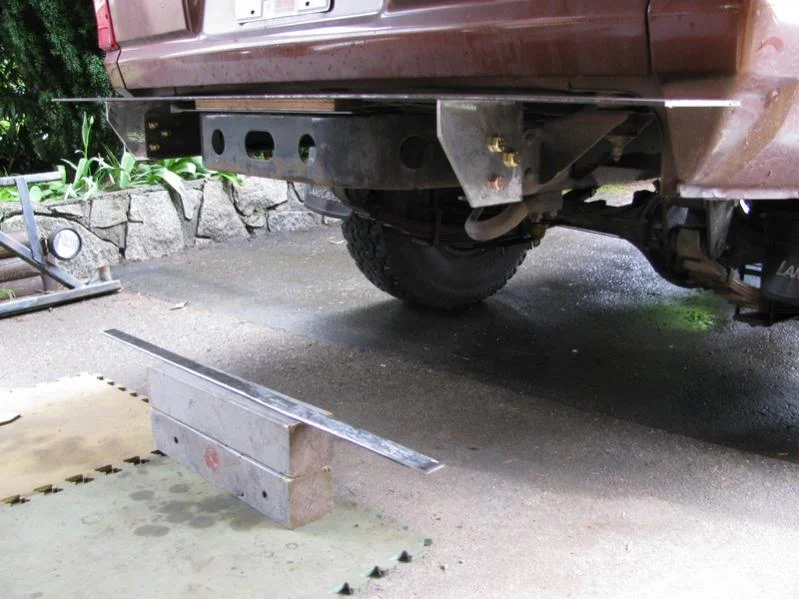

The fun began with removing the stock bumper brackets. I ground down each rivet until flush with bracket and then hammered each one out with a punch and big hammer.

After making several templates out of cardboard I finally cut out two bumper mounts using 1/4 inch steel plate. In order to fit the 1/2 inch bolts I took a 1/2 drill bit and just enlarged the holes a bit, took a minute to do all 6.

Most of the steel I used I did not even have to cut the widths! I got it from a local metal supermarket and it was already in the widths I needed. Except for the small vertical piece which I had sheared at a local shop, well when I got it home I had mismeaured so I just cut it by hand anyways :doh:

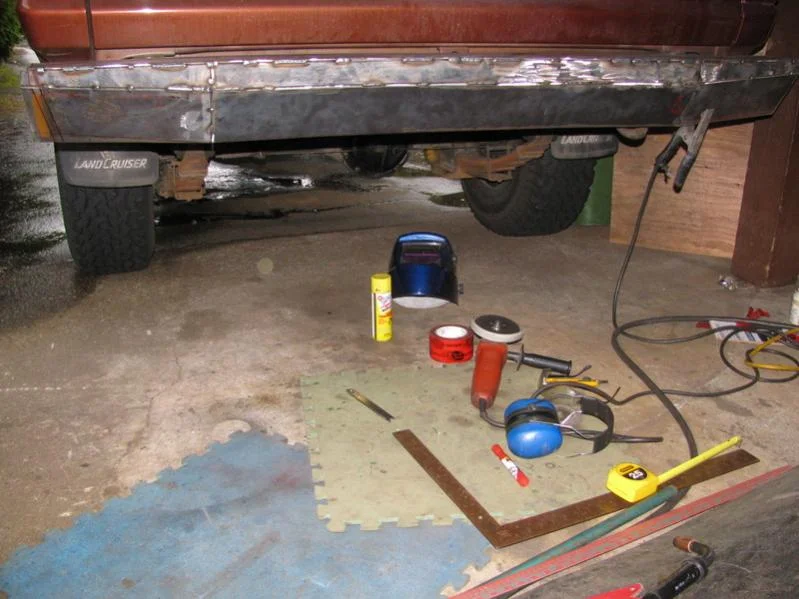

The following pictures are from my first day working on it, as you can see I tapered in the ends

Last edited:
Joined
Feb 26, 2003
Messages
1,757
Location
Sherwood Park, Alberta
Website
fawcusfitness.com
Yesterdays work...

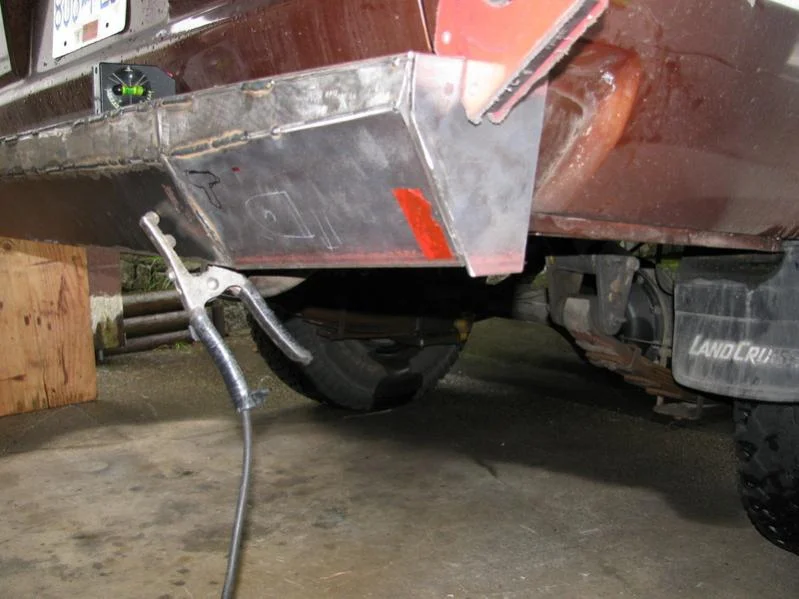

Cut off the ends to follow the lines of the truck.

Welded a 1/4 inch steel plate to the bottom to tie into the rear crossmember with 3 bolts. I cut two of the welded-on nuts off the crossmember and then just enlarged the holes, the middle hole was already there.

I figured I might as well use this as another attachment point since it was so easy to. :meh:

Joined
Feb 26, 2003
Messages
1,757
Location
Sherwood Park, Alberta
Website
fawcusfitness.com

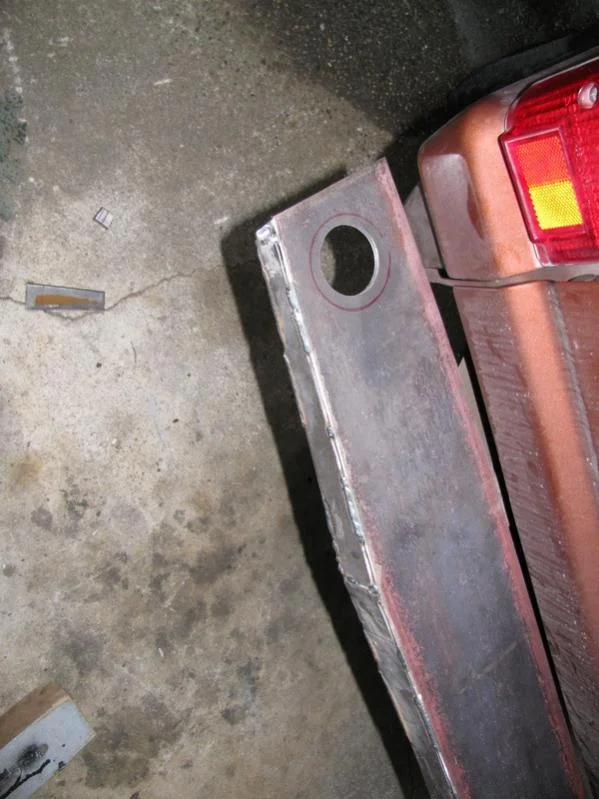

Drilled hole in bumper. I was able to slide the bumper under my drill press so that made things a bit easier, it took me forever to decide where to drill that hole.
I also went from passenger side to drivers side and back again, that is a whole other discussion though...

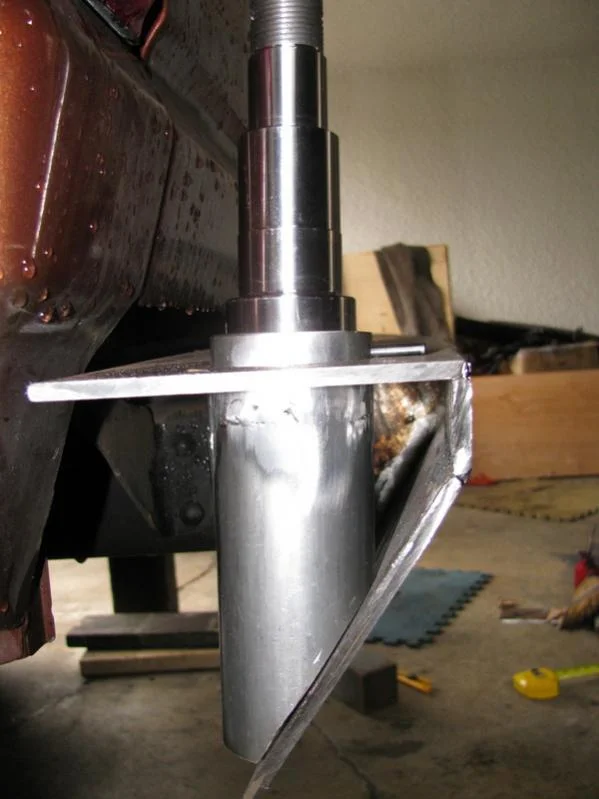

I had to cut the spindle housing and the spindle to match the slant in the bumper. I made a little boo boo :bang: when cutting the angle so I had to reweld part of the sleeve back on the top again...

Joined
Feb 26, 2003
Messages
1,757
Location
Sherwood Park, Alberta
Website
fawcusfitness.com

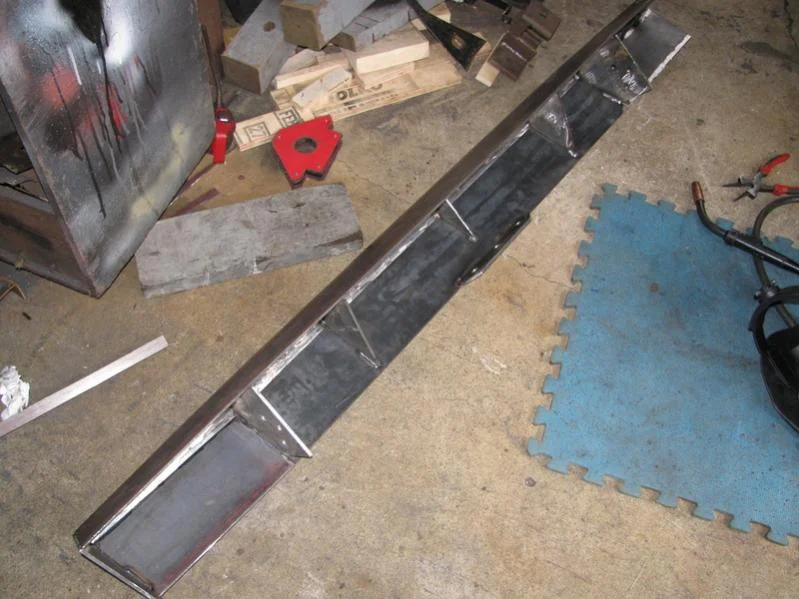

Added three gussets today and capped the passenger side end off.
I plan to partially box the ends in for strength, especially for the tire carrier side.

I picked up a black $6 cutting board this evening for the tire carrier to rest on, it is about 1/4 thick, there was one that was an inch thick!
Anyhow I figure the 1/4 inch should be ok? I was going to fasten it with a couple stainless bolts that are countersunk and attached them on the other side with nylocks.
Anything wrong with that?


John McVicker

SILVER Star
Joined
Jul 11, 2005
Messages
3,798
Location
Big Pine, CA
Good looking work jzilla. Subscribed.

John


Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,650
Location
Las Vegas
Joined
Feb 26, 2003
Messages
1,757
Location
Sherwood Park, Alberta
Website
fawcusfitness.com
I think he was being sarcastic? :D
Anyways I have several flap discs, and grinding wheels.
I will probably just grind down the main stuff with the grinding wheel then use the 40 grit, I have a 120 grit and a polishing wheel as well, but the 40 grit works great if you vary your pressure.

Joined
Feb 15, 2012
Messages
61
Location
South texas
That looks great. The proportions are perfect. What sizes flat stock are you using? Can't wait to see more!

Joined
Feb 26, 2003
Messages
1,757
Location
Sherwood Park, Alberta
Website
fawcusfitness.com
Thanks :)
The the following are 1/4 inch: frame mounts, tie into rear crossmember, center vertical piece, center rear piece that slopes inwards to truck.
Everything else is 3/16.
Just found out last night that the U bolt on the destaco latch I am using is a bit too short, so I have to find a longer one.
Still trying to decide if I should use a big bolt with a t-handle on a nut to keep the carrier against the truck or just a big trailer pin.
I want the cleanest look possible. The trailer pin might be all I need.
More pics to come later today.

Last edited:
Joined
Feb 26, 2003
Messages
1,757
Location
Sherwood Park, Alberta
Website
fawcusfitness.com

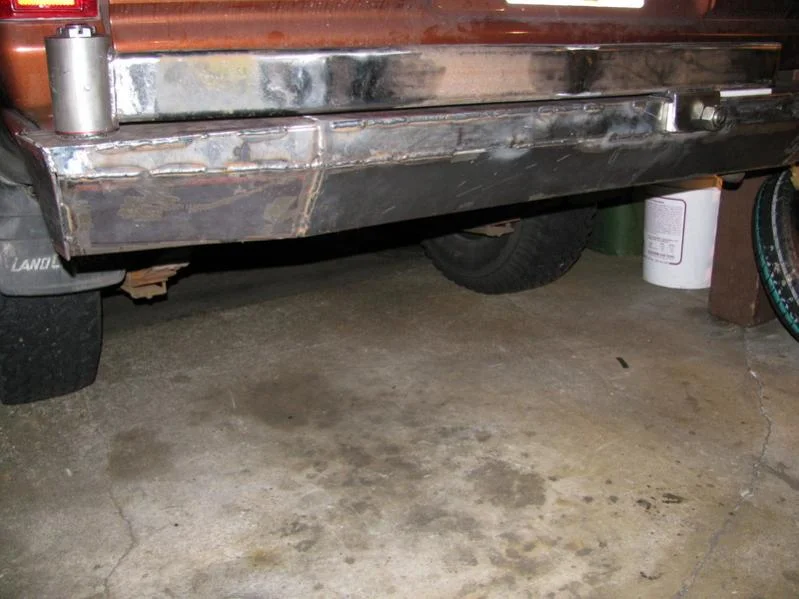

Here are a few pictures of what I just finished, setting the pin up and the plastic pads took two days, seems the little details take the longest.
Making sure things lined up perfectly was very time consuming...
Not even sure if I need to bother with the destaco latch now, this nut and bolt latch I made is super secure, just need to find a better pin to go through the nut and bolt...

Joined
Oct 22, 2004
Messages
2,967
Location
Clemson, SC
Looks very cool man...are you gonna put a Reece hitch into the bumper....saw a guy who did something similar on an 80 and flush mounted into his bumper....you definitely have a lot of patience.
