    This build starts a long long time ago with many dead ends , failures and even being sold once .

    where it sits now
    *73cj5 body
    *87 standard cab Toyota frame and drivetrain with a sas
    *front axle is trussed armored and gusseded. v6 diff with a arb locker and 5.29s . Bobby longs and high steer
    *Rear axle is trussed v6 5.29 and a Detroit locker
    *duel cases
    *hybrid ruf pack in the front rears are 4" lifted springs for a explorer
    *sitting on 38s future plan is 37 or 40s



    Now this thing started life as a bone stock 73 cj5 purchased new by my father . I spent my childhood in this thing out in the woods , taking trips with my dad's jeep club it's what really sparked the fire and desire to be off the beaten path . Life often gets in the way and my parents got divorced when I was 6 or 7 and not long after that the jeep needed a transmission and ended up just sitting for a very long time . We will fast forward to my dumber 19 year self who wanted to make a wheeler out of it . At to his point I was very into Toyota and had a extra set of axles sitting around so I figured " he'll it's gotta be stronger then the jeep axles so I swapped them in and gave it a ton of lift with the spring over .... and there it sat again for many years[​IMG]

    Fast forward again after a couple of re designs and motor swaps I was never happy with the Driveline angles/ motor placement and many other aspects of it I decided to just sell it to a friend of a friend who thankfully never paid me for it so I took it back .and I decided it was time to actually take it off the back burner and get to doing it right

    [​IMG]

  2. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

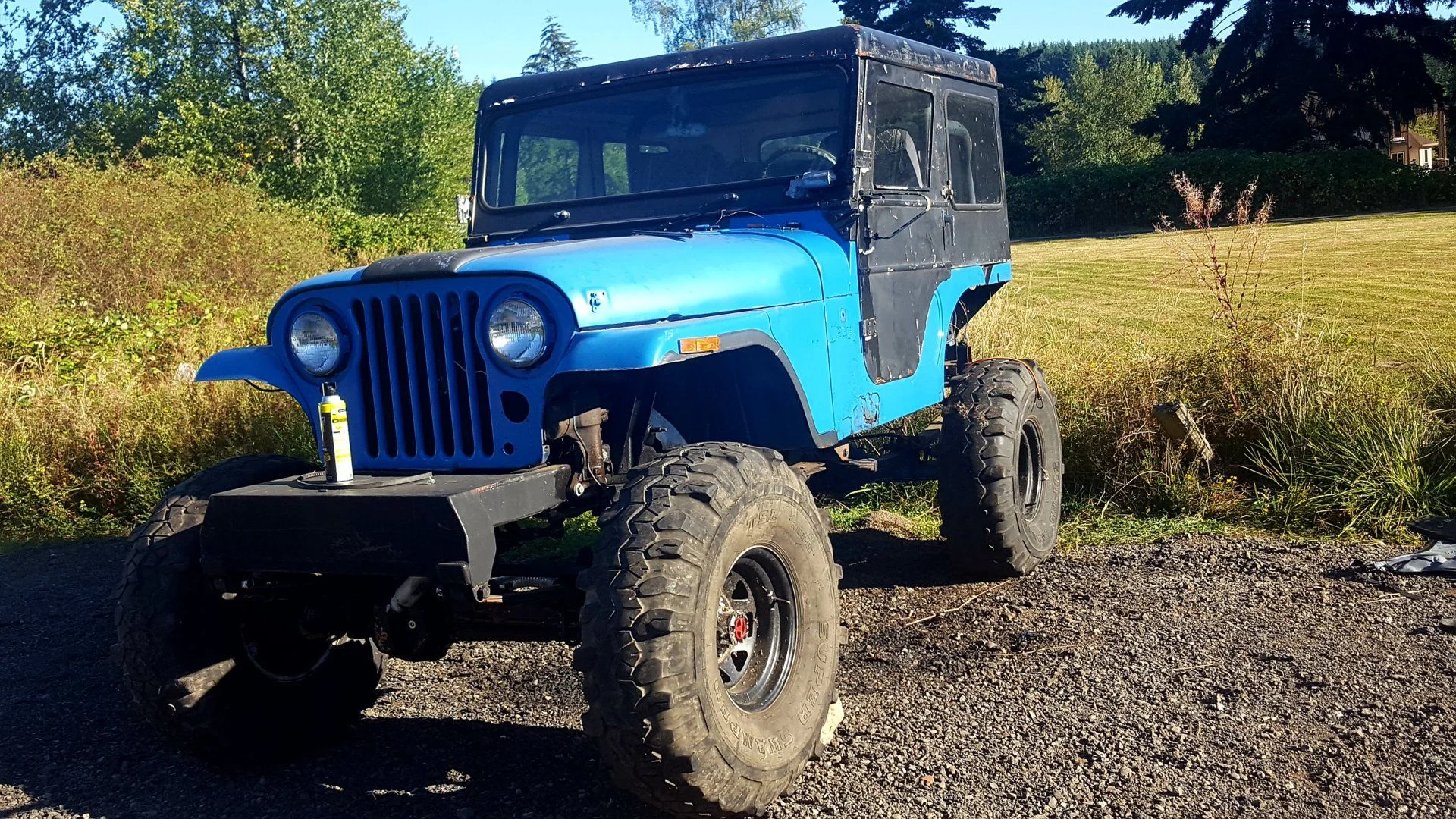

    finally took it off the back burner and started to make some headway on it got it all together and running , drove it around a little and just hated it , it was way to tall and it's a cj5 so way to small for 4 people
    After doing a lot of " research" aka drinking beer and staring at it, I decided the best way to combat the Driveline angles was to do a spring under and stretch it to a cj6

    I kinda liked the looks of it so I cut the tub and tacked some crap together . But with my constant craigslist shopping I came across 3 deals that really changed the build 4 the better .

    First I found a hardtop for the cj5 with all the glass , Windows rolled up and down and it was in all around great shape 200$ , couldn't pass that up so what to do about the extra tub length ? I thought about stretching the top to fit but bodywork is not my strong suit and the top is rather thin material .back to that in a minute

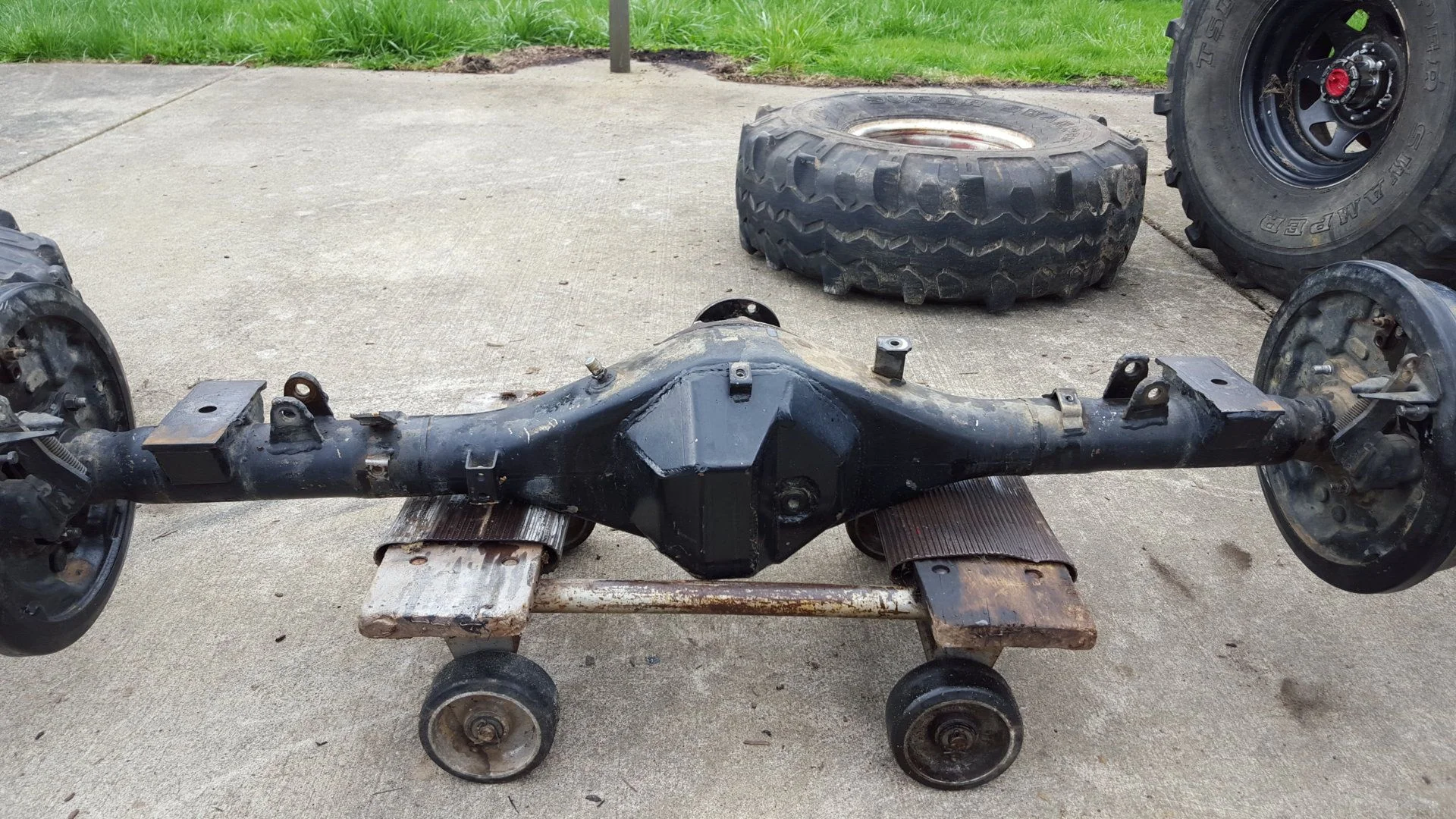

    Score # 2 a set of Toyota axles just built with 5.29s arb in the front Detroit in the rear Bobby longs and trussed.
    My original idea for the jeep was a Toyota in jeeps clothing the main reason I didn't go all the way through with it was I already had 4.10 v6 different in both ends so it worked gearing wise very well with a v8 but now I had these 5.29 stuffed axles

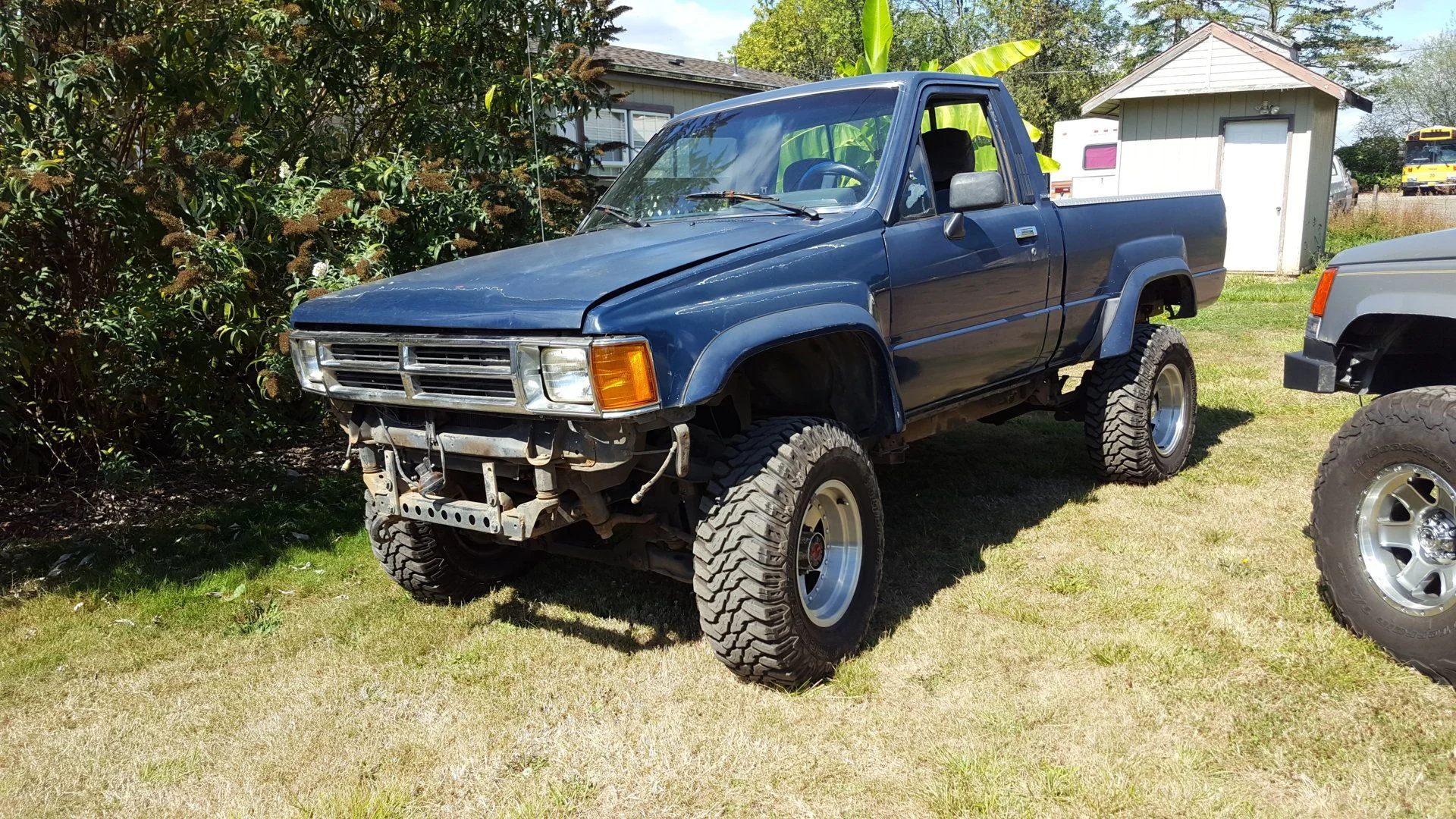

    Score #3 my buddy had a 87 Toyota pickup that had a rebuilt motor with around 40k on it , he owed me a little money for some stuff so a good deal was struck and that's where this build really begins.

    Last edited: May 19, 2018
    jfz80 and GLTHFJ60 like this.
  3. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

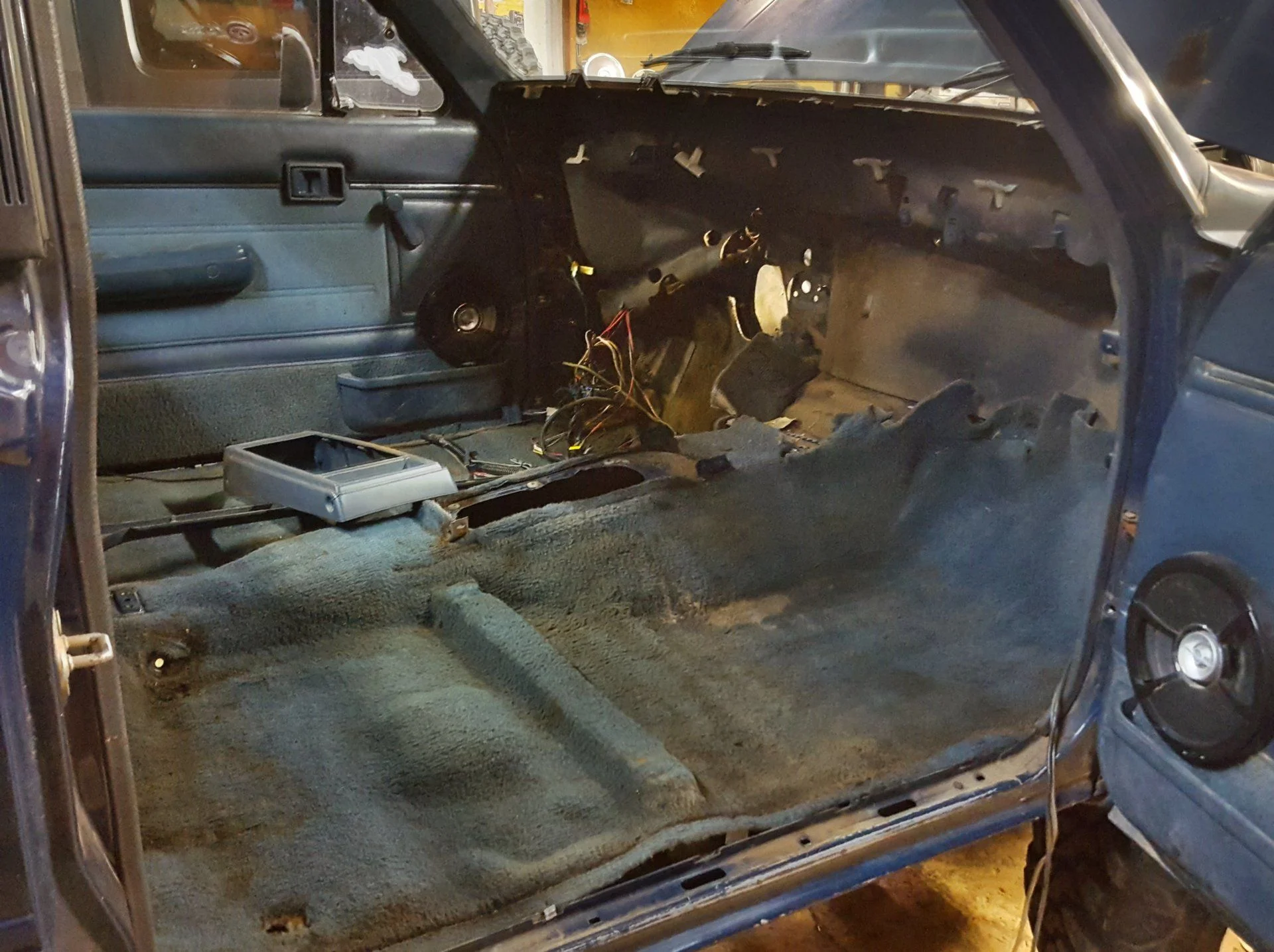

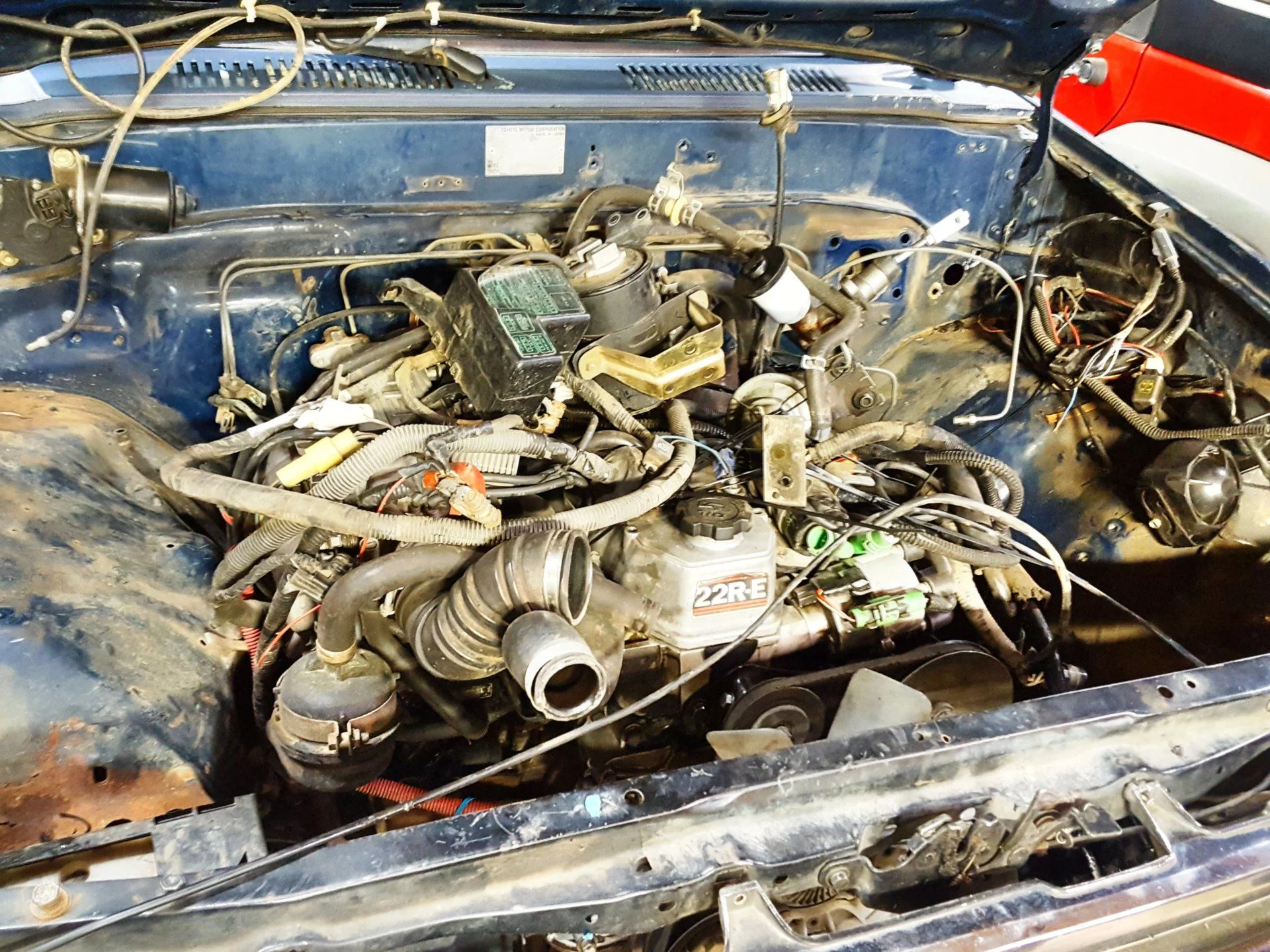

    So first thing on the list was to get the Toyota torn down.
    My goal was to keep everything as close to stock as possible so repairs will be easy and parts can be sourced most anywhere, that means a lot of labeling and not cutting any wiring.

    After everything was torn down the body bed and all the other parts I didn't use went to a new home to fix a truck that got rolled

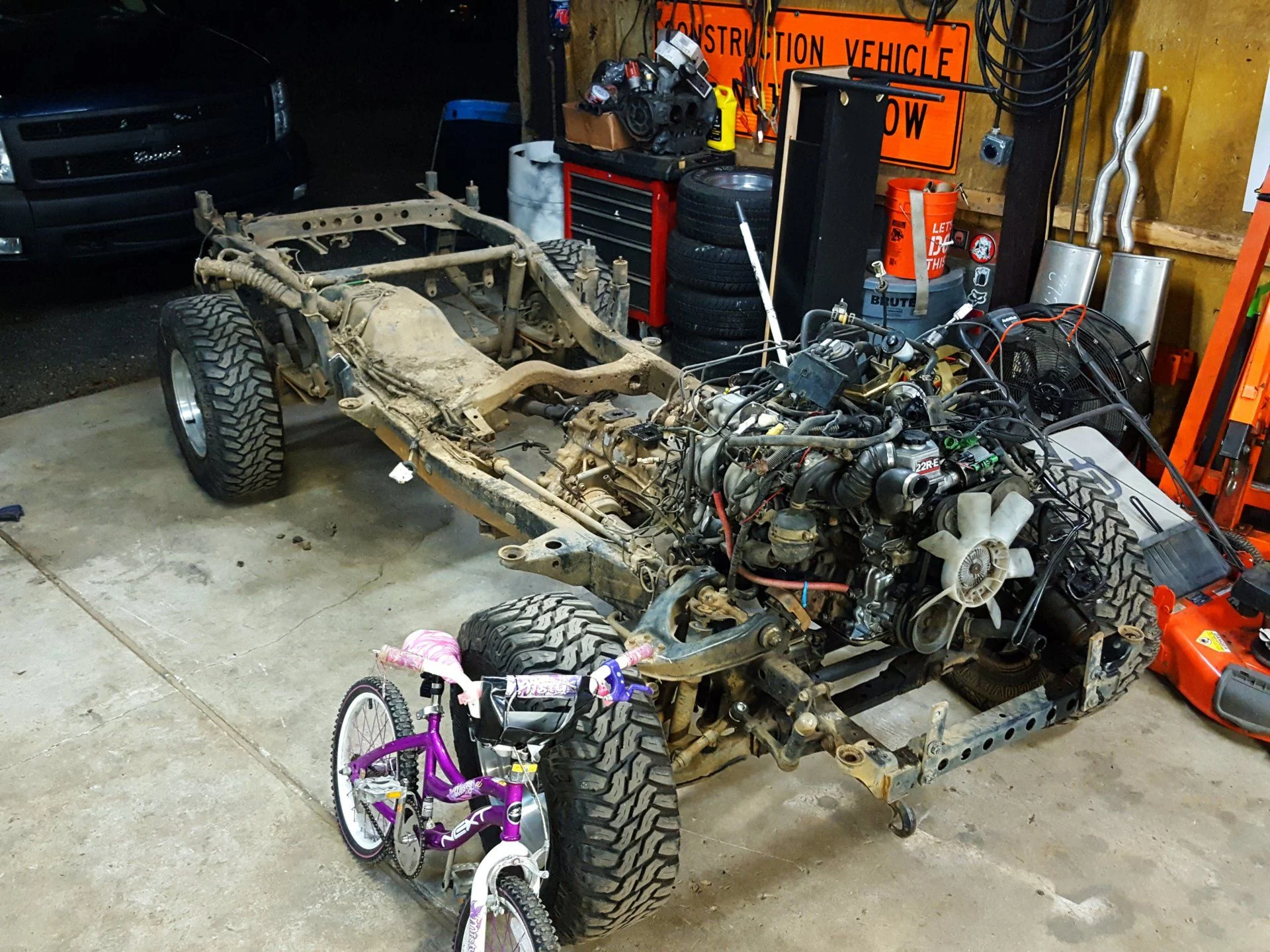

    Now I had my pile of goodies and a clean frame to work with

    ... well semi clean the truck spent alot of its life on a farm so it took another pressure washing to get clean

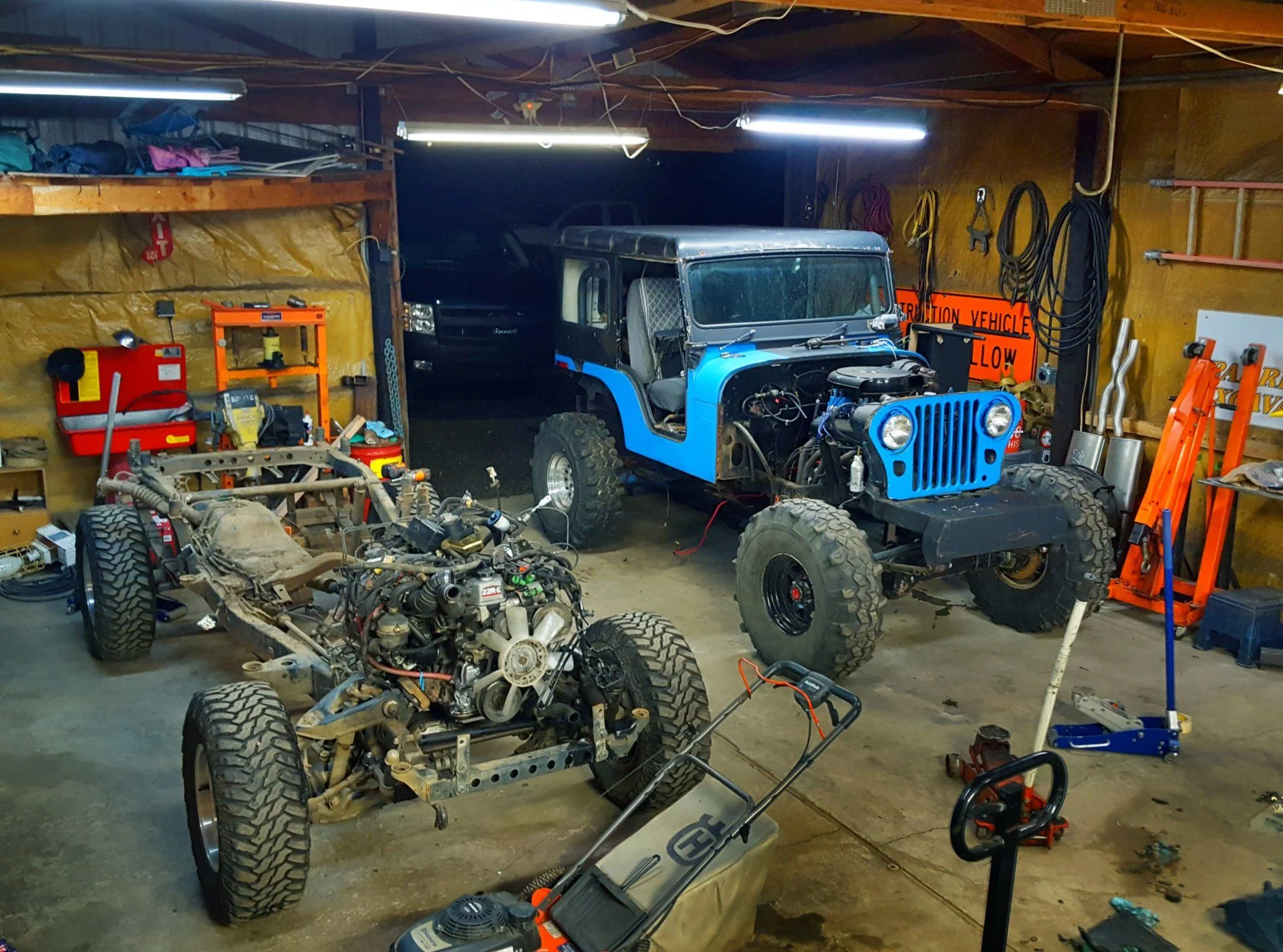

    Time to start body swapping

  4. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon
  5. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

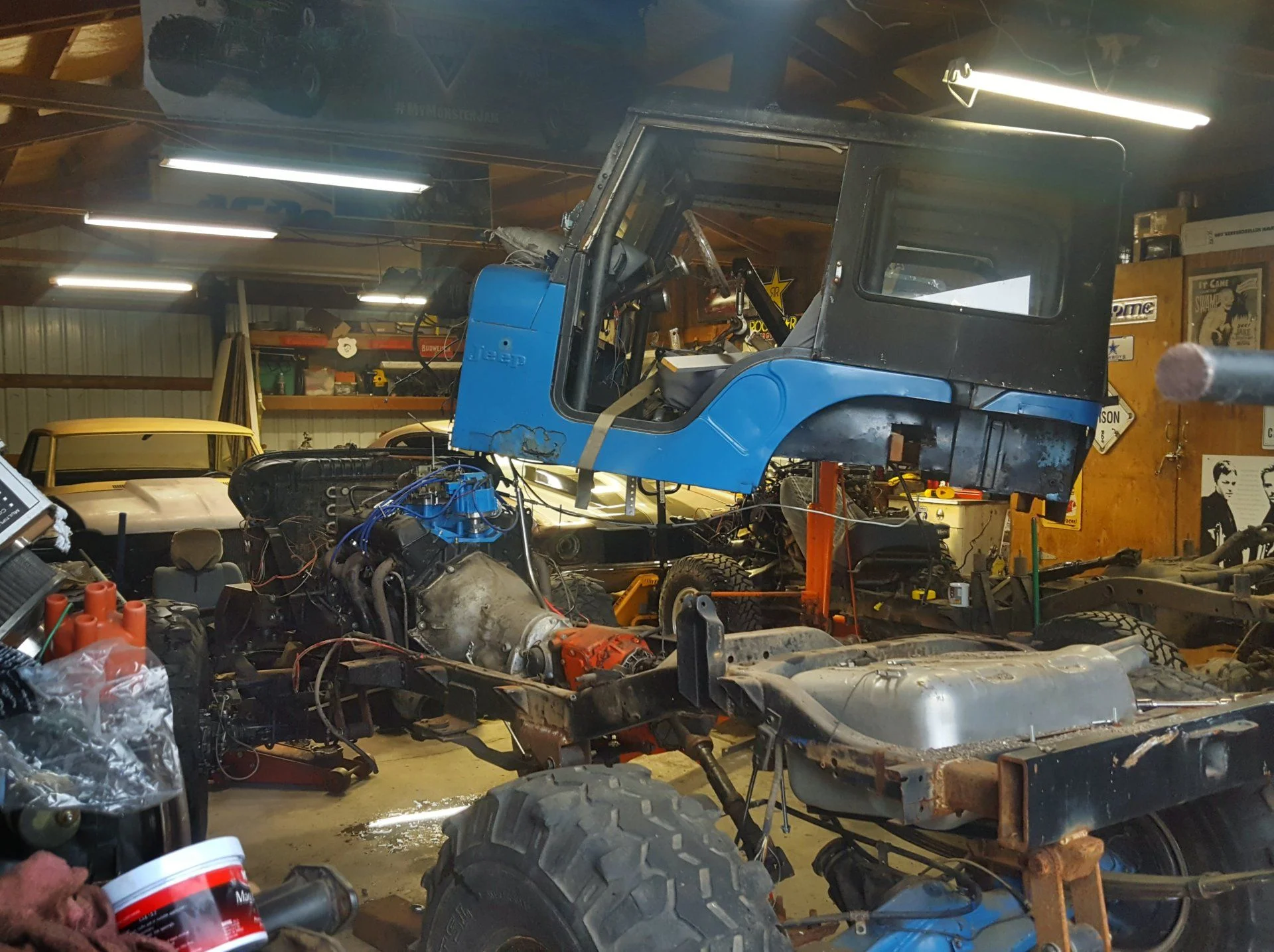

    At thispoint having a lift or a couple of friends would have been real handy but I was impatient and wanted to get stuff done so I used the only thing I had available, a cherry picker to pull the tub off the jeep frame .
    hdr_00220_0.jpg Thankfully I didn't drop the tub or kill myself with it and everything went mostly smooth

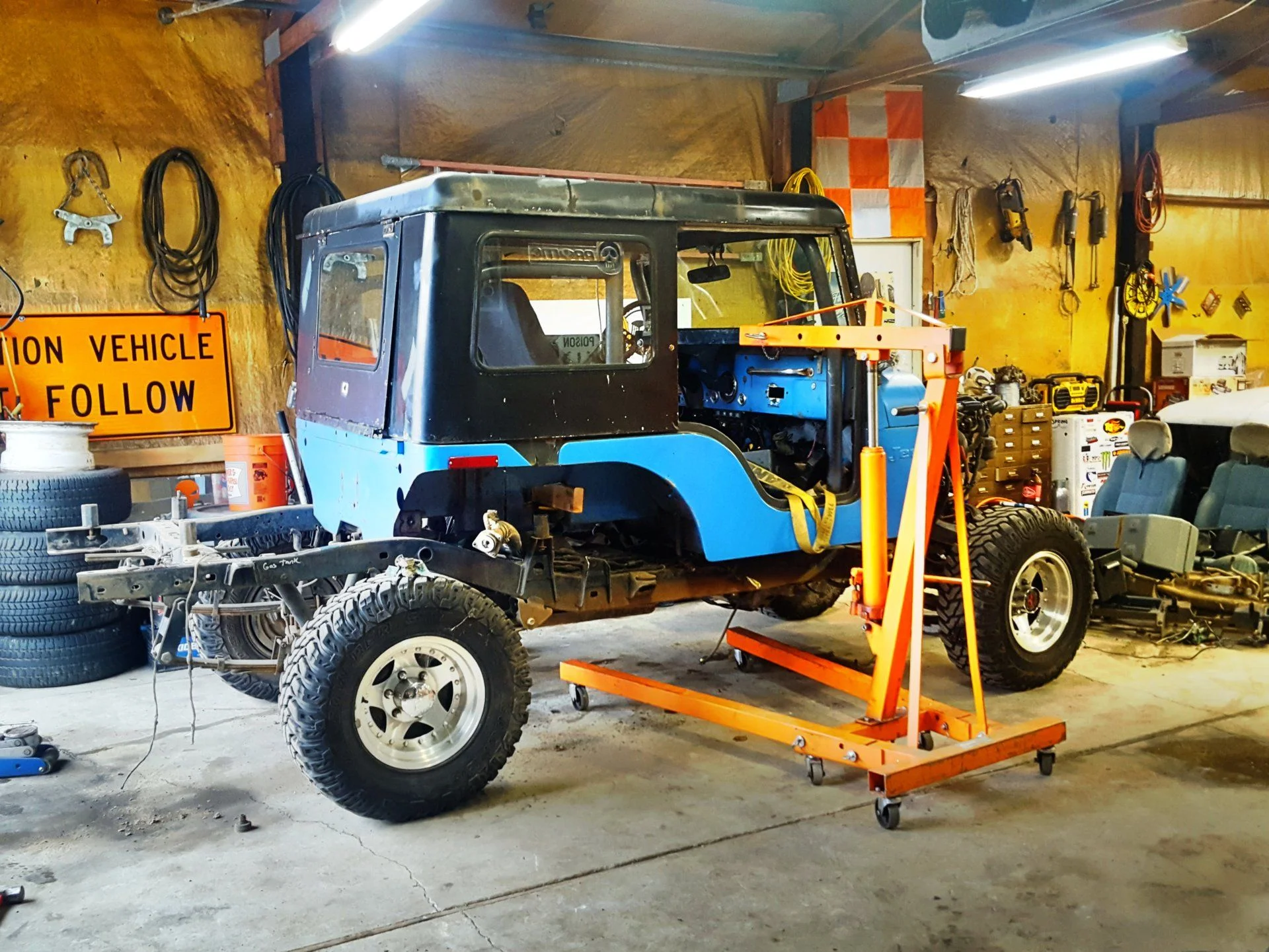

    hdr_00223_0.jpg hdr_00221_0.jpg

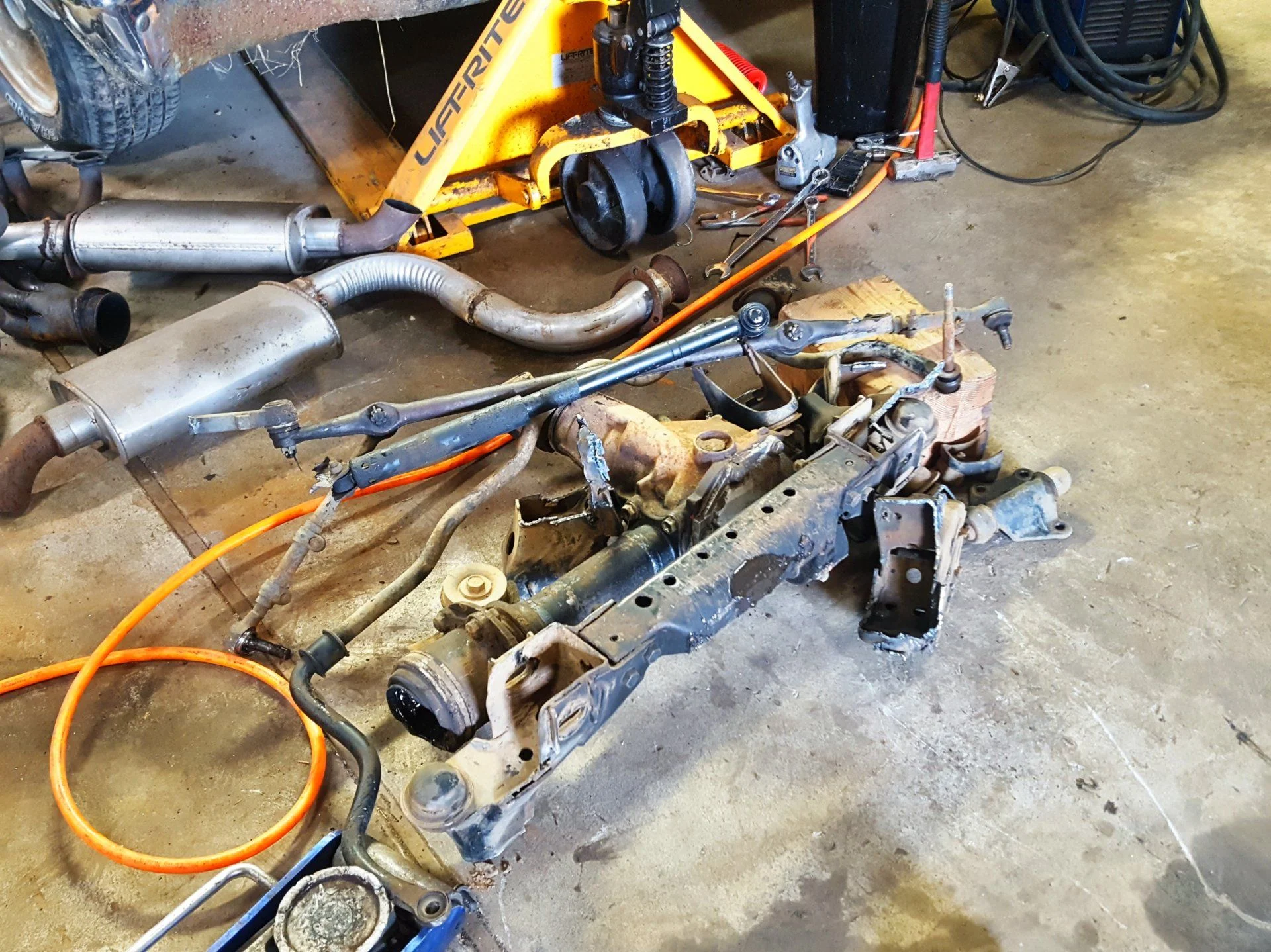

    Now obviously the ifs would not work so out with the plasma and off with the ifs

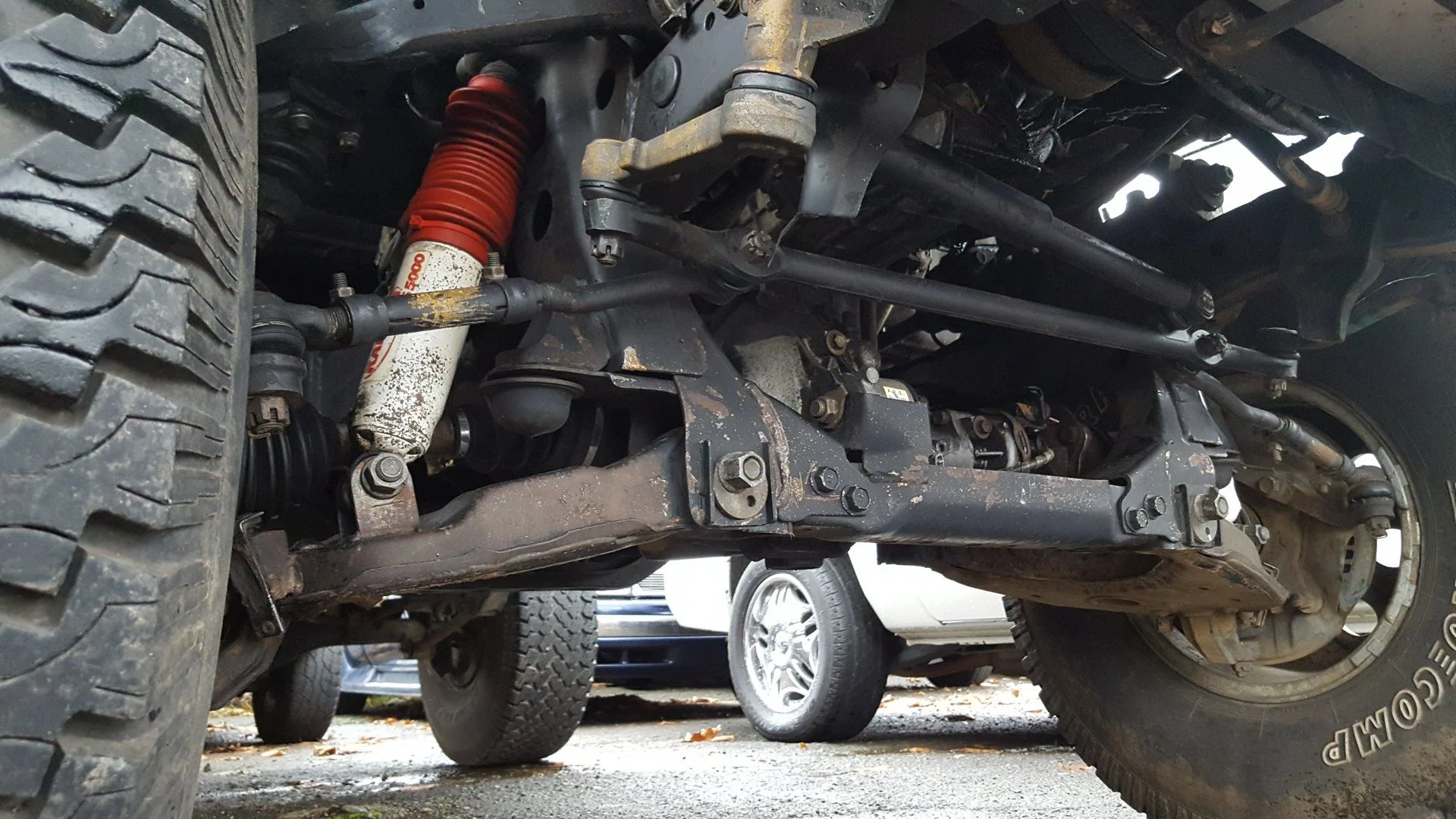

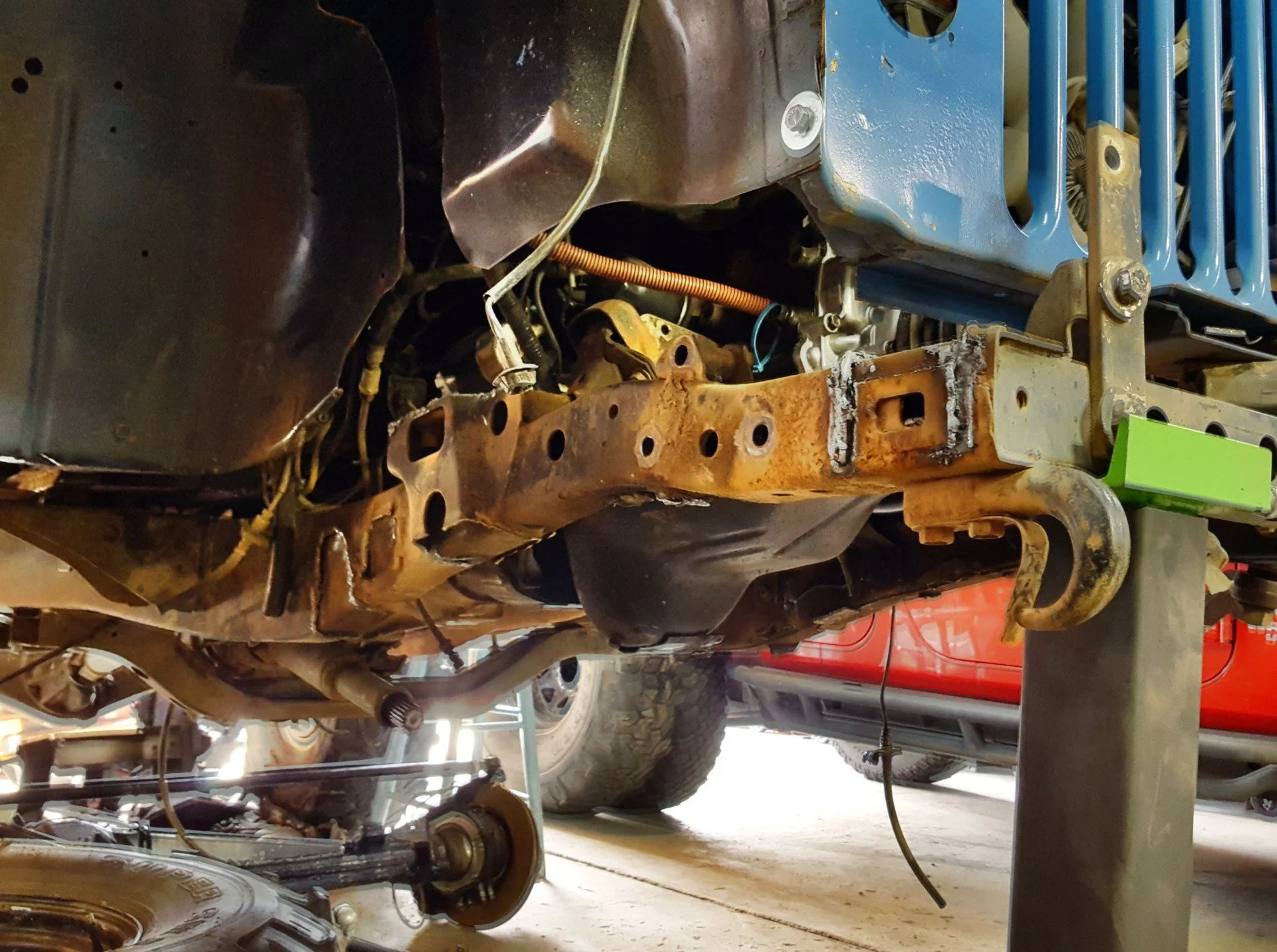

    20161115_132155.jpg hdr_00267_0.jpg

  6. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon
    Everybody has seen plenty of sas swaps so no need for alot of detail but I did have to change a few things on mine .

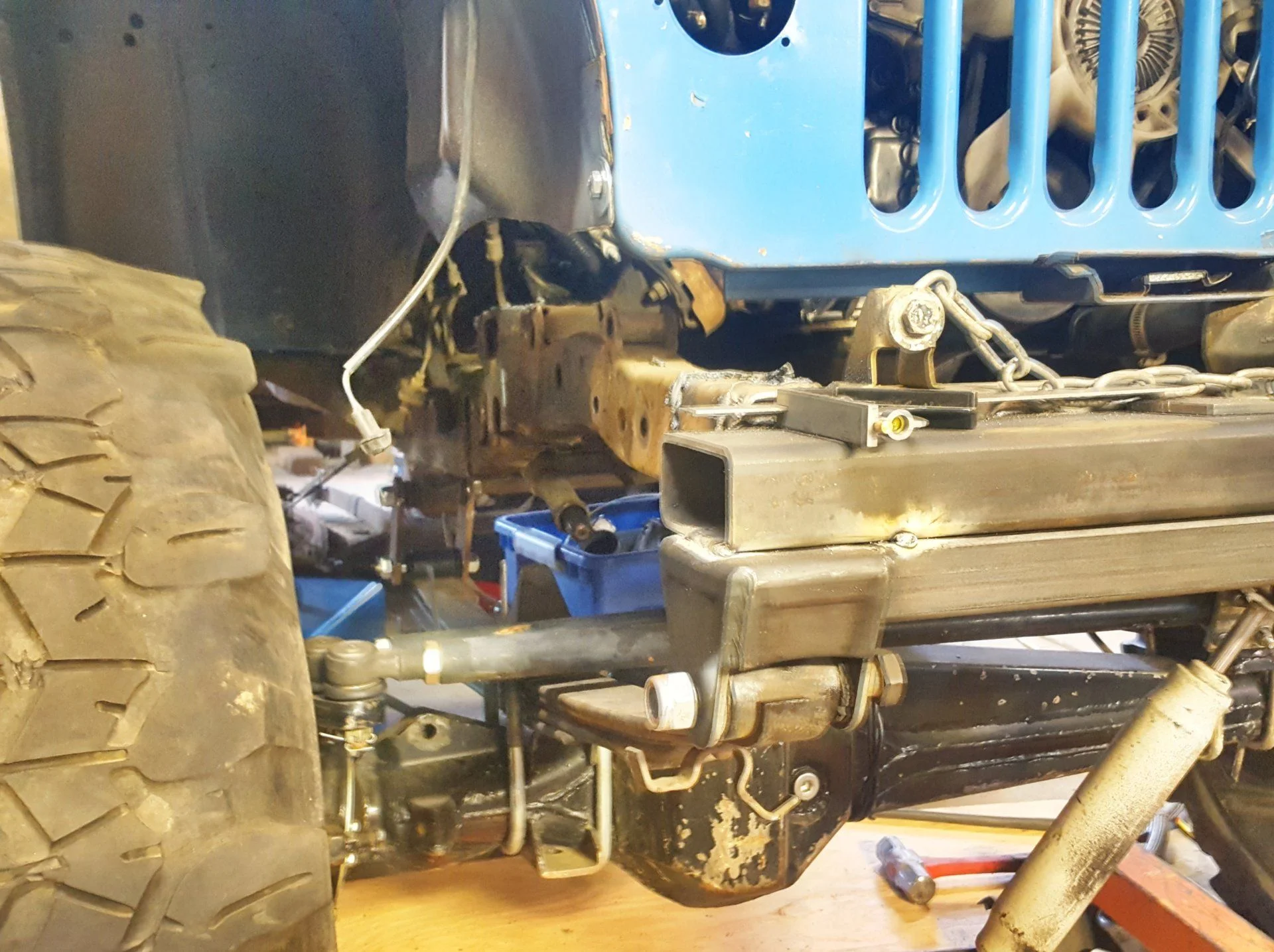

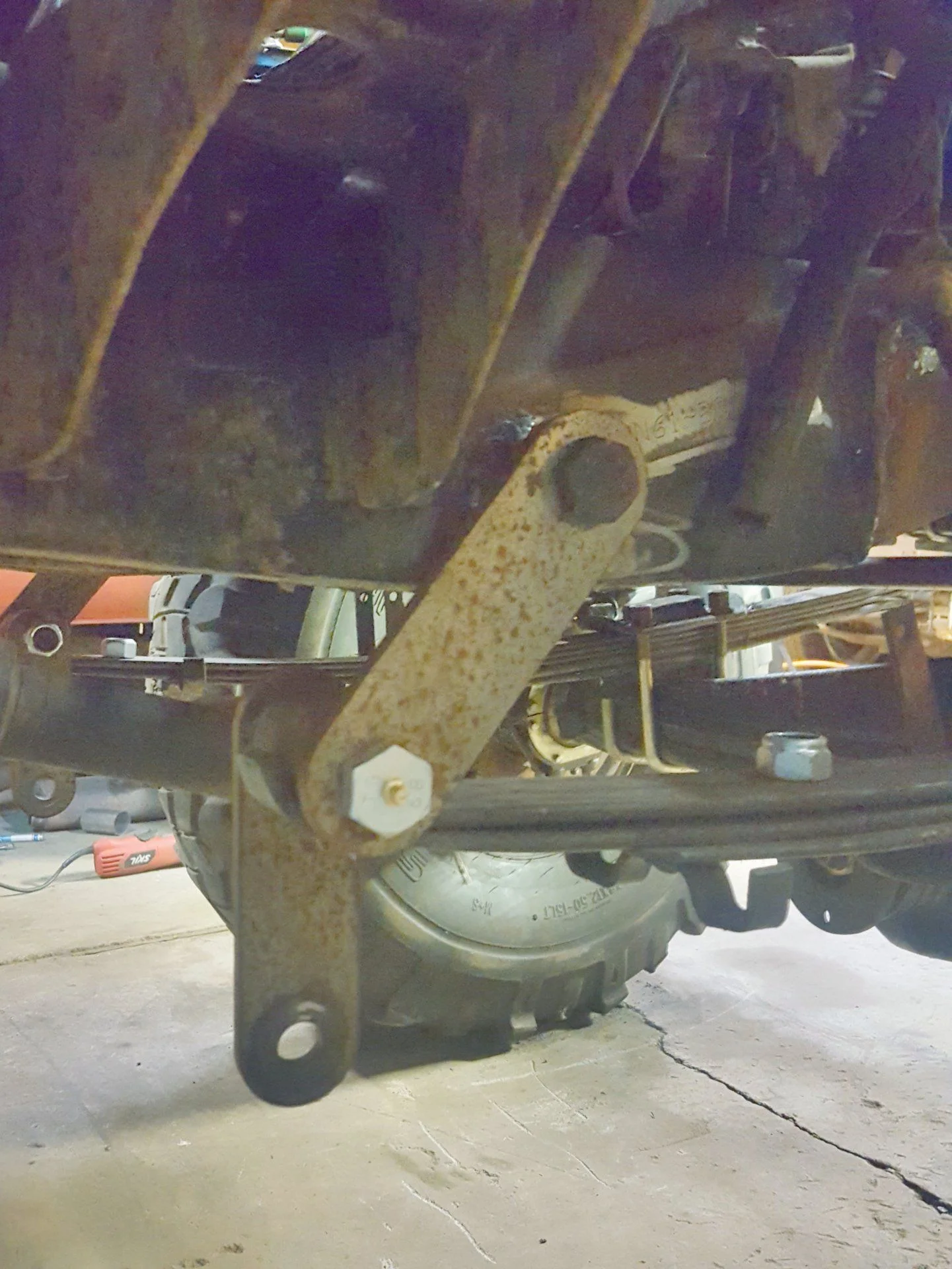

    I needed to push the spring and shackle mounts a little further past the frame to get the tire where I wanted . Really have to give ashout out to sky offroad design, their stuff is amazingly well built and uses all USA metal and labor .

    hdr_00346_0.jpg hdr_00445_1.jpg

  7. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

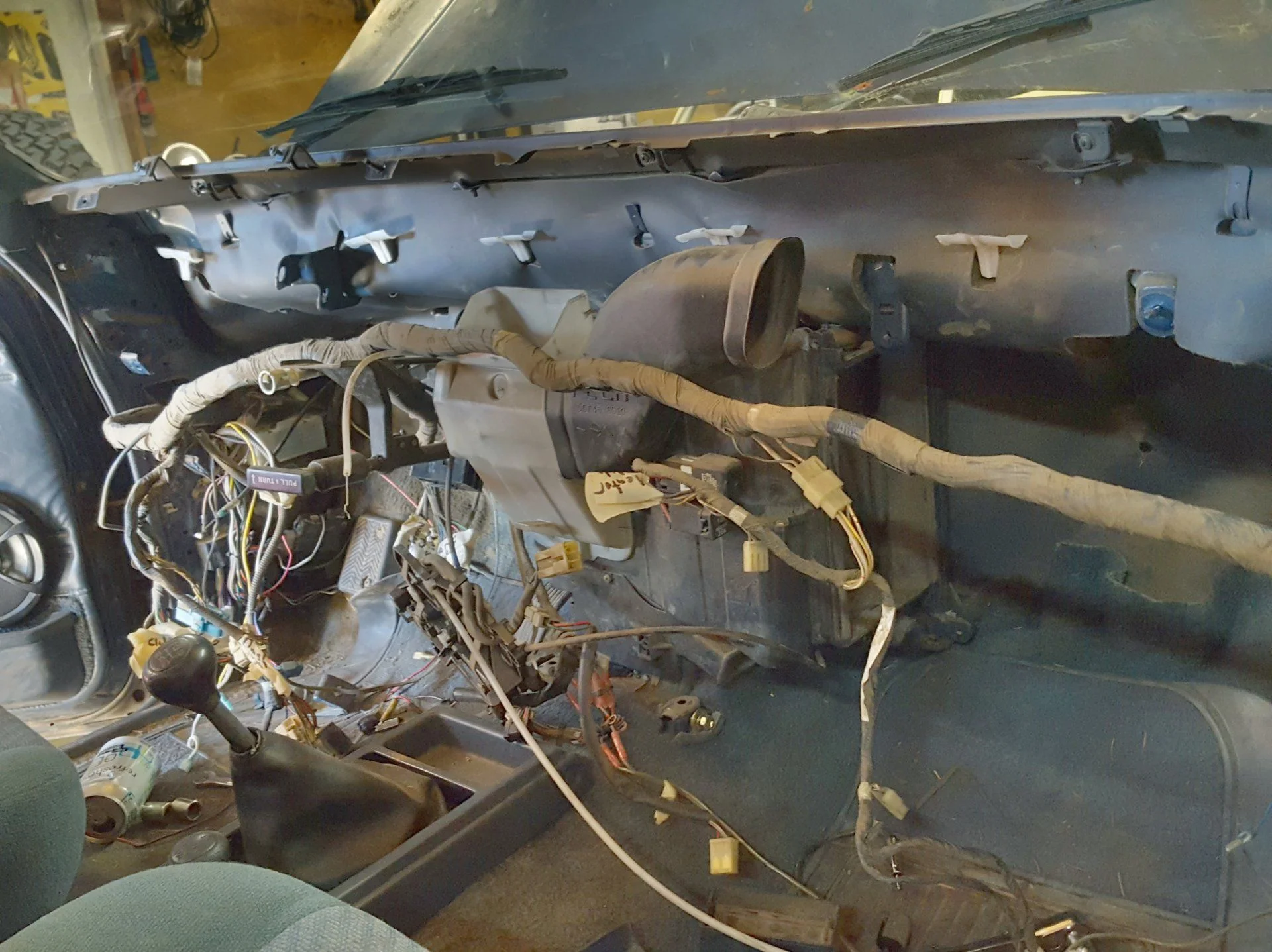

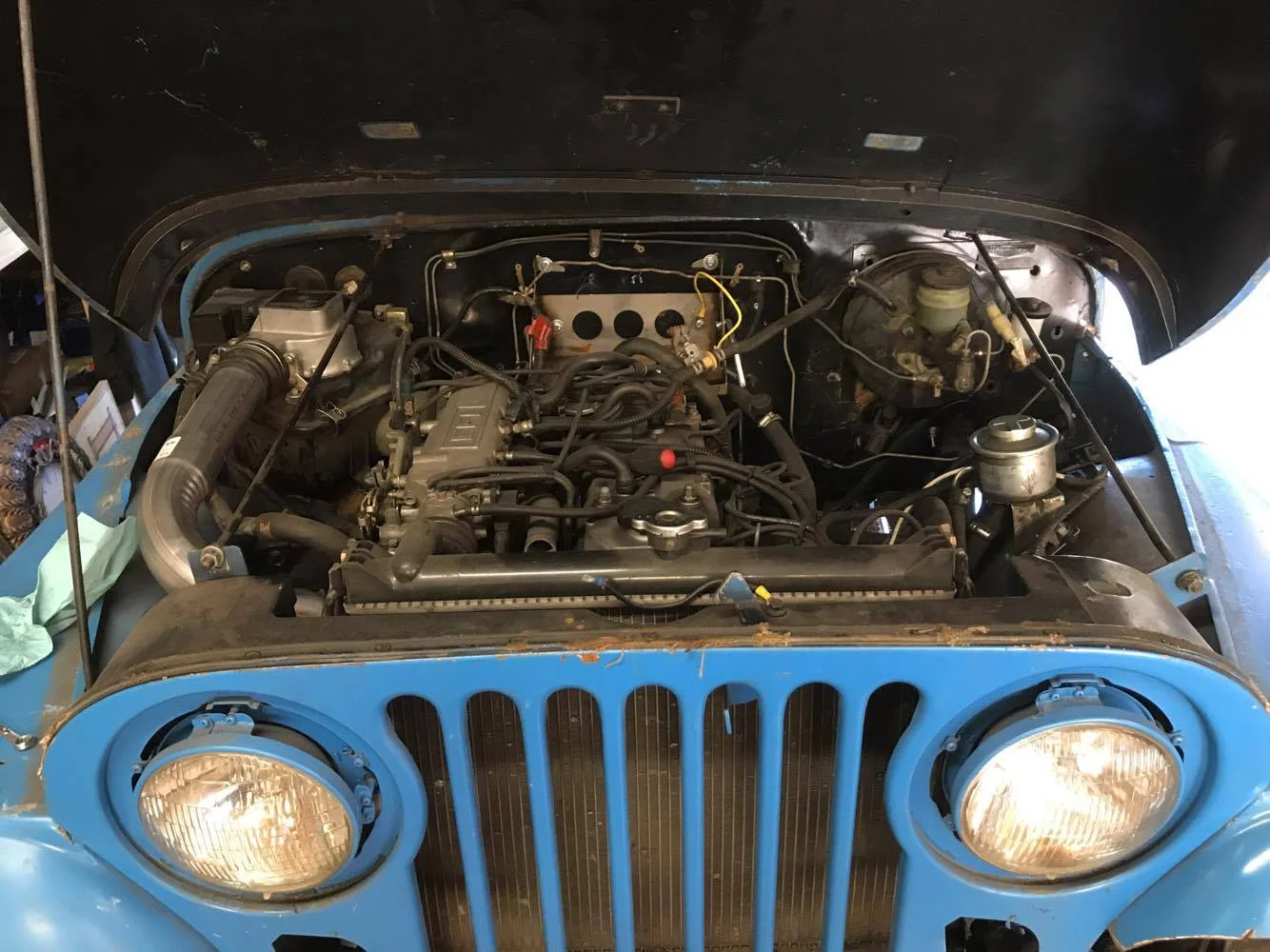

    Next was moving onto some wiring . I hate wiring , that was alot of the reason I wanted to keep the harness as complete as possible . Thankfully everything went together really smooth and the only thing I had to mess with was adding some wire to the passenger side of the harness that runs to the tank and to the airbox due to moving it to the passenger side . Also mounted the battery behind the motor because there's tons of room in there . I did manage to mess up the only two plugs on the whole harness that could actually plug into each other so I ended up burning up some of the alternator harness but after figuring out my mistake it fired right up .

  8. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon
    Next order of business was getting some steering hooked up so moving it around the shop would be easier .

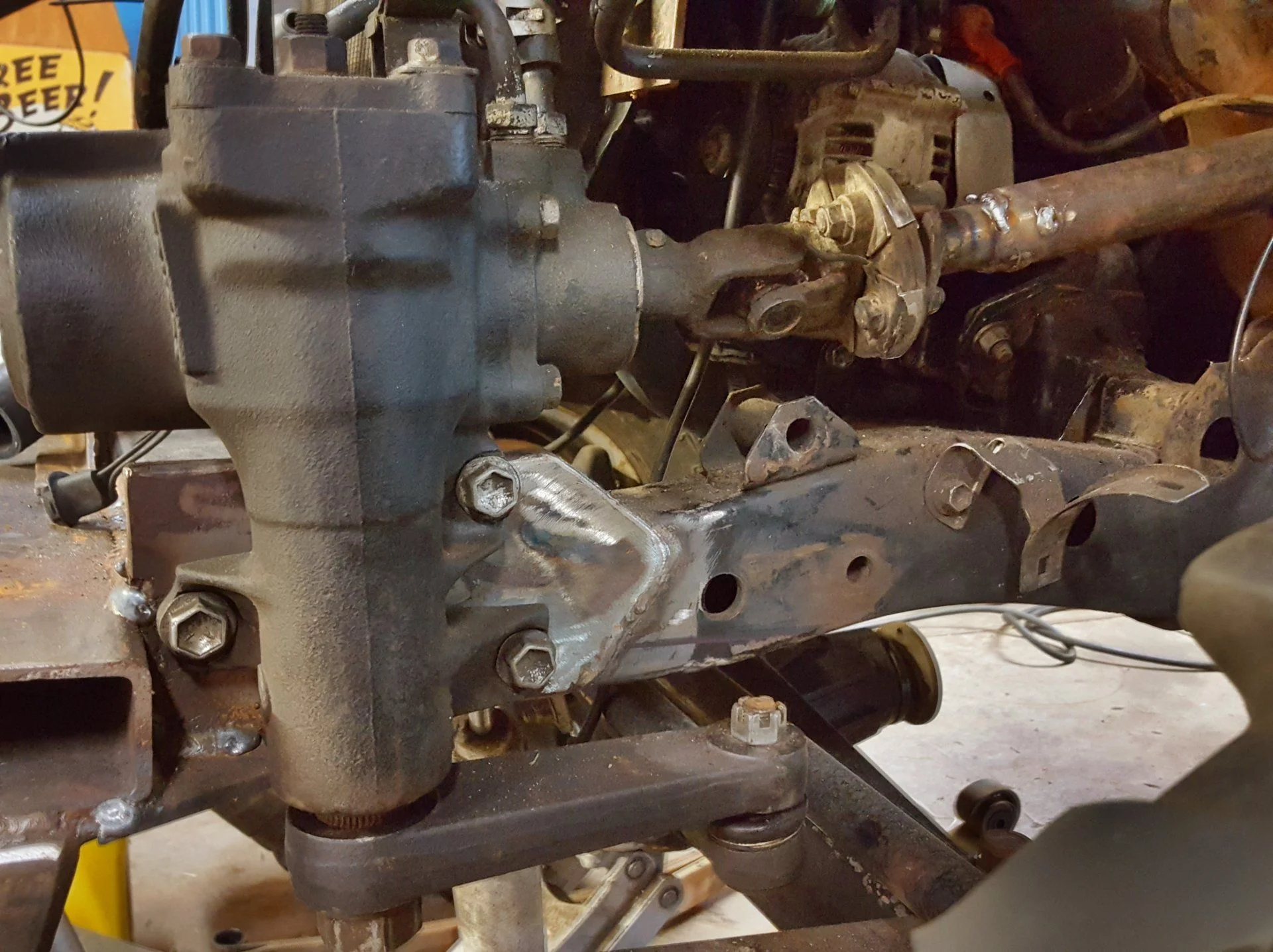

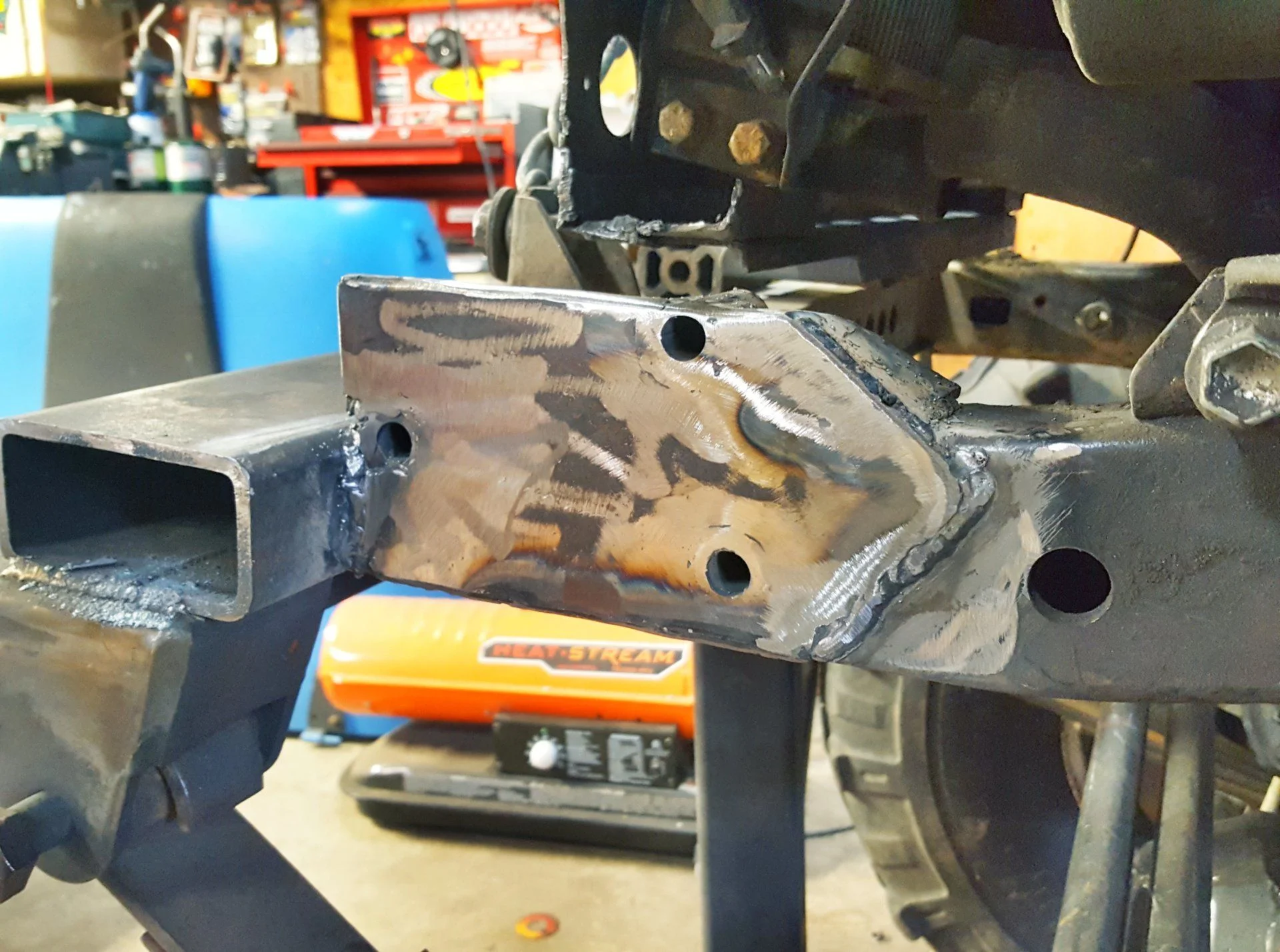

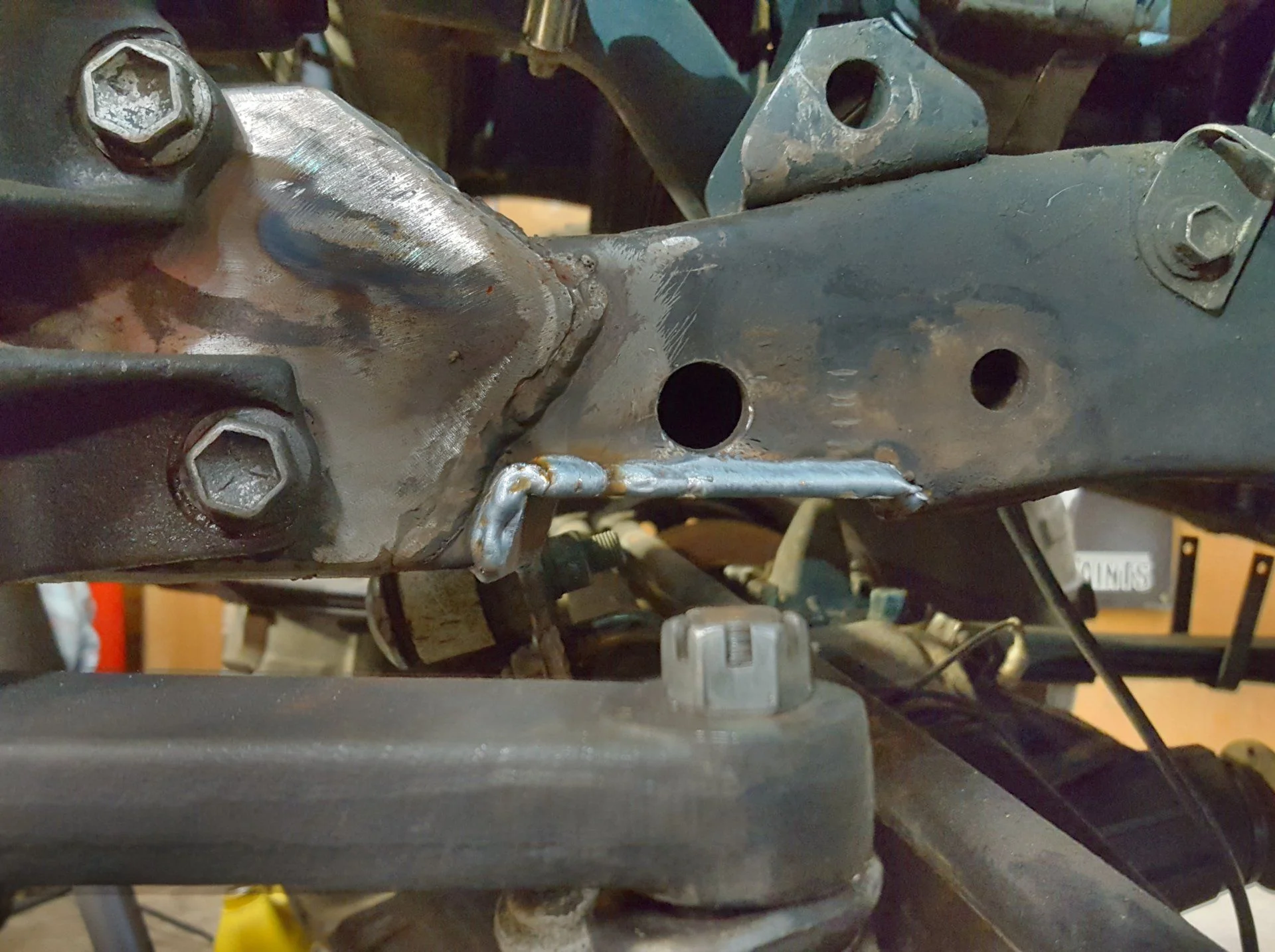

    Fairly standard for a SAS, sleeve the frame , make some plates bolt it together . I had to notch the frame a little to clear the flat pitman arm hdr_00405_1.jpg hdr_00407_0.jpg hdr_00655_0.jpg hdr_00658_0.jpg

  9. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

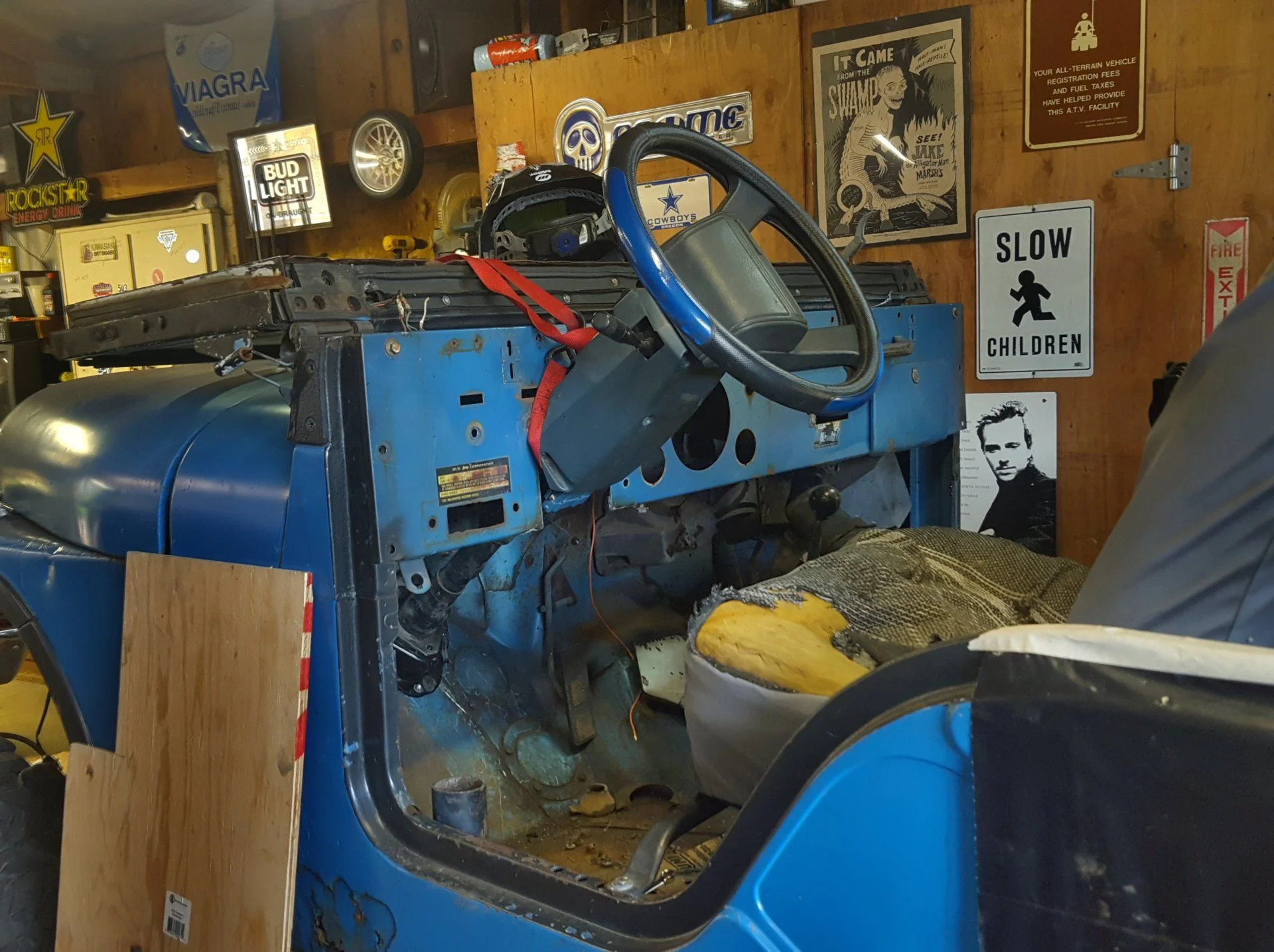

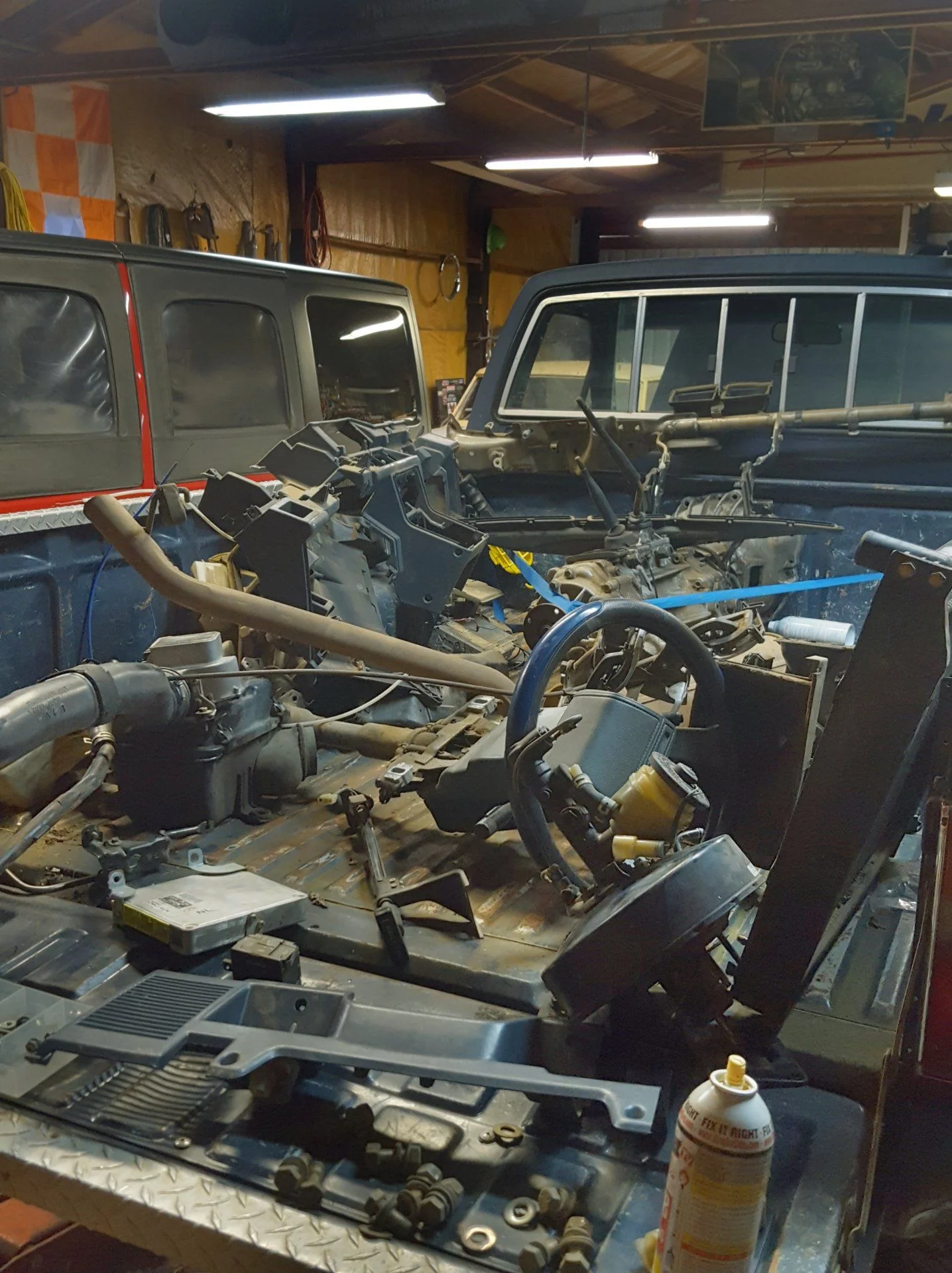

    In my effort to use as much Toyota as possible I used the stock petal assembly , steering column, brake master and clutch master . Took a bit of messing around but eventually it all fit , had to cut and bend the clutch petal to make it work and give the floorboard a bit of lovin with a big hammer so it would get its full range
    hdr_00342_0.jpg hdr_00577_0.jpg

  10. 74fj40

    74fj40

    Messages:
    2,733
    Likes Received:
    519
    Joined:
    Mar 12, 2005
    Location:
    Littleton, Colorado
    Are you planning to stretch it? Or maybe a pickup?

  11. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

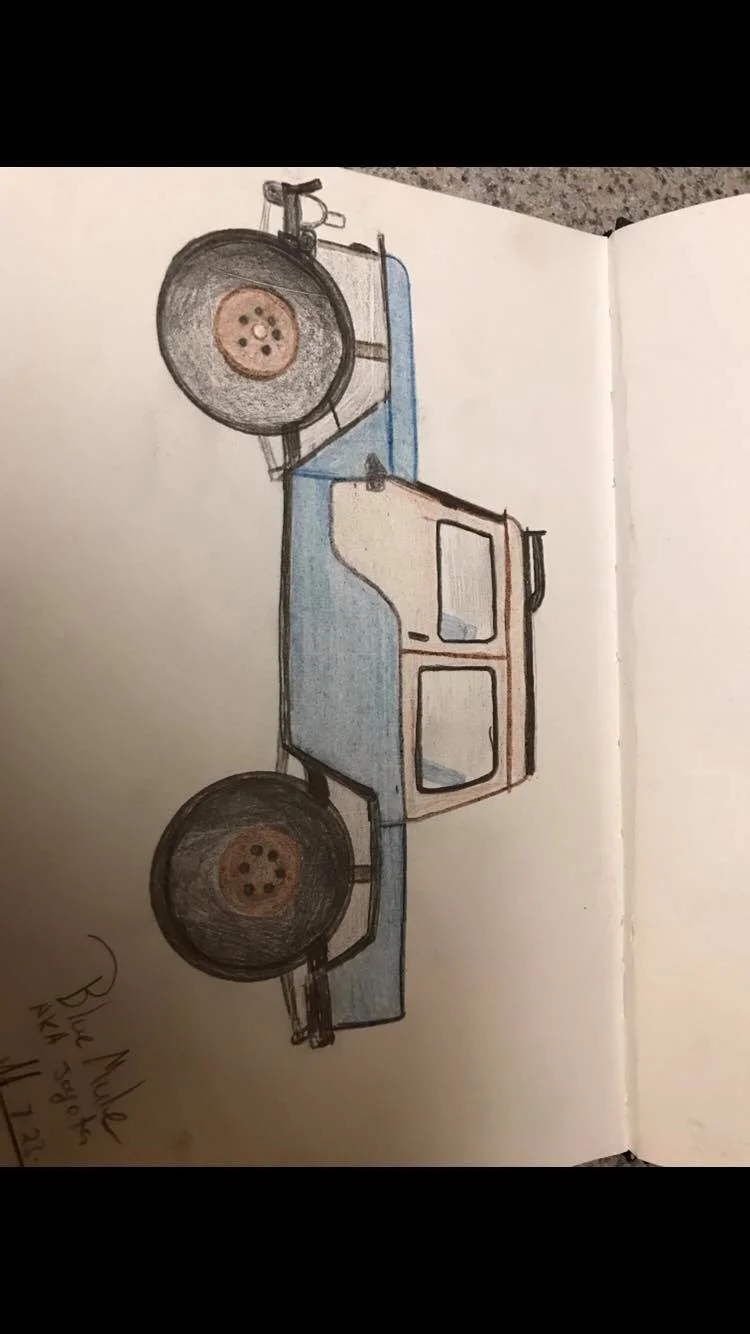

    this is the hopeful outcome

  12. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon
    At this point I'm actually about 70% done with it actually drove it for the first time around my buddy shop for the first time in a real long time the other day. The bed is pretty small it'll hold a cooler and maybe a tupperware container but that's all I really need for it

  13. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

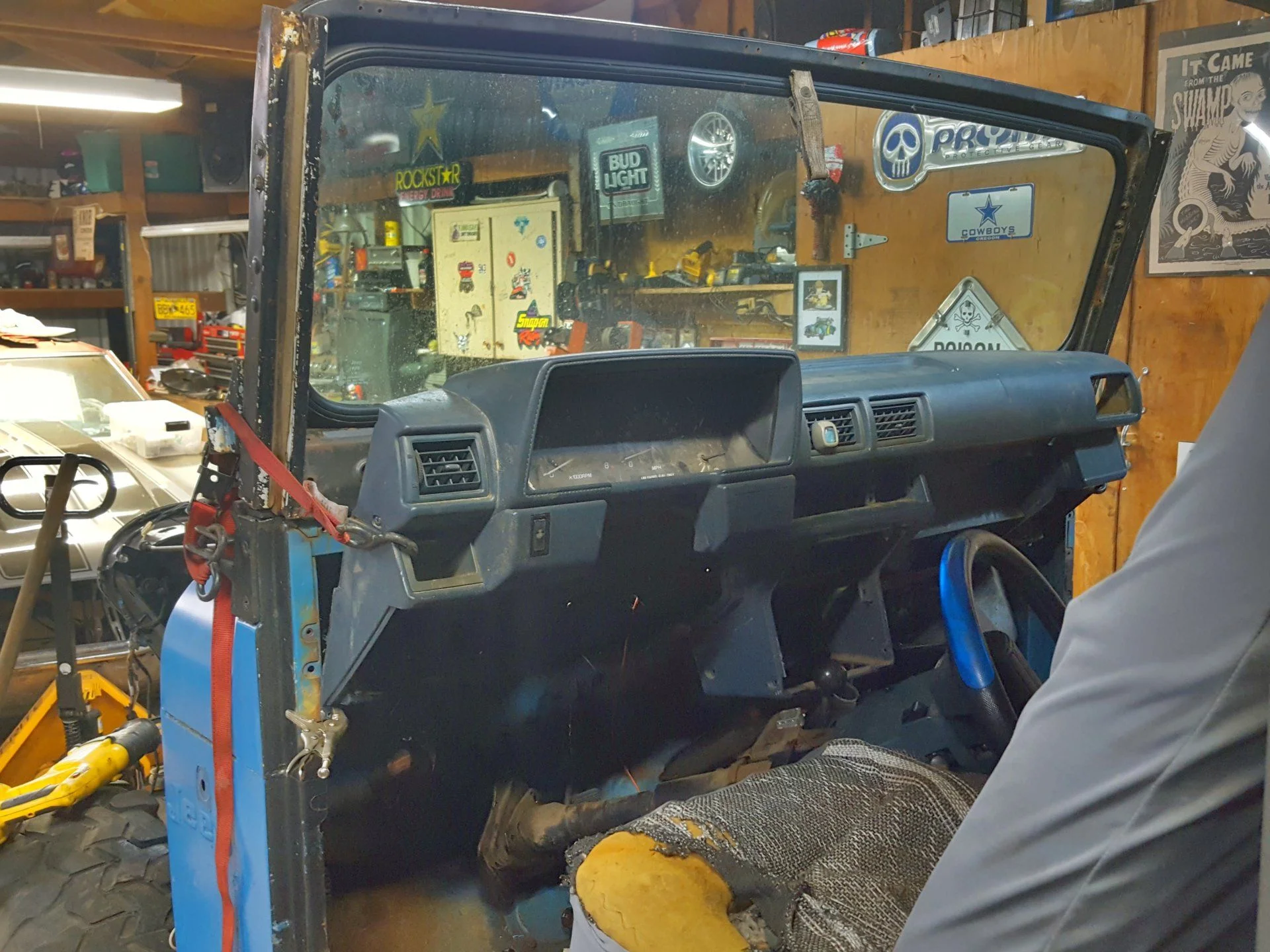

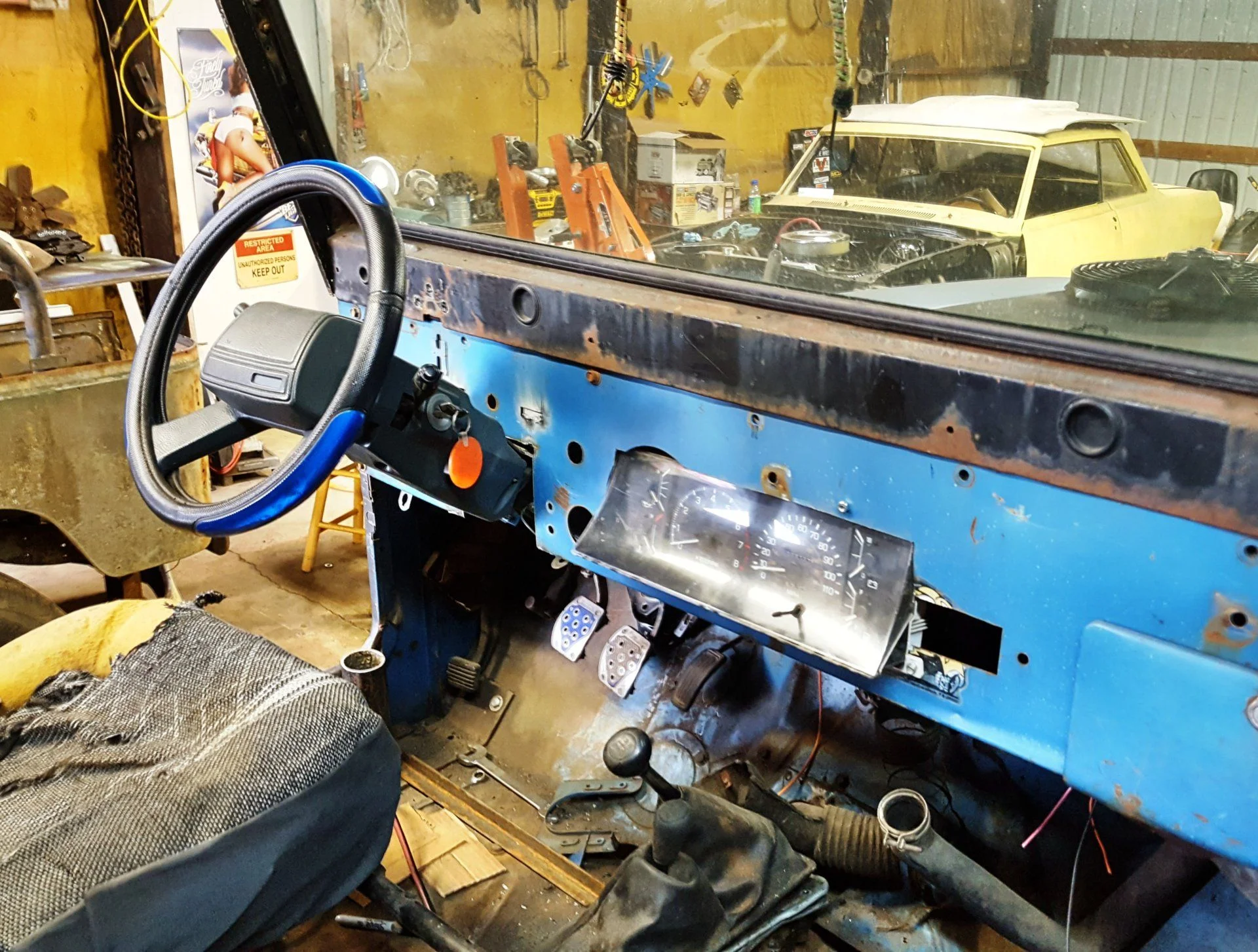

    Like I said earlier my original plan was to use the Toyota dash , heater all that stuff but it just wouldn't fit without looking just odd so I'm experimenting with using just the Toyota gage cluster . hdr_00225_1.jpg Need to trim down all the plastic and make some sort of covering for it but for now I just want to get all of it together and working so I can pull it all apart , do all my final cleaning , welds and paint

  14. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon
    I was getting tired of looking at the rear frame just sticking behind the body so a trip to the dollar tree and some tape and I had a real ruff markup of what the bed would look like

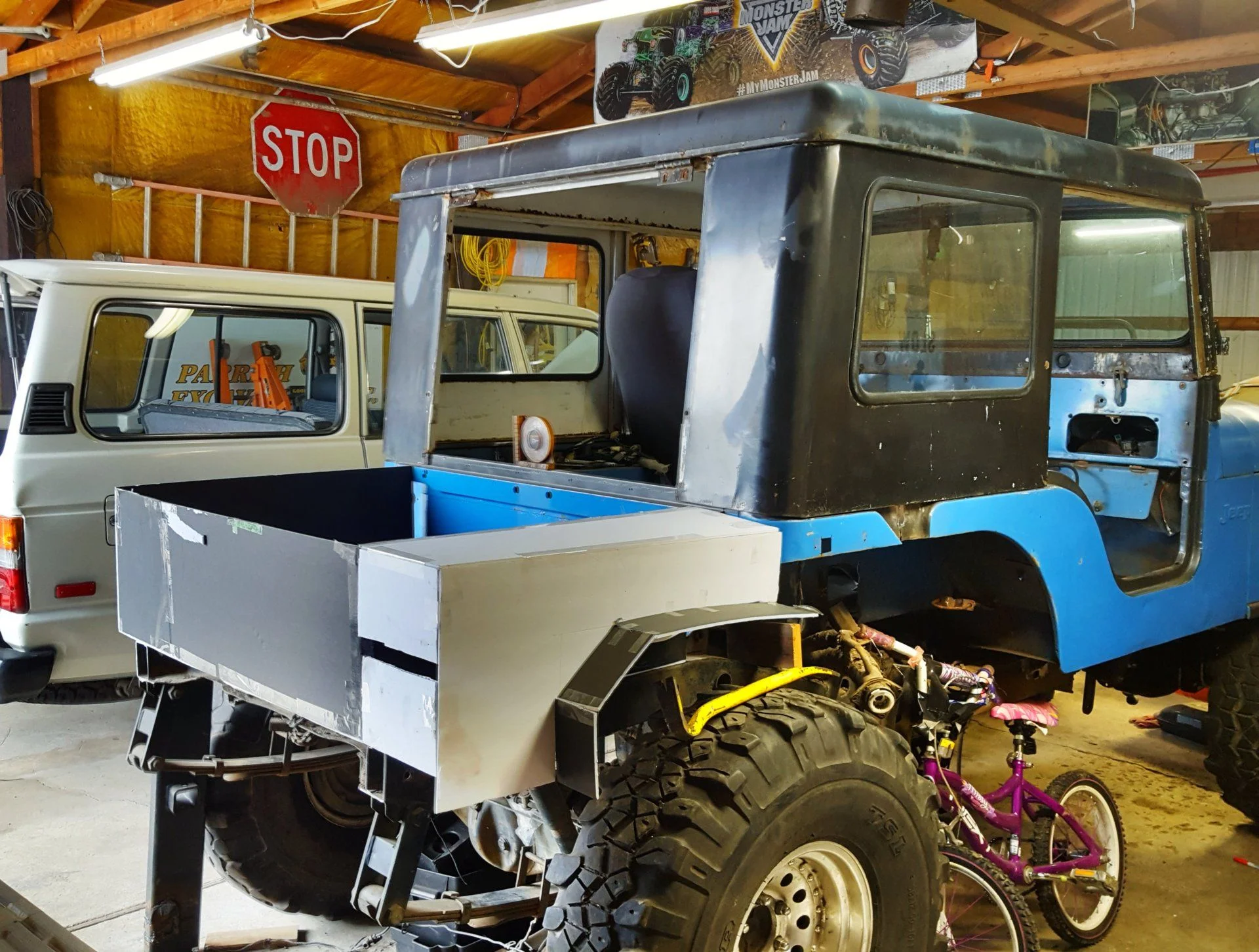

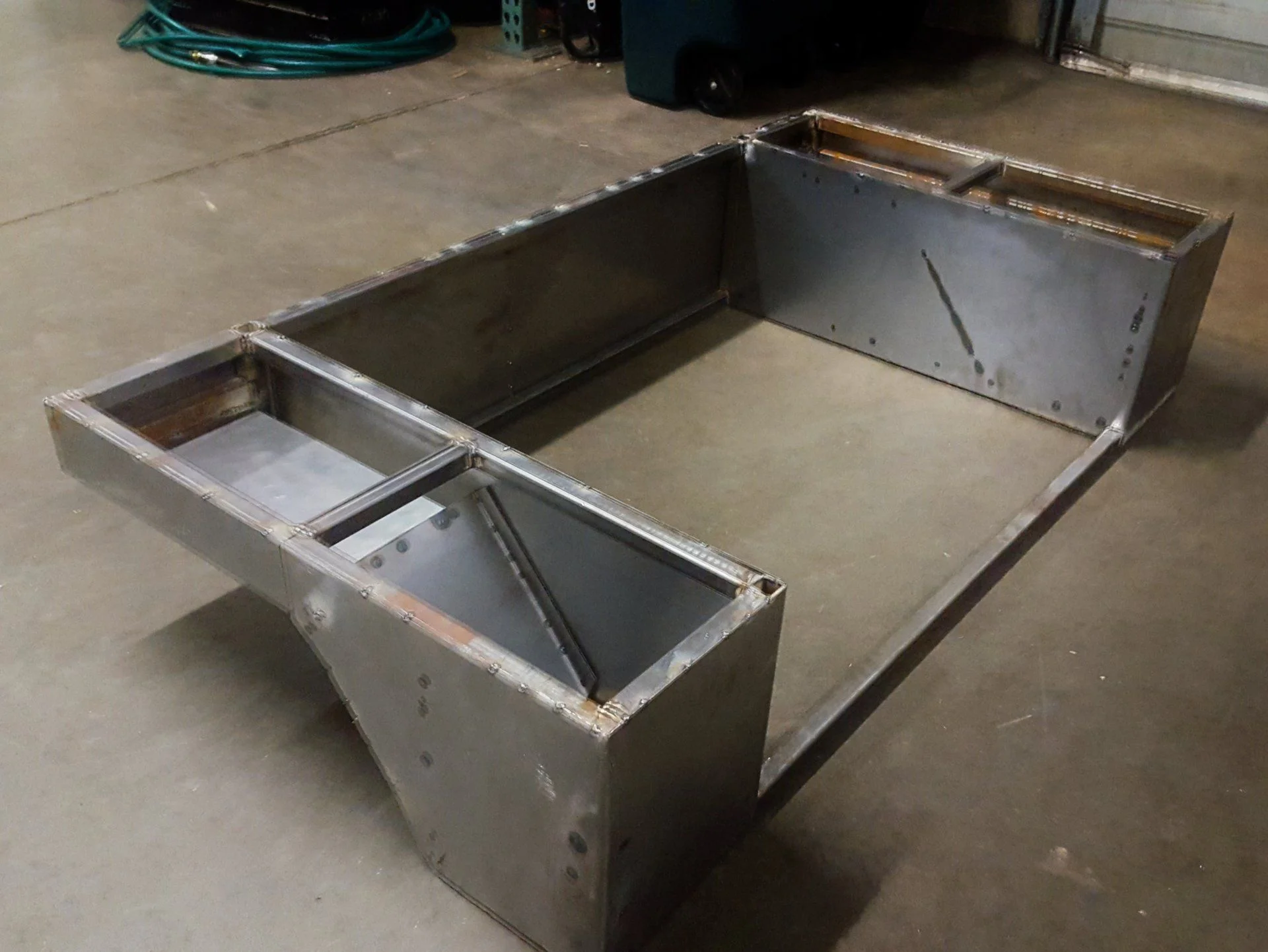

    hdr_00606_0.jpg Got the bed mostly together and skinned next I need to work on the floor , tailgate and tops of the tool boxes

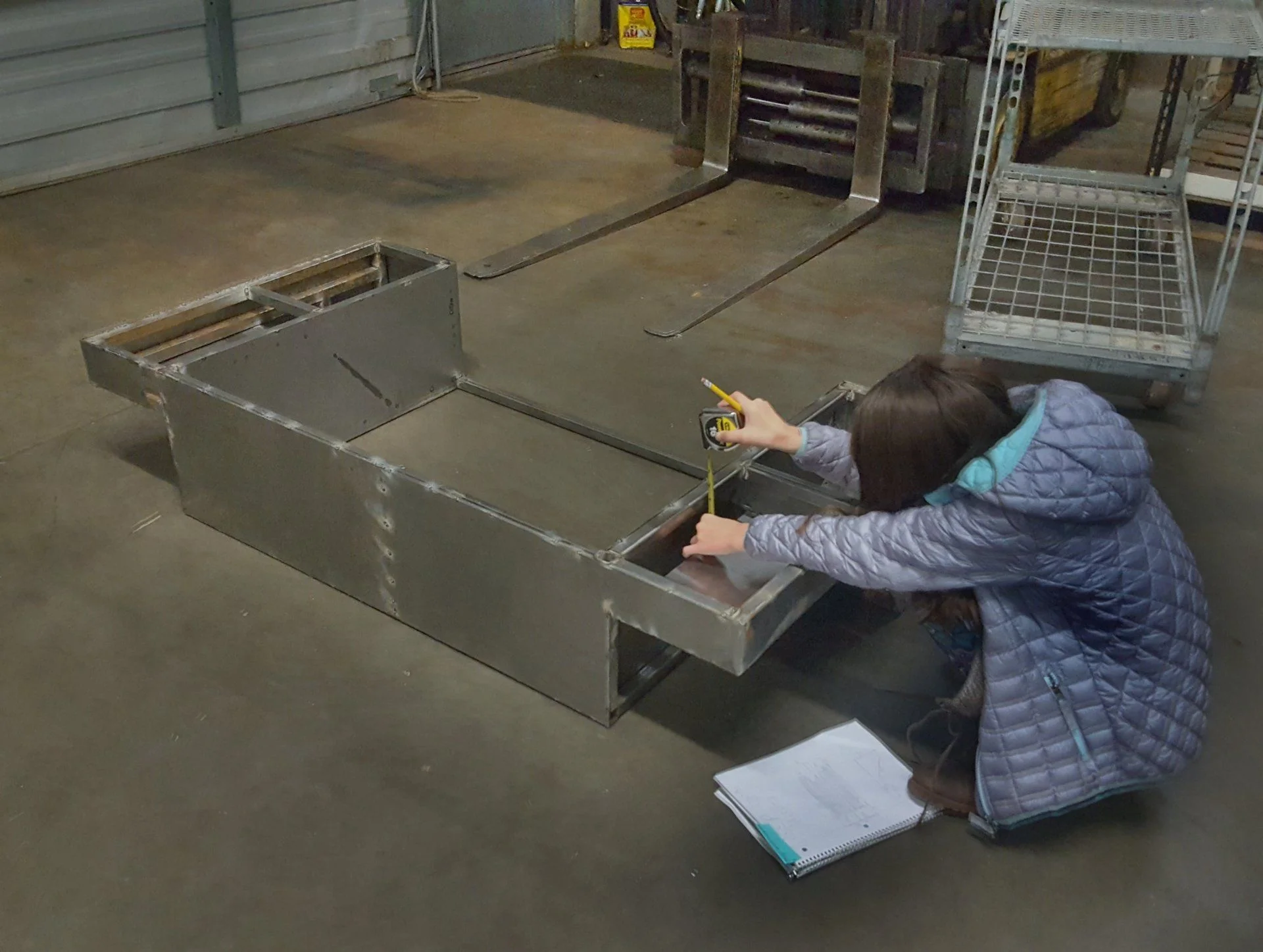

    And as always it's good to have expert help with all your measuring

  15. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

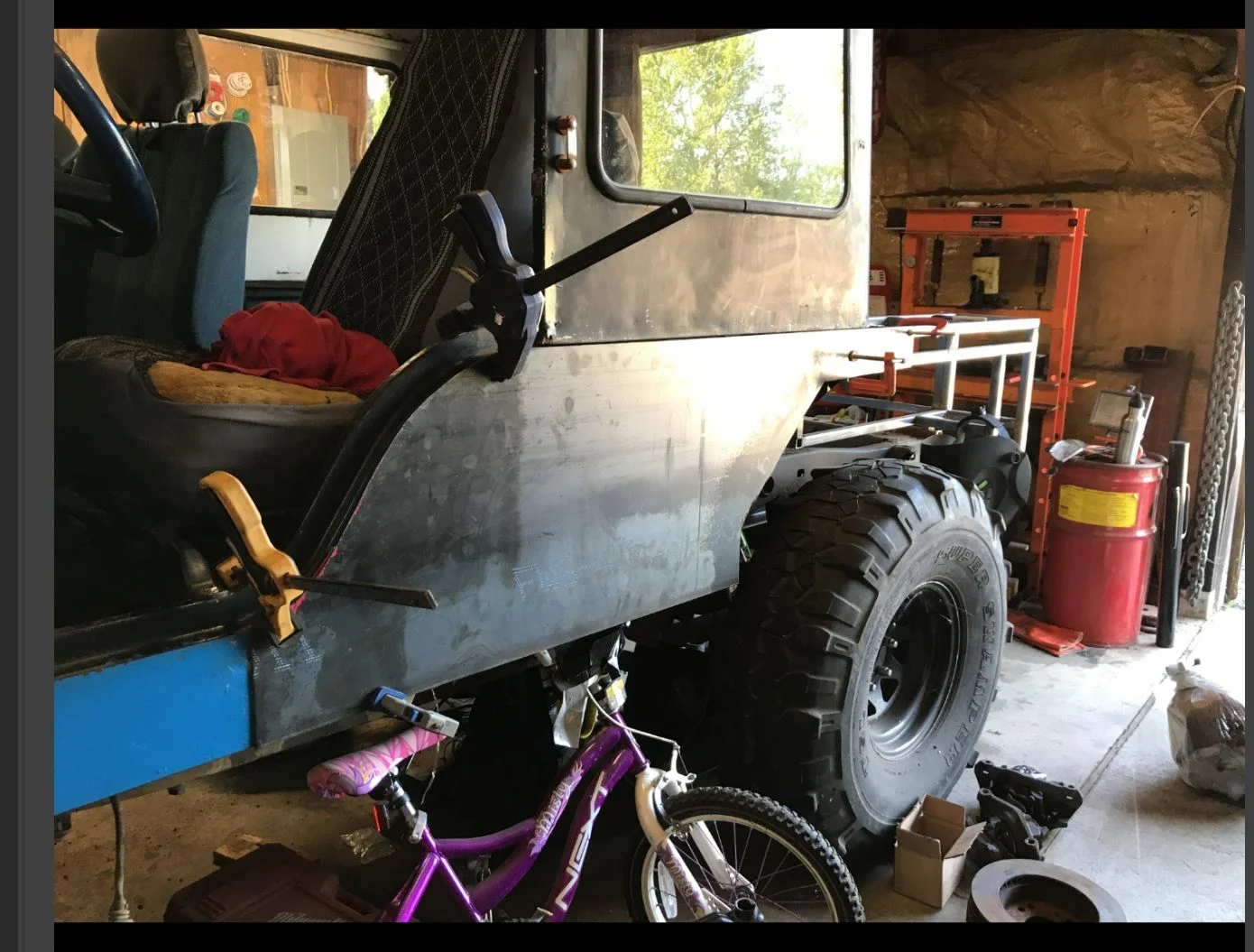

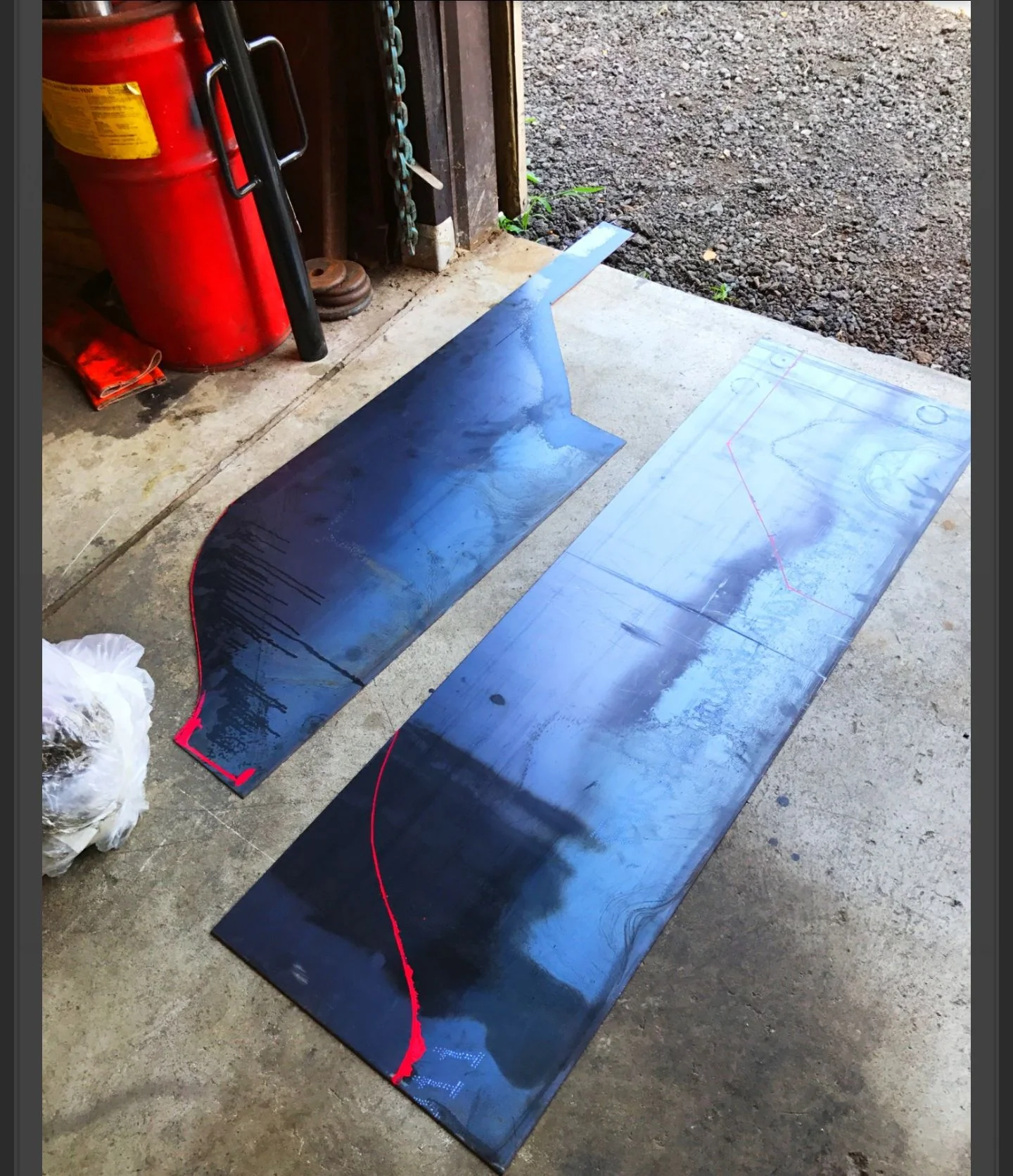

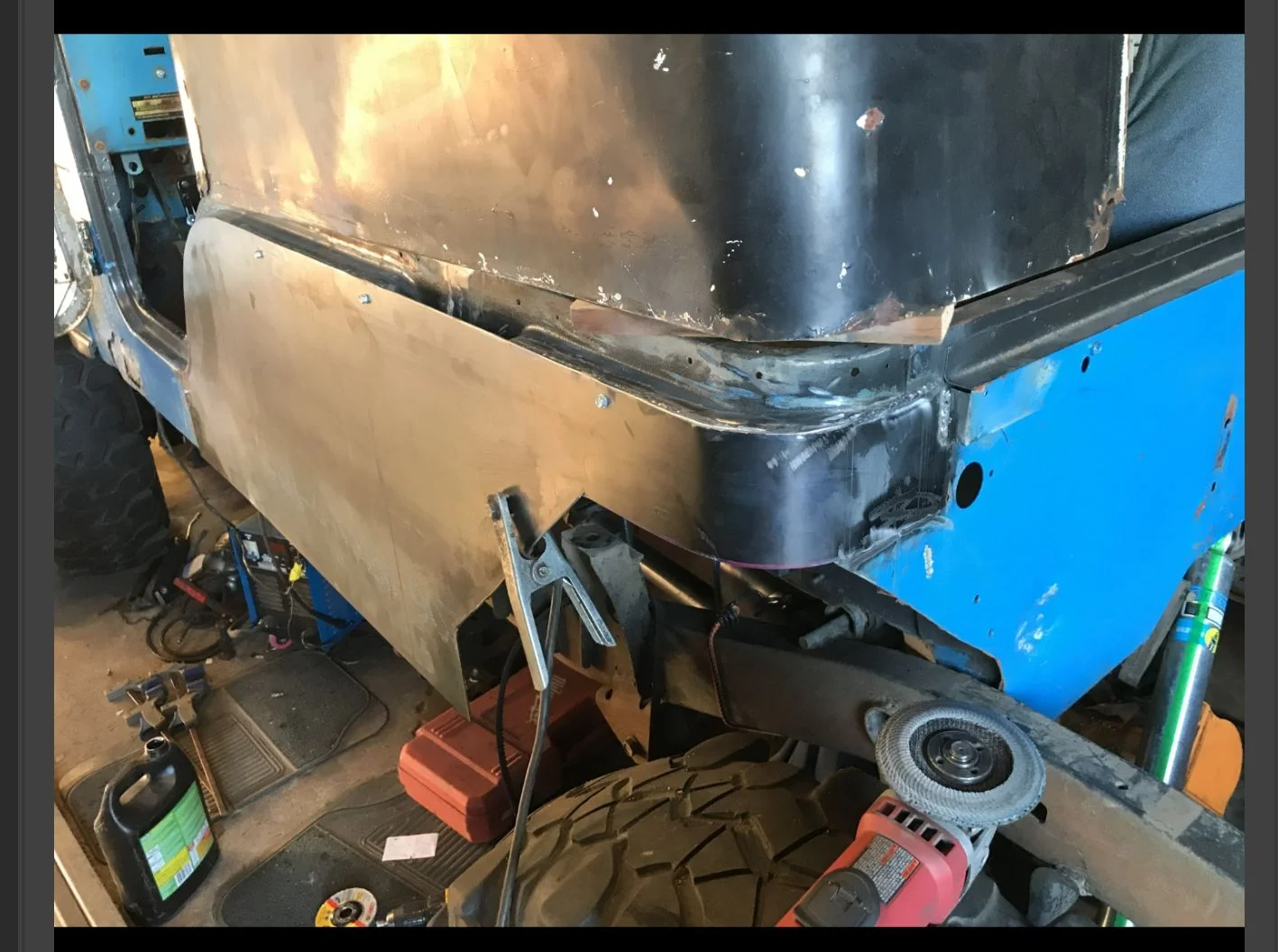

    skinning the sides and making the new wheel wells took a bit of measuring , alot of grinding and patience . 2018-05-19_12-25-01.jpg 2018-05-19_12-25-48.jpg 2018-05-19_12-25-58.jpg

  16. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

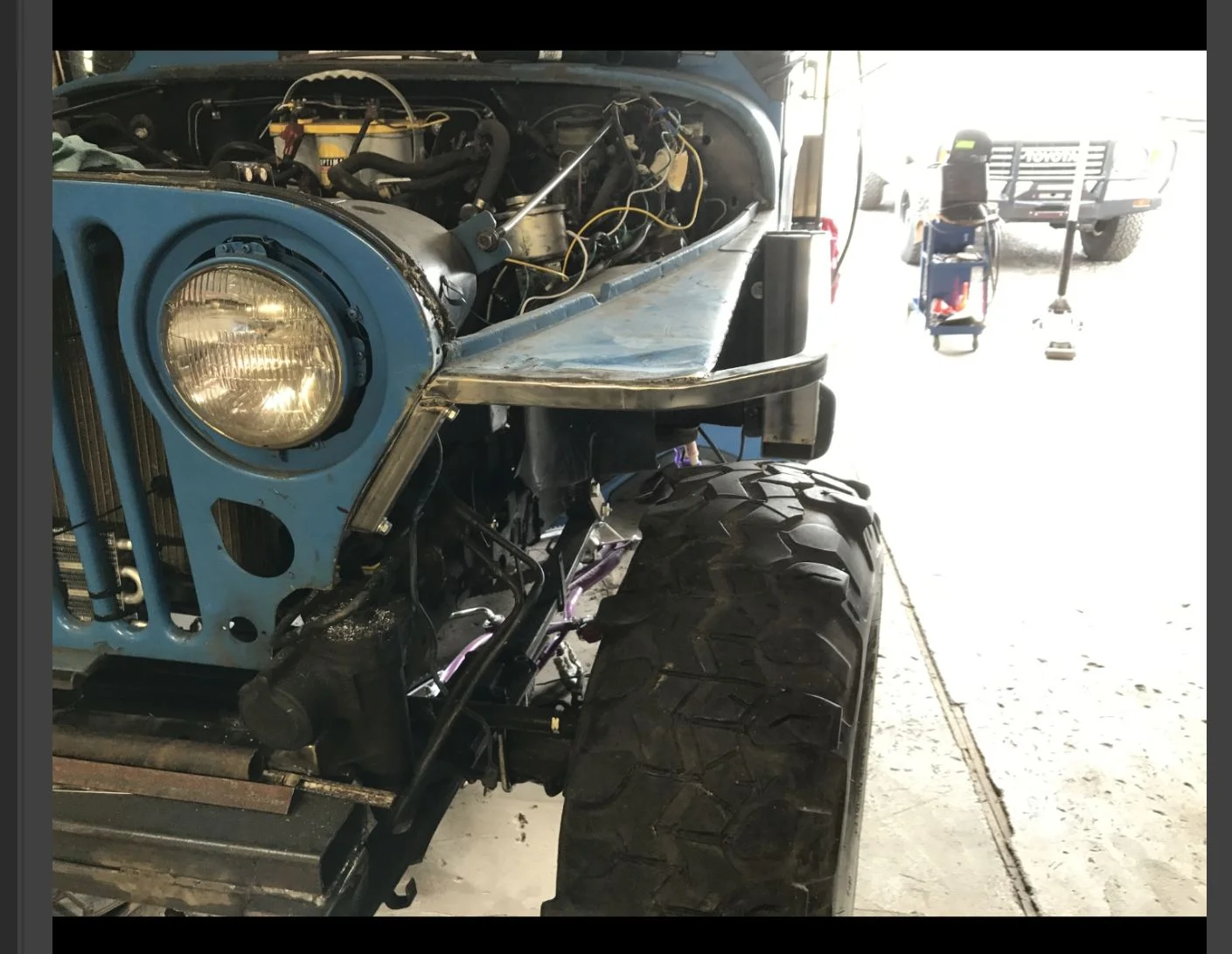

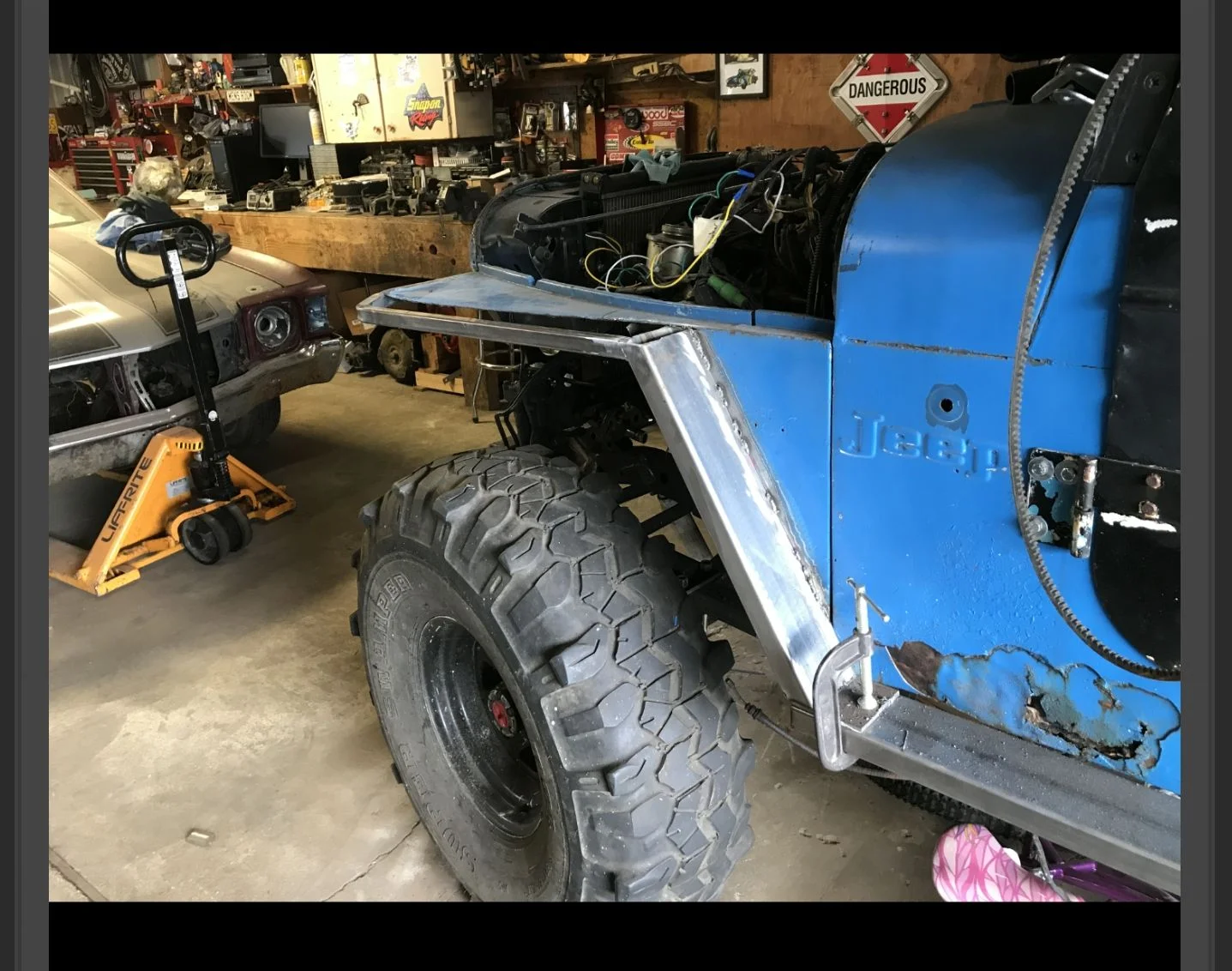

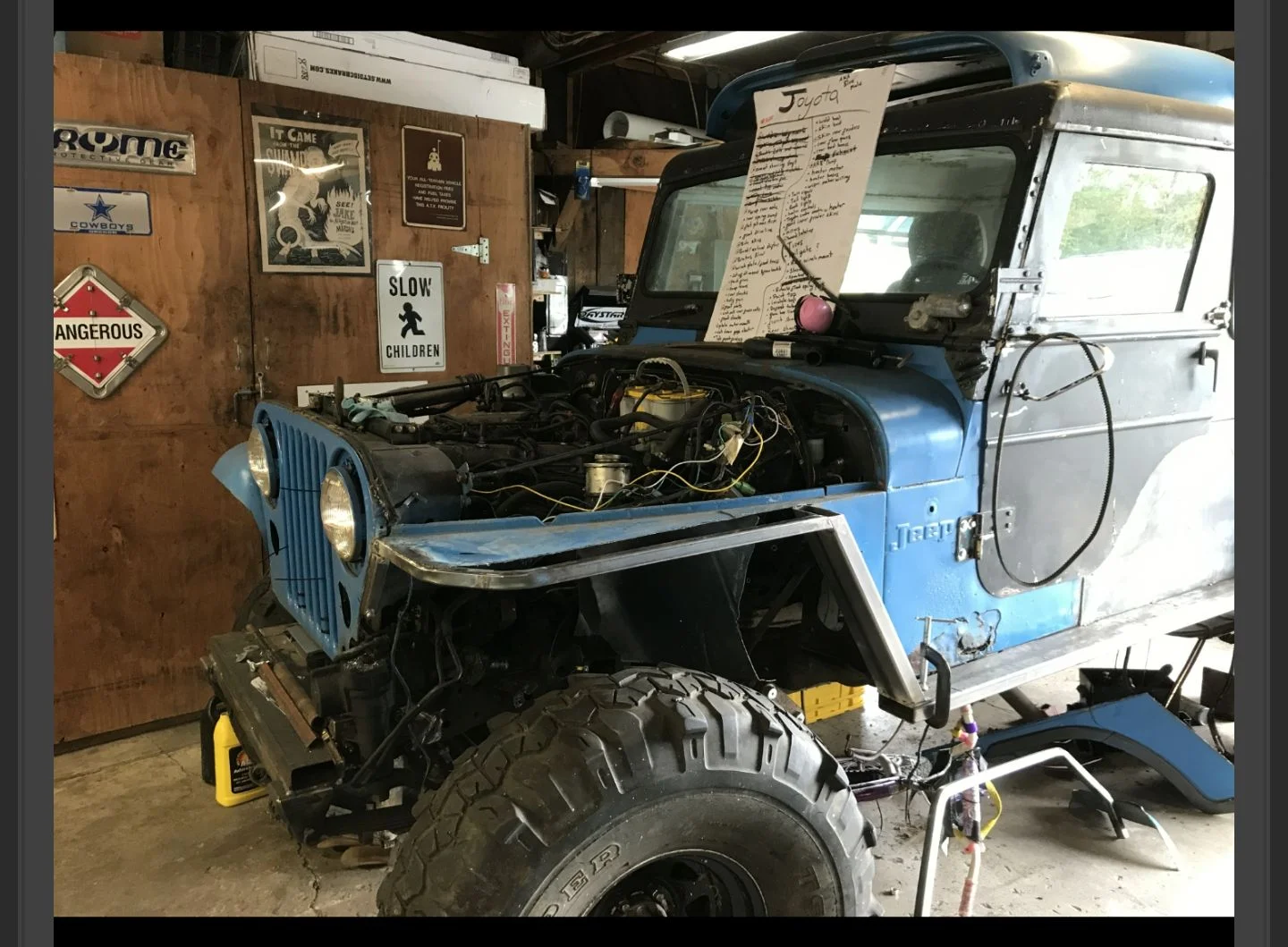

    I've always loved flat fender jeeps so I decided to try and mimic it and open up the wheel wheels a little
    2018-05-19_12-35-47.jpg 2018-05-19_12-35-52.jpg 2018-05-19_12-35-56.jpg

    Bripars40 likes this.
  17. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

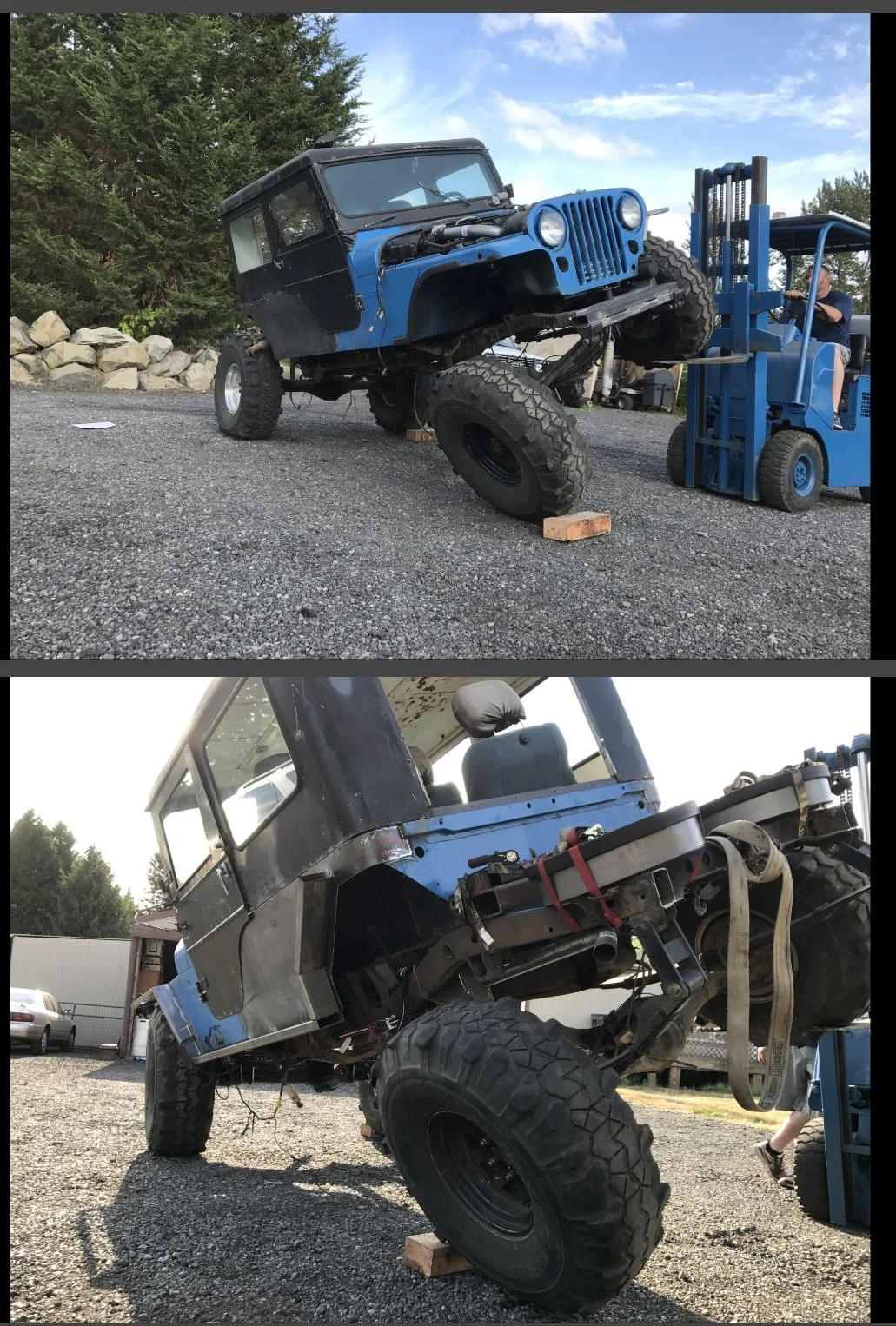

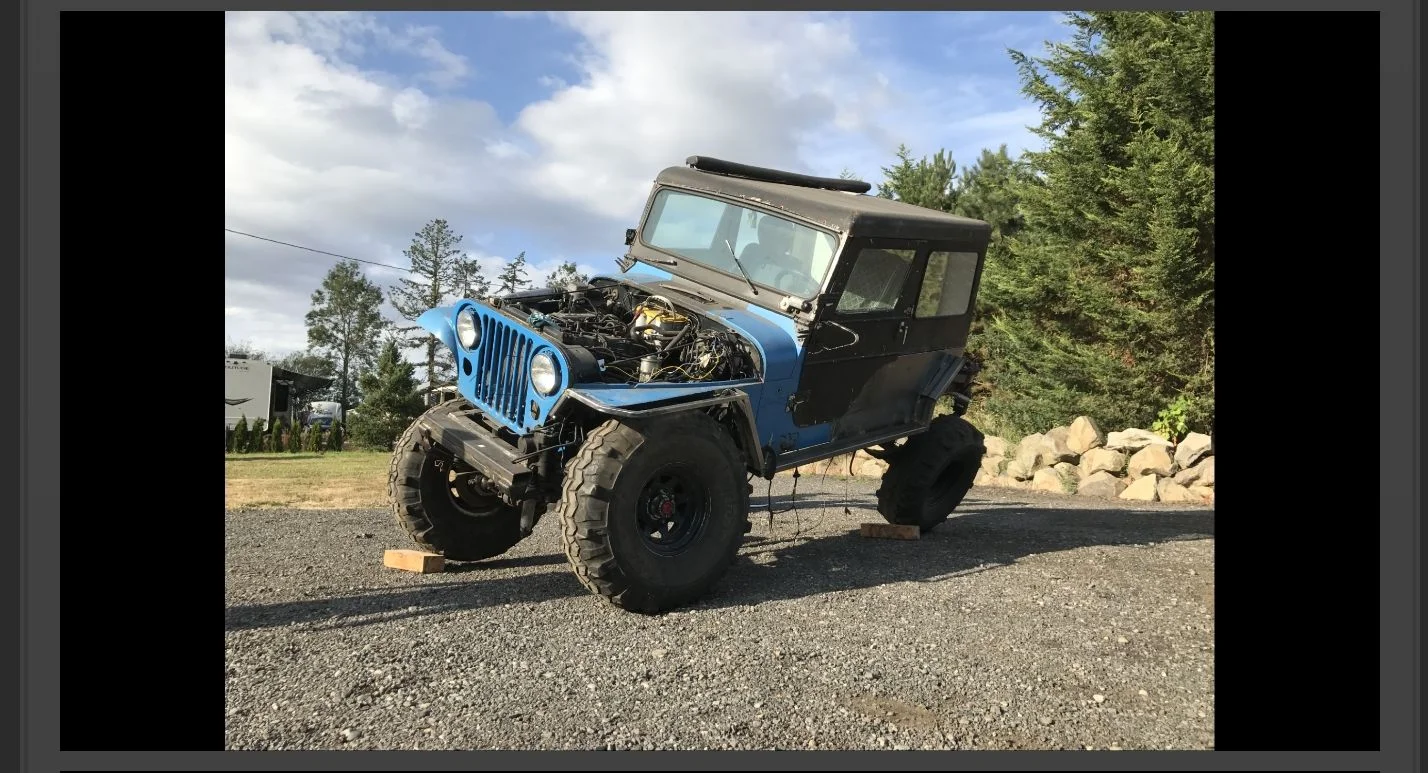

    Now we are starting to get to the fun stuff and tuning the suspension. I needed to pull it out of the shop to do a little pressure washing to knock off some more dirt before I finished cutting off the rest of the ifs mounts and cleaning up the frame . While I had it outside I figured I may as well use my buddies new free forklift and see how everything works out .

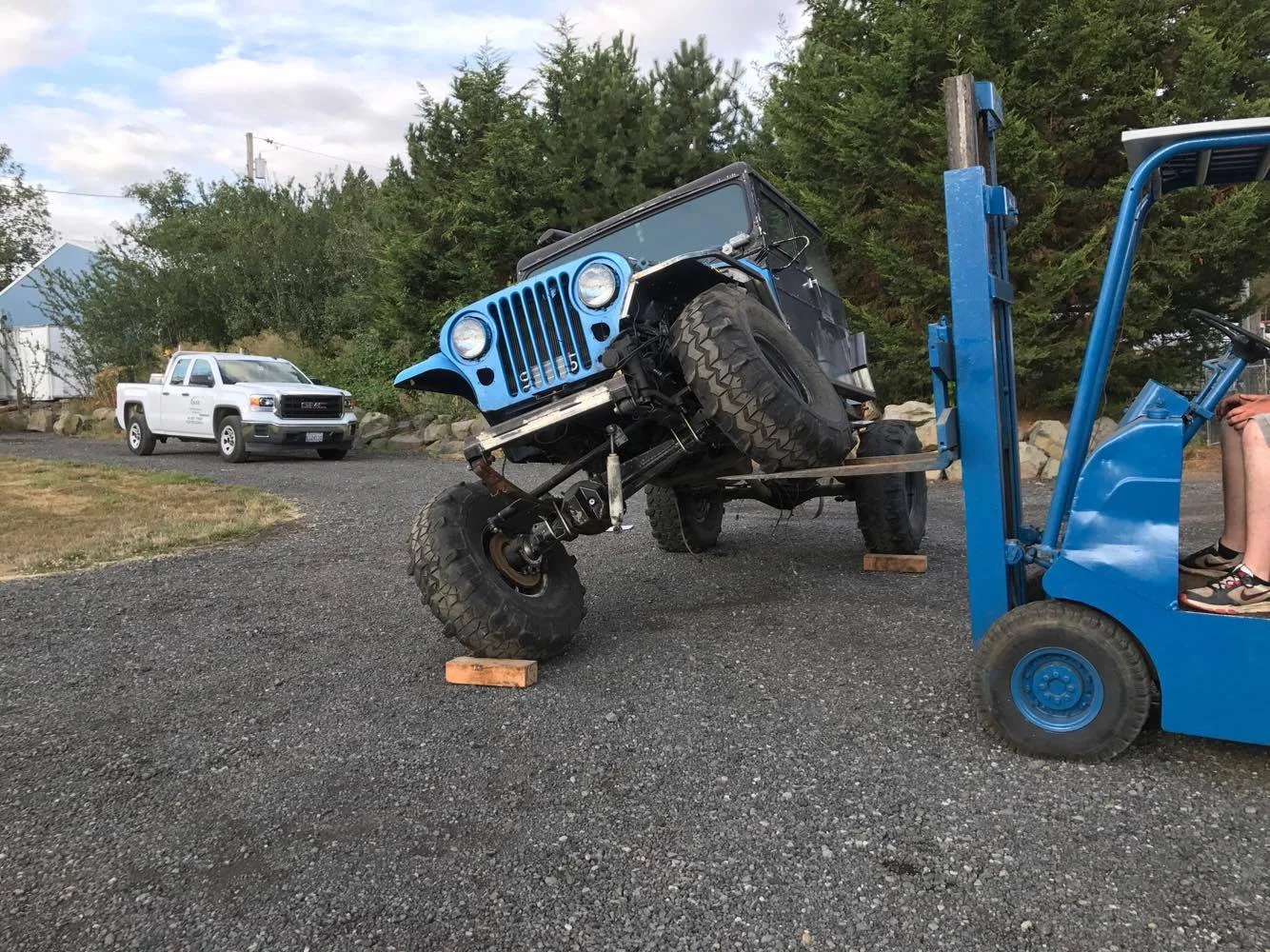

    I need to pull a leaf from the rear pack to soften it up a little and add some leafs to the front pack to stiffen it up but all in all everything cycles well and is stable with 1 tire off the ground


    View attachment 1704514




    Last edited: May 20, 2018
  18. pjohnson

    pjohnson SILVER Star

    Messages:
    1,333
    Media:
    108
    Albums:
    11
    Likes Received:
    393
    Joined:
    Jan 15, 2003
    Location:
    GarlicLand, Kalifornia
    Very creative. Not sure what to think quite yet, but I think I like where you went with it. One thing though, keep the Jeep dash and replace the Toyota gauge cluster with an aftermarket set. It's the one thing, IMO, that detracts from the whole concept. Probably the steering column also, but that's not as bad.

    BTW, welcome to 'Mud :flipoff2:

  19. smileyshaun

    smileyshaun

    Messages:
    38
    Likes Received:
    27
    Joined:
    May 18, 2018
    Location:
    Oregon

    The reason I kept the Toyota gage cluster and columm is I want to keep everything as close to factory as possible so in essence it's a 87 Toyota pickup and sourcing parts and troubleshooting would be no different then working on a stock rig . if it doesn't work out the way I'm thinking it will then yes I'll switch to other gages but it doesn't need to be pretty just functional

  20. GLTHFJ60

    GLTHFJ60 Rum Runnin' SILVER Star

    Messages:
    23,586
    Likes Received:
    8,140
    Joined:
    Apr 18, 2005
    Location:
    Durham, NC
    Well that's new! Looks pretty nice. Have it wheeling yet?
