I installed that panhard correction bracket a few months back.

I was amazed at how much of a difference that little thing made!

I highly recommend it to anyone who doesn't have one and is lifted.

Build is looking clean! Nice work

Thanks.
ya it really helps.



[subspd]

Thanks for a truly great build!



[iwantoffroad]

the hardware provided for the control arm hardware to mount the abs bracket was wrong. dobinsons customer service in florida was terribly slow at figuring out what the thread pitch was.
i bought a couple sizes close to what i thought it was.
just wanted to share if anyone has a similar issue.
IMG_2535 by ALEXANDER RENGIFO, on Flickr

IMG_2534 by ALEXANDER RENGIFO, on Flickr

front diff transfer case and rear diff got some fresh redline 75w90

IMG_2483 by ALEXANDER RENGIFO, on Flickr

next problem.
purchased the car with a radiator that had some pink crusties
e30 parts runner ftw trunk is huge
IMG_2459 by ALEXANDER RENGIFO, on Flickr

first one arrived broken
i had a trip planned so i installed it anyway
IMG_2440 by ALEXANDER RENGIFO, on Flickr

pink crusties
IMG_2435 by ALEXANDER RENGIFO, on Flickr
IMG_2441 by ALEXANDER RENGIFO, on Flickr

IMG_2442 by ALEXANDER RENGIFO, on Flickr

they sent another one i installed it and it leaked
they sent a third one and that one finally didnt leak or have broken tabs

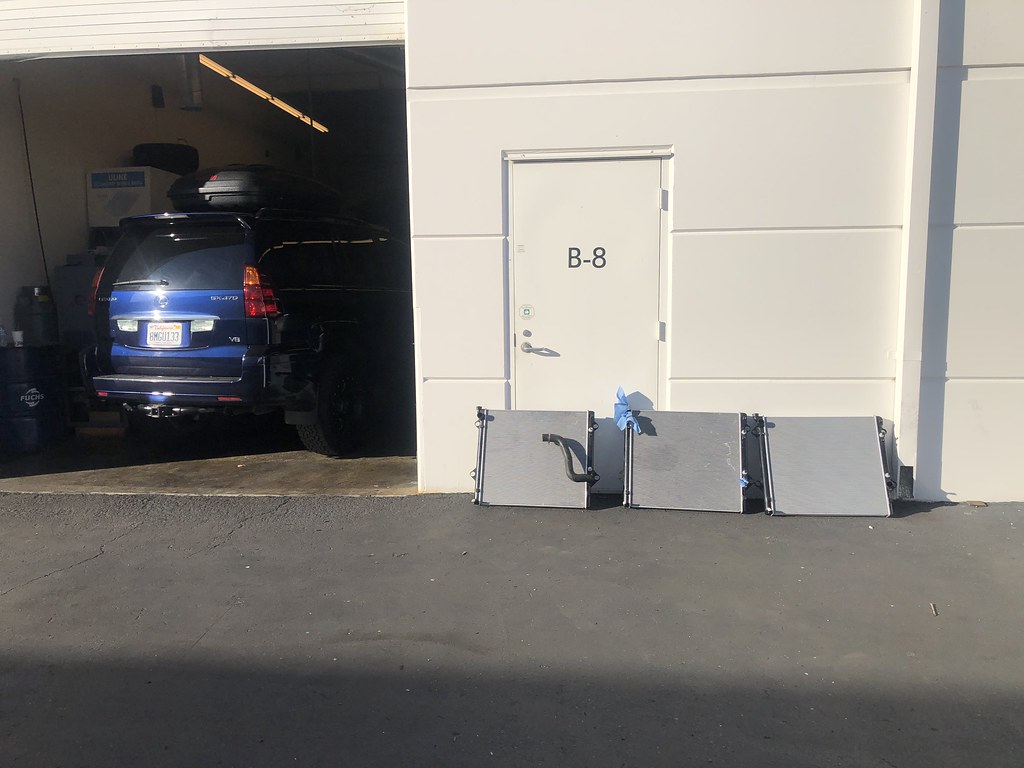

all of these are factory denso radiators.

IMG_2614 by ALEXANDER RENGIFO, on Flickr

for the jdm
IMG_2444 by ALEXANDER RENGIFO, on Flickr

IMG_4631 by ALEXANDER RENGIFO, on Flickr

IMG_4632 by ALEXANDER RENGIFO, on Flickr

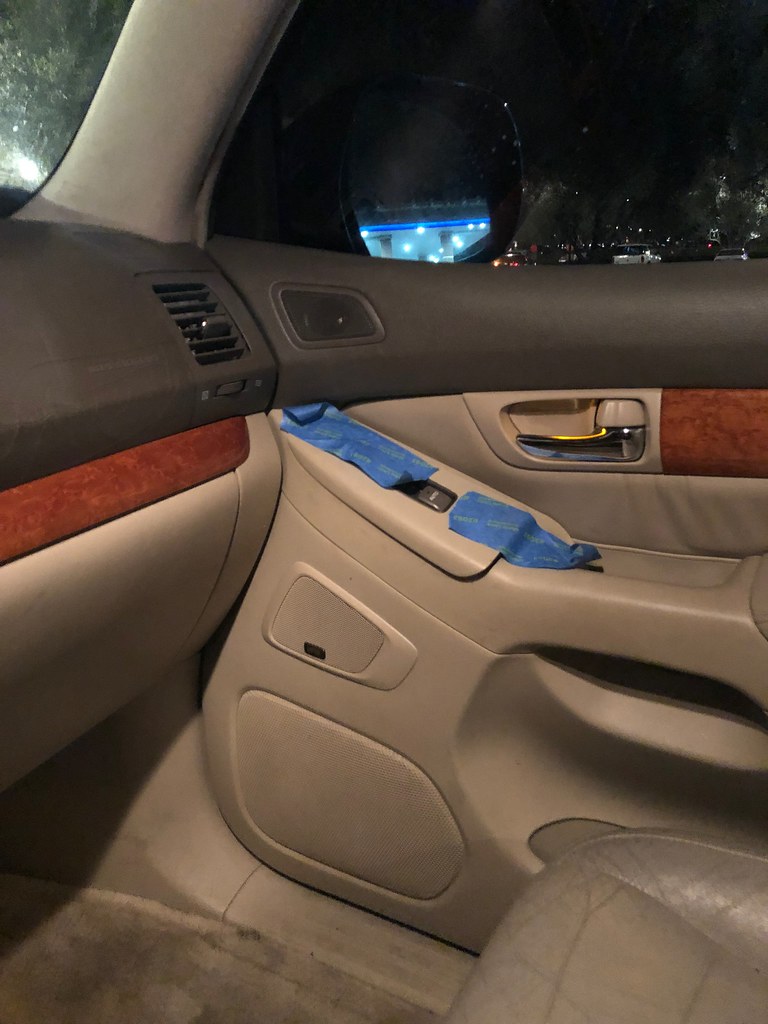

passenger window switch had broken mounting tabs
IMG_2544 by ALEXANDER RENGIFO, on Flickr
IMG_2586 by ALEXANDER RENGIFO, on Flickr
IMG_2606 by ALEXANDER RENGIFO, on Flickr

and she is out on the road
IMG_2541 by ALEXANDER RENGIFO, on Flickr



[iwantoffroad]

body mount chop mod
diy everything!
Screen Shot 2020-03-16 at 4.14.43 PM by Alexander Rengifo, on Flickr

SWEET ROLLING shot thanks Margaret
IMG_3982 by Alexander Rengifo, on Flickr

had a little outing with some friends.
we tried to go to the top of saddleback but the gate was closed
IMG_3898 by Alexander Rengifo, on Flickr

IMG_3926 by Alexander Rengifo, on Flickr

IMG_3917 by Alexander Rengifo, on Flickr

IMG_3902 by Alexander Rengifo, on Flickr

IMG_2706 by Alexander Rengifo, on Flickr

IMG_2705 by Alexander Rengifo, on Flickr

IMG_2695 by Alexander Rengifo, on Flickr

IMG_2692 by Alexander Rengifo, on Flickr



[iwantoffroad]

1 gallon of gear oil wasnt enough ran out doing the rear diff so i got 2 more bottles from my friend race shop down the street at corner 3 garage
IMG_2556 by Alexander Rengifo, on Flickr

cant remember i think this one was the rear diff drain bolt
IMG_2557 by Alexander Rengifo, on Flickr

IMG_2559 by Alexander Rengifo, on Flickr

the car came with a set of race line wheels

i bought a full size matching spare
IMG_2950 by Alexander Rengifo, on Flickr

and a matching 5th full size spare tire
IMG_3119 by Alexander Rengifo, on Flickr

mounted and balanced
IMG_3174 by Alexander Rengifo, on Flickr

i bought a case of oil and my neighbor came over and gave me two more cases of the same viscosity oil !
IMG_3203 by Alexander Rengifo, on Flickr

got a vais technology module. i made a mistake after speaking with the tech support and ordered the wrong one.

one of the part numbers is for an aux input module only. i thought it was aux and bluetooth.

i was able to return it and get the correct bluetooth module.
i mounted it with velcro to the bottom of the clock
IMG_2947 by Alexander Rengifo, on Flickr



[subspd]

Nice so Redline is what you recommend. I need to do front/center/rear and tranny. Thinking this week I might actually have the time with things closing up.
7 quarts is what I will need then?



[iwantoffroad]

Nice so Redline is what you recommend. I need to do front/center/rear and tranny. Thinking this week I might actually have the time with things closing up.
7 quarts is what I will need then?

i recommend redline oil been using it for years
yes 7-8 quarts for front diff transfer case and rear diff

not for the transmission. transmission uses toyta ws fluid



[ArBrnSnpr]

Awesome seeing all this work done so fast!
Makes for an interesting read.

The GX is coming along nicely.

What kind of E30 is doing all your parts runs?

I have a 99.5 Alpine white M3 that's my other automotive passion.



[iwantoffroad]

Awesome seeing all this work done so fast!
Makes for an interesting read.

The GX is coming along nicely.

What kind of E30 is doing all your parts runs?

I have a 99.5 Alpine white M3 that's my other automotive passion.

thanks I’m really happy with the gx.
I did all this work in the last few months and took pictures. Im spending my time at home now with the corona virus going on and making a build thread. It takes a lot of time updating with hyper links for all the pictures.


I have a 1989 bmw 325is that I have restored. On the outside it’s pretty stock
Shadow line trim
Is front lip
Is rear spoiler lip
Euro smileys
Mechanically it’s a little hot rod track car.



[iwantoffroad]

i added a thin 38 inch light bar and made some custom mounts I hate mud update by Alexander Rengifo, on Flickr
I hate mud update by Alexander Rengifo, on Flickr

I hate mud update by Alexander Rengifo, on Flickr



[iwantoffroad]

when we bought the truck it had rust in the passenger wheel well.
with the door panel out of the way i was able to see the extent of the damage
I hate mud update by Alexander Rengifo, on Flickr

view from the wheel well once i removed the undercoating
I hate mud update by Alexander Rengifo, on Flickr

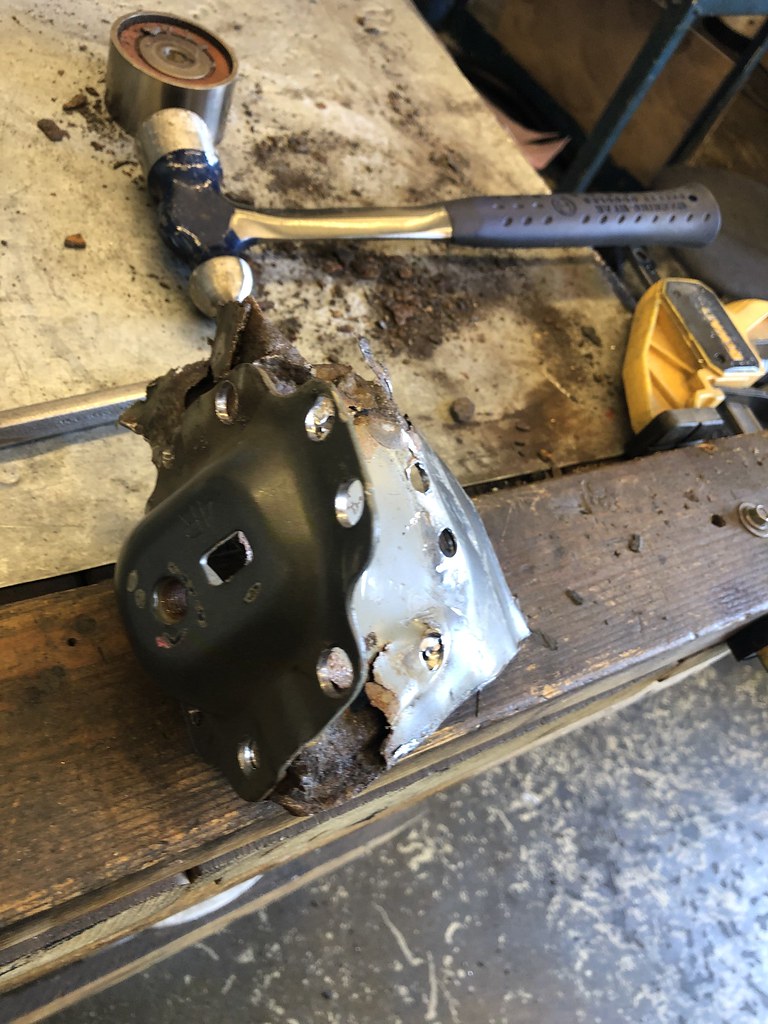

cut out all the rust
I hate mud update by Alexander Rengifo, on Flickr

I hate mud update by Alexander Rengifo, on Flickr

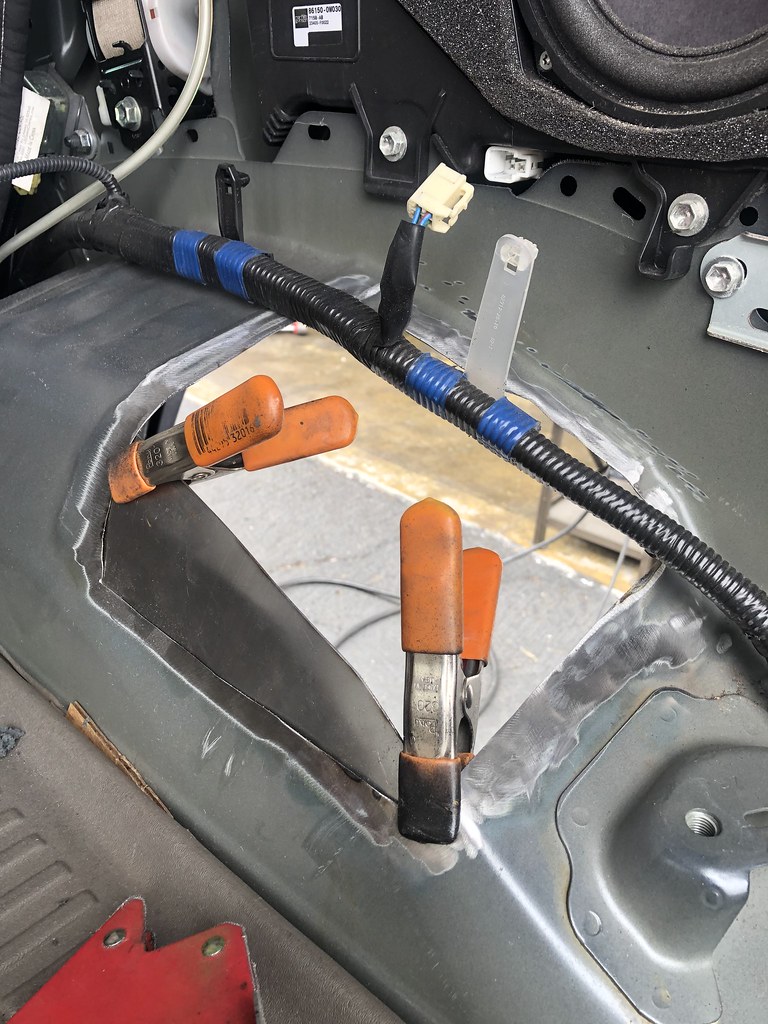

first patch panel
I hate mud update by Alexander Rengifo, on Flickr
I hate mud update by Alexander Rengifo, on Flickr

making a template for the second patch panel
I hate mud update by Alexander Rengifo, on Flickr

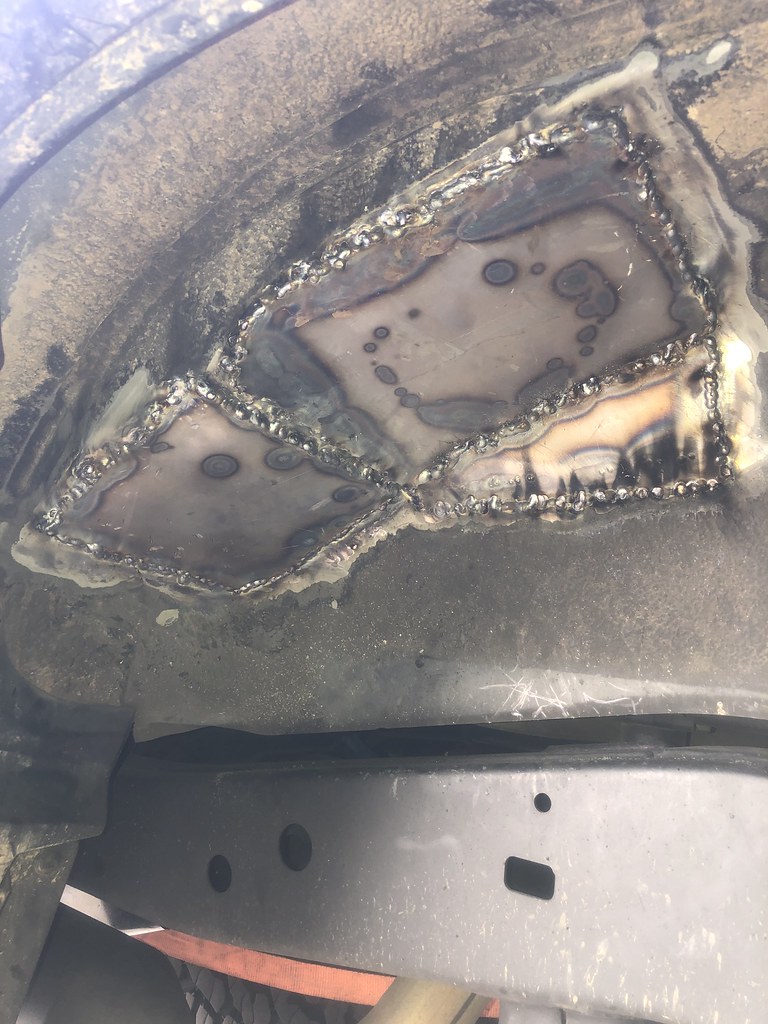

i found it challenging to weld such thing toyota sheet metal so i took my time and just spot welded my way around my patch panel
2 sections of steel welded to patch the hole.
I hate mud update by Alexander Rengifo, on Flickr

and a little more rust under the 3rd row seat mount.
i cut it out patched the rust then welded the bracket back on
I hate mud update by Alexander Rengifo, on Flickr

I hate mud update by Alexander Rengifo, on Flickr
I hate mud update by Alexander Rengifo, on Flickr

3m seam sealer and some dupli color undercoating
I hate mud update by Alexander Rengifo, on Flickr

after seam seal and painting it
I hate mud update by Alexander Rengifo, on Flickr



[iwantoffroad]

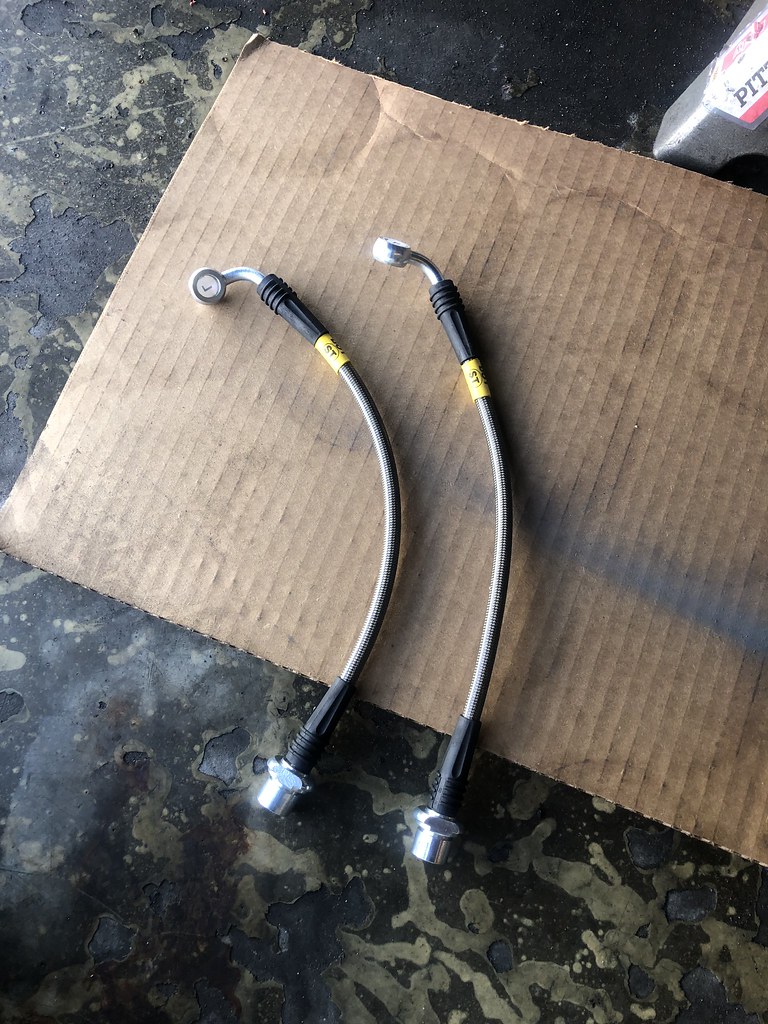

i got stainless lines for each caliper from stoptech and 2 extended brake lines between the frame and the rear axle from metaltech. metaltech sources them from CROWN lines in san diego.
everything fit perfect.
I hate mud update by Alexander Rengifo, on Flickr
I hate mud update by Alexander Rengifo, on Flickr

stock length for the axle brake line
I hate mud update by Alexander Rengifo, on Flickr

length of the extended metal tech lines
I hate mud update by Alexander Rengifo, on Flickr

i really liked that it came with new shiny brake line clips
I hate mud update by Alexander Rengifo, on Flickr

I hate mud update by Alexander Rengifo, on Flickr
lines at full droop. a little too much tension
I hate mud update by Alexander Rengifo, on Flickr

a trick before removing the old brake lines. apply pressure to the brake pedal. once you start opening the brake lines they wont keep dripping brake fluid
I hate mud update by Alexander Rengifo, on Flickr

the good stuff for takumi. motul 600 brake fluid to bleed the brakes once the lines are installed
I hate mud update by Alexander Rengifo, on Flickr

bleeding brakes
custom gatorade bottle with a magnet added
I hate mud update by Alexander Rengifo, on Flickr



[iwantoffroad]

next project raising the rear diff breather.
toyota barb union
8 feet of gates 5/16 hose wasnt sure how much i needed
toyota 1 way breather
I hate mud update by Alexander Rengifo, on Flickr

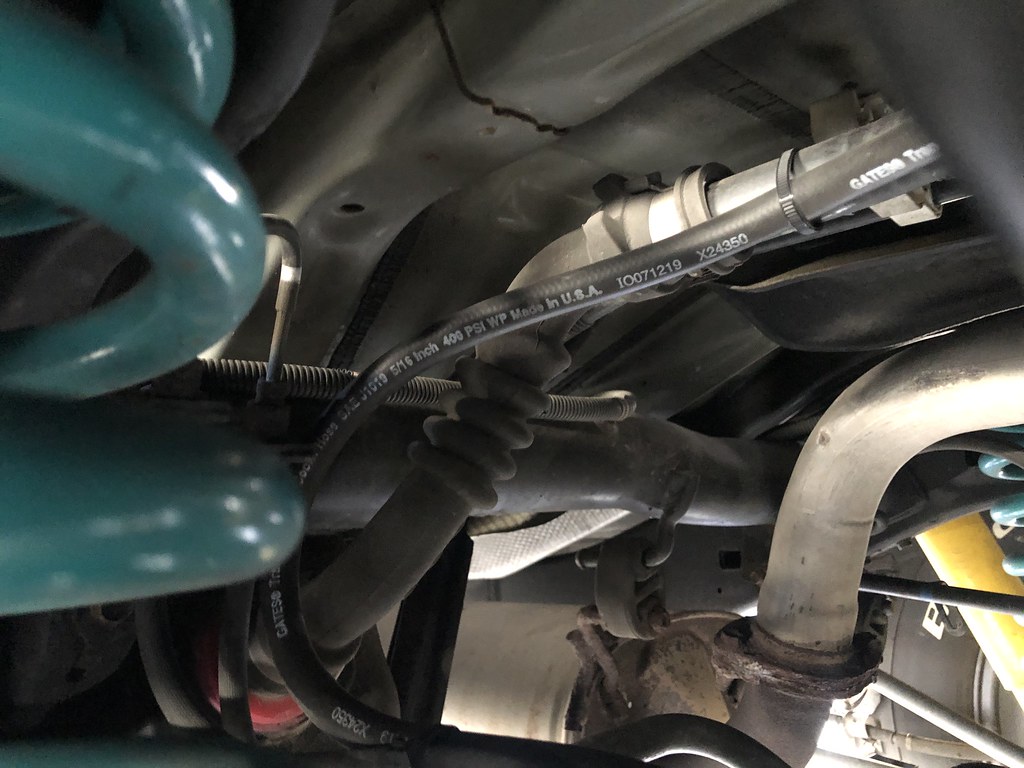

ziptie it with enough slack to get full droop and full articulation with out binding
I hate mud update by Alexander Rengifo, on Flickr
out the filler neck seal
I hate mud update by Alexander Rengifo, on Flickr

stock toyota breather on the end
I hate mud update by Alexander Rengifo, on Flickr
done
I hate mud update by Alexander Rengifo, on Flickr



[iwantoffroad]

removed all the air compressor parts. freaking pain in the ass. i also removed the accumulator and sold it to a guy in new york
I hate mud update by Alexander Rengifo, on Flickr



[iwantoffroad]

my wife got me a ironman awning for fathers day.
indie approves
I hate mud update by Alexander Rengifo, on Flickr

got the 2 angle brackets from ironman added 3/4 inch spacers and mounted it under the factory cross bars. doing it this way takumi can still fit in the garage
I hate mud update by Alexander Rengifo, on Flickr

awning mounted
I hate mud update by Alexander Rengifo, on Flickr

regular habitat
gas station
awning is on there solid
I hate mud update by Alexander Rengifo, on Flickr

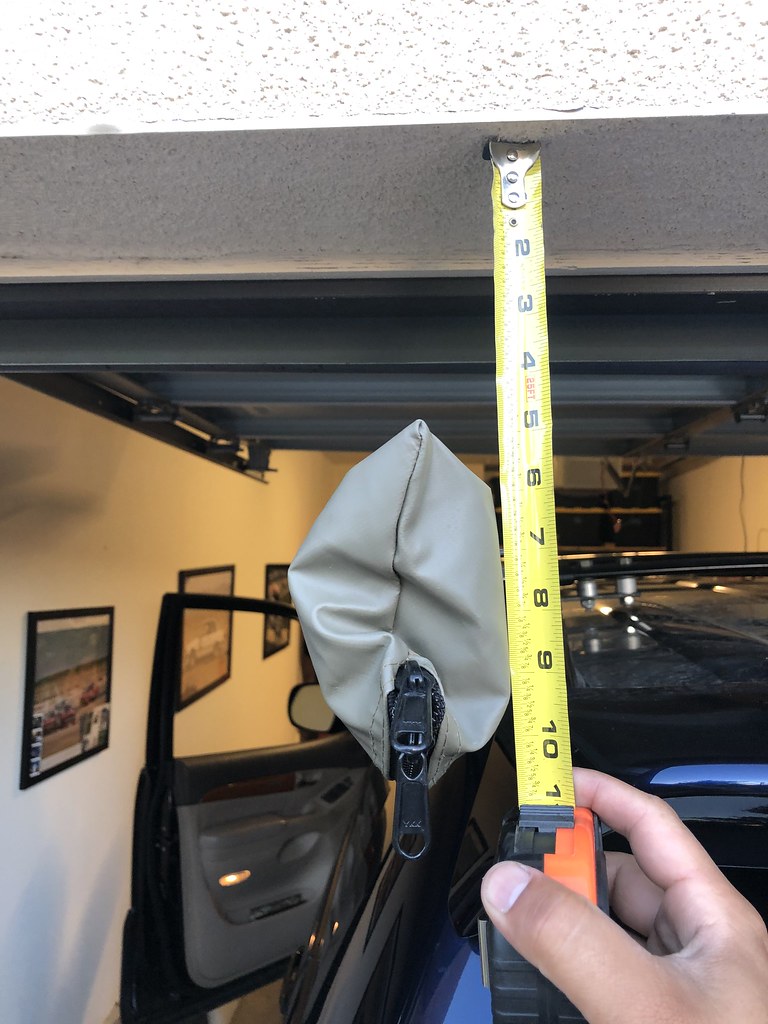

clears the garage
I hate mud update 2 by Alexander Rengifo, on Flickr



[iwantoffroad]

easy project

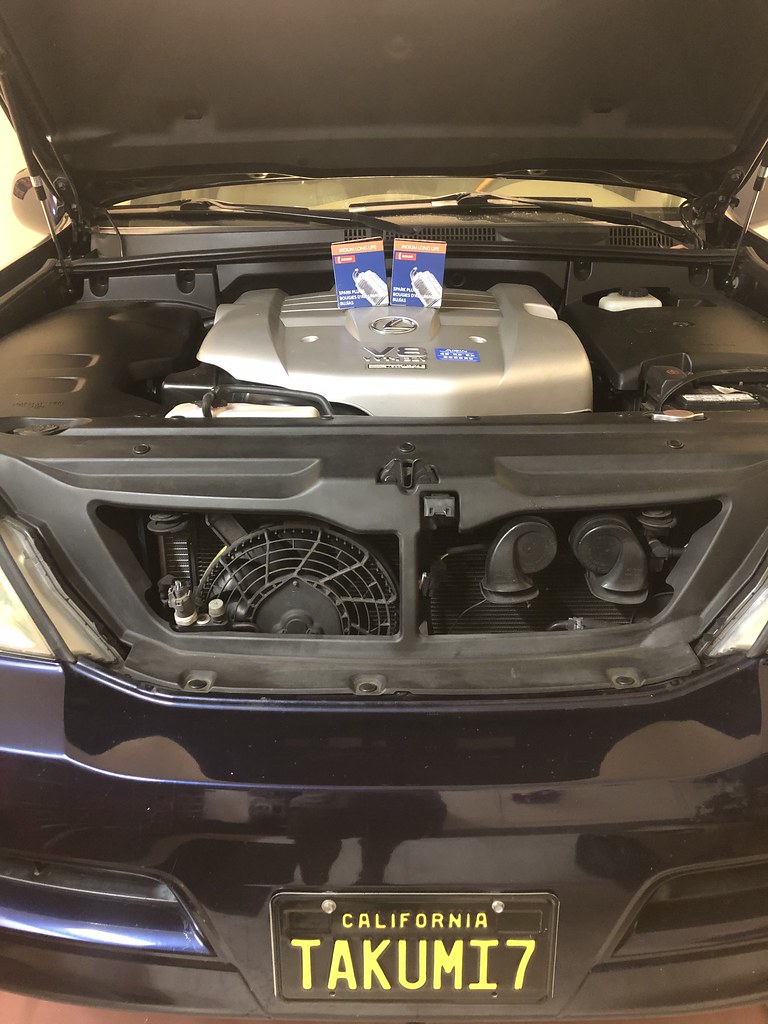

8 denso factory plugs purchased at oreilys
be careful of knockoffs on amazon
I hate mud update by Alexander Rengifo, on Flickr

I hate mud update by Alexander Rengifo, on Flickr



[iwantoffroad]

after a several month wait i got the customized plates i ordered
takumi stands for master craftsmen in japanese. i consider my self quite a craftsmen so i thought it would fit this build
I hate mud update by Alexander Rengifo, on Flickr



[iwantoffroad]

i ordered the 4x innovation weld it diy rock sliders
after traveling across the united states 3 times this is how they arrived
I hate mud update 2 by Alexander Rengifo, on Flickr

I hate mud update 2 by Alexander Rengifo, on Flickr

i wanted to add a top plate so i bought some steel and a 1 inch dimple die
I hate mud update 2 by Alexander Rengifo, on Flickr
I hate mud update 2 by Alexander Rengifo, on Flickr

i couldnt buy a piece long enough so i extended one.
marking out my pattern for the holesaw
I hate mud update 2 by Alexander Rengifo, on Flickr

top plate taking shape
holes drilled
I hate mud update 2 by Alexander Rengifo, on Flickr


dimple die action in the press
I hate mud update 2 by Alexander Rengifo, on Flickr

using the work bench to help hold the material its too long to hold while working the press
I hate mud update 2 by Alexander Rengifo, on Flickr

dimple die done
I hate mud update 2 by Alexander Rengifo, on Flickr

the welder im using for all my fabrication projects
lincoln 220 volt mig welder with 75/25 argon and co2 gas
I hate mud update 2 by Alexander Rengifo, on Flickr

yours trully
I hate mud update 2 by Alexander Rengifo, on Flickr

dimple dies are so cool
I hate mud update 2 by Alexander Rengifo, on Flickr

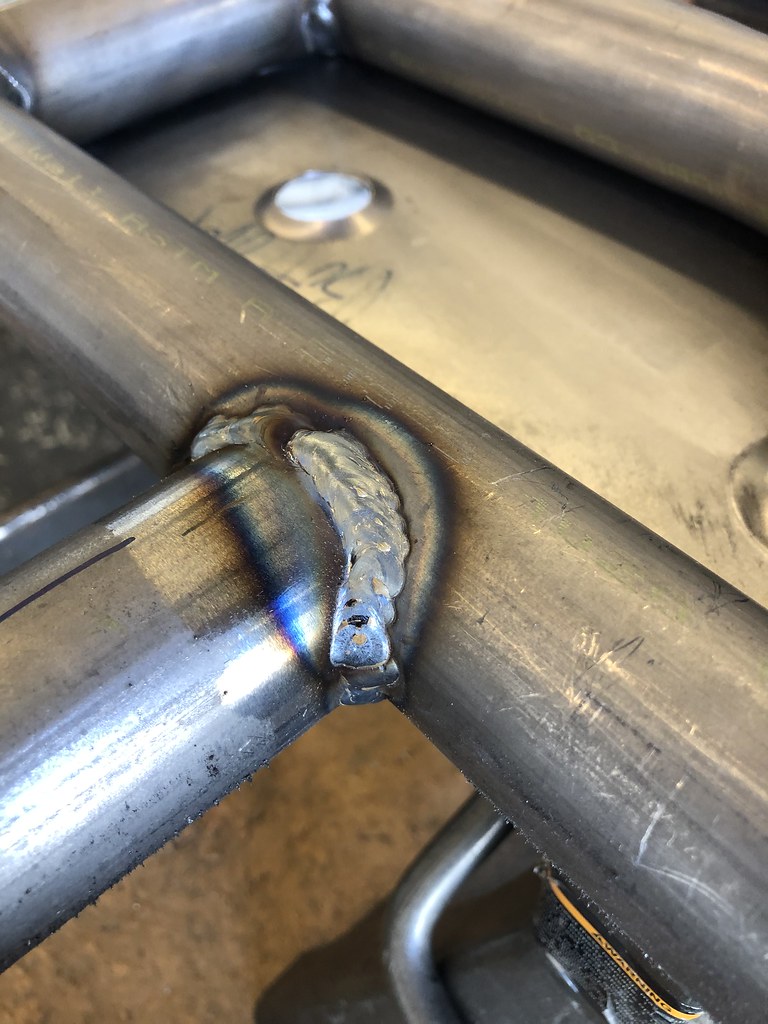

top plate is welded symetrically since im leaving all the welds exposed and not grinding them down
I hate mud update 2 by Alexander Rengifo, on Flickr

legs welded on
im getting better at welding
I hate mud update 2 by Alexander Rengifo, on Flickr

mounting feet mocked up for welding
Rock sliders by Alexander Rengifo, on Flickr

rock sliders are welded on! they look so good. im proud of the finished product.
I hate mud update 2 by Alexander Rengifo, on Flickr



[iwantoffroad]

some pics are out of order. uploading projects from 2020. big bear day trip
loaded up with indie
I hate mud update 2 by Alexander Rengifo, on Flickr

chevron at big bear lake
I hate mud update 2 by Alexander Rengifo, on Flickr

2n10 trail head
I hate mud update 2 by Alexander Rengifo, on Flickr
I hate mud update 2 by Alexander Rengifo, on Flickr

half way up the trail
I hate mud update 2 by Alexander Rengifo, on Flickr

top of the trail with my wife my baby and my inlaws

I hate mud update 2 by Alexander Rengifo, on Flickr

testing out the flex on the way home
I hate mud update 2 by Alexander Rengifo, on Flickr
I hate mud update 2 by Alexander Rengifo, on Flickr

new addition after big bear
I hate mud update 2 by Alexander Rengifo, on Flickr



[iwantoffroad]

doing maintenance on the pcv valve

spray the s*** out of the hose ends with wd 40 its very risky to do this job because you can break the nipple of the intake manifold.
I hate mud update 2 by Alexander Rengifo, on Flickr
pcv is located here on the 4.7 vvti engine driver side head above spark plug number 1 under a foam 90 degree cover

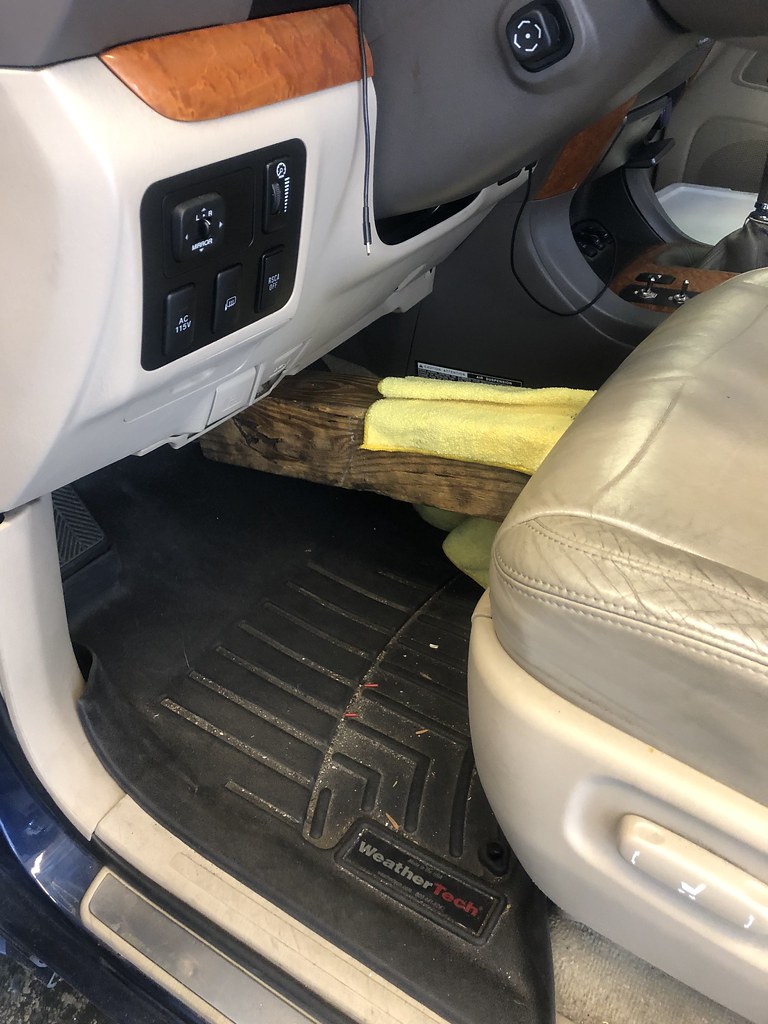

I hate mud update 2 by Alexander Rengifo, on Flickr

needs a 22mm wrench. mine was extremely tight. i had to put in a ton of effort to break it loose. it felt like something was going to break before this came loose.

old one was very dirty inside

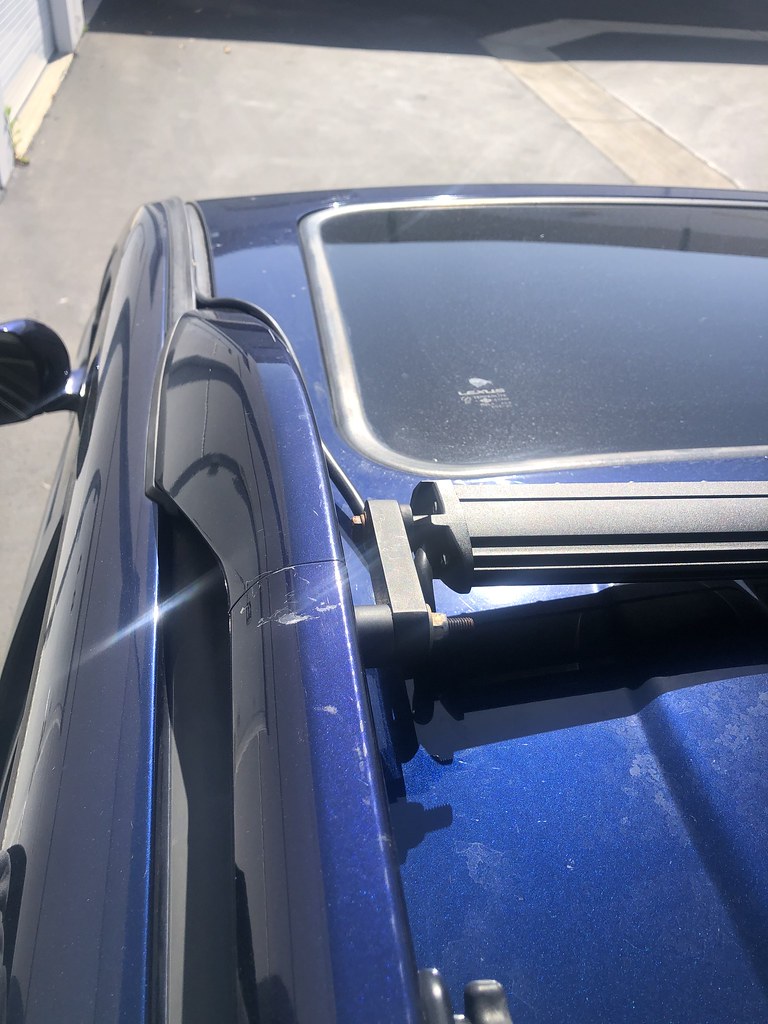

I hate mud update 2 by Alexander Rengifo, on Flickr
