how similar are the rear axle's of a 80 and a 100 ?

[GX-R]

i know the 200 can go off road im a huge fan , you can check my previous threads to see what it can do offroad ( sand duning pictures ) .

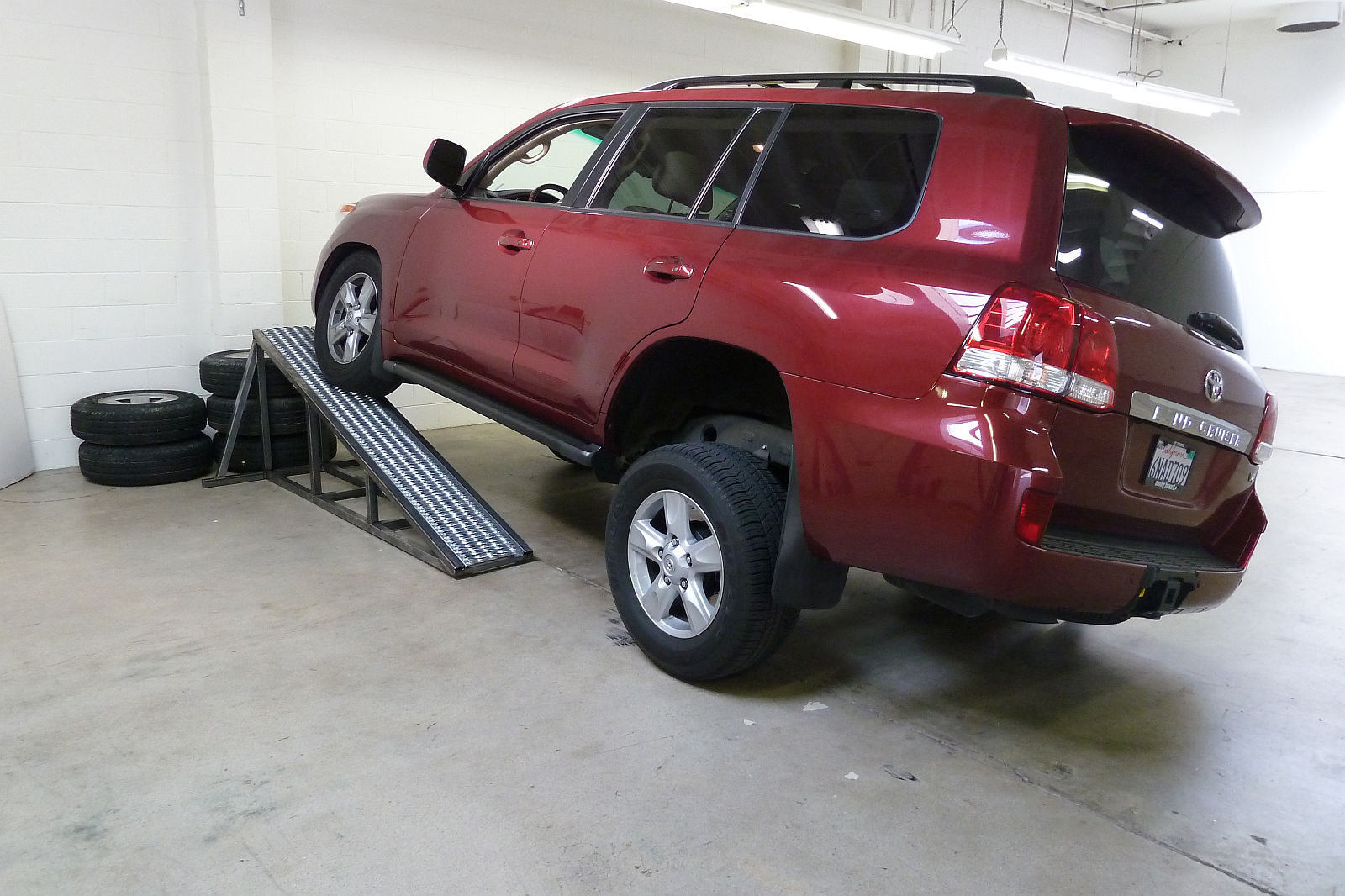

Very good RTI score .



[Layonnn]

Only the 80 series. In the USA and most other markets the 100s and 200s have semi-float axles.

I believe the 105 series also got full floating axles as well.



[Cruiserdrew]

I believe the 105 series also got full floating axles as well.

Yep but only available briefly and basically an 80 chassis with a 100 body.



[Sc0-]

The 80 and 100 series both have 9.5" rear differentials BUT the 100 series thirdmember is stronger and has a anti-deflection for the ring gear built in, the carrier is also a tad larger. Besides the axle shaft splines not matching I am not sure if the thirdmember housings are interchangeable.

(the 100 series rear does not use shims like the FJ80 rear for setting bearing preload, uses threaded adjusters like the 8")



[Cruiserdrew]

Only the 80 locker housing uses shims. The non-locker housing uses threaded adjusters.



[dandycamp]

Don't think any axles in the Land Cruiser after 1993 ish were semi-float...

93-95 non abs were drum brake semi float
