    This thread will document common errors in Cruiser engine building.
    These are in no specific order, just pictures of stuff that has passed through the shop.

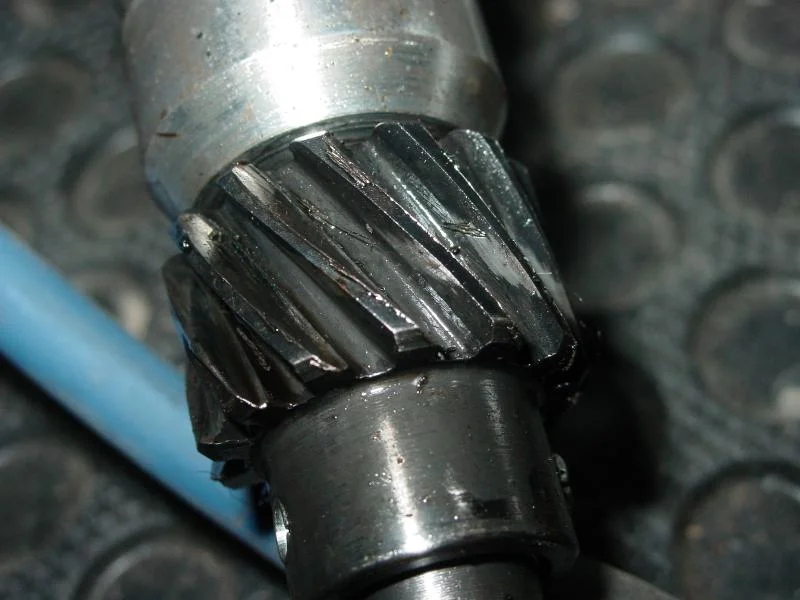

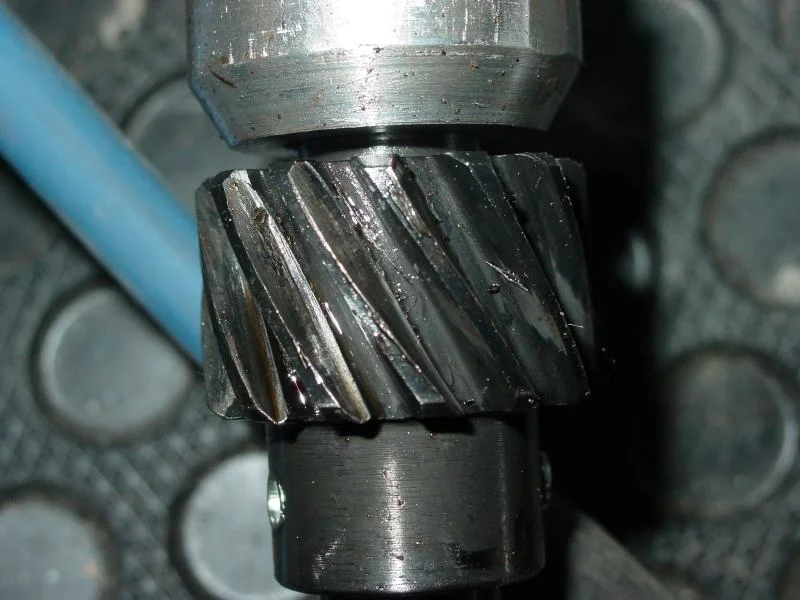

    First, save some money by using the inexpensive HEI distributor. The truck was still running, even with half of the gear tooth worn away. HEI dissy on the left was installed 5K miles prior. Toyota dissy pictured on right with 150K miles gear for comparison.

    Fix is rebuilt Denso dissy and electronic ignition.
    DSC07342.jpg DSC07344.jpg DSC07347.jpg

    Last edited: Feb 18, 2012
  2. zebrabeefj40

    zebrabeefj40

    Messages:
    3,308
    Likes Received:
    126
    Joined:
    Feb 19, 2004
    Location:
    Pepperell MA
    That's odd in that the gear is not HEI but a Toyota-like gear. Wonder if it is an aftermarket version of the Toyota gear that didn't get the right heat treatment...

    Nick

  3. fj404life

    fj404life

    Messages:
    1,356
    Likes Received:
    10
    Joined:
    Oct 25, 2008
    Location:
    Central Oregon
    great pics! subscribed!

  4. fjfodee

    fjfodee At a Medium Pace SILVER Star

    Messages:
    1,367
    Likes Received:
    448
    Joined:
    Dec 20, 2006
    Location:
    S.W. AR.
    So I guess you get that same gear with a D.U.I. ??

  5. 1911

    1911 chupacabra

    Messages:
    4,991
    Media:
    187
    Albums:
    4
    Likes Received:
    3,790
    Joined:
    Aug 11, 2006
    Location:
    Parker County, Texas
    Great thread Jim, looking forward to more!

  6. krzyabncanuck

    krzyabncanuck USFS HOTSHOT

    Messages:
    8,717
    Likes Received:
    734
    Joined:
    Apr 5, 2005
    Location:
    NC
    Jim,

    Can anyone post stuff they have seen / have on hand right now ?

  7. orangefj45

    orangefj45 Supporting Vendor

    Messages:
    16,862
    Likes Received:
    2,290
    Joined:
    Mar 14, 2003
    Location:
    norcal
    this outta be a good one.........

    one of my customers pulled his 40 out of a shop after they had it for two years to "rebuild" the 2F in it. head gasket was on backwards, they moved the valve train "bosses" around so no oil got to the top end,......real experts.
    and don't even get me started on "experts" and them doing vortec conversions. i have pics that'll horrify most people. ahhh, the power of advertising. :rolleyes:


    i'm sure Jim has seen some real duzy's as well.


    fwiw, i refuse to install gm distributors in toyota engines. that's about one of the dumbest ideas out there when you can install a factory part that'll do the same thing for ya and is actually designed to work that way. ;p

    RLMS likes this.
  8. FJ40Jim

    FJ40Jim The Cruiser Whisperer SILVER Star

    Messages:
    10,330
    Media:
    1
    Likes Received:
    2,650
    Joined:
    Sep 26, 2003
    Location:
    Lancaster, Ohio, USA
    Nick, that is the gear that came on the DUI special for the 2F. Isn't it the same gear found on a 292?
    I dunno. :meh:

  9. FJ40Jim

    FJ40Jim The Cruiser Whisperer SILVER Star

    Messages:
    10,330
    Media:
    1
    Likes Received:
    2,650
    Joined:
    Sep 26, 2003
    Location:
    Lancaster, Ohio, USA

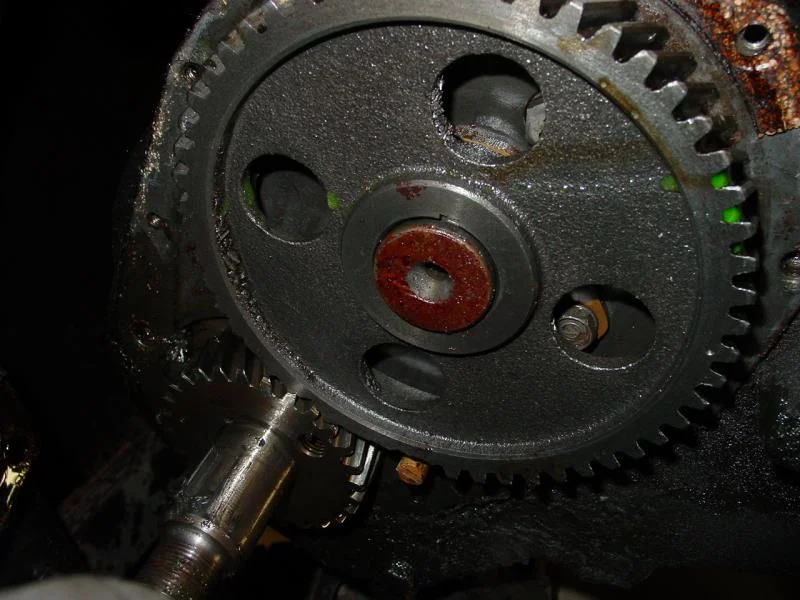

    For maximum carnage, be sure to leave off the retaining clip on the end of the camshaft. After all, the gear is keyed and pressed in place, the clip isn't really necessary on top of the other locating methods.

    As the cam tries to walk away from the gear, it will hit the rear cam plug & drive it out of the block, but don't let that worry you, as the bellhousing will prevent it from actually falling out on the road.

    As the cam gear loses it's press fit, it will walk off the front of the cam, but the slinger and the timing cover will prevent it from getting too far away.

    In this pic, the clip was never installed, and the gear has walked as far off the front of the cam as it could, before the slinger stopped it's unplanned excursion.

  10. FJ40Jim

    FJ40Jim The Cruiser Whisperer SILVER Star

    Messages:
    10,330
    Media:
    1
    Likes Received:
    2,650
    Joined:
    Sep 26, 2003
    Location:
    Lancaster, Ohio, USA

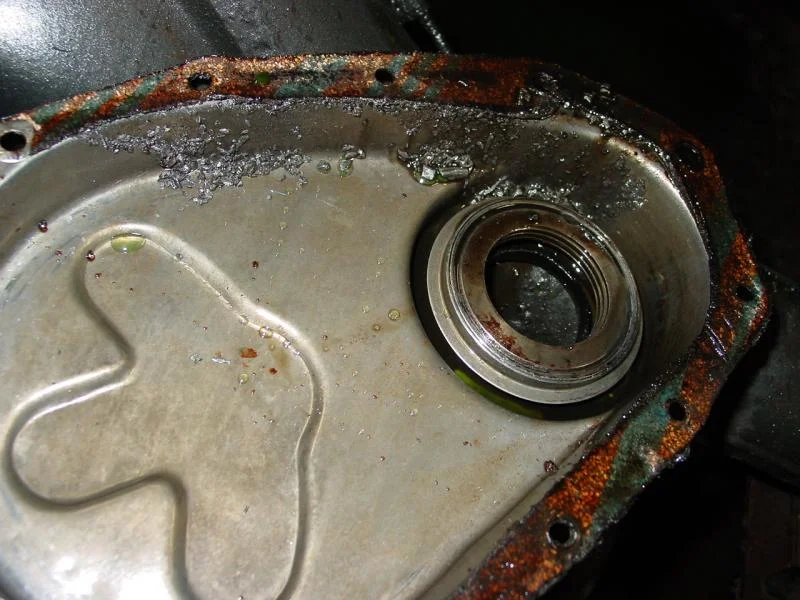

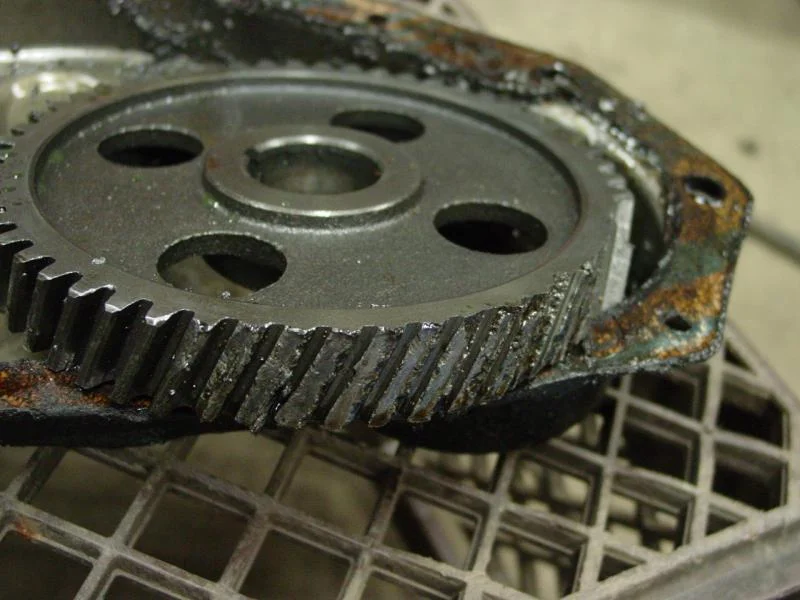

    Be sure to use top quality chinese timing gear, they real good.

    Chinese ITM gear=$40
    Japanese Joint Fuji gear=$80
    Breakdown on the side of the interstate, and 8hrs labor to replace cam= priceless.
    DSC07340.jpg DSC07338.jpg

    gator25 likes this.
  11. orangefj45

    orangefj45 Supporting Vendor

    Messages:
    16,862
    Likes Received:
    2,290
    Joined:
    Mar 14, 2003
    Location:
    norcal
    This is quicky shaping up to be the best thread in a while! :grinpimp:

  12. FJ40Jim

    FJ40Jim The Cruiser Whisperer SILVER Star

    Messages:
    10,330
    Media:
    1
    Likes Received:
    2,650
    Joined:
    Sep 26, 2003
    Location:
    Lancaster, Ohio, USA

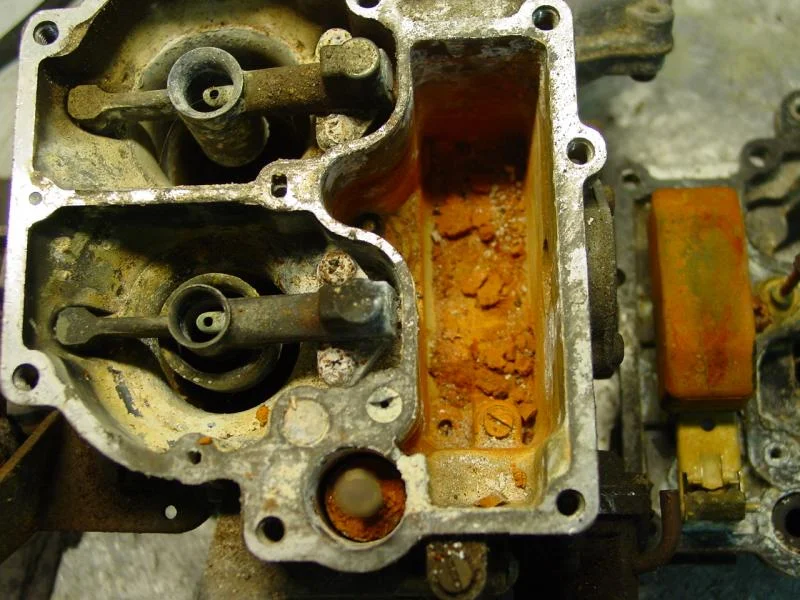

    When storing an engine outside, don't worry about covering it. The air cleaner will do a good job of collecting rainwater and trickling it down the air cleaner stud. The water will coat the carburetor and cylinders w/ open intake valves w/ a coat of protective rust.

  13. FJ40Jim

    FJ40Jim The Cruiser Whisperer SILVER Star

    Messages:
    10,330
    Media:
    1
    Likes Received:
    2,650
    Joined:
    Sep 26, 2003
    Location:
    Lancaster, Ohio, USA
    Antifreeze is overrated. The core plugs are in the block to allow the ice to escape when it freezes.
    It's only occasionally that the ice will crack the side of the block around a core plug hole. Replacing a block is much cheaper than 2 gallons of Prestone, right?
    DSC07305.jpg DSC07306.jpg

  14. orangefj45

    orangefj45 Supporting Vendor

    Messages:
    16,862
    Likes Received:
    2,290
    Joined:
    Mar 14, 2003
    Location:
    norcal
    I've got an antifreeze story....

    On a road trip in early 2005 I had my 81 hj45 Troopie on the trailer behind my tow rig. Driving thru eastern NV after midnight the temps dipped slightly below zero. Factor in wind chill from driving along at 65-70mph means it's really friggen cold. Crashed out at a roadside hotel at 2.30 am. Get up the next morning, check the row rig and trailer. It's now 10degs out. Under the Troopie on the trailer there's a green obstacle shaped like a small cow patty. I'm baffled for a second. Then I see green icicles just above it. I pop the hood and find one of the freezeplugs had gotten pushed out if the block just below the intake. It was still sitting there, on top if the green "waterfall". So I grabed it with my leathernan and put it in my pocket.
    Got to our next destination that night. Used a brass drift and hammer to knock the freeze plug back in place. I think I have a pic of it somewhere.
    Well, it's still there.

    I bet the block would have cracked if I had straight water in there......

    NeverGiveUpYota likes this.
  15. zebrabeefj40

    zebrabeefj40

    Messages:
    3,308
    Likes Received:
    126
    Joined:
    Feb 19, 2004
    Location:
    Pepperell MA
    I've had the pleasure of looking over Jim's shoulder on occasion to see some of the "fixed" carbs that come through his shop. There are definitlely "duzy's"! FWIW most of the pics are from only the last week or so. I have no idea how far back Jim's library of horror goes... :hmm:

    Jim, I'll have you know that rusty carb had not only the air cleaner on it but a hood over it too. :doh:

    Nick

  16. orangefj45

    orangefj45 Supporting Vendor

    Messages:
    16,862
    Likes Received:
    2,290
    Joined:
    Mar 14, 2003
    Location:
    norcal
    the rats must have been using that carb for a urinal for years then! :lol:

  17. coleman2347

    coleman2347 Ole Jarhead

    Messages:
    428
    Likes Received:
    11
    Joined:
    Jul 8, 2011
    Location:
    Tacloban City, Leyte Philippines
    Rats gota pee somewhere....subscribed

  18. fliphkd778

    fliphkd778

    Messages:
    990
    Likes Received:
    5
    Joined:
    Mar 10, 2007
    Do you have a part number for the joint fuji gear? How man miles did the ITM in the picture have on it?

    Last edited: Feb 19, 2012
  19. FJ40Jim

    FJ40Jim The Cruiser Whisperer SILVER Star

    Messages:
    10,330
    Media:
    1
    Likes Received:
    2,650
    Joined:
    Sep 26, 2003
    Location:
    Lancaster, Ohio, USA

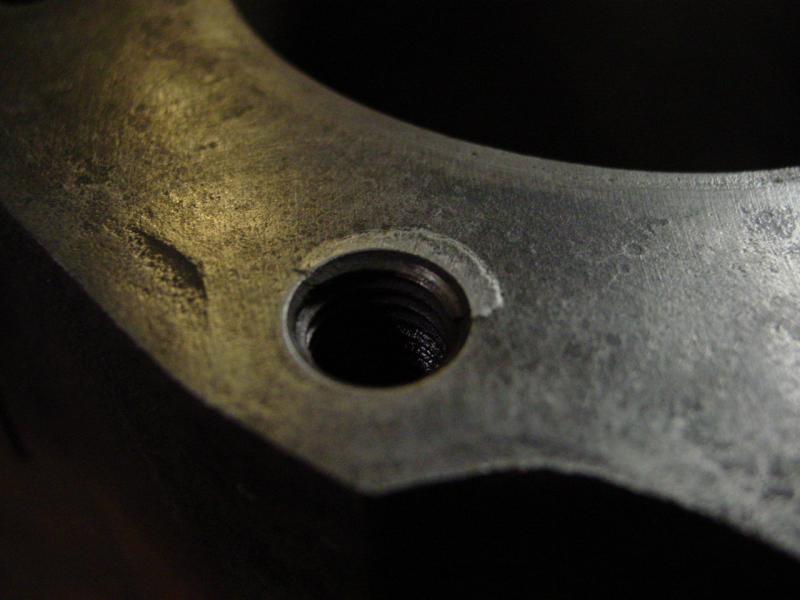

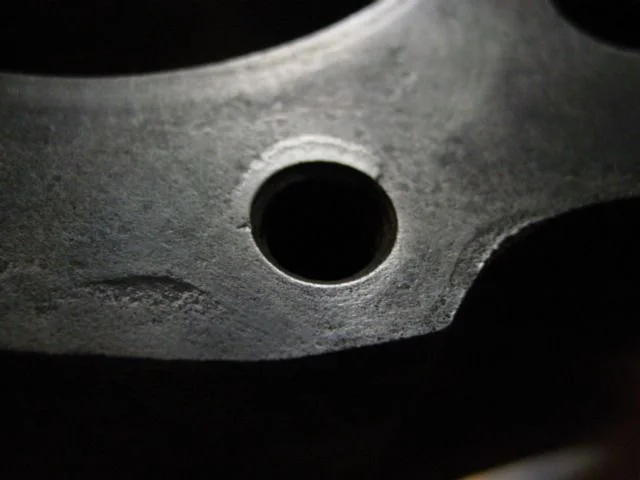

    Experts say the head bolt holes should be thread chased and re-chamfered when the engine is rebuilt. Otherwise the deck can pull up around the bolt hole and prevent the head from sitting down flat on the block.

    That never happens, right?
    DSC03497.JPG DSC03499.jpg

  20. FJ40Jim

    FJ40Jim The Cruiser Whisperer SILVER Star

    Messages:
    10,330
    Media:
    1
    Likes Received:
    2,650
    Joined:
    Sep 26, 2003
    Location:
    Lancaster, Ohio, USA

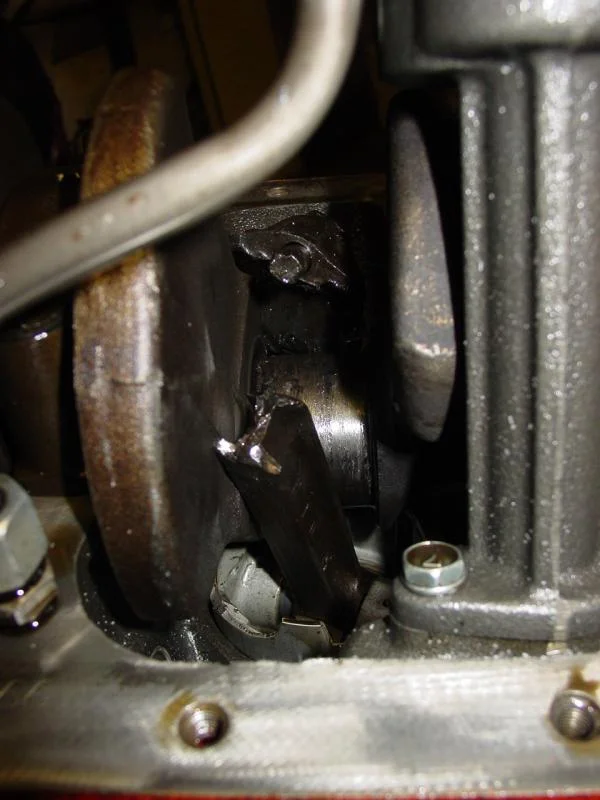

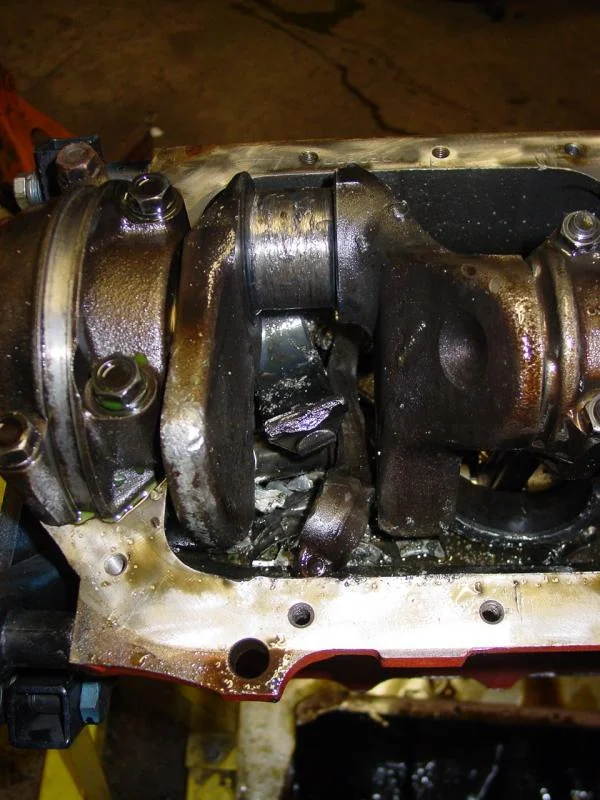

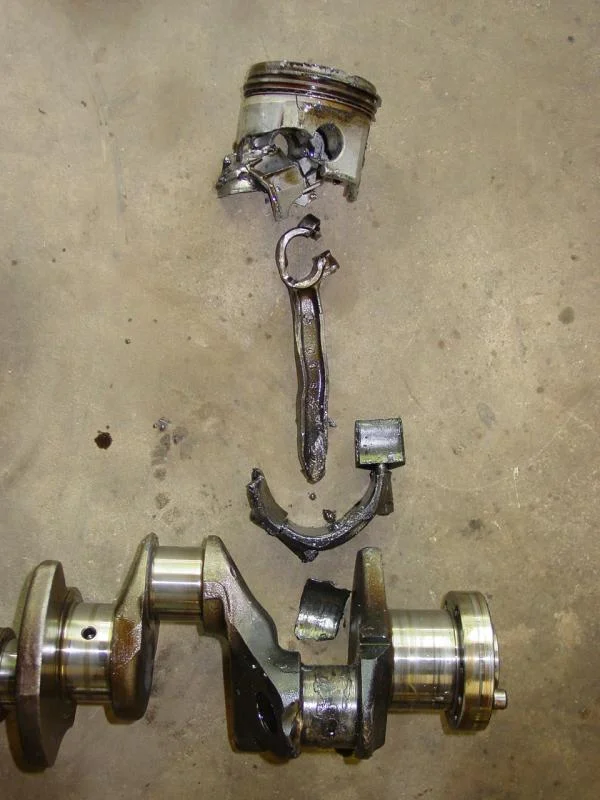

    When desmogging the 79-87 engine, connecting vac to both vac advance fittings will give 26* vac advance. Combine that with 25* of mechanical advance, and 10* of base timing, and there could be a total of 61* of advance at interstate RPM under moderate throttle. The spark knock will be loud, but not loud enough to be heard above Swamper howl. As the rod bearings are beat to death, they will also make a racket, but that will be inaudible above the swamper howl and the Grateful dead bootleg CD. Fortunately, the engine will shut itself down once the rods separate from the crank, preventing serious damage.
    DSC03740.jpg DSC03745.jpg DSC03748.jpg

    HawkDriver, 1MOA, Spike Strip and 2 others like this.
