Hello,

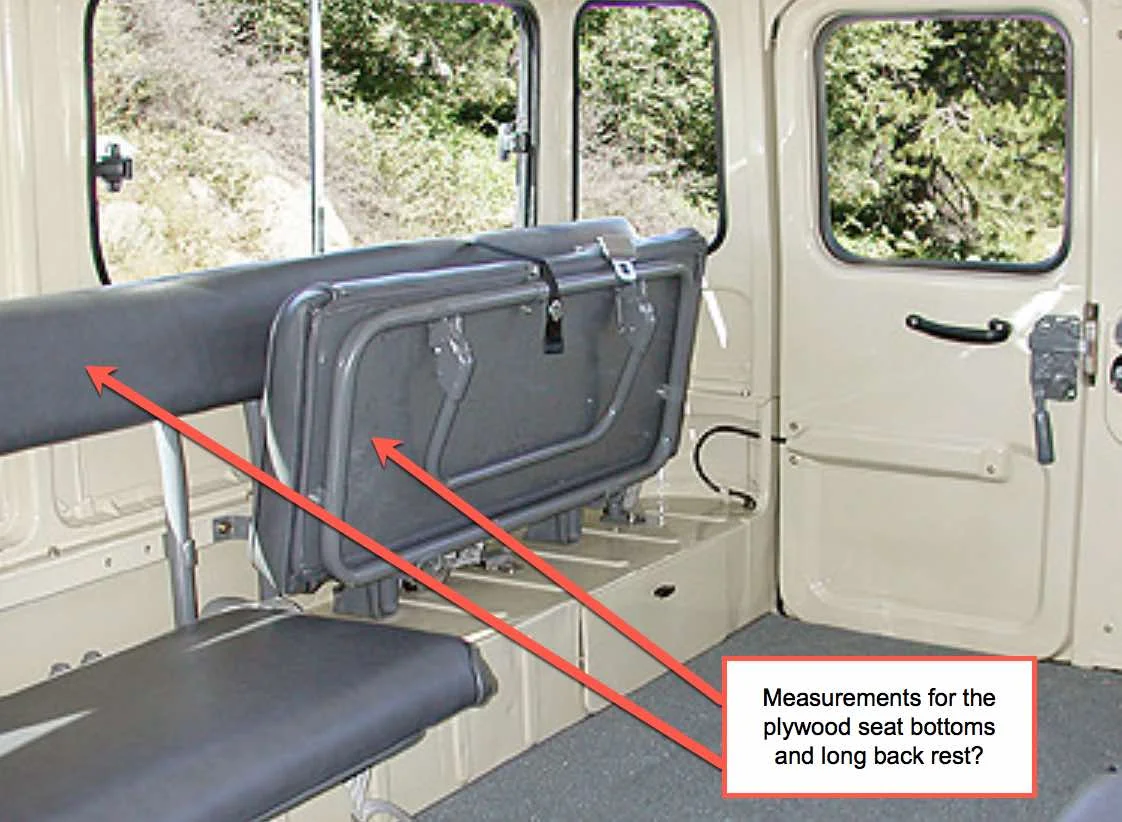

I finally have a line on some OEM troopy seat frames. Does anyone have the measurements for the plywood seat bottoms, as well as the plywood for the long backrests? (see pic). I could estimate, but if someone knows...

Thanks!

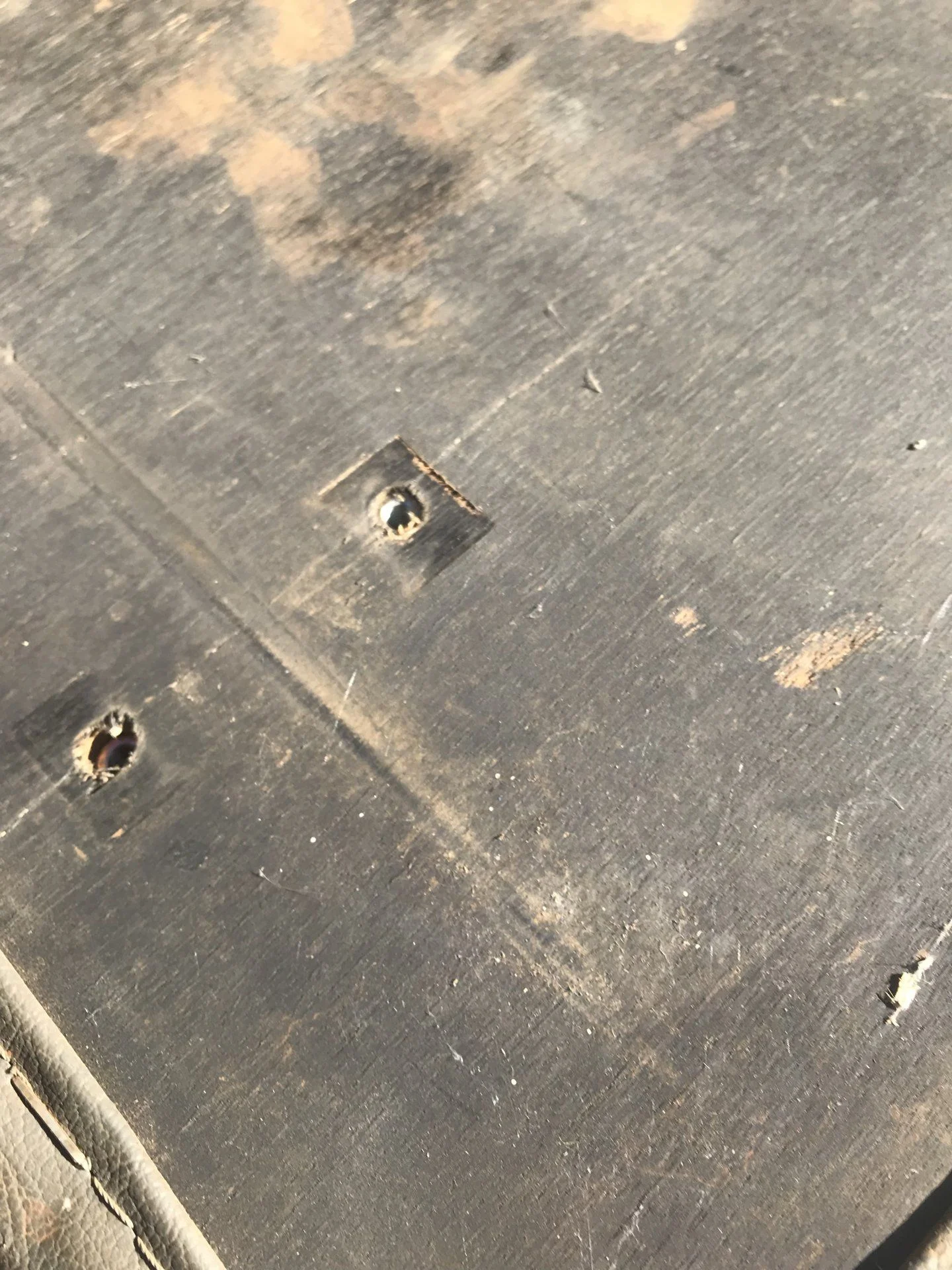

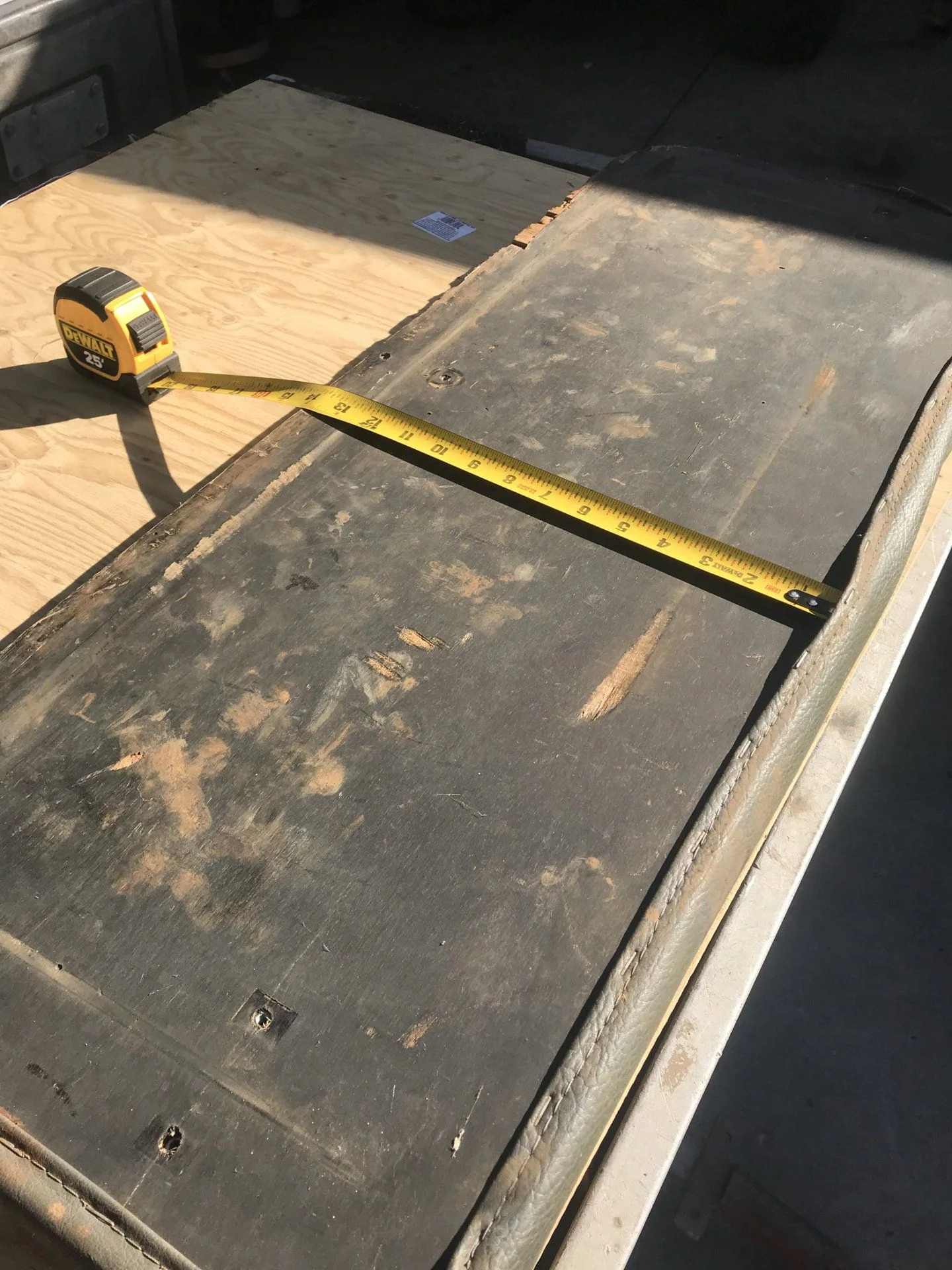

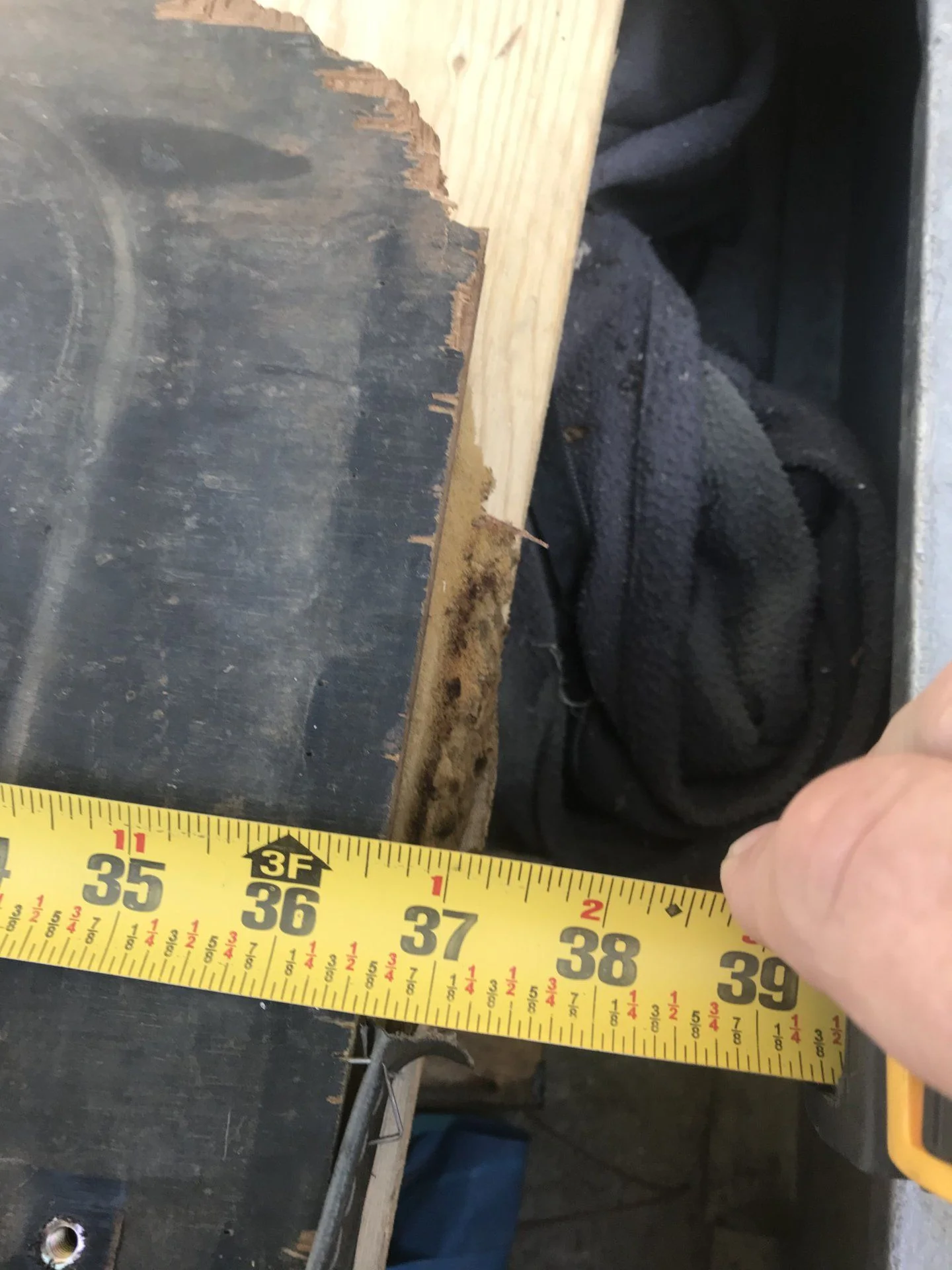

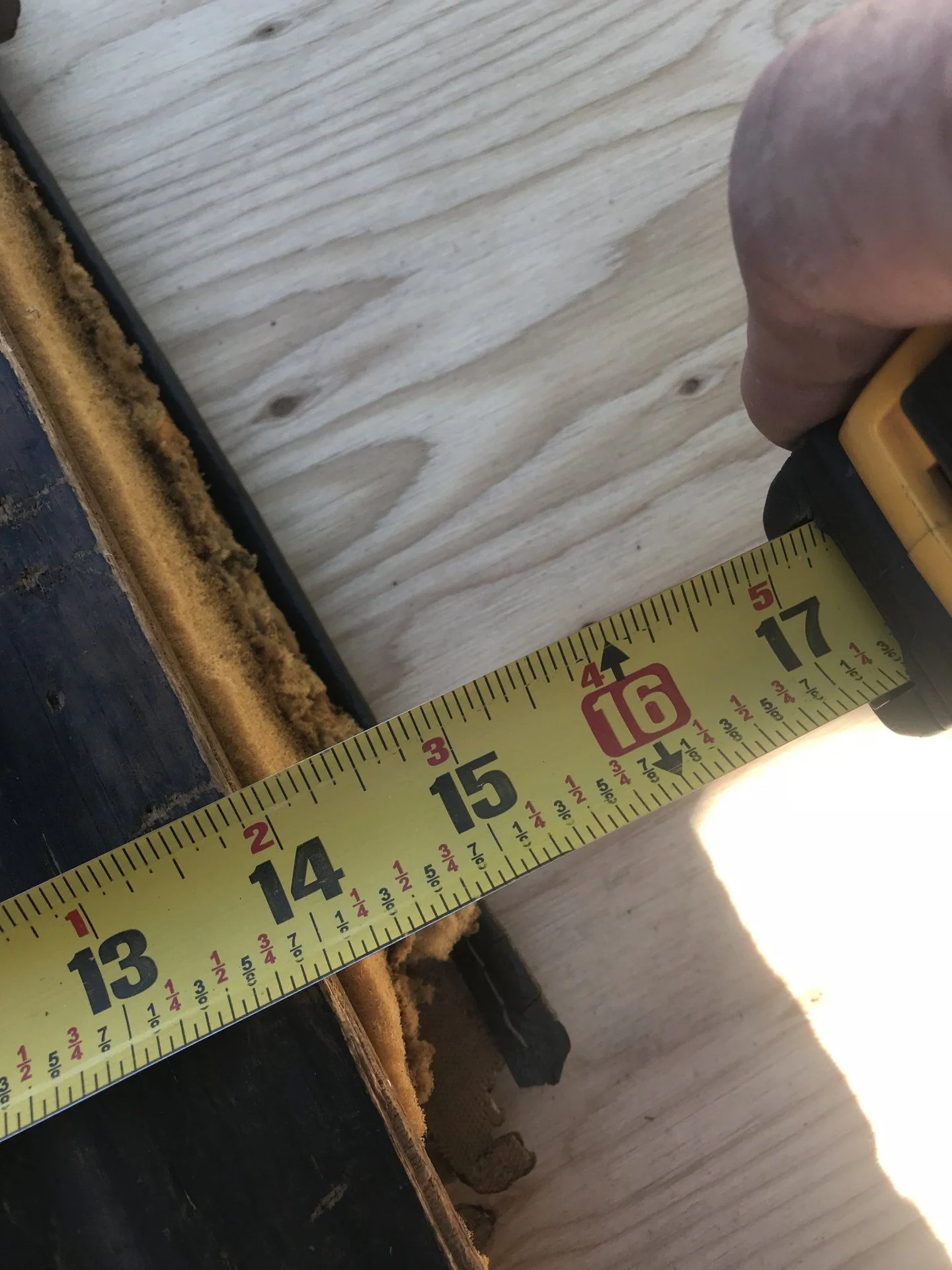

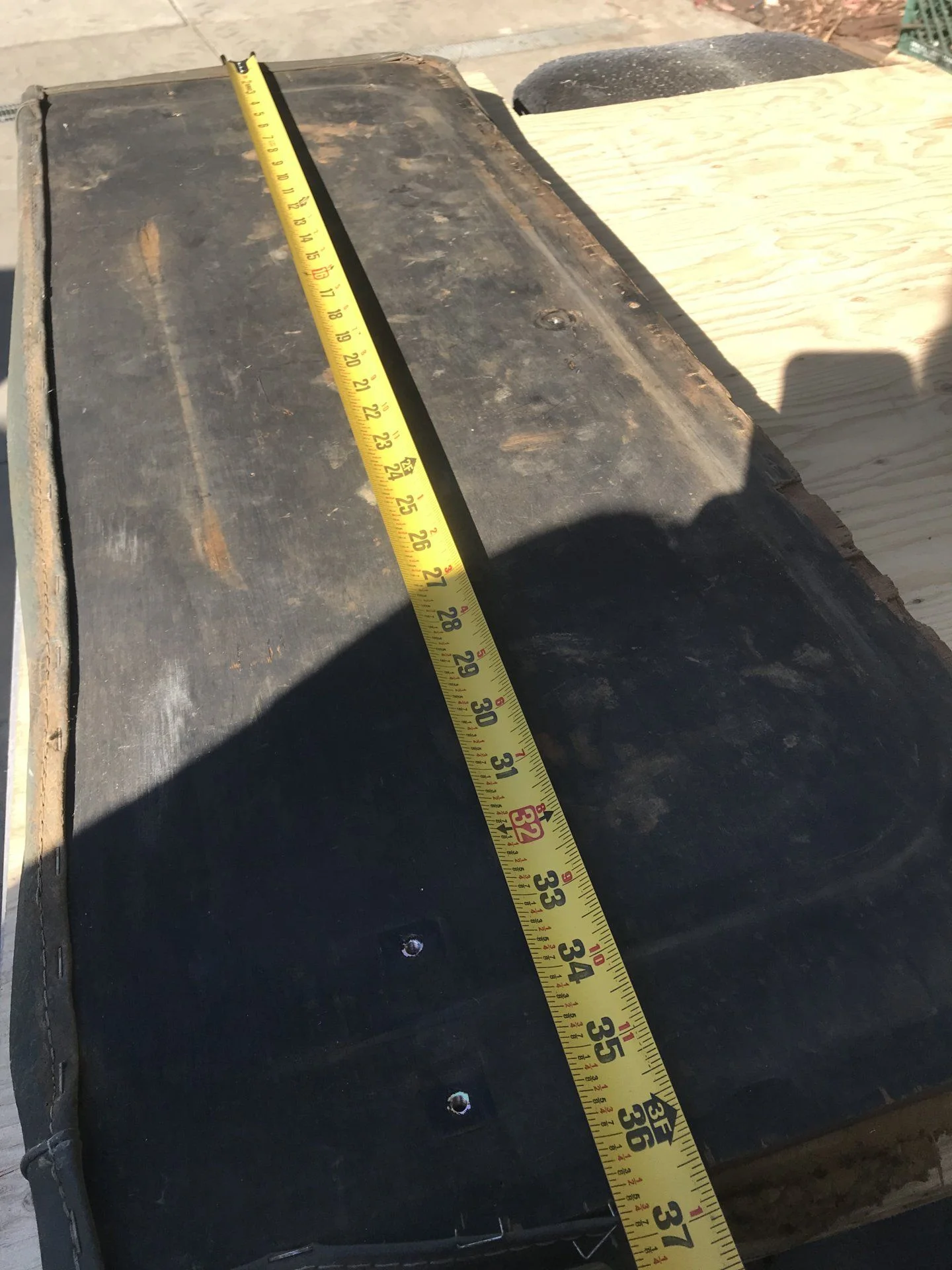

Here are measurements, found covers in storage but the rats had there way with them. 36 5/8 x 14 (1/2 inch thick plywood)

@whitey45 and others....bumping this thread 'only' two years later, time to restore some troopy seats!

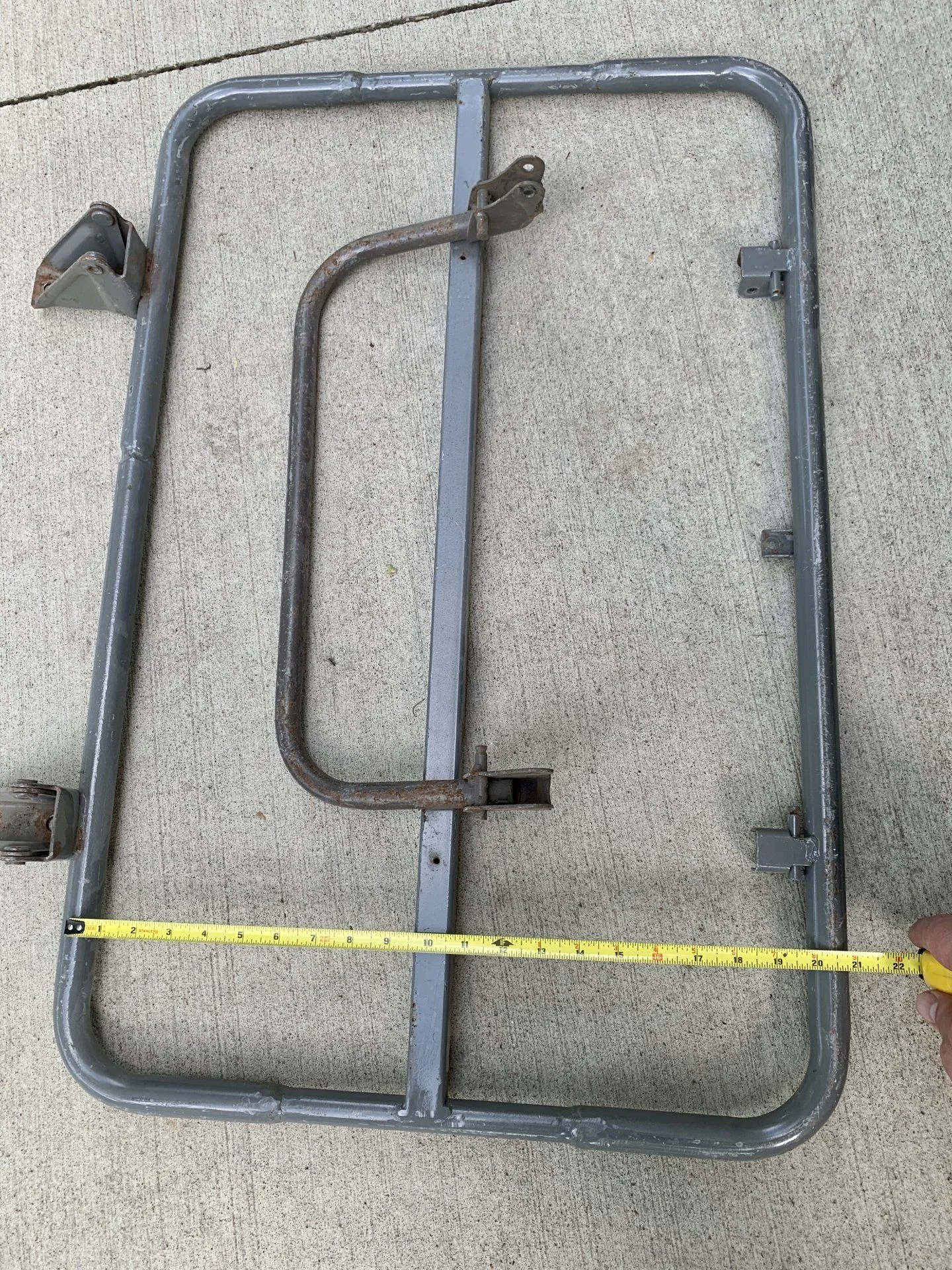

The troopy seats frame set I found ended up being custom 'expanded' to be about 7" deeper, to create some sort of camping bed support I was told. I'm looking to put them back to stock depth.

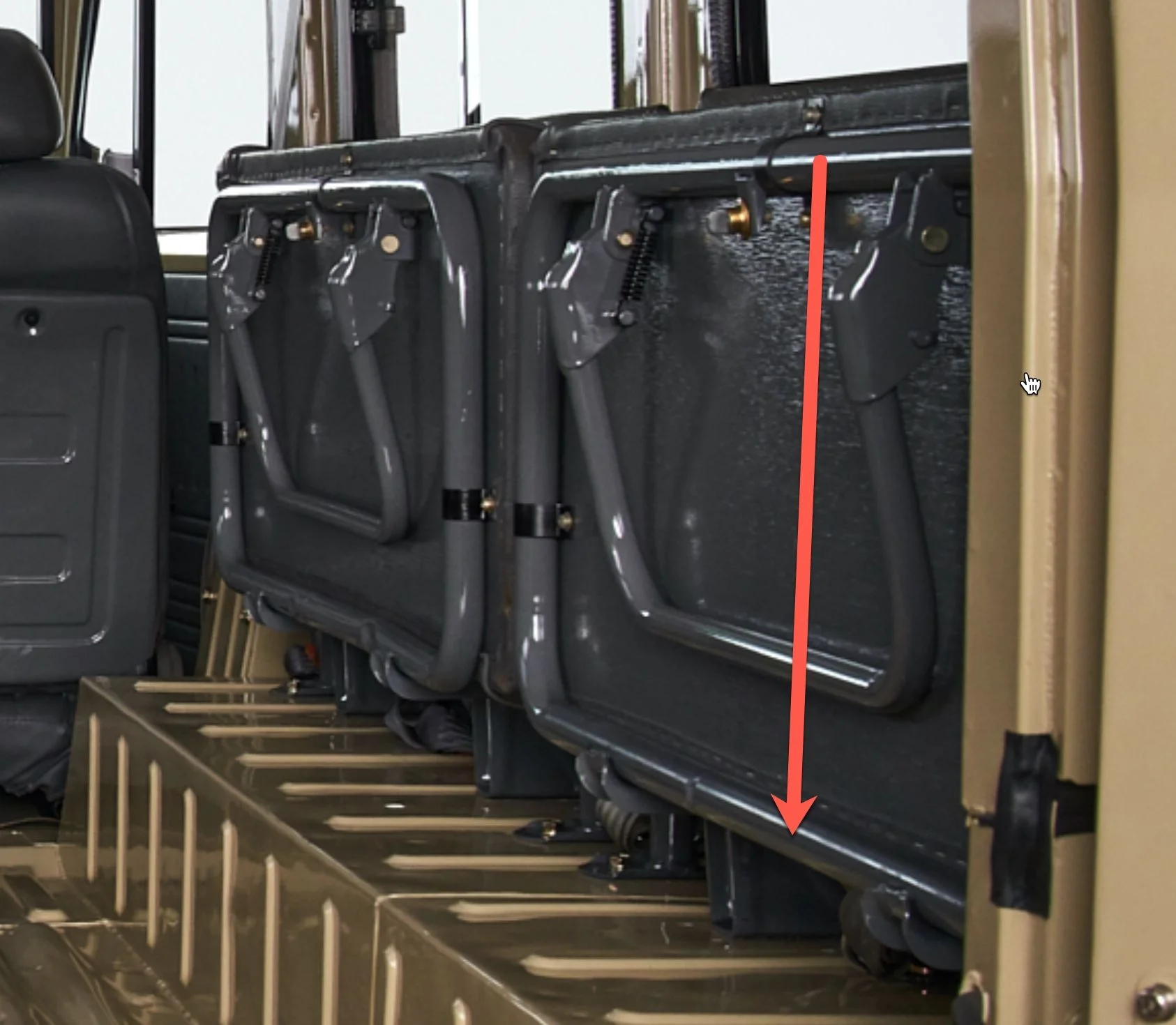

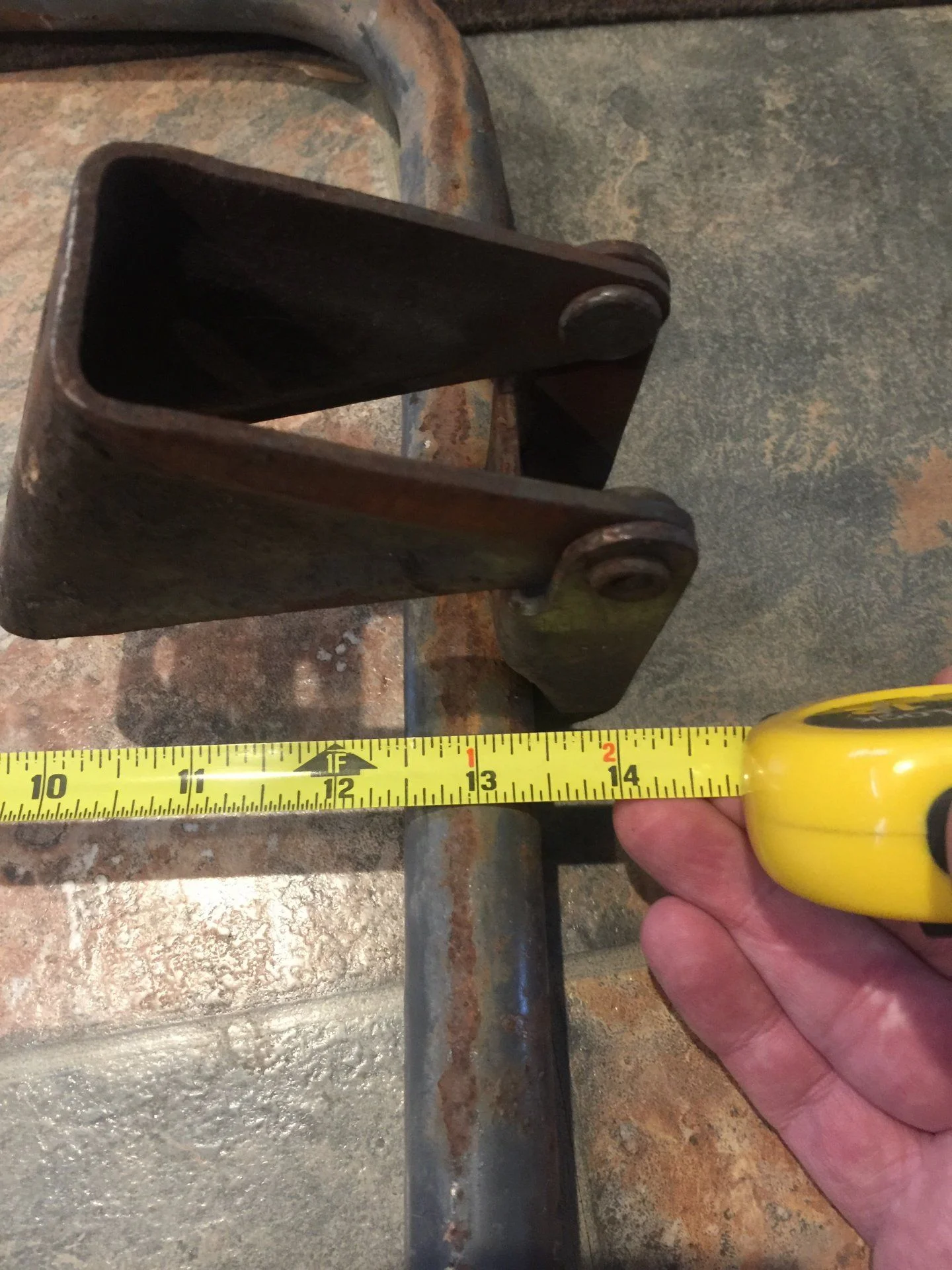

They currently measure about 20 3/8" deep, center of tube to center of tube. I found a pic showing a 13" on center measure of the stock depth, but only see one side of the tape, not were the tape starts.

Would someone be able confirm the stock troopy seat frame depth? 13" seems about right, especially with the 14" deep plywood measurement above. Thanks!
